EW72230P2AT&T 2230 2.4 GHz Cordless Telephone

1 2.4 GHz Cordless Telephone 2230 with Caller ID/Call Waiting 1 Please also read Part 1 — Important Product Information USER’S MANUAL Part 2 AT&T and the globe symbol are registered trademarks of AT&T Corp. licensed to Advanced American Telephones. REVISED 5/10/01 2230_book_1ATT 5/10/01 8:25 PM Page ii © 2001 Advanced American Telephones. All rights reserved. Printed in China. Issue 1AT&T 05/01 2230_book_1ATT 5/10/01 8:25 PM Page iii CONTENTS TO COME 2230_book_1ATT 5/10/01 8:25 PM Page 1 2230_book_1ATT 5/10/01 8:25 PM Page 2 About the Base and the Charger This cordless product provides you with two cordless handsets, a base station and a charger. You can charge either handset in the base or in the charger. You’ll need to connect the base to both AC power and a modular telephone jack. You’ll connect the charger to AC power only. For more installation information, please see INSTALLATION in this User Manual. About Caller Identification (Caller ID) This product has a Caller ID with Call Waiting feature that works with service from your local phone service provider. Caller ID with Call Waiting lets you see who’s calling before you answer the phone, even when you’re on another call. You may need to change your phone service to use this feature. Contact your phone service provider if: •You have both Caller ID and Call Waiting, but as separate services (you may need combined service) •You have only Caller ID service, or only Call Waiting service •You don’t subscribe to any Caller ID or Call Waiting services. You can use this product with regular Caller ID service, and you can use this product’s other features without subscribing to either Caller ID or combined Caller ID with Call Waiting service. There are fees for Caller ID services, and they may not be available in all areas. This product can provide information only if both you and the caller are in areas offering Caller ID service, and if both telephone companies use compatible equipment. About Call History This phone assigns each incoming call a number from 1 to 30. The most recent call will have the lowest number. When the memory is full, the oldest call information is deleted to make room for new incoming call information. If you answer a call before call information appears on the screen, it will not be in the call history. BEFORE YOU BEGIN 3 2230_book_1ATT 5/10/01 8:25 PM Page 3 1Connect the power cord to the base and an electrical outlet not controlled by a wall switch. Use only the power cord supplied with this product. If you need a replacement, call 1 800 222-3111. 3Install the handset battery. Use only AT&T Battery 2401, SKU# 91077. INSTALLATION 4 Standard electrical outlet Modular telephone jack b) Place the battery pack in the handset. Align the metal contacts on the battery with the contacts in the battery compartment. c) Replace cover by sliding it on its track up over battery case until it snaps firmly into place. a) Remove battery compartment cover by pressing on indentation and sliding downward. 2Connect the telephone line cord. ART AND TEXT FOR POSITION ONLY STILL NEED INFORMATION TO COMPLETE THIS SECTION 2230_book_1ATT 5/10/01 8:25 PM Page 4 INSTALLATION 5 4Charge the handset battery. •Place the handset in the base (or a remote charging stand, purchased separately). •Charge the battery at least 12 hours. After the first charge, the battery will quick charge in only eight hours. 5Check for dial tone. •After the batteries are charged, lift the handset and press P; you should hear a dial tone. Belt Clip Attach belt clip to the cordless handset (optional). Headset You can use this telephone hands-free when you install a 2.5 mm headset (purchased separately). Plug the headset into the jack located on the left side of the handset (under the small rubber flap). Do not force the connection, but make sure the plug fits securely. a) Slide down into grooves to attach. b) Push up and away to remove. ART AND TEXT FOR POSITION ONLY STILL NEED INFORMATION TO COMPLETE THIS SECTION 2230_book_1ATT 5/10/01 8:25 PM Page 5 Feature Setup Menu When you set features marked with * you are setting the feature for BOTH handsets. All other features must be set separately at each handset. Press to return to the previous menu item. NOTE: If you wait more than 30 seconds without pressing a key, the handset returns to the standby screen. Handset Volume Adjusting handset volume will not affect the volume of what the other party hears. Default setting is 3. You can also adjust volume during conversation by pressing <or >. 1Press S. The screen displays 2Press 2. The screen displays 3Press S. The screen displays 4Use the keypad to enter a volume setting (0– 7) — OR — Press <or >to display desired setting. 5Press Sto save displayed setting. Ring Volume Adjust the volume of the handset ringer. Setting volume to 0turns the ringer off. Default setting is 3. 1Press S. 2Press 3. The screen displays 3Press S. FEATURE SETUP 6 >CALL LOG PHONEBOOK >HANDSET VOLUME RING VOLUME >HANDSET VOLUME >RING VOLUME RING PATTERN 2230_book_1ATT 5/10/01 8:25 PM Page 6 4Use the keypad to enter a volume setting (0– 6) — OR — Press <or >to display desired setting. 5Press Sto save displayed setting. Ring Pattern The external ring pattern sets which ringer you hear when you have an outside call. The internal ring pattern sets which ringer you hear when you have an intercom call from the other handset. External ring pattern default setting is 0; internal ring pattern default setting is 1. 1Press S. 2Press 4. The screen displays 3Press S. 4Press >then Sto set EXT RING PATTERNor INT RING PATTERN. 5Use the keypad to enter a ring pattern selection (0– 9) — OR — Press <or >to display desired setting. A sample of the displayed setting is played briefly. 6Press Sto save displayed setting. Auto Answer When this feature is on, an incoming call is connected when you lift the handset from the base or the charger (you don’t have to press P). If the handset is not in the base or charger, you do have …

Text truncated - open the document above for the full version.

TECH V ENGINEERING CANADA LTD. 200-7671 Alderbridge Way, Richmond B.C. Canada V6X 1Z9 FAX: (604) 276-9137 TEL: (604) 273-5131 FCC ID: EW72230P2 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Authority To Act As Agent To The Federal Communication Commissions I appoint Nemko Canada Inc. to act as agent in the preparation of applications for equipment authorization on our behalf to the Federal Communications Commission. I certify that exhibits submitted properly describe the devise or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the commissions regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this __1 st _day of ___June__ 2002 Agency Agreement Expiration Date: Dec. 31, 2002 By:_ _Joseph Poon (Signature)(Printed) Title: Regulatory Compliance Manager Telephone: (604) 273-5131 Ext. 257 Applicant: VTECH Engineering Canada Ltd.

TECH V ENGINEERING CANADA LTD. 200-7671 Alderbridge Way, Richmond B.C. Canada V6X 1Z9 FAX: (604) 276-9137 TEL: (604) 273-5131 FCC ID: EW72230P2 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Request for Confidentiality VTech Telecommunications would like to keep the following documents as confidential for the application of the AT&T 2230 approval for FCC Part 15 submission. • Schematic diagram files • Technical description files The above documents contain information for new technology & ideas in 2.4GHz cordless telephone, so we would like to prevent the use of this information by other companies. Dated this __12th__day of ____June__ 2002 By:_ _Joseph Poon (Signature)(Printed) Title: Regulatory Compliance ManagerTelephone: (604) 273-5131 Ext. 257 Applicant: VTECH Engineering Canada Ltd.

IMPORTANT PRODUCT INFORMATION Safety Information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. 1 Read and understand all instructions in the user’s manual. Observe all markings on the product. 2 Avoid using a telephone during a thunderstorm. There may be a slight chance of electric shock from lightning. 3 Do not use a telephone in the vicinity of a gas leak. If you suspect a gas leak, report it immediately, but use a telephone away from the area where gas is leaking. If this product is a cordless model, make sure the base is also away from the area. 4 Do not use this product near water, or when you are wet. For example, do not use it in a wet basement or shower, or next to a swimming pool, bathtub, kitchen sink, or laundry tub. Do not use liquids or aerosol sprays for cleaning. If the product comes in contact with any liquids, unplug any line or power cord immediately. Do not plug the product back in until it has dried thoroughly. 5 Install this product in a protected location where no one can trip over any line or power cords. Protect cords from damage or abrasion. 6 If this product does not operate normally, read “In Case of Difficulty” in the user’s manual. If you cannot solve the problem, or if the product is damaged, refer to the Limited Warranty. Do not open this product except as may be directed in your user’s manual. Opening the product or reassembling it incorrectly may expose you to hazardous voltages or other risks. Part 1 (Continued) © 2001 Advanced American Telephones. All rights reserved. AT&T and the Globe Design are trademarks of AT&T Corp. licensed to Advanced American Telephones. REVISED 5/20/01 Pt1_1yr_Eng_China_5ATT 5/20/02 12:20 PM Page 1 2 7 If this product has user-replaceable batteries, replace batteries only as described in your user’s manual. Do not burn or puncture batteries — they contain caustic chemicals. 8 If this product has a three-prong (grounding) plug or a polarized plug with one wide prong, it may not fit in non-polarized outlets. Do not defeat the purpose of these plugs. If they do not fit in your outlet, the outlet should be replaced by an electrician. CAUTION:Use only the power adapter provided with this product. To obtain a replacement, call 1 800 222–3111. SAVE THESE INSTRUCTIONS Especially About Cordless Telephones Privacy: The same features that make a cordless phone convenient create some limitations. Telephone calls are transmitted between the base and the handset by radio waves, so there is a possibility that your cordless phone conversations could be intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless phone conversations as being as private as those on corded phones. Electrical Power:The base unit of this cordless telephone must be connected to a working electrical outlet. The electrical outlet should not be controlled by a wall switch. Calls cannot be made from the handset if the base unit is unplugged or switched off, or if the electrical power is interrupted. Potential TV Interference:Some cordless telephones operate at frequencies that may cause interference to TVs and VCRs. To minimize or prevent such interference, do not place the base unit of the cordless telephone near or on top of a TV or VCR. If interference is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference. (Applies to 25-channel cordless phones only.) Rechargeable Batteries:This product contains either Nickel-Cadmium or Nickel-Metal Hydride rechargeable batteries. Exercise care in handling batteries in order not to short the battery with conducting material such as rings, Pt1_1yr_Eng_China_5ATT 5/20/02 12:20 PM Page 2 3 bracelets, and keys. The battery or conductor may overheat and cause harm. Observe proper polarity between the battery and the battery charger. Nickel-Cadmium Rechargeable Batteries: Must be recycled or disposed of properly. Do not dispose of in household garbage. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury. The RBRC ™ Seal means that the manufacturer is voluntarily participating in an industry program to collect and recycle Nickel- Cadmium rechargeable batteries when taken out of service within the United States. These batteries may be taken to a participating local retailer of replacement batteries or recycling center. Or you may call 1 800 8BATTERY for locations accepting spent Nickel- Cadmium Batteries. Nickel-Metal Hydride Rechargeable Batteries:Dispose of these batteries in a safe manner. Do not burn or puncture. Like other batteries of this type, if burned or punctured, they could release caustic material which could cause injury. Precautions for Users of Implanted Cardiac Pacemakers Cardiac Pacemakers (applies only to 900 MHz Digital Cordless Telephones): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless telephones and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR had recommended to physicians that: PACEMAKER PATIENTS • Should keep wireless phones at least six inches from the pacemaker • Should NOTplace wireless phones directly over the pacemaker, such as in a breast pocket, when it is turned ON • Should use the wireless phone at the ear opposite the pacemaker WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless phones. Pt1_1yr_Eng_China_5ATT 5/20/02 12:20 PM Page 3 4 Especially About Telephone Answering Systems Two-Way Recording:This unit does not sound warning beeps to let the other party know that the call is being recorded.…

Text truncated - open the document above for the full version.








































































!"#
$ #
%$
&'
(
&'







































)*



!*




##
+'


 #




&

,
&
-










./

0




!"#
$ #



&
+ 1
.

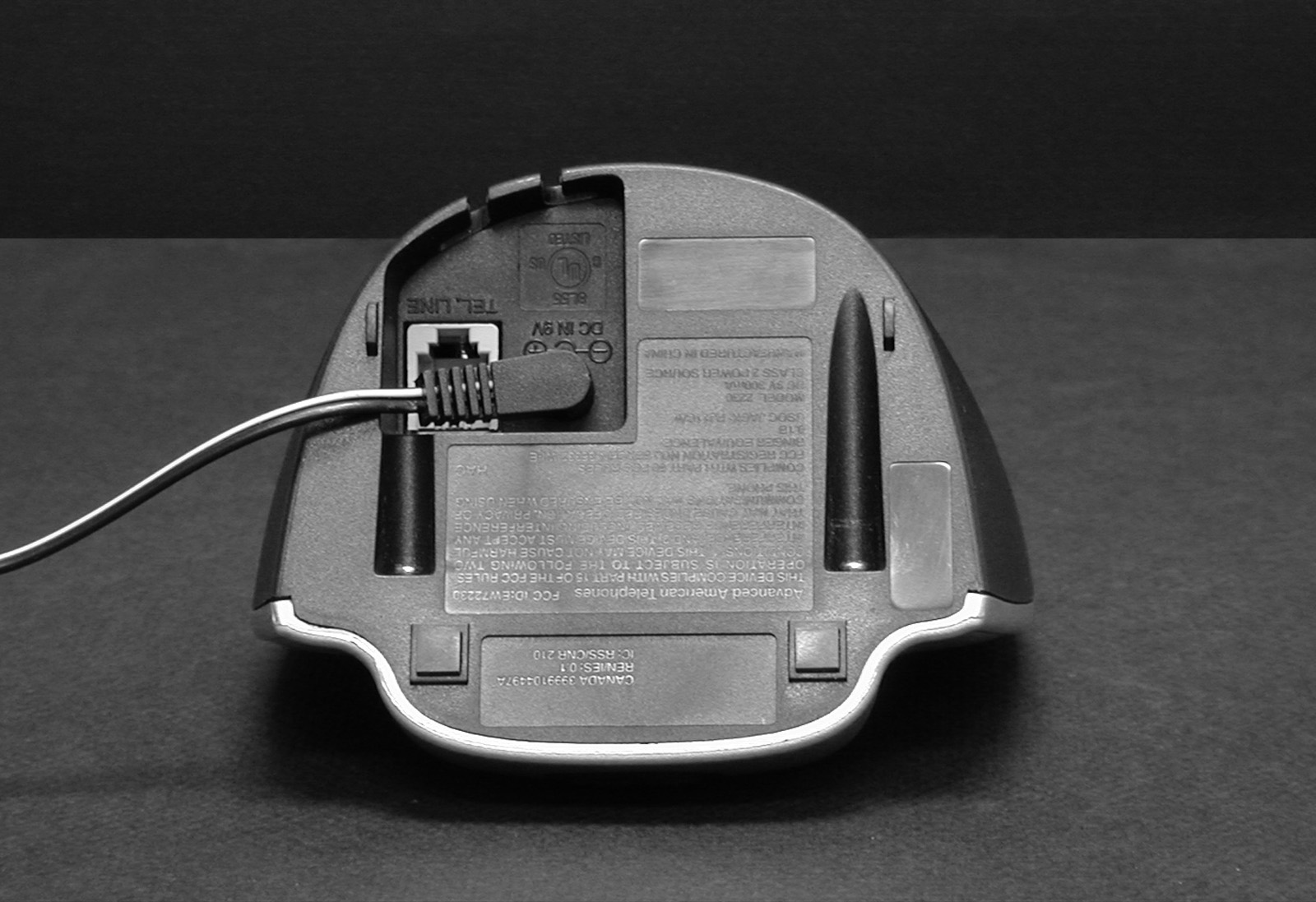

B A C D CHARGER BOTTOM BASE BOTTOM HAC UL ENGRAVING PART 15 & PART 68 DC IN 9V TEL. LINE THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PART 68 FCC REGISTRATION NO.: US: 6BXCHN-36332-WI-E RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W MODEL 2230 DC 9V 300mA CLASS 2 POWER SOURCE MANUFACTURED IN CHINA Advanced American Telephones Advanced American Telephones 2230/2255/2235 DC 6V 300mA CLASS 2 POWER SOURCE ONLY FCC ID: EW72230P2 F HANDSET REAR E HANDSET FRONT RED BLK FCC ID: EW72230P2 Use Only Battery 2422 CAUTION: Danger of explosion if battery is incorrectly replaced.

Radio Frequency Exposure Information For AT&T 2230 LC (low cost) 2.4GHz Cordless Telephone Handset : Readings from test report : (1) Max. Output Power – Ant. A = 0.1W ; Ant. B = 0.08W (2) Duty cycle – 750us x10 / 100ms = 7.5% (measured in single slot transmission) Under the worst environment with interference, dual slot diversity gives the max. duty cycle on the handset Tx (ie. 7.5% x2 or 15%) Hence, taking the max. power output & max. duty cycle, the average effective output power is : 0.1W x 15% = 0.015W or 15mW Conclusion : The average effective output power is much lower than the 50mW level (Supplement C, Table 1) which starts to require SAR testing. Hence, there is no RF exposure concerns on handset. Base : Readings from test report : (1) Max. Output Power – 0.15W (2) Duty Cycle – 750us x15 / 100ms = 11.25% (with single handset & dummy carriers) The phone is a TDD, FHSS. So, the worst case is actually operating with 4 handsets (750us x40 / 100ms, or 30%). Hence, taking the worst case, the average effective output power is : 0.15W x 30% = 0.045W or 45mW Conclusion : The base of a cordless phone system is not normally operated close to the users as that of the handset. Together with the low average effective output power, the base is also with no concerns on RF exposure. Joseph Poon Regulatory Compliance Manager VTech E ngineering Ca nada Ltd.

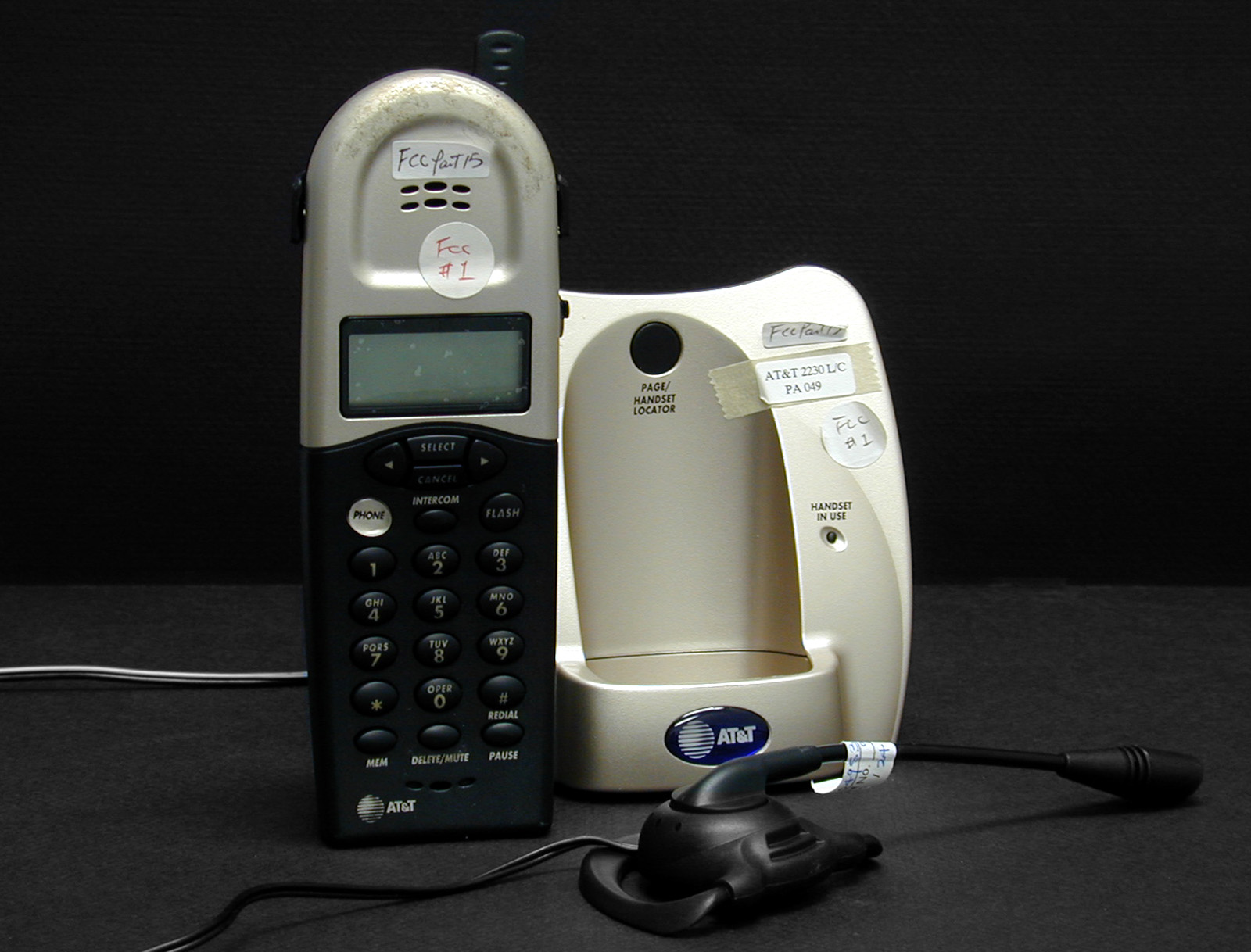

Master: PT15C-FHT Date: February 7, 2002 Test Report:2W04953.1 Applicant:VTECH ENGINEERING CANADA 200-7671 Alderbridge Way Richmond, B.C. V6X 1Z9 Equipment Under Test:AT&T 2230 LC P2, 2.4 GHz FHSS Cordless Phone (EUT) FCC ID:EW722230 In Accordance With:FCC Part 15, Subpart C Frequency Hopping Transmitters 2400 - 2483.5 MHz Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date:15 May 2002 Total Number of Pages:51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 2 of 51 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Powerline Conducted Emissions..........................................................................7 Section 4. Channel Separation............................................................................................10 Section 5. Pseudorandom Hopping Algorithm...................................................................12 Section 6. Time of Occupancy.............................................................................................21 Section 7. Occupied Bandwidth..........................................................................................24 Section 8. Peak Power Output.............................................................................................30 Section 9.Spurious Emissions (Radiated)...........................................................................34 Section 10.Block Diagrams....................................................................................................48 Section 11.Test Equipment List............................................................................................51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 3 of 51 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Frequency Hopping Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. TESTED BY: Kevin Rose, Test Technician DATE: 15 May 2002 Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 4 of 51 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions15.207(a)Complies Channel Separation15.247(a)(1)Complies Pseudo random Hopping Algorithm15.247(a)(1)Complies Time of Occupancy15.247(a)(1)(ii)Complies 20 dB Occupied Bandwidth15.247(a)(1)Complies Peak Power Output15.247(b)Complies Spurious Emissions (Radiated)15.247(c)Complies Test Conditions: IndoorTemperature:23°C Humidity:34% OutdoorTemperature:15°C Humidity:28% Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 5 of 51 Section 2.General Equipment Specification Manufacturer: VTECH Engineering Canada Model No.: AT&T 2230, LC, P2 2.4 GHz Cordless Phone Serial No.: None Date Received In Laboratory: April 01, 2002 Nemko Identification No.: Item 1, Item 2 Frequency Range: 2401.056 – 2482.272 MHz Tunable Bands: 1 Number of Channels: 95 Channel Spacing: 875kHz, 855kHz Emissions Designator: 783k3F1D User Frequency Adjustment: None Rated Output Power 20 dBm Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 6 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 7 of 51 Section 3.Powerline Conducted Emissions Para. No.: 15.207 (a) Test Performed By: Kevin RoseDate of Test: April 24, 2002 Test Results:Complies Measurement Data:No peak emissions within 6 dB of the Average Limit, See attached graph(s). Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 8 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 9 of 51 Conducted Emissions Set-up Photo Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 10 of 51 Section 4.Channel Separation Para. No.: 15.247 (a)(1) Test Performed By: Kevin RoseDate of Test: April 24, 2002 Test Results:Complies Measurement Data:Channel Separation: Handset:875kHz Base Station:855kHz Nemko Canada Inc.FCC PART 15, SUBPART C FRE…

Text truncated - open the document above for the full version.

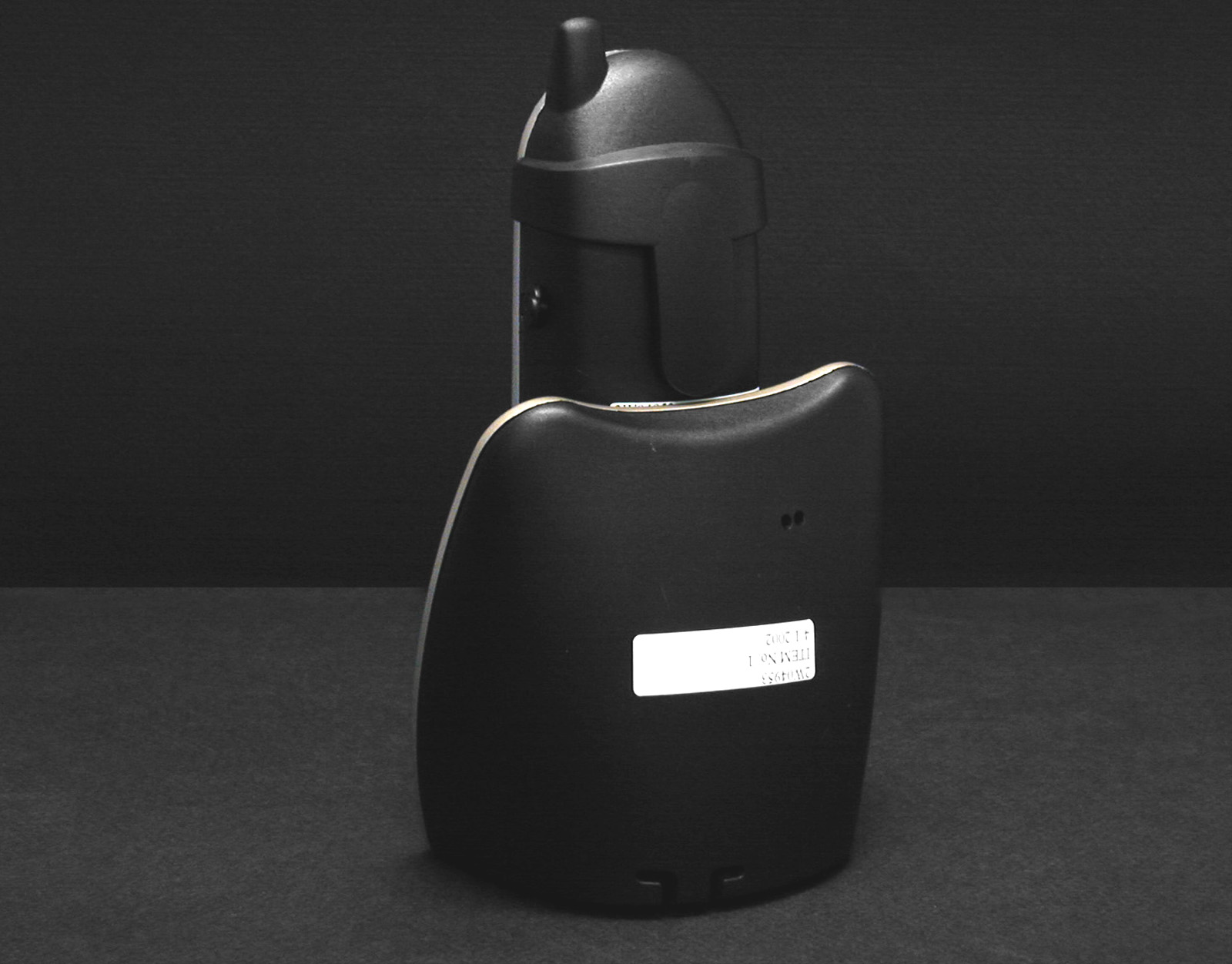

Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 26 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 27 of 51 Handset Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 28 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 29 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 30 of 51 Section 8.Peak Power Output Para. No.: 15.247 (b) Test Performed By: Kevin RoseDate of Test: April 24, 2002 Test Results:Complies. The maximum peak power output of the transmitter is 0.15 watts Measurement Data:Detachable antenna? Yes No Handset, Antenna A Directional Gain of Antenna: 0 dBi or 1 Numeric Peak Power Output: 0.10 watts. Field Strength: 115.3 dBμV/m @ 3m or 0.58 V/m @ 3m. Handset, Antenna B Directional Gain of Antenna: 0 dBi or 1 Numeric Peak Power Output: 0.08 watts. Field Strength: 114.1 dBμV/m @ 3m or 0.51 V/m @ 3m. Base Station Directional Gain of Antenna: 0 dBi or 1 Numeric Peak Power Output: 0.15 watts. Field Strength: 117.1 dBμV/m @ 3m or 0.72 V/m @ 3m. See Attached radiated measurements. Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 31 of 51 Test Data - Radiated Emissions, Handset A Ant., Peak Test Distance (meters) : 3 Range: A Receiver: HP 8565 RBW(kHz): 1000 No.Freq. (MHz) Ant. * Pol (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Duty Cycle. Corr. (dB) Field Strength (dBμμV/m) 12401Hrn 1V79.333.9113.2 22401Hrn 1H80.833.9114.7 32482.28Hrn 1V78.634.1112.7 42482.28Hrn 1H76.134.1110.2 52441.44Hrn 1V81.334115.3 62441.44Hrn 1H78.934112.9 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-measured using dipole antenna. **Includes cable loss when amplifier is not used. ***Includes cable loss. ( )Denotes failing emission level. N.D. =Not Detected Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 32 of 51 Test Data - Radiated Emissions, Handset, B Ant., Peak Test Distance (meters) : 3 Range: A Receiver: HP 8565 RBW(kHz): 1000 No.Freq. (MHz) Ant. * Pol (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Duty Cycle. Corr. (dB) Field Strength (dBμμV/m) 12401Hrn 1V79.633.9113.5 22401Hrn 1H80.233.9114.1 32482.28Hrn 1V78.234.1112.3 42482.28Hrn 1H76.334.1110.4 52441.44Hrn 1V8134115 62441.44Hrn 1H79.234113.2 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-measured using dipole antenna. **Includes cable loss when amplifier is not used. ***Includes cable loss. ( )Denotes failing emission level. N.D. =Not Detected Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 33 of 51 Test Data - Radiated Emissions, Base Station, Peak Test Distance (meters) : 3 Range: A Receiver: HP 8565 RBW(kHz): 1000 No.Freq. (MHz) Ant. * Pol (V/H) RCVD Signal (dBμμV/m) Ant. Factor (dB)** Amp. Gain (dB)*** Duty Cycle. Corr. (dB) Field Strength (dBμμV/m) 12482.3Hrn 1V7734.8111.8 22482.3Hrn 1H78.634.8113.4 32401.18Hrn 1V79.834.6114.4 42401.18Hrn 1H82.534.6117.1 52441.67Hrn 1V76.234.7110.9 62441.67Hrn 1H79.234.7113.9 Notes: B/C =Biconical, B/L = Biconilog, L/P = Log-Periodic, H = Horn, D/P = Dipole *Re-measured using dipole antenna. **Includes cable loss when amplifier is not used. ***Includes cable loss. ( )Denotes failing emission level. N.D. =Not Detected Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 34 of 51 Section 9.Spurious Emissions (Radiated) Para. No.: 15.247 (c) Test Performed By: Kevin RoseDate of Test: April 24, 2002 Test Results: The worst case emission level is 48.4 dBμV/m @ 3m at 4964.31MHz. This is 5.6 dB below the specification limit. Measurement Data:See attached table. Duty Cycle Calculation:Handset: 20Log{(10X0.75)/100}= -22.5dB Base Station: 20Log{(15X0.75)/100} = -19.0 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 35 of 51 Duty Cycle Plots Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 36 of 51 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 37 of 51 Band Edge Plots, Hopping On Base Station Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 38 of 51 Handset, Hopping On Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 39 of 51 Base Station, Hopping Off Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 40 of 51 Handset, Hopping Off Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO: 2W04953.1 EQUIPMENT: AT&T 2230 LC P2, 2.4GHz FHSS Cordless Phone Page 41 of 51 Upper Bandedge, with 1MHz RBW/VBW Handset Field Strength at Band edge: 112.7dBuV/m@3m – 8.2dB= 104.5dBuV/m@3m, Marker Delta: 100kHz RBW=35.0 dB Therefore: Peak Field Strength…

Text truncated - open the document above for the full version.

Re: FCC ID EW72230P2 Vtech Telecommunications Ltd. Ref. #: EA830521 Subject: Data (1) The test technician searched for peak radiated emissions from the EUT in 3 orthogonal axis. The worst case levels and orientation were reported. (2) Peak …

Text truncated - open the document above for the full version.
