EW780-0144-001.9GHz DECT Baby Monitor - Baby Unit

Adjust the sound sensitivity of the baby unitYou can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit. The higher the sensitivity level, the more sensitive the baby unit is in detecting sounds for transmitting to the parent unit. The sound sensitivity is preset to LEVEL 5 . Sound sensitivity table for reference Display Sensitivity Description High sensitivity levelThe parent unit speaker is constantly on, and you will hear all sounds (including background noises) from your baby’s room. Medium high sensitivity levelThe parent unit speaker turns on for soft babbling and louder sounds from your baby. It remains quiet when your baby sleeps soundly. Medium sensitivity levelThe parent unit speaker turns on for loud babbling and louder sounds from your baby. It remains quiet when your baby makes soft sounds. Medium low sensitivity levelThe parent unit speaker turns on for crying and louder sounds from your baby. It remains quiet when your baby makes soft sounds. Low sensitivity levelThe parent unit speaker turns on for loud crying or screeching sounds from your baby. It remains quiet when your baby makes soft sounds. Press MENU when the parent unit is not in use.Press SELECT . Press VOL. or VOL. to choose the sensitivity level.Press SELECT to confirm your selection. The screen displays SAVED and you hear a confirmation tone. 1.2.3.4. Install the battery as shown below. NOTE Make sure the supplied rechargeable battery with the label THIS SIDE UP facing up. • User’s manualDM223/DM223-2Safe & Sound ® Digital Audio Monitor BC The parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, make sure you use both battery and AC power at the same time. With the battery alone, the parent unit can cordlessly run for a short time only. NOTES Use only the battery supplied with this product.If the parent unit will not be used for a long time, disconnect and remove the battery to prevent possible leakage.Without AC power charging, the battery gradually discharges, even when the parent unit is switched off. ••• Install the battery Replace the batteryTo replace the battery, unplug the battery connector from the socket, and then pull the battery out of the battery compartment. Follow the steps above to install the battery. Charge the parent unit batteryOnce you have connected the parent unit or installed its battery, it powers on automatically . The battery icon indicates the battery status (see the following table). NOTES The parent unit battery is fully charged after 11 hours of continuous charging.It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.The standby time varies depending on the sensitivity level you set, your actual use and the age of the battery. Battery indicators Battery status Action The battery icon is off. No battery is installed. The parent unit can be used only when it is connected to AC power. Install the parent unit battery. Charge without interruption (at least 30 minutes). LOW BATTERY and flash on the screen. The light flashes. The battery has very little charge and may be used for only a short time. Charge without interruption (about 30 minutes). The battery icon becomes solid . The battery is fully charged. To keep the battery charged, connect it to AC power when not in use. ••• NOTE This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. You may test the baby monitor before initial use, and at regular times thereafter. Place the parent unit and the baby unit in he same room to test the product.Test your audio monitor Speak towards the microphone of the baby unit. You will hear the sound at the parent unit, and see the visual sound indicators light up. TIP Increase the speaker volume of the parent unit if you cannot hear the sounds transmitted from the baby unit. NOTES Make sure the baby unit is at least 1 meter (3 feet) away from the parent unit.If no connection can be established, the parent unit displays NOT LINKED and flashes. Positioning the baby monitor CAUTION Keep the baby unit out of the reach of the baby. Never place or mount the baby unit inside the baby’s crib or playpen.Do not expose the baby unit to extreme heat or direct sunlight. ••••••• Before use Baby unit overview 1 VOL. Press to decrease the speaker volume. • 2 Microphone 3 NIGHT LIGHT Press to turn the night light on or off. • 4 Night light On when night light is turned on. • 5 POWER light On when the baby unit is turned on. • 6 VOL. Press to increase the speaker volume. • 7 POWER Press and hold to power on or off. • 8 PAGE Press to start or stop paging parent unit. • 9 Power jack 10 Speaker Parent unit overview 1 Microphone 2 VOL. Press to decrease the speaker volume.While in a menu, press to scroll down. •• 3 Speaker 4 MENU/ Press to enter the menu while idle.While in a menu, press to return to the previous screen.Press to return to idle screen. ••• 5 Visual sound indicator The visual sound indicator has two functions. One is to show the sound level detected by the baby unit. The other one is to show the volume level during speaker volume setting.Sound level detected by the baby unit One to three green lights indicate a moderate sound level detected by the baby unit. Additional red lights indicate a higher sound level detected by the baby unit (e.g. baby crying loudly). Speaker volume level One to three green lights indicate Level 1 to Level 3 of the speaker volume setting. Additional red lights indicate Level 4 to Level 5 of the speaker volume setting. •••• 6 LCD panel Overview 7 Battery level indicator Light on when the battery is being charged.Light flashes when the battery is low and needs charging.Light off when no battery is installed. ••• 8 VOL. Press to increase the speaker volume.W…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification Oct 15, 2015 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Oct 15, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification-Baby Unit FCC ID: EW780-0144-00 Request is hereby submitted by VTech Telecommunications Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

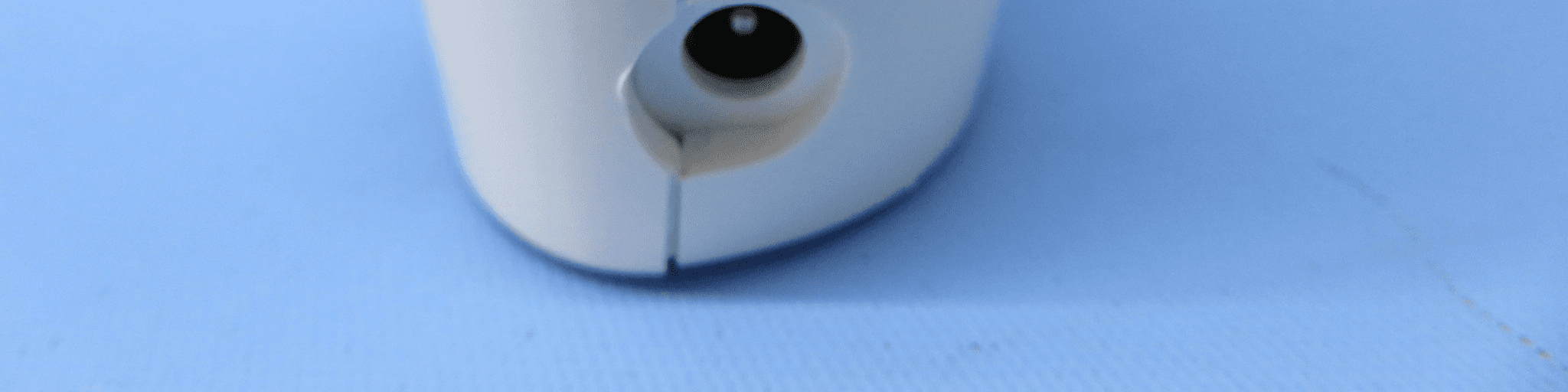

INTERTEK TESTING SERVICES External Photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES External Photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES External Photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400

MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 FCC ID: EW780-0144-00 IC: 1135B-80014400 DC 6V 400mA Model: XXXXXXXXX S/N: XXXXXXXXXXX m m 2 8 . 7 46.7 2 . 4 2 18.00 7 0 . 6 1 6.92 3 0 . 8 5.00 0 0 . 8 30.50 0 0 . 6 S/N and barcode are printed by the barcode room 0.40mm 4.1mm 0.43mm 0.68mm 0.52mm 0.63mm m m 1 . 4 Engraving PU SN Label Size: 17.5X16 mm 92-XXXXXX-010-10092-XXXXXX-010-10092-XXXXXX-010-100 The red serial number and barcode will be printed in VTT Material: 50# UL approved PET FCC ID: EW780-0144-01 IC: 1135B-80014401 FCC ID: EW780-0144-01 IC: 1135B-80014401 FCC ID: EW780-0144-01 IC: 1135B-80014401 DM223 / DM223-2 Engraving BUPU Model: DM223 S/N: XXXXXXXXXXX Model: DM223 PU S/N: XXXXXXXXXXX Model: DM223-2 PU S/N: XXXXXXXXXXX FCC ID: EW780-0144-01 IC: 1135B-80014401 Model: DM2x3-ab PU S/N: XXXXXXXXXXX MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 FCC ID: EW780-0144-00 IC: 1135B-80014400 DC 6V 400mA Model: DM223 BU S/N: XXXXXXXXXXX 46.0 8 . 3 2 MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 FCC ID: EW780-0144-00 IC: 1135B-80014400 DC 6V 400mA Model: DM223-2 BU S/N: XXXXXXXXXXX 46.0 8 . 3 2 MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 FCC ID: EW780-0144-00 IC: 1135B-80014400 DC 6V 400mA Model: DM2x3-ab BU S/N: XXXXXXXXXXX 46.0 8 . 3 2

INTERTEK TESTING SERVICES Internal photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400

INTERTEK TESTING SERVICES FCC ID: EW780-0210-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Baby Unit of tested model: DM223 BU, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of DM223 BU is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 20.8% (5/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.208) mW = 26.19 mW The power density at 20cm = 26.19 *1.00/ 4R 2 = 0.0052 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 15100581HKG-002 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: EW780-0144-00 IC: 1135B-80014400 Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Nip Ming Fung, Melvin Engineer Assistant Manager December 02, 2015 INTERTEK TESTING SERVICES Test Report Number: 15100581HKG-002 Page 1 of 69 FCC ID: EW780-0144-00 IC: 1135B-80014400 GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2014 Edition FCC ID: EW780-0144-00 FCC Model(s): DM223 BU, DM223-2 BU, DM2x3-ab BU IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 4, November 2014 IC: 1135B-80014400 IC Model(s): DM223 BU, DM223-2 BU Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Baby Monitor- Baby Unit Serial Number: N/A Sample Receipt Date: October 16, 2015 Date of Test: October 28 to November 27, 2015 Report Date: December 02, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: 15100581HKG-002 Page 2 of 69 FCC ID: EW780-0144-00 IC: 1135B-80014400 Table of Contents 1.0 Test Results Summary & Statement of Compliance .............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description ................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.3 Test Methodology .................................................................................................... 9 2.4 Test Facility ........................................................................................................... 10 3.0 System Test Configuration .................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Radiated Emission Test Setup ............................................................................... 13 3.3 AC Line Conducted Emission Test Setup .............................................................. 13 3.4 Conducted Emission Test Configuration ................................................................ 14 3.5 Conducted Monitoring and Operational Test Configuration .................................... 14 3.6 EUT Exercising Software ....................................................................................... 14 3.7 Details of EUT and Description of Accessories ...................................................... 15 3.8 Measurement Uncertainty ..................................................................................... 15 4.0 Measurement Results ............................................................................................ 17 4.1 Antenna Requirement ........................................................................................... 17 4.2 Digital Modulation Techniques ............................................................................... 17 4.3 Emission Bandwidth .............................................................................................. 18 4.4 Directional Gain of the Antenna ............................................................................. 21 4.5 Peak Transmit Power ............................................................................................ 22 4.6 Power Spectral Density ......................................................................................... 25 4.7 Automatic Discontinuation of Transmission ............................................................ 28 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 29 4.9 Emissions Outside the Sub-Band .......................................................................... 33 4.9.1 Radiated Emiss…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Oct 15, 2015 To whom it may concern, Declarations – Baby Unit FCC ID: EW780-0144-00 IC: 1135B-80014400 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the parent unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Switch-off device A 4 On hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of baby unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 Radiated Emission – Baby Unit Transmission (adaptor: Ten Pao) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 AC Conducted Emission – Baby Unit: Speaker On + Night Light On (adaptor: RuiJing) ront View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15100581HKG-002 FCC ID: EW780-0144-00 IC: 1135B-80014400 AC Conducted Emission Side View 2
