EW780-1323-08Full Color Video Monitor

Note • This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. Test your baby monitor You may test the baby monitor before initial use, and at regular times thereafter. Caution • For hearing protection, make sure the parent unit is more than 3 feet (1 meter) away from both baby units. If you hear any high-pitched noise, move the parent unit further until the noise stops. You can also press on the parent unit to reduce the noise. 1. Make sure your baby unit and parent unit are on. 2. The parent unit displays images from the baby unit. • Speak towards the microphone of the baby unit. You will hear the sound at the parent unit. 3. If you have two baby units, press VIEW on your parent unit. The screen switches to the other baby unit. Then, repeat step 2. Note • When the parent unit displays and then No Link to CAM # (# represents the baby unit number), and the LINK LED light flashes, move the parent unit closer to the baby unit (observe the minimum distance of 3 feet / 1 meter). You can also check if the baby unit is connected to a live power socket and switched on. Tip • Increase the speaker volume of the parent unit if you cannot hear the sounds transmitted from the baby units. Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. Note • To avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers. 1. Place the baby unit more than 3 feet (1 meter) away from your baby. 2. Adjust the angle of the baby unit camera to aim at your baby. 3. Bend down the temperature sensor so that it stays away from baby unit to avoid deviation of temperature detection. 4. Place the parent unit more than 3 feet (1 meter) away from the baby units to avoid screeching noise. Power on or off the baby unit • Slide the ON/OFF switch to ON to turn on the baby unit. The ON/OFF LED light turns on. • Slide the ON/OFF switch to OFF to turn off the baby unit. The ON/OFF LED light turns off. Power on or off the parent unit • Press and hold POWER to turn on the parent unit. The screen turns on. • Press and hold POWER again to turn off the parent unit. The screen turns off. Turn on or off the parent unit screen You can turn on or off the parent unit screen without powering off the parent unit. You can still hear sound from the baby units. • Press and hold LCD ON/OFF on the parent unit to turn off the screen. • Press any keys on the parent unit to turn on the screen again. Adjust speaker volume For parent unit: • Press or on the parent unit at any time when viewing images. For baby unit: The baby unit speaker volume determines the lullaby volume and talkback volume transmitted from parent unit. It can be adjusted in the parent unit. 1. Press MENU when the parent unit is idle. 2. Press or to choose Volume on CAM, then press SELECT. 3. Press or to choose the desired volume level, Level 1 is the softest while Level 5 is the loudest. Then, press SELECT to confirm your selection. Note • Volume adjustment with the parent unit menu is available in Single CAM and Patrol mode only. User’s manual VM5251 VM5251-2 Full Color Video Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Congratulations on purchasing your new VTech product. Before using this product, please read Important safety instructions. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech product. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature-rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. 1 set for VM5251 2 sets for VM5251-2 Adjust the sound sensitivity of the baby unit You can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit. The higher the sensitivity level, the more sensitive the baby unit is in detecting sounds for transmitting to the parent unit. The VOX sensitivity level is preset to HIGHEST. VOX Sensitivity level Highest High MediumLowLowest Description The parent unit speaker is constantly on, and you will hear all sounds (including background noises) from your baby’s room. The parent unit speaker turns on for soft babbling and louder sounds from your baby. It remains quiet when your baby sleeps soundly. The parent unit speaker turns on for loud babbling and louder sounds from your baby. It remains quiet when your baby makes soft sounds. The parent unit speaker turns on for crying and louder sounds from your baby. It remains quiet when your baby makes soft sounds. The parent unit speaker turns on for loud crying or screeching sounds from your baby. It remains quiet when your baby makes soft sounds. 1. Press MENU when the parent unit is idle. 2. Press or to choose VOX Sensitivity, then press SELECT. • If you have two baby units, the system prompts you to choose the desired baby unit or both baby units, press or to choose ALL CAM or CAM #, then press SELECT. 3. Press or to choose the desired sensitivity level, then press SELECT to confirm your selection. NOTESNOTE Note • As long as the Sound-activated Screen setting is On, the screen will turn on automatically when VOX sensitivity is triggered, despite it was off earlier. Tips • You can adjust the baby unit placement to improve the sound detection. • If you want to use a sound machine or white noise machine for natural white noise while using this babymonitor to check on your baby, you can: - Lower the volume of your sound machine or white noise machine; or - Lower the sensitivity level of your baby monitor to medium (level 3) or be…

Text truncated - open the document above for the full version.

Status icons Connection status • displays when strong signal strength is detected between the baby unit and the parent unit. • or displays when moderate or low signal strength is detected between the baby unit and the parent unit. • displays when the link between the baby unit and the parent unit is lost. Lullaby • Displays when the baby unit being viewed is playing lullaby. or or or Current view status • Displays the number of the baby unit that is being viewed when in Single CAM and Patrol mode. • Displays the baby unit number of the selected baby unit when in Split mode. Patrol mode • Displays when the parent unit is in Patrol mode. • For VM5251-2 only. Split mode • Displays when the parent unit is in Split mode. • For VM5251-2 only Night vision • Displays when the baby unit being viewed has activated the night vision feature. Zoom • Displays when the current image on the parent unit has zoomed in. Temperature alert tone • Displays when the temperature alert tone is set on. o F or o CReal-time temperature • Displays the real-time temperature detected by the baby unit in Fahrenheit ( o F) or Celsius ( o C) (e.g. 57 o F or 14 o C). Mute alert • Displays when the parent unit speaker volume is set to off. • Displays when the parent unit is talking to the baby unit. 9-level sound indicator • (1 to 3 bars) indicates low sound level detected by the baby unit. • (4 to 6 bars) indicates moderate sound level detected by the baby unit. • (7 to 9 bars) indicates high sound level detected by the baby unit. Speaker volume • Displays the parent unit speaker volume level while adjusting. Battery status • animates when the battery is charging. • displays solid when the battery is fully charged. • displays when the battery is low and needs charging. AC power without battery • Displays when the parent unit is connected to AC power without the battery. The RBRC® seal on the nickel-metal hydride battery indicates that VTech Communications, Inc. is voluntarily participating in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service within the United States and Canada. The RBRC® program provides a convenient alternative to placing used nickel-metal hydride batteries into the trash or municipal waste, which may be illegal in your area. VTech’s participation in RBRC® makes it easy for you to drop off the spent battery at local retailers participating in the RBRC® program or at authorized VTech product service centers. Please call 1 (800) 8 BATTERY® for information on Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its commitment to protecting our environment and conserving natural resources. RBRC® and 1 (800) 8 BATTERY® are registered trademarks of Rechargeable Battery Recycling Corporation. Mesures de sécurité importantes La plaque signalétique appliquée est située au bas du socle de l’unité du bébé. Lorsque vous utilisez votre appareil, vous devriez toujours suivre certaines mesures de précaution de base afin de réduire les risques d’incendie, d’électrocution et de blessures corporelles, dont ceux qui suivent : 1. Observez toutes les instructions et mises en garde inscrites sur l’appareil. 2. L’installation par un adulte est requise. 3. MISE EN GARDE: N’installez pas l’unité du bébé à une hauteur supérieure à 2 mètres. 4. Ce produit ne remplace pas la surveillance adulte du nourrisson. La supervision du nourrisson est la responsabilité du parent ou de la personne qui s’occupe de l’enfant. Ce produit pourrait cesser de fonctionner et, par conséquent, vous ne devriez pas présumer qu’il continuera de fonctionner correctement pendant une période de temps donnée. De plus, il ne s’agit pas d’un instrument médical et ne devrait pas être utilisé comme tel. Ce produit est destiné à vous aider à superviser votre bébé. 5. N’utilisez pas cet appareil près de l’eau ni de toute autre source d’humidité, par exemple, près d’une baignoire, cuve à lessive, évier de cuisine, dans un sous-sol humide ni près d’une piscine, dans un soussol humide ou une douche. 6. MISE EN GARDE: Utilisez uniquement les piles fournies. Il existe un risque d’explosion si un autre type de batterie est utilisé pour l’unité Parents. N’utilisez que le bloc-piles rechargeable inclus ou le bloc-piles de rechange (BT198555/BT298555). N’incinérez pas les piles. Celles-ci risqueraient d’exploser. Jetez les piles usées selon les renseignements suivant le sceau du RBRC ® . 7. N’utilisez que les adaptateurs inclus avec ce produit. L’utilisation d’un adaptateur dont la polarité ou la tension serait inadéquate risque d’endommager sérieusement le produit et mettre votre sécurité en péril. Adaptateur de l’unité du bébé : Sortie : 5V CC 600mA Adaptateur de l’unité du parent : Sortie : 5V CC 1A 8. Lorsqu’ils sont branchés dans une prise de courant, les adaptateurs secteur ont été conçus pour être orientés correctement, soit à la verticale ou au plancher. Les broches n’ont pas été conçues pour supporter le poids du bloc d’alimentation et le maintenir en place si celuici est branché dans une prise au plafond, sous une table ou dans un meuble. 9. Pour les PRODUITS À BRANCHER À UNE PRISE DE COURANT, la prise de courant doit être installée près du produit, afin d’assurer une accessibilité sécuritaire à la prise de courant. 10. Débranchez ce produit de la prise de courant avant de procéder au nettoyage. N’utilisez pas de nettoyants en aérosols. Utilisez un chiffon humide pour le nettoyer. 11. Débranchez les cordons d’alimentation avant de remplacer le bloc-piles. 12. Ne coupez pas les cordons d’alimentation pour remplacer les fiches, car ceci peut présenter un danger potentiel. 13. Ne laissez aucun objet reposer ni appuyer sur le cordon d’alimentation. N’installez pas cet appareil dans un endroit où l’on risque d’écraser le cordon d’alimentation ou de le piétiner. 14. Ne faites fonctionner cet appareil qu’avec le type d’alimentation indiqué s…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: 2020-07-08 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: EW780-1323-08 To whom it may concern: We, the undersigned, hereby authorize SGS Hong Kong Limited and YW Yung in SGS Hong Kong Limited to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with VTech Telecommunications Ltd This authorization is valid until further written notice from the applicant. Name (Printed):Michael Tsui Title: Approbation Supervisor Signature: On behalf of Company: VTech Telecommunications Ltd. Telephone: 852 2680 5398

VTech Telecommunications Ltd To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: VTech Telecommunications Ltd 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT Hong Kong Regarding: Confidentiality Request regarding application for FCC ID: EW780-1323-08 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 90 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Michael Tsui Title: Approbation Supervisor Signature: On behalf of Company: VTech Telecommunications Ltd Telephone: 852-26805398 E-mail: [email protected]

Applicant Declaration Applicant Declaration Rev:0.0 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name VTech Telecommunications Ltd Address 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT Hong Kong Grantee Code EW7 FCC ID EW780-1323-08 Authorized Contact Name Michael Tsui Contact Email [email protected] Contact Phone 852-26805398 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Applicant Signature: Date: 2020/07/13 Print Name: Michael Tsui Title: Approbation Supervisor *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database

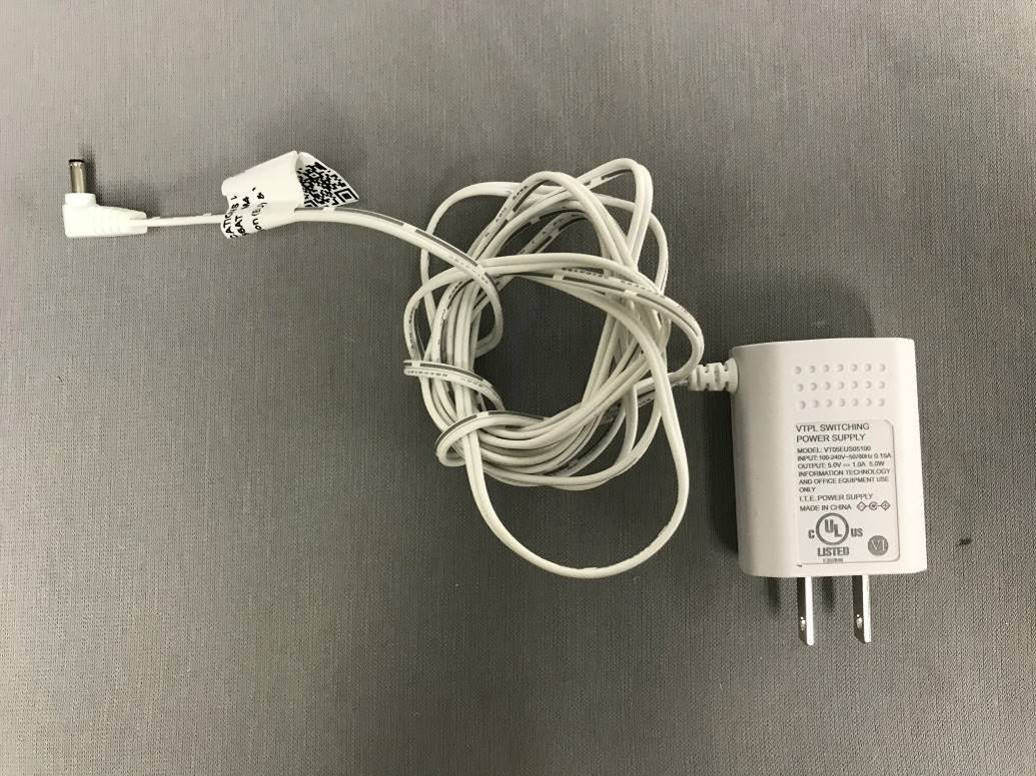

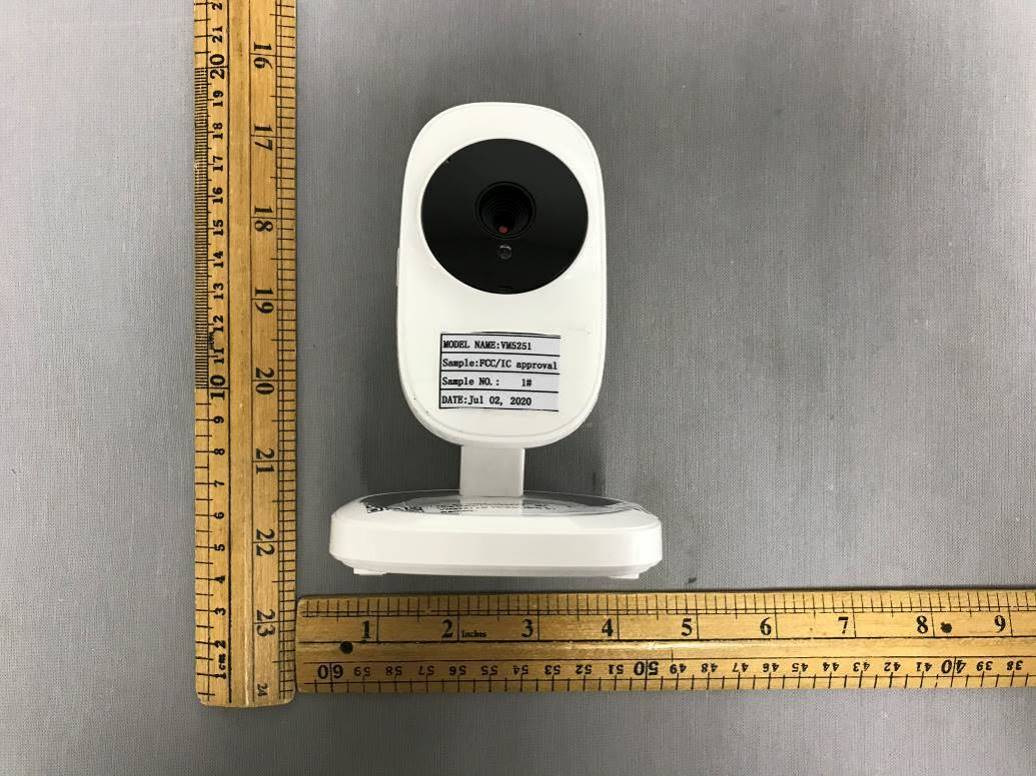

Appendix A: External Photo of HKEM2007000666AT Baby Monitor (BU) Adaptor Model: VT05EUS05100 Adaptor Model: S006AKU0500100

VM5251-X Engraving BU VM5251-X BU LBL SIZE: 44.5X25.5,mm 50# UL Approved PET MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Model: VM5251 BU S/N: XXXXXXXXXXX A/V I.C.T.E. MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Model: VM5251-2 BU S/N: XXXXXXXXXXX A/V I.C.T.E. MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Model: VM5251-2 BU S/N: XXXXXXXXXXX A/V I.C.T.E. FCC: EW780-1323-08 IC: 1135B-80132308 HVIN:35-201390BU FCC: EW780-1323-08 IC: 1135B-80132308 HVIN:35-201390BU FCC: EW780-1323-08 IC: 1135B-80132308 HVIN:35-201390BU

Appendix B: Internal Photo of HKEM2007000666AT Baby Monitor (BU) Adaptor Model: VT05EUS05100 Adaptor Model: S006AKU0500100

Report No.: HKEM200700066603 Page: 1 of 11 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. T he document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2007000666AT Applicant: VTECH TELECOMMUNICATIONS LTD Address of Applicant: 23/F.,BLOCK 1, TAI PING INDUSTRIAL CENTRE,NO. 57 TING KOK ROAD,TAI PO,N.T.,Hong Kong Equipment Under Test (EUT): EUT Name: 2.4 GHz FHSS Video Baby Monitor (BU) Model No.: VM5251 BU, VM5251-2 BU, VM5X51-ab BU, VM5212 BU, VM5212-ab BU, LM808-1W BU, LM808-ab BU FCC ID: EW780-1323-08 IC: 1135B-80132308 HVIN: 35-201390BU Standard(s) : 47 CFR Part 1.1307; 47 CFR Part 2.1093 KDB447498D01 General RF Exposure Guidance v06 RSS102 Issue 5 March 2015 Date of Receipt: 2020-07-03 Date of Test: 2020-07-03 to 2020-07-15 Date of Issue: 2020-07-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM200700066603 Page: 2 of 11 Revision Record Version Chapter Date Modifier Remark 01 2020-07-16 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2020-07-16 Law Man Kit /Reviewer Date: 2020-07-16 Report No.: HKEM200700066603 Page: 3 of 11 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result RF Exposure 47 CFR Part 1.1307, 47 CFR Part 2.1093, KDB 447498 D01 KDB447498D01 KDB447498D01 PASS RF Exposure RSS102 Issue 5 RSS-102 Section 2.5.1 RSS102 Issue 5 PASS Declaration of EUT Family Grouping: Item no.: VM5251 BU, VM5251-2 BU, VM5X51-ab BU, VM5212 BU, VM5212-ab BU, LM808- 1W BU, LM808-ab BU a = any alphanumeric character or blank is presenting number of baby unit. b = any alphanumeric character or blank is presenting color of enclosure x = any alphanumeric character is presenting different type packaging According to the confirmation from the applicant, the above models are identical in all electrical aspects in relating to the circuit design, PCB layout, electrical components used, internal wiring and functions. The differences are only the color, cosmetic details and model number. Therefore only the model VM5251 BU was tested in this report. Abbreviation: Tx: In this whole report Tx (or tx) means Transmitter. Rx: In this whole report Rx (or rx) means Receiver. RF: In this whole report RF means Radiated Frequency. CH: In this whole report CH means channel. Volt: In this whole report Volt means Voltage. Temp: In this whole report Temp means Temperature. Humid: In this whole report Humid means humidity. Press: In this whole report Press means Pressure. N/A: In this whole report not application. Report No.: HKEM200700066603 Page: 4 of 11 3 Contents Page 1 COVER PAGE ..................................................................................................................................... 1 2 TEST SUMMARY ................................................................................................................................. 3 3 CONTENTS ......................................................................................................................................... 4 4 GENERAL INFORMATION .................................................................................................................. 5 4.1 D ETAILS OF E.U.T. ......................................................................................................................... 5 4.2 DESCRIPTION OF SUPPORT UNITS .................................................................................................... 6 4.3 M EASUREMENT UNCERTAINTY ......................................................................................................... 7 4.4 T EST LOCATION ............................................................................................................................. 8 4.5 TEST FACILITY ............................................................................................................................... 8 4.6 D EVIATION FROM STANDARDS ......................................................................................................... 8 4.7 ABNORMALITIES FROM STANDARD CONDITIONS ................................................................................. 8 5 RADIO SPECTRUM TECHNICAL REQUIREMENT ............................................................................. 9 5.1 RF EXPOSURE ............................................................................................................................... 9 5.1.1 Test Requirement: ................................................................................................................... 9 5.1.1 IC Radiofrequncy radiation ......................................................................................................10 5.1.2 EUT RF Exposure Evaluation ......................................…

Text truncated - open the document above for the full version.

Report No.: HKEM200700066602 Page: 1 of 61 Law Man Kit EMC Manager This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request and accessible at http://www.sgs.com/en/Terms-and-conditions.aspx and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-conditions.aspx. Attention is drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s findings at the time of its intervention only and within the limits of Client’s instructions, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties to a transaction from exercising all their rights and obligations under the transaction documents. T he document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 30 days only. TEST REPORT Application No.: HKEM2007000666AT Applicant: VTECH TELECOMMUNICATIONS LTD Address of Applicant: 23/F.,BLOCK 1, TAI PING INDUSTRIAL CENTRE,NO. 57 TING KOK ROAD,TAI PO,N.T.,Hong Kong Equipment Under Test (EUT): EUT Name: 2.4 GHz FHSS Video Baby Monitor (BU) Model No.: VM5251 BU, VM5251-2 BU, VM5X51-ab BU, VM5212 BU, VM5212-ab BU, LM808-1W BU, LM808-ab BU FCC ID: EW780-1323-08 IC: 1135B-80132308 HVIN: 35-201390BU Standard(s) : CFR 47 FCC Part 15, Subpart C, 2019 RSS-247 Issue 2: May 2017 RSS-Gen: Issue 5 Amdt 2019 Date of Receipt: 2020-07-03 Date of Test: 2020-07-03 to 2020-07-15 Date of Issue: 2020-07-16 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM200700066602 Page: 2 of 61 Revision Record Version Chapter Date Modifier Remark 01 2020-07-16 Original Authorized for issue by: Leo Xu /Project Engineer Date: 2020-07-16 Law Man Kit /Reviewer Date: 2020-07-16 Report No.: HKEM200700066602 Page: 3 of 61 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Pass Other requirements Frequency Hopping Spread Spectrum System Hopping Sequence 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.247(a)(1),(g),(h) Pass Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Conducted Peak Output Power 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.5 47 CFR Part 15, Subpart C 15.247(b)(1) Pass 20dB Bandwidth 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.7 47 CFR Part 15, Subpart C 15.247(a)(1) Pass Carrier Frequencies Separation 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.2 47 CFR Part 15, Subpart C 15.247a(1) Pass Hopping Channel Number 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.3 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Dwell Time 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.4 47 CFR Part 15, Subpart C 15.247a(1)(iii) Pass Conducted Band Edges Measurement 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.6 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 7.8.8 47 CFR Part 15, Subpart C 15.247(d) Pass Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2013) Section 6.4,6.5,6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement RSS-247 Issue 2, February 2017 N/A RSS-Gen Section 6.8 Pass Pseudorandom Frequency Hopping Sequence RSS-247 Issue 2, February 2017 N/A RSS-247 Section 5.1(a) Pass Report No.: HKEM200700066602 Page: 4 of 61 Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 6.2 RSS-Gen Section 8.8 Pass 99% Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 Section 6.9.3 RSS-Gen Section 6.7 Pass Conducted Peak Output Power RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.5 RSS-247 Section 5.4(b) Pass 20dB Bandwidth RSS-247 Issue 2, February 2017 ANSI C63.10 Section 6.9.2 RSS-247 Section 5.1(a) Pass Carrier Frequencies Separation RSS-247 Issue 2, February 2017 ANSI C63.10 (2013) Section 7.8.2 RSS-247 Section 5.1(b) Pass Hopping Channel Number RSS-247 Issue …

Text truncated - open the document above for the full version.
