EW780-1383-09Video Baby Monitor

Basic operation - Parent unit Overview - Parent unit Overview - Baby unit 1LCD display 2Antenna 3LED lights 4Microphone 5POWER 6 TALK 7Arrow keys 8MENU/SELECT 9Power jack 10VOL - / VOL + 11VIEW /LCD ON/OFF 12 /EXIT 13Speaker 14Battery compartment cover 15Stand Need help? Zoom Press to zoom in or out. Talk to your baby unit Press and hold TALK and speak to your parent unit. Your voice is transmitted to the baby unit. Release TALK when finish talking and hear your baby again. Turn off the screen Press and hold LCD ON/OFF to switch off the screen. You can still hear sound from the baby unit. Tip • Press any keys on the parent unit to turn on the screen again. Use the menu Press to enter the menu, choose a menu item, or save a setting. You can use the parent unit for advanced settings or operations, such as to play or stop the baby unit lullaby, or to adjust the baby unit sound sensitivity. While in the menu: • Press or to scroll among the menu options. • Press to select an item, or to save a setting. • Press or to scroll among the sub-menus, or to adjust a setting. • Press to return to the previous menu options without changing the current setting. • Press /EXIT to return to live video. 4 Status check 3 Positioning the baby monitor Caution • The default volume of your parent unit is level 4, and the maximum volume is level 7. If you experience high-pitched screeching noise from your baby monitor while positioning: -Make sure your baby unit and parent unit are more than 3 feet (1 meter) apart, OR -Lower the volume of your parent unit. NOTESNOTE Note • To avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers. Once you power on both your baby unit and parent unit, your parent unit displays image from the baby unit, and the LINK LED light turns on. The POWER LED light of baby unit turns on. Parent unit icons Main menu Sub-menu Brightness • Adjust the parent unit’s LCD brightness. Camera settings Baby unit speaker volume • Adjust the baby unit’s speaker volume. Monitoring mode (For VM350-2 only) • Single mode • Split mode • Patrol mode Lullaby / Play/Stop lullaby • Select one of the soothing sounds, or white noise. • Select one of the five melodies. • Play all melodies. • Set timer to stop playing the selected melody or soothing sound. Main menu Sub-menu Alert tones • Set the parent unit to beep when the battery is low. • Set the parent unit to beep when the link between the parent unit and the baby unit is lost. • Set the confirmation tone on or off when selecting an option in the menus. • Set the parent unit to beep when the baby unit detects sounds while in Split mode (For VM350-2 only). / • Turn on/off the alert vibration. Temperature / • Turn on/off temperature alert tone. • Set the parent unit to beeps whenever the room temperature detected by the baby unit falls outside of the set temperature range. • Set the minimum temperature. • Set the maximum temperature. • Set temperature display in Fahrenheit ( o F) or Celsius ( o C) Main menu Sub-menu Sound activation - screen and audio / Turn on/off sound activation • Set sound activation on or off. • When it is on, and the baby unit detects no sound, the parent unit screen stays off to save power. Once a sound is detected, the parent unit screen and speaker turns on automatically, and you can see and hear your baby. The parent unit will then turn off again after 50 seconds of no sound detection. NOTESNOTE Note • When the parent unit screen is off and it receives alerts, for example, link lost between parent unit and baby unit, or battery is low, the parent unit screen and speaker will turn on for 10 seconds. VOX (Voice Activated Alert) Sensitivity • You can set VOX sensitivity level to activate parent unit screen and sound when baby unit detects sounds that exceed certain levels. See Sound sensitivity and sound activation section. Main menu icons For operations and guides to help you using your video monitor, and for latest information and supports, go and check the online help topics and online FAQs. Use your smartphone or mobile device to access our online help. • Go to https://help.vtechphones.com/vm350 or https://help.vtechphones.com/vm350-2; OR • Scan the QR code on the right. Launch the camera app or QR code scanner app on your smartphone or tablet. Hold the device’s camera up to the QR code and frame it. Tap the notification to trigger the redirection of the online help. -If the QR code is not clearly displayed, adjust your camera’s focus by moving your device closer or further away until it is clear. You can also call our Customer Support at 1 (800) 595-9511 [in US] or 1 (800) 267-7377 [in Canada] for help. VM350 S m VM350-2 Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. Specifications are subject to change without notice. © 2020 VTech Communications, Inc. All rights reserved. 11/20. VM350-X_QSG_V5. VM350 VM350-2 Full Color Video Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Technical specifications Credits: The Background Noise sound file was created by Caroline Ford, and is used under the Creative Commons license. The Stream Noise sound file was created by Caroline Ford, and is used under the Creative Commons license. The Crickets At Night sound file was created by Mike Koenig, and is used under the Creative Commons license. The Heart Beat sound file was created by Zarabadeu, and is used under the Creative Commons license. Frequency controlCrystal controlled PLL synthesizer Transmit frequencyBaby unit: 2405 - 2475 MHz Parent unit: 2405 - 2475 MHz Channels32 LCD5” Color LCD (WQVGA 480x272 pixel) Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. Power requ…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Add: 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT, Hong Kong Telephone: (852)2680 5398 Fax: (852)2680 5252 E-mail: [email protected] QA-FR-170-B FCC Authorization Date: 2020/11/17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, VTech Telecommunications Ltd, the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signature Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Add: 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT, Hong Kong Telephone: (852)2680 5398 Fax: (852)2680 5252 E-mail: [email protected] FCC Confidential Authorization Date: 2020/11/17 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: EW780-1383-09 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, VTech Telecommunications Ltd hereby requests long-term confidential treatment of information accompanying this application as outlined below:  Block Diagram  Schematics  Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely Yours, Signature Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd November 12, 2020 To whom it may concern, Multiple Models Confirmation Letter-BU I, the undersigned, hereby confirm that the family models are listed in the following table. These models are identical as follows: Electronics/electrical designs, including software & firmware Construction design/Physical design/Enclosure PCB layout (Others, please specify) The only differences between these models are the follows for marketing purpose: Color Cosmetic details Trade name Model Number (Others, please specify) Model VM3256-ab BU/ VM819-ab BU is identical to model VM350-ab BU except for model designation and appearance. Suffix (“a, b”) represents Color code Packing configuration Others, please specify) . a=any alphanumeric character or blank is presenting number of baby unit. b = any alphanumeric character or blank is presenting color of enclosure. For the product subject to authorization under FCC Declaration of Conformity: In addition, it is to confirm that all the below information 1) the U.S. responsible party, 2) FCC label artworks and location, 3) FCC required statement in the user manual are the same but different in the following model numbers only: Item No. New model Model Number Trade Name Remarks 1 YES VM350 BU vtech 1 baby unit 2 YES VM350-2 BU vtech 2 baby unit 3 YES VM350-ab BU vtech a baby unit 4 YES VM3256 BU vtech 1 baby unit 5 YES VM3256-2 BU vtech 2 baby unit 6 YES VM3256-ab BU vtech a baby unit 7 YES VM819 BU vtech 1 baby unit 8 YES VM819-2 BU vtech 2 baby unit 9 YES VM819-ab BU vtech a baby unit The sample being submitted to Bay Area Compliance Labs Corp.(Shenzhen) for conformity assessment is VM350 BU (test model) of the above list. All above model's FCC ID is EW780-1383-09, IC is 1135B-80138309. Regards, Michael Tsui Approbation Supervisor

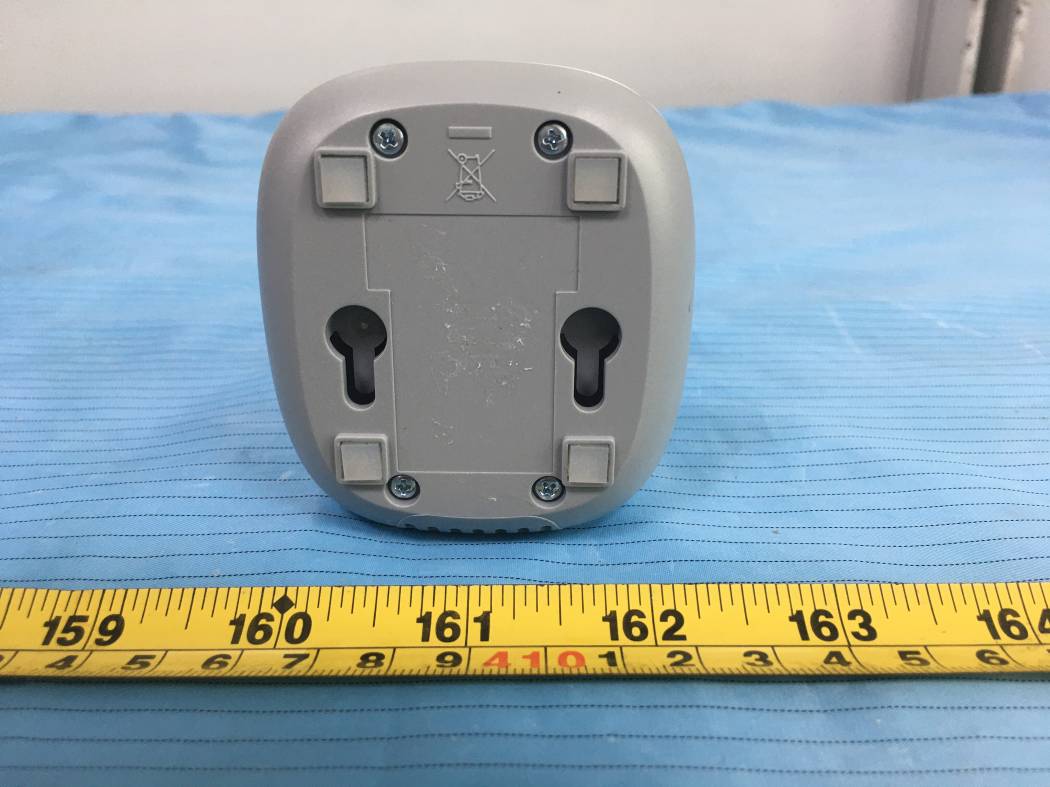

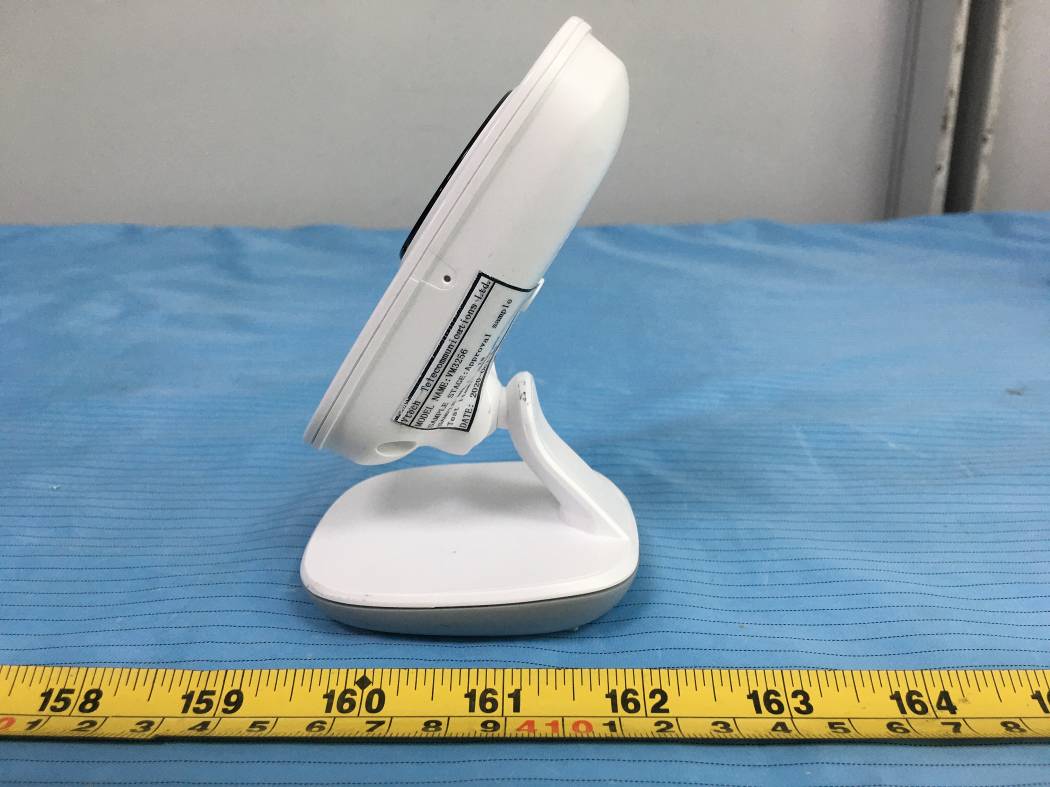

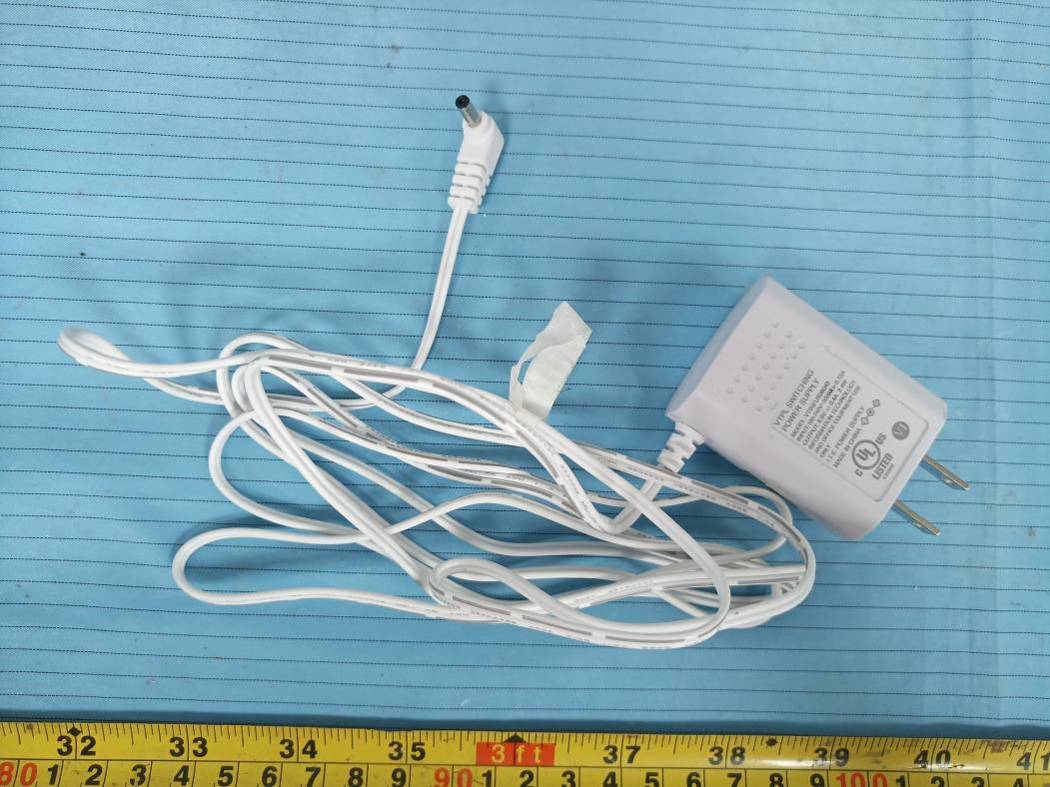

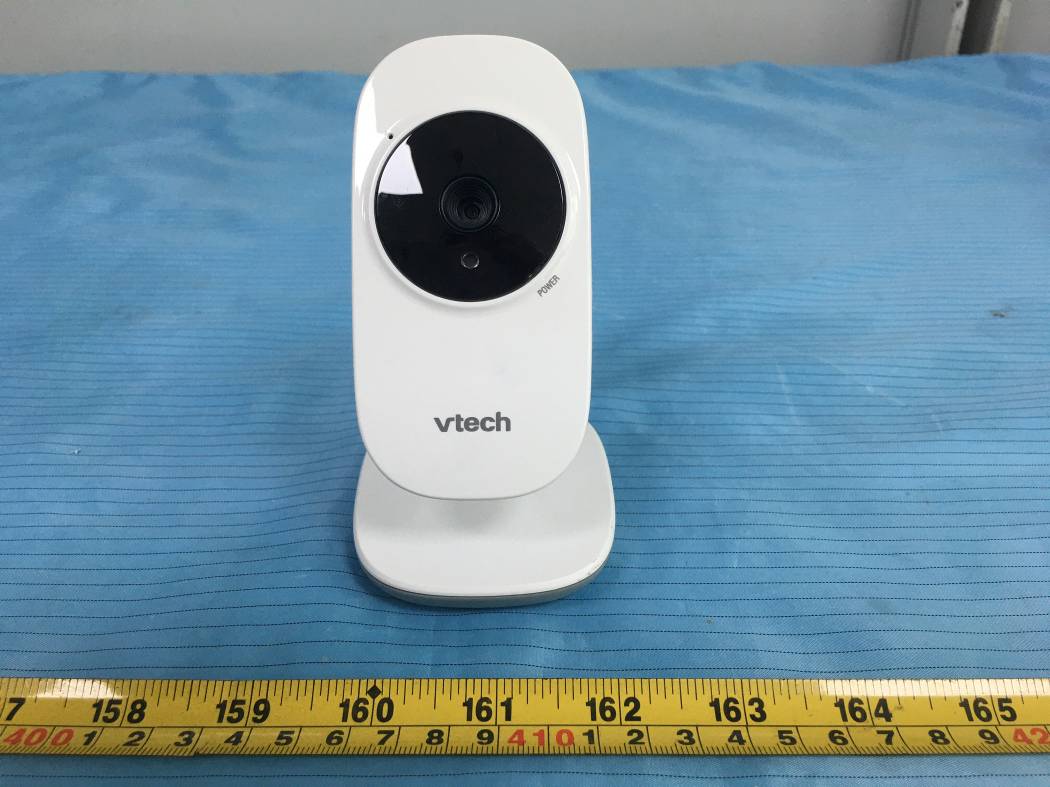

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 1 of 8 EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Mode: VM350 BU Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 2 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 3 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 4 of 8 Model: VM3256 BU Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 5 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 6 of 8 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 7 of 8 Adapter Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 8 of 8 Adapter Label

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF EXHIBIT A - FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925)

Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 1 of 7 EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Mode: VM350 BU Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 2 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 3 of 7 Antenna Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 4 of 7 Model: VM3256 BU Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 5 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 6 of 7 Bay Area Compliance Laboratories Corp. (Shenzhen) Project No.: RSZ201020002-RF Page 7 of 7 Antenna

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201020002A FCC Part 15.247 RSS-GEN ISSUE 5, MARCH 2019 AMENDMENT 1, RSS-247, ISSUE 2, FEBRUARY 2017 Page 11 of 45 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart 15.247 (i) and subpart 2.1091 systems operating under the provisions of this section shall be operated in a manner that ensures the public is not exposed to RF energy level in excess of the communication guidelines. Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (Minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f 2 ) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density Result Calculated Formulary: Predication of MPE limit at a given distance S = 2 4R PG π S = power density (in appropriate units, e.g. mW/cm2) P = power input to the antenna (in appropriate units, e.g., mW). G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain. R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) Frequency (MHz) Antenna Gain Tune Up Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2405-2475 0 1 15.5 35.48 20 0.007 1.0 Note: To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Pass

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. BACL is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. FCC PART 15.247 RSS-GEN ISSUE 5, MARCH 2019 AMENDMENT 1 RSS-247, ISSUE 2, FEBRUARY 2017 TEST REPORT For FCC: VTech Telecommunications Ltd FCC: 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT, Hong Kong ISEDC: VTECH TELECOMMUNICATIONS LIMITED ISEDC: BL.1 23/F Tai Ping Industr Ctr. 57 Ting Kok Road Tai Po, NT Hongkong FCC ID: EW780-1383-09 IC: 1135B-80138309 Report Type: Original Report Product Type: Video Baby Monitor Re port Number: RSZ201020002A Re port Date: 2020-11-17 Reviewed B y: Jacob Kong RF Engineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F., West Wing, Third Phase of Wanli Industrial Building, Shihua Road, Futian Free Trade Zone, Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: RSZ201020002A FCC Part 15.247 RSS-GEN ISSUE 5, MARCH 2019 AMENDMENT 1, RSS-247, ISSUE 2, FEBRUARY 2017 Page 2 of 45 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EUT EXERCISE SOFTWARE .......................................................................................................................................... 6 SPECIAL ACCESSORIES ................................................................................................................................................. 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE .................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................... 9 TEST EQUIPMENT LIST ......................................................................................................................................... 10 FCC §15.247 (i) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ........................................................ 11 APPLICABLE STANDARD ............................................................................................................................................ 11 RESULT ...................................................................................................................................................................... 11 RSS-102 § 2.5.2 –EXEMPTION LIMITS FOR ROUTINE EVALUATION-RF EXPOSURE EVALUATION 12 APPLICABLE STANDARD ............................................................................................................................................ 12 FCC §15.203 & RSS-Gen §6.8– ANTENNA REQUIREMENT .............................................................................. 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) & RSS-Gen §8.8– AC LINE CONDUCTED EMISSIONS ......................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 15 EMI TEST RECEIVER SETUP .......................................................................................................…
