EW780-1410-00Baby Monitor - Baby Unit

Note • This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. Test your baby monitor You may test the baby monitor before initial use, and at regular times thereafter. Caution • For hearing protection, make sure the parent unit is more than 6.5 feet (2 meters) away from the baby unit. If you hear any high-pitched noise, move the parent unit further until the noise stops. You can also press on the parent unit to lower or mute the noise. 1. Make sure your baby unit and parent unit are on. 2. Speak towards the microphone of the baby unit. You will hear the sound at the parent unit, and see the visual sound indicators light up. Note • When the POWER/LINK LED light flashes, move the parent unit closer to the baby unit (observe the minimum distance of 6.5 feet / 2 meters). You can also check if the baby monitor is connected to a live power socket and switched on. Tip • Increase the speaker volume of the parent unit if you cannot hear the sounds transmitted from the baby units. Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. Note • To avoid interference from other electronic devices, place your baby monitor far away from devices such as wireless routers, microwaves, cell phones and computers. 1. Place the baby units more than 3 feet (1 meter) away from your baby. 2. Place the parent unit more than 6.5 feet (2 meters) away from the baby unit to avoid screeching noise. Caution • The default volume of your parent unit is Level 3, and the maximum volume is level 5. If you experience high-pitched screeching noise from your baby monitor while positioning: -Make sure your baby units and parent unit are more than 6.5 feet (2 meter) apart, OR -Turn down the volume of your parent unit. Operating range The operating range of the baby monitor is up to 1,500 feet (450 meters) outdoors or 160 feet (50 meters) indoors. The actual operating range may vary depending on the environmental conditions and other interferences such as walls, doors and other obstructions. Frequency control Crystal controlled PLL synthesizer Transmit frequency Baby unit: 1921.536 - 1928.448 MHz Parent unit: 1921.536 - 1928.448 MHz Channels 5 Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. Power requirements Baby unit adapter: Input: 100-120V AC 60Hz; Output: 6V DC @ 400mA Parent unit adapter: Input: 100-120V AC 60Hz; Output: 6V DC @ 400mA Parent unit battery: 2.4V NiMH battery Technical specifications Specifications are subject to change without notice. © 2020 VTech Communications, Inc. All rights reserved. 10/20. DM1111-X_CIB_V5 DM1111 DM1111-2 Enhanced Range Digital Audio Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Congratulations on purchasing your new VTech product. Before using this product, please read Important safety instructions. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech product. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature-rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. What’s in the box Stra n gul at ion Haz ar d Ke e p this cor d o ut of r e ach o f ch il d ren. T h e cord n e eds t o be at l eas t t h ree fee t a w a y fr om t h e chil d at a ll t im e s . Do not use w i t h an e xtens io n cor d . Do n o t r e mo ve this t a g. É l o ig ne z ce c ord o n d e s enf a nt s . Le cordon d o i t se t r ou v e r à a u m o i n s tr oi s p ie d s d’ u n e nf a nt e t ce, en to ut temp s . N’ ut i li s ez p as d e ra l lon ge. N e r e t i r e z pa s c e t te é t i q u et te . M an t en ga est e c abl e f ue ra de l a alc a n ce de l o s ni ñ o s . E s t e cable d e b e e s tar p or lo me n o s t r es pi es f uera de l a a lcan c e del n i ñ o en t o do m omento . N o lo u s e con u n a ex t en s i ó n i n alámbri c a. N o qui t e es t a e ti quet a. Ri sq u e d’ ét r an gl em en t Ries go de e stra ng ula ció n Stra n gul at ion Haz ard Ke e p this cor d o ut of r e ach o f ch il dre n. T h e cord n e eds t o be at l e as t t h r ee fee t a w a y fr om t h e chil d at a ll t im e s . Do not use w i t h an e xtens io n co r d . Do n o t r e mo ve this t a g. É l o ig ne z ce c ord o n d e s enf a nt s . Le co rdon d o i t se t r ou v e r à au m o i n s tr oi s p ie d s d’ u n e nf a nt e t ce, en to ut temps . N’ ut i li s ez p as d e ra l lon ge . N e r et i r e z pa s c e t te é t i q u et te . M an t en ga e st e c able f ue ra de l a al c a n ce de l o s n i ño s . E s t e cable d e b e e s tar p or lo me n o s t r es pi es f uera de la a lcan c e del n i ñ o e n t o do m omento . N o lo u s e con u n a ext en s i ó n i n alámbri c a. N o qu i t e es t a e ti quet a. Ri sq u e d’ ét r an gl em en t Ries go de e s tra ng ula ción 1 set for DM1111 2 sets for DM1111-2 1 Connect the baby monitor 2 Before use >6.5ft (2m) Power on or off the baby unit • Press and hold until the POWER light turns on. • Press and hold until the POWER light turns off. Power on or off the parent unit • Press and hold until the POWER / LINK light turns on. • Press and hold until the POWER / LINK light turns off. Adjust parent unit speaker volume The speaker volume is preset to Level 3 on the parent unit. You can adjust to your preferred sound level. • Press to decrease the volume, and to increase the volume. Note • If you continue to press or when the volume reaches the minimum or maximum setting, the parent unit will beep twice. To mute the speaker volume • Press repeatedly until the volume reaches the minimum. Notes • When the parent unit is in mute, the visual sound indicator will still indicate …

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification Jan 20, 2022 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Ms. Jess Tang / Mr. Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Jan 20, 2021 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-1410-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review ce rtain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties c an obtain access to these information: Schematics Detailed Block diagrams Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd 31 January, 2022 To whom it may concern, Declarations FCC ID: EW780-1410-00 IC: 1135B-80141000 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Parent Unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Switch-off device A 4 On hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of baby unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

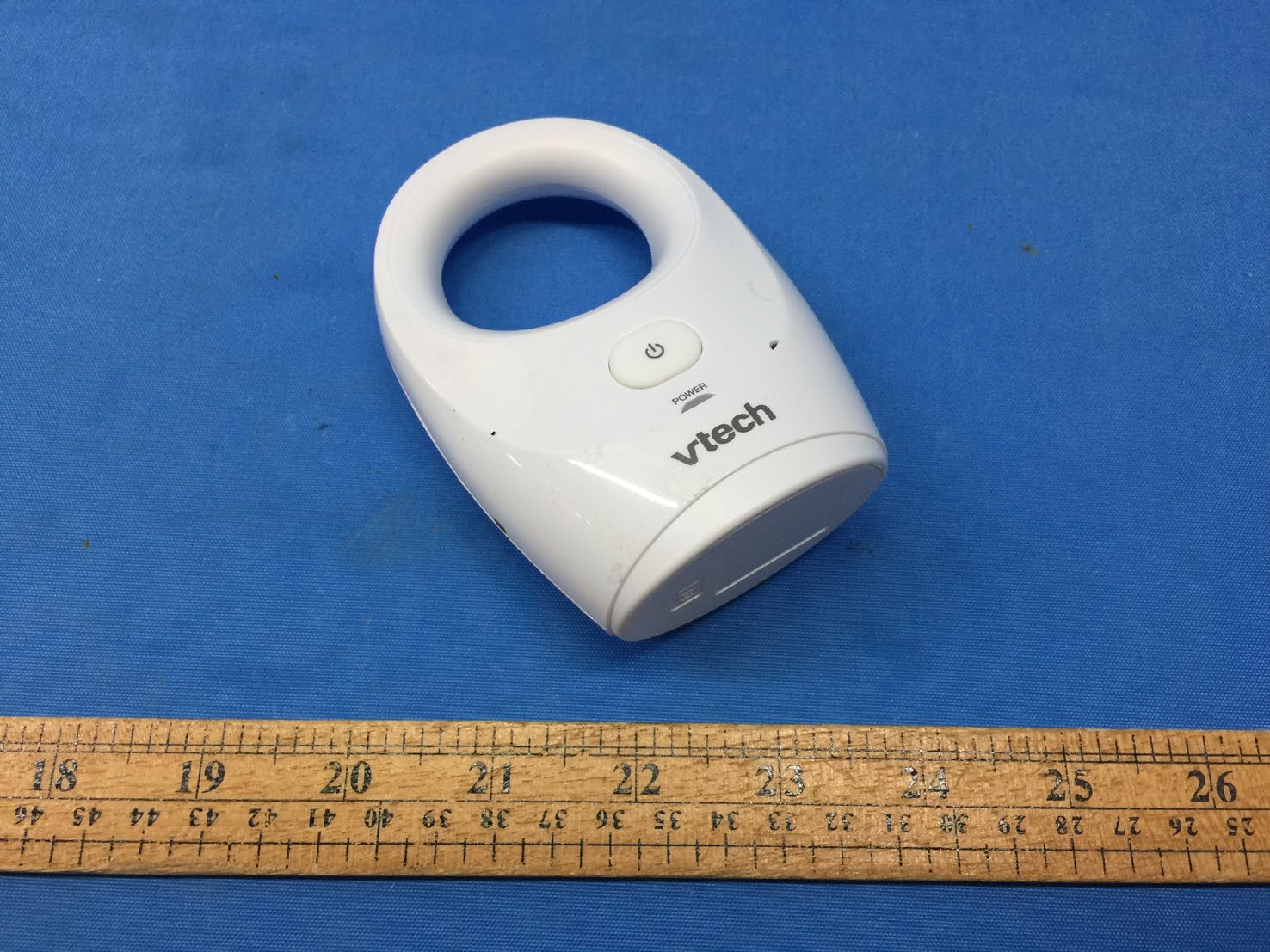

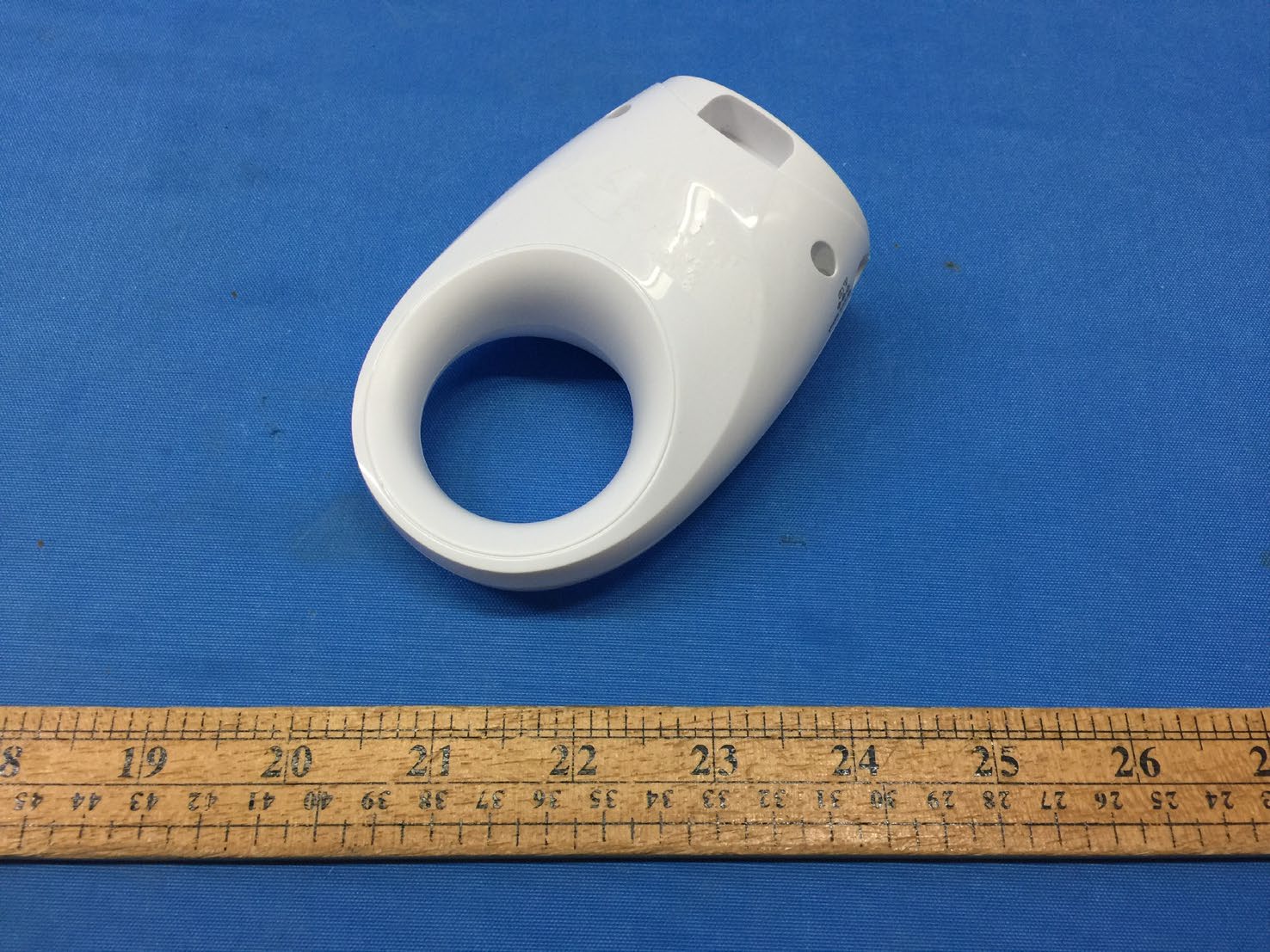

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-1410-00 IC: 1135B-80141000 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-1410-00 IC: 1135B-80141000

PU LABEL Size: 24.5 x 19.5 mm BU LABEL Size: 24 x 21 mm R=0.5 MM Model: DM1111 BU S/N: XXXXXXXXXXX-A Model: DM1111-2 BU S/N: XXXXXXXXXXX-A Model: DM1111 PU S/N: XXXXXXXXXXX-A Model: DM1111-2 PU S/N: XXXXXXXXXXX-A Model: DM1111 PU S/N: XXXXXXXXXXX-A Model: DM1111 BU S/N: XXXXXXXXXXX-A DM1111 & DM1111-2 PU&BU LBL FCC ID: EW780-1410-01 IC: 1135B-80141001 HVIN: 35-201886PU Use only Supplied Adapter FCC ID: EW780-1410-01 IC: 1135B-80141001 HVIN: 35-201886PU Use only Supplied Adapter FCC ID: EW780-1410-01 IC: 1135B-80141001 HVIN: 35-201886PU Use only Supplied Adapter MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-1410-00 IC: 1135B-80141000 HVIN: 35-201887BU MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-1410-00 IC: 1135B-80141000 HVIN: 35-201887BU MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-1410-00 IC: 1135B-80141000 HVIN: 35-201887BU

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-1410-00 IC: 1135B-80141000 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-1410-00 IC: 1135B-80141000 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-1410-00 IC: 1135B-80141000

INTERTEK TESTING SERVICES FCC ID: EW780-1410-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Baby Unit of tested model: DM1111 BU, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of DM1111 BU is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 12.5% (3/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.125) mW = 15.74 mW The power density at 20cm = 15.74 *1.00/ 4πR 2 = 0.0031 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 54 TEST REPORT Report Number: 21120975HKG-001 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: EW780-1410-00 IC: 1135B-80141000 Prepared and Checked by: Approved by: Signed On File Leung Chiu Kuen, Stanley Engineer Tang Kwan Mo, Jess Lead Engineer Date: February 25, 2022 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 21120975HKG-001.doc Page 2 of 54 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Manufacturer Name: VTech (Dongguan) Telecommunications Limited. Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. FCC Specification Standard: FCC Part 15, October 1, 2020 Edition FCC ID: EW780-1410-00 FCC Model(s): DM1111 BU, DM1111-2 BU IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 5 Amendment 2, February 2021 IC: 1135B-80141000 HVIN: 35-201887BU VTech Model(s): DM1111 BU, DM1111-2 BU PMN: DM1111 BU, DM1111-2 BU Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Baby Monitor – Baby Unit Serial Number: N/A Sample Receipt Date: December 22, 2021 Date of Test: December 26, 2021 - January 23, 2022 Report Date: February 25, 2022 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-213 Issue 3 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 21120975HKG-001.doc Page 3 of 54 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 5 1.1 Summary of Test Results ................................................................................................ 5 1.2 Statement of Compliance .............................................................................................. 6 2.0 GENERAL DESCRIPTION ................................................................................................ 7 2.1 Product Description......................................................................................................... 7 2.2 Technical Description ...................................................................................................... 7 2.3 Test Methodology ........................................................................................................... 7 2.4 Test Facility ..................................................................................................................... 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification ..................................................................................................................... 8 3.2 Radiated Emission Test Setup ......................................................................................... 9 3.3 AC Line Conducted Emission Test Setup ........................................................................ 10 3.4 Conducted Emission Test Configuration ........................................................................ 11 3.5 Conducted Monitoring and Operational Test Configuration ......................................... 11 3.6 EUT Exercising Software ................................................................................................ 11 3.7 Details of EUT and Description of Accessories ............................................................... 12 3.8 Measurement Uncertainty ............................................................................................ 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement ................................................................................................... 13 4.2 Digital Modulation Techniques...................................................................................... 13 4.3 Emission Bandwidth ...................................................................................................... 14 4.4 Directional Gain of the Antenna .................................................................................... 16 4.5 Peak Transmit Power .................................................................................................... 17 4.6 Power Spectral Density .....…
