EW780-2023-00Full Color Pan and Tilt Video Monitor

To: Federal Communications Commission Office of Engineering and Technology Laboratory Division 7435 Oakland Mills Rd. Columbia MD 21046 From: VTech Telecommunications Ltd 23/F Tai Ping Ind Center Block 1 57 Ting Kok Rd Tai Po NT Hong Kong Regarding: Confidentiality Request regarding application for FCC ID: EW780-2023-00 LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. SHORT TERM CONFIDENTIALITY Additionally, the applicant requests the following documents be held confidential until the device is marketed or 90 days from the grant date, whichever is less. If the device is marketed within aforementioned days of the Grant Date, the applicant will notify the TCB per FCC KDB 726920 D01 Confidentiality Request Procedures. External Photos Internal Photos Test Setup Photos User manual(s) Sincerely, Print Name: Michael Tsui Title: Approbation Supervisor Signature: On behalf of Company: VTech Telecommunications Ltd Telephone: 852-26805398 E-mail: [email protected]

VTech Telecommunications Ltd December 28, 2019 To whom it may concern, Multiple Models Confirmation Letter I, the undersigned, hereby confirm that the family models are listed in the following table. These models are identical as follows: Electronics/electrical designs, including software & firmware Construction design/Physical design/Enclosure PCB layout (Others, please specify) The only differences between these models are the follows for marketing purpose: Color Cosmetic details Trade name Model Number (Others, please specify) The Baby unit of Model VM5263-ab BU is identical with VM5463-ab BU except for the projector. Suffix (“a, b”) represents Color code Packing configuration Others, please specify) a=any alphanumeric character or blank is presenting number of baby unit. b = any alphanumeric character or blank is presenting color of enclosure For the product subject to authorization under FCC Declaration of Conformity: In addition, it is to confirm that all the below information 1) the U.S. responsible party, 2) FCC label artworks and location, 3) FCC required statement in the user manual are the same but different in the following model numbers only: Item No. New model Model Number Trade Name Remarks 1 YES VM5263 BU vtech 1 BU 2 YES VM5263-2 BU vtech 2 BU 3 YES VM5263-ab BU vtech a BU 4 YES VM5463 BU vtech 1 BU 5 YES VM5463-2 BU vtech 2 BU 6 YES VM5463-ab BU vtech a BU The sample being submitted for conformity assessment is VM5463 BU and (test model) of the above list. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Date: 2020-01-09 TO: Federal Communication Commission Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MID 21046 Regarding: EW780-2023-00 To whom it may concern: We, the undersigned, hereby authorize SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch and Jing Song in SGS-CSTC Standards Technical Services Co., Ltd. (SGS) Shenzhen Branch to act on our behalf in all manners relating to application for equipment authorization with respect to the FCC ID above, including signing of all documents relating to these matters. Any and all acts carried out by the agent on our behalf shall have the same effect as acts of our own. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). Where our agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for Certification, as specified by SGS North America, Inc., still resides with VTech Telecommunications Ltd This authorization is valid until further written notice from the applicant. Name (Printed):Michael Tsui Title: Approbation Supervisor Signature: On behalf of Company: VTech Telecommunications Ltd. Telephone: 852 2680 5398

Appendix: External photos of HKEM1911001141AT

VM5463-X LABELS FCC ID: EW780-2023-00 IC: 1135B-80202300 HVIN: 35-201303BU MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service1-800-595-9511 FCC ID: EW780-2023-00 IC: 1135B-80202300 HVIN: 35-201303BU MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service1-800-595-9511 CERTIFIED TO CSA STD. C22.2 NO.62368-1 CONFORMS TO UL STD. 62368-1 CERTIFIED TO CSA STD. C22.2 NO.62368-1 CONFORMS TO UL STD. 62368-1 LABEL SIZE: 20X10 mm LABEL SIZE: 24X14 mm LABEL SIZE: 33.6X9 mm Model: VM5463-2 BU S/N: XXXXXXXXXXX Model: VM5463-2 BU S/N: XXXXXXXXXXX Model: VM5463 BU S/N: XXXXXXXXXXX the compliance information was displayed on user manual due to on small sample size.

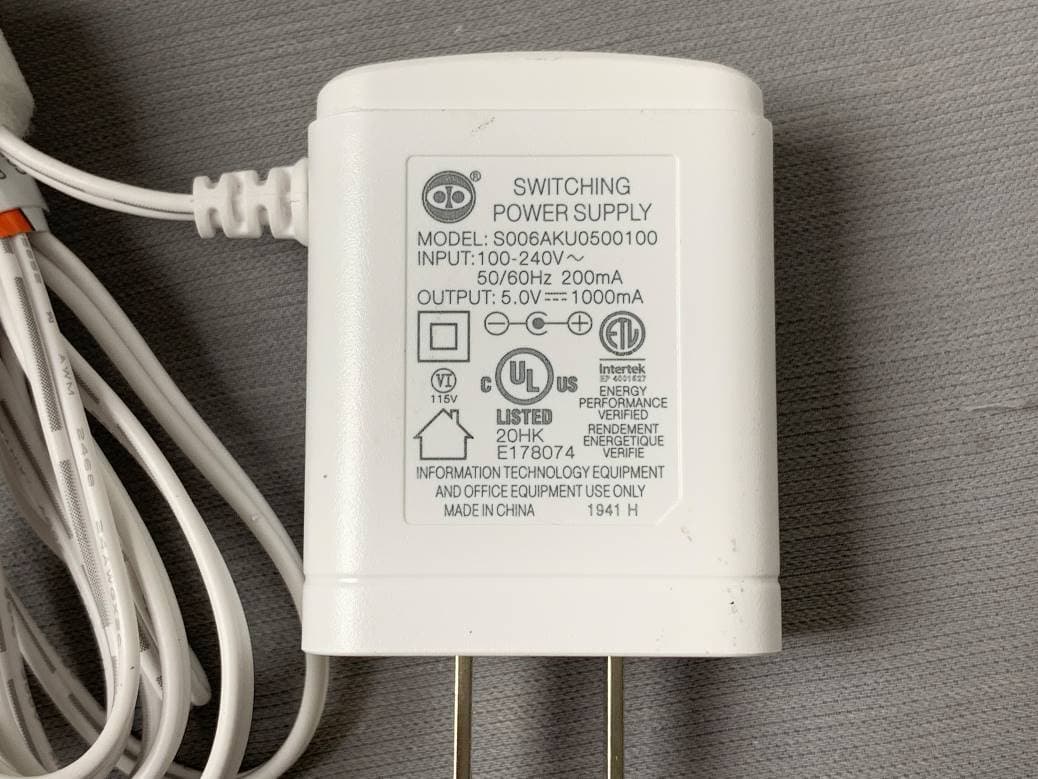

Appendix: Internal photos of HKEM1911001141AT 3.89 Adaptor: S006AKU0500100 Adaptor: VT05EUS05100

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HKEM191100104101 Page: 1 of 69 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: HKEM1911001141AT Applicant: VTECH TELECOMMUNICATIONS LTD. Address of Applicant: 23/F.,BLOCK 1, TAI PING INDUSTRIAL CENTRE,NO. 57 TING KOK ROAD,TAI PO,N.T.,HONG KONG Equipment Under Test (EUT): EUT Name: Full Color Pan and Tilt Video Monitor Model No.: VM5263 BU, VM5263-2 BU, VM5263-ab BU, VM5463 BU, VM5463-2 BU, VM5463-ab BU ♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. FCC ID: EW780-2023-00 IC: 1135B-80202300 HVIN: 35-201303BU Standard(s): CFR 47 FCC Part 15, Subpart C, 2019 RSS-247 Issue 2: May 2017 RSS-Gen: Issue 5 Amdt 2019 Date of Receipt: 2019-11-26 Date of Test: 2019-11-26 to 2019-12-12 Date of Issue: 2019-12-12 Test Result: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Report No.: HKEM191000114101 Page: 2 of 69 Revision Record Version Chapter Date Modifier Remark 00 2019-12-12 Original Authorized for issue by: Tested by: Vincent Chen /Project Engineer Checked by: Eric Fu /Reviewer Report No.: HKEM191000114101 Page: 3 of 69 2 Test Summary Test Test Requirement Test method Result Antenna Requirement FCC PART 15 C section 15.247 (c) and Section 15.203 FCC PART 15 C section 15.247 (c) and Section 15.203 PASS 20dB Bandwidth FCC PART 15 C section 15.247 (a)(1) ANSI C63.10: Clause 6.9.1 PASS Carrier Frequencies Separation FCC PART 15 C section 15.247(a)(1) ANSI C63.10: Clause 7.8.2 PASS Hopping Channel Number FCC PART 15 C section 15.247(a)(1)(iii) ANSI C63.10: Clause 7.8.3 PASS Dwell Time FCC PART 15 C section 15.247(a)(1)(iii) ANSI C63.10: Clause 7.8.4 PASS Pseudorandom Frequency Hopping Sequence FCC PART 15 C section 15.247(a)(1) ANSI C63.10: Clause 7.7.5 PASS Maximum Peak Output Power FCC PART 15 C section 15.247(b)(1) ANSI C63.10: Clause 7.8.5 PASS Conducted Emissions at AC Power Line (150kHz-30MHz) FCC PART 15 C 15.207 ANSI C63.10 (2013) Section 6.2 PASS Conducted Spurious Emission FCC PART 15 C section 15.247(d) ANSI C63.10: Clause 7.8.8 PASS Radiated Emissions which fall in the restricted bands 47 CFR Part 15, Subpart C 15.209 & 15.247(d) ANSI C63.10 (2013) Section 6.10.5 PASS Radiated Spurious Emission FCC PART 15 C section 15.247(d) ANSI C63.10 (2013) Section 6.4,6.5,6.6 PASS Band Edges Measurement FCC PART 15 C section 15.247 (d) &15.205 ANSI C63.10: clause 7.8.6 PASS Antenna Requirement RSS-Gen Section 8.3 N/A PASS Pseudorandom Frequency Hopping Sequence RSS-247 Section 5.1(a) N/A PASS 99% Bandwidth RSS-Gen Section 6.7 ANSI C63.10 Section 6.9.3 PASS Conducted Peak Output Power RSS-247 Section 5.4(b) ANSI C63.10 (2013) Section 7.8.5 PASS Report No.: HKEM191000114101 Page: 4 of 69 *Note: Frequency stability requested in RSS GEN Section 8.1.1 has been complied since the result of band edge can demonstrate. 20dB Bandwidth RSS-247 Section 5.1(a) ANSI C63.10 Section 6.9.2 PASS Carrier Frequencies Separation RSS-247 Section 5.1(b) ANSI C63.10 (2013) Section 7.8.2 PASS Hopping Channel Number RSS-247 Section 5.1(d) ANSI C63.10 (2013) Section 7.8.3 PASS Dwell Time RSS-247 Section 5.1(d) ANSI C63.10 (2013) Section 7.8.4 PASS Conducted Band Edges Measurement RSS-247 Section 5.5 ANSI C63.10 (2013) Section7.8.6 PASS Conducted Emissions at AC Power Line (150kHz-30MHz) RSS-Gen Section 8.8 ANSI C63.10 (2013) Section 6.2 PASS Conducted Spurious Emissions RSS-247 Section 5.5 ANSI C63.10 (2013) Section 7.8.8 PASS Radiated Emissions which fall in the restricted bands RSS-247 Section 3.3 & RSS-Gen Section 8.10 ANSI C63.10 (2013) Section 6.10.5 PASS Radiated Spurious Emissions RSS-247 Section 5.5 & RSS-Gen Section 8.9 ANSI C63.10 (2013) Section 6.4&6.5&6.6 PASS Frequency stability RSS-Gen Section 8.11 RSS-Gen Section 6.11 PASS* Declaration of EUT Family Grouping: Item no.: VM5263 BU, VM5263-2 BU, VM5263-ab BU, VM5463 BU, VM5463-2 BU, VM5463-ab BU According to the confirmation from the applicant, the above models are identical in all electrical aspects in relating to electronics/electrical designs, including software & firmware, PCB layout, construction design/physical design/enclosure. The differences are only the color, cosmetic details, trade name, model number. The Baby unit of Model VM5263-ab BU is identical with VM5463-ab BU except for the projector. Therefore only the model VM5463 BU was tested in this report. Report No.: HKEM191000114101 Page: 5 of 69 3 Content 2 TEST SUMMARY ................................................................................................................................ 3 3 CONTENT ........................................................................................................................................... 5 4 GENERAL INFORMATION .................................................................................................................. 7 4.1 Details of E.U.T. .......................................................................................................................... 7 4.2 Description of Support Units ........................................................................................................ 8 4.3 Measurement Uncertainty (95% confidence level, k=2) ............................................................... 9 4.4 Test Location ............................................................................................................................ 10 4.5 Test Facility ............................................................................................................................... 10 4.6 Deviation from Standards .......................................................................................................... 10 4.7 Abnormalities from Standard Conditions .................................................................................... 11 5 EQUIPMENT LIST ..............…

Text truncated - open the document above for the full version.

Report No.: HKEM191100114103 Page: 1 of 10 Keny Xu EMC Laboratory Manager TEST REPORT Application No.: HKEM1911001141AT Applicant: VTECH TELECOMMUNICATIONS LTD. Address of Applicant: 23/F.,BLOCK 1, TAI PING INDUSTRIAL CENTRE,NO. 57 TING KOK ROAD,TAI PO,N.T.,HONG KONG Equipment Under Test (EUT): EUT Name: Full Color Pan and Tilt Video Monitor Model No.: VM5263 BU, VM5263-2 BU, VM5263-ab BU, VM5463 BU, VM5463-2 BU, VM5463-ab BU ♣ ♣ Please refer to section 2 of this report which indicates which item was actually tested and which were electrically identical. FCC ID: EW780-2023-00 IC: 1135B-80202300 HVIN: 35-201303BU Standards: 47 CFR Part 1.1307 (2019) 47 CFR Part 1.1310 (2019) RSS102 Issue 5 March 2015 Date of Receipt: 2019-11-26 Date of Test: 2019-11-26 to 2019-12-12 Date of Issue: 2019-12-12 Test Result : Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: HKEM191100114103 Page: 2 of 10 Revision Record Version Chapter Date Modifier Remark 00 2019-12-12 Original Authorized for issue by: Tested by: Vincent Chen /Project Engineer Checked by: Eric Fu /Reviewer Report No.: HKEM191100114103 Page: 3 of 10 1 Contents 1 CONTENTS ...................................................................................................................................................... 3 2 GENERAL INFORMATION ........................................................................................................................... 4 2.1 Details of E.U.T. ................................................................................................................................. 4 2.2 Description of Support Units .............................................................................................................. 5 2.3 Test Location ...................................................................................................................................... 6 2.4 Test Facility ........................................................................................................................................ 6 2.5 Deviation from Standards ................................................................................................................... 7 2.6 Abnormalities from Standard Conditions ........................................................................................... 7 3 RF EXPOSURE EVALUATION ..................................................................................................................... 8 3.1 RF Exposure Compliance Requirement ............................................................................................. 8 Report No.: HKEM191100114103 Page: 4 of 10 2 General Information 2.1 Details of E.U.T. Power supply: AC 120 V, 60 Hz; Adapter Adaptor 1 AC 100-240V ~ 50/60Hz 200mA to DC 5.0V 1000 mA Model no: S006AKU0500100 Adaptor 2 AC 100-240V ~ 50/60Hz 150mA to DC 5.0V 1000 mA Model no: VT05EUS05100 Battery N/A Function Monitoring Device Test Voltage AC120 V 60 Hz Operation Frequency: 2405-2475MHz Channel Numbers: 16 Channel Separation: ≥ 2MHz Type of Modulation: Frequency Hopping Spread Spectrum (FHSS) Sample Type: Indoor Antenna Type: Dipole Antenna Gain: 0 dBi Frequency List Channel Number TX Freq (MHz) Channel Number TX Freq (MHz) Channel Number TX Freq (MHz) 1 2405 12 2428 23 2454 2 2407 13 2430 24 2456 3 2409 14 2433 25 2458.5 4 2411 15 2435 26 2460.5 5 2413 16 2437 27 2462.5 6 2415 17 2439 28 2467 7 2418 18 2441 29 2469 Report No.: HKEM191100114103 Page: 5 of 10 8 2420 19 2444 30 2471 9 2422 20 2446 31 2473 10 2424 21 2450 32 2475 11 2426 22 2452 Remark: 1. Operation channel is only 16. 2. Testing Channels are highlighted in bold. 2.2 Description of Support Units The EUT has been tested with corresponding accessories as below: Supplied by client Description Manufacturer Model No. SN/Certificate NO UART Test board N/A MX3232 N/A Test Software MicroRidge System Version 3.0.0.108 N/A Supplied by SGS: Description Manufacturer Model No. SN/Certificate NO NoteBook (EMC2) Dell P75F N/A Report No.: HKEM191100114103 Page: 6 of 10 2.3 Test Location All tests were performed at: SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen Branch No. 1 Workshop, M-10, Middle Section, Science & Technology Park, Shenzhen, Guangdong, China. 518057. Tel: +86 755 2601 2053 Fax: +86 755 2671 0594 2.4 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • •• • CNAS (No. CNAS L2929) CNAS has accredited SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch EMC Lab to ISO/IEC 17025:2005 General Requirements for the Competence of Testing and Calibration Laboratories (CNAS-CL01 Accreditation Criteria for the Competence of Testing and Calibration Laboratories) for the competence in the field of testing. • A2LA (Certificate No. 3816.01) SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory is accredited by the American Association for Laboratory Accreditation(A2LA). Certificate No. 3816.01. • VCCI The 3m Fully-anechoic chamber for above 1GHz, 10m Semi-anechoic chamber for below 1GHz, Shielded Room for Mains Port Conducted Interference Measurement and Telecommunication Port Conducted Interference Measurement of SGS-CSTC Standards Technical Services Co., Ltd. have been registered in accordance with the Regulations for Voluntary Control Measures with Registration No.: G-20026, R-14188, C-12383 and T-11153 respectively. • FCC –Designation Number: CN1178 SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized as an accredited testing laboratory. Designation Number: CN1178. Test Firm Registration Number: 406779. • Innovation, Science and Economic Development Canada SGS-CSTC Standards Technical Services Co., Ltd., Shenzhen EMC Laboratory has been recognized by ISED as an accredited testing laboratory. CAB identifier: CN0006. IC#: 4620C. Report No.: HKEM191100114103 Page: 7 of 10 2.5 Deviation from Stand…

Text truncated - open the document above for the full version.

Appendix: Setup photos of HKEM1911001141AT
