EW780-2023-00AVideo Monitor - Baby Unit

14 111213 12 456783 10 9 NOTESNOTE • The rechargeable battery in the parent unit is built-in.• Use only the power adapters supplied with this product.• Make sure the baby monitor is not connected to a switch-controlled elect ric outlet. • Connect the power adapters in a vertical or floor mo unt position only. The adapters’ prongs are not designed to hold the weight of baby monitor, so do n ot connect them to any ceiling, under-the-table, or cabinet outlets. Otherwise, the adapters may not properly connect to the outlets. • Make sure the parent unit, the baby units and the power adapter cords are out of reach of children. Press and hold Specifications are subject to change without notice. © 2021 VTech Communications, Inc. All rights reserved. 06/21. VM5463-X_QSG_V6. Quick start guide VM5463 VM5463-2 Full Color Pan and Tilt Video Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. 1 Connect the baby monitor 2 Power on or off the baby monitor Slide the switch to power on or off your baby unit. Press and hold POWER to power on or off your parent unit. What’s in the box 4 Status check Once you power on both your baby unit and parent unit, your parent unit displays image from the baby unit, and the LINK LED light turns on. The ON LED light of baby unit turns on. 3 Positioning the baby monitor Caution • The default volume of your parent unit is level 4, and the maximum volume is level 7. If you experience high-pitched screeching noise from your baby monitor while positioning: - Make sure your baby unit and parent unit are more than 3 feet (1 meter) apart, OR - Lower the volume of your parent unit. NONO Note • T o avoid interference from other electronic devices, place your baby monitor at least 3 feet (1 meter) away from devices such as wireless routers, microwaves, cell phones and computers. Strangulation Hazard Ke ep this c ord ou t of reach of chi l dren. The cor d needs to be at l e as t thre e fe et a way from the ch ild at all ti mes. Do not use w i t h an e xtension cor d. Do not remove t his t ag. Éloignez ce cordon d e s enfants. Le cordon doi t s e tr ouver à au m oins troi s pieds d’ un e nfant et ce, en tout temps. N’utilisez p as de ra l l ong e. Ne reti rez p as ce tt e étiquette. Mant e nga este cable fue ra de la alcance de lo s niños. E ste cable debe esta r por lo menos tres pie s fu e r a de la a lcanc e del niño en t o do moment o. N o lo use c on u na extensió n ina l á mbrica. No quit e es ta etiqu eta . Risque d’é tranglement Riesgo de estrangulación Strangulation Hazard K eep this cord out of re ach of children. The co rd n eeds to be at least three feet away fr o m the ch ild at a l l times . Do not use wi t h a n e xtension cord. Do not remo v e th i s tag. Éloignez ce cord on de s enf ants. Le cordo n do it se tr ouver à au moins troi s p ieds d’un enfant et ce , en tout temps. N’utilis ez pas d e rallong e . Ne retirez pas cette étiquette. Mante n ga est e cable fu e r a d e la alcance de l os n iños. Este c able de b e estar po r lo me n os tres pies fue r a de la al canc e d el niño e n todo mome n t o . No lo use c on una ex te nsión inalámbri ca. No quite esta e tiq ueta. Risque d’ét ranglemen t R iesgo de estrangulación Quick start guide Adjust speaker volumePress / to adjust your parent unit speaker volume. ZoomPress to zoom in or out. Talk to your baby unitPress and hold TALK and speak to your parent unit. Your voice is transmitted to the baby unit. Release TALK when finish talking and hear your baby again. Use the menuPress to enter the menu, choose a menu item, or save a setting. You can use the parent unit for advanced settings or operations, such as to play or stop the baby unit lullaby, or to adjust the baby unit sound sensitivity.While in the menu:• Press or to scroll among the menu options. • Press to select an item, or to save a setting. • Press or to scroll among the sub-menus, or to adjust a setting. • Press to return to the previous menu options without changing the current setting. • Press /EXIT to return to live video. Basic operation - Parent unit Turn off the screenPress and hold LCD ON/OFF to switch off the screen. You can still hear sound from the baby unit. Tip • Press any key on the parent unit to turn on the screen again. Overview - Parent unit Overview - Baby unit Technical specifications The applied nameplate is located at the bottom of the baby unit’s base.When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following:1. Follow all warnings and instructions marked on the product. 2. Adult setup is required.3. CAUTION: Do not install the baby unit at a height above 2 meters. 4. This product is not a substitute for adult super vision of the infant. Supervising the infant is the parent’s or c aregiver’s responsibility. This product could cease operating, and therefore you should not assume it will continue wo rking properly for any given period of time. Further, thi s is not a medical device and should not be used as such. This product is intended to assist you in supervising your baby. 5. Do not use this product near water. For example, do not use it next to a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower. 6. CAUTION: Use only the battery provided. There may be a risk of explosion if a wrong type of battery is used for the parent unit. The battery cannot be subjected to high or lo w extreme temperature and low air pressure at high altitude d uring use, storage or transportation. Disposal of battery into fire or a hot oven, or mechanically crushing or cutting or the ba ttery can result in an explosion. Leaving the battery in an e xtremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid of gas. Battery subjected to extremely low air pressure may result in an explosion or the …

Text truncated - open the document above for the full version.

Form: RFT-AMER-TCB-OP-19o Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both VTech Communications, Inc. (“Agent”) and VTech Telecommunications Ltd. (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I Michael Tsui HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC & Intertek if there is any change in the status identified above. Applicant Company Name : VTech Telecommunications Ltd. Contact Name : Michael Tsui Address : 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Rd, Tai Po, Hong Kong Telephone No : +852 2680 5398 Email : [email protected] Applicant FRN : 0015973951 Signature: ____________________________________ 17 February 2023 Date: ____________________________________ I Chris Conrad HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant and agree to immediately notify the FCC & Intertek if there is change in this representation. Agent Company Name : VTech Communications, Inc. Contact Name : Chris Conrad Address : 9020 SW Washington Square Road, Tigard OR 97223 Telephone No : +1(503) 596-1212 Email : [email protected] Agent FRN : 0033411265 Signature: ____________________________________ 17 February 2023 Date: ____________________________________

Form: RFT-AMER-TCB-OP-19n Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Covered List, located at https://www.fcc.gov/supplychain/coveredlist and 47 CFR parts §2.903 and §2.911(d)(5)(ii) of the FCC rules Applicant: VTech Telecommunications Ltd. FCC ID: EW780-2023-00A To whom it may concern, VTech Telecommunications Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR part §2.903 of the FCC rules and does not originate directly or indirectly from any company named on the covered list located in the link above or any subsidiary or affiliate thereof. Applicant further certifies that, as of the date of the filing of the application, the Applicant is not identified on the Covered List as an entity producing “covered” equipment and is not a subsidiary or affiliate of any such entity pursuant to 47 CFR part §1.50002 and required by 47 CFR part §2.911(d)(5)(ii) of the FCC rules. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant and agree to immediately notify Intertek if there is any change in the status identified above. ______________________________ [Signature of authorized Proprietor, Partner or Authorized Officer] Mr. Michael Tsui Approbation Supervisor VTech Telecommunications Ltd. 28 April 2023

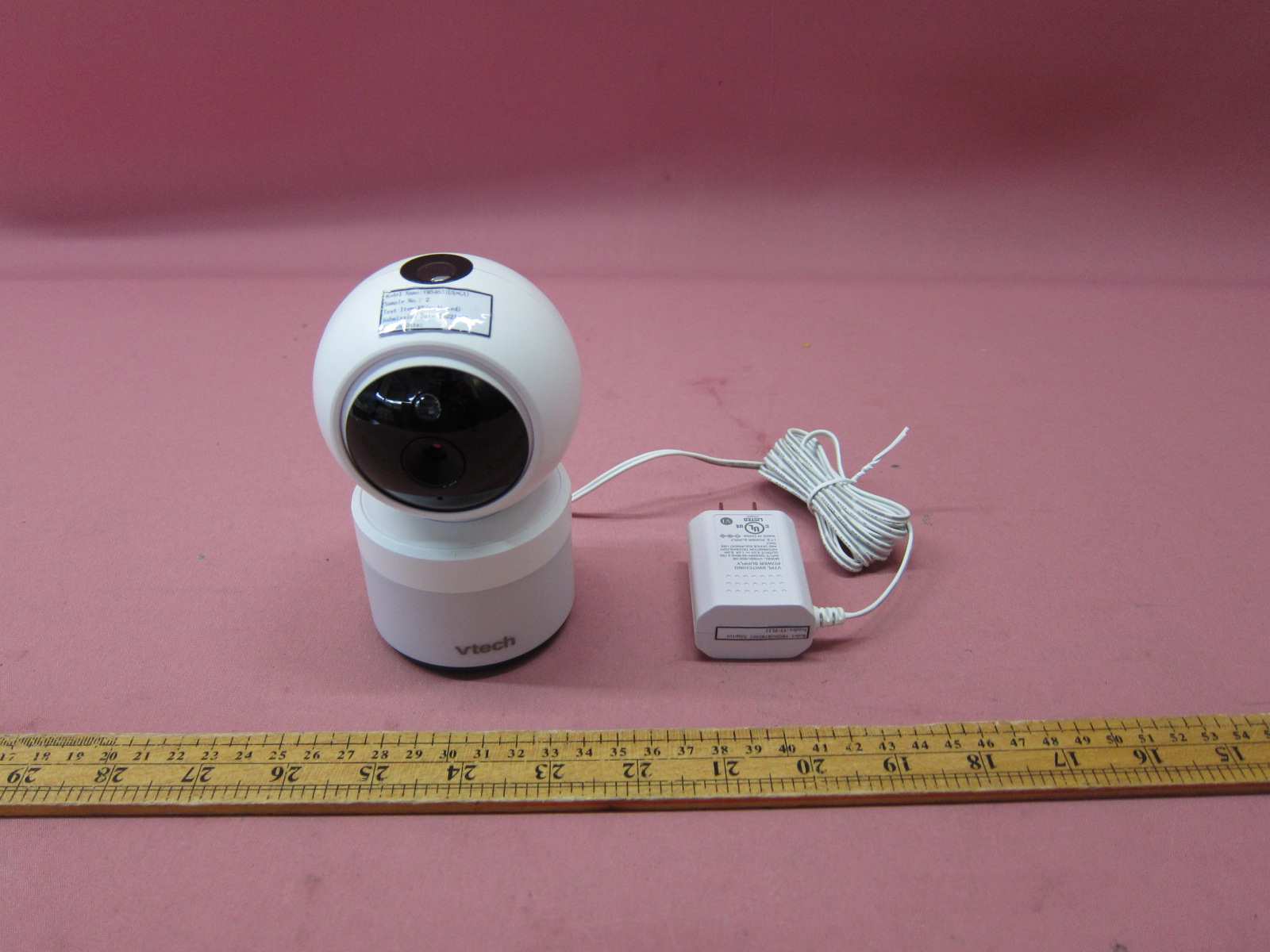

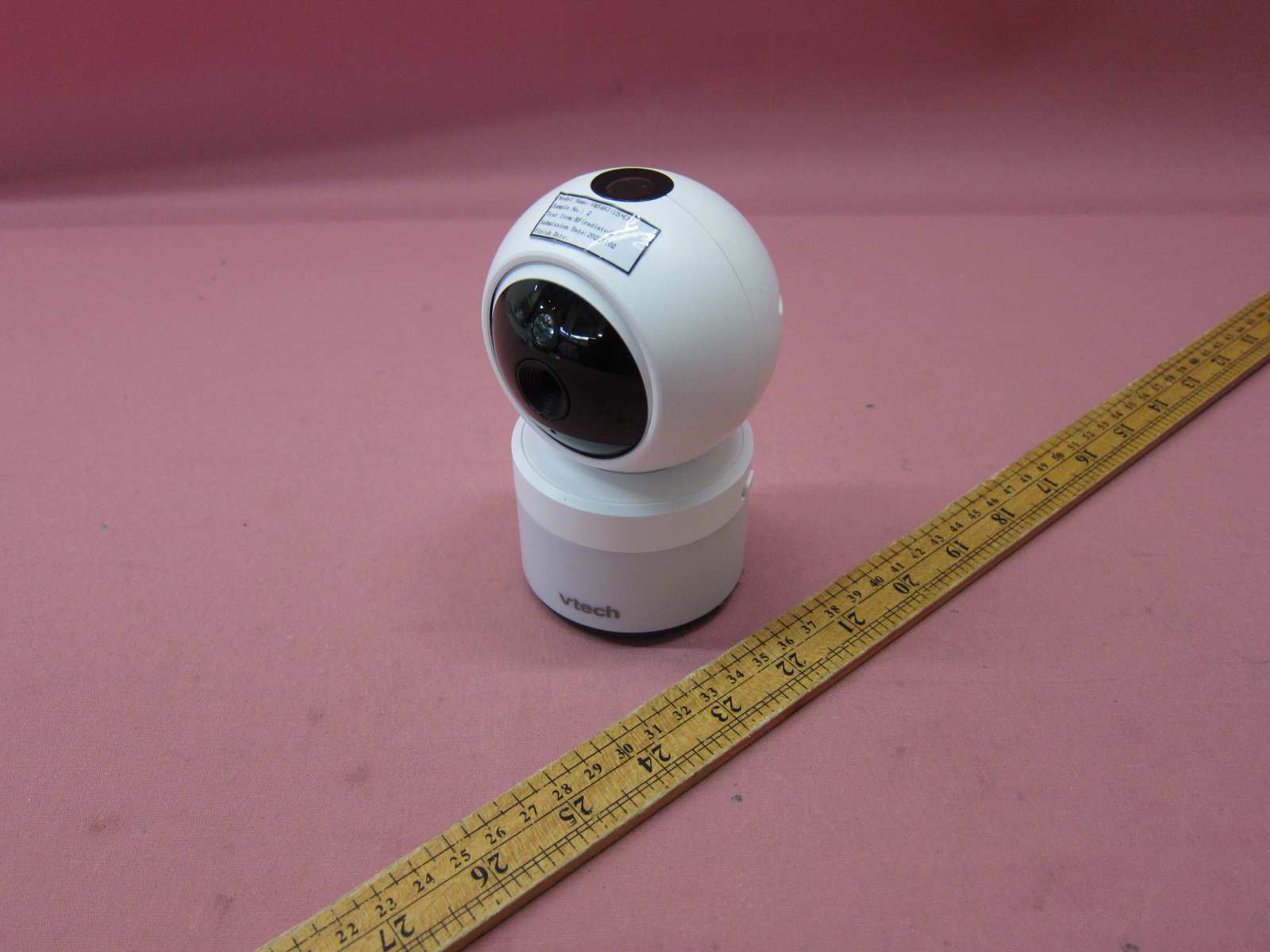

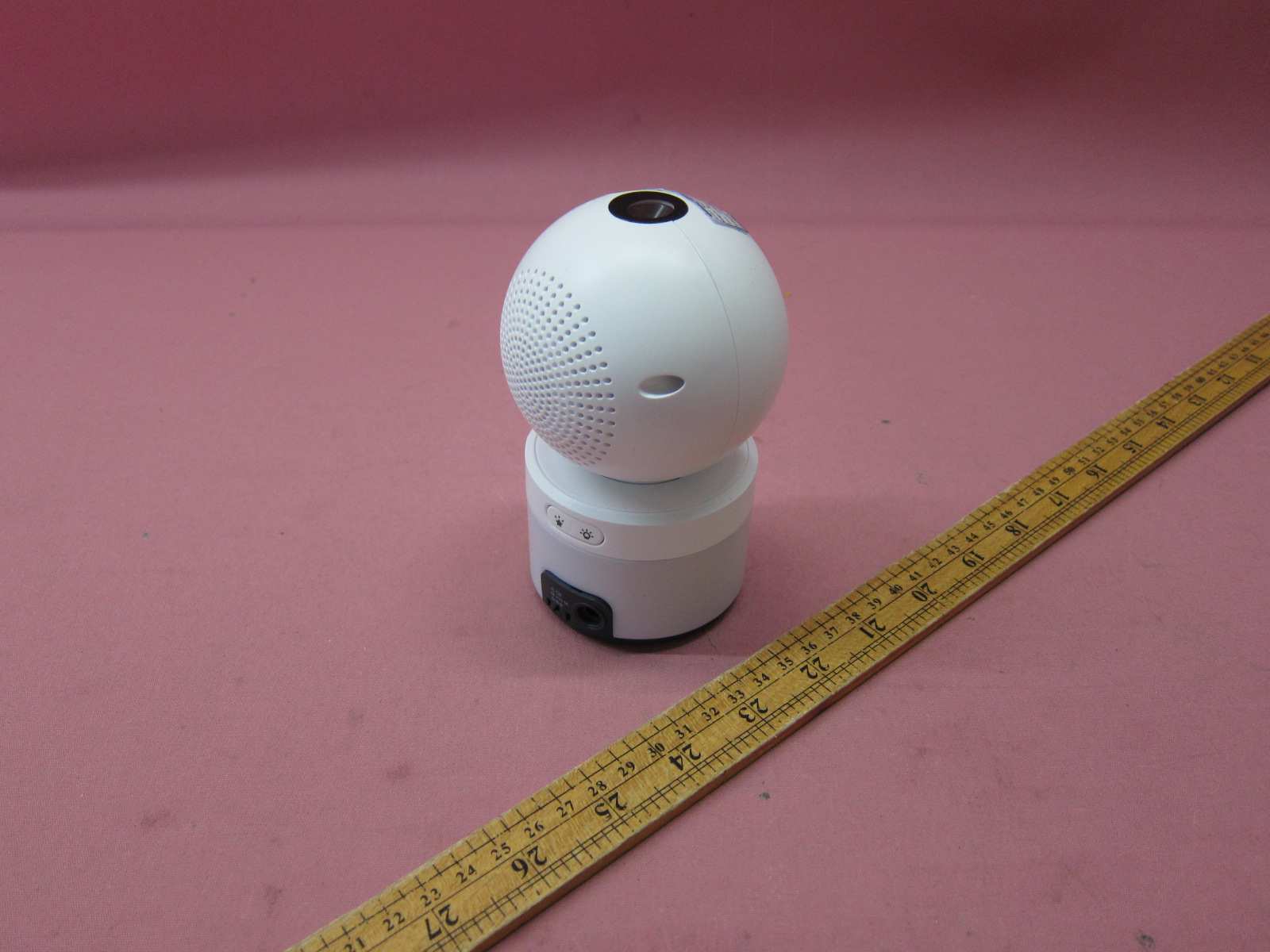

INTERTEK TESTING SERVICE Report No.: HK22110581 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK22110581 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK22110581 Equipment Photographs (External)

LABEL SIZE: 20X10 mm LABEL SIZE: 24X14 mm Model: VM5463 BU S/N: XXXXXXXXXXX Model: VM5463 BU S/N: XXXXXXXXXXX Model: VM5463-2 BU S/N: XXXXXXXXXXX A/V I.C.T.E. MANUFACTURED IN CHINAFCC ID: EW780-2023-00A IC: 1135B-80202300A HVIN: 35-201837BUA www.vtechphones.com VTech Customer Service1-800-595-9511 A/V I.C.T.E. MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service1-800-595-9511 VM5463 LABEL SIZE: 20X10 mm VM5463-2 FCC ID: EW780-2023-00A IC: 1135B-80202300A HVIN: 35-201837BUA LABEL SIZE: 20X10 mm LABEL SIZE: 24X14 mm Model: LM918-2W BU S/N: XXXXXXXXXXX Model: LM918-2W BU S/N: XXXXXXXXXXX LM918-2WLM918W A/V I.C.T.E. MANUFACTURED IN CHINAFCC ID: EW780-2023-00A IC: 1135B-80202300A HVIN: 35-201837BUA www.vtechphones.com VTech Customer Service1-800-595-9511 A/V I.C.T.E. MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service1-800-595-9511 LABEL SIZE: 20X10 mm Model: LM918-1W BU S/N: XXXXXXXXXXX FCC ID: EW780-2023-00A IC: 1135B-80202300A HVIN: 35-201837BUA

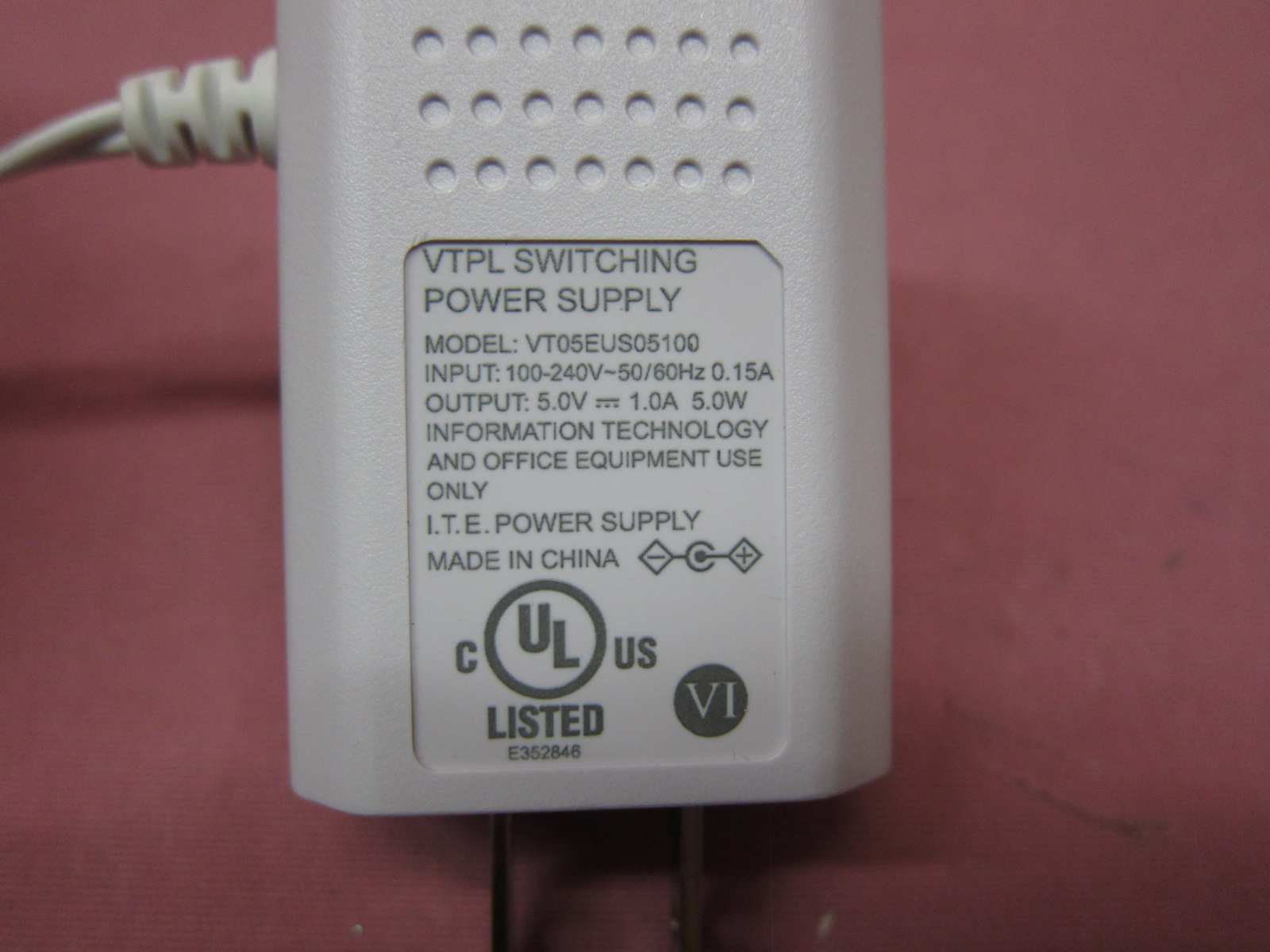

INTERTEK TESTING SERVICE FCC ID: EW780-2023-00A MPE Analysis Report The Equipment-Under-Test (EUT) is a Video Monitor - Baby Unit. It has a microcontroller and 2.4GHz RF module. The EUT is powered by a 5VDC AC/DC adaptor. For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498 D01 v06. For the 2.4GHz RF portion of the unit, the measured powers among all the measured channels were within its production tolerance. The antenna gain is 0 dBi = 1 (num gain) and its maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20 cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 20 dBm + 0 dBi = 20 dBm (100 mW) The radiated (EIRP) source-based time-averaging output power = (100 * 1) mW = 100 mW The power density at 20 cm from the antenna = EIRP / 4πR^2 = 0.02 mW cm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the Baby unit at least 20cm from nearby persons.”

[VTECH] [2.4GHz Dipole Antenna] Model: VM5463 BU Antenna description: This dipole antenna is optimized and used in the Baby Unit in the baby monitor models. This antenna is directly soldered to the RF output in the main PCB. Ordering information: Model Number Description VM5463 BU 2.4GHz Dipole Antenna Specification: Operation Frequency Range 2405-2475 MHz Maximum Gain 0 dBi Type Dipole Operation bandwidth 70MHz Nominal Impedance ~50 ohms Connectors - Dimensions 120×2.7 mm Manufacturer Vtech Telecommunications Ltd Manufacturer address 23/F, Tai Ping Industrial Centre, Blk1, 57 Ting Kok Road, Tai Po, Hong Kong Model number ANT-VM5263-F-FH-1 [VTECH] [2.4GHz Dipole Antenna] Antenna pattern (2441MHz) (the frequency with maximum gain) Coordination: [VTECH] [2.4GHz Dipole Antenna] Physical Dimension: Figure 1 Physical dimension (mm)

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 40 Report No.: 22110581HKG-002 Application For Original Grant of 47 CFR Part 15 Certification Single New of RSS-247 Issue 2 Equipment Certification Video Monitor - Baby Unit FCC ID: EW780-2023-00A IC: 1135B-80202300A Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Assistant Supervisor Wong Kwok Yeung, Kenneth Assistant Manager Date: May 10, 2023 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22110581HKG-002 Page 2 of 40 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Manufacturer Name: VTech (Dongguan) Telecommunications Limited Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: EW780-2023-00A FCC Model(s): VM5463 BU, VM5463-2 BU, LM918-1W BU, LM918-2W BU IC Specification Standard: RSS-247 Issue 2, February 2017 RSS-Gen Issue 5 Amendment 2, February 2021 IC: 1135B-80202300A HVIN: 35-201837BUA PMN: VM5463 BU, VM5463-2 BU, LM918-1W BU, LM918-2W BU VTech Model(s): VM5463 BU, VM5463-2 BU, LM918-1W BU, LM918-2W BU Type of EUT: Spread Spectrum Transmitter Description of EUT: Video Monitor - Baby Unit Sample Receipt Date: November 15, 2022 Date of Test: November 15, 2022 to December 07, 2022 Report Date: May 10, 2023 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-247 Issue 2 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22110581HKG-002 Page 3 of 40 TABLE OF CONTENTS EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ................................ 4 1.1 Summary of Test Results ........................................................................................... 4 1.2 Statement of Compliance ......................................................................................... 4 EXHIBIT 2 GENERAL DESCRIPTION ..................................................................................... 5 2.1 Product Description .................................................................................................. 5 2.2 Test Methodology ..................................................................................................... 5 2.3 Test Facility ................................................................................................................ 5 EXHIBIT 3 SYSTEM TEST CONFIGURATION ......................................................................... 6 3.1 Justification ............................................................................................................... 6 3.2 EUT Exercising Software............................................................................................ 7 3.3 Details of EUT and Description of Accessories ......................................................... 8 3.4 Measurement Uncertainty........................................................................................ 8 EXHIBIT 4 TEST RESULTS .................................................................................................... 9 4.1 Maximum Conducted (Peak) Output Power at Antenna Terminals ......................... 9 4.2 Maximum 20dB RF Bandwidth ............................................................................... 12 4.3 Minimum Number of Hopping Frequencies ........................................................... 15 4.4 Minimum Hopping Channel Carrier Frequency Separation ................................... 17 4.5 Average Channel Occupancy Time ......................................................................... 19 4.6 Out of Band Conducted Emissions .......................................................................... 21 4.7 Field Strength Calculation ....................................................................................... 28 4.8 Transmitter Radiated Emission in Restricted Bands and Spurious Emission ......... 29 4.9 AC Power Line Conducted Emission ....................................................................... 35 EXHIBIT 5 EQUIPMENT LIST ............................................................................................. 38 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22110581HKG-002 Page 4 of 40 EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE 1.1 Summary of Test Results Test Items FCC Part 15 Section RSS-210/ RSS-Gen # Results Details See Section Antenna Requirement 15.203 8.3 # Pass 2.1 Ma…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICE Report No: HK22110581 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK22110581 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View)

INTERTEK TESTING SERVICE Report No: HK220110581 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK220110581 Configuration Photographs Worst-Case Radiated Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK220110581 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK220110581 Configuration Photographs Worst-Case Radiated Emissions (Rear View)
