EW780-2770-01Soother

Quick Start Guide (Canada version) What’s in the box 2 Before use BC8113 Baby Sleep Soother Important safety instructions NOTESNOTE Note • To avoid interference from other electronic devices, place your soother at least 3 feet (1 metre) away from devices such as wireless routers, microwaves, cell phones and computers. The applied nameplate is located at the bottom of the soother’s base. When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Follow all warnings and instructions marked on the product. 2. Adult setup is required. 3. Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. The unit is “ Double insulation”. 4. This product is not a substitute for adult supervision of the infant. Supervising the infant is the parent’s or caregiver’s responsibility. This product could cease operating, and therefore you should not assume it will continue working properly for any given period of time. Further, this is not a medical device and should not be used as such. 5. Do not use this product near water. For example, do not use it next to a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower. 6. The soother is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the soother in place if it is plugged into a ceiling, under-the-table or cabinet outlet. 7. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 8. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 9. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your dealer or local power company. 10. Do not overload wall outlets or use an extension cord. 11. Do not place this product on an unstable table, shelf, stand or other unstable surfaces. 12. This product should not be placed in any area where proper ventilation is not provided. Slots and openings in the back or bottom of this product are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat register. 13. Never push objects of any kind into this product through the slots because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product. 14. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the product other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used. 15. Periodically examine all components for damage. 16. There is a very low risk of privacy loss when using certain electronic devices, such as soothers, baby monitors, etc. To protect your privacy, make sure the product has never been used before purchase, reset the soother periodically by powering off and then powering on the soother, and power off the soother if you will not use it for some time. 17. Children should be supervised to ensure that they do not play with the product. 18. The product is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. SAVE THESE INSTRUCTIONS Cautions 1. Use and store the product at a temperature between 0 o C (32 o F) and 40 o C (104 o F). 2. Do not expose the product to extreme cold, heat or direct sunlight. Do not put the product close to a heating source. 3. Never place the soother inside the baby’s crib or playpen. Never cover the soother with anything such as a towel or a blanket. 4. Other electronic products may cause interference with your soother. Try installing your soother as far away from these electronic devices as possible: wireless routers, radios, cellular telephones, intercoms, room monitors, televisions, personal computers, kitchen appliances and cordless telephones. Precautions for users of implanted cardiac pacemakers Cardiac pacemakers (applies only to digital cordless devices): Wireless Technology Research, LLC (WTR), an independent research entity, led a multidisciplinary evaluation of the interference between portable wireless devices and implanted cardiac pacemakers. Supported by the U.S. Food and Drug Administration, WTR recommends to physicians that: Pacemaker patients • Should keep wireless devices at least six inches from the pacemaker. • Should NOT place wireless devices directly over the pacemaker, such as in a breast pocket, when it is turned ON. WTR’s evaluation did not identify any risk to bystanders with pacemakers from other persons using wireless devices. Electromagnetic fields (EMF) This VTech product complies with all standards regarding electromagnetic fields (EMF). If handled properly and according to the instructions in this user’s manual, the product is safe to be used based on scientific evidence available today. Go to www.vtechcanada.com for latest VTech product news. For more support information S m Positioning the soother • Place the soother more than 3 feet ( 1 metre) away from your baby. Caution • Keep the soother out of the reach of your baby. Never place the soother inside the baby’s crib or playpen. Quick start guide > 3 feet (1 m) 3 Overview 1 Magic Key 2 Nigh…

Text truncated - open the document above for the full version.

vtech Attention: Application Examiner Re: Covered List, located at https://www .fcc.gov/supplychain/coveredlist and Report & Order 22-84 located at https://docs.fcc.gov/public/attachments/DOC-389524A l .pdf Applicant: VTech Telecommunications Ltd . FCC ID: EW780-2770-01 To whom it may concern, Pursuant to FCC Report & Order 22-84 section IV. Interim Freeze Order, paragraphs 264, 265, and 266, as an authorized representative of VTech Telecommunications Ltd ., I attest that the equipment for which we are seeking equipment authorization through certification is not prohibited from receiving an equipment authorization; and VTech Telecommunications Ltd. is not an entity identified on the Covered List or an affiliate or subsidiary of an entity identified on the Covered List, established pursuant to 47 CFR§1.50002. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the company and agree to immediately notify Intertek ifthere is any change in the status identified above. ｀己 ］國 Mr. Michael Tsui Approbation Supervisor VTech Telecommunications Ltd. Form: RFT-AMER-TCB-OP-19m Date: 12 January 2023 Revision: 1 Page 1 of 1

VTech Telecommunications Ltd Nov 07, 2022 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-2770-01 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

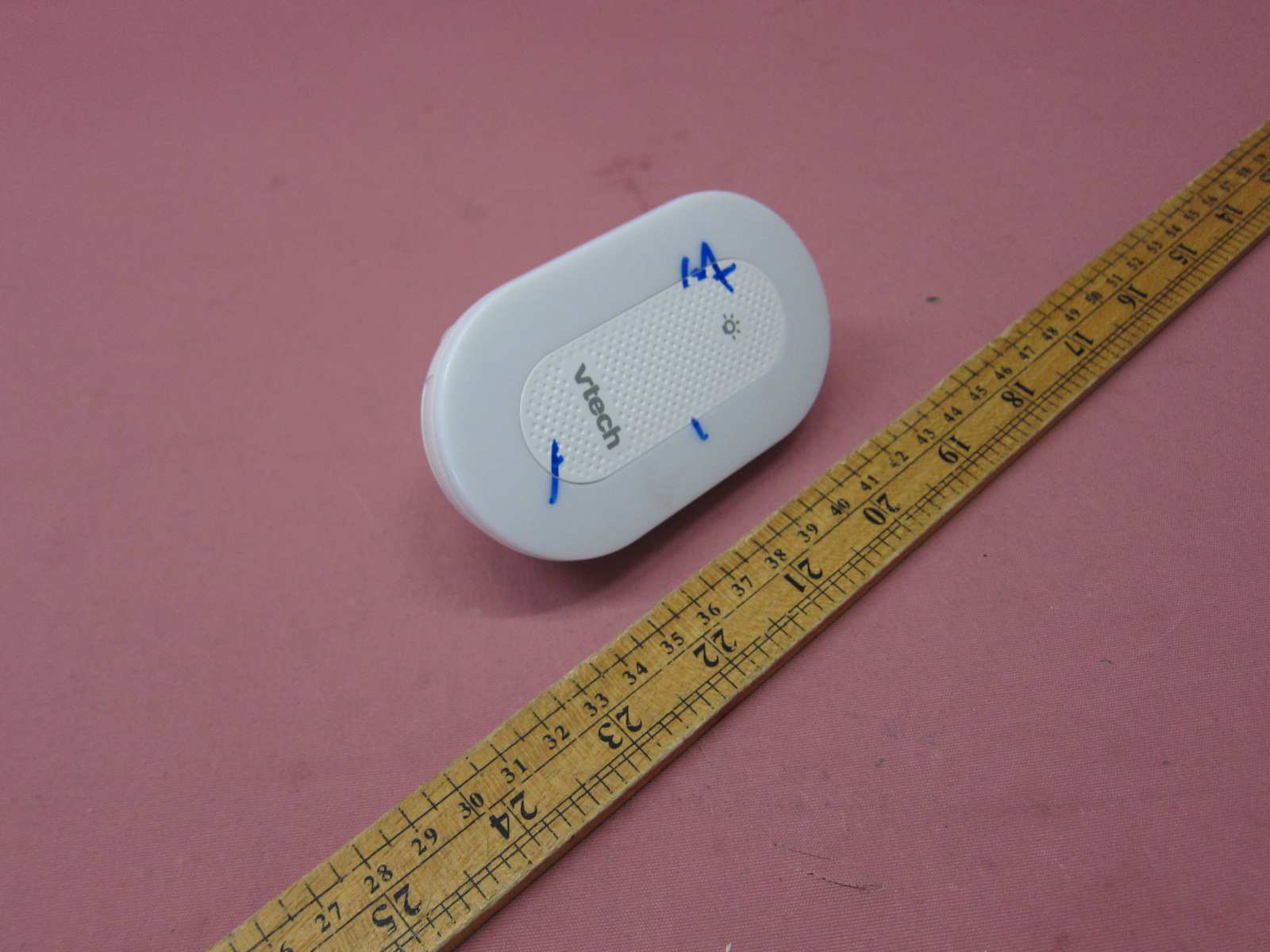

INTERTEK TESTING SERVICE Report No.: HK22101113 Equipment Photographs (External)

MODEL:BC8113 INPUT: 100-240Vac, 50/60Hz 1.1W or 25mA FCC ID: EW780-2770-01 HVIN: 35-201877 IC: 1135B-80277001 MADE IN CHINA VTech Customer Service 1-800-595-9511 LBL SIZE: 39.5X15.5mm P/N:92-038275-020-100 P/N:92-038350-000-100 50# UL Approved PET Blank LBL SIZE: 28X7mm 50# UL Approved PET MODEL:BC8113 INPUT: 100-240Vac, 50/60Hz 1.1W or 25mA FCC ID: EW780-2770-01HVIN: 35-201877IC: 1135B-80277001 MADE IN CHINA VTech Customer Service 1-800-595-9511 BT ID: V-Hush Plug_xxxx

INTERTEK TESTING SERVICE Report No.: HK22101113 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22101113 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK22101113 Equipment Photographs (Internal)

INTERTEK TESTING SERVICE FCC ID: EW780-2770-01 MPE Analysis Report The Equipment Under Test (EUT) is a soother. The EUT is powered by 110-240VAC. For Maximum Permissible Exposure (MPE) evaluation of the unit, the maximum power density at 20 cm from this transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the Bluetooth portion of the unit, the measured powers among all the measured channels were within its production tolerance. The maximum source-based time-averaging duty factor is 100%. From these data and its operating configuration, the exposed power density at a distance (R) of 20 cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The EIRP radiated power = conducted power (with maximum tolerance) + antenna gain = 8 dBm + 0 dBi = 8 dBm (0.0063 mW) The radiated (EIRP) source-based time-averaging output power = (0.0063 * 1) mW = 0.0063 mW The power density at 20 cm from the antenna = EIRP / 4 πR^2 = 0.00125 mW cm-2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm-2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the unit at least 20cm from nearby persons.”

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 36 Report No.: 22101113HKG-001 VTech Telecommunications Ltd. Application For Certification (Original Grant) FCC ID: EW780-2770-01 IC: 1135B-80277001 Transceiver Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Lead Engineer Wong Kwok Yeung, Kenneth Assistant Supervisor Date: December 07, 2022 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22101113HKG-001 Page 2 of 36 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Contact Person: Michael Tsui Tel: (852) 2680 1000 Fax: (852) 2680 5398 E-mail: [email protected] Manufacturer: VTech (Dongguan) Telecommunications Limited Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. Brand Name: VTech Model: BC8113 HVIN: 35-201877 PMN: BC8113 Type of EUT: Low Power Communication Device Transmitter Description of EUT: Soother Serial Number: N/A FCC ID / IC: EW780-2770-01 / 1135B-80277001 Date of Sample Submitted: October 28, 2022 Date of Test: October 28, 2022 to November 23, 2022 Report No.: 22101113HKG-001 Report Date: December 07, 2022 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-210 Issue 10 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22101113HKG-001 Page 3 of 36 SUMMARY OF TEST RESULT Test Specification Reference Results Transmitter Power Line Conducted Emissions 15.207 / RSS-Gen 8.8 Complied Radiated Emission Radiated Emission on the Bandedge 15.249, 15.209 / RSS-210 B.10, RSS-Gen 8.9 Complied Radiated Emission in Restricted Bands 15.205 / RSS-Gen 8.10 Complied For all technical data, which can be referred to Annex B – Report cover sheet. For electronic filing, the Annex B – Report cover sheet is saved with filename: Annex B.pdf. The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2021 Edition RSS-210 Issue 10 Amendment 1, April 2020 RSS-Gen Issue 5 Amendment 2, February 2021 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the pervisions of this section. 2. Pursuant to FCC part 15 Section 15.215(c), the 20 dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over excepted variations in temperature and supply voltage were considered. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22101113HKG-001 Page 4 of 36 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION .................................................................................................... 5 1.1 Product Description .................................................................................................. 5 1.2 Related Submittal(s) Grants ...................................................................................... 5 1.3 Test Methodology ..................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 Justification ............................................................................................................... 6 2.2 EUT Exercising Software............................................................................................ 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty........................................................................................ 6 2.5 Support Equipment List and Description .................................................................. 6 3.0 EMISSION RESULTS ........................................................................................................... 7 3.1 Field Strength Calculation ......................................................................................... 7 3.2 Radiated Emission Configuration Photograph .......................................................... 8 3.3 Radiated Emission Data ..............................................................................…

Text truncated - open the document above for the full version.

[VTECH BC8113] [2400MHz PCB On board Antenna] Model: BC8113 Coordination: Antenna Description: This PCB On Board antenna is optimized and used in the BC8113. Model Number Description BC8113 2400MHz PCB On Board Antenna Antenna Specification: Item Specification Operating Frequency 2400MHz - 2480MHz Maximum Gain 0 dBi Antenna Type PCB antenna Operation Bandwidth 80MHz Nominal Impedance ~50 Ohm Connectors NA Dimensions See details below Maufacturer Vtech Telecommunications Ltd Manufacturer Address 23/F, Tai Ping Industrial Centre, Blk1, 57 Ting Kok Road, Tai Po, Hong Kong Model Number ANT-BC8113-F-BT-1 [VTECH BC8113] [2400MHz PCB On board Antenna] Antenna Pattern (2440MHz): Max antenna gain is 0dBi. Antenna Gain -60 -50 -40 -30 -20 -10 0 10 Vertical Horizontal Antenna Dimensions:

INTERTEK TESTING SERVICE Report No: HK22101133 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK22101133 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK22101133 iii Configuration Photographs Worst-Case Line-Conducted Emissions (Side View)
