EW780-3000-00Breathing Sensor Tag

Overview 1 2 3 6 8 4 5 7 1 Power button • Press to turn the sensor on/off. • Press and hold to enter Bluetooth paring mode. 2Speaker 3Battery indicator (Red) • Turns on, then turns off when the sensor is powered on. • Flashes, then turns off when the battery power is low. • Steadily lights when the sensor is in charging and fully charged. 4Breathing Status indicator (Green) • Lights for 3 seconds when the sensor is powered on. • Flashes slowly when baby is in normal breathing. • First alert - When breathing motion is not detected over 15 seconds, LED flashes quickly with a soft buzzer and vi- bration for 10 seconds, any motion in this period will stop the buzzer and vibration. Breathing status LED resume to normal. • Emergency alert - If no motion was detected for further 5 seconds after the First Alert, LED will flash quickly with louder buzzer and vibration, press the power button to stop the alert. 5 Bluetooth indicator (Blue) • Turns on, then turns off when the sensor is powered on. • Flashes blue, then turns off when the sensor enters in paring mode. 6 Charging port 7 Clip locker 8 Diaper/pant clip VC2810 Quick start guide Breathing Sensor Tag (for use with VC2105 5” Smart Nursery Over-the-Crib Mount Monitor) Go to www.vtechphones.com to register your product for enhanced warranty support and latest VTech product news. For more support information: S m VC2810 RF TechnologyBluetooth ConnectionBluetooth to camera Range10 m Battery3.8V 215mAh 0.817Wh Lithium-ion battery Power input5V DC, 500mA Technical specifications Specifications are subject to change without notice. © 2023 VTech Communications, Inc. All rights reserved. 04/23. VC2180_US_QSG_V1 UL STD. 62368-1 CERTIFIED TO CSA STD. C22.2 NO.62368-1 CONFORMS TO What’s in the box Connect, Charge and Power on the Sensor Quick start guide Connect the charging cable to the sensor and a USB power port (2A or below). The LED indicator lights red steadlily. After the sensor is fully charged, press the power button to turn the sensor on. The three LED indicators turn on and then turn off. • ONLY charge the sensor with 2A or below USB power port. • Before using the sensor for the first time, charge the sensor battery for 12 hours. When the sensor battery is fully charged, the red LED indicator remains on. • The standby time varies depending on your actual use. • If the battery power is low, the LED indicator flashes red, then goes off. The applied nameplate is located at the bottom of the sensor’s base. When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Follow all warnings and instructions marked on the product. 2. Adult setup is required. 3. This product is intended as an aid. It is not a substitute for responsible and proper adult supervision and should not be used as such. 4. This product is not intended for use as a medical monitor. 5. Do not use this product near water, for example, near to a bath, sink, swimming pool or shower. 6. CAUTION: Use only the battery provided. There may be a risk of explosion if a wrong type of battery is used for the parent unit. The battery cannot be subjected to high or low extreme temperature and low air pressure at high altitude during use, storage or transportation. Disposal of battery in fire or a hot oven, mechanically crushing or cutting the battery can result in an explosion. Leaving the battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid of gas. Battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Dispose of used battery according to the information in The RBRC seal. 7. Rechargeable battery information: 3.8V 215mAh 0.817Wh Lithium-ion battery Zhongshan Tianmao Battery Co. Ltd. Model: BP2196/RM5757 8. The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under- the-table or cabinet outlet. 9. For pluggable equipment, the socket-outlet (power adapter) should be installed near the equipment and should be easily accessible. 10. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 11. Do not modify the power adapters or replace with other adapters, as this causes a hazardous situation. 12. Do not allow anything to rest on the power cords. Do not install this product where the cords may be walked on or crimped. 13. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply in your home, consult your dealer or electricity supply provider. 14. Do not overload wall outlets or use an extension cord. 15. Do not place this product on an unstable table, shelf, stand or other unstable surfaces. 16. This product should not be placed in any area where proper ventilation is not provided. Slots and openings in the back or bottom of this product are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat source. 17. Never push objects of any kind into this product through the slots because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product. 18. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Disassembling or removing parts of the product other than via the battery door may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used. 19. You should test the sound reception every time you turn on the units or move …

Text truncated - open the document above for the full version.

Form: RFT-AMER-TCB-OP-19o Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Certification designating a U.S. agent for service of process pursuant to section 2.911(d)(7) of the FCC rules To whom it may concern, This letter is to confirm both VTech Communications, Inc. (“Agent”) and VTech Telecommunications Ltd. (“Applicant”) acknowledge consent to obligations of each party pursuant to 47 CFR part §2.911(d)(7) of the FCC rules in regard to the agent for service of process. I Michael Tsui HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant. I further acknowledge the requirement to maintain an agent extends for no less than one year after the termination of all marketing and importation or the conclusion of and commission-related proceeding involving the equipment and agree to immediately notify the FCC & Intertek if there is any change in the status identified above. Applicant Company Name : VTech Telecommunications Ltd. Contact Name : Michael Tsui Address : 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Rd, Tai Po, Hong Kong Telephone No : +852 2680 5398 Email : [email protected] Applicant FRN : 0015973951 Signature: ____________________________________ 17 February 2023 Date: ____________________________________ I Chris Conrad HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Agent. I consent to the obligation to accept service of process on behalf of the applicant in regard to all certification applications to the FCC submitted by above applicant and agree to immediately notify the FCC & Intertek if there is change in this representation. Agent Company Name : VTech Communications, Inc. Contact Name : Chris Conrad Address : 9020 SW Washington Square Road, Tigard OR 97223 Telephone No : +1(503) 596-1212 Email : [email protected] Agent FRN : 0033411265 Signature: ____________________________________ 17 February 2023 Date: ____________________________________

Fo rm: RFT-AMER-TCB-OP-19n Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Covered List, located at https://www.fcc.gov/supplychain/coveredlist and 47 CFR parts §2.903 and §2.911(d)(5)(ii) of the FCC rules Applicant: VTech Telecommunications Ltd. FCC ID: EW780-3000-00 To whom it may concern, VTech Telecommunications Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR part §2.903 of the FCC rules and does not originate directly or indirectly from any company named on the covered list located in the link above or any subsidiary or affiliate thereof. Applicant further certifies that, as of the date of the filing of the application, the Applicant is not identified on the Covered List as an entity producing “covered” equipment and is not a subsidiary or affiliate of any such entity pursuant to 47 CFR part §1.50002 and required by 47 CFR part §2.911(d)(5)(ii) of the FCC rules. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant and agree to immediately notify Intertek if there is any change in the status identified above. ______________________________ [Signature of authorized Proprietor, Partner or Authorized Officer] Mr. Michael Tsui Approbation Supervisor VTech Telecommunications Ltd. 27 April 2023

Appe nd ix B1 Letter of Agency for FCC Certification June 05, 2021 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Ms. Jess Tang / Mr. Kenneth Wong) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Mar 23, 2023 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-3000-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

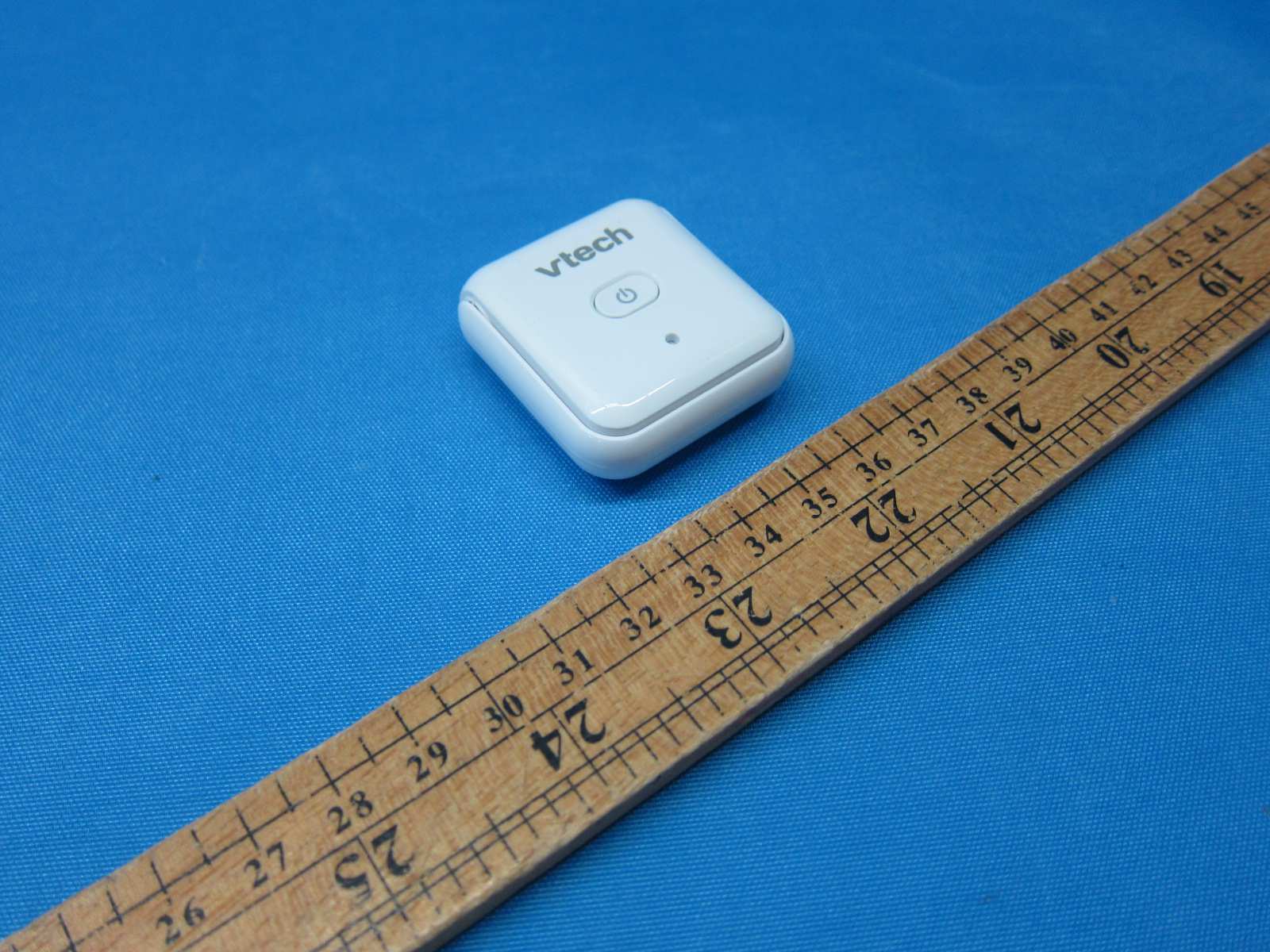

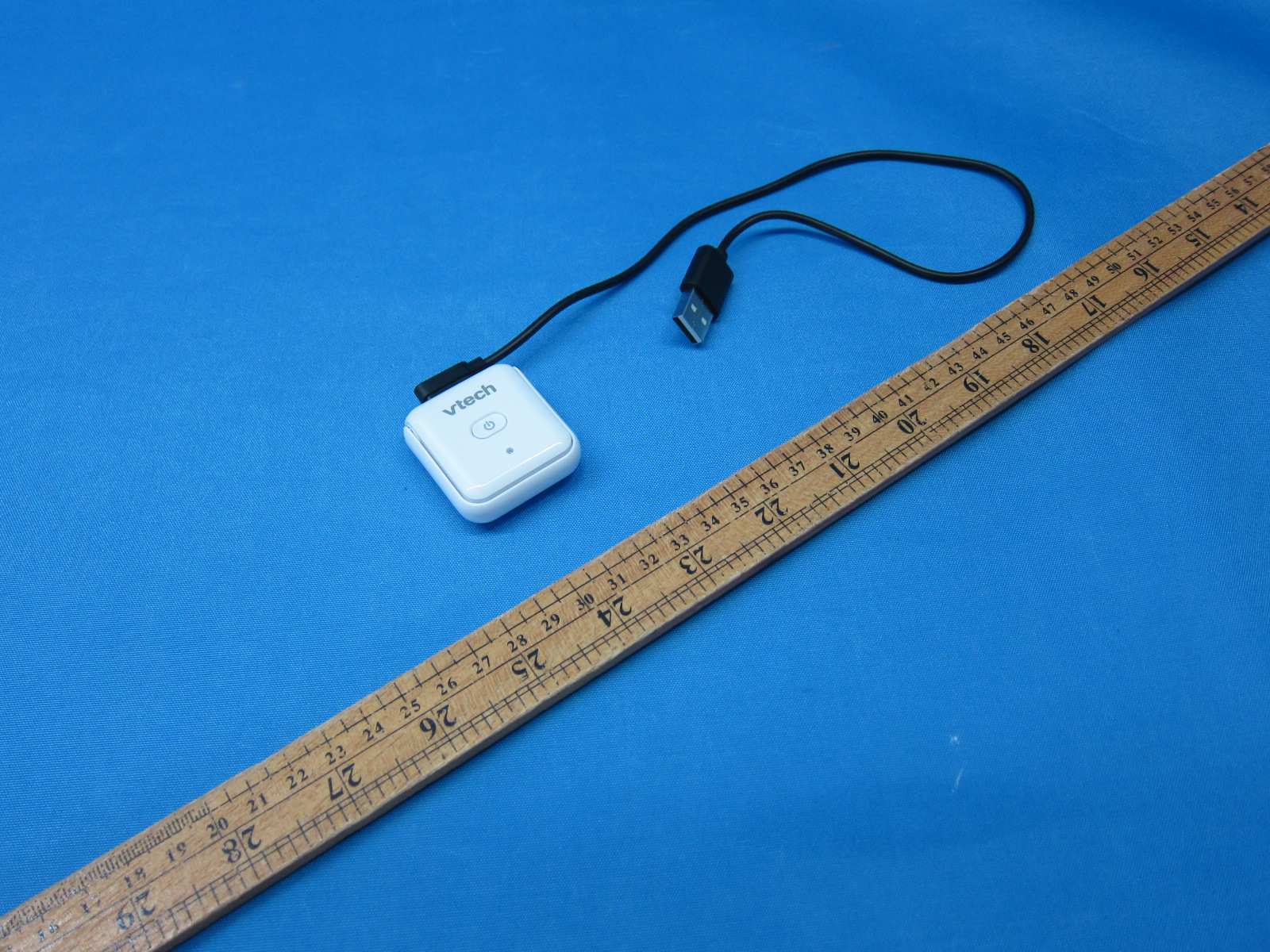

INTERTEK TESTING SERVICE Report No.: HK23030430 Equipment Photographs (External) INTERTEK TESTING SERVICE Report No.: HK23030430 Equipment Photographs (External)

17.80 23.50 8.50 15.00 R0.50 R0.50 typ.4 typ.4 BU IC: 1135B-80300000BU HVIN: 35-202055BU Model: VC2810 S/N: XXXXXXXXXXX MANUFACTURED IN CHINA BU FCC ID: EW780-3000-00

INTERTEK TESTING SERVICE Report No.: HK23030430 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK23030430 Equipment Photographs (Internal) INTERTEK TESTING SERVICE Report No.: HK23030430 Equipment Photographs (Internal)

Analysis Report The Equipment Under Test (EUT), is a Breathing Sensor Tag with Bluetooth BLE feature. The EUT operates in a frequency range between 2402MHz and 2480MHz. The EUT is powered 3.7VDC internal rechargeable Li-ion battery and/or USB port (5VDC). Antenna Type: Internal, Integral, wire antenna Peak Antenna Gain: 0dBi 2.4GHz Bluetooth portion: Modulation Type: GFSK Conducted RF power range: -20dBm to 0dBm According to the KDB 447498 D04 Interim General RF Exposure Guidance v01 Based on the Maximum allowed average field strength of production tolerance was 95.2dBμV/m at 3m (0 dBm). Thus, it below calculated field strength according to minimum SAR exclusion threshold level as follows: The worst case of SAR Exclusion Threshold Level at 2.48GHz with distance 5mm: = 2.717mW According to the KDB 412172 D01: EIRP = [(FS*D) ^2*1000 / 30] Calculated Field Strength for 2.717mW is 99.6dBuV/m @3m Since maximum average field strength plus production tolerance < = 99.6dBuV/m @3m and antenna gain is > = 0.0dBi, it is concluded that maximum Conducted Power and Field Strength are well below the SAR Exclusion threshold level, so the EUT is considered to comply with SAR requirement without testing.

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 42 Report No.: 23030430HKG-001 VTech Telecommunications Ltd. Application For Original Grant of 47 CFR Part 15 Certification Single New of RSS-210 Issue 10 Amendment 1 Certification Breathing Sensor Tag FCC ID: EW780-3000-00 IC: 1135B-80300000 Prepared and Checked by: Approved by: Signed on File Wong Cheuk Ho, Herbert Wong Kwok Yeung, Kenneth Lead Engineer Assistant Supervisor Date: March 30, 2023 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 23030430HKG-001 Page 2 of 42 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Manufacturer: VTech (Dongguan) Telecommunications Limited Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. FCC Specification Standard: FCC Part 15, October 1, 2021 Edition FCC ID: EW780-3000-00 FCC Model(s): VC2810 IC Specification Standard: RSS-210 Issue 10 Amendment 1, April 2020 RSS-Gen Issue 5 Amendment 2, February 2021 IC: 1135B-80300000 HVIN: 35-202055BU PMN: VC2810 VTech Model(s): VC2810 Type of EUT: Transceiver Description of EUT: Breathing Sensor Tag Brand Name: vtech Sample Receipt Date: March 13, 2023 Date of Test: March 13, 2023 to March 30, 2023 Report Date: March 30, 2023 Environmental Conditions: Temperature: +10 to 40°C Relative Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-210 Issue 10 Amendment 1 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 23030430HKG-001 Page 3 of 42 SUMMARY OF TEST RESULT Test Items FCC Part 15 Section RSS-210 / RSS-Gen # Results Transmitter Power Line Conducted Emissions 15.207 8.8 # Complied Radiated Emission 15.249, 15.209 B.10 / 8.9 # Complied Radiated Emission on the Bandedge Complied Radiated Emission in Restricted Bands 15.205 8.10 # Complied For Canada, all technical data can be referred to Annex B – Report cover sheet. For electronic filing, the Annex B – Report cover sheet is saved with filename: Annex B.pdf. The equipment under test is found to be complying with the following standards: FCC Part 15, October 1, 2021 Edition RSS-210 Issue 10 Amendment 1, April 2020 RSS-Gen Issue 5 Amendment 2, February 2021 Note: 1. The EUT uses a permanently attached antenna which, in accordance to section 15.203, is considered sufficient to comply with the previsions of this section. 2. Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT operated. The effects, if any, from frequency sweeping, frequency hopping, other modulation techniques and frequency stability over expected variations in temperature and supply voltage were considered. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 23030430HKG-001 Page 4 of 42 TABLE OF CONTENTS 1.0 GENERAL DESCRIPTION ................................................................................................ 5 1.1 Product Description .................................................................................................. 5 1.2 Related Submittal(s) Grants ...................................................................................... 5 1.3 Test Methodology ..................................................................................................... 5 1.4 Test Facility ................................................................................................................ 5 2.0 SYSTEM TEST CONFIGURATION .................................................................................... 6 2.1 Justification ............................................................................................................... 6 2.2 EUT Exercising Software............................................................................................ 6 2.3 Special Accessories .................................................................................................... 6 2.4 Measurement Uncertainty........................................................................................ 6 2.5 Support Equipment List and Description .................................................................. 6 3.0 EMISSION RESULTS ...................................................................................................... 7 3.1 Field Strength Calculation ......................................................................................... 7 3.2 Radiated Emission Configuration Photograph .......................................................... 8…

Text truncated - open the document above for the full version.

[VTECHVC2810] [2400MHzwireAntenna] Model:VC2810 Coordination: AntennaDescription: ThisPCBOnBoardantennaisoptimizedandusedintheVC2810. ModelNumberDescription VC28102400MHzWireAntenna AntennaSpecification: ItemSpecification OperatingFrequency2400MHz-2480MHz MaximumGain0dBi AntennaTypeWireantenna OperationBandwidth80MHz NominalImpedance~50Ohm ConnectorsNA DimensionsSeedetailsbelow MaufacturerVtechTelecommunicationsLtd ManufacturerAddress 23/F,TaiPingIndustrialCentre,Blk1,57 TingKokRoad,TaiPo,HongKong ModelNumber34-007303-001-100 Z X Y [VTECHVC2810] [2400MHzwireAntenna] AntennaPattern(2440MHz): Maxantennagainis0dBi. AntennaDimensions: [VTECHVC2810] [2400MHzwireAntenna]

INTERTEK TESTING SERVICE Report No: HK23030430 Configuration Photographs Worst-Case Radiated Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK23030430 Configuration Photographs Worst-Case Radiated Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK23030430 Configuration Photographs Worst-Case Radiated Emissions (Rear View) INTERTEK TESTING SERVICE Report No: HK23030430 Configuration Photographs Radiated Emissions (Front View)

INTERTEK TESTING SERVICE Report No: HK23030430 i Configuration Photographs Worst-Case Line-Conducted Emissions (Front View) INTERTEK TESTING SERVICE Report No: HK23030430 ii Configuration Photographs Worst-Case Line-Conducted Emissions (Rear View)
