EW780-5198-00VTECH 5831 Base Set

1 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool). 5.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6.Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation where proper ventilation is not provided. 7.This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9.Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 10.To reduce the risk of electric shock, do not disassemble this product. Opening or removing cabinet parts other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassemb-ling can cause electric shock when the appliance is subsequently used. 11.Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Important Safety Instructions 2 12.Unplug this product from the wall outlet and refer servicing to VTECH under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work to restore the product to normal operation. E. If the product has been dropped and the cabinet has been damaged. F. If the product exhibits a distinct change in performance. 13.Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14.Do not use the telephone to report a gas leak in the vicinity of the leak. VTECH COMMUNICATIONS INC. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTech Electronics Ltd. at 1-800-267-7377. SAVE THESE INSTRUCTIONS 3 The VT5831 is an advanced cordless telephone that operates in the 5.8GHz frequency range. Your VT5831 is capable of supporting up to a maximum of 6 Handsets. Using additional Handsets, up to three people can be conferenced on a call (2 Handsets and the Base Speakerphone), or two extensions can be conferenced on a call, while two other extensions can be talking internally, using the Intercom feature. This manual is designed to familiarize you with the VT5831 cordless telephone. We strongly recommend you read the manual before using your phone. To order additional system Handsets (model# VT 5820), battery packs, or headsets, call VTech Communications Inc at 1-800-595- 9511. Introduction IMPORTANT Please record the Base ID#(BS ID) printed on the underside of the 5831 Base in the space below. Please be certain to include all 15 digits/characters. Base ID # 4 Parts Check List 7. Belt clip 8.Base Wall Mounting Bracket 9.Charger Wall Mounting Bracket 10.Owner's Manual 11. Battery Pack To purchase replacement battery packs, call VTech Communications Inc. at 1-800-595-9511. In Canada, call VTech Electronics Ltd. at 1-800-267-7377. 1.Base Unit 2.Handset 3.Charger AC Power Adapter 4. Charger 5. Base AC Power ADapter 6. Telephone Cord

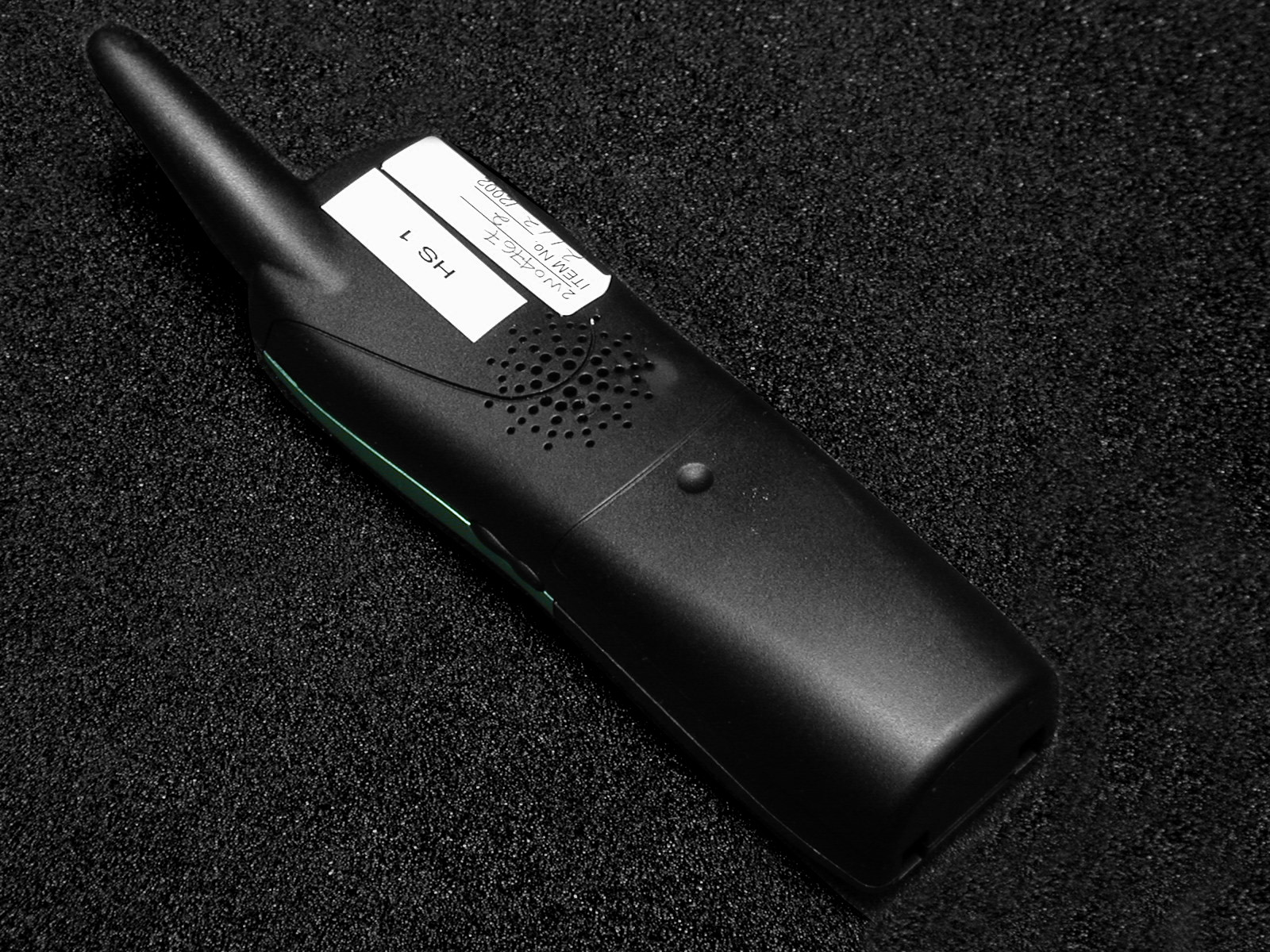

                    !  "         #  "  Chargser AC Power Adapter Chargser 5 The Handset Layout 1.Antenna 2.Earpiece 3.Headset Jack (2.5mm) 4.On (Flash) 5.Dialing Key(0-9) 6.Speaker Phone 7.LCD Display 8.Soft keys 9.Volume key 10.Off (Clear) 11.Sound Select key 12.Microphone 1 2 3 4 5 6 7 8 11 12 9 10 6 1.Antenna 2.LCD Display 3.Clear 4.In use 5.Flash 6.Hold 7.Redial 8.Mute 9.Messages 10.Intercom 11. Soft keys 12.Speaker Phone 13.Dialing Keys (0-9) 14.Volume Keys 15.Telephone Jack 16.DC Connector 17.Spare Battery drawer 18.Spare Battery Release The Base Unit Layout 1 2 3 4 6 7 8 5 9 10 11 12 13 14 17 18 16 15 7 Setup 1.Plug the AC power adapter into an electrical outlet, and the DC connector into the back of the base unit. Connecting to phone line Plug one end of the telephone line cord into the jack on the back of the base unit. Plug the other end of this cord into the wall jack. Checking for dial tone After the battery is charged press ON on the Handset. The Phone icon will appear on the handset display, and you will hear dial tone. If not, see In Case of Difficulty. Tone/Pulse selection See BASE SETTINGS for details. CAUTION: Use only the Vtech power supply provided with your telephone. Getting Started IMPORTANT: FOR MAXIMUM PERFORMANCE OF YOUR CORDLESS TELEPHONE SYSTEM: 1. Choose a central location for your Base Unit. 2. Install your Base Unit and Extension Handsets away from electronic equipment, such as personal computers, television sets and microwave ovens. 3. In locat…

Text truncated - open the document above for the full version.

TECH V ENGINEERING CANADA LTD. 200-7671 Alderbridge Way, Richmond B.C. Canada V6X 1Z9 FAX: (604) 276-9137 TEL: (604) 273-5131 FCC ID: EW780-5198-00 EW780-5198-01 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Authority To Act As Agent To The Federal Communication Commissions I appoint Nemko Canada Inc. to act as agent in the preparation of applications for equipment authorization on our behalf to the Federal Communications Commission. I certify that exhibits submitted properly describe the devise or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the commissions regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this __20th _day of ___March__ 2002 Agency Agreement Expiration Date: Sept. 30, 2002 By:_ _Joseph Poon (Signature)(Printed) Title: Regulatory Compliance Manager Telephone: (604) 273-5131 Applicant: VTECH Engineering Canada Ltd.

TECH V ENGINEERING CANADA LTD. 200-7671 Alderbridge Way, Richmond B.C. Canada V6X 1Z9 FAX: (604) 276-9137 TEL: (604) 273-5131 FCC ID: EW780-5198-00 EW780-5198-01 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Request for Confidentiality VTech Telecommunications Ltd. would like to keep the following documents as confidential for the application of the VTech 5831 approval for FCC Part 15 submission. (1) Schematics (2) Technical description -- file name :5.8 rf theory rev4.doc 5.8 system description.doc The above documents contain information for new technology & ideas in 2.4GHz / 5.8GHz cordless telephone, so we would like to prevent the use of this information by other companies. Dated this __20th__day of ____March__ 2002 By:_ _Joseph Poon (Signature)(Printed) Title: Regulatory Compliance Manager Telephone: (604) 273-5131 Applicant: VTECH Engineering Canada Ltd.

Cons Consulting * Research * Training * Certification Testing Since 1981 June 12,2002 Andy Leimer FCC Equipment Authorization Branch Federal Communications Commission 7435 Oakland Mills Road Columbia, Maryland 21046 Re.: FCC ID EW780-5198-00 Applicant: VTech Telecommunication Ltd. Correspondence Reference Number: 23088 731 Confirmation Number: EA528508 Subject: SAR Dear Mr. Leimer, Pursuant to your e-mail with the above reference, we are forwarding to you our responses to your questions as quoted below. 1) SAR report pg 12 lists target body rel. permitt. = 35.3 conductivity = 5.27. These are Suppl C head values; body is 48.2 and 6 respectively. Please provide estimate of change in SAR for correct body parameters using Kuster/Balzano theory, FDTD modeling, re-test, or similar. Response: The tissue used by APREL laboratories was developed internally so as to fulfill the obligation of SAR testing at 5.8 GHz. Two tissues have been developed, one for body and one for head. The tissue used was that developed for body and the appropriate values have been inserted into the table below. The engineer mistakenly inserted the wrong data for the tissue. Body TissueAPRELTarget Value ∆∆ (%) Dielectric Constant εεr 46.148.24 Conductivity, σσ [S/m] 6.906.015 Tissue Conversion Factor2.5-- The sigma value measured exceeds the 10% margin by 5%. However the uncertainty associated with the dielectric set-up has in some cases a 10% uncertainty attributable to the values recorded, (IEEE). APREL laboratories measured the tissue over a period of one day where the values were recorded to assess uncertainty attributable to the value measured using the APREL set-up. Over the period of the measurements being taken the highest recorded sigma 6.90 , was what has been used in respect to the body tissue used for the assessment. The epsilon recorded was generally repeatable to within 2% of the measured value over the period. In respect to the assessed SAR measured with the tissue parameters as they appear in the above table, APREL can stand behind the statement that the recorded SAR values of 1.22 W/kg for direct contact SAR, and 1.18 W/kg body SAR are conservative, and if scaling was used the recorded Conservative SAR values would be reduced due to the higher value of sigma being used. An adjustment to the uncertainty table for Appendix D, attributable to the experimental measurements has now been made and the table below represents the adjusted values. Cons Consulting * Research * Training * Certification Testing Since 1981 Appendix D: UNCERTAINTY BUDGET Calculated Uncertainties Type of UncertaintySpecific toUncertainty Power variation due to battery conditionDUI0.0% Extrapolation due to depth measurementSet-up3.8% ConductivitySet-up15.0% PermitivitySet-up4.0% Probe CalibrationSet-up7.0% Probe PositioningSet-up1.0% Probe IsotropicitySet-up1.5% Other Setup Uncertainty (Ambient,,,)Set-up3.0% Expanded Uncertainty:35.6%Coverage Factor: K=2 2) Please describe how system validation dipole target value is obtained. Response:The dipole target values were devised by using the existing target values contained in the IEEE P-1528 Standard and creating a trend for which the SAR would follow. From this an extrapolation formulae was used and the values calculated for Peak, 1 gram, and 10 gram SAR. Once the SAR values were calculated a ¼ wavelength dipole was then theoretically created. This experiment provided the physical dimensions for the length across the whiskers and the balun. The dipole was then manufactured and tuned specifically to the tissue, for return loss, and matched to 50Ω. The calculated target values were then used to gauge the measured SAR for the dipole while the dipole was being fed with a power of 100 mW, and the final SAR value was scaled accordingly. We trust that the above will answer questions. Please feel free to contact as appropriate if you have any question.

30-0930 hs frt 30-0940 battery drawer x 30-0949 charger Btm 30-0929 hs rear 30-0931 bs btm 3 2 5 6 7 4 TEL LINE 1 FCC ID: EW780-5198-01 TEL LINE 2 7 30-0930 hs frt FCC ID: EW780-5198-01 30-0931 bs btm VTECH TELECOMMUNICATIONS LTD. DC 7V 900mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE 4 40.0mm 21.0mm MODEL: 5831 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7 WIXXB80-5198-00 RINGER EQUIVALENCE: X.XB USOC JACK: RJ11C, RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. HAC FCC ID: EW780-5198-00 CANADA XXXX XXX XXXXX REN/IES: 0.0 IC: RSS/CNR210 3 70.0mm 29.5 mm 30-0940 battery drawer 6 CAUTION: Danger of explosion if battery is incorrectly replaced. USE ONLY BATTERY 80-5017-00-00 42.0mm 14.2 mm 5 30-0949 charger Btm VTECH TELECOMMUNICATIONS LTD. DC 6V 300mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE 15.5mm 40.5mm 30-0929 hs rear CAUTION: Danger of explosion if battery is incorrectly replaced. USE ONLY BATTERY 80-5017-00-00 1 24.0mm 13.0mm 19.0mm 3.0 mm

30-0930 hs frt 30-0940 battery drawer x 30-0949 charger Btm 30-0929 hs rear 30-0931 bs btm 3 2 5 6 7 4 TEL LINE 1 FCC ID: EW780-5198-01 TEL LINE 2 7 30-0930 hs frt FCC ID: EW780-5198-01 30-0931 bs btm VTECH TELECOMMUNICATIONS LTD. DC 7V 900mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE 4 40.0mm 21.0mm MODEL: 5831 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7 WIXXB80-5198-00 RINGER EQUIVALENCE: X.XB USOC JACK: RJ11C, RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. HAC FCC ID: EW780-5198-00 CANADA XXXX XXX XXXXX REN/IES: 0.0 IC: RSS/CNR210 3 70.0mm 29.5 mm 30-0940 battery drawer 6 CAUTION: Danger of explosion if battery is incorrectly replaced. USE ONLY BATTERY 80-5017-00-00 42.0mm 14.2 mm 5 30-0949 charger Btm VTECH TELECOMMUNICATIONS LTD. DC 6V 300mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE 15.5mm 40.5mm 30-0929 hs rear CAUTION: Danger of explosion if battery is incorrectly replaced. USE ONLY BATTERY 80-5017-00-00 1 24.0mm 13.0mm 19.0mm 3.0 mm

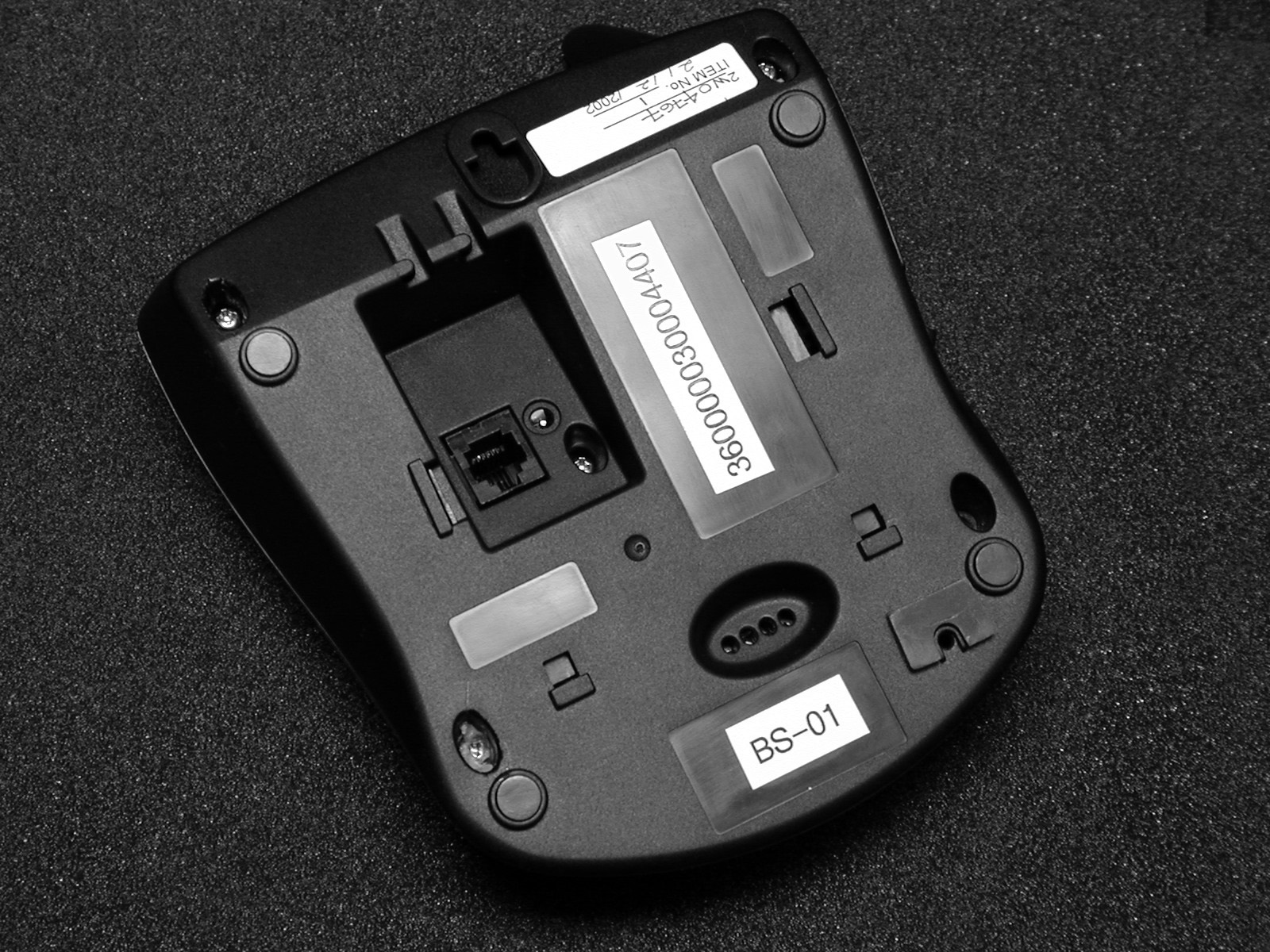

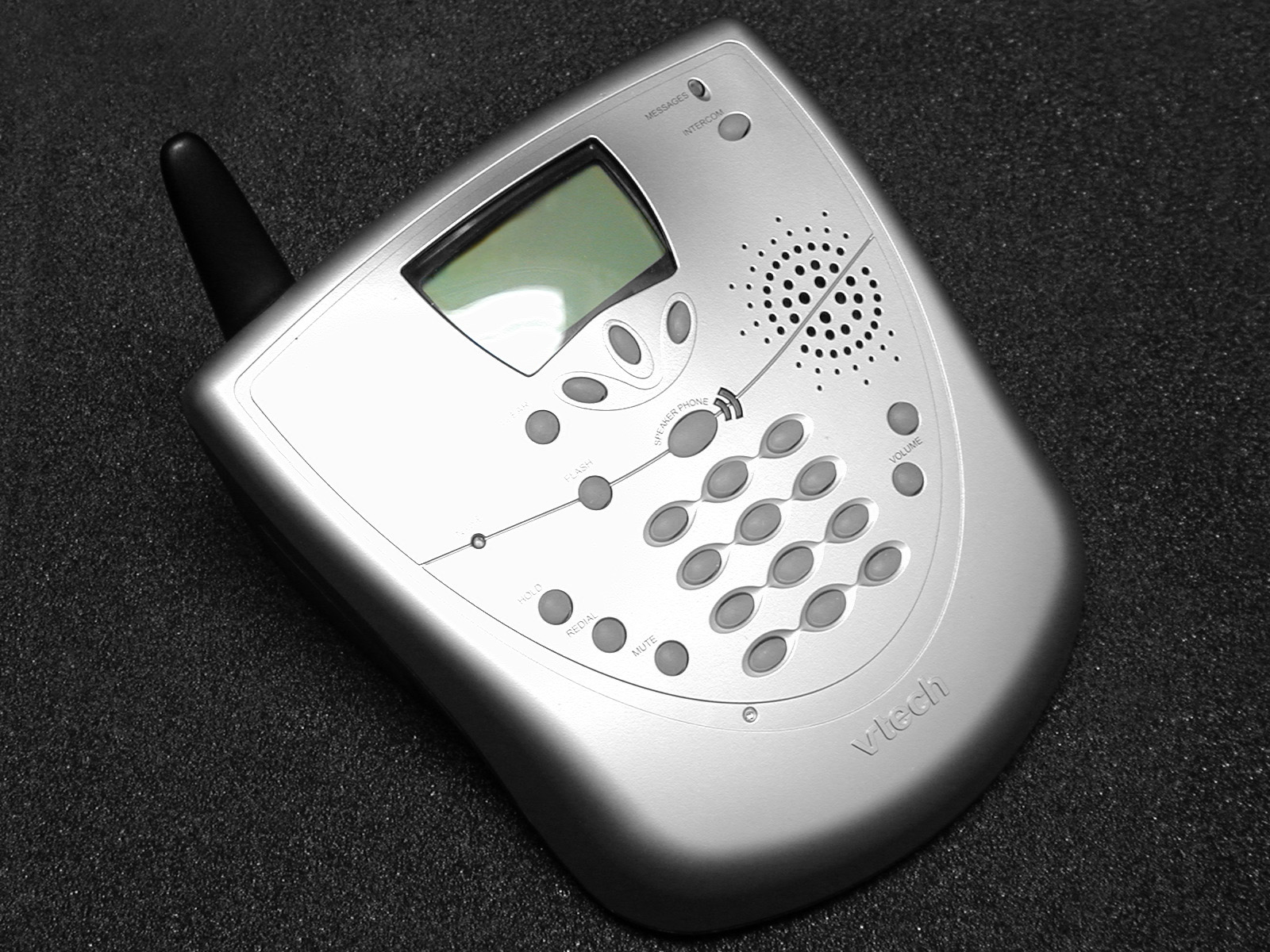

Certification Report on Specific Absorption Rate (SAR) Experimental Analysis VTECH ENGINEERING CANADA Cordless Telephone Base VTech 5831 Test Date: May 2002 51 Spectrum Way Nepean ON K2R 1E6 Tel: (613) 820-2730 Fax: (613) 820-4161 email: [email protected] This report shall not be reproduced, except in full, without the express written permission of APREL Laboratories VCTB-VT5831 BASE-3899 VTech 5831 * Consulting * Research * Training * Certification Testing Since 1981 51 Spectrum Waytel: (613) 820-2730 Nepean, Ontariovisit our Web Pages: www.aprel.comfax: (613) 820-4161 Canada K2R 1E6email: [email protected] CERTIFICATE OF COMPLIANCE (SAR EVALUATION) Applicant name and address VTECH ENGINEERING CANADA 200-7671 Alderbridge Way Richmond, BC V6X 1Z9 CANADA. Date and Location of Testing Date of Test: May 2002 Project No. :VCTB-VT5831 BASE-3899 Test Location: APREL Laboratories, Nepean, ON CANADA Product:Cordless Telephone (Base) Model:VTech 5831 Serial No.:BS01 EUT Type:ETB-Part 15 Cordless Telephone Base Transceiver Frequency Range:5744.736 - 5825.952 MHz Max. Power Output: 0.918 watts/29.6 dBm (EIRP) Max. SAR Value:1.22 W/kg Direct Contact (Hand) SAR 1.18 W/kg Body (Partial) SAR at a separation of 15 mm FCC Rule Parts:2.1093, FCC/OET Bulletin 65 Supplement C(2001) Application Type:Certification This application has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and has been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-200X (March, 2002). I attest to the accuracy of the data. All measurements reported were carried out under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the compliance of these measurements and vouch for the qualifications of the persons taking them. This relates only to the sample tested. FCC ID: EW780-5198-00 APPLICANT: VTECH ENGINEERING CANADA Page 2 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. FCC ID:EW780-5198-00 Applicant:VTech Engineering Canada Equipment:VTech Cordless Telephone (Base) Model:VTech 5831 Standard:FCC 96 –326, Guidelines for Evaluating the Environmental Effects of Radio-Frequency Radiation ENGINEERING SUMMARY This report contains the results of the engineering evaluation performed on the VTech 5831 Cordless Telephone (Base). The measurements were carried out in accordance with FCC 96-326. The VTech 5831 Cordless Telephone (Base) was evaluated for compliance to FCC RF exposure requirements at maximum power level of 29.6dBm (0.918W) EIRP while operating with a 33% duty cycle. The VTech 5831 Cordless Telephone (Base) is a Base unit with an outer antenna. The VTech 5831 Cordless Telephone has no body worn applications. The VTech 5831 Cordless Telephone (Base) was evaluated for both body exposure and direct contact SAR (extremities) at low, middle and high channels for the frequency range 5744.736MHz to 5825.952MHz, with keyboard side up, top side up, left side up. The maximum 10g SAR (1.22W/kg) was found for the peak RF output power of channel #00 (5744.736MHz) with the top side of the device facing up (Graph 1). At a separation distance of 15.0 mm from the top side of the device the maximum 1g SAR was found to be 1.18W/kg. The operational manual will contain a warning stating that bystanders and parts of the user’s body other than extremities, must be at least 20.0mm away from the device and its antenna. Evaluation data and graphs are presented in this report. All measurements conducted and documented in this report were performed while the DUI was used in wireless mode. Based on the measured results and on how the device will be marketed and used, it is certified that the product meets the requirements as set forth in the above specifications, for the RF exposure environment. The results presented in this report relate only to the sample evaluated. Page 3 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. TABLE OF CONTENTS ENGINEERING SUMMARY.................................................................................................2 1.Introduction...................................................................................................................4 2.Applicable Documents................................................................................................4 3.Device Under Investigation........................................................................................5 4.Test Equipment............................................................................................................6 5.SET Up..........................................................................................................................7 6.Test Results...............................................................................................................14 6.1.TRANSMITTER CHARACTERISTICS..................................................................14 6.2.SAR MEASUREMENTS..........................................................................................15 6.3.DIRECT CONTACT SAR.........................................................................................16 6.4.BODY EXPOSURE...................................................................................................17 7.Conclusions................................................................................................................19 Appendix A: Graphic Plots FROM…

Text truncated - open the document above for the full version.

NCL CALIBRATION LABORATORIES Calibration File No.: C-P-0256m C E R T I F I C A T E OF C A L I B R A T I O N It is certified that the equipment identified below has been calibrated in the NCL CALIBRATION LABORATORIES by qualified personnel following recognized procedures and using transfer standards traceable to NRC/NIST. Equipment: Miniature Isotropic RF Probe 5.8 GHz Manufacturer: APREL Laboratories Model No.: E-010 Serial No.: 163 Calibration Procedure: SSI/DRB-TP-D01-032 Project No: Probe Cal Internal Calibrated: May 8 th 2002 Recalibration required: may 7 th 2003 Released on: May 8 th 2002 NCL CALIBRATION LABORATORIES 51 SPECTRUM WAY Division of APREL Lab. NEPEAN, ONTARIO TEL: (613) 820-4988 CANADA K2R 1E6 FAX: (613) 820-4161 NCL Calibration Laboratories Division of APREL Laboratories. Page 2 of 1Calibrated byApproved by: Introduction This Calibration Report reproduces the results of the calibration performed in line with the SSI/DRB-TP-D01-032m E-Field Probe Calibration Procedure. The results contained within this report are for APREL E-Field Probe E-010 163. References SSI/DRB-TP-D01-032m E-Field Probe Calibration Procedure IEEE P-1528 DRAFT “Recommended Practice for Determining the Peak Spatial- Average Specific Absorption Rate (SAR) in the Human Body Due to Wireless Communications Devices: Experimental Techniques” FCC Supplement C Edition 01-01 SSI-TP-014 Tissue Calibration Procedure Conditions Probe 163 was a new probe taken from stock prior to calibration. Ambient Temperature of the Laboratory:23 °C +/- 0.5°C Temperature of the Tissue:22 °C +/- 0.5°C NCL Calibration Laboratories Division of APREL Laboratories. Page 3 of 1Calibrated byApproved by: Calibration Results Summary Probe Type:E-Field Probe E-010 Serial Number:163 Frequency:5.8 GHz Sensor Offset:2.4 mm Sensor Length:2.5 mm Tip Enclosure:Glass* Tip Diameter:7 mm Tip Length:40 mm Total Length:290 mm *Resistive to recommended tissue recipes per IEEE-P1528 Sensitivity in Air Channel X:0.58 ìV/(V/m) 2 Channel Y:0.58 ìV/(V/m) 2 Channel Z:0.58 ìV/(V/m) 2 Diode Compression Point:76 mV NCL Calibration Laboratories Division of APREL Laboratories. Page 4 of 1Calibrated byApproved by: Sensitivity in Muscle Tissue Frequency:5.8 GHz Epsilon:48.2 (+/-10%)Sigma: 6.0 S/m (+/-10%) ConvF Channel X:2.5 Channel Y:2.5 Channel Z:2.5 Tissue sensitivity values were calculated using a load impedance of 5 MΩ. Boundary Effect: Uncertainty resulting from the boundary effect is less than 2% for the distance between the tip of the probe and the tissue boundary, when less than 2.6mm. Spatial Resolution: The measured probe tip diameter is 7 mm (+/- 0.01 mm) and therefore meets the requirements of SSI/DRB-TP-D01-032 for spatial resolution. NCL Calibration Laboratories Division of APREL Laboratories. Page 5 of 1Calibrated byApproved by: Receiving Pattern 5.8 GHz (Air) Receiving Pattern Probe s/n 163 5.8GHz 0 0.2 0.4 0.6 0.8 1 1.2 0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 Ch1Ch2Ch3Tot NCL Calibration Laboratories Division of APREL Laboratories. Page 6 of 1Calibrated byApproved by: Isotropy Error 5.8 GHz (Air) Isotropy Error Probe s/n 163 5.8GHz -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 1 2 3 4 5 6 7 8 9 10 0100200300 835MHz Isotropy Plot Probe n/s 163 5.8GHz 0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0100200300 Degrees (x10) Ch1Ch2Ch3 NCL Calibration Laboratories Division of APREL Laboratories. Page 7 of 1Calibrated byApproved by: Dynamic Range Probe 163 Dynamic Range 0.01 0.1 1 10 100 1000 10000 1.0010.00100.001,000.0010,000.00100,000.001,000,000.0010,000,000.00 Electric Field [(V/m)^2] Uncompensated Compensated NCL Calibration Laboratories Division of APREL Laboratories. Page 8 of 1Calibrated byApproved by: Video Bandwidth Probe Frequency Characteristics -6 -5 -4 -3 -2 -1 0 1 110100100010000 Frequency (Hz) Probe output level (dB) Video Bandwidth at 500 Hz1 dB Video Bandwidth at 1.02 KHz:3 dB NCL Calibration Laboratories Division of APREL Laboratories. Page 9 of 1Calibrated byApproved by: Conversion Factor Uncertainty Assessment Frequency:5.8 GHz Epsilon:48.2 (+/-10%)Sigma:6.0 S/m (+/-10%) ConvF Channel X:2.57%(K=2) Channel Y:2.57%(K=2) Channel Z:2.57%(K=2) To minimize the uncertainty calculation all tissue sensitivity values were calculated using a load impedance of 5 MΩ. Boundary Effect: For a distance of 2.6mm the evaluated uncertainty (increase in the probe sensitivity) is less than 2%. NCL Calibration Laboratories Division of APREL Laboratories. Page 10 of 1Calibrated byApproved by: Test Equipment The test equipment used during Probe Calibration, manufacturer, model number and, current calibration status are listed and located on the main APREL server R:\NCL\Calibration Equipment\Instrument List May 2002

Page 12 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. 5.4 Simulated Tissue The recipes used to make the simulated tissue were developed by APREL Laboratories using the epsilon and sigma as presented in OET Supplement C. Upon request further information shall be presented. The density used to determine SAR from the measurements was the recommended 1.0 kg/m 3 found in Appendix C of “Supplement C OET Bulletin 65, Edition 01-01”. Dielectric parameters of the simulated tissue material were determined using an Anritsu 37347A Vector Network Analyzer, a Hewlett Packard 809B Slotted Line Carriage, and an APREL SLP-001 Slotted Line Probe. Table 3: Properties of the Tissue BODY Tissue APRELTarget Value∆∆ (%) Dielectric constant, ε r 46.148.2+4.4 Conductivity, σ [S/m] 6.96.0+15.0 Tissue Conversion Factor,2.5-- Table 4: Tissue Calibration Instrumentation InstrumentCalibration DueAsset Number/Serial Number Anritsu VNA7 August 2002Z0107643 TEMP HP Slotted LineNA100195 APREL Slotted Line ProbeDecember 2002APL-SLP-001 Page 20 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. Appendix A: TEST DATA AND GRAPHIC PLOTS GRAPH 1 (SCAN20) TOP SIDE UP Distance 0 mm Frequency: 5744.736 MHz Page 21 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. SAR Data Report Vtech scan20 START : 21-MAY-02 05:05:05 PM END : 21-MAY-02 05:10:47 PM CODE VERSION : 4.12 ROBOT VERSION: 4.08 PRODUCT DATA: TYPE : VTECH BASE MODEL NUMBER : VT5831 SERIAL NUMBER : 360000030004407 FREQUENCY : 5744.736 MHZ ANTENNA TYPE : 1/2 WAVE ANTENNA POSN. : OUT MEASUREMENT DATA: PHANTOM NAME : APREL-UNI PHANTOM TYPE : UNIPHANTOM TISSUE TYPE : MUSCLE TISSUE DIELECTRIC : 46.100 TISSUE CONDUCTIVITY : 6.900 TISSUE DENSITY : 1.000 CREST FACTOR : 3.500 ROBOT NAME : CRS PROBE DATA: PROBE NAME : 163 PROBE TYPE : E FLD TRIANGLE FREQUENCY : 5800 MHZ TISSUE TYPE : MUSCLE CALIBRATED DIELECTRIC : 46.100 CALIBRATED CONDUCTIVITY : 6.900 PROBE OFFSET : 2.500 MM CONVERSION FACTOR : 2.500 DIODE COMPRESSION PT : 76.0 MV PROBE SENSITIVITY : 0.580 0.580 0.580 MV/(MW/CM^2) AMPLIFIER GAINS : 20.00 20.00 20.00 CHAN. OFFSET (MV) : 1.42 1.51 1.32 SAMPLE: RATE: 6000 SAMPLES/SEC COUNT: 1000 SAMPLES NIDAQ GAIN: 5 SCAN TIME: 166.7 MSEC COMMENTS: TOP SIDE UP 0 SEPARATION AREA SCAN - MAX LOCAL SAR VALUE AT X=4.0 Y=-11.0 = 2.27 W/KG ZOOM SCAN - MAX LOCAL SAR VALUE AT X=5.0 Y=-11.0 Z=0.0 = 8.64 W/KG MAX 1G SAR AT X=6.0 Y=-11.0 Z=0.0 = 3.23 W/KG MAX 10G SAR AT X=5.0 Y=-12.0 Z=0.0 = 1.22 W/KG Page 22 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. GRAPH 2 (SCAN21) TOP SIDE UP Distance 0 mm Frequency: 5785.344 MHz Page 23 of 51 Project # -VT5831 BASE-3899 51 Spectrum WayTel. (613) 820-2730 Nepean, Ontario, K2R 1E6 Fax (613) 820 4161 e-mail: [email protected]© APREL 2002 This report shall not be reproduced, except in full, without the express written approval of APREL Laboratories. SAR DATA REPORT VTECH SCAN21 START : 21-MAY-02 05:12:42 PM END : 21-MAY-02 05:18:24 PM CODE VERSION : 4.12 ROBOT VERSION: 4.08 PRODUCT DATA: TYPE : VTECH BASE MODEL NUMBER : VT5831 SERIAL NUMBER : 360000030004407 FREQUENCY : 5785.344 MHZ ANTENNA TYPE : 1/2 WAVE ANTENNA POSN. : OUT MEASUREMENT DATA: PHANTOM NAME : APREL-UNI PHANTOM TYPE : UNIPHANTOM TISSUE TYPE : MUSCLE TISSUE DIELECTRIC : 46.100 TISSUE CONDUCTIVITY : 6.900 TISSUE DENSITY : 1.000 CREST FACTOR : 3.500 ROBOT NAME : CRS PROBE DATA: PROBE NAME : 163 PROBE TYPE : E FLD TRIANGLE FREQUENCY : 5800 MHZ TISSUE TYPE : MUSCLE CALIBRATED DIELECTRIC : 46.100 CALIBRATED CONDUCTIVITY : 6.900 PROBE OFFSET : 2.500 MM CONVERSION FACTOR : 2.500 DIODE COMPRESSION PT : 76.0 MV PROBE SENSITIVITY : 0.580 0.580 0.580 MV/(MW/CM^2) AMPLIFIER GAINS : 20.00 20.00 20.00 CHAN. OFFSET (MV) : 1.42 1.51 1.32 SAMPLE: RATE: 6000 SAMPLES/SEC COUNT: 1000 SAMPLES NIDAQ GAIN: 5 SCAN TIME: 166.7 MSEC COMMENTS: TOP SIDE UP 0 SEPARATION AREA SCAN - MAX LOCAL SAR VALUE AT X=7.0 Y=-9.0 …
