EW780-5285-00Vtech 20-2437 2.4 GHz Cordless Telephone

1 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1.Read and understand all instructions. 2.Follow all warnings and instructions marked on the product. 3.Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4.Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool). 5.Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6.Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation where proper ventilation is not provided. 7.This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8.Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9.Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 10.To reduce the risk of electric shock, do not disassemble this product. Opening or removing cabinet parts other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassemb-ling can cause electric shock when the appliance is subsequently used. 11.Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. Important Safety Instructions 2 12.Unplug this product from the wall outlet and contact Vtech customer support under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work by a VTech authorized technician to restore the product to normal operation. E. If the product has been dropped and the cabinet has been damaged. F. If the product exhibits a distinct change in performance. 13 .Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lighting. 14.Do not use the telephone to report a gas leak in the vicinity of the leak. If you have questions about this product, or if you're having difficulty with setup or operation, do not return your phone to the store. Call our Customer Support Center at: 1-800-595-9511 In Canada, call 1-800-267-7377 STOP!! 3 Your VT20-2437 is a unique cordless, 2.4GHz, Digital Spread Spectrum telephone system, capable of supporting up to 8 Handsets. In addition, by docking your cellular phone in the Base Unit adapter/charger, you can use any system Handset or the Base Unit to make calls using your cellular line. This is an excellent opportunity to take advantage of the liberal ‘nights and weekends’ or ‘unlimited’ calling plans your cellular provider may offer. Using additional Handsets, several people can be using the cordless system at the same time. Some examples: • One Handset on a call on the HOME Line; another Handset on a call on the CELLULAR Line; while a third Handset is in Intercom mode with the Base Unit. • Two Handsets conferenced on a HOME Line call; while an additional Handset is on a CELLULAR Line call. • One Handset in a three-way conference with the HOME and CELLULAR Lines; while two other Handsets are in Intercom mode. To order additional system Handsets (model# VT20-2439), battery packs, or headsets, call VTech Communications Inc at 1-800-595-9511. MENU DRIVEN DISPLAY The VT20-2437 Handset features a user-friendly display, making it easy to access the many features of this multi-Handset, cordless system. The three black keys, found directly below the LCD screen, are called soft keys. They are called this because their functions change depending on what you're doing-making a call, reviewing Caller ID, adding a name and number to your Phone Book, etc. For example, when the Handset is in the idle mode, the LCD displays: In this case, the 3 soft keys access REDIAL, MENU and MEMORY. When the Handset is active, the LCD displays: In this case, the 3 soft keys access VOLUME, HOLD and MUTE. Introduction H 1 4 Parts Check List 5.Battery Pack 6.AC Power Adapter 7.Telephone Line Cord 8.Owner's Manual To purchase replacement battery packs, call VTech Communications Inc at 1-800-595-9511. In Canada, call VTech Electronics Ltd at 1-800-267-7377. 1.Handset 2.Base Unit 3.Handset Charger 4.Belt Clip Telephone Line Cord AC Power Adapter Handset Battery Pack Base Unit Belt Clip Owner's Manual OWNER'S MANUAL Handset Charger 5 The Handset Layout 1.Antenna 2.Message Waiting Indicator 3.Earpiece 4.Headset Jack (2.5mm) 5.Scroll/Function Softkeys 6.HOME (Flash) 7.Dialing Keys(0-9,*,#) 8.Handsfree Speakerphone 9.LCD Display 10. Menu/Function Softkey 11. Off (Clear) 12. CELL (Flash) 13. Battery Compartment(back of Handset) 14. Intercom/Transfer 15.Volume 16.Microphone 1 2 3 4 5 6 7 8 9 10 13 11 12 14 16 15 6 The Base Unit Layout THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AND 2)THIS DEVICE MUST ACCEPT ANYINTERFERENCE RECEIVE…

Text truncated - open the document above for the full version.

FCC ID: EW780-5285-00 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Authority To Act As Agent To The Federal Communication Commissions I appoint Nemko Canada Inc. to act as agent in the preparation of applications for equipment authorization on our behalf to the Federal Communications Commission. I certify that exhibits submitted properly describe the devise or system for which equipment authorization is sought. I also certify that each unit manufactured, imported or marketed, as defined in the commissions regulations will have affixed to it a label identical to that submitted for approval with this application. Dated this 24 day of September 2002 Agency Agreement Expiration Date: March 24, 2003 By:_________________________________ Joseph Poon (Signature) (Printed) Title: Regulatory Compliance Manager Telephone: (604) 273-5131 Applicant: VTECH Engineering Canada Ltd.

FCC ID: EW780-5285-00 Federal Communications Commission 7435 Oakland Mills Road, Columbia, Maryland 21046 Request for Confidentiality VTech Telecommunications Ltd. would like to keep the following documents as confidential for the application of the VTech 20-2437 approval for FCC Part 15 submission. (1) Schematics (2) Technical description -- file name : C3_Theory_of_Operation_v0.doc Cell phone compatible list.doc Visio-C3 System Block Diagram-1.pdf Visio-HW Block Diagram-2.pdf WDCT Step 6 RF Radio Description.doc WDCT System.doc The above documents contain information for new technology & ideas in 2.4GHz cordless telephone with cellular phone docking station, so we would like to prevent the use of this information by other companies. Dated this 24 day of September 2002 By:_________________________________ Joseph Poon (Signature) (Printed) Title: Regulatory Compliance Manager Telephone: (604) 273-5131 Applicant: VTECH Engineering Canada Ltd.

42 FCC and IC Regulations This equipment complies with Parts 15 of the Federal Communications Commission (FCC) rules for the United States. It also complies with regulations RSS210 and CS-03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. A label is located on the underside of the Base Unit containing either the FCC registration number and Ringer Equivalence Number (REN) or the IC registration number and Load Number. You must, upon request, provide this information to your local telephone company. This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800-267-7377. For repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. FCC Part 15 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet or on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Additional Information 43 FCC and IC Regulations FCC and ACTA Information If this equipment was approved for cornection to the telephone network prior to July 23,2001, it was registered with the Federal Commissions (FCC) in accordance with Part 68 of its rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). We are required to provide you with the following information. 1. Connection and use with the nationwide telephone network The plug and jack used to connect this equipmet to the premises wiring and the telephone network must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the user's manual. This equipment may not be used with Coin Telephone Lines or with Party Lines. 2. Product identifier and REN information The label on the back or bottom of this equipment contains, among other things, an identifier indicating product approval and the Ringer Equivalence Number (REN). This information must be provided to your local telephone company upon request, For equpment approved prior to July 23,2001, the product identifier is preceded by the phrase "FCC Reg No." and the REN is listed separately. For equipment approved after that date, the product identifier is preceded by "US" and a colon (;), and the REN is encoded in the product identifier as the sixth and seventh characters following the colon. For example, the product identifier US: AAAEQ03T123XYZ would indicate an REN of 0.3. The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most , but not all areas, the sum of all RENS should be five (5.0) or less, You may want to connect your local telephone company for more information. 3. Repair instructions If the equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty. 4. Rights of the telephone company If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to file a complaint with the FCC. Your telephone company may make changes in facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned. Additional Information 44 FCC and IC Regulations 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible. 6. Programming/testing of emergency numbers If this product has memory dialing locations, you may choose to store police, fire department and emergency medical service telephone number in this locations. If you do, please keep three things in mind: a. We recommend that you …

Text truncated - open the document above for the full version.

THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2)THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. MODEL: 20-2437 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR Part 68 REGISTRATION NO.: xxxxxxxxxxxx RINGER EQUIVALENCE: xxx USOC JACK: RJ11C,RJ14C TEL. LINE 9V DC MODEL: 20-2437 DC 7V 900mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE HAC REN/IES: xxx IC: RSS/CNR210 FCC ID: EW780-5285-00

Maximum Permissible Exposure (MPE) Compliance Statement, FCC Radio Frequency Exposure Limit 1.1310 Health Canada Safety Code 6 Vtech VT20-2437 Wireless Telephone Base. The VT20-2437 wireless telephone base has been tested and the performance characterized in accordance with the MPE requirements of FCC 47 CFR and RSS 102. At an operating frequency of 2.4 – 2.4835 MHz the MPE limit for the General Population/Uncontrolled Exposure is 1.0mW/cm 2 . The VT20-2437 complies with this limit at the following line of sight distances from the antenna element: VT20-2437 : 4.6 cm The analysis is provided below. Power Density (P D ) = EIRP/(4πR 2 ) , Therefore, R≥√EIRP/P D 4π Using this calculation, for the VT20-2437 P D = 1.0 mW/cm 2 Antenna Gain = 0dBi, therefore EIRP = 24.2dBm or 263mW(max. worst case) R= 4.6cm The User Manual, which also incorporates the user instructions, includes a safety statement that cautions the user to ensure the Base Unit is located such that people will not approach within 5cm of the Base unit antenna. This distance provides additional safety margin for the product. Analysis provided by Nemko Canada for Vtech Engineering Glen Westwell.

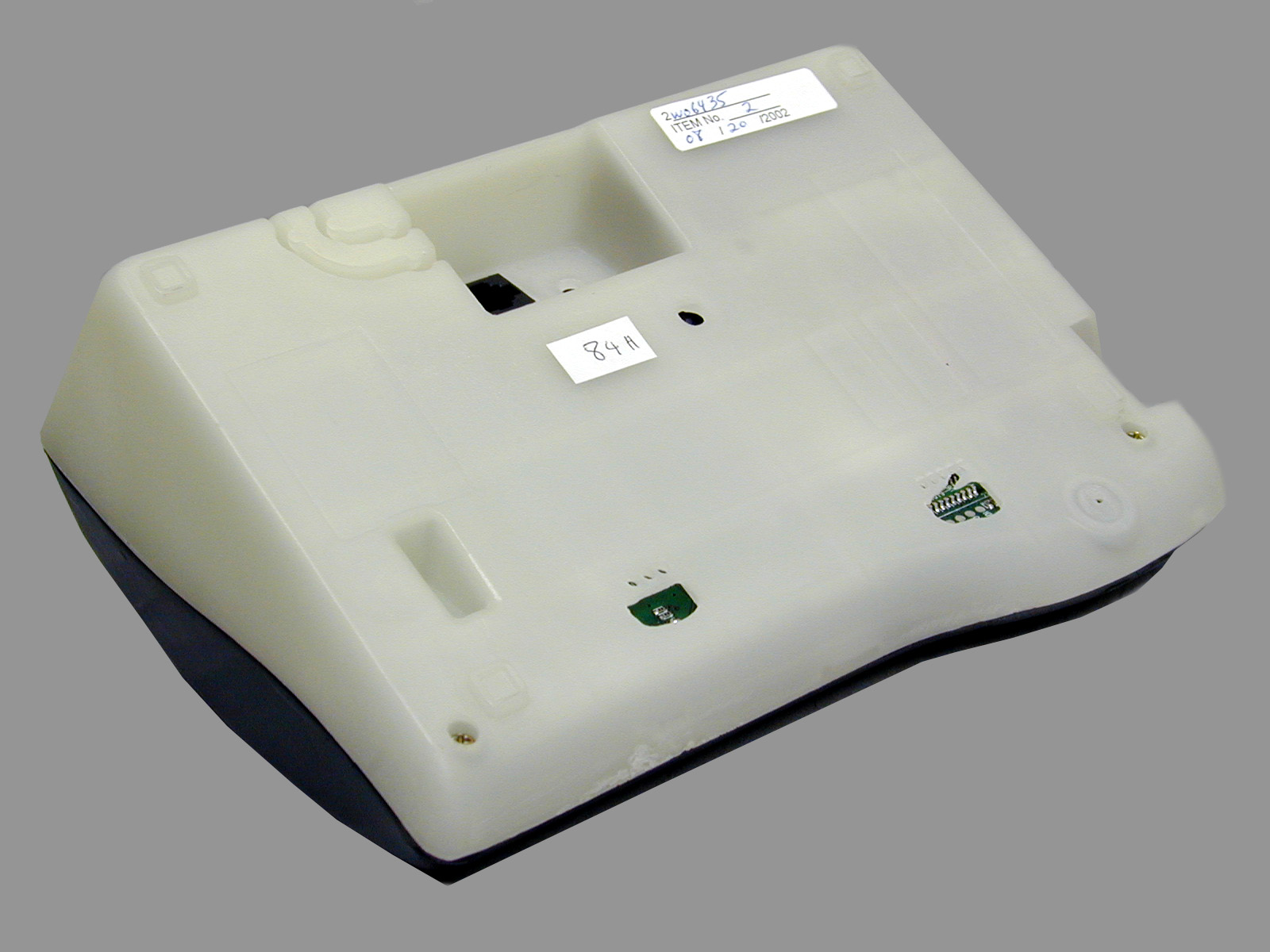

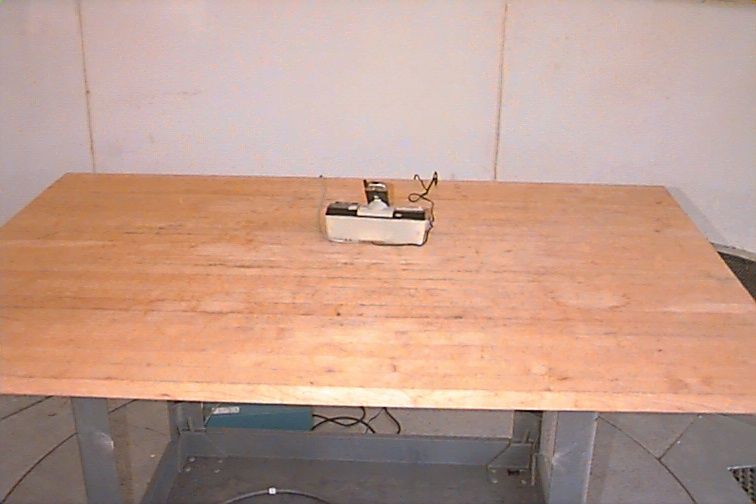

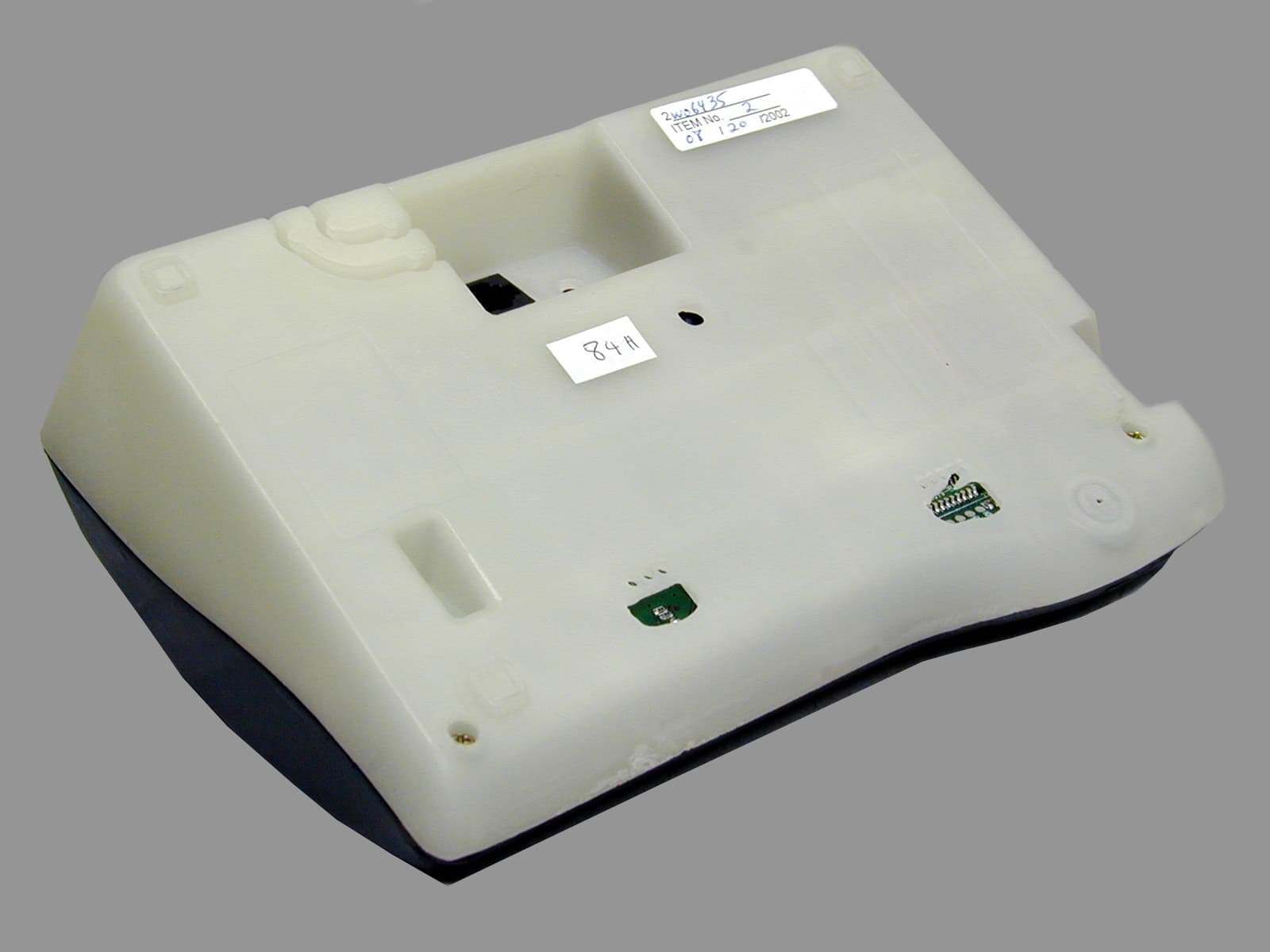

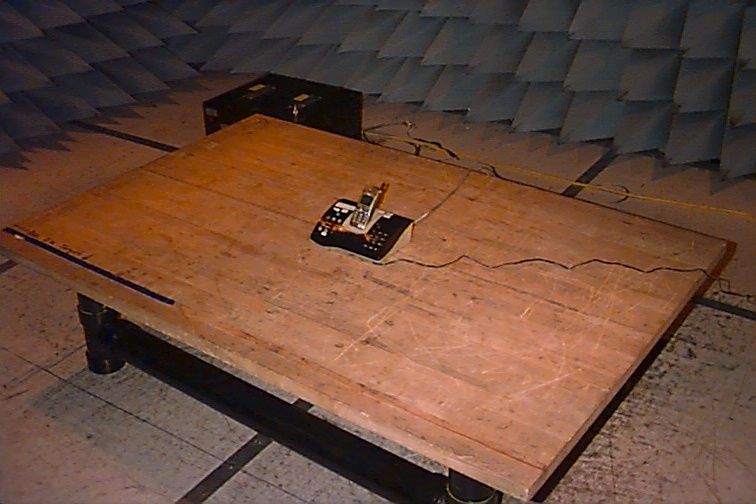

Master: PT15C-FHT Date: February 7, 2002 Test Report:2W06435.1 Applicant:VTech Engineering Canada Ltd. Suite 200 – 7671 Alderbridge Way Richmond, B.C., Canada V6X 1Z9 Equipment Under Test:Base Station VT20-2437 (EUT) FCC ID:EW780-5285-00 In Accordance With:FCC Part 15, Subpart C Frequency Hopping Transmitters 2400 - 2483.5 MHz Tested By:Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Glen Westwell, Wireless Technologist Date:30 August 2002 Total Number of Pages:31 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 2 of 31 Table of Contents Section 1. Summary of Test Results......................................................................................3 Section 2. General Equipment Specification........................................................................5 Section 3. Powerline Conducted Emissions..........................................................................8 Section 4. Channel Separation............................................................................................12 Section 5. Pseudorandom Hopping Algorithm...................................................................13 Section 6. Time of Occupancy.............................................................................................17 Section 7. Occupied Bandwidth..........................................................................................19 Section 8. Peak Power Output.............................................................................................22 Section 9.Spurious Emissions (Radiated)...........................................................................24 Section 10.Block Diagrams....................................................................................................30 Section 11.Test Equipment List............................................................................................31 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 3 of 31 Section 1.Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Frequency Hopping Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. It is recommended that the margin of compliance be improved to allow for manufacturing tolerances. The companion handset was not tested, it has been previously certified. Test Performed By: ________________________________Date: 29 August 2002 Kevin Carr, EMC Specialist Nemko Canada Inc., a testing laboratory, is accredited by the Standards Council of Canada. The tests included in this report are within the scope of this accreditation. The results apply only to the samples tested. Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT: VT20-2437 Page 4 of 31 Summary Of Test Data Name Of TestPara. No.Result Powerline Conducted Emissions ET Docket No. 98-80, FCC 02-157 Complied Channel Separation15.247(a)(1)Complied Pseudorandom Hopping Algorithm15.247(a)(1)Complied Time of Occupancy15.247(a)(1)(ii)Complied 20 dB Occupied Bandwidth15.247(a)(1)Complied Peak Power Output15.247(b)Complied Spurious Emissions (Antenna Conducted)15.247(c)N/A Spurious Emissions (Radiated)15.247(c)Complied Footnotes For N/A’s: Test Conditions: IndoorTemperature:23°C Humidity:36% OutdoorTemperature:26°C Humidity:45% Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 5 of 31 Section 2.General Equipment Specification Manufacturer: VTech (Dongguan) Electronics and Communications Ltd. Address: Xia Ling Bei Management Zone, Liaobu, Dongguan, guangdong, China 523411 Model No.: 20-2437 Serial No.: None Date Received In Laboratory: 21 Aug. 2002 Nemko Identification No.: Item 2 and 4 Frequency Range: 2401.056-2482.272 MHz Tunable Bands: 1 Number of Channels: 75 Modulation: GFSK Emissions Designator: 703kF1D User Frequency Adjustment: None Rated Output Power: 0.261watts, 24.2dBm Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 6 of 31 Base Station, 99% Occupied Bandwidth Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 7 of 31 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 8 of 31 Section 3.Powerline Conducted Emissions Para. No.: ET Docket No. 98-80, FCC 02-157 Test Performed By: Kevin CarrDate of Test: 22 Aug. 2002 Test Results:Complied Measurement Data:No peak emissions were detected within 6dB of the average limit. See attached graphs. Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 9 of 31 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 10 of 31 Nemko Canada Inc.FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:2W06435.1 EQUIPMENT:VT20-2437 Page 11 of 31 Nemko Canada Inc.FC…
