EW780-5312-002.4GHz Cordless Telephone System

1 When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the product. 3. Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning. 4. Do not use this product near water (for example, near a bath tub, kitchen sink, or swimming pool). 5. Do not place this product on an unstable cart, stand, or table. The product may fall, causing serious damage to the product. 6. Slots and openings in the cabinet and the back or bottom are provided for ventilation. To protect it from overheating, these openings must not be blocked by placing the product on the bed, sofa, rug, or other similar surface. This product should never be placed near or over a radiator or heat register. This product should not be placed in a built-in installation where proper ventilation is not provided. 7. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your dealer or local power company. 8. Do not allow anything to rest on the power cord. Do not locate this product where the cord will be abused by persons walking on it. 9. Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points or short out parts that could result in a risk of fire or electric shock. Never spill liquid of any kind on the product. 10. To reduce the risk of electric shock, do not disassemble this product. Opening or removing cabinet parts other than specified access doors may expose you to dangerous voltages or other risks. Incorrect assembling can cause electric shock when the appliance is subsequently used. 11. Do not overload wall outlets and extension cords as this can result in the risk of fire or electric shock. 12. Unplug this product from the wall outlet and contact VTECH under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled into the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operatinginstructions. Adjust only those controls that are covered by the operating instructions, because improper adjustment of other controls may result in damage and will often require extensive work to restore the product to normal operation. E. If the product has been dropped and the cabinet has been damaged. F. If the product exhibits a distinct change in performance. 13. Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electric shock from lightning. 14. Do not use this or any cordless telephone to report a gas leak in the vicinity of the leak. Important Safety Instructions 2 VTECH COMMUNICATIONS INC. CUSTOMER SERVICE : 1-800-595-9511. In Canada, call VTech Electronics Ltd. At 1-800- 267-7377. BEFORE USING YOUR 2625/2650/5825/5850 SYSTEM, CAREFULLY PEEL OFF THE PROTECTIVE FILM, COVERING THE DISPLAYS. SAVE THESE INSTRUCTIONS 3 This is an advanced cordless telephone, capable of supporting 2 Handsets. This manual is designed to familiarize you with this cordless telephone. We strongly recommend you read the manual before using your phone. Introduction STOP!! If you have questions about this product, or if you’re having difficulty with setup or operation, do not return your phone to the store. Call our Customer Support Center at 1-800-595-9511 In Canada, call 1-800- 267-7377 4 1. Base Unit 2. Handset 3. Handset Charger 4. Base AC Power Adapter Parts Check List 5. Telephone Line Cord 6. Belt Clip 7. Owner’s Manual 8. Battery Cells To purchase replacement battery cells, call VTech Communications Inc. at 1-800-595-9511. In Canada, call VTech Electronics Ltd. at 1-800-267-7377. Note : Use only VTech batteries P/N 80-5380-00-00 or equivalent AAA NiMH rechargeable batteries.



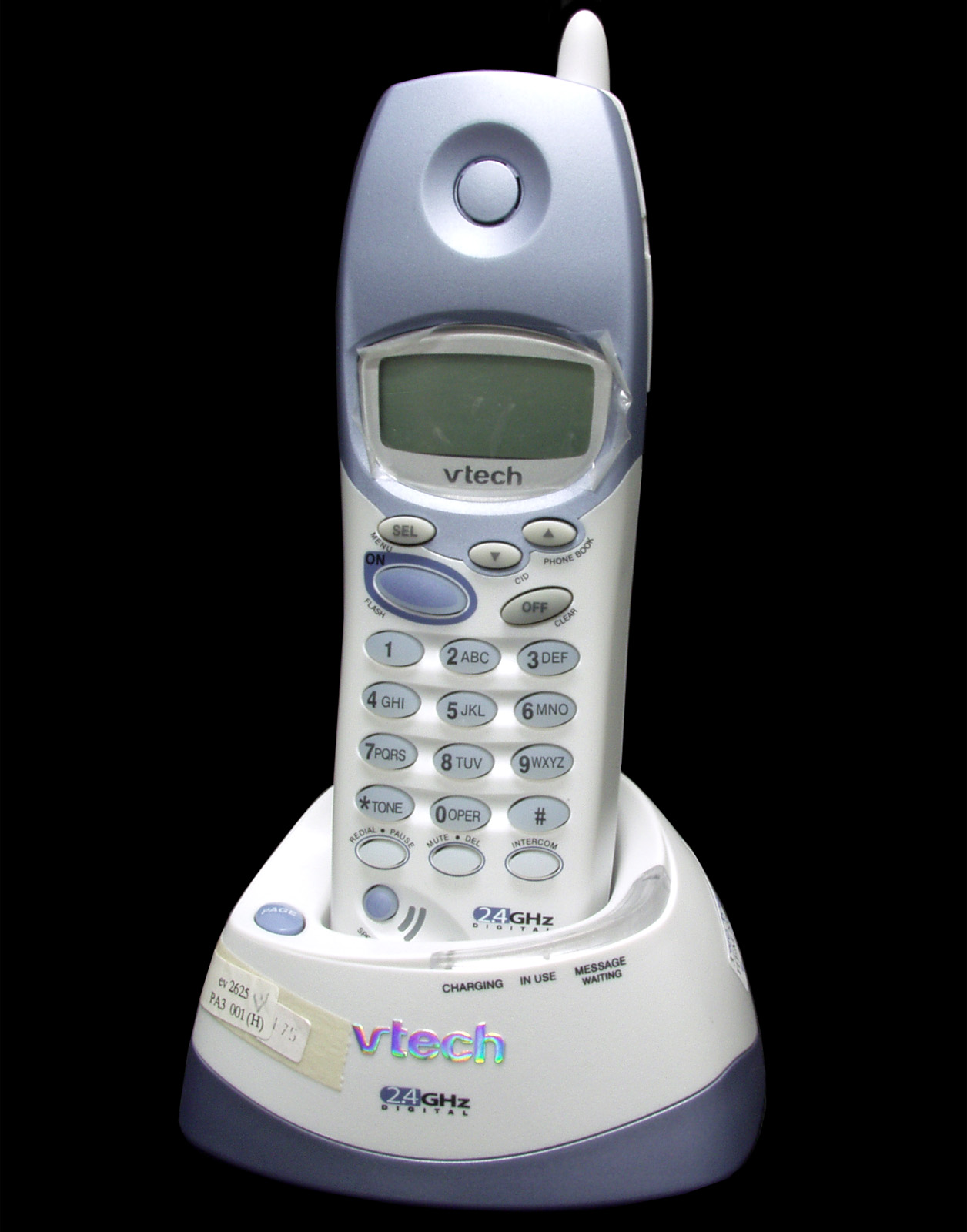

   5 1. Antenna 2. Volume Control 3. Soft Keys 4 . CID 5. Select (Menu) 6. On (Flash) 7. Dialing Keys (0-9, *, #) The Handset Layout 8. Redial (Pause) 9. Mute (Delete) 10. Speakerphone 11. LCD Display 12. Headset jack (2.5mm) 13. Phonebook 14. Off (Clear) 15. Intercom    ! " # $ %   &   & 6 1. In Use LED 2. Charging LED 3. Message Waiting LED 4. Page key The Base Unit Layout   & 7






    !  "# $ " !%  &&# ' ('""
  "     #'   !    ")

  * )
        + !



 #!
      $ "$ ,-. /012,3,345-,"$ $  $ "" 66641,-.7.28,0-2

      "       Connecting power to Base Unit/Handset Charger 1. Plug the AC power adapter into an electrical outlet, and the DC connector into the bottom of the Base Unit. 2. Choose the location for your Handset Charger, and plug its power supply into an electrical outlet. Setup Getting Started Installation of Battery Cells in Handset Follow the steps below: 1. Remove the battery cover by pressing on the indent and sliding downward. 2. Place the new battery cells in the Handset with the positive and negative poles aligned in the battery compartment. 3. Replace the battery cover by sliding it upwards. 4. If …

Text truncated - open the document above for the full version.

36 This equipment complies with Parts 15 of the Federal Communications Commission (FCC) rules for the United States. It also complies with regulations RSS210 and CS-03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of thedevice. A label is located on the underside of the Base Unit containing either the FCC registration number and Ringer Equivalence Number (REN) or the IC registration number and Load Number. You must, upon request, provide this information to your local telephone company. This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc CUSTOMER SERVICE. at 1-800-595-9511. In Canada, call VTECH Electronics at 1-800- 267-7377. For repair/warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. FCC Part 15 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. The equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by oneor more of the following measures: •Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet or on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. FCC Part 68 and ACTA If this equipment was approved for connection to the telephone network prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). We are required to provide you with the following information. 1. Product identifier and REN information The label on the back or bottom of this equipment contains, among other things, an identifier indicating product approval and the Ringer Equivalence Number (REN). This information FCC, ACTA and IC Regulations Additional Information 37 must be provided to your local telephone company upon request. For equipment approved prior to July 23, 2001, the product identifier is preceded by the phrase “FCC Reg No.” and the REN is listed separately. For equipment approved after that date, the product identifier is preceded by “US” and a colon (:), and the REN is encoded in the product identifier without a decimal point as the sixth and seventh characters following the colon. For example, the product identifier US:AAAEQ03T123XYZ would indicate an REN of 0.3. The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most, but not all areas, the sum of all RENs should be five (5.0) or less. You may want to contact your local telephone company for more information. 2. Connection and use with the nationwide telephone network The plug and jack used to connect this equipment to the premises wiring and the telephone network must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in the user’s manual. This equipment may not be used with Coin Telephone Lines or with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 3. Repair instructions If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty. 4. Rights of the telephone company If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given theopportunity to correct the problem and the telephone company is required to inform you of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned. 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible. 6. Programming/testing of emergency numbers I…

Text truncated - open the document above for the full version.

June 20, 2003 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: EW780-5312-00 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: (1) Theory of Operation (2) Wireless System Description (3) Schematics (4) Manual Test Mode (5) Block Diagrams The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Joseph Poon Regulatory Compliance Manager

CAUTION: Danger of explosion if battery is incorrectly replaced. USE ONLY BATTERY 80-5380-00-00 MODEL: 2625 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 9V 300mA CLASS 2 POWER SOURCE ONLY COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7WI01B80-531200 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11CW THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED,INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE IC: 1135A-80531200 IC label CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 9V 150mA CLASS 2 POWER SOURCE ONLY FCC ID: EW780-5312-00 IC: 1135A-80531200 BASE UNIT CHARGER HANDSET ev2625 engrave scale:100% 20mm 10mm TEL. LINE DC 9V HAC FCC ID: EW780-5312-00

VTech Engineering Canada Ltd. 200 – 7671 Alderbridge Way, Richmond, B.C. Canada V6X 1Z9 Tel: (604) 273-5131 Fax: (604) 276-9137 Radio Frequency Exposure Information For VTech 2625 2.4GHz Cordless Telephones Handset (Tx / Rx: 2.4GHz) Readings from test report : (1) Page 34 -- Max. Output Power = 103 mW (20.1 dBm) (2) Page 43 -- Duty cycle = 10 x 850us / 100ms = 8.5% (measured in single slot transmission) Under the worst environment with interference, dual slot diversity gives the max. duty cycle on the handset Tx (ie. 8.5% x2 or 17%) Hence, taking the max. power output & max. duty cycle, the average effective output power is : 103 mW x 17% = 17.51 mW Conclusion : The average effective output power is lower than the 25mW (ie.60/freq.) threshold which starts to require SAR testing. Hence, there is no RF exposure concerns on handset. Base (Tx / Rx: 2.4GHz) Readings from test report : (1) Page 34 -- Max. Output Power = 115 mW (20.6 dBm) (2) Page 42 -- Duty Cycle = 40 x 800us / 100ms = 32% The phone is a TDD, FHSS. The testing was done at the worst case with 4 Tx carrier, equivalent to operating with 2 handsets in dual-slot diversity. Hence, taking the worst case, the average effective output power is : 115 mW x 32% = 37 mW Conclusion : The average effective output power is lower than the 50mW (ie.120/freq.) threshold which starts to require RF safety evaluation. Hence, there is no RF exposure concerns on base. Provided by : Joseph Poon Regulatory Compliance Manager VTech Engineering Canada Ltd.

Master: PT15C-FHT Date: February 7, 2002 Test Report: 3W07081, Issue 2 Applicant: VTech Engineering Canada Ltd. Suite 200 – 7671 Alderbridge Way Richmond, B.C., Canada V6X 1Z9 Equipment Under Test: VTECH 2625 (EUT) 2.4GHz FHSS Cordless Telephone FCC ID: EW780-5312-00 In Accordance With: FCC Part 15, Subpart C Frequency Hopping Transmitters Tested By: Nemko Canada Inc. 303 River Road, R.R. 5 Ottawa, Ontario K1V 1H2 Authorized By: Russell Grant, Senior Technical Assessor Date: 24 July 2003 Total Number of Pages: 52 Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 2 of 52 Table of Contents Section 1. Summary of Test Results ...................................................................................3 Section 2. General Equipment Specification......................................................................5 Section 3. Powerline Conducted Emissions........................................................................7 Section 4. Channel Separation ..........................................................................................17 Section 5. Number of Hopping Channels .........................................................................19 Section 6. Time of Occupancy ...........................................................................................26 Section 7. Occupied Bandwidth ........................................................................................29 Section 8. Peak Power Output...........................................................................................34 Section 9. Spurious Emissions (Radiated).........................................................................39 Section 10. Block Diagrams ..................................................................................................51 Section 11. Test Equipment List ..........................................................................................52 Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 3 of 52 Section 1. Summary of Test Results General All measurements are traceable to national standards. These tests were conducted on a sample of the equipment for the purpose of demonstrating compliance with Part 15, Subpart C, Paragraph 15.247 for Frequency Hopping Spread Spectrum devices. Radiated tests were conducted is accordance with ANSI C63.4-1992. Radiated emissions are made on an open area test site. A description of the test facility is on file with the FCC. THIS TEST REPORT RELATES ONLY TO THE ITEM(S) TESTED. THE FOLLOWING DEVIATIONS FROM, ADDITIONS TO, OR EXCLUSIONS FROM THE TEST SPECIFICATIONS HAVE BEEN MADE. See “ Summary of Test Data”. TESTED BY: _______________________________ DATE: 17 July 2003 Glen Westwell, Wireless Technologist Nemko Canada Inc. authorizes the above named company to reproduce this report provided it is reproduced in its entirety and for use by the company’s employees only. Any use which a third party makes of this report, or any reliance on or decisions to be made based on it, are the responsibility of such third parties. Nemko Canada Inc. accepts no responsibility for damages, if any, suffered by any third party as a result of decisions made or actions based on this report. This report applies only to the items tested. Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 4 of 49 Summary Of Test Data Name Of Test Para. No. Result Powerline Conducted Emissions 15.207(a) Complied Channel Separation 15.247(a)(1) Complied Time of Occupancy 15.247(a)(1)(iii) Complied 20 dB Occupied Bandwidth 15.247(a)(1) Complied Number of Hopping Channels 15.247(a)(1)(iii) Complied Peak Power Output 15.247(b)(1) Complied Spurious Emissions 15.247(c) Complied Test Conditions: Indoor Temperature: 22°C Humidity: 52% Outdoor Temperature: 27°C Humidity: 53% Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 5 of 52 Section 2. General Equipment Specification Manufacturer: VTech Engineering Canada Model No.: Vtech 2625 Serial No.: Base: PA3001(H) Portable: UAA3548REVD1 Charger: PA1048 Date Received In Laboratory: 23 June 2003 Nemko Identification No.: Base: 4 Portable: 1 Charger: 3 Frequency Range: 2401.056 - 2482.272 MHz Modulation: GFSK Tunable Bands: 1 Number of Hopping Channels: 17 Channel Spacing (Rated): Handset 864 kHz Base Station 864 kHz Emissions Designator: Base Station 733K3F1D Handset 733K3F1D Maximum Output Power (Rated): BS 125mW (21dBm) HS 125mW (21dBm) Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 6 of 52 Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 7 of 52 Section 3. Powerline Conducted Emissions Para. No.: 15.207 (a) Test Performed By: Glen Westwell Date of Test: 9 July 2003 Test Results: Complied Measurement Data: See attached plots(s). Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 8 of 52 Powerline Conducted Emission Plots - BASE Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 9 of 52 Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 10 of 52 Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 Issue 2 EQUIPMENT: VTECH 2625, 2.4 GHz …

Text truncated - open the document above for the full version.

Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 16 of 52 Set-up Photo: Base Portable

Nemko Canada Inc. FCC PART 15, SUBPART C FREQUENCY HOPPING TRANSMITTERS PROJECT NO.:3W07081 EQUIPMENT: VTECH 2625, 2.4 GHz FHSS Cordless Telephone Page 50 of 52 Set-up Photo:
