EW780-5686-002.4GHz Cordless VoIP Phone

FCC, ACTA and IC Regulations This equipment complies with Parts 15 of the Federal Communications Commission (FCC) rules for the United States. It also complies with regulations RSS210 and CS- 03 of Industry and Science Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. A label is located on the underside of the base unit containing either the FCC registration number and Ringer Equivalence Number (REN) or the IC registration number and Load Number. You must, upon request, provide this information to your local telephone company. This equipment is compatible with inductively coupled hearing aids. Should you experience trouble with this telephone equipment, please contact: VTech Communications Inc. CUSTOMER SERVICE at 1-800-595-9511. In Canada, call VTech Telecommunications Canada Ltd. at 1-800-267-7377 for repair/ warranty information. The telephone company may ask you to disconnect this equipment from the line network until the problem has been corrected. FCC Part 15 Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. The equipment has been tested and found to comply with part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try and correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet or on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. FCC and ACTA Information If this equipment was approved for connection to the telephone network prior to July 23, 2001, it complies with Part 68 of the Federal Communications Commission (FCC) rules. If the equipment was approved after that date, it complies with the Part 68 rules and with Technical Requirements for Connection of Equipment to the Telephone Network adopted by the Administrative Council for Terminal Attachments (ACTA). We are required to provide you with the following information. 1. Product identifier and REN information The label on the back or bottom of this equipment contains, among other things, an identifier indicating product approval and the Ringer Equivalence Number (REN). This information must be provided to your local telephone company upon request. For equipment approved prior to July 23, 2001, the product identifier is preceded by the phrase “FCC Reg No.” and the REN is listed separately. For equipment approved after that date, the product identifier is preceded by “US” and a colon (:), and the REN is encoded in the product identifier without a decimal point as the sixth and seventh characters following the colon. For example, the product identifier US:AAAEQ03T123XYZ would indicate an REN of 0.3. The REN is used to determine how many devices you may connect to your telephone line and still have them ring when you are called. In most, but not all areas, the sum of all RENs should be five (5.0) or less. For more information, please contact your local telephone company. 2. Connection and use with the nationwide telephone network The plug and jack used to connect this equipment to the premises wiring and the telephone network must comply with the applicable Part 68 rules and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an RJ14 jack for two lines. See Installation Instructions in this user’s manual. This equipment may not be used with Coin Telephone Lines or with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. 3. Repair instructions If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the Limited Warranty. 4. Rights of the telephone company If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service. The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notified as soon as possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to file a complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the proper functioning of this product. The telephone company is required to notify you if such changes are planned. 5. Hearing aid compatibility If this product is equipped with a corded or cordless handset, it is hearing aid compatible. 6. Programming/testing of emergency numbers If this…

Text truncated - open the document above for the full version.

USB 7100 Dual Line Cordless USB Telephone 1 Table of contents © 2005 VTech Telecommunications Ltd. All rights reserved. VTech brand and logo are trademarks of VTech Telecommunications Ltd. GG ee tt tt ii nn gg SS tt aa rr tt ee dd Quick reference guide ..................2Parts checklist ...............................3Before you begin...........................4Telephone base installation ..........5Wall mounting ..............................6Battery installation & charging......7Belt clip & optional headset..........8Software installation .....................9 TT ee ll ee pp hh oo nn ee OO pp ee rr aa tt ii oo nn Basic operation ...........................10Options while on calls ................11Intercom & call transfers ............12Handset settings ..........................13 PP hh oo nn ee bb oo oo kk About the phonebook.................16New phonebook entries .............17Phonebook search ......................18To dial, change or delete entries ..19 CC aa ll ll ee rr II DD LL oo gg ss How Caller ID works ..................20To review your call log ...............21 AA pp pp ee nn dd ii xx Screen icons & indicator lights ...22Adding new handsets..................23In case of difficulty .....................24Technical specifications .............26Index ...........................................27 Important Before using this telephone, you must:Install and charge batteries ......................................................................See page 7Install software ........................................................................................See page 9\System requirements:• PC with Windows ® 2000 or XP • 400 MHz processor • 128 MB RAM • 15 MB free disk space on your hard drive • Internet connection (at least 33.6 Kbps) Add new handsets to make your phone more versatile Your telephone can accommodate up to 4 cordless handsets. You can add new handsets (sold separately) at any time (see page 23). Handset 2 Handset 3 Handset 4 USB 7100 Dual Line Cordless USB Telephone 3 Getting Started 2 Getting Started Call/Flash Press to make or answer a telephonecall. During a call, press to receive anincoming call, if Call Waiting is activated. Quick reference guide VPress to scroll down in menus.While entering names, press to move the cursor to the left.RedialPress to view redial memory.CIDPress when phone is not in use to displayCaller ID log.OPTION BUTTONPress to select option displayed above. OPTION BUTTON Press to select option displayed above. ^ Press to scroll up in menus. While entering names, press to advance cursor.Press when phone is not in use to displayPhonebook entries. While entering names, press to advance cursor. List/CallPress to make or answer an Internet call. Handset Volume Press to adjust ringer or listening volume. Feature menu Menu Feature Menu1 Sounds ................See page 132 Handset name ....See page 133 Auto answer ........See page 144 Language ............See page 145 Registration..........See page 146 Time & date ........See page 147 Net status ............See page 158 Country ................See page 15* Key lock................See page 15 Press ^ or V to scroll through menu items.Press OK to select or modify a highlighted item.Press OFF to cancel an opera- tion, back up to the previousmenu, or exit the menu display. Off/ClearDuring a call, press to hang up. While using menus, press to cancel anoperation, back up to the previous menu, or exit the menu display. > shows highlighted item Parts checklist Remember to save your sales receipt and original packaging in case you ever needto ship your telephone for warranty service. Check to make sure the telephonepackage includes the following: Telephone base Belt clip Battery compartment cover Batteries (2) Telephone handset CD-ROM AC adapter USB cable Long telephone line cord Short telephone line cord OPTION OPTION 1 > SOUNDS2 HANDSET NAME OK 5 Getting Started 4 Getting Started Before you begin Internet callingTo make and receive Internet calls,you must install software providedon the enclosed CD-ROM (see page00). You may also be required toestablish a Skype™ account to makeInternet calls to standard telephones.There may be fees for this service.For more information, please visitwww.skype.com . Telephone operating rangeThis cordless telephone operateswith the maximum power allowedby the Federal CommunicationsCommission (FCC). Even so, thishandset and base can communicateover only a certain distance —which can vary with the locations ofthe base and handset, the weather,and the construction of your homeor office. II ff yy oo uu rr ee cc ee ii vv ee aa cc aa ll ll ww hh ii ll ee yy oo uu aa rr ee oo uu tt oo ff rr aa nn gg ee , the handset might not ring — or if it does ring, the callmight not connect when you press CALL . Move closer to the base, then press CALL to answer the call. II ff yy oo uu mm oo vv ee oo uu tt oo ff rr aa nn gg ee dd uu rr ii nn gg aa pp hh oo nn ee cc oo nn vv ee rr ss aa tt ii oo nn , you might hear noise or interference. To improvereception, move closer to the base. II ff yy oo uu mm oo vv ee oo uu tt oo ff rr aa nn gg ee ww ii tt hh oo uu tt pp rr ee ss ss ii nn gg OFF , your phone will be left “off the hook.” To hang up properly,walk back toward the telephonebase, periodically pressing OFF until the call is disconnected. About Caller Identification Caller ID with Call Waiting featureslet you see who’s calling before youanswer the phone, even whenyou’re on another call. These features require services provided byyour local telephone company.Contact your telephone serviceprovider if:• You have both Caller ID and Call Waiting, but as separate services(you may need combined service) • You have only Caller ID service, or only Call Waiting service • You don’t subscribe to any Caller ID or Call Waiting services. You can use this phone with regularCaller ID service, and you can use itsother features without subscribing toeither Caller ID or combined CallerID with Call Waiting servi…

Text truncated - open the document above for the full version.

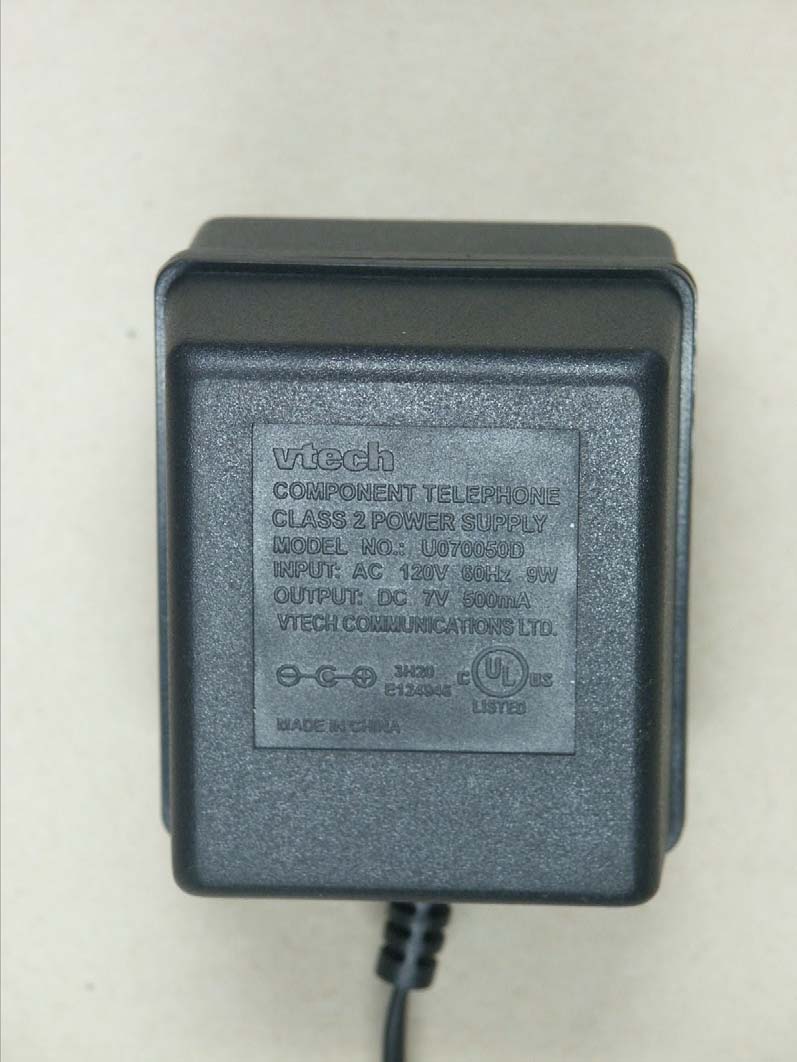

RTX Telecom A/S Ref. : MLK Doc. : USB7100 CoverLetter Date : 28-feb-2005 Page : 1 of 2 page(s) Vtech 2.4GHz Cordless VoIP Phone USB7100 – C (1HS + 1BS) USB711 – 1HS + Charger RTX Telecom A/S Ref. : MLK Doc. : USB7100 CoverLetter Date : 28-feb-2005 Page : 2 of 2 page(s) 1 Scope This document is the ‘Cover Letter’, a part of the required exhibits for the TCB application process of radio frequency devices, carried out by ETS. 2 Product Description USB7100 is a cordless 2.4GHz phone with an USB interface. The phone consists of a cordless Handset and a Base Station. The Base Station is connected both to the PSTN line and via USB cable to a PC. The user can choose between an ordinary telephone call (PSTN) and an Internet call. The Internet calls are made via a softphone (Skype). On the PC the Host software takes care of the interface between the Base Station and the Skype. The power source for the Base Station is a mains adaptor with input of 110V and output of DC 7V 500mAh. The Handset operates from 2-cell Ni-MH (1.2V x 2) rechargeable batteries with 750mAh. Extra handsets, identical to the handset included in the USB7100 set, are also available. The model number for a handset + separate charger will be USB711. 3 Services from ETS The following services are requested: • Radio test of the Base Station according to the FCC part 15 • Radio test of the Handset according to the FCC part 15 • SAR test of the Handset according to the IEEE1528 • Test reports of the tests above (2 pcs) • TCB granted approval • IC approval based on the FCC certification

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 1 of 13 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 2 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 3 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 4 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 5 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 6 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 1 of 17 Appendix A. Pictures ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 2 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 3 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 7 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 8 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 9 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 12 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 13 of 17

CHARGER IC:1135B-80568600 IC:1135B-80568600 IC:1135B-80568600 CORDLESS TELEPHONE MODEL: USB711 DC 9V 150mA CLASS 2 POWER SOURCE ONLY CORDLESS TELEPHONE MODEL: USB711 DC 9V 150mA CLASS 2 POWER SOURCE ONLY H H

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 7 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 8 of 13 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 9 of 13

ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 4 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 5 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 6 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 10 of 17 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-P-15 Page 11 of 17

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT SAR Compliance Test Report Test report no.: G0M20502-9263-S-8 SAR ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-S-8 Page 1 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Manufacturer 1.5 Application details 1.6 Test item 1.7 Test results 1.8 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 Definitions 2.5 Measurement system description 2.6 Test system specification 2.7 Measurement procedure 2.8 Reference points 2.9 Test positions 2.10 Measurement uncertainty 3 Tissue and system verification 3.1 Tissue verification 3.2 System verification 4 Test Results 5 References 6 Appendix ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-S-8 Page 2 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has passed all the relevant tests conforms to a specification. The existence of the tests nevertheless provides the confidence that the test sample possesses the qualities as maintained and that is performance generally conforms to representative cases of communications equipment. The test results of this test report relate exclusively to the item tested as specified in 1.5. The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written approval of the ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH. I attest to the accuracy of data. All measurements reported herein were performed by me or were made under my supervision and are correct to the best of my knowledge and belief. I assume full responsibility for the completeness of these measurements and vouch for the qualification of all persons taking them. Tester: 02.03.2005 N. Kaspar Date ETS-Lab. Name Signature Technical responsibility for area of testing: 02.03.2005 Dr. Genz Date ETS Name Signature ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-S-8 Page 3 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.2 Testing laboratory 1.2.1 Location ELECTRONIC TECHNOLOGY SYSTEM DR. GENZ GMBH (ETS) Storkower Straße 38c D-15526 Reichenwalde b. Berlin Germany Telephone : +49 33631 888 00 Fax : +49 33631 888 660 1.2.2 Details of accreditation status ACCREDITED TESTING LABORATORY DAR- REGISTRATION NUMBER: TTI-P-G 126/96 FCC FILED TEST LABORATORY REG. NO. 96970 BLUETOOTH QUALIFICATION TEST FACILITY (BQTF) A CCREDITED BY BLUETOOTH QUALIFICATION REVIEW BOARD INDUSTRY CANADA FILED TEST LABORATORY REG. NO. IC 3470 A2LA ACCREDITED Certificate Number 1983-01 1.3 Details of approval holder Name : VTech Telecommunications Limited Street : 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road Town : Tai Po Country : Hong Kong Telephone : +852 2680 1000 Fax : +852 2664 5521 Contact : Mr. Elvis Wong E-Mail : [email protected] 1.4 Manufacturer: (if applicable) Name : Street : Town : Country : ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-S-8 Page 4 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1.5 Application details Date of receipt of application : 14.02.2005 Date of receipt of test item : 14.02.2005 Date of test : 16.02.2005 - 17.02.2005 1.6 Test item FCC ID : EW780-5686-00 Description of test item : 2.4 GHz Cordless VoIP Phone Type identification : USB7100 (1HS + 1 BS), USB711 (1HS + charger) Serial number : without; Identical prototype Device category : DSS (Part 15 Spread Spectrum Transmitter) Technical data TX Frequency range : 2400.0 -2483.5 MHz RX Frequency range : 2400.0 -2483.5 MHz Max. Conducted RF output power : 19.36 dBm / (86.3 mW) Power supply : 2.4 V DC battery Antenna Tx : integral Antenna RX : integral Additional information : Tx and Rx. antenna are the same. 1.7 Test Results Max. SAR Measurement : 0.063 W/kg (averaged over 1 gram) This EUT has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment/general population exposure limits specified in ANSI/IEEE Std. C95.1-1992 and had been tested in accordance with the measurement procedures specified in FCC/OET Bulletin 65 Supplement C (2001) and IEEE Std. 1528-2003, December 2003. 1.8 Test standards Standards : - IEEE Std. 1528-2003, December 2003 FCC Rule Part(s) : - FCC OET Bulletin 65, Supplement C, Edition 01-01 ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-S-8 Page 5 of 24 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 2 Technical test 2.1 Summary of test results Applicable Configuration Handset (Head) X Handset (Body) Headset (Head) Body Worn Equipment X EUT complies with the RF radiation exposure limits of the FCC as shown by the SAR measurement results. These measurements are taken to simulate the RF effects exposure under worst-case conditions. The EUT complies with the requirements in respect to all parameters subject to the test. The test results and statements relate only to the item(s) tested. Please note that the absorption and distribution of electromagnetic energy in the body are very complex phenomena that depend on the mass, shape, and size of the body, the orientation of the body with respect to the field vectors, and the electrical properties of both the body and the environment. Other variables that may play a substantial role in possible biological effects are those that characterize the environment (e.g. ambient temperature, ai…

Text truncated - open the document above for the full version.

Date/Time: 02/17/05 11:15:37 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch0_cheek DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2401.92 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2401.92 MHz; σ = 1.83 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 right_ch0_cheek/Area Scan (71x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.064 mW/g right_ch0_cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.38 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.112 W/kg SAR(1 g) = 0.060 mW/g; SAR(10 g) = 0.032 mW/g Maximum value of SAR (measured) = 0.065 mW/g 0 dB = 0.065mW/g Date/Time: 02/17/05 10:22:48 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch23_cheek DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2441.66 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2441.66 MHz; σ = 1.87 mho/m; ε r = 37.8; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 right_ch23_cheek/Area Scan (71x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.060 mW/g right_ch23_cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.24 V/m; Power Drift = -0.009 dB Peak SAR (extrapolated) = 0.104 W/kg SAR(1 g) = 0.055 mW/g; SAR(10 g) = 0.030 mW/g Maximum value of SAR (measured) = 0.060 mW/g 0 dB = 0.060mW/g Date/Time: 02/17/05 09:45:52 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch46_cheek DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2481.41 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2481.41 MHz; σ = 1.88 mho/m; ε r = 37.7; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 right_ch46_cheek/Area Scan (71x131x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.055 mW/g right_ch46_cheek/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4 V/m; Power Drift = 0.0 dB Peak SAR (extrapolated) = 0.101 W/kg SAR(1 g) = 0.052 mW/g; SAR(10 g) = 0.027 mW/g Maximum value of SAR (measured) = 0.056 mW/g 0 dB = 0.056mW/g Date/Time: 02/16/05 15:09:28 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch0_tilted DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2401.92 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2401.92 MHz; σ = 1.83 mho/m; ε r = 38; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 right_ch0_tilted/Area Scan (71x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.050 mW/g right_ch0_tilted/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.51 V/m; Power Drift = -0.0 dB Peak SAR (extrapolated) = 0.087 W/kg SAR(1 g) = 0.046 mW/g; SAR(10 g) = 0.025 mW/g Maximum value of SAR (measured) = 0.050 mW/g 0 dB = 0.050mW/g Date/Time: 02/17/05 08:27:11 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch23_tilted DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2441.66 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameters used (interpolated): f = 2441.66 MHz; σ = 1.87 mho/m; ε r = 37.8; ρ = 1000 kg/m 3 Phantom section: Right Section DASY4 Configuration: z Probe: ET3DV6 - SN1711; ConvF(4.6, 4.6, 4.6); Calibrated: 12/16/2003 z Sensor-Surface: 4mm (Mechanical And Optical Surface Detection) z Electronics: DAE3 Sn522; Calibrated: 1/12/2004 z Phantom: SAM 12; Type: TP-1217; Serial: QD000P40CA z Measurement SW: DASY4, V4.4 Build 3; Postprocessing SW: SEMCAD, V1.8 Build 130 right_ch23_tilted/Area Scan (71x81x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (interpolated) = 0.046 mW/g right_ch23_tilted/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 4.34 V/m; Power Drift = -0.1 dB Peak SAR (extrapolated) = 0.080 W/kg SAR(1 g) = 0.042 mW/g; SAR(10 g) = 0.023 mW/g Maximum value of SAR (measured) = 0.046 mW/g 0 dB = 0.046mW/g Date/Time: 02/17/05 08:56:18 Test Laboratory: ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH right_ch46_tilted DUT: USB7100; Type: 2.4GHz Cordless VoIP Phone; Serial: USB7100, USB711 Communication System: 2.4GHz; Frequency: 2481.41 MHz;Duty Cycle: 1:24 Medium: Head 2450 MHz Medium parameter…

Text truncated - open the document above for the full version.

ELECTRONIC TECHNOLOGY SYSTEMS DR. GENZ GMBH TEST - REPORT FCC RULES PART 15 / SUBPART C FCC ID: EW780-5686-00 Test report no.: G0M20502-9263-C-1 ELECTRONIC TECHNOLOGY SYSTEMS STORKOWER STRASSE 38C, D-15526 REICHENWALDE B. BERLIN DR. GENZ GMBH PHONE +49-33631-888 00 FAX +49-33631-888 660 ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 1 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH TABLE OF CONTENTS 1 General information 1.1 Notes 1.2 Testing laboratory 1.3 Details of approval holder 1.4 Application details 1.5 Test item 1.6 Test standards 2 Technical test 2.1 Summary of test results 2.2 Test environment 2.3 Test equipment utilized 2.4 General Test Procedure 3 Test Results ETS Dr. Genz GmbH, Germany Registration number: G0M20502-9263-C-1 Page 2 of 36 ELECTRONIC TECHNOLOGY SYSTEMS DR.GENZ GMBH 1 General Information 1.1 Notes The purpose of conformity testing is to increase the probability of adherence to the essential requirements or conformity specifications, as appropriate. The complexity of the technical specifications, however, means that full and thorough testing is impractical for both technical and economic reasons. Furthermore, there is no guarantee that a test sample which has Passed all the relevant tests conforms to a specification. Neither is there any guarantee that such a test sample will interwork with other genuinely open systems. The existence of the tests nevertheless provides the confidence that the test sample possesses th…

Text truncated - open the document above for the full version.
