EW780-6269-015.8/2.4GHz FHSS Cordless Phone w/ CID & DAM (Base)

Congratulations on purchasing your new VTech product. Before using this telephone, please read the Important safety instructions on page 39 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. The E N E RG Y S TA R Æ program (www.energystar.gov) recogniz es and encourages the use of products that save energy and help protect our environment. W e are proud to mark this product with the E N E RG Y S TA R Æ label indicating it meets the latest energy efficiency guidelines. Installatio n . . . . . . . . . . . . . . . . . . . . . . . . 1 Parts checklist . . . . . . . . . . . . . . . . . . . . . . 1 Install handset battery . . . . . . . . . . . . . . . . . . 2 Telephone base installation . . . . . . . . . . . . . . . 3 &5.sNVGT . . . . . . . . . . . . . . . . . . . . . . . . . 4 Desk/table bracket installation . . . . . . . . . . . . . . 5 Wall mounting bracket installation . . . . . . . . . . . . 5 Ex changeable colorful handset ring . . . . . . . . . . . 6 Telephone settings . . . . . . . . . . . . . . . . . . . . 7 H andset layout . . . . . . . . . . . . . . . . . . . . . . 7 Telephone base layout . . . . . . . . . . . . . . . . . . 8 Ringer volume . . . . . . . . . . . . . . . . . . . . . . 9 Ringer tone . . . . . . . . . . . . . . . . . . . . . . . . 9 K ey tone . . . . . . . . . . . . . . . . . . . . . . . . 10 L anguage . . . . . . . . . . . . . . . . . . . . . . . . 10 Clear voicemail . . . . . . . . . . . . . . . . . . . . . 11 Dial type . . . . . . . . . . . . . . . . . . . . . . . . 11 Basic operation . . . . . . . . . . . . . . . . . . . . . 12 M ake, answer, and end calls . . . . . . . . . . . . . . 12 Speakerphone . . . . . . . . . . . . . . . . . . . . . 12 M ute . . . . . . . . . . . . . . . . . . . . . . . . . . 12 Call waiting . . . . . . . . . . . . . . . . . . . . . . . 12 Volume . . . . . . . . . . . . . . . . . . . . . . . . . 13 Ringer mute. . . . . . . . . . . . . . . . . . . . . . . 13 Temporary tone dialing . . . . . . . . . . . . . . . . . 13 Intercom . . . . . . . . . . . . . . . . . . . . . . . . 14 Conference call . . . . . . . . . . . . . . . . . . . . . 14 Transfer an ex ternal call . . . . . . . . . . . . . . . . 15 Switch between ex ternal and intercom call . . . . . . 15 Answer an incoming call during an intercom call . . . 16 Find handset . . . . . . . . . . . . . . . . . . . . . . 16 Advanced operation . . . . . . . . . . . . . . . . . . 17 Directory . . . . . . . . . . . . . . . . . . . . . . . . 17 Store a directory entry . . . . . . . . . . . . . . . . . 17 Character chart . . . . . . . . . . . . . . . . . . . . . 18 Search the directory . . . . . . . . . . . . . . . . . . 19 Dial a directory entry . . . . . . . . . . . . . . . . . . 19 Edit a directory entry . . . . . . . . . . . . . . . . . . 20 Delete a directory entry. . . . . . . . . . . . . . . . . 20 About caller ID . . . . . . . . . . . . . . . . . . . . . 21 Call log . . . . . . . . . . . . . . . . . . . . . . . . . 22 Review the call log . . . . . . . . . . . . . . . . . . . 22 M ake CID entries ready to dial . . . . . . . . . . . . . 23 Dial a call log entry . . . . . . . . . . . . . . . . . . . 23 Save an entry to the directory . . . . . . . . . . . . . 23 Delete one or all entries . . . . . . . . . . . . . . . . 24 Call log display screen messages . . . . . . . . . . . 24 Redial list . . . . . . . . . . . . . . . . . . . . . . . . 25 Dial from redial . . . . . . . . . . . . . . . . . . . . . 25 Delete a redial entry . . . . . . . . . . . . . . . . . . 25 Tab le of contents T able of contents Answering system operation . . . . . . . . . . . . . . 26 Message capacity . . . . . . . . . . . . . . . . . . . 26 Answering system setup . . . . . . . . . . . . . . . . 27 Activate the answering system . . . . . . . . . . . . . 27 Set the clock . . . . . . . . . . . . . . . . . . . . . . 27 Set number of rings. . . . . . . . . . . . . . . . . . . 28 Set telephone base ringer . . . . . . . . . . . . . . . 28 Set remote access code . . . . . . . . . . . . . . . . 29 Set message alert tone . . . . . . . . . . . . . . . . . 29 O utgoing announcement . . . . . . . . . . . . . . . . 30 Play your announcement . . . . . . . . . . . . . . . 30 Record your own announcement. . . . . . . . . . . . 30 Delete your announcement. . . . . . . . . . . . . . . 31 Message playback . . . . . . . . . . . . . . . . . . . 31 New message indication . . . . . . . . . . . . . . . . 31 O ptions during playback . . . . . . . . . . . . . . . . 31 Delete all messages . . . . . . . . . . . . . . . . . . 32 Record and play memos . . . . . . . . . . . . . . . . 32 Record a memo. . . . . . . . . . . . . . . . . . . . . 32 Memo playback . . . . . . . . . . . . . . . . . . . . . 32 Remote access . . . . . . . . . . . . . . . . . . . . . 33 Remote access commands . . . . . . . . . . . . . . 33 Commands during playback mode . . . . . . . . . . . 33 Message window displays . . . . . . . . . . . . . . . 34 Handset display screen messages. . . . . . . . . . . 35 Handset and telephone base indicators . . . . . . . . 37 Handset lights . . . . . . . . . . . . . . . . . . . . . 37 Telephone base lights . . . . . . . . . . . . . . . . . 37 Handset icons . . . . . . . . . . . . . . . . . . . . . 37 Battery . . . . . . . . . . . . . . . . . . . . . . . . . 38 Important safety instructions . . . . . . . . . . . . . . 39 Troubleshooting . . . . . . . . . . . . . . . . . . . . 40 O perating range . . . . . . . . . . . . . . . . . . . . 49 Maintenance . . . . . . . . . . . . . . . . . . . . . . 49 About cordless telephones . . . . . . . . . . . . . . . 50 Warranty . . . . . . . . . . . . . . . . . . . . …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd 2 August 2007 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-6269-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Canada Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Ricky Ng Technical Manager

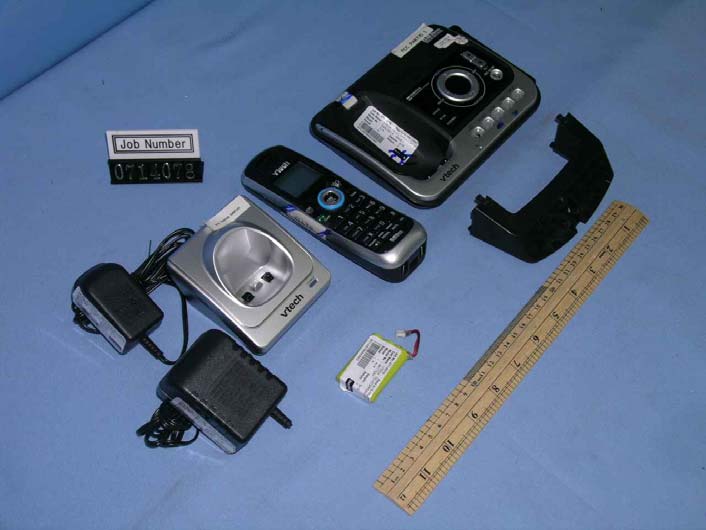

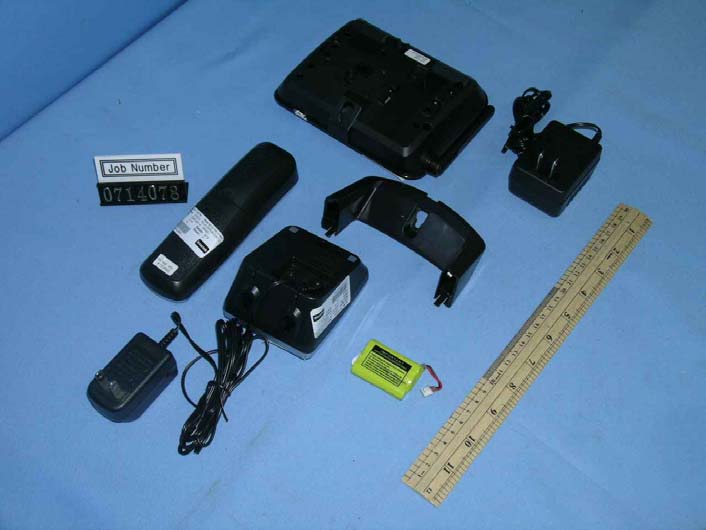

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-6269-01 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-6269-01 external photos - 2 of 2

4H20 IC: 1135A-8062690 0 DS4122 ENGRAVING

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6269-01 internal photos - 1 of 4 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6269-01 internal photos - 2 of 4 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6269-01 internal photos - 3 of 4 Base Unit DAM front side Base DAM rear side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6269-01 internal photos - 4 of 4 Base DAM rear side (View 2) Base Unit Oscillator PCB comp side

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For Certification 5.8GHz/2.4GHz Frequency Hopping Spread Spectrum Cordless Phone with Caller ID, Speakerphone, and Digital Answering Machine - Base Unit (FCC ID: EW780-6269-01) 07140781 TL/ ac August 18, 2007 INTERTEK TESTING SERVICES FCC ID: EW780-6269-01 i LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: Security Code Information EXHIBIT 10: Confidentiality Request INTERTEK TESTING SERVICES FCC ID: EW780-6269-01 ii MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: DS4122-4, DS4122, DS4122-2, DS4122-3 FCC ID: EW780-6269-01 This report concerns (check one:) Original Grant X Class II Change Equipment Type : DSS - Part 15 Spread Spectrum Transmitter Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : date Company Name agrees to notify the Commission by: date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37 ? Yes No X If no, assumed Part 15, Subpart C for intentional radiator - the new 47 CFR [05-04-07 Edition] Provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES FCC ID: EW780-6269-01 iii Table of Contact 1.0 Summary of Test Results........................................................................................ 2 2.0 General Description................................................................................................. 4 2.1 Product Description ................................................................................................. 4 2.2 Related Submittal(s) Grants .................................................................................... 5 2.3 Test Methodology.................................................................................................... 5 2.4 Test Facility............................................................................................................. 5 3.0 System Test Configuration...................................................................................... 7 3.1 Justification ............................................................................................................. 7 3.2 EUT Exercising Software......................................................................................... 7 3.3 Support Equipment List and Description .................................................................. 8 3.4 Measurement Uncertainty ....................................................................................... 9 3.5 Equipment Modification ........................................................................................... 9 4.0 Measurement Results............................................................................................ 11 4.1 Maximum Conducted Output Power at Antenna Terminals .................................... 11 4.2 Maximum 20 dB RF Bandwidth............................................................................. 12 4.3 Minimum Number of Hopping Frequencies............................................................ 13 4.4 Minimum Hopping Channel Carrier Frequency Separation..................................... 14 4.5 Average Channel Occupancy Time....................................................................... 15 4.6 Out of Band Conducted Emissions ........................................................................ 16 4.7 Out of Band Radiated Emissions ........................................................................... 17 4.8 Transmitter Radiated Emissions in Restricted Bands ............................................. 18 4.9 Field Strength Calculation...................................................................................... 19 4.10 Radiated Emission Configuration Photograph - Base Unit.................................... 20 4.11 Radiated Emission Data - Base Unit .................................................................... 21 4.12 AC Line Conducted Emission.............................................................................. 25 4.13 Line Conducted Configuration Photograph - Base Unit ........................................ 26 4.14 Line Conducted Emission Data - Base Unit ......................................................... 27 4.15 Radiated Emissions from Digital Section of Transceiver....................................... 28 4.16 Transmitter Duty Cycle…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminals Plots FCC ID: EW780-6269-01 maxop - 1 of 2 A0 Plot B1A Plot B1B INTERTEK TESTING SERVICES Maximum Conducted Output Power at Antenna Terminals Plots FCC ID: EW780-6269-01 maxop - 2 of 2 A0 Plot B1C

Report No.: 07140781 Talk Mode AC Port “N” Ctrl No.: N/A PAGE 1 Report No.:07140781 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: 07140781 Talk Mode AC Port “N” Ctrl No.: N/A Report No.:07140781 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dBuV dBuV dB 5.66000 41.6 60.0 -18.4 7.07500 52.4 60.0 -7.6 9.43000 58.1 60.0 -1.9 11.31500 55.1 60.0 -4.9 16.03000 44.9 60.0 -15.1 Frequency AV Level AV Limit Delta MHz dBuV dBuV dB 0.94000 29.8 46.0 -16.2 7.52000 41.3 50.0 -8.7 8.46000 46.3 50.0 -3.7 11.27500 38.7 50.0 -11.3 15.50000 32.5 50.0 -17.5 * limit exceeded

INTERTEK TESTING SERVICES Maximum 20dB RF Bandwidth Plots FCC ID: EW780-6269-01 20dB - 1 of 2 A0 Plot B2A Plot B2B INTERTEK TESTING SERVICES Maximum 20dB RF Bandwidth Plots FCC ID: EW780-6269-01 20dB - 2 of 2 A0 Plot B2C

INTERTEK TESTING SERVICES Average Channel Occupancy Time Plots FCC ID: EW780-6269-01 avetime - 1 of 1 Plot B5A Plot B5B (One handset operation)

INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: EW780-6269-01 chno - 1 of 3 Plot B3A Plot B3B INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: EW780-6269-01 chno - 2 of 3 Plot B3C Plot B3D INTERTEK TESTING SERVICES Minimum Number Hopping Frequencies Plots FCC ID: EW780-6269-01 chno - 3 of 3 Plot B3E

INTERTEK TESTING SERVICES Transmitter Duty Cycle Calculation and Measurement Plots FCC ID: EW780-6269-01 dcc - 1 of 1 Plot B7

INTERTEK TESTING SERVICES Minimum Hopping Channel Carrier Frequency Separation Plots FCC ID: EW780-6269-01 fsepa - 1 of 1 A0 Plot B4

INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: EW780-6269-01 obantcon - 1 of 4 A0 Plot B6A1 Plot B6A2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: EW780-6269-01 obantcon - 2 of 4 A0 Plot B6B1 Plot B6B2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: EW780-6269-01 obantcon - 3 of 4 A0 Plot B6C1 Plot B6C2 INTERTEK TESTING SERVICES Out Band Antenna Conducted Emission Plots FCC ID: EW780-6269-01 obantcon - 4 of 4 A0 Plot B6D1 Plot B6D2

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-6269-01 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-6269-01 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-6269-01 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
