EW780-6270-001.9GHZ CORDLESS PHONE

i Congratulations on purchasing your new VTech product. Before using this telephone, please read the Important safety instructions on page 39 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. www.vtechphones.com Table of contents ii Getting started . . . . . . . . . . . . . . . . 1 Parts checklist . . . . . . . . . . . . . . . . . 1 Telephone base installation. . . . . . . . . . . 2 Battery installation and charging........ 3 Mounting bracket installation.......... 4 Handset layout.................6Telephone base layout.............7Telephone settings..............8 Ringer volume . . . . . . . . . . . . . . . . . 8 Ringer tone................... 9 Key tone . . . . . . . . . . . . . . . . . . . 10Language . . . . . . . . . . . . . . . . . . . 10 Clear voice mail . . . . . . . . . . . . . . . . 11 Telephone operation . . . . . . . . . . . . 12Make a call . . . . . . . . . . . . . . . . . . 12Answer a call................. 12End a call................... 12Speakerphone . . . . . . . . . . . . . . . . 12Mute. . . . . . . . . . . . . . . . . . . . . . 13 Ringer mute . . . . . . . . . . . . . . . . . . 13Call waiting.................. 13 Volume.................... 14 Find handset . . . . . . . . . . . . . . . . . 14 Intercom . . . . . . . . . . . . . . . . . . . 15Conference call . . . . . . . . . . . . . . . . 16Transfer an external call . . . . . . . . . . . 17 Switch between external and intercom call . . 18 Answer an incoming call du ring an intercom call . 19 Directory . . . . . . . . . . . . . . . . . . . 20 Store a directory entry . . . . . . . . . . . . 21 Character chart................ 22 Search the directory . . . . . . . . . . . . . 23 Dial a directory entry............. 23 Edit a directory entry............. 24 Delete from the directory........... 25 About caller ID . . . . . . . . . . . . . . . . 26Call log.................... 27 Review the call log . . . . . . . . . . . . . . 28 www.vtechphones.com iii Table of contents Make a call log entry ready to dial . . . . . . 29 Dial a call log entry . . . . . . . . . . . . . . 29 Save an entry to the directory . . . . . . . . 30 Delete from the call log . . . . . . . . . . . . 31 Call log display screen messages . . . . . . 32 Redial list................... 33 Dial a redial entry . . . . . . . . . . . . . . . 33 Delete from redial . . . . . . . . . . . . . . . 33 Appendix . . . . . . . . . . . . . . . . . . . 34 Handset display screen messages . . . . . . 34 Handset and telephone base indicators . . . 36 Battery . . . . . . . . . . . . . . . . . . . . 38 Important safety instructions......... 39 Troubleshooting . . . . . . . . . . . . . . . . 40 Operating range . . . . . . . . . . . . . . . 48 Maintenance . . . . . . . . . . . . . . . . . 48 About cordless telephones.......... 49The RBRC ® seal . . . . . . . . . . . . . . . 49 Warranty . . . . . . . . . . . . . . . . . . . 50 FCC, ACTA and IC regulations........ 526GEJPKECNURGEKsECVKQPU . . . . . . . . . . . 54 Index . . . . . . . . . . . . . . . . . . . . . 55 www.vtechphones.com 1 Getting started Basic operation To purchase replacementbatteries or power adapters, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. • 8. User’s manual 1. Handsets (2) Telephone base with mounting bracket 2. 5. Charger and charger adapter 6. Telephone base power adapter 7. Telephone line cord 4. Batteries (2) 3. Battery compartment covers (2) Getting started Parts checklistYour telephone contains the following item s. Save your sales receipt and original packaging in the event warranty service is necessary. www.vtechphones.com 2 Getting started Use only the power adapter supplied with thisproduct. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.The telephone base power adapter and the charger adapters are intended to be correctly oriented in a vertical QTƀQQTOQWPVposition. The prongs are not designed to hold the plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet. •• Telephone base Telephone line cord Electrical outlet not controlled by a wall switch Telephone base power adapter Telephonewall jack &5.sNVGT PQVKPENWFGF for DSL users Charger Chargeradapter Telephone base installationInstall the telephone base as shown below. Make sure that the electrical outlet isnot controlled by a wall switch. Also, if you receive high speed internet through your telephone line (commonly referred to as DSL), you may need to install a DSL sNVGTVQVJGVGNGRJQPGNKPGDGVYGGPVJGVGNGRJQPGDCUGCPFVJG VGNGRJQPGYCNN LCEM%QPVCEV[QWT&5.UGTXKEGR TQXKFGTHQTOQTGKPHQTOCVKQPCD QWV&5.sNVGTU www.vtechphones.com 3 Getting started Basic operation Getting started If the handset will not be used for a long time, remove the battery to prevent possible leakage.To purchase replacement batteries, visit our website at www. vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. •• Battery installation and chargingInstall the battery as shown below. The battery may have enough charge for short calls. For best performance, charge the handset for at least 16 hours. When the battery power is low, LOW BATTERY will be displayed and YKNNƀCUJQPVJG ha…

Text truncated - open the document above for the full version.

i Congratulations on purchasing your new VTech product. Before using this telephone, please read the Important safety instructions on page 51 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. www.vtechphones.com Table of contents ii Getting started . . . . . . . . . . . . . . . . . 1Parts checklist . . . . . . . . . . . . . . . . . . 1Telephone base installation . . . . . . . . . . . 2Battery installation and charging......... 3Mounting bracket installation . . . . . . . . . . . 4Handset layout.................. 6Telephone base layout.............. 7Telephone settings............... 8Ringer volume . . . . . . . . . . . . . . . . . . 8Ringer tone.................... 9Key tone . . . . . . . . . . . . . . . . . . . . . 10Language . . . . . . . . . . . . . . . . . . . . . 10Clear voice mail. . . . . . . . . . . . . . . . . . 11Telephone operation . . . . . . . . . . . . . . 12Make a call . . . . . . . . . . . . . . . . . . . . 12Answer a call...................12End a call.....................12Speakerphone . . . . . . . . . . . . . . . . . . 12Mute . . . . . . . . . . . . . . . . . . . . . . . 13Ringer mute. . . . . . . . . . . . . . . . . . . . 13Call waiting....................13Volume......................14 Find handset . . . . . . . . . . . . . . . . . . . 14 Intercom . . . . . . . . . . . . . . . . . . . . . 15Conference call . . . . . . . . . . . . . . . . . . 16Transfer an external call . . . . . . . . . . . . . 17Switch between external and intercom call . . . . . . . . . . . . . . . . . . 18 Answer an incoming call during an intercom call . . . . . . . . . . . . . . . . . . 19 Directory . . . . . . . . . . . . . . . . . . . . . 20Store a directory entry . . . . . . . . . . . . . . 21Character chart . . . . . . . . . . . . . . . . . . 22Search the directory . . . . . . . . . . . . . . . 23Dial a directory entry...............23Edit a directory entry...............24Delete from the directory.............25About caller ID . . . . . . . . . . . . . . . . . . 26Call log......................27Review the call log . . . . . . . . . . . . . . . . 28Make a call log entry ready to dial........29Dial a call log entry . . . . . . . . . . . . . . . . 29Save an entry to the directory . . . . . . . . . . 30Delete from the call log . . . . . . . . . . . . . . 31 www.vtechphones.com iii Table of contents Call log display screen messages . . . . . . . . 32Redial list.....................33Dial a redial entry . . . . . . . . . . . . . . . . . 33Delete from redial . . . . . . . . . . . . . . . . . 33Answering system . . . . . . . . . . . . . . . 34Message capacity . . . . . . . . . . . . . . . . 34Activate the answering system..........35Set the clock . . . . . . . . . . . . . . . . . . . 35Answering system setup.............36Set number of rings . . . . . . . . . . . . . . . . 36Set telephone base ringer . . . . . . . . . . . . 37Set remote access code .............37Set message alert tone . . . . . . . . . . . . . . 38Outgoing announcement .............39 Play your announcement . . . . . . . . . . . . 39Record your own announcement . . . . . . . . . 40Delete your announcement . . . . . . . . . . . . 40New message indication.............41Message playback................41Options during playback.............41Delete all messages . . . . . . . . . . . . . . . 42 Record and play memos.............42Record a memo. . . . . . . . . . . . . . . . . . 42Memo playback . . . . . . . . . . . . . . . . . . 42Call screening . . . . . . . . . . . . . . . . . . 43Call intercept...................43Message window displays . . . . . . . . . . . . 44Remote access . . . . . . . . . . . . . . . . . . 45Appendix . . . . . . . . . . . . . . . . . . . . . 46Handset display screen messages . . . . . . . . 46Handset and telephone base indicators.....48Battery . . . . . . . . . . . . . . . . . . . . . . 50Important safety instructions...........51Troubleshooting. . . . . . . . . . . . . . . . . . 52Operating range . . . . . . . . . . . . . . . . . 61Maintenance . . . . . . . . . . . . . . . . . . . 61About cordless telephones............62The RBRC ® seal . . . . . . . . . . . . . . . . . 62 Warranty . . . . . . . . . . . . . . . . . . . . . 63FCC, ACTA and IC regulations . . . . . . . . . . 656GEJPKECNURGEKsECVKQPU . . . . . . . . . . . . . 67 Index . . . . . . . . . . . . . . . . . . . . . . . 68 www.vtechphones.com 1 Getting started Basic operation To purchase replacementbatteries or power adapters, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. • 9. User’s manual 1. Quick start guide 3. Handsets (2 for DS6121-2, 3 for DS6121-3,4 for DS6121-4) Telephone base with mounting bracket 4. 2. Chargers and charger adapters (1 for DS6121-2, 2 for DS6121-3,3 for DS6121-4) 7. Telephone base power adapter 8. Telephone line cord 6. Batteries (2 for DS6121-2, 3 for DS6121-3,4 for DS6121-4) 5. Battery compartment covers (2 for DS6121-2,3 for DS6121-3,4 for DS6121-4) Parts checklistYour telephone contains the following item s. Save your sales receipt and original packaging in the event warranty service is necessary. Getting started www.vtechphones.com 2 Getting started Use only the power adapter supplied with thisproduct. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcan…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: 06 December, 2007 To whom it may concern, Declarations FCC ID: EW780-6270-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device N/A N/A 2 On Hook by companion device B N/A 3 Switch-off device N/A N/A 4 On Hook on device side N/A C 5 Remove power from device A C 6 Remove power from companion device B A A Connection is terminated and, transmission ceases. B Connection is terminated but device transmits control or signaling information. C Connection is terminated but companion device transmits control or signaling information. N A Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 02-Jan.-2008 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 07 November, 2007 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-6270-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Canada Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics [FILENAME: EW780-6270-00_circuit.pdf] • Detailed Block diagrams [FILENAME: EW780-6270-00_block.pdf] • Detailed Operational/Functional Description [FILENAME: EW780-6270-00_descri.pdf] The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

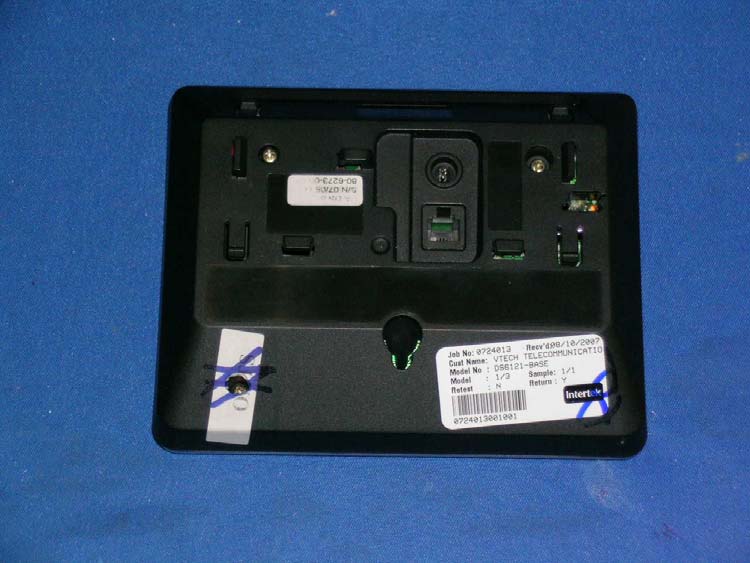

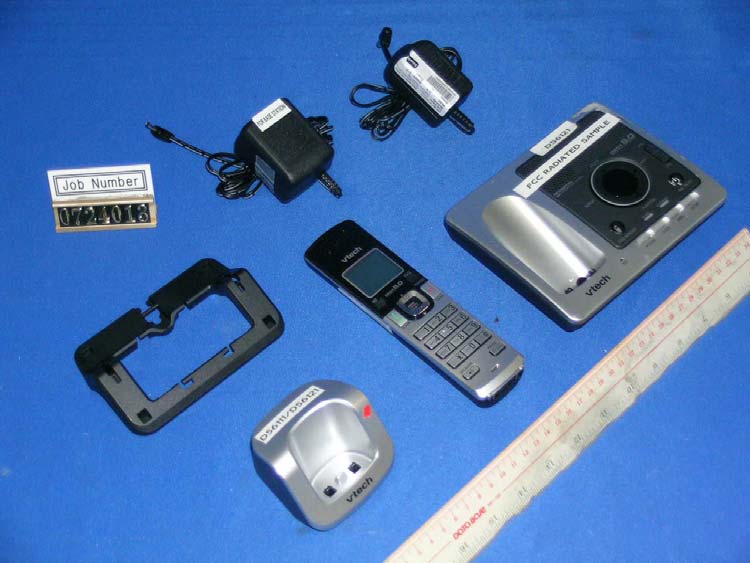

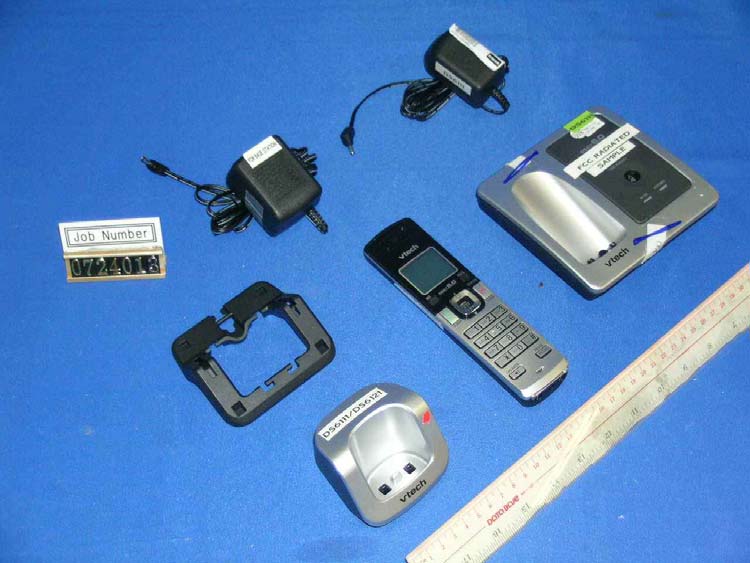

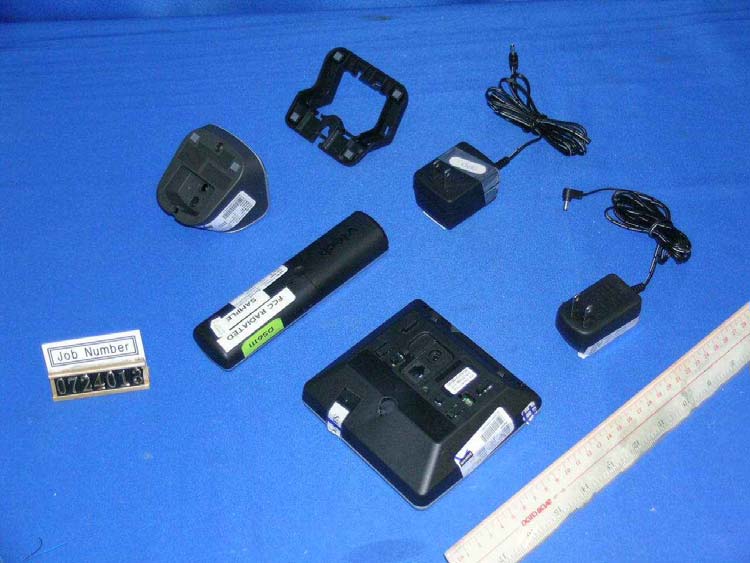

INTERTEK TESTING SERVICES External Photos - Model: DS6111 FCC ID: EW780-6270-00 external photos - 1 of 4 INTERTEK TESTING SERVICES External Photos - Model: DS6111 FCC ID: EW780-6270-00 external photos - 2 of 4 INTERTEK TESTING SERVICES External Photos - Model: DS6121 FCC ID: EW780-6270-00 external photos - 3 of 4 INTERTEK TESTING SERVICES External Photos - Model: DS6121 FCC ID: EW780-6270-00 external photos - 4 of 4

VTech Telecommunications Ltd 07 November, 2007 To whom it may concern, Label Location Justification FCC ID: EW780-6270-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

T E L . L I N E D C 6 V IC: 1135B-80627000 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTER- FERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. VTech Customer Service 1-800-595-9511 www.vtechphones.com VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W401B80-627000 RINGER EQUIVALENCE: 0.1 B USOC JACK: RJ11C/RJ11W HAC FCC ID: EW780-6270-00 m o d e l # : D S 6 1 x x x x S / N : X X X X X X X X X X X X X X X X X X X X Battery polarity label DS 61xxxxx Engraving draft Can IC label FCC ID: EW780-6270-00 IC: 1135B-80627000 CAUTION: HS BS Charger 6 1 x x x x CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 6V 400mA CLASS 2 POWER SOURCE ONLY 20.00 30.00 12.00 30.00 116.00 18.00 61 1 1-2 1 61 1-4 6121-2 6121-4 6122-5 20x10mm Model #: DS 6121 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6121-2 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6121-3 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6121-4 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6121-5 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6122-5 S/N: XXXXXXXXXXXXXXXXXXXX 28x10mm 2 0 . 2 9 1 4 . 4 1 2 6 . 8 3 1 2 . 3 4 1 1 . 3 0 24.60 46.88 37.59 29.00 14.00 R 0 . 5 x 1 4 ) ( BS T E L . L I N E D C 6 V I C : 1 1 3 5 B - 8 0 6 2 7 0 0 0 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W401B80-627000 RINGER EQUIVALENCE: 0.1 B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION ISSUBJECT TO THE FOLLOWING TWOCONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENC RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. m o d e l # : D S 6 1 x x x x S / N : X X X X X X X X X X X X X X X X X X X X CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 6V 300mA CLASS 2 POWER SOURCE ONLY Can IC label 91.00 1 8 . 5 0 16.40 10.00 1 . 5 0 3 5 . 0 0 3 0 . 0 0 19.00 11.00 4.00 R 0 x 4 ) 2 . 0 ( R 0 ( x ) 2 . 0 8 R 0 1 . 0 ( x 4 ) Model #: DS 6111 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6111-3 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6111-2 S/N: XXXXXXXXXXXXXXXXXXXX Model #: DS 6111-4 S/N: XXXXXXXXXXXXXXXXXXXX 28x10mm HAC FCC ID: EW780-6270-00 1 61 1 61 1 1-3 6121 6121-3 6121-5 23.2 21.2 20.9 10.4

INTERTEK TESTING SERVICES Internal photos - Model: DS6111 FCC ID: EW780-6270-00 internal photos - 1 of 8 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DS6111 FCC ID: EW780-6270-00 internal photos - 2 of 8 Base Unit Main PCB solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DS6121 FCC ID: EW780-6270-00 internal photos - 3 of 8 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos - Model: DS6121 FCC ID: EW780-6270-00 internal photos - 4 of 8 Base Unit Main PCB solder side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos - Model: DS6121 FCC ID: EW780-6270-00 internal photos - 5 of 8 Base Unit DAM rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6270-00 internal photos - 6 of 8 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6270-00 internal photos - 7 of 8 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6270-00 internal photos - 8 of 8 Handset Oscillator PCB comp side

©2005 A Test Lab Techno Corp. Page 1 of 57 This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. R e v. 0 0 This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 0711FS16 Applicant ： VTech Telecommunications Ltd FCC ID ： EW780-6270-00 Trade Name ： VTech Model Name ： DS6121 Battery Type ： Ni-MH Battery (2.4V，600mAh) EUT Type ： 1.9GHz DECT 6.0 Cordless Phone Dates of Test ： Nov. 19 ~ Nov. 21, 2007 Test Environment ： Ambient Temperature： 22 ±3 °C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1999 IEEE Std. 1528-2003 Max. SAR ： 0.025 W/kg UPCS Head SAR 0.051 W/kg UPCS Body SAR FCC Rule Part(s) ： 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Test Lab ： Changan Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. Country Huang 20071128 Sam Chuang 20071128 Measurement Center Manager Testing Engineer Test Report No：0711FS16 Page 2 of 57 ©2005 A Test Lab Techno Corp. Rev.00 Contents 1. Description of Equipment Under Test (EUT)............................................................................................... 3 2. Other Accessories ......................................................................................................................................... 5 3. Introduction .................................................................................................................................................... 7 4. SAR Definition ................................................................................................................................................ 8 5. SAR Measurement Setup .............................................................................................................................. 9 6. System Components ....................................................................................................................................11 6.1 DASY4 E-Field Probe System ...........................................................................................................11 6.2 Data Acquisition Electronic (DAE) System ....................................................................................... 13 6.3 Robot ................................................................................................................................................ 14 6.4 Measurement Server ........................................................................................................................ 14 6.5 Device Holder for Transmitters ......................................................................................................... 14 6.6 Phantom - SAM v4.0......................................................................................................................... 15 6.7 Data Storage and Evaluation ............................................................................................................ 15 7. Test Equipment List..................................................................................................................................... 18 8. Tissue Simulating Liquids .......................................................................................................................... 19 8.1 Liquid Confirmation ........................................................................................................................... 20 9. Measurement Process................................................................................................................................. 22 9.1 Device and Test Conditions .............................................................................................................. 22 9.2 System Performance Check ............................................................................................................. 23 9.3 Dosimetric Assessment Setup .......................................................................................................... 24 9.4 Spatial Peak SAR Evaluation............................................................................................................ 26 10. Measurement Uncertainty ........................................................................................................................... 27 11. SAR Test Results Summary........................................................................................................................ 29 11.1 UPCS Head SAR .............................................................................................................................. 29 11.2 UPCS Body SAR .............................................................................................................................. 31 11.3 Std. C95.1-1999 RF Exposure Limit ................................................................................................. 33 12. Conclusion ................................................................................................................................................... 34 13. References.................................................................................................................................................... 35 Appendix A - System Performance Check....................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 1 of 11 A0 Plot B1A1 Plot B1B1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 2 of 11 A0 Plot B1C1 Plot B1D1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 3 of 11 A0 Plot B1E1 Plot B1F1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 4 of 11 A0 Plot B1G1 Plot B1H1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 5 of 11 A0 Plot B1I1 Plot B1J1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 6 of 11 A0 Plot B1K1 Plot B1L1 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 7 of 11 A0 Plot H1A Plot H1B INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 8 of 11 A0 Plot H1C Plot H1D INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 9 of 11 A0 Plot H1E Plot H1F INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 10 of 11 A0 Plot B1A2 Plot B1D2 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6270-00 26bw - 11 of 11 A0 Plot B1G2 Plot B1J2

Report No.: Model: 07240131 Talk Mode DS6121 Ctrl No.: N/A PAGE 1 Report No.:07240131 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report No.: Model: 07240131 Talk Mode DS6121 Ctrl No.: N/A Report No.:07240131 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: no Results Report No.: Model: 07240131 Talk Mode DS6111 Ctrl No.: N/A PAGE 1 Report No.:07240121 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 2 1 9k 30M EW0700 12 9k 30M EW0090 0 10 20…

Text truncated - open the document above for the full version.
