EW780-6292-00Cordless Phone with Instant Messaging

This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, go to www.vtechcanada.com. Congratulations on purchasing your new VTech product . Before using this telephone, please read the Important safety instructions on page 92 of this manual. www.vtechphones.com I T ab le of contents B efore you b egin . . . . . . . . . . . . . . . . . . . . 1 Minimum req uirements . . . . . . . . . . . . . . . . 1 Parts checklist . . . . . . . . . . . . . . . . . . . . . 2 Installation . . . . . . . . . . . . . . . . . . . . . . . . 3 H andset charger installation . . . . . . . . . . . . . . 3 Install handset battery . . . . . . . . . . . . . . . . . 4 Charge handset battery . . . . . . . . . . . . . . . . 5 Telephone base installation . . . . . . . . . . . . . . 7 Install MS N Messenger/A IM software . . . . . . . . . 8 Install IS 6110 phone software . . . . . . . . . . . . 11 R unning the IS 6110 phone software . . . . . . . . . 19 S ettings of the IS 6110 phone software . . . . . . . 20 To setup/change the messenger account:. . . . . . 21 S ettings for running the IS 6110 software: . . . . . . 21A bout tab of the IS 6110 phone software. . . . . . . 22 L og into the IS 6110 phone software . . . . . . . . . 23 To login on the computer: . . . . . . . . . . . . . . 23 To login on using the handset: . . . . . . . . . . . . 25 R unning the IS 6110 phone software . . . . . . . . . 26 Belt clip & headset (optional) . . . . . . . . . . . . 28 H eadset . . . . . . . . . . . . . . . . . . . . . . . 28 Belt clip. . . . . . . . . . . . . . . . . . . . . . . . 28 G etting to k now the IS 6 110 . . . . . . . . . . . . . . 29 Telephone base layout . . . . . . . . . . . . . . . . 29 S tatus lights on the telephone base . . . . . . . . . 30 H andset layout . . . . . . . . . . . . . . . . . . . . 31 H andset status icons. . . . . . . . . . . . . . . . . 32 U sing the handset . . . . . . . . . . . . . . . . . . 33 S oftkeys . . . . . . . . . . . . . . . . . . . . . . . 33 Basic navigation . . . . . . . . . . . . . . . . . . . 33 E ntering characters . . . . . . . . . . . . . . . . . 33 Tex t entry tips . . . . . . . . . . . . . . . . . . . . 34 Chart of characters . . . . . . . . . . . . . . . . . 35 S ymbol table . . . . . . . . . . . . . . . . . . . . . 37 T elephone settings . . . . . . . . . . . . . . . . . . 38 R inger . . . . . . . . . . . . . . . . . . . . . . . . 38 Play or delete sound clips . . . . . . . . . . . . . . 38 R ecord sound clips . . . . . . . . . . . . . . . . . 39 To record sound clip using microphone : . . . . . . . 39 To record a sound clip using an audio cable: . . . . 39 R inger melody . . . . . . . . . . . . . . . . . . . . 41 R inger volume . . . . . . . . . . . . . . . . . . . . 42 Display . . . . . . . . . . . . . . . . . . . . . . . . 43 W allpapers . . . . . . . . . . . . . . . . . . . . . . 43 Color S cheme . . . . . . . . . . . . . . . . . . . . 44 L CD Brightness . . . . . . . . . . . . . . . . . . . 45 S ettings . . . . . . . . . . . . . . . . . . . . . . . 46 Clock setting . . . . . . . . . . . . . . . . . . . . . 46 To synchroniz e the telephone clock with the computer/caller ID: . . . . . . . . . . . . . . 46 To set the clock manually: . . . . . . . . . . . . . . 47 K ey tone . . . . . . . . . . . . . . . . . . . . . . . 48 IM alert tone . . . . . . . . . . . . . . . . . . . . . 49 Clear voice mail . . . . . . . . . . . . . . . . . . . 50 Default setting . . . . . . . . . . . . . . . . . . . . 51 Default setting table . . . . . . . . . . . . . . . . . 52 www.vtechphones.com II T able of contents M essenger . . . . . . . . . . . . . . . . . . . . . . . 53 Buddy status window . . . . . . . . . . . . . . . . 53 Active chat window. . . . . . . . . . . . . . . . . . 53 O nline . . . . . . . . . . . . . . . . . . . . . . . . 54 1HƀKPG . . . . . . . . . . . . . . . . . . . . . . . . 54 Active status . . . . . . . . . . . . . . . . . . . . . 55 To accept the Internet voice connection (VoIP) request: . . . . . . . . . . . . . . . . . . . . . 55 Reviewing unread instant messages: . . . . . . . . 55 Send out instant messages . . . . . . . . . . . . . 56 Send a VoIP request . . . . . . . . . . . . . . . . . 57 Accept an incoming instant voice request . . . . . . 58 VoIP/IM request from buddy outside the current buddy chat window. . . . . . . . . . . . . . . . 59 Incoming standard call while using IM in messenger . . . . . . . . . . . . . . . . . . . . 60 Incoming standard call while using VoIP in messenger . . . . . . . . . . . . . . . . . . . . 61 Incoming Internet voice call (VoIP) while idle . . . . 62 Incoming Internet voice call (VoIP) while on a standard call . . . . . . . . . . . . . . . . . . . 62 Simultaneous incoming standard call and VoIP call while on a standard call . . . . . . . . . . . 63 8Q+2ECNNTGSWGU VEQOGUsTUV . . . . . . . . . . . . 63 5VCPFCT FECNNEQOGUsTUV . . . . . . . . . . . . . . 63 Multiple incoming Internet voice calls (VoIP) while on a standard call . . . . . . . . . . . . . . . . 64 View buddy history . . . . . . . . . . . . . . . . . . 64 Delete buddy history . . . . . . . . . . . . . . . . . 65 View buddy information . . . . . . . . . . . . . . . 65 Choose your IM status . . . . . . . . . . . . . . . . 65 Sign out instant messenger . . . . . . . . . . . . . 65 Telephone operation . . . . . . . . . . . . . . . . . 66 Making calls on the Home line . . . . . . . . . . . . 66 Receiving calls on the Home line . . . . . . . . . . 66 Ending calls on the Home line . . . . . . . . . . . . 67 Speakerphone operation. . . . . . . . . . . . . . . 67 Mute . . . . . . . . . . . . . . . . . . . . . . . . . 67 Volume . . . . . . . . . . . . . . . . . . . . . . . . 67 Find han…

Text truncated - open the document above for the full version.

www.vtechphones.com 39 Telephon e s ettings Record sound clipsYou can record your own sound clip which can be used as a ringer using either the microphone or audio cable. When using the microphone, the sound clip will be recorded through the handsetís microphone. When using the audio ECDNGVJGUQWPFENKRYKNNDGTGEQTFG FVJTQWIJVJGJGCFUG VLCEM To record sound clip using microphone: Step 1: Press the MENU softkey from the idle screen. Step 2: Press the , , and/o r NavKey s to choose Ringer, then press the SELECT softkey or the center NavKey/ SELECT / . Step 3: Press the up or down NavKey o r t o choose Record Sound Clip , then press the SELECT softkey or the center NavKey/ SELECT / . Step 4: Press the up or down NavKey or to choose Using Microphone . Step 5: Press the SELECT softkey or the center NavKey/ SELECT / . The screen will display Record after the tone temporarily and a recording tone will be sounded. (Proceed to Step 6 on the next page) -OR- To record a sound clip using an audio cable: 5VGR 7UKPIVJGCWFKQECDNGRTQXKFGF RNWIQPGGPFKPVQVJGLCEMQPVJG UKFGQHVJGJCPFUG V DGPGCV JVJGUOCNNTWDDGTƀCR CPFRNWIVJG other end into an audio port on your computer. Step 2: Press the MENU softkey from the idle screen. Step 3: Press the , , and/ or NavKeys to choose Ringer then press the SELECT softkey or the center NavKey/ SELECT / . Using the telephone when recording will end the recording procedure. You can exit the recording procedure anytime by pressing OFF . The screen will display Recording discarded and the sound clip will not be saved. ïï SELECT Ringer BACK BACK SELECT Ringer Play Sound Clips Ringer Melody Ringer Volume Record Sound Cli p BACK Using Microphone Using Audio Cab le Remaining record time : 2:54 Recor d Sound Clip SELECT Record after the tone Recor d Sound Clip www.vtechphones.com 40 Telephone settings To record a sound clip us ing audio cable: Step 3: Press the up or down NavKey o r t o choose Record Sound Clip , then press the SELECT softkey or the center NavKey/ SELECT / . Step 4: Press the up or down NavKey or to choose Using Audio Cable . Press the SELECT softkey or the center NavKey/ SELECT / . The screen will display Insert Audio Cable into headset jack. Press RECORD to start. Step 5: Press the RECORD softkey to start recording. Step 6: The screen will then display Recording... to indicate the recording is in progress. Step 7: Press the STOP softkey to stop recording or the telephone will stop recording automatically when it has exceeded its recording time for a single sound clip and Recording completed will be displayed on the screen. Step 8: Press the PLAY softkey to playback the sound clip recorded. Step 9: Press the SAVE softkey to save the sound clip. Use the dial pad to enter the name of the sound clip in the box and press the SAVE softkey. The screen will display Sound clip saved . Step 10: Press OFF to discard the sound clip. Step 11: It will then return to the Record Sound Clip screen and the remaining record time will be shown. Step 12: The recorded sound clip will be displayed at the bottom of the list on the Play Sound Clips screen. Telephone s ettings BACK Using Microphone Using Audio Cable Remaining record time : 2:54 Recor d Sound Clip SELECT Recor d Sound Clip Insert audio cable into headset jack. Press RECORD to start. RECOR D Recor d Sound Clip Recording completed SAVE PLAY Recor d Sound Clip SAVE Enter Clip Name Morning www.vtechphones.com 41 Telephone s ettings Ringer melodyIn this menu, you can listen to the ring melodies and set different ring melodies for the standard and VoIP incoming calls. Step 1: Press the MENU softkey from the idle screen. Step 2: Press the , , and/o r NavKey s to choose Ringer then press the SELECT softkey or the center NavKey/ SELECT / . Step 3: Press the up or down NavKey o r t o choose a Ringer Melody , then press the SELECT softkey or the center NavKey/ SELECT / . Step 4: To set ringer melody for standard incoming calls, press the up or down NavKey or to choose PSTN Ringer Melody . -OR- To set ringer melody for VoIP incoming calls, press the up or down NavKey or to choose VoIP Ringer Melody . Step 5: Press the SELECT softkey or the center NavKey/ SELECT / . Step 6: A list of ring melodies will be shown. The selected melody has a check beside it and the melody currently playing is shown in larger/ bold text. Step 7: Press the up or down NavKey or to choose a melody and pres s the SELECT softkey or the center NavKey/ SELECT / V QEQPsTO  The screen will display Choice saved . SELECT Ringer BACK BACK SELECT Ringer Play Sound Clips Ringer Melody Ringer Volume Record Sound Clip BACK SELECT PSTN Ringer Melody VoIP Ringer Melody Ringer Melod y BACK SELECT PSTN Ringer Melod y  Melody 1 Melody 2 Melody 3 Melody 4 Riff Rock Change Up! www.vtechphones.com 42 Telephone settings Telephon e s ettings Ringer volume6QCFLWUVVJGJCPFUG VTKPIGTXQNWOG  Step 1 : Press th e MENU softk ey from th e idle sc reen. Step 2 : Press th e , , a nd/o r N a v K ey s to c h oose R ing er , th en press th e S EL EC T softk ey or th e c enter N a v K ey/ S EL EC T / . Step 3 : Press th e u p or dow n N a v K ey o r t o c h oose R ing er V o lu m e , th en press th e S EL EC T softk ey or th e c enter N a v K ey/ S EL EC T / . T h e c u rrent ring er v olu me w ill b e pla yed. Step 4 : Press th e left or rig h t N a v K ey or to inc rea se or dec rea s e th e v olu me. T h e v olu me lev el w ill b e sh ow n on th e sc reen w h en CFLWUVKPI #UCORNGQHVJGXQNWOGNGXGNYKNNDGRNC[GFCVVJGUCOG time. W h en th e ring er v olu me is set to off (no h ig h lig h ted v olu me b a r is sh ow n on th e sc reen), no sa mple v olu me w ill b e pla yed a nd R ing er O ff w ill b e displa yed on th e sc reen. Step 5 : Press th e S EL EC T softk ey or th e c enter N a v K ey/ S EL EC T / . A EQPsTOCVKQ PVQPGYKNNDGUQWPFGF  Step 6 : T h e ring er off ic on w il l b e displa yed w h ile in th e ma in idle sc reen if th e …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: 15 August, 2007 To whom it may concern, Declarations FCC ID: EW780-6292-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device N/A N/A 2 On Hook by companion device BN/A 3 Switch-off device N/A N/A 4 On Hook on device sideN/A C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. R egards, Name: Ricky Ng Title: Technical Manager

VTech Telecommunications Ltd 15 August, 2007 To whom it may concern, Label Location Justification FCC ID: EW780-6292-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches:
Marketing the device without the battery installed, or
Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Ricky Ng Technical Manager

VTech Telecommunications Ltd 15 August 2007 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-6292-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Canada Ltd. reserves the right to discern which parties can obtain access to these information:
Schematics
Detailed Block diagrams
Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Ricky Ng Technical Manager

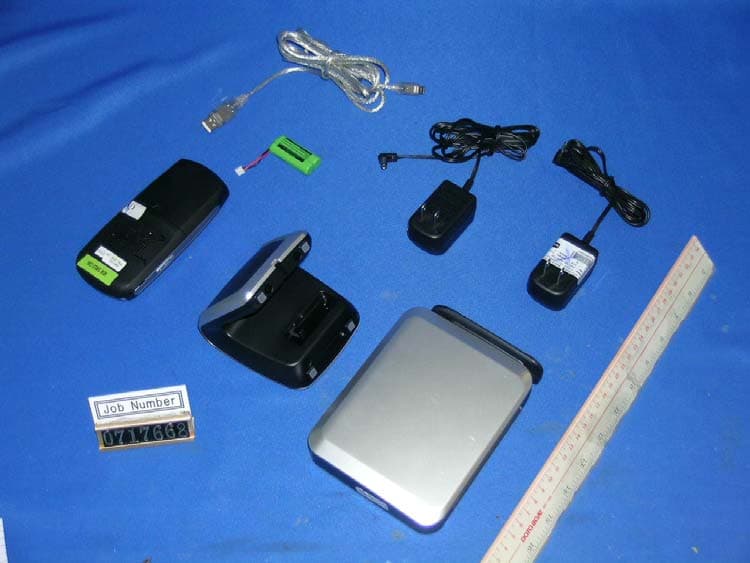

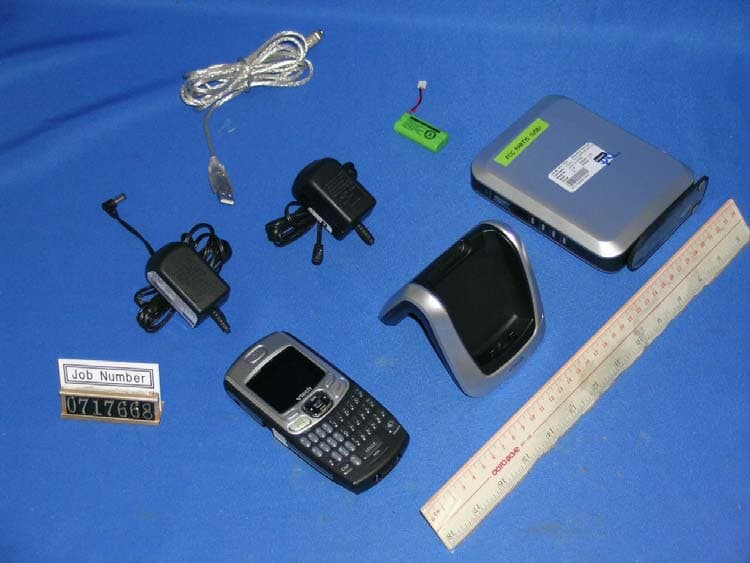

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-6292-00 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-6292-00 external photos - 2 of 2

Charger HS BS Model#:IS6110 Model#:IS6110 CORDLESS TELEPHONE VTech Customer Service 1-800-595-95 11 www.vtechphones.com CLASS 2 POWER SOURCE ON LY DC 6V 200m A Serial label DC 6V 0 1 1 6 S I : # L E D O M MODEL #:IS6110 S/N Label IS6110 Engraving draft 50x13mm 4H20 IS6 1 10 292 B 22 292 0 B 2 2 2 2 9 Use Only Supplier Battery 89-1330-00-00 3 BS SILKSCREEN SILKSCREEN 12.8 17.5 60.0 20.0 R15.0 3.5X22.0mm 2 2B

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 1 of 6 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 2 of 6 Base Unit Main PCB solder side Base USB Port front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 3 of 6 Base USB Port rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 4 of 6 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 5 of 6 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-6292-00 internal photos - 6 of 6 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-629200 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of IS6110, the maximum field strength measured (FS) was 116.5 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in single-handset with double-slot operation is 12.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 134.01 mW The radiated (EIRP) source-based time-averaging output power = (134.01 * 0.125) mW = 16.75 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0033 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 1 of 6 A0 Plot B1A Plot B1B INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 2 of 6 A0 Plot B1C Plot B1D INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 3 of 6 A0 Plot B1E Plot B1F INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 4 of 6 A0 Plot B1G Plot B1H INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 5 of 6 A0 Plot B1I Plot B1J INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 6 of 6 A0 Plot B1K Plot B1L INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 1 of 3 A0 Plot H1A Plot H1B INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 2 of 3 A0 Plot H1C Plot H1D INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-6292-00 26bw - 3 of 3 A0 Plot H1E Plot H1F

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-6292-00 inband - 1 of 2 A0 Plot B4A Plot B4B INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-6292-00 inband - 2 of 2 A0 Plot B4C Plot B4D INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-6292-00 inband - 1 of 1 A0 Plot H4A Plot H4B

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-6292-00 peaktp - 1 of 2 A0 Plot B2A Plot B2B INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-6292-00 peaktp - 2 of 2 A0 Plot B2C Plot B2D INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-6292-00 peaktp - 1 of 1 A0 Plot H2A Plot H2B

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-6292-00 psd - 1 of 2 A0 Plot B3A Plot B3B INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-6292-00 psd - 2 of 2 A0 Plot B3C Plot B3D INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-6292-00 psd - 1 of 1 A0 Plot H3A Plot H3B

- The evaluation data of the report will be kept for 3 years from the date of issuance. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices FCC ID: EW780-6292-00 Test Report Number: 07176681 Issue Date: October 12, 2007 TL/ ac INTERTEK TESTING SERVICES Test Report Number: 07176681 Page 1 of 95 FCC ID: EW780-6292-00 LIST OF EXHIBITS INTRODUCTION EXHIBIT 1: Summary of Tests EXHIBIT 2: General Description EXHIBIT 3: System Test Configuration EXHIBIT 4: Measurement Results EXHIBIT 5: Equipment Photographs EXHIBIT 6: Product Labelling EXHIBIT 7: Technical Specifications EXHIBIT 8: Instruction Manual EXHIBIT 9: UTAM Affidavit EXHIBIT 10: Confidentiality Request INTERTEK TESTING SERVICES Test Report Number: 07176681 Page 2 of 95 FCC ID: EW780-6292-00 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: IS6110 FCC ID: EW780-6292-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear JBP - Part 15 Class B Computing Device Peripheral Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device and Part 15 Subpart B for unintentional radiators - the new 47 CFR [04-05-05 Edition] Provision. Report prepared by: Leung Wai Leung, Tommy Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: 07176681 Page 3 of 95 FCC ID: EW780-6292-00 Table of Contents 1.0 Summary of Test Results........................................................................................ 7 2.0 General Description............................................................................................... 10 2.1 Product Description ............................................................................................... 10 2.2 Technical Description ............................................................................................ 10 2.3 Related Submittal(s) Grants .................................................................................. 11 2.4 Test Methodology.................................................................................................. 11 2.5 Test Facility ........................................................................................................... 11 3.0 System Test Configuration.................................................................................... 13 3.1 Justification ........................................................................................................... 13 3.2 Conducted Emission Test Configuration ................................................................ 14 3.3 Conducted Monitoring and Operational Test Configuration.................................... 14 3.4 EUT Exercising Software....................................................................................... 14 3.5 Details of EUT and Description of Peripherals....................................................... 15 3.6 Measurement Uncertainty ..................................................................................... 16 3.7 Equipment Modification ......................................................................................... 16 4.0 Measurement Results............................................................................................ 18 4.1 Antenna Requirement........................................................................................... 18 4.2 Digital Modulation Techniques............................................................................... 18 4.3 Emission Bandwidth.............................................................................................. 19 4.4 Directional Gain of the Antenna ............................................................................. 22 4.5 Peak Transmit Power ............................................................................................ 23 4.6 Power Spectral Density ......................................................................................... 25 4.7 Automatic Discontinuation of Transmission............................................................ 27 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 29 4.9 Emissions Outside the Sub-Band .......................................................................... 31 4.9.1 Radiated Emissions Configur…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-6292-00 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-6292-00 config photos (radiated emission - handset) - 1 of 1 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Instant Message FCC ID: EW780-6292-00 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-6292-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-6292-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Mode: Instant Message, Computer’s AC Port FCC ID: EW780-6292-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Mode: Instant Message, Computer’s AC Port FCC ID: EW780-6292-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
