EW780-7009-01DECT 6.0 Cordless Telephone

User’s manual www.vtechphones.com Models: DS6151/DS6151 A BC Congratulations on purchasing your new VTech product. Before using this telephone, please read Important safety instructions on page 81 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Register online to get an additional 3-month warranty! Visit www.vtechphones.com. Registration Register your product online for enhanced warranty support. Product news Learn about the latest VTech products. T Compatible with Hearing Aid T-Coil TIA-1083 i Table of contents Getting started .........................1 Parts checklist ............................1 Telephone base installation .......2 Battery installation......................4 Battery charging .........................4 Belt clip and optional headset ....6 Handset layout ...........................7 Telephone base layout ...............9 Handset settings ......................11 Settings ......................................11 LCD language ............................11 Clear voicemail indicator ............12 Key tone .....................................13 Set date/time ..............................13 Home area code .........................14 Dial mode ...................................14 Ringers .......................................15 Ringer volume ............................15 Ringer tone .................................15 Telephone base settings .........16 Settings .......................................16 LCD language .............................16 Clear voicemail indicator ............17 Key tone .....................................18 Set date/time ..............................18 Home area code .........................19 Dial mode ...................................19 Ringers .......................................20 Ringer volume ............................20 Ringer tone .................................20 Answering system settings ....21 Answering system set up ............21 Answer ON/OFF .........................21 Call screening .............................22 Announcement ...........................23 Play your announcement ...........23 Record your own announcement .......................24 Delete your announcement ........26 Number of rings ..........................27 Remote access code .................28 Message alert tone ....................29 Telephone operation ................30 Make, answer or end a call .......30 Call waiting .................................31 Handset speakerphone ..............31 Volume .......................................31 Silence the ringer .......................31 Mute ...........................................32 Hold ............................................32 Temporary tone dialing ..............33 Handset locator ..........................33 Chain dialing ..............................34 Redial list ....................................35 Review the redial list ..................35 Dial a redial entry .......................35 Save a redial entry to the directory ............................36 Delete a redial entry ...................36 Multiple handset use ..................37 Intercom .....................................37 Answer an incoming call during an intercom call ...........39 Transfer a call .............................40 Share an outside call..................42 Conference line 1 and line 2 calls .........................................42 Answer an incoming call during a conference call .........44 Directory .....................................45 Create a new directory entry ......45 Character chart ..........................47 Review the directory ..................48 Alphabetical search ....................48 Dial a directory entry ..................48 Edit a directory entry ..................49 Delete a directory entry ..............50 Store a speed dial entry .............51 Review the speed dial directory ..................................52 ii Table of contents Dial a speed dial entry ...............52 Edit a speed dial entry ...............53 Reassign a speed dial entry ......54 Delete a speed dial entry ...........54 About caller ID ............................55 Caller ID history ..........................56 Missed calls indicator .................56 Memory match ...........................57 Review the call log .....................57 Make a call log entry ready to dial ......................................58 Dial a call log entry .....................58 Save a call log entry to the directory ..................................59 Delete from the call log ..............60 Call log display screen messages................................60 Answering system operation ..61 Answering system and voicemail .................................61 Message capacity ......................61 New message indication ............62 Call intercept ..............................62 Message playback .....................63 Delete all messages ...................64 Record and play memos ............65 Remote access ..........................66 Appendix ...................................67 Screen display messages ..........67 Handset and telephone…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification July 22, 2014 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd July 22, 2014 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7009-01 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

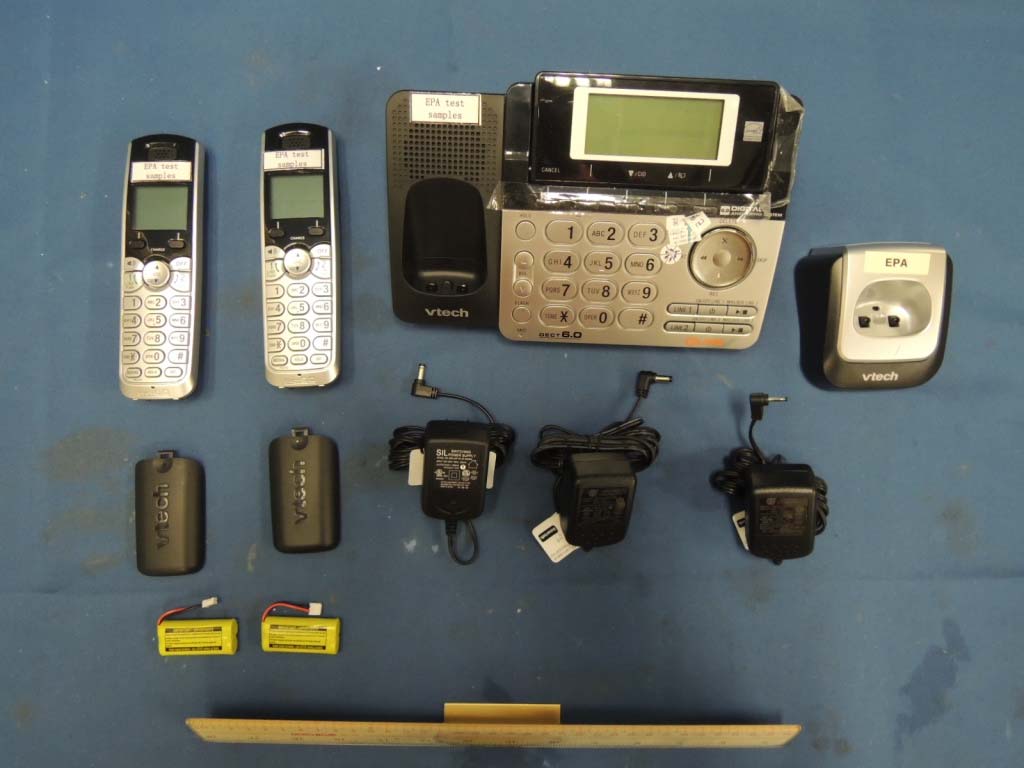

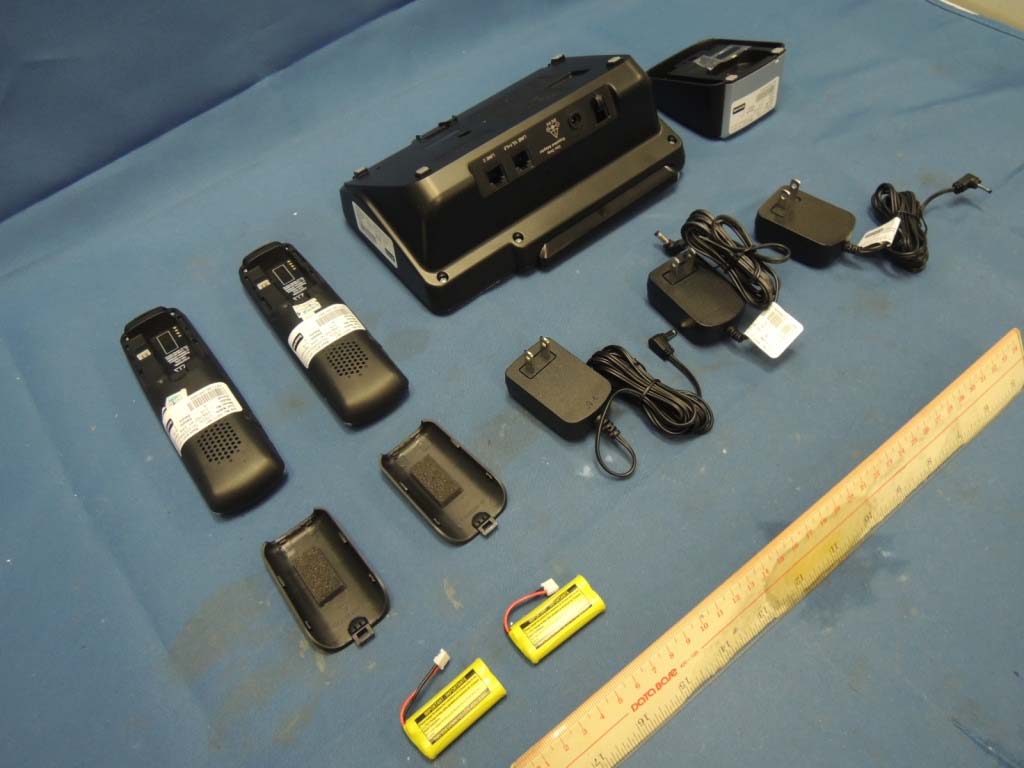

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7009-01 IC: 1135B-80700901 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7009-01 IC: 1135B-80700901 external photos - 2 of 2

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7009-01 IC: 1135B-80700901 internal photos - 1 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7009-01 IC: 1135B-80700901 internal photos - 2 of 3 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7009-01 IC: 1135B-80700901 internal photos - 3 of 3

Report No.: 14071086HKG-001 Page 1 of 80 - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Specific Absorption Rate (SAR) Evaluation Report For DECT 6.0 Cordless Telephone Handset Unit Model Number: DS6151-2 Brand Name: vtech FCC ID: EW780-7009-01 Test Report: 14071086HKG-001 Date of Report: 15 September, 2014 Prepared for VTech Telecommunications Ltd. 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong Prepared and Checked by: Approved by: Chan Chun Foo, Bike Senior Lead Engineer Date: 15 September, 2014 Nip Ming Fung, Melvin Assistant Manager Date: 15 September, 2014 Report No.: 14071086HKG-001 Page 2 of 80 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1 Test Result Summary.................................................................................................. 3 2 General Information..................................................................................................... 4 3 Measurement System Description and Procedure ...................................................... 6 4 Tissue Verificaiton ..................................................................................................... 14 5 SAR Measurement System Verification .................................................................... 16 6 SAR Evaluation ......................................................................................................... 18 7 Test Insturments........................................................................................................ 24 8 Measurement Uncertainty ......................................................................................... 25 9 E-Field Probe and Dipole Antenna Calibration .......................................................... 25 10 References ............................................................................................................... 25 APPENDIX A – System Verification Data...................................................................... 26 APPENDIX B – SAR Evaluation Data ........................................................................... 28 APPENDIX C – E-Field Probe and Dipole Antenna Calibration .................................... 57 APPENDIX D – SAR Tissue Specification .................................................................... 79 APPENDIX E – SAR System Validation........................................................................ 80 Report No.: 14071086HKG-001 Page 3 of 80 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com 1. Test Result Summary The maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Highest Reported SAR Band Operating Mode TX Frequency (MHz) 1 g Head 1g Body-Worn 1.9GHz DECT Voice 1921.536 – 1928.448 0.058 W/kg 0.023 W/kg This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment / general population exposure limits specified in ANSI/IEEE C95.1. Applicant : VTech Telecommunications Ltd. Applicant Address : 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Model : DS6151-2 Brand Name : vtech EUT Description : DECT 6.0 Cordless Telephone Handset Unit Exposure Category : General Population/Uncontrolled Exposure Test Device : Production Unit Date of Sample Received : 25 July, 2014 Date of Test : 12 August, 2014 Date of Report : 15 September, 2014 Place of Testing : Intertek Testing Services Hong Kong 5/F, Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong Temperature: +20 to 25°C Environmental Conidtions : Humidity 30 to 70% Test Specification : ANSI/IEEE C95.1: 1992 IEEE Std 1528: 2003 IEEE Std 1528a: 2005 FCC KDB Publication 447498 D01 v05r02 FCC KDB Publication 865664 D01 v01r03 FCC KDB Publication 865664 D02 v01r01 FCC KDB Publication 648474 D04 v01r02 Report No.: 14071086HKG-001 Page 4 of 80 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com 2. General Information 2.1. Description of Equipment under test (EUT) *Note: 1. DECT has a TDD/TDMA frame structure with a complete frame of 10ms duration with 24 time slots. And under these 24 time slots, the first 12 slots are allocated for the transmission from base station to handsets, and the other 12 slots are for the transmission from handsets to base station. During a call, the handset of this product will use one of 24 time slots to transmit under…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page 1 of 3 EUT Photo Figure 1 – Handset Unit front view Figure 2 – Handset Unit back view INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page 2 of 3 Figure 3 – 2.4V 500mAh Ni-MH Corun rechargeable battery front view Figure 4 – 2.4V 500mAh Ni-MH Corun rechargeable battery back view INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page 3 of 3 Figure 5 – 2.4V 500mAh Ni-MH GPI rechargeable battery front view Figure 6 – 2.4V 500mAh Ni-MH GPI rechargeable battery back view

INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page of 3 1 Left Cheek Left Tilt INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page of 3 2 Right Cheek Right Tilt INTERTEK TESTING SERVICES FCC ID: EW780-7009-01 Page of 3 3 Back 0mm Separation

lssuing Laboratory: lntertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKI-AS 005 - TEST) under HOKLAS for specific laboratory act¡v¡ties as l¡sted in the HOKLAS directory of accredited laboratories. TEST REPORT Report N um ber:. 1 407 1084HKG-001 For Original Grant of 47 CFR New Family of RSS-213lssue Unlicensed Personal Communication Service Devices/ GHz License-exem pt Personal Comm u n icati ons Service Devices Application Prepared and Checked by: Part 15 Certification 2 Equipment Certification FCC ID: EW780-7009-01 lC: 11358-80700901 Yeung Engineer lntertek's standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. The test report only allows to be revised within the retent¡on period unless further standard or the requirement was noticed. This report is for the exclusive use of lntertek's Client and is provided pursuant to the agreement between lntertek and its Client. lntertek's responsibility and liability are limited to the terms and conditions of the agreement. lntertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report, Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the lntertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by lntertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an lntertek certification program. lntertek Testing Services Hong Kong Ltd. ZF., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Approved by: Nip Ming Fung, Melvin Assistant Manager September 30,2014 Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14071084HKG-001 Page 1 of 86 FCC ID: EW780-7009-01 IC: 1135B-80700901 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: EW780-7009-01 FCC Model(s): DS6151, DS6151-2, DS615Z-XY, DS6101, DS610Z-XY IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC:1135B-80700901 IC Model(s): DS6151 A,DS6101 A Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Digital Answering Machine and Bluetooth Serial Number: N/A Sample Receipt Date: July 25, 2014 Date of Test: September 01-19, 2014 Report Date: September 30, 2014 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited HKAS has accredited this laboratory (HOKLAS 005 – TEST) under HOKLAS for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. Test Report Number: 14071084HKG-001 Page 2 of 86 FCC ID: EW780-7009-01 IC: 1135B-80700901 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance............................................... 5 1.1 Summary of Test Results......................................................................................... 5 1.2 Statement of Compliance......................................................................................... 7 2.0 General Description................................................................................................... 9 2.1 Product Description ................................................................................................... 9 2.2 Technical Description ................................................................................................ 9 2.3 Test Methodology.................................................................................................... 10 2.4 Test Facility ............................................................................................................. 10 3.0 System Test Configuration...................................................................................... 12 3.1 Justification ............................................................................................................. 12 3.2 Conducted Emission Test Configuration ................................................................. 13 3.3 Conducted Monitoring and Operational Test Configuration ..................................... 13 3.4 EUT Exercising Software ........................................................................................ 13 3.5 Details of EUT and Description of Accessories ....................................................... 14 3.6 Measurement Uncertainty ....................................................................................... 14 4.0 Measurement Results.............................................................................................. 16 4.1 Antenna Requirement ............................................................................................. 16 4.2 Digital Modulation Techniques ................................................................................ 16 4.3 Emission Bandwidt…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd July 22, 2014 To whom it may concern, Declarations FCC ID: 80-7009-01 IC: 1135B-80-7009-01 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset Unit 1 Switch-off companion device NA NA 2 On hook by companion device B NA 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On hook device NA C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. The monitoring Threshold of Handset and Base unit declared by manufacturer is -60.2 dBm and -60.7 dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-7009-01 IC: 1135B-80700901 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-7009-01 IC: 1135B-80700901 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-7009-01 IC: 1135B-80700901 config photos (conducted emission) - 1 of 3 Conducted Emission Front View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-7009-01 IC: 1135B-80700901 config photos (conducted emission) - 2 of 3 Conducted Emission Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-7009-01 IC: 1135B-80700901 config photos (conducted emission) - 3 of 3 Conducted Emission Left Side View
