EW780-7301-001.9GHz CORDLESS PHONE

User’s manual CL84100/CL84200/CL84300 DECT 6.0 corded/cordless telephone/answering system with caller ID/call waiting Getting started  Backup batteries installation and use In the event of a power failure, your telephone can still operate with limited functions if there are backup batteries (purchased separately) installed in the telephone base. If a power failure happens during a call on the corded handset, the call continues (at the lowest volume) until you hang up; while a call on the cordless handset or speakerphone disconnects immediately. During a power failure, you can still make and answer calls using the corded handset. However, you cannot make or answer calls on the cordless handset or speakerphone. If power resumes while you are on a call, the call continues and the telephone resets once you hang up. Follow the steps below to install backup batteries. 2. Press the tab on the base battery cover (on the bottom of the telephone base) toward the cover and swing open the battery door. 3. Insert three new AAA alkaline batteries, matching the + and - signs engraved on the telephone base. 4. Replace the backup battery cover onto the telephone base; the cover clicks into place when it is attached properly. During a power failure, if the backup batteries are installed, the telephone base displays CHECK AC POWER. 1. Make sure the telephone line cord and power adapter cord are not connected to the telephone base. NOTES: 1. Use disposable AAA alkaline batteries only. Do not use rechargeable batteries. 2. With backup batteries, the base ringer and the handset listening volume will be at the lowest setting. 3. We recommend changing the batteries every nine months. Battery compartment tab BASE CHECK AC POWER  Getting started IMPORTANT INFORMATION 1. Use only the power adapter(s) supplied with this product. To order a replacement power adapter, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. 2. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. Telephone base installation Install the telephone base as shown below. The telephone base is ready for tabletop use. If you want to change to wall mounting, see page 10 for details. Plug the small end of the AC power adapter into the power jack on the bottom of the telephone base. • Plug one end of the telephone line cord into the telephone jack on the bottom of the telephone base. • Place the cords into the channels. • Plug the other end of the telephone line cord into a telephone jack or a DSL filter. • Plug the other end of the coiled handset cord into the jack at the left of the telephone base. • Raise the antenna. • Plug the large end of the AC power adapter into a power outlet not controlled by a wall switch. • If you have DSL high speed Internet service, a DSL filter (not included) is required.  Getting started Charger installation Install the charger as shown below. Plug the power adapter into an electrical outlet not controlled by a wall switch. IMPORTANT INFORMATION 1. Use only the power adapter(s) supplied with this product. To order a replacement power adapter, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. 2. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet.  Battery indicatorsBattery statusAction The screen is blank or shows Place in charger. Battery has no or very little charge. The handset cannot be used. Charge without interruption until the screen shows Low battery or HANDSET X (at least 30 minutes). The screen shows Low battery and flashes. Battery has enough charge to be used for a short time. Charge without interruption until the screen shows HANDSET X (at least 30 minutes). The screen shows HANDSET X. Battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. Battery installation and charging Install the battery as shown below. Once you have installed the battery, the screen indicates the battery status (see table below). If necessary, place the handset in the telephone base or charger to charge the battery. For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 1 hours of continuous charging. See the table on page 1 for battery operating times. If the screen shows Low battery, you need to charge the handset without interruption for at least 30 minutes to give the handset enough charge to use the telephone for a short time. The following table summarizes the battery charge indicators and actions to take. Step 1 Plug the battery connector securely into the socket inside the handset battery compartment, matching the color-coded label. Insert the supplied battery with the label THIS SIDE UP facing up as indicated. Step 2 Align the cover flat against the battery compartment, then slide it upwards until it clicks into place. NOTE: If you are on a phone call in low battery mode, you hear four short beeps every minute. Getting started  Battery installation and charging Step 3 Charge the handset by placing it face forward in the telephone base or charger. The CHARGE light on the top of the handset is on during charging. After you install your telephone or power returns following a power outage, the handset will prompt you to set the date and time. For instructions, see Set date/time on page 14. To skip setting the date and time, press OFF/CLEAR. IMPORTANT INFORMATION 1. Use only the supplied rechargeable battery or replacement battery (model BT1 342). To order, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. 2. If you do …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd 5 December 2009 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7301-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics [FILENAME:EW780-7301-00_circuit.pdf ] • Detailed Block diagrams [FILENAME:EW780-7301-00_block.pdf ] • Detailed Operational/Functional Description [ FILENAME:EW780-7301-00_descri.pdf ] The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: Dec 03, 2009 To whom it may concern, Declarations FCC ID: EW780-7301-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit 1 Switch-off companion device NA 2 On Hook by companion device B 3 Switch-off device NA 4 On Hook on device side B 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 5 Dec,2009 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Signature Samson Man / Approbation Supervisor Name/Title

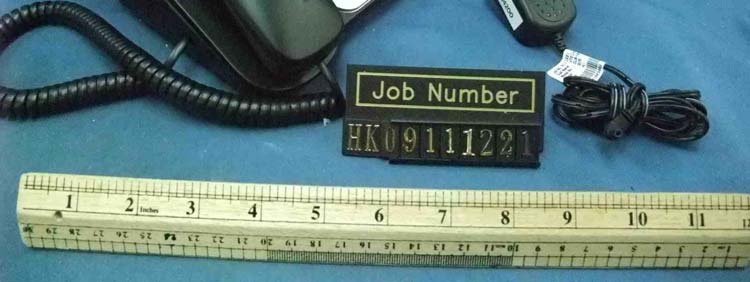

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7301-00 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7301-00 external photos - 2 of 2

1.CL84100(1BS + 1CORDED HS + 1 CORDLESS HS + 1CH)2.CL84200(1BS + 1CORDED HS + 2 CORDLESS HS + 2CH) Serial No. Label(size: 28x10mm) Model #: CL84XXX Text: engraved in recessed 0.3mm depth, text surface in high gloss Text: engraved in raised 0.3mm AC 6V Advanced American TelephonesAC 6V 300 mACustomer Service1-800-222-3111www.telephones.att.com CL81200CL81300CL82200CL82300CL82400CL82500CL82350CL84100CL84200 Charger for: Use Only Supplied Adapter Serial No. Label size:20x10mm Model #: CL84XXX CL81100CL81200CL81300CL82100CL82200CL82300CL82400CL82500CL82350CL84100CL84200CL80100 HS: CL84x00 Engraving draft file Customer Service 1-800-222-3111 www.telephones.att.com DC 6V 400 mA HAC MANUFACTURED IN CHINA Text : Recessed 0.3mm High Gloss Cancel this insert Text : Recessed 0.3mm High Gloss Advanced American Telephones COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W404B80-730100 RINGER EQUIVALENCE: 0.4B USOC JACK: RJ11C/W FCC ID: EW780-7301-00 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: XXXX-XXXXXXX CAN IC Label

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 1 of 7 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 2 of 7 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 3 of 7 Base Unit Keypad front side (View 1) Base Unit Keypad front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 4 of 7 Base Unit Keypad rear side Base Unit LCD display front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 5 of 7 Base Unit LCD display front side (View 2) Base Unit LCD display rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 6 of 7 Base Unit LED Keypad front side Base Unit LED Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7301-00 internal photos - 7 of 7 Base Unit Antenna Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:EW780-7301-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model CL84100, the maximum field strength measured (FS) was 119.0 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 16.5%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 40.47 mW The radiated (EIRP) source-based time-averaging output power = (40.47 * 0.165) mW = 6.68 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0013 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID : EW780-7301-00 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID : EW780-7301-00 26bw - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Report no.: HK09111221-1 Talk Mode(Cordless Handset on-line) AC Mains “L” Ctrl No.: N/A PAGE 1 Report No.:HK09111221-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report no.: HK09111221-1 Talk Mode(Cordless Handset on-line) AC Mains “L” Ctrl No.: N/A Report No.:HK09111221-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dBuV dBuV dB 0.19950 32.0 63.6 -31.6 0.26250 34.9 61.3 -26.4 0.38850 35.0 58.1 -23.1 0.46050 34.7 56.7 -22.0 0.65850 39.9 56.0 -16.1 1.05450 39.8 56.0 -16.2 1.35150 47.4 56.0 -8.6 1.56300 38.9 56.0 -17.1 2.14800 32.7 56.0 -23.3 3.35400 28.2 56.0 -27.8 4.51050 25.9 56.0 -30.1 Frequency AV Level AV Limit Delta MHz dBuV dBuV dB 1.35150 33.9 46.0 -12.1 1.55850 28.0 46.0 -18.0 * limit exceeded Report no.: HK09111221-1 Talk Mode(Cordless Handset on-line) AC Mains “N” Ctrl No.: N/A PAGE 1 Report No.:HK09111221-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement: x QP / + AV Meas Time: 1 s Subranges: 16 Acc Margin: 20dB Transducer No. Start Stop Name 1 1 9k 30M 2454 2 9k 30M 0700 3 9k 30M 0090 0 10 20 30 40 50 60 70 80 90 dBuV 100 0.15 MHz 30 110 F15Q F15A Report no.: HK09111221-1 Talk Mode(Cordless Handset on-line) AC Mains “N” Ctrl No.: N/A Report No.:HK09111221-1 Scan Settings (1 Range) |--------- Frequencies -----------||----------- Receiver Settings ------------| Start Stop Step IF BW Detector M-Time Atten Preamp OpRge 150k 30M 4.5k 10k PK+AV 10ms AUTO LN OFF 60dB Final Measurement Results: Frequency QP Level QP Limit Delta MHz dBuV dBuV dB 0.28950 35.1 60.6 -25.5 0.30750 36.8 60.0 -23.2 0.46050 37.7 56.7 -19.0 0.78450 35.6 56.0 -20.4 0.85200 38.7 56.0 -17.3 1.30650 45.4 56.0 -10.6 1.55850 38.1 56.0 -17.9 2.22450 34.4 56.0 -21.6 2.96700 31.8 56.0 -24.2 4.27200 27.4 56.0 -28.6 Frequency AV Level AV Limit Delta MHz dBuV dBuV dB 1.36050 28.9 46.0 -17.1 * limit exceeded

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID : EW780-7301-00 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID : EW780-7301-00 inband - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID : EW780-7301-00 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID : EW780-7301-00 peaktp - 2 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID : EW780-7301-00 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID : EW780-7301-00 psd - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification Unlicensed Personal Communication Service Devices (Base Unit) FCC ID: EW780-7301-00 Model: CL84XY0 Test Report Number: HK09111221-1 Issue Date: December 16, 2009 KS/ cl INTERTEK TESTING SERVICES Test Report Number: HK09111221-1 Page 1 of 52 FCC ID: EW780-7301-00 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: CL84XY0 FCC ID: EW780-7301-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8538 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK09111221-1 Page 2 of 52 FCC ID: EW780-7301-00 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration.................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Peripherals....................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 14 3.7 Equipment Modification ......................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 18 4.5 Peak Transmit Power ............................................................................................ 19 4.6 Power Spectral Density ......................................................................................... 20 4.7 Automatic Discontinuation of Transmission............................................................ 20 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 21 4.9 Emissions Outside the Sub-Band .......................................................................... 22 4.9.1 Radiated Emissions Configuration Photographs ................................................. 23 4.9.2 Radiated Emissions Data ................................................................................... 23 4.9.3 Field Strength Calculation................................................................................... 29 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 30 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT................ 31 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.10.2 AC Power Line Conducted Emissions Data .....…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Transmitter ON Time Plots FCC ID: EW780-7301-00 txon - 1 of 1 Base unit, Traffic carrier Base unit, Dummy

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-7301-00 config photos (radiated emission – base unit) - 1 of 1 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-7301-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-7301-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
