EW780-7446-001.9GHz CORDLESS PHONE

User’s manual TL32100/TL32200/TL32300 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Audio assist™ is a trademark of Advanced American Telephones. © 2010 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Congratulations on purchasing your new AT&T product. Before using this AT&T product, please read Important safety information on page 77 of this user’s manual. Please thoroughly read the user’s manual for all the feature operations and troubleshooting information you need to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Model #: TL32100 (one-handset system) TL32200 (two-handset system) TL32300 (three-handset system) Type: DECT 6.0 cordless telephone with answering system Serial #: Purchase date: Place of purchase: Both the model and serial number of your AT&T product can be found on the bottom of the telephone base. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Power adapter for telephone base Telephone base Quick start guideUser’s manual Wall mount bracket Charger for cordless handset with power adapter installed (1 for TL32200) (2 for TL32300) Cordless handset (1 for TL32100) (2 for TL32200) (3 for TL32300) Telephone line cordBattery for cordless handset (1 for TL32100) (2 for TL32200) (3 for TL32300) Battery compartment cover (1 for TL32100) (2 for TL32200) (3 for TL32300) i User’s manual TL32100/TL32200/TL32300 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Table of contents Getting started Quick reference guide ..................................................2 Telephone base and charger installation............5 Battery installation and charging............................6 Battery installation..................................................6 Battery charging.......................................................7 Wall mount installation................................................8 Tabletop to wall mount installation................8 Wall mount to tabletop installation ............10 Telephone settings Menu overview...............................................................11 Handset settings...........................................................12 Ringer volume.........................................................12 Ringer tone...............................................................12 LCD language..........................................................12 Voicemail waiting (visual message waiting) indicator ...............13 Clear voicemail indication ................................13 Key tone.....................................................................14 Set date/time..........................................................14 CID time synchronization ..................................15 Home area code ....................................................15 Dial mode..................................................................16 Website ......................................................................16 Answering system settings......................................17 Announcement .......................................................17 Answering mode....................................................18 Call screening setup............................................19 Number of rings.....................................................20 Remote access code............................................20 Message alert tone...............................................21 Recording time .......................................................21 Telephone base ringer volume..............................22 Telephone operation Making, answering and ending a call.................23 Making a call ...........................................................23 Temporary ringer silencing...............................23 Answering a call ....................................................24 Speakerphone .........................................................24 Ending a call............................................................24 Redial..................................................................................25 To review numbers in the redial list............25 To call a number from the redial list ..........25 To copy a number from the redial list to the directory ......................................................25 To delete a number in the redial list ..........26 Options while on calls...............................................27 Volume control.......................................................27 Mute.............................................................................27 Flash/call waiting .................................................27 Equalizer ....................................................................28 Audio assist..............................................................28 Temporary tone dialing......................................28 Chain dialing............................................................29 Join a call in process ..........................................30 Handset locator...........................................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd 10 Feb, 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7446-00 Request is hereby submitted by VTech Telecommunications Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd reserves the right to discern which parties can obtain access to these information: • Schematics [FILENAME: EW780-7446-00_circuit.pdf] • Detailed Block diagrams [FILENAME: EW780-7446-00_block.pdf] • Detailed Operational/Functional Description [FILENAME: EW780-7446-00_descri.pdf] The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 10 Feb, 2010 To whom it may concern, Label Location Justification FCC ID: EW780-7446-00 Request is hereby submitted by VTech Telecommunications Ltd to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification December 5, 2009 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Signature Samson Man / Approbation Supervisor Name/Title

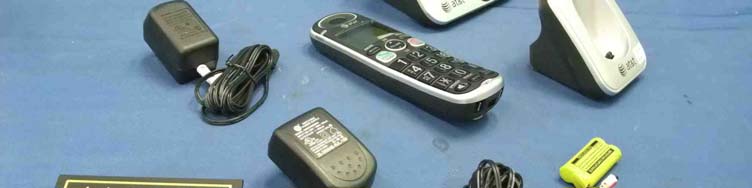

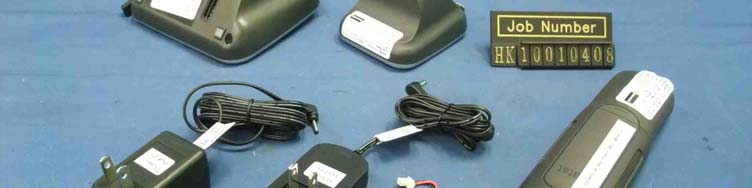

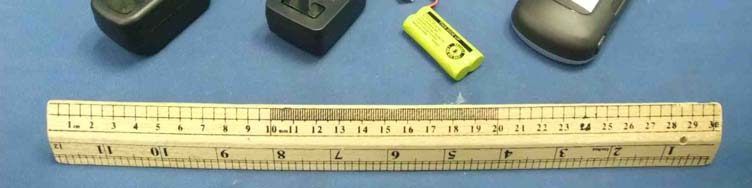

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7446-00 IC: 1135B-80744600 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7446-00 IC: 1135B-80744600 external photos - 2 of 2

TL32X00 TL32X00 Serial label Size: 28X10mm THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.COMPLIES WITH 47 CFR PART 68REGISTRATION NO.: US: EW7W401B80-744600RINGER EQUIVALENCE: 0.1BUSOC JACK: RJ11C/W Advanced American Telephones FCC ID: EW780-7446-00 DC 6V 400mA HACMANUFACTURED IN CHINA IC: 1135B-80744600 TEL. LINE Use Only Supplied Adapter 22mm 35mm 28.5mm 11mm 12mm 25mm 20mm 60mm Base (TL32100,TL32200,TL32300) Text: engraved in raised 0.3mm Text: engraved in recessed 0.3mm depth, text surface in high gloss CAUTION Use Only Supplied Battery or Battery BT166342 Model: TL32X00 S/N:XXXXXXXXXXXX Model: TL32X00 S/N:XXXXXXXXXXXX Serial label Size: 20X10mm IC: 1135B-80744600FCC ID:EW780-7446-00 16.2mm 6mm 10.6mm 25mm 17mm Handset(TL30100,TL32100,TL32200,TL32300) Text: engraved in recessed 0.3mm depth, text surface in high gloss

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 1 of 10 Base Unit assembly (View 1) Base Unit assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 2 of 10 Base Unit Main PCB comp side Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 3 of 10 Base Unit DAM front side Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 4 of 10 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 5 of 10 Base Unit LED front side Base Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 6 of 10 Base Unit Telephone Line Jack and AC Adaptor Jack front side Base Unit Telephone Line Jack and AC Adaptor Jack rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 7 of 10 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 9 of 10 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7446-00 IC: 1135B-80744600 internal photos - 10 of 10 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-7446-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of TL32200, the maximum field strength measured (FS) was 116.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 130.95 mW The radiated (EIRP) source-based time-averaging output power = (130.95 * 0.208) mW = 27.24 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0054 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1001FS18 Applicant ： VTech Telecommunications Ltd. EUT Type ： 1.9GHz DECT 6.0 Cordless Phone FCC ID ： EW780-7446-00 Trade Name ： AT&T Model Number ： TL32200 Dates of Test ： Jan. 21, 2010 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-2005 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.01500 W/kg Head SAR 0.03300 W/kg Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Sam Chuang 20100129 Alex Wu 20100129 Approve Signer Testing Engineer Test Report No： ©2010 A Test Lab Techno Corp. 1001FS18Page 1 of 63 Contents 1. Description of Equipment Under Test (EUT) ..........................................................................3 2. Introduction .......................................................................... ......................................... 4 3. SAR Definition .......................................................................... ..................................... 4 4. SAR Measurement Setup .......................................................................... .......................5 5. System Components .......................................................................... ..............................7 6. Test Equipment List .......................................................................... ...............................15 7. Tissue Simulating Liquids .......................................................................... .......................16 8. Measurement Process ......................................................................................................20 9. Measurement Uncertainty ................................................................................................ 26 10. SAR Test Results Summary .......................................................................... ..................28 11. Conclusion ...................................................................................................................32 12. References .......................................................................... ........................................32 Appendix A - System Performance Check ................................................................................ 33 Appendix B - SAR Measurement Data ....................................................................................35 Appendix C - Calibration ......................................................................................................40 Test Report No： ©2010 A Test Lab Techno Corp. 1001FS18Page 2 of 63 1. Description of Equipment Under Test (EUT) Applicant ： VTech Telecommunications Ltd. Applicant Address ： 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong Manufacturer ： Dongguan VTech Satellite Equipment Co.Ltd Manufacturer Address ：VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China EUT Type ：1.9GHz DECT 6.0 Cordless Phone FCC ID ：EW780-7446-00 Trade Name ：AT&T Model Number ：TL32200 Battery Type ： Ni-MH Battery (2.4V，400mAh ) Test Device ：Production Unit Tx Frequency ：1921.536 -1928.448 MHz ( UPCS ) Max. RF Conducted Power：0.103W (20.14dBm ) UPCS Max. SAR Measurement ：0.01500 W/kg UPCS Head SAR 0.03300 W/kg UPCS Body SAR HW Version ： NA SW Version ： NA Antenna Type ： Fixed Type Antenna Gain ： 0dBi Device Category ：Portable RF Exposure Environment：General Population / Uncontrolled Battery Option ：Standard Application Type ：Certification This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment / general population exposure limits specified in Standard C95.1-2005 and had been tested in accordance with the measurement procedures specified in IEEE Std. 1528-2003. Test Report No： ©2010 A Test Lab Techno Corp. 1001FS18Page 3 of 63 2. Introduction The A Test Lab Techno Corp. has performed measurements of the maximum potential exposure to the user of VTech Telecommunications Ltd. Trade Name：AT&T Model(s)：TL32200. The test procedures, as described in American National Standards, Institute C95.1 - 2005［1］, FCC/OET Bulletin 65 Supplement C [July 2001] were employed and they specify the maximum exposure limit of 1.6mW/g as averaged over any 1 gram of tissue for portable devices being used within 20cm between user and EUT in the uncontrolled environment. A description of the product and operating configuration, detailed summary of the test results, methodology and procedures used in the equipment used are included within this test report. 3. SAR Definition Specific Absorption Rate (SAR) is defined as the time derivative (rate) of the incremental energy (dw) absorbed by (dissipated in) an incremental mass (dm) contained in a volume element (dv) of a given density ( ρ ). It is also defined as the rate of RF energy absorption per unit mass at a point in an absorbing body. SAR Mathematical Equation SAR = ⎟ ⎠ ⎞ ⎜ ⎝ ⎛ dm dw dt d = ⎟ ⎟ ⎠ ⎞ ⎜ ⎜ ⎝ ⎛ dv dw dt d ρ SAR is expressed in units of Watts per kilogram (W/kg) SAR = ρ E 2 σ Where： σ = conductivity of the tissue (S/m) ρ = mass density of…

Text truncated - open the document above for the full version.

SAR Test Setup Photographs EUT Setup up Photo EUT Back side EUT Front side EUT Top side ©2010 A Test Lab Techno Corp. 1001FS18 SAR Test Setup PhotographsPage 1 of 4 Right Head Setup Figure 2. Right Head SAR Test Setup (Cheek) Figure 3. Right Head SAR Test Setup (Tilted) ` Right Head SAR EUT Top side EUT Back side EUT Front side ©2010 A Test Lab Techno Corp. 1001FS18 SAR Test Setup PhotographsPage 2 of 4 Left Head Setup Figure 4. Left Head SAR Test Setup (Cheek) Figure 5. Left Head SAR Test Setup (Tilted) Left Head SAR EUT Top side EUT Back side EUT Front side ©2010 A Test Lab Techno Corp. 1001FS18 SAR Test Setup PhotographsPage 3 of 4 ©2010 A Test Lab Techno Corp. 1001FS18 SAR Test Setup PhotographsPage 4 of 4 Body Setup (2 mm separation to phantom) Figure 6. Body SAR Test Setup (Flat Section) EUT Front side

SAR EUT Photographs EUT Photo _ 1 of 12 EUT Photo _ 2 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 1 of 6 EUT Photo _ 3 of 12 EUT Photo _ 4 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 2 of 6 EUT Photo _ 5 of 12 EUT Photo _ 6 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 3 of 6 EUT Photo _ 7 of 12 EUT Photo _ 8 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 4 of 6 EUT Photo _ 9 of 12 EUT Photo _ 10 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 5 of 6 EUT Photo _ 11 of 12 EUT Photo _ 12 of 12 ©2010 A Test Lab Techno Corp. 1001FS18 SAR EUT PhotographsPage 6 of 6

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7446-00 26bw - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7446-00 26bw - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7446-00 26bw - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

Report no.: HK10010408-1 Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2010 21:25:18 Report no.: HK10010408-1 Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 496.5 kHz 35.62 L1 gnd -20.43 1 Quasi Peak 577.5 kHz 34.73 L1 gnd -21.26 1 Quasi Peak 834 kHz 32.19 L1 gnd -23.80 1 Quasi Peak 1.239 MHz 30.48 L1 gnd -25.51 1 Quasi Peak 2.004 MHz 29.69 L1 gnd -26.30 1 Quasi Peak 2.4495 MHz 28.68 L1 gnd -27.31 1 Quasi Peak 3.183 MHz 28.71 L1 gnd -27.28 1 Quasi Peak 4.578 MHz 28.62 N gnd -27.37 Date: 20.JAN.2010 21:24:55 Report no.: HK10010408-1 Answer Machine Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2010 21:38:33 Report no.: HK10010408-1 Answer Machine Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 492 kHz 38.68 L1 gnd -17.45 1 Quasi Peak 573 kHz 37.75 L1 gnd -18.24 1 Quasi Peak 811.5 kHz 35.51 L1 gnd -20.48 1 Quasi Peak 1.3965 MHz 28.60 L1 gnd -27.40 1 Quasi Peak 1.7385 MHz 30.88 L1 gnd -25.11 1 Quasi Peak 2.472 MHz 31.70 L1 gnd -24.30 1 Quasi Peak 3.0345 MHz 30.04 L1 gnd -25.95 1 Quasi Peak 4.2045 MHz 29.98 N gnd -26.01 Date: 20.JAN.2010 21:38:25 Report no.: HK10010408-1 Ringing Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2010 21:29:28 Report no.: HK10010408-1 Ringing Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 496.5 kHz 37.12 L1 gnd -18.93 1 Quasi Peak 586.5 kHz 34.83 L1 gnd -21.17 1 Quasi Peak 946.5 kHz 29.12 N gnd -26.87 1 Quasi Peak 1.284 MHz 32.18 N gnd -23.81 1 Quasi Peak 2.103 MHz 31.17 N gnd -24.82 1 Quasi Peak 2.3685 MHz 31.26 N gnd -24.73 1 Quasi Peak 3.696 MHz 30.52 L1 gnd -25.47 1 Quasi Peak 4.1145 MHz 29.55 L1 gnd -26.44 Date: 20.JAN.2010 21:29:20 Report no.: HK10010408-1 Charging Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2010 21:33:39 Report no.: HK10010408-1 Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 505.5 kHz 38.34 L1 gnd -17.65 1 Quasi Peak 573 kHz 37.29 L1 gnd -18.70 1 Quasi Peak 807 kHz 33.38 L1 gnd -22.61 1 Quasi Peak 1.266 MHz 33.45 L1 gnd -22.54 1 Quasi Peak 1.698 MHz 33.07 L1 gnd -22.92 1 Quasi Peak 2.814 MHz 30.82 L1 gnd -25.17 1 Quasi Peak 3.138 MHz 29.72 L1 gnd -26.27 1 Quasi Peak 4.5285 MHz 28.51 N gnd -27.48 Date: 20.JAN.2010 21:33:31

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7446-00 inband - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7446-00 inband - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7446-00 inband - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: EW780-7446-00 IC: 1135B-80744600 peaktp - 1 of 5 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: EW780-7446-00 IC: 1135B-80744600 peaktp - 2 of 5 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: EW780-7446-00 IC: 1135B-80744600 peaktp - 3 of 5 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: EW780-7446-00 IC: 1135B-80744600 peaktp - 4 of 5 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier A0 INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC: EW780-7446-00 IC: 1135B-80744600 peaktp - 5 of 5 Handset unit, Highest channel, Traffic carrier A0

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7446-00 psd - 1 of 3 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier A0 INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7446-00 psd - 2 of 3 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier A0 INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7446-00 psd - 3 of 3 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier A0

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-7446-00 Model: TL32XY0, TL30100 IC: 1135B-80744600 Model: TL32200, TL32100, TL32300, TL30100 Test Report Number: HK10010408-1 Issue Date: February 08, 2010 KS/ sl INTERTEK TESTING SERVICES Test Report Number: HK10010408-1 Page 1 of 66 FCC ID: EW780-7446-00 IC: 1135B-80744600 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: TL32XY0, TL30100 FCC ID: EW780-7446-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-08 Edition] Provision. Report prepared by: Sit Kim Wai, Ken Intertek Testing Services Hong Kon…
