AudioCodes CPE & Access Gateway Products MP252 Multimedia Home Gateway User's Manual MP252BW and MP252WDNB MediaPack™ 252 Multimedia Home Gateway Series Version 3.4.0 Document #: LTRT-23504 Version 3.4.0 3 June 2011 MP252 Multimedia Home Gateway Contents Contents 1 Introduction .......................................................................................................23 2 Package Contents and Prerequisites ..............................................................25 3 Hardware Description .......................................................................................27 3.1 Physical Description .............................................................................................27 3.1.1 Front Panel ..............................................................................................................27 3.1.1.1 Front-Panel Buttons Description ..............................................................28 3.1.1.2 Front-Panel LEDs Description..................................................................29 3.1.2 Rear Panel ...............................................................................................................30 3.1.2.1 Rear-Panel Port Description.....................................................................31 3.1.2.2 Rear-Panel LEDs Description ..................................................................32 3.2 Cabling .................................................................................................................33 3.3 Mounting ..............................................................................................................34 Part I ........................................................................................................................ 37 4 Getting Started with the Web Interface ...........................................................39 4.1 Logging in to the Web Interface ............................................................................39 4.2 Menu Bar Description ...........................................................................................40 4.3 Managing Tables ..................................................................................................43 4.4 Configuring Users.................................................................................................44 4.5 Defining Associated Elements ..............................................................................47 4.5.1 Defining Scheduler Rules ........................................................................................47 4.5.2 Defining Network Objects ........................................................................................50 4.5.3 Defining Protocols....................................................................................................51 4.6 Logging out the Web Interface..............................................................................53 5 Viewing a Graphical Display of the MP252 Network ......................................55 6 Configuring Computers for Connecting to the MP252 Network....................59 6.1 Wired Computers .................................................................................................59 6.1.1 Configuring Computers Running on Windows XP...................................................59 6.1.2 Configuring Computers Running on Linux...............................................................60 6.2 Connecting PC to MP252 Wireless Networks .......................................................61 7 Connecting MP252 to the Internet ...................................................................63 7.1 Quickly Setting up an Internet Connection in the Web Interface ...........................63 7.1.1 WAN Ethernet ..........................................................................................................64 7.1.1.1 Manual IP Address Ethernet Connection .................................................65 7.1.1.2 Automatic IP Address Ethernet Connection.............................................65 7.1.1.3 PPPoE ......................................................................................................66 7.1.1.4 PPTP ........................................................................................................66 7.1.1.5 L2TP .........................................................................................................67 7.1.2 WAN DSL ................................................................................................................68 7.1.2.1 PPPoE ......................................................................................................68 7.1.2.2 PPPoA ......................................................................................................69 7.1.2.3 Routed ETHoA .........................................................................................69 7.1.2.4 Bridged ETHoA ........................................................................................70 7.1.2.5 CLIP..........................................................................................................70 7.2 Using the Automatic Dialer for Internet Connection ..............................................72 7.2.1 Recommended Configuration ..................................................................................72 7.2.2 Setting up and Starting the Automatic Dialer...........................................................74 MP252 Multimedia Home Gateway 4 Document #: LTRT-23504 User's Manual 7.2.3 Quitting Automatic Dialer for Manual Configuration ................................................75 8 Configuring VoIP Parameters ..........................................................................77 8.1 Configuring the SIP Signaling Protocol .................................................................78 8.1.1 Configuring Proxy Redundancy .............................................................…

Text truncated - open the document above for the full version.

MP252 Multimedia Home Gateway 13. Remote MP252 Management Version 3.4.0 201 June 2011 Figure 13-5: Create Self Signed X509 Certificate Screen c. Enter the fields as required, and then click Generate; a message appears notifying you that MP252 is generating the certificate. d. After a few moments, click Refresh; the 'New Self Signed X509 Certificate' screen appears. Figure 13-6: New Self Signed X509 Certificate Screen e. Click OK; the new certificate appears listed in the 'Certificates' screen. Figure 13-7: Newly Created Self-Signed Certificate MP252 Multimedia Home Gateway 202 Document #: LTRT-23504 User's Manual f. In the 'Certificates' screen, click the Download icon corresponding to the new self-signed certificate that you created; the 'File Download' window appears. Figure 13-8: File Download Window g. Click Save, and then browse to the folder to where you want to save the file; the file is saved as a *.crt file. 3. Configure the Apache server, by configuring the SSLCACertificateFile parameter to point to the location where the certificate file is located. Since this is a self-signed certificate, you are also considered the CA. 4. Load the self-signed certificate to MP252: a. In the 'Certificates' screen, click the Upload Certificate link; the ‘Load MP252’s Local Certificate’ screen appears. Figure 13-9: Load MP252’s Local Certificate b. Click Browse, locate the certification file that you created, and then click Upload to load the file. 5. Load the CA’s certificate to MP252: a. Select the CA’s tab; the ‘CA’s’ screen appears. Figure 13-10: CA's Certificates Page MP252 Multimedia Home Gateway 13. Remote MP252 Management Version 3.4.0 203 June 2011 MP252 Multimedia Home Gateway 204 Document #: LTRT-23504 User's Manual b. Click the New icon; the ‘Load CA’s Certificate’ screen appears. Figure 13-11: Load CA's Certificate Page c. Click Browse, locate the CA certification file that you created, and then click Upload to load the file. 6. Configure the Apache server, using the following parameters: • SSLCACertificateFile: Set the path to the CA’s certificate. • SSLCertificateFile: Set the path to your signed certificate. • SSLCertificateKeyFile: Set the path to your private key. MP252 Multimedia Home Gateway 13. Remote MP252 Management Version 3.4.0 205 June 2011 13.4 Remote Configuration and Management Interfaces MP252 supports the following remote configuration and management interfaces:



Web server (GUI) over HTTP/HTTPS



TR-069 and TR-104



SNMP



Syslog



Firmware or configuration file download through HTTP/HTTPS and FTP/TFTP



CLI over Telnet/SSH The table below lists the possible operations over these different interfaces: Table 13-5: Operations per Configuration/Management Interface Operation Web GUI TR-069 SNMP Syslog File D/L CLI Configuration Update Yes Yes Yes No Yes Yes Firmware Upgrade Yes Yes Yes No Yes Yes Status Monitoring Yes Yes Yes No No Yes Debugging and Diagnostics Yes No No Yes No Yes Service providers can choose to combine several management interfaces, for example, automatic file download for configuration and firmware updates plus SNMP for alarms. 13.4.1 Embedded Web Server MP252 provides an embedded Web server with a rich Graphical User Interface (GUI). The Web server can be accessed from the local LAN interface (e.g. by the home user) or from the WAN interface (e.g. by the service provider support personnel). The Web GUI provides easy and intuitive configuration of all MP252 parameters (i.e., VoIP, network interfaces, security, QoS and advanced system settings). In addition, the Web GUI provides status monitoring pages, diagnostic pages and enabled firmware upgrade. Typically, service providers do not want to configure each MP252 manually and therefore, they do not use the Web server in live deployments. However, the Web server is still useful for:



Trying different configurations in the lab during the integration phases



Creating mass-configuration template files



Debugging special customer problems (by accessing the Web server from the WAN interface) Since the Web server allows all configuration and management operations, it is important to protect it. The following security measures are available:



The Web server is user and password protected. Several users can be defined. A special user with limited-access (only to the 'Quick Setup' screen) can be defined.



The access to the Web server can be blocked from the WAN and/or LAN interfaces.



Access to the Web server can be limited to specific IP addresses.



Secured HTTP (HTTPS) is supported. It is possible to enable HTTPS-only, if required. MP252 Multimedia Home Gateway 206 Document #: LTRT-23504 User's Manual



The HTTP and/or HTTPS port can be modified (from the default 80 and 8080). 13.4.2 TR-069 and TR-104 CPE WAN Management Protocol TR-069 is a WAN management protocol intended for communication between Customer Premise Equipment (CPE) or residential devices (such as MP252), and an Auto-Configuration Server (ACS), residing on the service provider's side. It defines a mechanism that encompasses secure auto configuration of CPE, and also incorporates other CPE management functions into a common framework. In simpler terms, TR-069 is a protocol that enables remote server management of theMP252. Such a protocol is useful, for example, for remotely and securely controlling MP252 by the CPE provider. The standard is published by the DSL Forum. TR-069 runs over SOAP/HTTP and enables device configuration, management (including firmware upgrade), and status monitoring. TR-104 is an extension of TR-069 for VoIP configuration and monitoring. The TR standards are published by the DSL forum:



TR-069: http://www.broadband-forum.org/technical/download/TR-069.pdf



TR-104: http://www.broadband-forum.org/technical/download/TR-104.pdf Figure 13-12: TR-069 CPE WAN Management Protocol The TR-069 protocol allows an ACS to provision a CPE or co…

Text truncated - open the document above for the full version.

Important Product Information for MP-252 Series Document #: LTRT-23003 T T h h a a n n k k - - y y o o u u f f o o r r C C h h o o o o s s i i n n g g A A u u d d i i o o C C o o d d e e s s This important product information includes Regulatory and Safety information. Before you start using this product, please read the Safety Instructions provided. These Instructions can also be downloaded from the AudioCodes Website at http://www.audiocodes.com/library. This document, the Installation Manual and User’s Manual (as well as software files and other documentation) can be downloaded from the AudioCodes Website at http://www.audiocodes.com/downloads. Check that all items as listed in the Installation Manual are supplied in the shipped package. If any items are missing or if you have any queries, contact your AudioCodes sales representative. If your product was purchased directly from AudioCodes, then contact [email protected]. If the product was purchased from AudioCodes’ Distributors, Partners, or Resellers, then use the contact details provided by these sellers. W W a a r r n n i i n n g g The device will be inoperable when the mains power fails and the battery backup is not connected. I I n n d d u u s s t t r r y y C C a a n n a a d d a a N N o o t t i i c c e e This equipment meets the applicable Industry Canada Terminal Equipment technical specifications. This is confirmed by the registration numbers. The abbreviation, IC, before the registration number signifies that registration was performed based on a declaration of conformity indicating that Industry Canada technical specifications were met. It does not imply that Industry Canada approved the equipment. F F o o r r C C u u s s t t o o m m e e r r s s i i n n C C a a n n a a d d a a This Class [B] digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter. The County Code Selection feature is disabled for products marketed in the US/Canada. I I C C R R a a d d i i a a t t i i o o n n E E x x p p o o s s u u r r e e S S t t a a t t e e m m e e n n t t This equipment complies with IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance of 20 cm between the radiator and your body. S S a a f f e e t t y y N N o o t t i i c c e e 1. To avoid risk of fire, use 26 AWG or higher wiring to connect the FXO, ADSL telecom ports. 2. Disconnect TNV circuit connector before removing cover. 3. Unit must be powered only by power limited Class 2 certified power adapter Ports Safety Status Ethernet (100Base-TX) SELV FXS TNV-2 FXO, ADSL TNV-3 AudioCodes Inc. 27 World's Fair Drive, Somerset, NJ 08873 Tel: +1-732-469-0880 Fax: +1-732-496-2298 International Headquarters 1 Hayarden Street, Airport City, Lod 70151 P.O. Box 255, Ben Gurion Airport, Israel, 70100 Tel: +972-3-976-4000 Fax: +972-3-976-4040 Contact www.audiocodes.com/info Website: www.audiocodes.com F F C C C C P P a a r r t t 1 1 5 5 This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Changes or modifications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone. To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20cm (8 inches) or more. This Class B digital apparatus complies with Canadian ICES-003. F F C C C C P P a a r r t t 6 6 8 8 a a n n d d A A C C T T A A This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identifier in the format US:EW7DL01B80-759700. This identifier must be provided to your telephone s…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification September 6, 2011 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd September 6, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7597-01 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

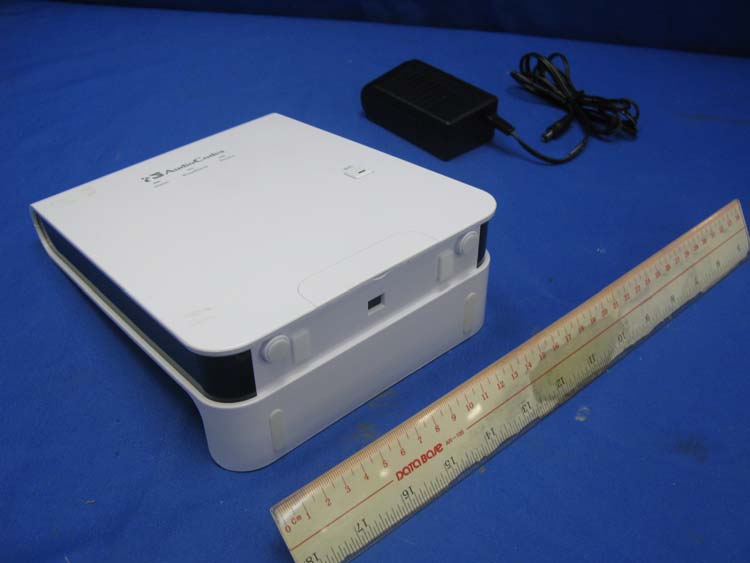

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7597-01 IC: 1135B-80759701 external photos - 1 of 2 HK11081521 Job Number HK11081521 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7597-01 IC: 1135B-80759701 external photos - 2 of 2

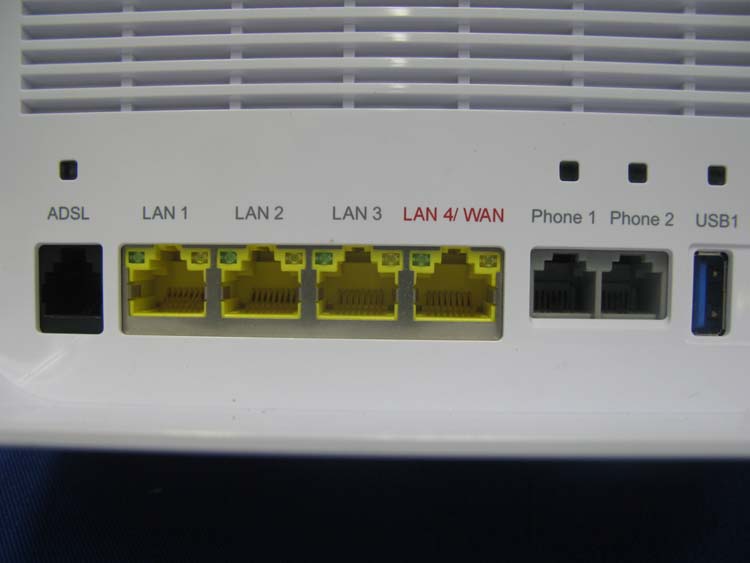

MADE IN CHINA M.DATE: MMYY CPN:MP252BW/Full/TDPModel: MP252BW P/N:GGWV00473 SN:VTXXXXXXX MAC WAN:00908FXXXXXX 78mm 139mm Unit Label REV.:P01 Battery Backup Power USB1Phone 1Phone 2LAN 4/ WAN LAN 3LAN 2LAN 1 ADSL Reset Lote de FabricaF. de instalacionF. de fabricacion XXX DD/MM/YYYY ESSID: WLAN_E810 Password: A00908F2CE810 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: EW780-7597-01 IC: 1135B-80759701 DC12V 2A COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US:EW7DL01B80-759700 RINGER EQUIVALENCE: 0.1B MANUFACTURED IN CHINA MADE IN CHINA M.DATE: MMYY CPN:MP252BW/Full/TDPModel: MP252BW P/N:GGWV00473 SN:VTXXXXXXX MAC WAN:00908FXXXXXX REV.:P01 Lote de FabricaF. de instalacionF. de fabricacion XXX DD/MM/YYYY ESSID: WLAN_E810 Password: A00908F2CE810 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. FCC ID: EW780-7597-01 IC: 1135B-80759701 DC12V 2A COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US:EW7DL01B80-759700 RINGER EQUIVALENCE: 0.1B MANUFACTURED IN CHINA 80-7597-22-00_MP252BW Movistar
