EW780-7719-001.9GHz Cordless Phone

User’s manual Models: CS6114/CS6114-2 www.vtechphones.com Congratulations on purchasing your new VTech product. Before using this telephone, please read the Important safety instructions on page 39 of this manual. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech telephone. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. In Canada, please visit www.vtechcanada.com. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy GHsEKGPE[IWKFGNKPGU T Compatible with Hearing Aid T-Coil TIA-1083 6GNGRJQPGUKFGPVKsGFYKVJVJKUNQIQJCXGTGFWEGFPQKUGCPF interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. i Table of contents ii Getting started ...............1 Parts checklist ................1 Telephone base installation......2 Wall mounting .................3 Battery installation .............4 Battery charging ...............5 Handset layout ................6 Telephone base layout..........8 Telephone settings ...........9 Ringer volume ................9 Ringer tone ...................9 LCD language ...............10 Clear voicemail...............10 Key tone ....................11 Set date and time.............11 CID time synchronization.......12 Home area code ..............12 Dial mode...................13 Website.....................13 Telephone operation .........14 Make a call ..................14 Predial a call.................14 Answer a call ................14 End a call ..................14 Volume.....................14 Share an outside call ..........14 Call waiting..................14 Temporary ringer silencing......15 Temporary tone dialing.........15 Find handset.................15 Chain dialing .................16 Redial list ...................17 Review the redial list ..........17 Dial a redial entry.............17 Delete a redial entry...........17 Directory....................18 Add a directory entry ..........19 Character chart ..............20 Review the directory...........21 Alphabetical search ...........21 Dial a directory entry ..........21 Edit a directory entry ..........22 Delete a directory entry ........22 Speed dial ..................23 Add a speed dial entry .........23 Dial a speed dial number .......24 Delete a speed dial entry.......24 About caller ID ...............25 Call log .....................26 Missed calls indicator .........26 Memory match...............27 Review the call log ............27 View dialing options...........28 Dial a call log number..........28 Save a call log entry to the directory ...............29 Delete from the call log ........29 Call log display screen messages 30 Appendix...................31 Screen display messages ......31 Handset and telephone base indicators .................32 Handset screen icons .........32 Battery .....................33 Troubleshooting ..............34 Important safety instructions ....39 Precautions for users of implanted cardiac pacemakers .........40 Operating range..............40 Maintenance.................40 About cordless telephones ......41 The RBRC ® seal..............41 Warranty....................42 FCC, ACTA and IC regulations . . 44 6GEJPKECNURGEKsECVKQPU........46 Index ......................47 1 Parts checklist Your telephone contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. To purchase a replacement battery or power adapter, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or dial 1 (800) 267-7377. Getting started User’s manual Handset Telephone base Telephone base power adapter Telephone line cord BatteryBattery compartment cover 2 Getting started Telephone base installation Install the telephone base as shown below. Make sure that the electrical outlet is not controlled by a wall switch. If you subscribe to digital subscriber line (DSL) high-speed Internet service through your telephone line, you must install a &5.sNVGTDGVYGGPVJG VGNGRJQPGNKPGEQTFCPFVGNGRJQPGYCNNLCEM6JGsNVGTRTGXGPVUPQKUGCPFECNNGT ID problems caused by DSL interference. Contact your DSL service provider HQTOQTGKPHQTOCVKQPCDQWV&5.sNVGTU Use only the power adapter supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or dial 1 (800) 267-7377. 6JGRQYGTCFCRVGTKUKPVGPFGFVQDGEQTTGEVN[QTKGPVGFKPCXGTVKECNQTƀQQT mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. • • Getting started Telephone base Telephone line cord Electrical outlet (not controlled by a wall switch) Telephone wall jack &5.sNVGT PQVKPENWFGF  required if you have DSL high-speed Internet service Telephone base power adapter 3 Getting started Wall mounting Your telephone comes ready for tabletop use. If you prefer to mount your telephone on the wall (optional), it is designed to mount on a standard telephone wall plate. You can mount the telephone base on the wall by positioning it so the mounting UVWFUsVKPVQVJGEQTTGURQPFKPIJQNGUCVVJGDCEMQHVJGVGNGRJQPGDCUG5NKFG the telephone base down on the mounting studs until it locks into place. Mounting studs Telephone base 4 Getting started Battery installation Install the battery as shown below. If the battery compartment cover is on the handset, press on the indentation and slide the cover down to…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification Feb. 23, 2011 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 04 June, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7719-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 04 June, 2011 To whom it may concern, Label Location Justification FCC ID: EW780-7719-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

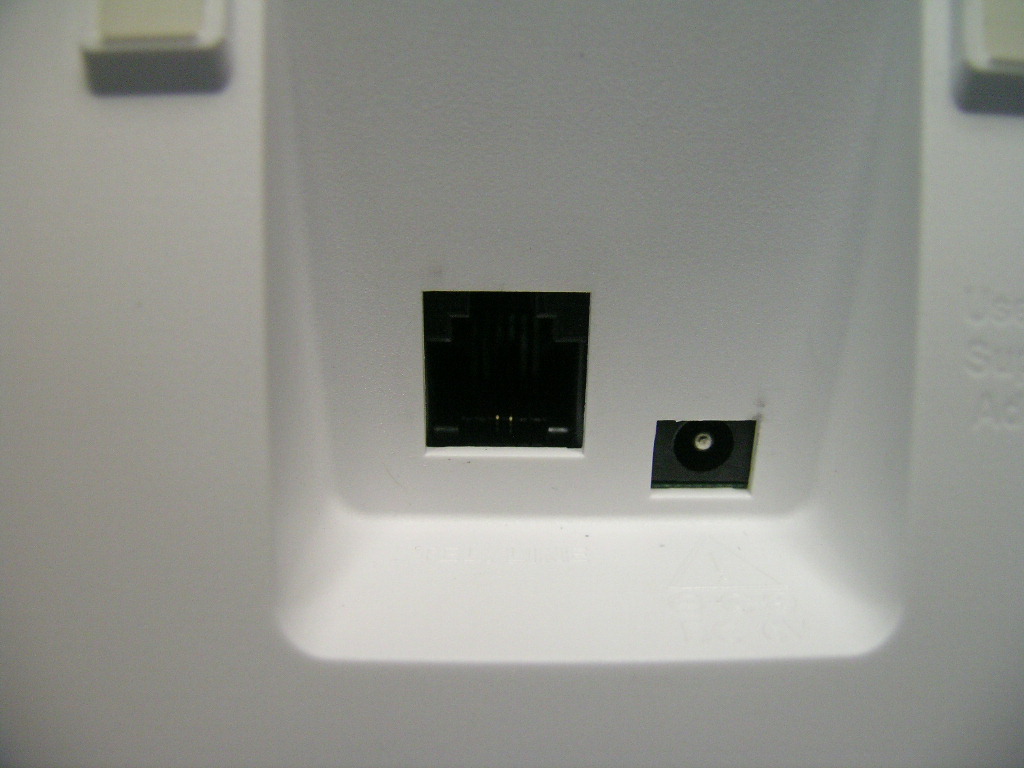

INTERTEK TESTING SERVICES External Photos – Model: CS6114-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 external photos - 1 of 4 HK11061133 Job Number HK11061133 Job Number INTERTEK TESTING SERVICES External Photos – Model: CS6114-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 external photos - 2 of 4 INTERTEK TESTING SERVICES External Photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 external photos - 3 of 4 HK11061133 Job Number HK11061133 Job Number INTERTEK TESTING SERVICES External Photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 external photos - 4 of 4

CS61X4-X CR Engraving draft CAUTION Use Only Supplied Battery or Battery BT266342 Model: CS6114SN:XXXXXXXXXXXX Model: CS6114 SN:XXXXXXXXXXXX Model: CS6114-2 SN:XXXXXXXXXXXX Model: CS6124 SN:XXXXXXXXXXXX Model: CS6124-2 SN:XXXXXXXXXXXX Model: CS6114-11 SN:XXXXXXXXXXXX Model: CS6114-21 SN:XXXXXXXXXXXX Model: CS6124-11 SN:XXXXXXXXXXXX Model: CS6124-21 SN:XXXXXXXXXXXX IC:1135B-80771800 FCC ID:EW780-7719-00 SN Label 20X10mm Polarity label THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATION IS SUBJECT TO THE FOLLOWINGTWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AN D 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDINGINTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION. PRIVACY OF COMMUNICATIONS MAY NOTBE ENSURED WHEN USING THIS PHONE . Model: CS6114 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-11 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-21 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-11 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-21 S/N: XXXXXXXXXXXXXXXXXXXX SN Label 28X10mm SN Label 28X10mm AC6V AC6V TEL. LINE Use Only Supplied Adapter Use Only Supplied Adapter TEL. LINE Use Only Supplied Adapter 28.5mm 10.5mm CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 6V 400m A 18mm 30mm 18mm 15mm 30mm 50mm VTech Customer Service 1-800-595-9511www.vtechphones.com VTECH TELECOMMUNICATIONS LTD.MANUFACTURED IN CHIN A FCC ID : EW780-7719-00 HAC COMPLIES WITH 47 CFR PART 68REGISTRTION NO. : US:EW7W401B80-771800 RINGER EQUIVALENCE:0.1B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AN D 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSUREDWHEN USING THIS PHONE . IC:1135B-80771800 15mm 15mm 42mm 42mm 28.5mm 10.5mm CORDLESS TELEPHONE AC 6V 300 mA VTech Customer Service 1-800-595-9511 www.vtechphones.com Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300 mA VTech Customer Service 1-800-595-9511 www.vtechphones.com Accessory 10.5mm 34.2mm AC6V 15mm 18mm 20.5mm 10.5mm 3.5mm 20.5mm COEDLESS TELEPHONEMANUFACTURED IN CHINA AC 6V 300mA HACREGISTRTION NO.:US: EW7W401B80-771800FCC ID:EW780-7719-00IC: 1135B-80771800 RINGER EQUIVALENCE:0.1BUSOC JACK: RJ11C/RJ11WCOMPLIES WITH 47 CFR PART 68 DC6V

INTERTEK TESTING SERVICES Internal photos – Model: CS6114-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6114-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 2 of 10 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: CS6114-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 3 of 10 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 4 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 5 of 10 Base Unit Main PCB solder side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 6 of 10 Base Unit DAM rear side (View 1) Base Unit DAM rear side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 7 of 10 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 8 of 10 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 9 of 10 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: CS6124-2 FCC ID: EW780-7719-00 IC: 1135B-80771800 internal photos - 10 of 10 Handset Oscillator PCB comp side

©2011 A Test Lab Techno Corp. Report Number: 1107FS12Page 1 of 67 A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1107FS12 Applicant ： VTech Telecommunications Ltd. EUT Type ： 1.9GHz DECT 6.0 Cordless Phone FCC ID ： EW780-7719-00 Trade Name ： VTech Model Number ： CS6114 Dates of Test ： Jul. 02 ~ Jul. 04, 2011 Date of Issued ： Jul. 06, 2011 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.019 W/kg UPCS Head SAR 0.049 W/kg UPCS Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Sam Chuang ) (Alex Wu) Contents 1. Description of Equipment under Test (EUT) ....................................................................................... 3 2. Introduction ......................................................................................................................................... 4 3. SAR Definition..................................................................................................................................... 5 4. SAR Measurement Setup ................................................................................................................... 6 5. System Components........................................................................................................................... 8 5.1 DASY4 E-Field Probe System ..................................................................................................8 5.2 Data Acquisition Electronic (DAE) System...............................................................................11 5.3 Robot........................................................................................................................................11 5.4 Measurement Server................................................................................................................11 5.5 Device Holder for Transmitters ............................................................................................... 12 5.6 Phantom - SAM v4.0 ............................................................................................................... 12 5.7 Data Storage and Evaluation .................................................................................................. 13 6. Test Equipment List........................................................................................................................... 16 7. Tissue Simulating Liquids ................................................................................................................. 17 7.1 Ingredients.............................................................................................................................. 18 7.2 Recipes................................................................................................................................... 18 7.3 Liquid Confirmation................................................................................................................. 19 8. Measurement Process ...................................................................................................................... 20 8.1 Device and Test Conditions..................................................................................................... 20 8.2 System Performance Check................................................................................................... 21 8.3 Dosimetric Assessment Setup................................................................................................ 24 8.4 Spatial Peak SAR Evaluation.................................................................................................. 26 9. Measurement Uncertainty................................................................................................................. 27 10. SAR Test Results Summary.............................................................................................................. 30 10.1 Head SAR...............................................................................................................................30 10.2 Body SAR................................................................................................................................31 10.3 S td. C95.1-1992 RF Exposure Limit....................................................................................... 32 11. Conclusi on ........................................................................................................................................ 33 12. References........................................................................................................................................ 33 Appendix A - System Performance Check ......................................................................................... 34 Appendix B - SAR Measurement Data ............................................................................................... 3 6 Appendix C - Calibration ................................................................…

Text truncated - open the document above for the full version.

SAR EUT Photographs EUT Photo ( 1 ) EUT Photo ( 2 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS12Page 1 of 4 EUT Photo ( 3 ) EUT Photo ( 4 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS12Page 2 of 4 EUT Photo ( 5 ) EUT Photo ( 6 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS12Page 3 of 4 EUT Photo ( 7 ) EUT Photo ( 8 ) ©2011 A Test Lab Techno Corp. Report Number: 1107FS12Page 4 of 4

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Reassessment Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-7719-00 Model: CS6114, CS6114-2, CS6114-11, CS6114-21, CS611Z-XY, CS6120-2, CS6124, CS6124-2, CS6124-11, CS6124-21, CS612Z-XY IC: 1135B-80771800 Model: CS6114, CS6114-2, CS6114-11, CS6114-21, CS6124, CS6124-2, CS6124-11, CS6124-21 Test Report Number: HK11061133-1 Issue Date: July 14, 2011 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK11061133-1 Page 1 of 66 FCC ID: EW780-7719-00 IC: 1135B-80771800 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 8 2.3 Purpose of Change ................................................................................................. 9 2.4 Test Methodology.................................................................................................... 9 2.5 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration.................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Peripherals....................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 17 4.5 Peak Transmit Power ............................................................................................ 18 4.6 Power Spectral Density ......................................................................................... 19 4.7 Automatic Discontinuation of Transmission............................................................ 20 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 21 4.9 Emissions Outside the Sub-Band .......................................................................... 22 4.9.1 Radiated Emissions Configuration Photographs ................................................. 23 4.9.2 Radiated Emissions Data ................................................................................... 23 4.9.3 Field Strength Calculation................................................................................... 33 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 34 4.10 Radiated Emissions from Receiver ...................................................................... 34 4.10.1 Radiated Emission Configuration Photographs ................................................. 35 4.10.2 Radiated Emissions Data ................................................................................. 35 4.11 AC Power Line Conducted Emissions ................................................................. 39 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 40 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 40 4.12 Radio Frequency Radiation Exposure.................................................................. 41 4.13 Radio Frequency Exposure Compliance.............................................................. 41 4.14 Fra…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7719-00 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7719-00 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK11061133-1 CS6114-2 Base Charging Mode AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 22.JUN.2011 18:33:14 Report no.: HK11061133-1 CS6114-2 Base Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 4.623 MHz 12.23 L1 -43.77 1 Quasi Peak 5.8695 MHz 10.06 N -49.93 1 Quasi Peak 13.704 MHz 21.41 N -38.58 Date: 22.JUN.2011 18:33:07 Report no.: HK11061133-1 CS6124-2 Adaptor: Ten Pao Answer Machine AC Mains Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 22.JUN.2011 18:58:29 Report no.: HK11061133-1 CS6124-2 Adaptor: Ten Pao Answer Machine AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 550.5 kHz 33.68 N -22.31 1 Quasi Peak 721.5 kHz 33.13 N -22.86 1 Quasi Peak 1.077 MHz 33.56 N -22.44 1 Quasi Peak 1.4685 MHz 31.47 N -24.52 1 Quasi Peak 1.9185 MHz 32.09 L1 -23.90 1 Quasi Peak 2.7555 MHz 29.57 L1 -26.42 1 Quasi Peak 3.6555 MHz 31.66 L1 -24.33 1 Quasi Peak 4.1325 MHz 30.80 N -25.19 1 Quasi Peak 6.0945 MHz 35.08 N -24.91 Date: 22.JUN.2011 18:58:21

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7719-00 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7719-00 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7719-00 IC: 1135B-80771800 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7719-00 IC: 1135B-80771800 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Handset unit, Lowest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7719-00 IC: 1135B-80771800 peaktp - 3 of 3 A0 Handset unit, Middle channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

VTech Telecommunications Ltd Date: 04 Jun, 201 1 To whom it may concern, Declarations FCC ID: EW780-7719-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the …
