Getting started  User’s manual CL82101/CL82201/CL82301/ CL82401/CL82501/CL82601/ DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information on pages 8-9 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Model #: CL820 (one handset) CL8220 (two handsets) CL8230 (three handsets) CL8240 (four handsets) CL8250 (five handsets) CL8260 (six handsets) Type: DECT 6.0 cordless telephone/answering system with caller ID/call waiting Serial #: Purchase date: Place of purchase: Both the model and serial number of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. © 200 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 7829. Printed in China. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to supply this product with an ENERGY STAR® qualified power adapter meeting the latest energy efficiency guidelines. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Battery for cordless handset (One for CL820) (Two for CL8220) (Three for CL8230) (Four for CL8240) (Five for CL8250) (Six for CL8260) Cordless handset (One for CL820) (Two for CL82202) (Three for CL8230) (Four for CL8240) (Five for CL8250) (Six for CL8260) Charger for cordless handset with power adapter installed (One for CL8220) (Two for CL8230) (Three for CL8240) (Four for CL8250) (Five for CL8260) Battery compartment cover (One for CL820) (Two for CL8220) (Three for CL8230) (Four for CL8240) (Five for CL8250) (Six for CL8260) User’s manualQuick start guideTelephone base Telephone line cord Power adapter for telephone base Wall mount bracket User’s manual CL82101/CL82201/CL82301/ CL82401/CL82501/CL82601/ DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Quick start guide_ CL82101/CL82201/CL82301/ CL82401/CL82501/CL82601/ DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Getting started  CHARGE indicator On when the handset is charging in the telephone base or charger. qCID/VOLUME Press qCID to show caller ID history. Press to scroll down while in menus. While entering names or numbers, press to move the cursor to the left. Press to decrease the listening volume when on a call. PHONE/FLASH Press to make or answer a call. During a call, press to answer an incoming call when you receive a call waiting alert. 1 While reviewing a call log entry, press repeatedly to add or remove  in front of the telephone number before dialing or saving it in the directory. MENU/SELECT Press to show the menu. While in the menu, press to select an item or save an entry or setting. pDIR/VOLUME Press pDIR to show directory entries. Press to scroll up while in menus. While entering names or numbers, press to move the cursor to the right. Press to increase the listening volume when on a call. OFF/CANCEL During a call, press to hang up. While in a menu, press to cancel an operation, back up to the previous menu, or exit the menu display. Press and hold while the telephone is not in use to erase the missed calls indicator. # Press repeatedly to display other dialing options when reviewing a call log entry. REDIAL/PAUSE Press repeatedly to view the last 20 numbers dialed. While entering numbers, press and hold to insert a dialing pause. EQ During an outside call, intercom call, message or announcement playback, press to change the audio quality to best suit your hearing. MUTE/DELETE During a call, press to mute the microphone. While reviewing the caller ID history, the directory or the redial memory, press to delete an individual entry. While predialing, press to delete digits. /SPEA�ERSPEA�ER Press to switch between speakerphone and handset. Quick reference guide - handset TONE Press to switch to tone dialing temporarily during a call if you have pulse service. Getting started 2 Quick reference guide - handset Main menu The > symbol highlights a menu item. >Play messages Answering sys Main menu Play messages Answering sys Directory Caller ID log Intercom Ringers Set date/time Settings Website Using menus Press MENU/SELECT to show the first menu item, Play messages. Press qCID or pDIR to scroll through menu items. Press MENU/SELECT to confirm or save changes to a highlighted menu item. Press OFF/CANCEL to cancel an operation, back up to the previous menu, or exit the menu display. PUSH TO TAL� Press and release, then press pDIR or qCID to select an extension. Press and hold to broadcast a message to that extension or to the base (page 38). Press and hold to broadcast to all extensions. p q Getting started 3 Quick reference guide - telephone base IN USE indicator On when the handset is in use, or when the answering system is answering an incoming call. On when a handset is being registered. Flashes when there is an incoming call or when a handset is being deregistered. Flashes when another telephone is in use on the same line. /REPEAT Press to repe…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd 20 August, 2010 To whom it may concern, Declarations FCC ID: EW780-7753-00 IC:1135B-80775300 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off device NA NA 2 Remove power from device A C 3 On Hook on device side NA C 4 Switch-off companion device NA NA 5 Remove power from companion device B A 6 On Hook by companion device B NA A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd 20 August 2010 To whom it may concern, Label Location Justification FCC ID: EW780-7753-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 20 August, 2010 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 20 August, 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7753-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics[Filename:EW780-7753-00_circuit.pdf] • Detailed Block diagrams[Filename:EW780-7753-00_block.pdf] • Detailed Operational/Functional Description[Filename:EW780-7753-00_descri.pdf] The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

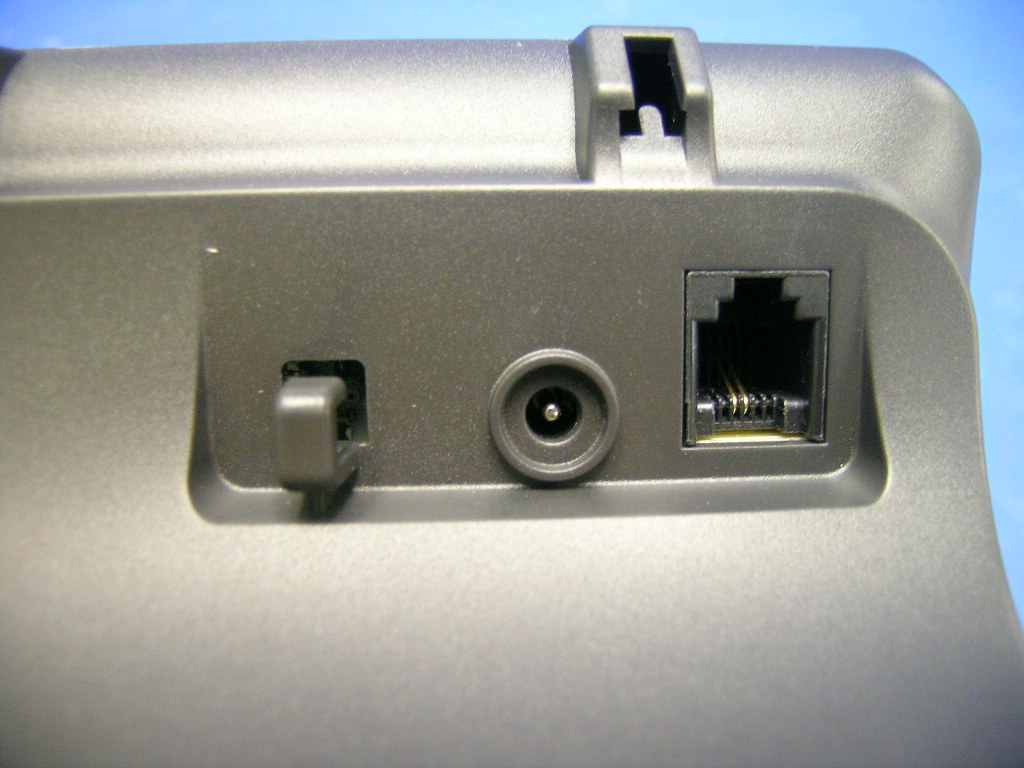

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7753-00 IC: 1135B-80775300 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7753-00 IC: 1135B-80775300 external photos - 2 of 2

Advanced American Telephones THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.FCC ID: EW780-7753-00COMPLIES WITH 47 CFR PART 68REGISTRATION NO.: US: EW7W401B80-775300RINGER EQUIVALENCE: 0.1BUSOC JACK: RJ11C/WDC 6V 400mA HACMANUFACTURED IN CHINA Model #: CL82x01 FCC ID: EW780-7753-00 FCC ID: EW780-7753-00 Serial No. Label(size: 28x10mm) Model #:CL82101(1Ci BS + 1HS) CL82201(1Ci BS + 2HS + 1 CHG)CL82301(1Ci BS + 3HS + 2 CHG)CL82401(1Ci BS + 4HS + 3 CHG)CL82501(1Ci BS + 5HS + 4 CHG)CL82601(1Ci BS + 6HS + 5 CHG) Text:Recessed 0.3mm High Gloss Text:Raised 0.3mm HS forCL80101CL81101CL81201CL81301CL82101CL82201CL82301CL82401CL82501CL82601 Model #: CL82x01 Serial No. Label 20*8 MM IC: 1135B-80775300 IC: 1135B-80775300 IC: 1135B-80775300

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 1 of 9 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 2 of 9 Base Unit Main PCB solder side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 3 of 9 Base Unit DAM solder side Base Unit Volume Control Switch front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 4 of 9 Base Unit Volume Control Switch solder side Base Unit Page Key Pad front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 5 of 9 Base Unit Page Key Pad solder side Base Unit Telephone Line Port and Power front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 6 of 9 Base Unit Telephone Line Port and Power solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 7 of 9 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 8 of 9 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7753-00 IC: 1135B-80775300 internal photos - 9 of 9 Handset Oscillator PCB comp side

Report No.: TS10080193-EME Page 1 of 67 Specific Absorption Rate (SAR) Test Report for Vtech Telecommunications Ltd. on the DECT 6.0 Cordless phone Model Number: CL82201 Test Report: TS10080193-EME Date of Report: Sep. 03, 2010 Date of test: Sep. 02, 2010 Review Date: Sep. 03, 2010 Total No of Pages Contained in this Report: 67 The test report was prepared by: Sign on File Grace Lee / Assistant These measurements were taken by: Sign on File Fred Yu / Engineer The test report was reviewed by: Name Rex Liao Title Engineer All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. 0597 Report No.: TS10080193-EME Page 2 of 67 Table of Contents 1.0 General information ...................................................................................... 3 2.0 SAR Evaluation............................................................................................. 7 3.0 Test Instruments and Tissue Liquids........................................................... 17 4.0 Measurement Uncertainty........................................................................... 21 5.0 Test Results ................................................................................................ 23 6.0 E-Field Probe and 1900 Dipole Antenna Calibration................................... 24 7.0 WARNING LABEL INFORMATION - USA .................................................. 24 8.0 REFERENCES ........................................................................................... 24 9.0 DOCUMENT HISTORY .............................................................................. 25 APPENDIX A - SAR Evaluation Data ................................................................ 26 APPENDIX B - Photographs............................................................................. 35 APPENDIX C - E-Field Probe and 1900MHz Dipole Antenna Calibration Data 39 Report No.: TS10080193-EME Page 3 of 67 1.0 General information The CL82201 handset supplied for Specific Absorption Rate (SAR) testing is a DECT 6.0 Cordless phone. The device was tested at the facility of Intertek Testing Services in Hsinchu, Taiwan. The maximum output power declared by Vtech Telecommunications Ltd. EUT model # CL82201 was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65 Supplement C (Edition 01-01), RSS-102 and meet the SAR requirement. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the head Specific Anthropomorphic Mannequin (SAM) phantom. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%. SAR testing was performed at both the left and right ear of the phantom at the two-handset positions stated in the specification. Testing was performed at the middle frequency of 1900 band with a rechargeable battery and in Normal mode of operation. Any accessories supplied with CL82201 have also been tested. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Worst Case Position SAR 1g , W/kg Head Specific Anthropomorphic Mannequin (SAM) phantom EUT Right Cheek to the phantom 0.042 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65 Supplement C (Edition 01-01) and RSS-102 for head configurations. Report No.: TS10080193-EME Page 4 of 67 1.1 Client Information The DECT 6.0 Cordless phone has been tested at the request of: Applicant: Vtech Telecommunications Ltd. 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong 1.2 Equipment under test (EUT) Product Descriptions: Equipment DECT 6.0 Cordless phone Trade Name AT&T Model No. CL82201 FCC ID EW780-7753-00 S/N No. No Labeled Category Portable RF Exposure Uncontrolled Environment Frequency Band 1921.536 -1928.448 MHz System / Power Level DECT Type Integral ConfigurationFixed Dimensions 42 mm length Gain 0 dBi Location Embedded Use of product: DECT 6.0 Cordless phone Manufacturer: Dongguan VTech Satellite Equipment Co. Ltd. Production is planned: [X] Yes, [ ] No EUT receive date: Aug. 30, 2010 EUT received condition: Good operating condition prototype EUT status: Normal mode Test start date: Sep. 02, 2010 Test end date: Sep. 02, 2010 Report No.: TS10080193-EME Page 5 of 67 1.3 Modifications required for compliance The EUT has no modifications during test. 1.4 System test configuration 1.4.1 System block diagram & Support equipment Support Equipment Item # Equipment Model No. S/N 1 Base unit CL82201 N/A Report No.: TS10080193-EME Page 6 of 67 1.4.2 Test Position See the photographs as section 2.2 1.4.3 Test Condition During tests the worst-case data (max RF coupling) was determined with following conditions: Usage Operated in normal mode with Base unit which provided by client Distance between antenna axis at the joint and the liquid surface: Handset is touching and tilting the Head Phantom in right and left position Simulating human Head / Body Head EUT Battery Fully-charged with 1 set rechargeable battery Channel Frequency MHz Before SAR Test (dBm) After SAR Test (dBm) Conducted output power Mid Channel 1924.992 18.92 18.91 The spatial peak SAR values were assessed for middle operating channel, defined by the manufacturer. Report No.: TS10080193-EME Page 7 of 67 2.0 SAR Evaluation 2.1 SAR Limits The following FCC limits (IEEE C95.1 2005) for SAR apply to devices operate in General Population/Uncontrolled Exposure environment: EXPOSURE (General Population/Uncontrolled…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7753-00 26bw - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7753-00 26bw - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7753-00 26bw - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK10080962-1 Adaptor: Ten Pao Ringing & Charging Mode with Base AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 14.SEP.2010 01:14:16 Report no.: HK10080962-1 Adaptor: Ten Pao Ringing & Charging Mode with Base AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 159 kHz 39.65 L1 gnd -25.85 1 Quasi Peak 253.5 kHz 43.85 L1 gnd -17.79 1 Quasi Peak 339 kHz 45.79 L1 gnd -13.43 1 Quasi Peak 496.5 kHz 46.63 L1 gnd -9.42 2 CISPR Average496.5 kHz 29.39 L1 gnd -16.66 1 Quasi Peak 577.5 kHz 46.19 L1 gnd -9.80 2 CISPR Average577.5 kHz 28.44 L1 gnd -17.55 2 CISPR Average843 kHz 25.15 L1 gnd -20.84 1 Quasi Peak 942 kHz 44.60 N gnd -11.39 1 Quasi Peak 1.194 MHz 48.67 N gnd -7.32 2 CISPR Average1.41 MHz 32.35 N gnd -13.65 1 Quasi Peak 1.527 MHz 41.50 L1 gnd -14.49 1 Quasi Peak 2.1525 MHz 36.12 L1 gnd -19.88 1 Quasi Peak 3.4665 MHz 34.46 L1 gnd -21.53 1 Quasi Peak 4.227 MHz 33.91 N gnd -22.08 1 Quasi Peak 7.4265 MHz 38.07 N gnd -21.92 1 Quasi Peak 8.2725 MHz 33.19 N gnd -26.80 Date: 14.SEP.2010 01:13:52 Report no.: HK10080962-1 Adaptor: Ten Pao Handset Charging Mode with Base AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 14.SEP.2010 01:19:34 Report no.: HK10080962-1 Adaptor: Ten Pao Handset Charging Mode with Base AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 172.5 kHz 40.99 L1 gnd -23.84 1 Quasi Peak 258 kHz 40.19 L1 gnd -21.30 1 Quasi Peak 339 kHz 44.10 L1 gnd -15.12 1 Quasi Peak 496.5 kHz 44.58 L1 gnd -11.47 2 CISPR Average505.5 kHz 27.30 L1 gnd -18.69 1 Quasi Peak 577.5 kHz 43.72 L1 gnd -12.27 2 CISPR Average577.5 kHz 28.38 L1 gnd -17.61 1 Quasi Peak 906 kHz 42.12 L1 gnd -13.87 2 CISPR Average933 kHz 25.11 L1 gnd -20.88 1 Quasi Peak 1.32 MHz 48.26 N gnd -7.73 2 CISPR Average1.365 MHz 32.97 N gnd -13.02 1 Quasi Peak 1.536 MHz 40.10 N gnd -15.89 2 CISPR Average1.5675 MHz 26.59 N gnd -19.40 1 Quasi Peak 2.148 MHz 34.62 N gnd -21.37 1 Quasi Peak 3.8355 MHz 34.99 N gnd -21.00 1 Quasi Peak 4.1415 MHz 33.76 N gnd -22.23 1 Quasi Peak 6.9405 MHz 36.59 N gnd -23.40 1 Quasi Peak 8.169 MHz 33.09 N gnd -26.90 Date: 14.SEP.2010 01:19:17 Report no.: HK10080962-1 Adaptor: Ten Pao Answer Machine Recording Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 14.SEP.2010 01:45:07 Report no.: HK10080962-1 Adaptor: Ten Pao Answer Machine Recording Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 163.5 kHz 43.20 L1 gnd -22.08 1 Quasi Peak 289.5 kHz 37.22 L1 gnd -23.31 1 Quasi Peak 330 kHz 44.19 L1 gnd -15.25 2 CISPR Average330 kHz 29.04 L1 gnd -20.40 2 CISPR Average501 kHz 28.59 L1 gnd -17.40 1 Quasi Peak 519 kHz 43.83 L1 gnd -12.16 1 Quasi Peak 582 kHz 45.52 L1 gnd -10.47 2 CISPR Average582 kHz 28.96 L1 gnd -17.03 2 CISPR Average820.5 kHz 26.54 L1 gnd -19.45 1 Quasi Peak 901.5 kHz 43.89 L1 gnd -12.10 2 CISPR Average1.14 MHz 26.72 N gnd -19.27 1 Quasi Peak 1.2255 MHz 48.33 N gnd -7.66 1 Quasi Peak 1.5315 MHz 41.67 N gnd -14.32 2 CISPR Average1.5315 MHz 27.33 N gnd -18.66 1 Quasi Peak 2.1345 MHz 34.69 L1 gnd -21.30 1 Quasi Peak 3.642 MHz 35.34 N gnd -20.65 1 Quasi Peak 4.2585 MHz 34.03 N gnd -21.96 1 Quasi Peak 7.5165 MHz 37.28 N gnd -22.71 1 Quasi Peak 7.9935 MHz 35.00 N gnd -24.99 Date: 14.SEP.2010 01:44:59

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7753-00 inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7753-00 inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7753-00 inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7753-00 IC: 1135B-80775300 peaktp - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7753-00 IC: 1135B-80775300 peaktp - 2 of 5 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7753-00 IC: 1135B-80775300 peaktp - 3 of 5 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7753-00 IC: 1135B-80775300 peaktp - 4 of 5 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7753-00 IC: 1135B-80775300 peaktp - 5 of 5 A0 Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-7753-00 Model: CL82XY1, CL80101 IC: 1135B-80775300 Model: CL82101, CL82201, CL82301, CL82401, CL82501, CL82601, CL80101 Test Report Number: HK10080962-1 Issue Date: September 29, 2010 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10080962-1 Page 1 of 69 FCC ID: EW780-7753-00 IC: 1135B-80775300 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: CL82XY1, CL80101 FCC ID: EW780-7753-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10080962-1 Page 2 of 69 FCC ID: EW780-7753-00 IC: 1135B-80775300 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and…
