VTech Telecommunications Ltd Nov. 23, 2010 To whom it may concern, Declarations FCC ID: EW780-7764-00 IC: 1135B-80776400 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On hook by companion device B NA 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On hook device NA C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

Appendix B1 Letter of Agency for FCC Certification Nov. 23, 2010 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Nov. 23, 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7764-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

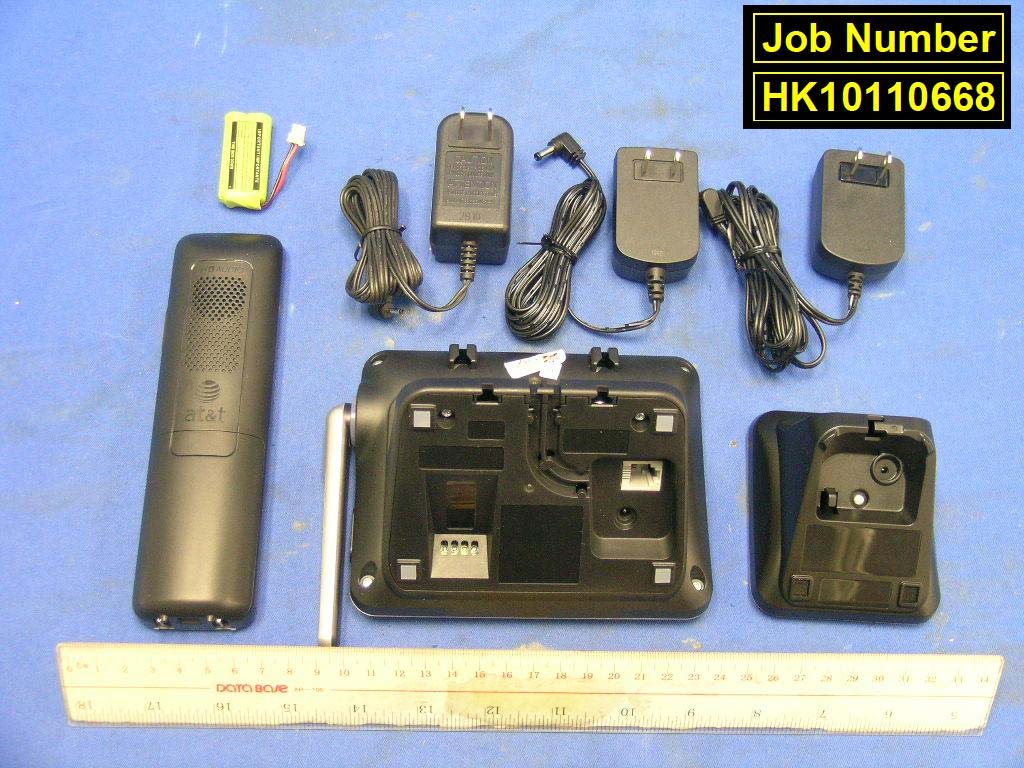

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7764-00 IC: 1135B-80776400 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7764-00 IC: 1135B-80776400 external photos - 2 of 2

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 1 of 13 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 2 of 13 Base Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 3 of 13 Base Unit Main PCB solder side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 4 of 13 Base Unit DAM rear side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 5 of 13 Base Unit Page Key rear side Base Unit Telephone Line Jack and AC Jack front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 6 of 13 Base Unit Telephone Line Jack and AC Jack rear side Base Unit Volume Control front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 7 of 13 Base Unit Volume Control rear side Base Unit LED front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 8 of 13 Base Unit LED rear side Base Unit Bluetooth Module comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 9 of 13 Base Unit Bluetooth Module solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 10 of 13 Handset assembly Handset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 11 of 13 Handset Main PCB comp side (View 2) Handset Main PCB display side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 12 of 13 Handset Main PCB display side (View 2) Handset Main PCB display side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-00 IC: 1135B-80776400 internal photos - 13 of 13 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-7764-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of TL92271, the maximum field strength measured (FS) was 117.5 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 168.70 mW The radiated (EIRP) source-based time-averaging output power = (168.70 * 0.208) mW = 35.09 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0070 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7764-00 bw - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7764-00 bw - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7764-00 bw - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK10110668-1 Charging Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 29.NOV.2010 21:18:25 Report no.: HK10110668-1 Charging Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average154.5 kHz 38.48 L1 -17.27 1 Quasi Peak 168 kHz 46.39 N -18.66 1 Quasi Peak 276 kHz 44.66 L1 -16.27 1 Quasi Peak 370.5 kHz 48.24 L1 -10.24 2 CISPR Average397.5 kHz 39.81 L1 -8.08 2 CISPR Average424.5 kHz 36.77 L1 -10.58 1 Quasi Peak 429 kHz 46.45 L1 -10.81 2 CISPR Average703.5 kHz 30.19 L1 -15.80 1 Quasi Peak 712.5 kHz 39.06 N -16.93 2 CISPR Average915 kHz 27.71 N -18.28 1 Quasi Peak 924 kHz 39.49 L1 -16.50 1 Quasi Peak 1.158 MHz 38.12 L1 -17.87 2 CISPR Average1.1625 MHz 26.46 N -19.53 1 Quasi Peak 1.9815 MHz 35.11 L1 -20.88 1 Quasi Peak 2.67 MHz 35.63 L1 -20.36 1 Quasi Peak 3.3045 MHz 36.44 L1 -19.56 2 CISPR Average4.353 MHz 22.77 N -23.22 1 Quasi Peak 4.92 MHz 38.56 N -17.43 1 Quasi Peak 5.8695 MHz 42.45 L1 -17.54 Date: 29.NOV.2010 21:18:17 Report no.: HK10110668-1 Conference Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 29.NOV.2010 21:40:22 Report no.: HK10110668-1 Conference Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 150 kHz 48.56 L1 -17.43 2 CISPR Average154.5 kHz 36.66 N -19.09 1 Quasi Peak 289.5 kHz 38.46 L1 -22.07 2 CISPR Average397.5 kHz 39.66 L1 -8.24 1 Quasi Peak 402 kHz 44.88 L1 -12.92 1 Quasi Peak 415.5 kHz 45.41 L1 -12.12 2 CISPR Average424.5 kHz 38.76 L1 -8.59 2 CISPR Average708 kHz 31.46 L1 -14.53 1 Quasi Peak 726 kHz 38.65 L1 -17.34 1 Quasi Peak 798 kHz 37.90 L1 -18.09 2 CISPR Average937.5 kHz 27.30 L1 -18.69 1 Quasi Peak 1.1535 MHz 36.87 N -19.13 2 CISPR Average1.1625 MHz 28.19 N -17.80 2 CISPR Average1.563 MHz 25.89 L1 -20.10 1 Quasi Peak 1.599 MHz 34.25 L1 -21.74 1 Quasi Peak 2.454 MHz 35.11 L1 -20.88 1 Quasi Peak 3.5295 MHz 36.45 L1 -19.54 2 CISPR Average4.812 MHz 25.03 L1 -20.96 1 Quasi Peak 5.712 MHz 44.00 L1 -15.99 1 Quasi Peak 5.856 MHz 42.74 L1 -17.25 Date: 29.NOV.2010 21:40:14 Report no.: HK10110668-1 Ringing Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 29.NOV.2010 21:26:27 Report no.: HK10110668-1 Ringing Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 51.27 L1 -14.48 2 CISPR Average154.5 kHz 37.62 L1 -18.13 2 CISPR Average213 kHz 26.87 L1 -26.20 1 Quasi Peak 285 kHz 46.89 L1 -13.77 2 CISPR Average397.5 kHz 39.08 N -8.82 1 Quasi Peak 402 kHz 46.52 L1 -11.28 2 CISPR Average429 kHz 35.82 L1 -11.44 1 Quasi Peak 429 kHz 45.00 L1 -12.26 1 Quasi Peak 699 kHz 40.21 L1 -15.78 2 CISPR Average766.5 kHz 27.24 L1 -18.75 1 Quasi Peak 852 kHz 35.06 N -20.93 2 CISPR Average897 kHz 28.17 N -17.82 2 CISPR Average1.1085 MHz 23.65 L1 -22.34 1 Quasi Peak 1.113 MHz 37.19 L1 -18.80 1 Quasi Peak 1.572 MHz 36.43 L1 -19.57 1 Quasi Peak 2.1795 MHz 36.38 L1 -19.61 1 Quasi Peak 3.6015 MHz 35.03 L1 -20.96 1 Quasi Peak 4.7355 MHz 38.94 L1 -17.05 2 CISPR Average4.929 MHz 23.93 N -22.06 1 Quasi Peak 5.784 MHz 44.96 L1 -15.03 Date: 29.NOV.2010 21:26:19 Report no.: HK10110668-1 Standby Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 29.NOV.2010 21:13:07 Report no.: HK10110668-1 Standby Mode AC Mains (Salcamp Adaptor) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 150 kHz 47.50 L1 -18.50 2 CISPR Average285 kHz 29.88 N -20.78 1 Quasi Peak 289.5 kHz 42.39 L1 -18.14 1 Quasi Peak 384 kHz 46.91 L1 -11.28 2 CISPR Average388.5 kHz 38.46 L1 -9.63 2 CISPR Average406.5 kHz 36.43 N -11.28 1 Quasi Peak 415.5 kHz 46.51 L1 -11.02 2 CISPR Average712.5 kHz 29.36 L1 -16.63 1 Quasi Peak 784.5 kHz 39.16 N -16.83 1 Quasi Peak 798 kHz 33.37 N -22.62 1 Quasi Peak 1.104 MHz 31.98 L1 -24.01 1 Quasi Peak 1.554 MHz 34.35 L1 -21.64 1 Quasi Peak 2.229 MHz 33.45 L1 -22.54 1 Quasi Peak 3.975 MHz 33.09 L1 -22.90 1 Quasi Peak 4.569 MHz 35.29 L1 -20.70 1 Quasi Peak 6.9405 MHz 40.55 L1 -19.45 Date: 29.NOV.2010 21:12:58

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7764-00 inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7764-00 inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7764-00 inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7764-00 IC: 1135B-80776400 peaktp - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7764-00 IC: 1135B-80776400 peaktp - 2 of 5 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7764-00 IC: 1135B-80776400 peaktp - 3 of 5 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7764-00 IC: 1135B-80776400 peaktp - 4 of 5 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7764-00 IC: 1135B-80776400 peaktp - 5 of 5 A0 Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7764-00 psd - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7764-00 psd - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7764-00 psd - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-7764-00 Model: TL92XY1, TL90071 IC: 1135B-80776400 Model: TL90071, TL92271, TL92371, TL92471 Test Report Number: HK10110668-1 Issue Date: December 22, 2010 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10110668-1 Page 1 of 69 FCC ID: EW780-7764-00 IC: 1135B-80776400 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: TL92XY1, TL90071 FCC ID: EW780-7764-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station PUE - Part 15 Unlicensed PCS portable Tx held to ear Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10110668-1 Page 2 of 69 FCC ID: EW780-7764-00 IC: 1135B-80776400 Table of Contents 1.0 Summary of Test Results................................................................................... 5 2.0 General Description............................................................................................ 8 2.1 Product Description ............................................................................................ 8 2.2 Technical Description ......................................................................................... 8 2.3 Test Methodology............................................................................................... 9 2.4 Test Facility........................................................................................................ 9 3.0 System Test Configuration............................................................................... 11 3.1 Justification ...................................................................................................... 11 3.2 Conducted Emission Test Configuration ........................................................... 12 3.3 Conducted Monitoring and Operational Test Configuration............................... 12 3.4 EUT Exercising Software.................................................................................. 12 3.5 Details of EUT and Description of Peripherals.................................................. 13 3.6 Measurement Uncertainty ................................................................................ 14 4.0 Measurement Results....................................................................................... 16 4.1 Antenna Requirement...................................................................................... 16 4.2 Digital Modulation Techniques.......................................................................... 16 4.3 Emission Bandwidth......................................................................................... 17 4.4 Directional Gain of the Antenna ........................................................................ 18 4.5 Peak Transmit Power ....................................................................................... 19 4.6 Power Spectral Density .................................................................................... 20 4.7 Automatic Discontinuation of Transmission....................................................... 21 4.8 Unwanted Emission Inside the Sub-Band ......................................................... 22 4.9 Emissions Outside the Sub-Band ..................................................................... 24 4.9.1 Radiated Emissions Configuration Photographs ............................................ 25 4.9.2 Radiated Emissions Data .............................................................................. 25 4.9.3 Field Strength Calculation.............................................................................. 35 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ........... 36 4.10 Radiated Emissions from Receiver ................................................................. 36 4.10.1 Radiated Emission Configuration Photographs ............................................ 37 4.10.2 Radiated …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: EW780-7764-00 IC: 1135B-80776400 config photos (radiated emission – base unit) - 1 of 3 Radiated Emission – Base Unit (with adaptor “Salcomp”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: EW780-7764-00 IC: 1135B-80776400 config photos (radiated emission – base unit) - 2 of 3 Radiated Emission – Base Unit (with adaptor “Ten Pao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: EW780-7764-00 IC: 1135B-80776400 config photos (radiated emission – handset) - 3 of 3 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Charging FCC ID: EW780-7764-00 IC: 1135B-80776400 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “Salcomp”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Charging FCC ID: EW780-7764-00 IC: 1135B-80776400 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “Salcomp”) Left Side View
