EW780-7764-011.9GHz Digital Modulation Cordless Phone

User’s manual TL92271/TL92371/TL92471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology TheBluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. © 2009-2010 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Congratulations on purchasing your new AT&T product. Before using this AT&T product, please read the Important safety information on pages 111-112 of this user’s manual. Please thoroughly read the user’s manual for all the feature operations and troubleshooting information you need to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Model number: TL92271 (two handsets) TL92371 (three handsets) TL92471 (four handsets) Type: DECT 6.0 cordless telephone/answering system with Bluetooth wireless technology Serial number: Purchase date: Place of purchase: Both the model and serial number of your AT&T product can be found on the bottom of the telephone base. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Power adapter for telephone base Cordless handsets (2 for TL92271) (3 for TL92371) (4 for TL92471) Telephone base Charger for cordless handset with power adapter installed (1 for TL92271) (2 for TL92371) (3 for TL92471) Wall mount bracket Batteries for cordless handsets (2 for TL92271) (3 for TL92371) (4 for TL92471) Battery compartment covers (2 for TL92271) (3 for TL92371) (4 for TL92471) User’s manual Quick start guide User’s manual TL92271/TL92371/TL92471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH®wireless technology Quick start guide TL92271/TL92371/TL92471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH®wireless technology User’s manual TL92271/TL92371/TL92471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology Table of contents Getting started Quick reference guide - telephone base................................................................... 1 Quick reference guide - handset........ 3 Installation..................................................... 6 Telephone base installation.................. 7 Charger installation................................... 8 Battery installation and charging....... 9 Battery charging .......................................10 Installation options..................................11 Tabletop to wall mount installation .............................................11 Wall mount to tabletop installation .............................................12 Bluetooth Introducing Bluetooth............................13 Glossary of terms.....................................14 Bluetooth setup ........................................15 Add a cell phone ................................15 Add a headset......................................17 Auto connection..................................18 Device list and connection.........19 Review the active device list ........19 Connect/disconnect an active device .......................................................19 Remove a device.................................20 Rename a device ................................21 Replace an active device................22 Bluetooth connection from idle mode.........................................................22 Download directory ...........................23 Interruption to directory download................................................25 View the directory download information ............................................25 Change PIN............................................26 Handset settings Telephone settings ..................................27 Ringers .....................................................27 Ringer volume ......................................27 Ringer tone............................................28 Set date and time...............................29 Settings....................................................30 LCD language .......................................30 Display alerts ........................................31 Missed call indicator .........................31 Voicemail indicator ............................32 No line .....................................................33 Download fail .......................................33 Use caller ID to automatically set date and time...............................34 Rename handset .................................34 Key tone ..................................................35 Dial mode ...............................................35 Voice announce caller ID................36 Website....................................................36 Home area code..................................37 Cell area code......................................38 Telephone base ringer volume ....39 Answering system settings............39 Telephone operation Making, answering and ending a call .......................................…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification 20Jan2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 20Jan2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7764-01 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 20Jan, 2012 To whom it may concern, Declarations FCC ID: EW780-7764-0 1 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On hook by companion device B NA 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On hook device NA C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

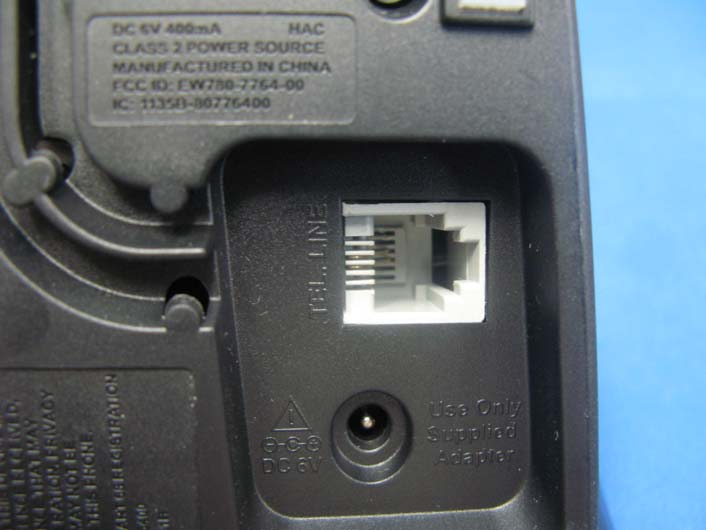

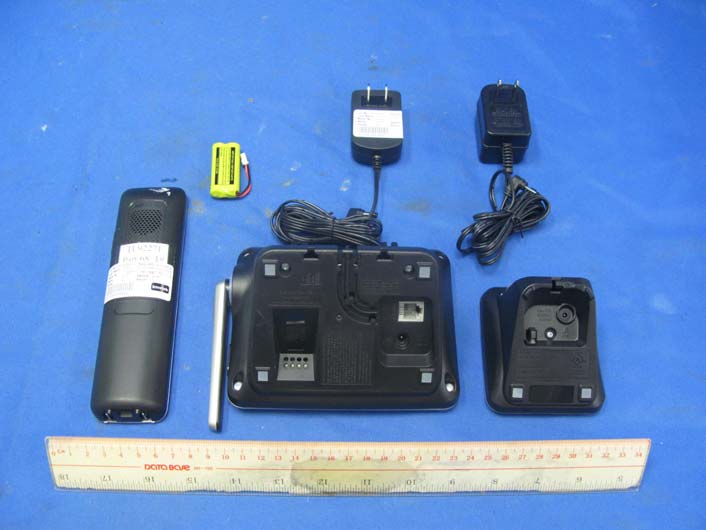

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7764-01 external photos - 1 of 2 HK12010363 Job Number HK12010363 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7764-01 external photos - 2 of 2

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 1 of 14 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 2 of 14 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 3 of 14 Base Unit Main PCB solder side (View 2) Base Unit DECT antenna 1 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 4 of 14 Base Unit DECT antenna 2 Base Unit Bluetooth antenna INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 5 of 14 Base Unit DECT RF Module comp side Base Unit DECT RF Module solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 6 of 14 Base Unit DAM front side Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 7 of 14 Base Unit Bluetooth RF module comp side Base Unit Bluetooth RF module solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 8 of 14 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 9 of 14 Base Unit Telephone Line Jack front side Base Unit Telephone Line Jack rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 10 of 14 Base Unit LED front side Base Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 11 of 14 Base Unit Volume Control Key front side Base Unit Volume Control Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 12 of 14 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 13 of 14 Handset Main PCB display side (View1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7764-01 internal photos - 14 of 14 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:EW780-7764-01 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of TL92271, the maximum field strength measured (FS) was 114.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.83%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 86.52 mW The radiated (EIRP) source-based time-averaging output power = (86.52 * 0.208) mW = 18.02 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0036 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification Unlicensed Personal Communication Service Devices FCC ID: EW780-7764-01 Model: TL90071, TL90011, TL90XY1, TL92271, TL92371, TL92471, TL92XY1, TL96271, TL96371, TL96471, TL96XY1 Test Report Number: HK12010363-1 Issue Date: February 07, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12010363-1 Page 1 of 59 FCC ID: EW780-7764-01 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 29 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 30 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT................ 31 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.11 Radio Frequency Radiation Exposure.................................................................. 33 4.12 Frame Repetition Stability .................................................................................. 34 4.13 Frame Period and Jitter ...................................................................................... 35 4.14 Carrier Frequency Stability .................................................................................. 36 4.15 Monitoring Threshold........................................................................................... 38 4.15.1 Lower Monitoring Threshold ............................................................................. 39 4.15.2 Least Interfered Channel, LIC ........................................................................... 40 4.15.2.1 Upper Monitoring Threshold.........................................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7764-01 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7764-01 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Handset Charging in Base Unit Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2012 19:26:40 Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Handset Charging in Base Unit Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 276 kHz 46.97 N gnd -13.96 1 Quasi Peak 298.5 kHz 48.25 N gnd -12.02 1 Quasi Peak 438 kHz 34.38 N gnd -22.72 1 Quasi Peak 595.5 kHz 32.98 N gnd -23.01 1 Quasi Peak 1.086 MHz 38.58 N gnd -17.41 1 Quasi Peak 1.1265 MHz 39.23 N gnd -16.76 1 Quasi Peak 1.5945 MHz 36.60 N gnd -19.39 1 Quasi Peak 2.4 MHz 34.28 N gnd -21.71 1 Quasi Peak 3.309 MHz 33.33 L1 gnd -22.66 1 Quasi Peak 4.4655 MHz 32.29 N gnd -23.70 1 Quasi Peak 7.1115 MHz 36.18 L1 gnd -23.81 Date: 20.JAN.2012 19:26:22 Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Ringing Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2012 19:47:36 Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Ringing Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 541.5 kHz 42.08 N gnd -13.91 1 Quasi Peak 622.5 kHz 40.60 N gnd -15.39 1 Quasi Peak 838.5 kHz 35.55 N gnd -20.44 1 Quasi Peak 1.113 MHz 40.55 L1 gnd -15.44 1 Quasi Peak 1.815 MHz 37.28 L1 gnd -18.71 1 Quasi Peak 2.895 MHz 38.59 L1 gnd -17.40 1 Quasi Peak 3.156 MHz 39.17 L1 gnd -16.82 1 Quasi Peak 4.686 MHz 36.94 L1 gnd -19.06 1 Quasi Peak 7.0665 MHz 41.10 L1 gnd -18.89 1 Quasi Peak 8.214 MHz 31.01 L1 gnd -28.98 Date: 20.JAN.2012 19:47:23 Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Talk Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 20.JAN.2012 19:41:53 Report No.: HK12010363-1 Model: TL92271 Adaptor: Tenpao Mode: Talk Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 276 kHz 39.40 N gnd -21.53 1 Quasi Peak 375 kHz 40.70 N gnd -17.69 1 Quasi Peak 451.5 kHz 35.47 N gnd -21.37 1 Quasi Peak 730.5 kHz 39.11 N gnd -16.88 1 Quasi Peak 789 kHz 34.53 N gnd -21.46 1 Quasi Peak 1.113 MHz 39.51 N gnd -16.48 1 Quasi Peak 1.662 MHz 38.11 N gnd -17.88 1 Quasi Peak 2.409 MHz 35.69 N gnd -20.30 1 Quasi Peak 2.994 MHz 35.58 L1 gnd -20.41 1 Quasi Peak 4.65 MHz 32.85 L1 gnd -23.14 1 Quasi Peak 7.044 MHz 38.78 L1 gnd -21.21 1 Quasi Peak 8.241 MHz 30.71 L1 gnd -29.28 Date: 20.JAN.2012 19:41:39

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7764-01 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7764-01 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7764-01 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7764-01 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-7446-01 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID : EW780-7764-01 config photos (radiated emission - handset unit) - 1 of 1 Radiated Emission - Handset Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Handset Charging in Base Unit FCC ID: EW780-7446-01 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Handset Charging in Base Unit FCC ID: EW780-7446-01 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
