Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
User’s manual SynJ SB67148 DECT 6.0 4-line expansion deskset for use with AT&T model SynJ SB67118/SB67138 Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information on pages 77-78 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call1 (888) 915-2007. In Canada, dial 1 (866) 288-4268. Model number: SynJ TM SB67148 Type:DECT 6.0 expansion deskset Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the deskset. Save your sales receipt and original packaging in case it is necessary to return this product for warranty service. © 2010 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. SynJ TM is a trademark of Advanced American Telephones. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to supply this product with an ENERGY STAR® qualified power adapter meeting the latest energy efficiency guidelines. Parts checklist Check to make sure the telephone package includes the following items: Handset with coiled cord installed User's manual Deskset Deskset power adapter Backup battery Quick start guide User’s manual SynJ SB67148 DECT 6.0 4-line corded base expansion deskset for use with AT&T model SynJ SB67118/SB67138 Quick start guide SynJ SB67148 DECT 6.0 4-line corded base expansion deskset for use with AT&T model SynJ SB67118/SB67138 Table of contents User’s manual SynJ SB67148 DECT 6.0 4-line corded/cordless small business system Getting started Quick reference guide .............................. 1 Installation...................................................... 4 Deskset installation.................................... 5 Backup battery installation .................... 6 Backup battery charging ......................... 7 Add and register a deskset .................... 8 Register a deskset to your SynJ SB67118 telephone base.................... 8 Register the deskset to your SynJ SB67138 telephone base.................... 9 Deregister the deskset ...........................10 Add a corded headset ............................11 Add a corded headset to the deskset .......................................................11 Deskset operation Deskset setup..............................................12 Menu settings..........................................12 Ringer volume.........................................12 Ringer tone...............................................13 LCD contrast ............................................14 Key tone.....................................................14 Language ...................................................15 Line selection ..........................................15 Deskset name..........................................16 Hold reminder .........................................16 Speed dial setup ....................................17 Customer support .................................17 Deskset basic operation ........................18 Line indicators.........................................18 Make a call................................................18 To end a call ............................................19 On hook dialing (predialing) ............19 Switch between the speakerphone and the corded handset ....................20 Switch between the speakerphone and the corded headset ....................20 Switch between the corded handset and the corded headset...20 Dial a speed dial number ..................20 Answer a call...........................................21 Temporary ringer silencing...............21 Deskset basic operation ........................21 Last number redial................................22 Deskset basic operation ........................22 Options while on calls............................23 Volume control .......................................23 Call waiting...............................................23 Mute .............................................................23 Call privacy...............................................24 Record a call............................................25 Hold..............................................................26 Switch between lines ..........................26 Join a call in progress.........................26 Chain dialing............................................27 Three-way conference calls .............27 COVM (central office voicemail).....29 Intercom.........................................................30 Make an intercom call to the SB67118/SB67138 telephone base or a cordless handset..............30 Answer an incoming call during an intercom call.....................................31 Answer an intercom call....................31 End an intercom call............................31 Call transfer using intercom ................32 Push to talk (PTT) intercom .................34 PTT to a handset or the main base .........................................34 PTT to all handsets and the main base .........................................35 Answer a PTT call..................................36 Convert a PTT call to an intercom call.....................................36 End a PTT call ........................................36 Directory About the directory..................…
Text truncated - open the document above for the full version.
VTech Telecommunications Ltd Date: 18 Aug, 2010 To whom it may concern, Declarations FCC ID: EW780-7964-00 IC: 1135B-80796400 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Deskset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Deskset 1 Switch-off companion device N/A N/A 2 On Hook by companion device B C 3 Switch-off device N/A N/A 4 On Hook on device side B C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor
VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 01-Sep-2010 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor
VTech Telecommunications Ltd 18 Aug, 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-7964-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

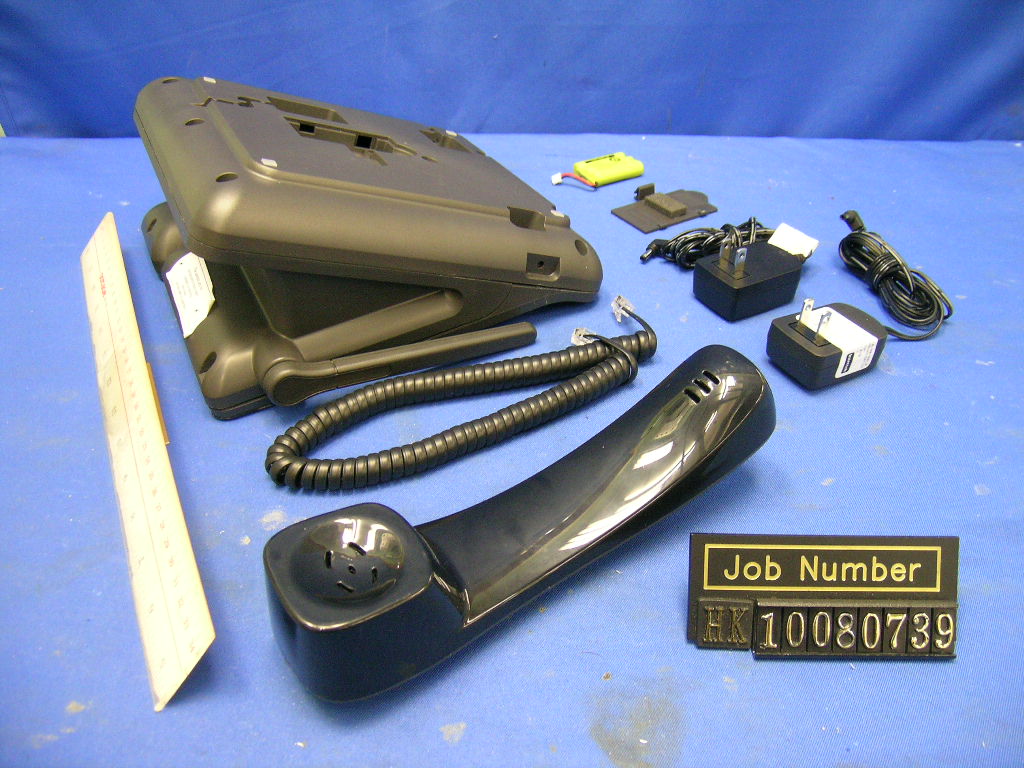

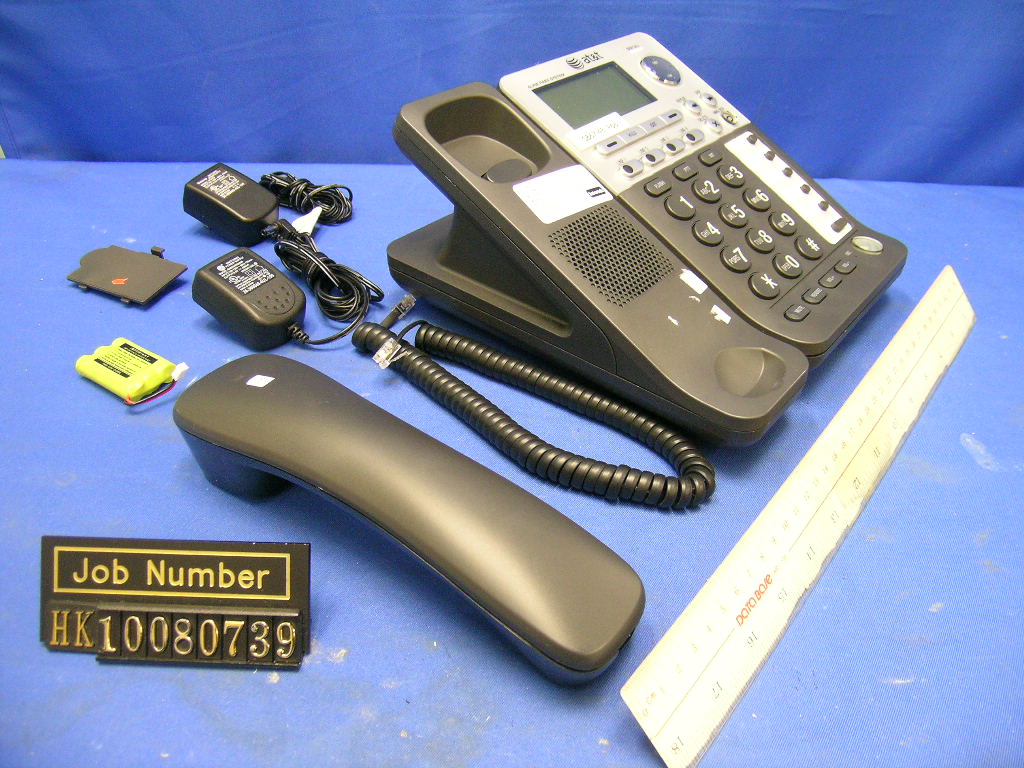

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7964-00 IC: 1135B-80796400 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-7964-00 IC: 1135B-80796400 external photos - 2 of 2
INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 1 of 6 Deskset assembly (View 1) Deskset assembly (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 2 of 6 Deskset Main PCB comp side Deskset Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 3 of 6 Deskset Main PCB solder side (View 2) Deskset On-Off Hook front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 4 of 6 Deskset On-Off Hook rear side Deskset Keypad & Display View front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 5 of 6 Deskset Keypad & Display View front side (View 2) Deskset Keypad & Display View rear side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-7964-00 IC: 1135B-80796400 internal photos - 6 of 6 Deskset Keypad & Display View rear side (View 2) Deskset Oscillator PCB comp side
INTERTEK TESTING SERVICES FCC ID:EW780-7964-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the Deskset unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the tested model SB67148, the maximum field strength measured (FS) was 115.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in Talk (making & answering phone call) operation is 4.17%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 108.92 mW The radiated (EIRP) source-based time-averaging output power = (108.92 * 0.042) mW = 4.54 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0009 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”
INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-7964-00 26bw - 1 of 1 A0 Deskset unit, Lowest channel, Traffic carrier Deskset unit, Highest channel, Traffic carrier
Report no.: HK10080739-1 Adaptor: Salcomp Speakerphone Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.OCT.2010 01:39:16 Report no.: HK10080739-1 Adaptor: Salcomp Speakerphone Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 47.98 N gnd -17.76 1 Quasi Peak 217.5 kHz 38.36 L1 gnd -24.54 1 Quasi Peak 361.5 kHz 37.44 L1 gnd -21.24 1 Quasi Peak 559.5 kHz 33.04 L1 gnd -22.95 1 Quasi Peak 708 kHz 34.64 L1 gnd -21.35 1 Quasi Peak 915 kHz 34.35 L1 gnd -21.64 1 Quasi Peak 1.5225 MHz 39.03 L1 gnd -16.96 1 Quasi Peak 1.563 MHz 40.20 L1 gnd -15.79 2 CISPR Average1.581 MHz 29.50 L1 gnd -16.49 1 Quasi Peak 2.2335 MHz 32.40 N gnd -23.60 Date: 19.OCT.2010 01:38:57 Report no.: HK10080739-1 Adaptor: Salcomp Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.OCT.2010 01:25:31 Report no.: HK10080739-1 Adaptor: Salcomp Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 49.28 L1 gnd -16.46 1 Quasi Peak 213 kHz 41.80 L1 gnd -21.28 1 Quasi Peak 357 kHz 38.02 L1 gnd -20.77 1 Quasi Peak 478.5 kHz 34.49 L1 gnd -21.87 1 Quasi Peak 685.5 kHz 33.02 N gnd -22.97 1 Quasi Peak 901.5 kHz 33.02 L1 gnd -22.97 1 Quasi Peak 1.5225 MHz 37.03 L1 gnd -18.96 1 Quasi Peak 1.599 MHz 37.53 L1 gnd -18.46 1 Quasi Peak 2.1525 MHz 32.87 N gnd -23.13 Date: 19.OCT.2010 01:25:17 Report no.: HK10080739-1 Adaptor: Ten Pao Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.OCT.2010 01:00:19 Report no.: HK10080739-1 Adaptor: Ten Pao Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 1.0185 MHz 27.09 L1 gnd -28.90 1 Quasi Peak 1.2705 MHz 36.19 N gnd -19.80 Date: 19.OCT.2010 00:59:56 Report no.: HK10080739-1 Adaptor: Ten Pao Speakerphone Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.OCT.2010 01:10:02 Report no.: HK10080739-1 Adaptor: Ten Pao Speakerphone Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 555 kHz 26.37 L1 gnd -29.62 1 Quasi Peak 663 kHz 24.66 L1 gnd -31.33 1 Quasi Peak 1.068 MHz 28.07 N gnd -27.92 1 Quasi Peak 1.257 MHz 37.87 N gnd -18.12 2 CISPR Average1.32 MHz 26.69 L1 gnd -19.31 Date: 19.OCT.2010 01:09:39
INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-7964-00 inband - 1 of 1 A0 Deskset unit, Lowest channel, Traffic carrier Deskset unit, Highest channel, Traffic carrier
INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7964-00 IC: 1135B-80796400 peaktp - 1 of 2 A0 Deskset unit, Lowest channel, Traffic carrier Deskset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-7964-00 IC: 1135B-80796400 peaktp - 2 of 2 A0 Deskset unit, Highest channel, Traffic carrier
INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-7964-00 psd - 1 of 1 A0 Deskset unit, Lowest channel, Traffic carrier Deskset unit, Highest channel, Traffic carrier
- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Deskset) FCC ID: EW780-7964-00 Model: SB67148 IC: 1135B-80796400 Model: SB67148 Test Report Number: HK10080739-1 Issue Date: October 26, 2010 MN/ sl INTERTEK TESTING SERVICES Test Report Number: HK10080739-1 Page 1 of 65 FCC ID: EW780-7964-00 IC:1135B-80796400 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: SB67148 FCC ID: EW780-7964-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10080739-1 Page 2 of 65 FCC ID: EW780-7964-00 IC:1135B-80796400 Table of Contents 1.0 Summary of Test Results.....................................................................................5 2.0 General Description..............................................................................................8 2.1 Product Description ..............................................................................................8 2.2 Technical Description ...........................................................................................8 2.3 Test Methodology.................................................................................................9 2.4 Test Facility..........................................................................................................9 3.0 System Test Configuration.................................................................................11 3.1 Justification ........................................................................................................11 3.2 Conducted Emission Test Configuration .............................................................12 3.3 Conducted Monitoring and Operational Test Configuration.................................12 3.4 EUT Exercising Software....................................................................................12 3.5 Details of EUT and Description of Accessories...................................................13 3.6 Measurement Uncertainty ..................................................................................14 3.7 Equipment Modification ......................................................................................14 4.0 Measurement Results.........................................................................................16 4.1 Antenna Requirement........................................................................................16 4.2 Digital Modulation Techniques............................................................................16 4.3 Emission Bandwidth...........................................................................................17 4.4 Directional Gain of the Antenna ..........................................................................18 4.5 Peak Transmit Power .........................................................................................19 4.6 Power Spectral Density ......................................................................................20 4.7 Automatic Discontinuation of Transmission.........................................................21 4.8 Unwanted Emission Inside the Sub-Band ...........................................................22 4.9 Emissions Outside the Sub-Band .......................................................................23 4.9.1 Radiated Emissions Configuration Photographs ..............................................24 4.9.2 Radiated Emissions Data ................................................................................24 4.9.3 Field Strength Calculation................................................................................37 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements .............38 4.10 Radiated Emissions from Receiver ...................................................................39 4.10.1 Radiated Emission Configuration Photographs ............…
Text truncated - open the document above for the full version.
INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: EW780-7964-00 IC: 1135B-80796400 config photos (radiated emission – deskset) - 1 of 1 Radiated Emission – Deskset (with adaptor Ten Pao) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Speakerphone Talk FCC ID: EW780-7964-00 IC: 1135B-80796400 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Speakerphone Talk FCC ID: EW780-7964-00 IC: 1135B-80796400 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
Flat D 5/F Garment Centre · Kowloon · Hong Kong
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15D | 1.92 GHz - 1.93 GHz | 100.00 mW |
