EW780-8015-031.9GHz Digital Modulation Cordless Phone

1 CS6114/CS6114 B/CS6114-11/ CS6114-11 B/CS6114-2/ CS6114-2 B/CS6114-21/CS6114-21 B DECT 6.0 cordless telephone Register online to get an additional 3-month warranty! Go to www.vtechphones.com to register your product for enhanced warranty support and latest VTech product news. Abridged user’s manual To protect our environment and conserve natural resources, this Abridged user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on page 10 of this user’s manual. This telephone does not have a built-in answering system. Voicemail is a feature available from most telephone service providers. It may be included with your telephone service, or may be optional. Fees may apply. This telephone alerts you when you have new voicemail messages; see page 5 for details. Contact your telephone service provider for instructions on how to set up your voicemail feature and listen to messages. Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Abridged user’s manualTelephone base Telephone base power adapter Telephone line cord CANCEL Battery (1 for CS6114/CS6114 B/ CS6114-11/CS6114-11 B) (2 for CS6114-2/CS6114-2 B/ CS6114-21/CS6114-21 B) Battery compartment cover (1 for CS6114/CS6114 B/ CS6114-11/CS6114-11 B) (2 for CS6114-2/CS6114-2 B/ CS6114-21/CS6114-21 B) Charger and charger adapter (1 for CS6114-2/CS6114-2 B CS6114-21/CS6114-21 B ) Handset (1 for CS6114/CS6114 B/ CS6114-11/CS6114-11 B) (2 for CS6114-2/CS6114-2 B/ CS6114-21/CS6114-21 B) Abridged user’s manual Introduction Voicemail Parts checklist The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Te l e p h o n e s i d e nt ified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 2 Install the telephone base and charger as shown below. Telephone base Telephone line cord Electrical outlet (not controlled by a wall switch) A DSL filter (not included) is required if you have DSL high-speed Internet service Charger Telephone base and charger installation Use only the power adapters and batteries supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. If you subscribe to telephone service from a cable company or a VoIP service provider, contact your cable/VoIP service provider for more information. • • • Install the battery as shown below. If the handset will not be used for a long period of time, disconnect and remove the battery to prevent any possible leakage. 2 CANCEL 3 Slide the battery compartment cover towards the center of the handset until it clicks into place. Place the handset in the telephone base or charger to charge. 4 1 Plug the battery connector securely into the socket. Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. IMPORTANT: Check for a dial tone by pressing . If you hear a dial tone, the installation is successful. If you do not hear a dial tone: Make sure the installation procedures described above are properly done. If you subscribe to telephone service from a cable company or a VoIP service provider, contact your cable/VoIP service provider for more information. • • Battery installation 3 Your telephone comes ready for tabletop use. To mount your telephone on the wall: Position the top hole at the back of the telephone base against the top mounting stud [A]. Slide the telephone base down on the mounting studs [A] and [B] until it locks into place. 1. 2. Telephone base [A] [B] Mounting studs Wall mounting (optional) Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 16 hours of continuous charging. Refer to the online Complete user’s manual for battery operating times. Battery indicatorsBattery statusAction The screen is blank, or displays Place in charger and flashes. The battery has very little or no charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and flashes. The battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. If you place the handset in the telephone base or charger without plugging in the battery, the screen displays No battery. Battery charging 4 /FIND HANDSET Page all system handsets. 1 – CID/VOL- Review the caller ID log when the telephone is not in use. Decrease the listening volume during a call. Scroll down while in a menu. 2 – MENU/SELECT Show the menu. Select an item or save a setting while in a menu. 3 – /FLASH Make or answer a call. 4 – Dialing keys (0-9, TONE* & #) 5 – TONE Switch to tone dialing temporarily. 6 – MUTE/DELETE Mute the microphone. Delete digits or characters. • • • • …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd. Letter of Agency for FCC Certification 9 th , August, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd. 9 th , August, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8015 -0 3 Reque st is here by submitted by VTech Telecommunications Ltd. to withhold perma nently from public review certain portions of the a pplication for equipment certification for the refe renced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In partic ular, the following sections of the application are to be kept permane ntly confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantag es in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

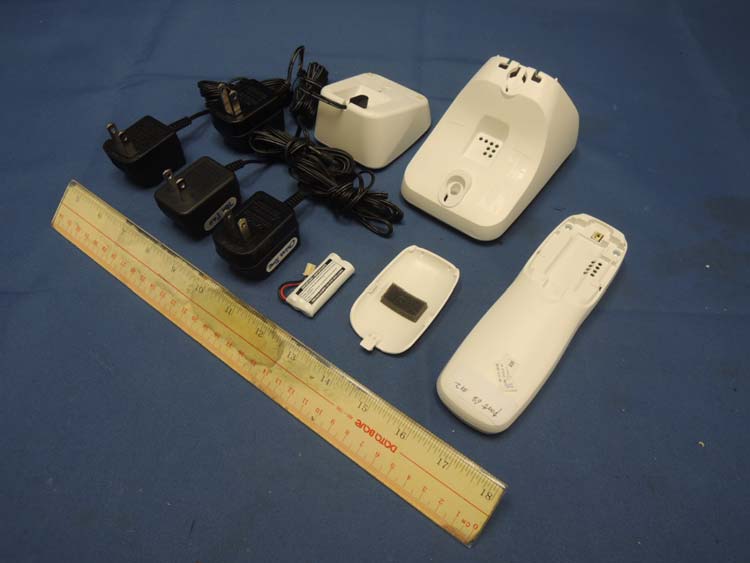

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8015-03 IC: 1135B-80801503 external photos - 1 of 2 HK12100231 Job Number HK12100231 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8015-03 IC: 1135B-80801503 external photos - 2 of 2

CS61X4-X DE58 Engraving draft CAUTION Use Only Supplied Battery or Battery BT266342 Model: CS6114SN:XXXXXXXXXXXXFCC ID: EW780-8015-03 IC:1135B-80801503 SN Label 20X10mm Polarity label THIS DEVICE COMPLIES WITH PART 15 OF THE FCCRULES. OPERATION IS SUBJECT TO THE FOLLOWINGTWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSEHARMFUL INTERFERENCE; AN D 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDINGINTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION. PRIVACY OF COMMUNICATIONS MAY NOTBE ENSURED WHEN USING THIS PHONE . Model: CS6114 S/N: XXXXXXXXXXXXXXXXXXXX AC6V AC6V TEL. LINE Use Only Supplied Adapter Use Only Supplied Adapter 15mm 15mm 42mm 42mm 28.5mm 10.5mm CORDLESS TELEPHONE AC 6V 300 mA VTech Customer Service 1-800-595-9511 www.vtechphones.com Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300 mA VTech Customer Service 1-800-595-9511 www.vtechphones.com Accessory 10.5mm 34.2mm AC6V 15mm 18mm 20.5mm 10.5mm 3.5mm 20.5mm CORDLESS TELEPHONEMANUFACTURED IN CHINA AC 6V 300mA HACREGISTRATION NO.:US: EW7W401B80-771800FCC ID:EW780-8015-03IC: 1135B-80801503 RINGER EQUIVALENCE:0.1BUSOC JACK: RJ11C/RJ11WCOMPLIES WITH 47 CFR PART 68 C Telephone Base Ci Telephone Base C Handset CAUTION Use Only Supplied Battery or Battery BT266342 Model: CS6124SN:XXXXXXXXXXXXFCC ID: EW780-8015-03 IC:1135B-80801602 Polarity label 15mm 18mm 20.5mm 10.5mm 3.5mm 20.5mm Ci Handset Charger CS6114-2 B CS6114-21 B CS6114-2 CS6114-21 CS6124-2 B CS6124-21 B CS6124-2 CS6124-21 CS6124-31 B CS6124-31 CS6120-2 Model: CS6124 S/N: XXXXXXXXXXXXXXXXXXXX TEL. LINE Use Only Supplied Adapter 28.5mm 10.5mm CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. DC 6V 400m A 18mm 30mm 18mm 15mm 30mm 50mm VTech Customer Service 1-800-595-9511www.vtechphones.com VTECH TELECOMMUNICATIONS LTD.MANUFACTURED IN CHIN A FCC ID : EW780-7719-00 HAC COMPLIES WITH 47 CFR PART 68REGISTRTION NO. : US:EW7W401B80-771800 RINGER EQUIVALENCE:0.1B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS:1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AN D 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIREDOPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSUREDWHEN USING THIS PHONE . IC:1135B-80801602 DC6V Model: CS6114 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-2 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-11 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-21 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-11 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6114-21 S/N: XXXXXXXXXXXXXXXXXXXX SN Label 28X10mm { CAN { USA Model: CS6124 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-2 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-11 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-21 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-31 B S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-11 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6120-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-21 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6124-31 S/N: XXXXXXXXXXXXXXXXXXXX SN Label 28X10mm { CAN { USA Model: CS6114 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-11 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-2 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-21 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 { CAN Model: CS6114 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-2 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-11 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6114-21 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 { USA Model: CS6124 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-11 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-2 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-21 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-31 B SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 { CAN Model: CS6124 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-2 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-31 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-11 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6124-21 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 Model: CS6120-2 SN:XXXXXXXXXXXX FCC ID: EW780-8015-03 { USA

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 1 of 6 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 2 of 6 Base Unit Main PCB solder side Base Unit Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 3 of 6 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 4 of 6 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 5 of 6 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8015-03 IC: 1135B-80801503 internal photos - 6 of 6 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-8015-03 RF exposure info- 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of CS6114-2 B , the maximum field strength measured (FS) was 115.0 dBV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time- averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power = (FS*D) 2 / 30 = 94.87 mW The radiated (EIRP) source-based time-averaging output power = (94.87 * 0.208) mW = 19.73 mW The power density at 20 cm from the antenna = EIRP / 4R 2 = 0.0039 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12100231-1 Page 1 of 78 FCC ID: EW780-8015-03 IC: 1135B-80801503 IC: 1135B-80801602 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-8015-03 FCC Model(s): CS6114, CS6114-11, CS6114-2, CS6114- 21, CS611Z-XY, CS6114 B, CS6114-11 B, CS6114-2 B, CS6114-21 B, CS611Z-XY B, CS6124, CS6124-11, CS6124-2, CS6124- 21, CS6124-31, CS612Z-XY, CS6124 B, CS6124-11 B, CS6124-2 B, CS6124-21 B, CS6124-31 B, CS612Z-XY B IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 1135B-80801503 IC Model(s): CS6114 B, CS6114-11 B, CS6114-2 B, CS6114-21 B Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID and Speakerphone IC: 1135B-80801602 IC Model(s): CS6124 B, CS6124-11 B, CS6124-2 B, CS6124-21 B, CS6124-31 B Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Speakerphone and Digital Answering Machine – Handset only Serial Number: N/A Sample Receipt Date: October 15, 2012 Date of Test: October 16 - 24, 2012 Report Date: November 30, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12100231-1 Page 2 of 78 FCC ID: EW780-8015-03 IC: 1135B-80801503 IC: 1135B-80801602 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description ............................................................................................ 10 2.3 Test Methodology.................................................................................................. 10 2.4 Test Facility........................................................................................................... 10 3.0 System Test Configuration.................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Conducted Emission Test Configuration ................................................................ 14 3.3 Conducted Monitoring and Operational Test Configuration .................................... 14 3.4 EUT Exercising Software....................................................................................... 14 3.5 Details of EUT and Description of Accessories...................................................... 15 3.6 Measurement Uncertainty ..................................................................................... 15 4.0 Measurement Results............................................................................................ 17 4.1 Antenna Requirement........................................................................................... 17 4.2 Digital Modulation Techniques............................................................................... 17 4.3 Emission Bandwidth.............................................................................................. 18 4.4 Directional Gain of the Antenna ............................................................................. 22 4.5 Peak Transmit Power ............................................................................................ 23 4.6 Power Spectral Density ......................................................................................... 28 4.7 Automatic Discontinuation of Transmission............................................................ 32 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 33 4.9 Emissions Outside the Sub-Band .......................................................................... 40 4.9.1 Radiated Emissions Configuration Photographs ................................................. 41 4.9.2 Radiated Emissions Data ................................................................................... 41 4.9.3 Field Strength Calculation.........................................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: November 7, 2012 To whom it may concern, Declarations FCC ID: EW780-8015-03 IC: 1135B-80801503 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. For FCC, Base Unit, its Upper Monitoring Threshold declared by manufacturer: -61.2 dBm 5. For FCC, Handset Unit, its Upper Monitoring Threshold declared by manufacturer: -61.6 dBm 6. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B NA 3 Switch-off device NA NA 4 On Hook on device side NA C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8015-03 IC: 1135B-80801503 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “China Tone”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8015-03 IC: 1135B-80801503 config photos (radiated emission - handset) - 1 of 1 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) FCC ID: EW780-8015-03 IC: 1135B-80801503 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “China Tone”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) FCC ID: EW780-8015-03 IC: 1135B-80801503 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “China Tone”) Left Side View
