User’s manual CL83101/CL83201/ CL83301/ CL83401/CL83451 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information section on pages 102-103 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Model number: CL83101 (one handset) CL83201 (two handsets) CL83301 (three handsets) CL83401 (four handsets) CL83451 (four handsets) Type: DECT 6.0 cordless telephone/answering system with caller ID/call waiting Serial number: __________________________________________________________ Purchase date: __________________________________________________________ Place of purchase: _______________________________________________________________ Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. © 2010 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to supply this product with an ENERGY STAR® qualified power adapter meeting the latest energy efficiency guidelines. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Cordless handset (One for CL83101) (Two for CL83201) (Three for CL83301) (Four for CL83401) (Four for CL83451) Charger for cordless handset with power adapter installed (One for CL83101) (Two for CL83201) (Three for CL83301) (Four for CL83401) (Four for CL83451) Battery compartment cover (One for CL83101) (Two for CL83201) (Three for CL83301) (Four for CL83401) (Four for CL83451) Telephone line cord Power adapter for telephone base Telephone base Battery for cordless handset (One for CL83101) (Two for CL83201) (Three for CL83301) (Four for CL83401) (Four for CL83451) BY 1021 BT183342/BT283342 2.4V 400mAh Ni -M H User’s manual User’s manual CL83101/CL83201/ CL83301/CL83401/CL83451 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Quick start guide Quick start guide CL83101/CL83201/ CL83301/CL83401/CL83451 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting User’s manual CL83101/CL83201/ CL83301/CL83451 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Table of contents 1 CHARGE indicator On when the handset is charging in the telephone base or charger. TCID/VOLUME Press TCID to show caller ID history (page 60). Press to scroll down while in menus. While entering names or numbers, press to move the cursor to the left. Press to decrease the listening volume when on a call (page 32), or to decrease the message playback volume (page 77). PHONE/FLASH Press to make or answer a call. During a call, press to answer an incoming call when you receive a call waiting alert (page 31). 1 While reviewing a call log entry, press repeatedly to add or remove 1 in front of the telephone number before dialing or saving it in the directory (page 62). MUTE/DELETE During a call, press to mute the microphone (page 31). While reviewing the caller ID history, the directory or the redial memory, press to delete an individual entry (page 62, page 53 and page 28 respectively). While predialing, press to delete digits (page 27). /SPEAKERSPEAKER Press to switch between the speakerphone and the handset (page 29). Quick reference guide - handset # (pound key) Press repeatedly to display other dialing options when reviewing a call log entry (page 62). OFF/CANCELOFF/CANCEL During a call, press to hang up. While in a menu, press to cancel an operation, back up to the previous menu, or exit the menu display, or press and hold this button to exit to idle mode. Press and hold while the telephone is not in use to erase the missed call indicator. MENU/SELECT Press to show the menu. While in the menu, press to select an item or save an entry or setting. SDIR/VOLUME Press SDIR to show directory entries (page 51). Press to scroll up while in menus. While entering names or numbers, press to move the cursor to the right. Press to increase the listening volume when on a call (page 32), or to increase the message playback volume (page 77). TONE Press to switch to tone dialing temporarily during a call if you have pulse service (page 35). REDIAL/PAUSE Press repeatedly to view the last 10 numbers dialed (page 28). While entering numbers, press and hold to insert a dialing pause (page 49). EQ During an outside call, intercom call, message or announcement playback, press to change the audio quality to best suit your hearing (page 29). Getting started 2 Getting started Quick reference guide - handset Main menu The> symbol highlights a menu item.  >Play messages Answering sys Main menu Play messages (page 77) Answering sys (page 65) Directory (page 48) Caller ID log (page 58) Intercom (page 39) Ringers (page 12) Set date/time (page 13) Settings (page 14) Website (page 18) Using menus: Press MENU/SELECT to show the menu. Press T CID or SDIR to scroll through menu items. Press MENU/SELECT to confirm or save changes to a hi…

Text truncated - open the document above for the full version.

Guide d’utilisation (version canadienne) Téléphone DECT 6,0 à cordon/ sans fil avec répondeur téléphonique et afficheur avec afficheur de l’appel en attente CL83101/CL83201/ CL83301/ CL83401/CL83451 Clearspeak MC est une marque de commerce de Advanced American Telephones. © 2010 par Advanced American Telephones. Tous droits réservés. AT&T et le logo d’AT&T sont des marques de commerce d’AT&T Intellectual Property est authorisé sous licence par Advanced American Telephones, San Antonio, TX 78219. T Compatible with Hearing Aid T-Coil TIA-1083 FÉLICITATIONS pour votre achat d’un nouvel appareil d’AT&T. Avant d’utiliser votre téléphone AT&T, veuillez lire la section Mesures de sécurité importantes pages 85-87 de ce guide d’utilisation. Veuillez prendre le temps de consulter en entier ce guide afin de vous assurer de l’installer correctement, de bénéficier des nombreuses fonctions et de dépannage nécessaires à l’installation et au fonctionnement de votre nouvel appareil d’AT&T. Vous pouvez également visiter notre site Web au www.telephones.att.com ou communiquez avec nous au 1-866-288-4268. Nos. modèles :CL83101 (un combiné) CL83201 (deux combinés) CL83301 (trois combinés) CL83401 (quatre combinés) CL83451 (quatre combinés) Type :Téléphone DECT 6,0 à cordon/sans fil avec répondeur téléphonique et afficheur avec afficheur de l’appel en attente No. de série : Date d’achat : Endroit de l’achat : Le numéro de modèle et le numéro de série de votre appareil AT&T se trouvent sous le socle. Conservez votre facture et les matériaux d’emballage pour le cas où vous deviez l’envoyer en réparation sous garantie. Les téléphones identifiés par ce logo offrent une réduction du bruit et des interférences lorsqu’utilisés avec des appareils auditifs et des implants cochléaires dotés d’une bobine T-Coil. Le logo d’homologation TIA-1083 est une marque de commerce de Telecommunications Industry Association. Utilisé sous licence. Le programme ENERGY STAR MD (www.energystar.gov) reconnaît et encourage l’utilisation de produits qui économisent l’énergie et contribuent à la protection de l’environnement. Nous sommes fiers d’apposer le logo ENERGY STAR MD sur ce produit, indiquant ainsi qu’il répond aux normes de rendement énergétique les plus récentes. Guide d’utilisation (version canadienne) Téléphone DECT 6,0 à cordon/sans fil avec répondeur téléphonique et afficheur avec afficheur de l’appel en attente CL83101/CL83201/ CL83301/ CL83401/CL83451 Guide de départ rapide (version canadienne) Téléphone DECT 6,0 à cordon/sans fil avec répondeur téléphonique et afficheur avec afficheur de l’appel en attente CL83101/CL83201/ CL83301/ CL83401/CL83451 BY 1021 BT183342/BT283342 2.4V 400mAh Ni-M H Nomenclature des pièces Sauvegardez votre facture d’achat et l’emballage original pour le cas où vous deviez l’envoyer en service sous garantie. L’emballage du téléphone comporte les articles suivants. Guide de départ rapide Combiné sans fil (1 pour le CL83101) (2 pour le CL83201) (3 pour le CL83301) (4 pour le CL83401/CL83451) Socle Chargeur pour le combiné sans fil avec l’adaptateur préinstallé (1 pour le CL83201) (2 pour le CL83301) (3 pour le CL83401/CL83451) Bloc-piles pour le combiné sans fil (1 pour le CL83101) (2 pour le CL83201) (3 pour le CL83301) (4 pour le CL83401/CL83451) Couvercle du compartiment des piles (1 pour le CL83101) (2 pour le CL83201) (3 pour le CL83301) (4 pour le CL83401/CL83451) Adaptateur CA pour le socle Fil téléphonique Guide d’utilisation Guide d’utilisation Téléphone DECT 6,0 à cordon/sans fil avec répondeur téléphonique et afficheur avec afficheur de l’appel en attente CL83101/CL83201/CL83301/ Cl83401/CL83451 Comment débuter Guide de référence rapide – combiné .................................................................. 1 Guide de référence rapide– socle ......... 3 Installation............................................................. 5 Installation du socle........................................ 6 Installation du chargeur ............................... 7 Installation et charge du bloc-piles...... 8 Options d’installation .................................. 10 Installation du bureau au mur .......... 10 De l’installation au mur à l’installation sur un bu............................ 12 Réglages du téléphone Réglages du combiné ................................. 14 Réglages du menu.................................... 14 Volume de la sonnerie........................... 14 Tonalité de sonnerie................................ 15 Langue d’utilisation de l’écran ACL...................................................................... 15 Voyant de la messagerie vocale (message en attente).............................. 15 Annulation du voyant de la messagerie vocale.................................... 16 Tonalité des touches ............................... 16 Réglages de la date/heure ................. 17 Synchronisation de l’heure par CID....................................................................... 18 Indicatif régional domestique........... 18 Mode de composition ............................ 19 Site Web .......................................................... 19 Réglages du répondeur (Combiné uniquement) .............................. 20 Message d’accueil..................................... 20 Mettre le répondeur en/hors fonction........................................ 21 Filtrage d’appel ........................................... 22 Nombre de sonneries............................. 22 Codes d’accès à distance..................... 23 Tonalité d’alerte de message ............ 24 Langage du guide vocal ....................... 24 Réglage de la base ....................................... 25 Menu des réglages ................................... 25 Volume de la sonnerie........................... 25 Tonalité de sonnerie................................ 26 Langue d’utilisation de l’écran ACL...................................................................... 26 Voyant de la messagerie voca…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd 20 December, 2010 To whom it may concern, Declarations FCC ID: EW780-8062-00 IC: 1135B-80806200 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off device NA NA 2 Remove power from device A C 3 On Hook on device side BC 4 Switch-off companion device NA NA 5 Remove power from companion device B A 6 On Hook by companion device B C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd 20 August, 2010 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Tommy Leung/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd December 2, 2010 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8062-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

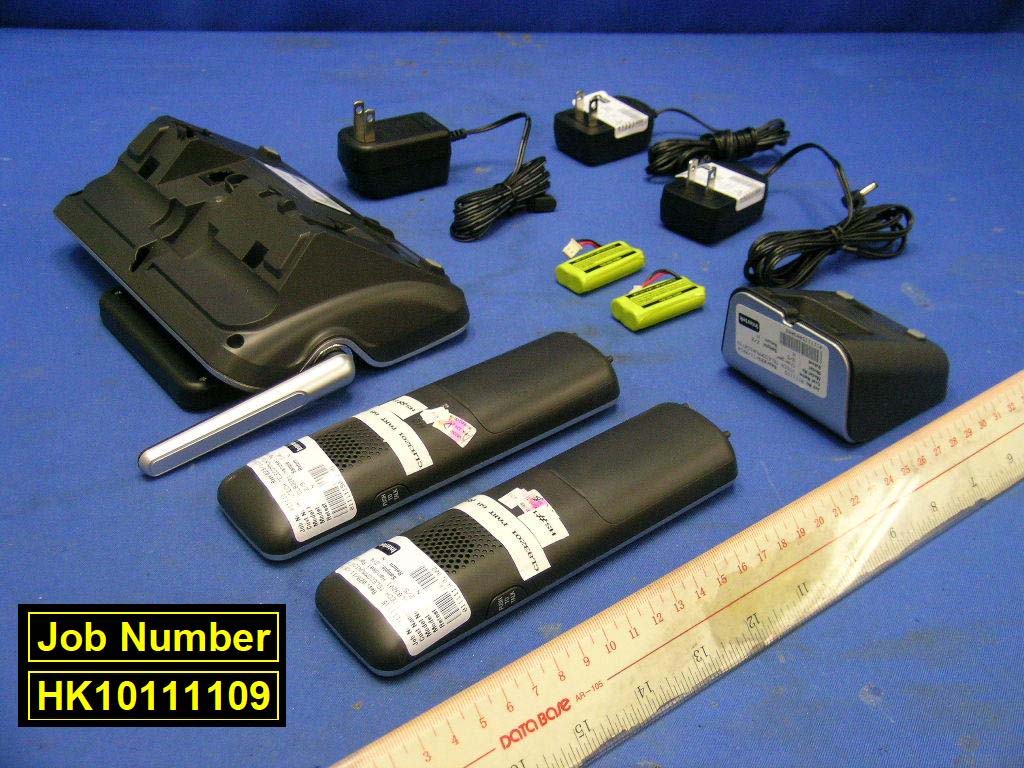

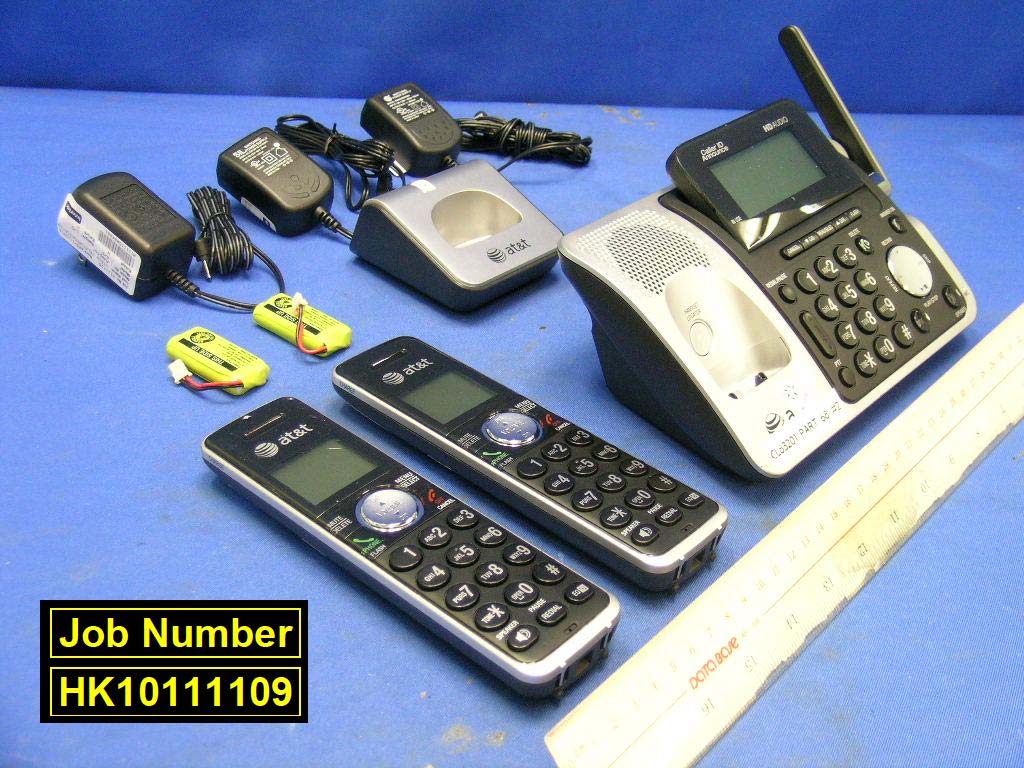

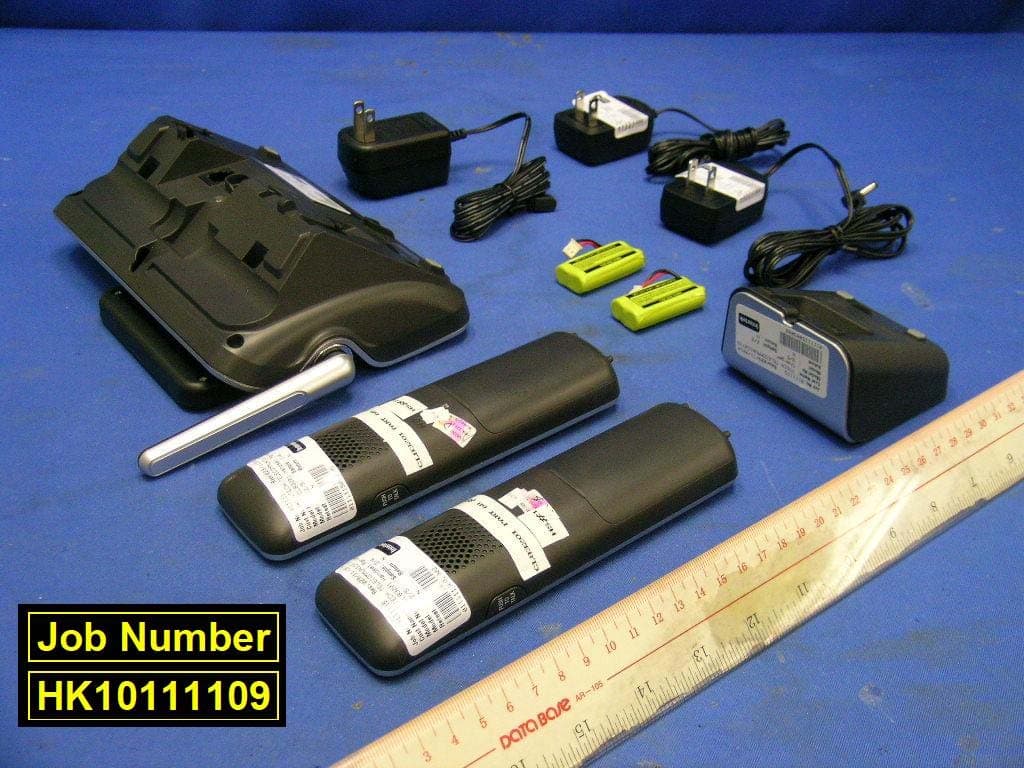

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8062-00 IC: 1135B-80806200 external photos - 1 of 2 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8062-00 IC: 1135B-80806200 external photos - 2 of 2

Advanced American Telephones THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID: EW780-8062-00 COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W401B80-806200 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W DC 6V 600mA HAC MANUFACTURED IN CHINA Model: CL83X01 IC: 1135B-80806200 Use Only Supplied Adapter FCC ID: EW780-7753-00 FCC ID: EW780-7753-00 Serial No. Label 28*10MM Advanced American Telephones AC 6V 300 mA Customer Service 1-800-222-3111 www.telephones.att.com Text: engraved in recessed 0.3mm depth, text surface in high gloss Text: engraved in raised 0.3mm Text: engraved in raised 0.3mm AC 6V Model: CL80111 Use Only Supplied Adapter Charger for CL83101 CL83201 CL83301 CL83401 CL83451 CL80111 Text:Recessed 0.3mm High Gloss HS for CL83101 CL83201 CL83301 CL83401 CL83451 CL80111 Model: CL83x01 Serial No. Label 20*8 MM IC: 1135B-80806200 IC: 1135B-80806200 Text:Recessed 0.3mm High Gloss Serial No. Label(size: 28x10mm) Model: CL83101(1Ci BS + 1HS) CL83201(1Ci BS + 2HS + 1 CHG) CL83301(1Ci BS + 3HS + 2 CHG) CL83401(1Ci BS + 4HS + 3 CHG) CL83451(1Ci BS + 4HS + 3 CHG)

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 1 of 6 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 2 of 6 Base Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 3 of 6 Base Unit Keypad front side Base Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 4 of 6 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 5 of 6 Base Unit Antenna (View 1) Base Unit Antenna (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8062-00 IC: 1135B-80806200 internal photos - 6 of 6 Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID:EW780-8062-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of CL83201, the maximum field strength measured (FS) was 117.6 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 172.63 mW The radiated (EIRP) source-based time-averaging output power = (172.63 * 0.208) mW = 35.91 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0071 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8062-00 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8062-00 26bw - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

Report no.: HK10111109-1 Ringing Mode AC Mains Adaptor: Sunstrong Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.DEC.2010 18:49:18 Report no.: HK10111109-1 Ringing Mode AC Mains Adaptor: Sunstrong Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average402 kHz 31.21 L1 -16.60 1 Quasi Peak 402 kHz 40.15 N -17.65 1 Quasi Peak 406.5 kHz 40.22 N -17.49 2 CISPR Average411 kHz 32.53 L1 -15.09 1 Quasi Peak 2.2785 MHz 27.71 N -28.28 1 Quasi Peak 4.029 MHz 33.70 N -22.29 2 CISPR Average4.884 MHz 26.49 N -19.51 1 Quasi Peak 4.9695 MHz 34.36 N -21.64 1 Quasi Peak 6.873 MHz 40.43 N -19.56 2 CISPR Average7.0485 MHz 32.65 N -17.34 Date: 8.DEC.2010 18:49:10 Report no.: HK10111109-1 Speakerphone Online Mode AC Mains Adaptor: Sunstrong Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.DEC.2010 18:42:55 Report no.: HK10111109-1 Speakerphone Online Mode AC Mains Adaptor: Sunstrong Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 397.5 kHz 35.93 N -21.96 2 CISPR Average402 kHz 30.05 L1 -17.75 1 Quasi Peak 406.5 kHz 34.50 N -23.21 2 CISPR Average411 kHz 30.50 L1 -17.12 1 Quasi Peak 4.9245 MHz 33.55 L1 -22.45 2 CISPR Average4.929 MHz 27.61 L1 -18.38 1 Quasi Peak 6.225 MHz 39.62 N -20.37 2 CISPR Average7.071 MHz 32.31 N -17.68 Date: 8.DEC.2010 18:42:47 Report no.: HK10111109-1 Answer Machine & Charging AC Mains Adaptor: Sunstrong Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 8.DEC.2010 18:53:35 Report no.: HK10111109-1 Answer Machine & Charging AC Mains Adaptor: Sunstrong Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 393 kHz 36.64 N -21.35 2 CISPR Average402 kHz 30.68 L1 -17.12 1 Quasi Peak 406.5 kHz 38.59 N -19.12 2 CISPR Average411 kHz 32.11 L1 -15.51 2 CISPR Average4.9875 MHz 27.87 N -18.12 1 Quasi Peak 5.6895 MHz 38.11 N -21.88 1 Quasi Peak 5.91 MHz 37.71 N -22.28 2 CISPR Average7.062 MHz 31.10 N -18.89 Date: 8.DEC.2010 18:53:26

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8062-00 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8062-00 inband - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8062-00 IC: 1135B-80806200 peaktp - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8062-00 IC: 1135B-80806200 peaktp - 2 of 3 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8062-00 IC: 1135B-80806200 peaktp - 3 of 3 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8062-00 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8062-00 psd - 2 of 2 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: EW780-8062-00 Model: CL83201, CL83XY1 IC: 1135B-80806200 Model: CL83201, CL83101, CL83301, CL83401, CL83451 Test Report Number: HK10111109-1 Issue Date: December 31, 2010 MN/ cl INTERTEK TESTING SERVICES Test Report Number: HK10111109-1 Page 1 of 65 FCC ID: EW780-8062-00 IC: 1135B-80806200 MEASUREMENT/TECHNICAL REPORT VTech Telecommunications Ltd. - Model: CL83201, CL83XY1 FCC ID: EW780-8062-00 This report concerns (check one:) Original Grant X Class II Change Equipment Type : PUB - Part 15 Unlicensed PCS Base Station Deferred grant requested per 47 CFR 0.457(d)(1)(ii)? Yes No X If yes, defer until : __________________ Date Company Name agrees to notify the Commission by: Date of the intended date of announcement of the product so that the grant can be issued on that date. Transition Rules Request per 15.37? Yes No X If no, assumed Part 15, Subpart D for Unlicensed Personal Communication Service Device - the new 47 CFR [10-01-09 Edition] Provision. Report reviewed by: Nip Ming Fung, Melvin Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Phone : 852-2173-8535 Fax: 852-2741-1693 INTERTEK TESTING SERVICES Test Report Number: HK10111109-1 Page 2 of 65 FCC ID: EW780-8062-00 IC: 1135B-80806200 Table of Contents 1.0 Summary of Test Results........................................................................................ 5 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration.................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Peripherals....................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 14 3.7 Equipment Modification ......................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 18 4.5 Peak Transmit Power ............................................................................................ 19 4.6 Power Spectral Density ......................................................................................... 20 4.7 Automatic Discontinuation of Transmission............................................................ 21 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 22 4.9 Emissions Outside the Sub-Band .............…
