VTech Telecommunications Ltd Feb. 28, 2011 To whom it may concern, Declarations FCC ID: EW780-8070-00 IC: 1135B-80807000 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. The baby unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Remove power from companion device B 4 Switch-off device A 5 On hook device NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Feb. 28, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8070-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

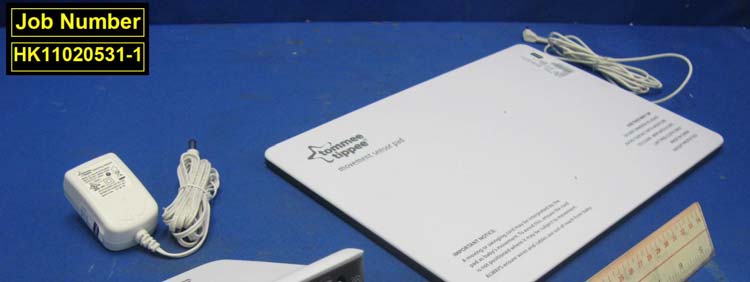

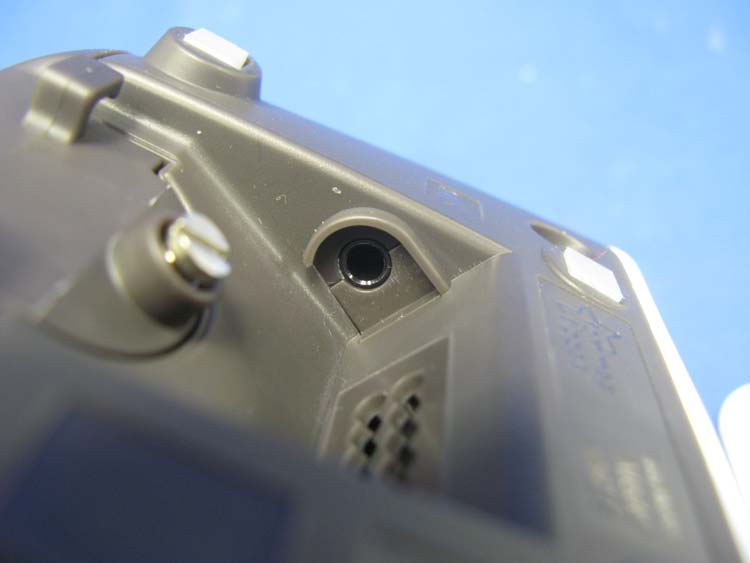

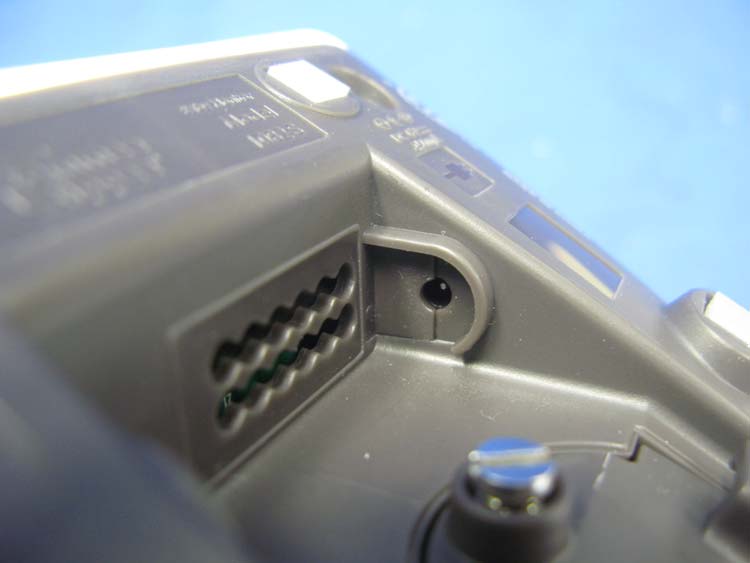

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 external photos - 1 of 3 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 external photos - 2 of 3 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 external photos - 3 of 3

PRINT COLOR : TT LOGO PMS 423 ICON WHITE                                            P R E P A R E D B Y : M a r t o n L i D A T E : FEB24, 2011 S C A L E : 1 : 1 S H E E T : 1 OF 1 PRINT COLOR : WHITE PRINT COLOR : COOL GRAY 8C Baby Monitor S B : 32mm 10mm Baby Monitor S B :

INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 1 of 6 Internal Photo - 1 Internal Photo - 2 INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 2 of 6 Internal Photo - 3 Internal Photo - 4 INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 3 of 6 Internal Photo - 5 Internal Photo - 6 INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 4 of 6 Internal Photo - 7 Internal Photo - 8 INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 5 of 6 Internal Photo - 9 Internal Photo - 10 INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8070-00 IC: 1135B-80807000 Internal photos - 6 of 6 Internal Photo - 11

INTERTEK TESTING SERVICES FCC ID: EW780-8070-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the baby unit of tested model of 1082SB, the maximum field strength measured (FS) was 118.3 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four baby units operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 202.82 mW The radiated (EIRP) source-based time-averaging output power = (202.82 * 0.208) mW = 42.19 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0084 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8070-00 bw - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8070-00 bw - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

Report no.: HK11020531-1 Sound Receiving Mode AC Mains (Baby Unit) Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.MAR.2011 19:10:44 Report no.: HK11020531-1 Sound Receiving Mode AC Mains (Baby Unit) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average415.5 kHz 32.01 L1 -15.52 1 Quasi Peak 415.5 kHz 36.92 N -20.61 1 Quasi Peak 4.983 MHz 36.09 N -19.90 1 Quasi Peak 6.351 MHz 39.18 N -20.81 2 CISPR Average6.396 MHz 32.78 L1 -17.21 Date: 4.MAR.2011 19:10:36 Report no.: HK11020531-1 Talk Mode AC Mains (Baby Unit) Ctrl No.: N/A 6DB AC 150 kHz30 MHz dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.MAR.2011 19:06:25 Report no.: HK11020531-1 Talk Mode AC Mains (Baby Unit) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average420 kHz 31.15 L1 -16.29 1 Quasi Peak 433.5 kHz 36.48 N -20.70 1 Quasi Peak 4.083 MHz 29.69 L1 -26.30 1 Quasi Peak 4.821 MHz 33.55 N -22.44 1 Quasi Peak 6.3195 MHz 36.53 N -23.46 2 CISPR Average6.441 MHz 30.10 L1 -19.89 Date: 4.MAR.2011 19:06:16 Report no.: HK11020531-1 Alarm Mode AC Mains (Baby Unit) Ctrl No.: N/A 150 kHz30 MHz 6DB AC dBμV dBμV 1 PK CLRWR 2 AV CLRWR SGL TDS RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 4.MAR.2011 19:18:23 Report no.: HK11020531-1 Alarm Mode AC Mains (Baby Unit) Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average415.5 kHz 31.82 L1 -15.71 1 Quasi Peak 415.5 kHz 37.25 N -20.28 1 Quasi Peak 3.426 MHz 28.62 L1 -27.37 1 Quasi Peak 4.4565 MHz 31.33 N -24.66 1 Quasi Peak 6.3285 MHz 37.95 N -22.04 Date: 4.MAR.2011 19:18:15

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8070-00 inband - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8070-00 inband - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8070-00 IC: 1135B-80807000 peaktp - 1 of 3 A0 Baby unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8070-00 IC: 1135B-80807000 peaktp - 2 of 3 A0 Baby unit, Highest channel, Traffic carrier Baby unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8070-00 IC: 1135B-80807000 peaktp - 3 of 3 A0 Base unit, Middle channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8070-00 psd - 1 of 2 A0 Baby unit, Lowest channel, Traffic carrier Baby unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8070-00 psd - 2 of 2 A0 Baby unit, Lowest channel, Dummy carrier Baby unit, Highest channel, Dummy carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Transmission FCC ID: EW780-8070-00 IC: 1135B-80807000 config photos (radiated emission – baby unit) - 1 of 1 Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Sound Receiving FCC ID: EW780-8070-00 IC: 1135B-80807000 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs – Mode: Sound Receiving FCC ID: EW780-8070-00 IC: 1135B-80807000 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
