EW780-8149-001.9GHz Cordless Phone

© 2011 Clarity, a Division of Plantronics, Inc. All rights reserved. Regulatory Compliance and Warranty Information Conformité réglementaire et renseignements relatifs à la garantie 4289 Bonny Oaks Drive • Chattanooga, TN 37406 Tel: 800-426-3738 • Fax: 800-325-8871 E-mail: [email protected] • Website: www.clarityproducts.com RevE (3-2011) PRINTED IN CHINA 1 REGULATORY COMPLIANCE PARTY RESPONSIBLE FOR REGULATORY COMPLIANCE: Clarity, a Division of Plantronics, Inc. 4289 Bonny Oaks Drive Chattanooga, TN 37406 Phone: 800-426-3738 Part 68 of FCC Rules Information a) This equipment complies with Part 68 of the FCC rules and the requirements adopted by the ACTA. On the bottom of this equipment is a label that contains, among other information, a product identifier in the format US:AAAEQ##TXXXX. If requested, this number must be provided to the telephone company. b) A plug and jack used to connect this equipment to the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and requirements adopted by the ACTA. A compliant telephone cord and modular plug, RJ11C USOC, is provided with this product. It is designed to be connected to a compatible modular jack that is also compliant. See installation instructions for details. c) The REN is used to determine the number of devices that may be connected to a telephone line. Excessive RENs on a telephone line may result in the devices not ringing in response to an incoming call. In most but not all areas, the sum of RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. For products approved after July 23, 2001, the REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03 is a REN of 0.3). 2 3 For earlier products, the REN is separately shown on the label. d) If this telephone equipment causes harm to the telephone network, the telephone company will notify you in advance that temporary discontinuance of service may be required. But if advance notice isn’t practical, the telephone company will notify the customer as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is necessary. e) The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service. f) If trouble is experienced with this telephone equipment, for repair or warranty information, please contact Clarity, 800-426-3738. If the equipment is causing harm to the telephone network, the telephone company may request that you disconnect the equipment until the problem is resolved. g) This telephone equipment is not intended to be repaired and it contains no repairable parts. Opening the equipment or any attempt to perform repairs will void the warranty. For service call 800-426-3738. h) Connection to party line service is subject to state tariffs. Contact the state public utility commission, public service commission or corporation commission for information. i) If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this telephone equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or a qualified installer. j) This telephone equipment is hearing aid compatible. REGULATORY COMPLIANCE Customer-Owned Coin/Credit Card Phones To comply with state tariffs, the telephone company must be given notification prior to connection. In some states, the state public utility commission, public service commission or corporation commission must give prior approval of connection. Part 15 of FCC Rules Information This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy of communications may not be ensured when using this telephone. To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than the hands are maintained at a distance of approximately 20cm (8 inches) or more. Your equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of FCC rules. These limits are designed to provide reasonable protection against harmful interference in residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation; if this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and REGULATORY COMPLIANCE 4 5 on, you are encouraged to try to correct the interference by one of the following measures: 1. Where it can be done safely, reorient the receiving television or radio antenna. 2. To the extent possible, relocate the television, radio or other receiver with respect to the telephone equipment. (This increases the separation between the telephone equipment and the receiver.) 3. Connect the telephone…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: 10 Mar, 2011 To whom it may concern, Declarations FCC ID: EW780-8149-00 IC: 1135B-80814900 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B NA 3 Remove power from companion device B A 4 Switch-off device N/A N/A 5 On Hook on device side N/A C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 10-Mar-2011 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

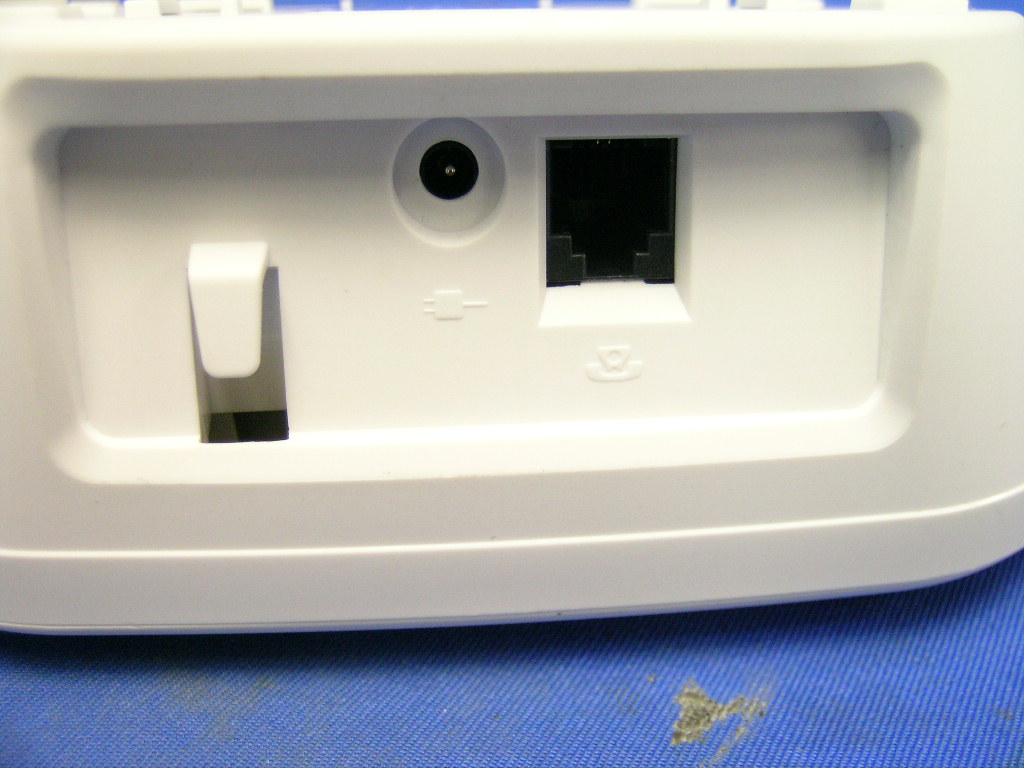

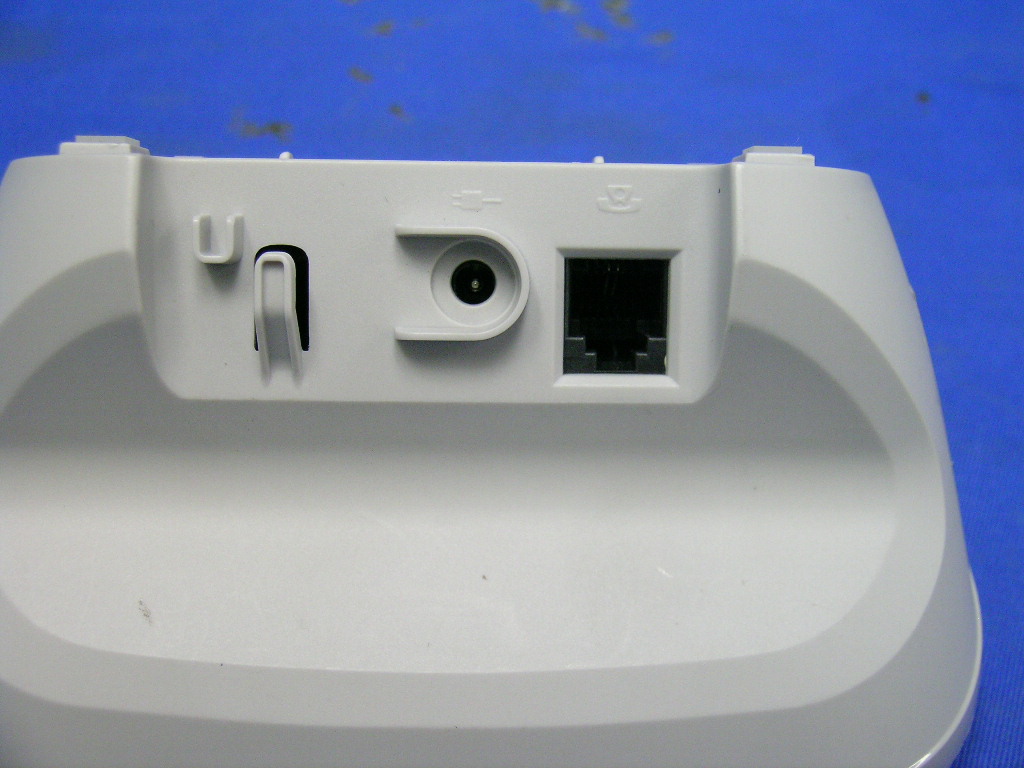

INTERTEK TESTING SERVICES External Photos – Model: D704 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 1 of 6 INTERTEK TESTING SERVICES External Photos – Model: D704 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 2 of 6 INTERTEK TESTING SERVICES External Photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 3 of 6 INTERTEK TESTING SERVICES External Photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 4 of 6 INTERTEK TESTING SERVICES External Photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 5 of 6 INTERTEK TESTING SERVICES External Photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 external photos - 6 of 6

D704 BS BTM Model:D704 SN: 53704000001 14mm 28mm 39.5mm 19.5mm 36mm 20mm D714 BS BTM Model:D714 SN: 53714000001 28mm 14mm 36mm 18mm 19.5mm 39.5mm Model:D724 SN: 53724000001 28mm 14mm 36mm 20mm 39.5mm 19.5mm D724 BS BTM 19mm 23mm Handset rear view Model: D704 FCC ID: EW780-8149-00 IC: 1135B-80814900 Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 Clarity ® Clarity ®

INTERTEK TESTING SERVICES Internal photos – Model: D704 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 1 of 16 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D704 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 2 of 16 Base Unit Main PCB solder side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 3 of 16 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 4 of 16 Base Unit Main PCB solder side Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 5 of 16 Base Unit DAM rear side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 6 of 16 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 7 of 16 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 8 of 16 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 9 of 16 Base Unit Keypad front side Base Unit Keypad rear side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 10 of 16 Base Unit Keypad rear side (View 2) Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: D724 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 11 of 16 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 12 of 16 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 13 of 16 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 14 of 16 Handset Equalizer Key front side Handset Equalizer Key rear side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 15 of 16 Handset Volume Key front side Handset Volume Key rear side INTERTEK TESTING SERVICES Internal photos – Model: D714 FCC ID: EW780-8149-00 IC: 1135B-80814900 internal photos - 16 of 16 Handset Oscillator PCB comp side

Report No.: TS10120069-EME Page 1 of 73 Specific Absorption Rate (SAR) Test Report for VTech Telecommunications Ltd on the 1.9GHz DECT 6.0 Cordless Phone Model Number: D714 Test Report: TS10120069-EME Date of Report: Dec. 13, 2010 Date of test: Dec. 08, 2010 Review Date: Dec. 13, 2010 Total No of Pages Contained in this Report: 72 The test report was prepared by: Sign on File Grace Lee / Assistant These measurements were taken by: Sign on File Fred Yu / Engineer The test report was reviewed by: Name Rex Liao Title Engineer All services undertaken are subject to the following general policy: Reports are submitted for exclusive use of the client to whom they are addressed. Their significance is subject to the adequacy and representative character of the samples and to the comprehensiveness of the tests, examinations or surveys made. This report shall not be reproduced except in full, without written consent of Intertek Testing Services, Taiwan Ltd. 0597 Report No.: TS10120069-EME Page 2 of 73 Table of Contents 1.0 General information .................................................................................................... 3 2.0 SAR Evaluation........................................................................................................... 7 3.0 Test Instruments and Tissue Liquids ........................................................................ 19 4.0 Measurement Uncertainty ........................................................................................ 24 5.0 Test Results...............................................................................................................26 6.0 E-Field Probe and 1900 Dipole Antenna Calibration ............................................... 27 7.0 WARNING LABEL INFORMATION - USA ............................................................... 27 8.0 REFERENCES ......................................................................................................... 27 9.0 DOCUMENT HISTORY ............................................................................................ 28 APPENDIX A - SAR Evaluation Data ............................................................................. 29 APPENDIX B - Photographs .......................................................................................... 40 APPENDIX C - E-Field Probe and 1900MHz Dipole Antenna Calibration Data............ 45 Report No.: TS10120069-EME Page 3 of 73 1.0 General information The D714 handset supplied for Specific Absorption Rate (SAR) testing is a 1.9GHz DECT 6.0 Cordless Phone. The device was tested at the facility of Intertek Testing Services in Hsinchu, Taiwan. The maximum output power declared by VTech Telecommunications Ltd. EUT model # D714 was evaluated in accordance with the requirements for compliance testing defined in FCC OET Bulletin 65 Supplement C (Edition 01-01), RSS-102 and meet the SAR requirement. For the evaluation, the dosimetric assessment system INDEXSAR SARA2 was used. The phantom employed was the head Specific Anthropomorphic Mannequin (SAM) phantom and the box phantom of 2mm thick in one wall. The total uncertainty for the evaluation of the spatial peak SAR values averaged over a cube of 1g tissue mass had been assessed for this system to be ±20.6%. SAR testing was performed at both the left and right ear of the phantom at the two-handset positions stated in the specification. 2mm thick box phantom for body configuration was also evaluated. Testing was performed at the middle frequency of 1900 band with a rechargeable battery and in Normal mode of operation. Any accessories supplied with D714 have also been tested. In summary, the maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Phantom Worst Case Position SAR 1g , W/kg Head Specific Anthropomorphic Mannequin (SAM) phantom EUT Right Cheek to the phantom 0.017 W/kg 2mm thick box phantom wall Separating the Box Phantom belt clip in rear position from EUT 0.022 W/kg In conclusion, the tested Sample device was found to be in compliance with the requirements defined in OET Bulletin 65 Supplement C (Edition 01-01) and RSS-102 for head and body configurations. Report No.: TS10120069-EME Page 4 of 73 1.1 Client Information The 1.9GHz DECT 6.0 Cordless Phone has been tested at the request of: Applicant: Vtech Telecommunications Ltd 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong 1.2 Equipment under test (EUT) Product Descriptions: Equipment 1.9GHz DECT 6.0 Cordless Phone Trade Name Clarity Model No. D714 FCC ID EW780-8149-00 S/N No. Not Labeled Category Portable RF Exposure Uncontrolled Environment Frequency Band 1921.536 -1928.448 MHz System / Power Level DECT EUT Antenna Description Type Integral ConfigurationFixed Dimensions 36 mm length Gain 0dBi Location Embedded Use of product: 1.9GHz DECT 6.0 Cordless Phone Manufacturer: Dongguan VTech Satellite Equipment Co. Ltd. Production is planned: [X] Yes, [ ] No EUT receive date: Dec. 07, 2010 EUT received condition: Good operating condition prototype EUT status: Normal mode Test start date: Dec. 08, 2010 Test end date: Dec. 08, 2010 Report No.: TS10120069-EME Page 5 of 73 1.3 Modifications required for compliance The EUT has no modifications during test. 1.4 System test configuration 1.4.1 System block diagram & Support equipment Support Equipment Item # Equipment Model No. S/N 1 Base unit D714 N/A 2 Earphone N/A N/A Report No.: TS10120069-EME Page 6 of 73 1.4.2 Test Position See the photographs as section 2.2 1.4.3 Test Condition During tests the worst-case data (max RF coupling) was determined with following conditions: Usage Operated in normal mode with Base unit which provided by client Distance between antenna axis at the joint and the liquid surface: EUT is touching and tilting the Head Phantom in right and left position, separating the Body Phantom belt clip in rear from EUT Simulating human Head / Body Head and Body EUT Battery Fully-charge…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8149-00 bw - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8149-00 bw - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8149-00 bw - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report no.: HK10120047-1 Model: D704 Charging Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 19:02:33 Report no.: HK10120047-1 Model: D704 Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average447 kHz 35.83 L1 -11.09 1 Quasi Peak 447 kHz 41.60 N -15.32 1 Quasi Peak 3.849 MHz 33.28 N -22.71 2 CISPR Average4.8525 MHz 27.79 N -18.20 1 Quasi Peak 5.6535 MHz 41.25 N -18.74 1 Quasi Peak 7.5075 MHz 42.37 N -17.62 2 CISPR Average7.8495 MHz 34.99 N -15.00 1 Quasi Peak 8.106 MHz 38.99 N -21.00 2 CISPR Average8.844 MHz 32.37 L1 -17.62 Date: 6.DEC.2010 19:02:24 Report no.: HK10120047-1 Model: D704 Ringing Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 18:41:54 Report no.: HK10120047-1 Model: D704 Ringing Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 181.5 kHz 39.69 N -24.72 1 Quasi Peak 249 kHz 35.21 N -26.58 1 Quasi Peak 316.5 kHz 35.59 N -24.20 2 CISPR Average451.5 kHz 33.41 N -13.43 1 Quasi Peak 451.5 kHz 41.38 N -15.46 1 Quasi Peak 627 kHz 33.33 N -22.67 1 Quasi Peak 897 kHz 29.99 N -26.01 1 Quasi Peak 2.076 MHz 26.64 N -29.35 1 Quasi Peak 2.778 MHz 30.07 N -25.92 1 Quasi Peak 4.074 MHz 36.08 N -19.91 2 CISPR Average4.6995 MHz 27.93 N -18.07 1 Quasi Peak 4.7985 MHz 39.12 N -16.87 1 Quasi Peak 7.0665 MHz 44.60 N -15.39 2 CISPR Average7.413 MHz 34.30 N -15.69 1 Quasi Peak 8.0475 MHz 43.21 N -16.78 2 CISPR Average8.052 MHz 33.26 N -16.73 Date: 6.DEC.2010 18:41:46 Report no.: HK10120047-1 Model: D714 Answer Machine Recording AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 20:57:57 Report no.: HK10120047-1 Model: D714 Answer Machine Recording AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 397.5 kHz 47.29 N -10.60 2 CISPR Average402 kHz 42.84 L1 -4.97 2 CISPR Average406.5 kHz 35.57 L1 -12.15 1 Quasi Peak 406.5 kHz 45.54 N -12.17 2 CISPR Average771 kHz 27.74 L1 -18.25 2 CISPR Average802.5 kHz 29.60 L1 -16.39 1 Quasi Peak 838.5 kHz 36.71 N -19.28 1 Quasi Peak 1.0995 MHz 33.47 N -22.52 2 CISPR Average1.1175 MHz 24.93 L1 -21.06 1 Quasi Peak 1.7295 MHz 33.29 N -22.70 2 CISPR Average2.112 MHz 25.58 L1 -20.41 2 CISPR Average2.4045 MHz 28.05 L1 -17.94 1 Quasi Peak 2.4675 MHz 34.84 N -21.15 2 CISPR Average3.741 MHz 27.13 N -18.86 1 Quasi Peak 4.0875 MHz 41.34 N -14.66 2 CISPR Average4.8165 MHz 31.10 N -14.89 1 Quasi Peak 4.965 MHz 43.44 N -12.55 2 CISPR Average6.027 MHz 34.09 N -15.90 1 Quasi Peak 6.306 MHz 41.79 N -18.20 2 CISPR Average7.9935 MHz 31.34 N -18.65 Date: 6.DEC.2010 20:57:47 Report no.: HK10120047-1 Model: D714 Charging Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 19:40:23 Report no.: HK10120047-1 Model: D714 Charging Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 159 kHz 39.60 N -25.91 1 Quasi Peak 402 kHz 46.36 N -11.44 2 CISPR Average402 kHz 36.22 N -11.58 2 CISPR Average406.5 kHz 40.53 L1 -7.18 1 Quasi Peak 411 kHz 46.01 N -11.61 2 CISPR Average798 kHz 27.14 L1 -18.85 1 Quasi Peak 802.5 kHz 32.60 N -23.39 1 Quasi Peak 1.509 MHz 32.31 N -23.68 2 CISPR Average2.094 MHz 25.07 N -20.92 1 Quasi Peak 2.112 MHz 35.83 N -20.16 1 Quasi Peak 2.742 MHz 37.74 N -18.25 2 CISPR Average2.778 MHz 27.98 N -18.01 1 Quasi Peak 3.903 MHz 36.96 N -19.03 2 CISPR Average4.0065 MHz 28.77 N -17.22 2 CISPR Average4.623 MHz 28.40 N -17.59 1 Quasi Peak 4.8165 MHz 40.86 N -15.13 1 Quasi Peak 6.3825 MHz 43.25 N -16.74 2 CISPR Average7.5615 MHz 32.69 N -17.30 1 Quasi Peak 7.9935 MHz 36.37 N -23.62 2 CISPR Average8.8125 MHz 30.04 L1 -19.96 Date: 6.DEC.2010 19:40:12 Report no.: HK10120047-1 Model: D714 Ringing Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 19:52:37 Report no.: HK10120047-1 Model: D714 Ringing Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average397.5 kHz 33.36 L1 -14.54 1 Quasi Peak 402 kHz 41.29 N -16.51 2 CISPR Average411 kHz 37.54 N -10.08 1 Quasi Peak 411 kHz 43.91 N -13.71 1 Quasi Peak 771 kHz 30.62 L1 -25.37 1 Quasi Peak 793.5 kHz 33.09 N -22.90 1 Quasi Peak 1.518 MHz 30.20 N -25.79 1 Quasi Peak 2.0895 MHz 32.84 N -23.15 1 Quasi Peak 2.373 MHz 31.77 N -24.22 2 CISPR Average3.39 MHz 24.89 N -21.10 1 Quasi Peak 3.651 MHz 33.49 L1 -22.51 2 CISPR Average4.6905 MHz 28.84 N -17.15 1 Quasi Peak 4.785 MHz 38.91 N -17.08 1 Quasi Peak 5.91 MHz 43.18 L1 -16.81 2 CISPR Average6.018 MHz 32.16 N -17.83 1 Quasi Peak 9.1545 MHz 34.48 L1 -25.51 Date: 6.DEC.2010 19:52:27 Report no.: HK10120047-1 Model: D714 Talk Mode AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.DEC.2010 19:57:52 Report no.: HK10120047-1 Model: D714 Talk Mode AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Res…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8149-00 inband - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8149-00 inband - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8149-00 inband - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

VTech Telecommunications Ltd 10 Mar, 2011 To whom it may concern, Label Location Justification FCC ID: EW780-8149-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8149-00 IC: 1135B-80814900 peaktp - 1 of 5 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8149-00 IC: 1135B-80814900 peaktp - 2 of 5 A0 Base unit, Highest channel, Traffic carrier Base unit, Lowest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8149-00 IC: 1135B-80814900 peaktp - 3 of 5 A0 Base unit, Middle channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8149-00 IC: 1135B-80814900 peaktp - 4 of 5 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8149-00 IC: 1135B-80814900 peaktp - 5 of 5 A0 Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8149-00 psd - 1 of 3 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8149-00 psd - 2 of 3 A0 Base unit, Lowest channel, Dummy carrier Base unit, Highest channel, Dummy carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8149-00 psd - 3 of 3 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15 Certification RSS-213 Issue 2 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-8149-00 Model: D704, D714, D724, D704HS IC: 1135B-80814900 Model: D704, D714, D724, D704HS Test Report Number: HK10120047-1 Issue Date: March 29, 2011 MN/ cl INTERTEK TESTING SERVICES Tes…
