EW780-8180-01AAudio Baby Monitor - Parent Unit

Install the parent unit batteryThe parent unit runs on rechargeable battery or AC power. To continuously monitor your baby, make sure you use both battery and AC power at the same time. With the battery alone, the parent unit can cordlessly run for a short time only. NOTESNOTE • Use only the battery supplied with this product.• If the parent unit will not be used for a long ti me, disconnect and remove the battery to prevent po ssible leakage. Replace the battery To replace the battery, unplug the battery connector from the socket, and then pull the battery out of the battery compartment. Follow the steps above to install the battery. Connect the baby monitor NOTESNOTE • Use only the power adapters supplied with this product.• Make sure the baby monitor is not connected to an electric outlet that is cont rolled by a switch. • The power adapters’ prongs are not designed to hol d the weight of your baby monitor. Make sure you connect the adapters to wall outlets that are in vertical or floor mount position. Do not connect them to undermount and ceiling outlets. Otherwise, y our baby monitor would fall out of the outlets. • Make sure the parent unit, the baby unit and the power adapter cords are out of r each of children. THI S SI DE UP / CE CÔTÉ VERS LE HAU T THIS SIDE UP TH I S SI DE UP THIS SIDE UP Positioning the baby monitor Caution • Keep the baby units out of the reach of your baby. Never place or mount the baby units inside the baby’s crib or playpen. 1. Place the baby units more than 3 feet (1 meter) away from your baby. 1 set for DM221; 2 sets for DM221-2 User’s manual DM221 DM221-2 Digital Audio Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Congratulations on purchasing your new VTech product. Before using this product, please read Important safety instructions . This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech product. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature-rich VTech product.For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com . What’s in the box 1 Connect and charge the battery Charge the parent unit battery When you have connected the parent unit and installed its battery for the first tim e or after power outage, the parent unit powers on automatically. The battery icon ind icates the battery status (see the following table). NONO Notes • The parent unit battery is fully charged after 11 hours of continuous charging.• It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging. • The standby time varies depending on the sensitiv ity level you set, your actual use and the age of t he battery. Battery indicators Battery status Action The battery icon is off. No battery is installed but operates using AC power. Install the parent unit battery. Charge without interruption (at least 30 minutes). The screen displays LOW BATTERY and . The light flashes. The battery has very little charge and may be used for only a short time. Charge without interruption (about 30 minutes). The battery icon becomes solid . The battery is fully charged. To keep the battery charged, connect it to AC power when not in use. Test your baby monitorYou may test the baby monitor before initial use, and at regular times thereafter. 1. Make sure your baby unit and parent unit are on. 2. Speak towards the microphone of the baby unit. You will hear the sound at the parent unit, and see the visual sound indicators light up. Caution • For hearing protection, make sure the parent unit is more than 3 feet (1 meter) away from the baby unit. If you hear any high-pitched noise, move the parent unit further until the noise s tops. You can also press VOLUME on the parent unit to lower or mute the noise. Note • This baby monitor is intended as an aid. It is not a substitute for proper adult su pervision, and should not be used as such. • When the parent unit displays NOT LINKED and flashes, move the parent unit closer to the baby unit (observe the minimum distance of 3 feet/ 1 meter). You can also check if the baby m onitor is connected to a live power socket and switched on. Tip • Increase the speaker volume of the parent unit if you cannot hear the sounds tr ansmitted from the baby unit. 2 Before use (cont’d) Power on or off the baby unit• Press to power on the baby unit. The power light turns on . • Press and hold to power off the baby unit. The power light turns off. Power on or off the parent unit• Press to power on the parent unit. The screen turns on. • Press and hold again to power off the parent unit. The screen turns off. Note • The parent unit powers on automatically once it is connected to power socket or battery installed. The baby unit also powers on automatically once connected to power socket. Adjust the speaker volume for baby unit • Press VOLUME on the baby unit at any time. Note • The speaker of baby unit cannot be muted. Adjust the speaker volume for parent unit You can adjust the speaker volume from VOLUME 1 to VOLUME 5 , or turn it off. The speaker volume is preset to VOLUME 3 . • Press VOLUME when the parent unit is not in use. When the speaker volume is set to VOLUME OFF , the screen displays . Adjust the sound sensitivity of the baby unit You can choose to hear sounds from the baby unit all the time, or to hear sounds that exceed a certain level. You can use the parent unit to adjust the microphone sensitivity of your baby unit. The higher the sensitivity level, the more sensitive the baby unit is in detecting sounds for transmitting to the parent unit. The VOX sensitivity level is preset to HIGHEST . VOX Sensitivity level HIGHEST HIGH MEDIUM LOW LOWEST Description The parent unit speaker is constantly on, and you will hear all sounds (including background noises) fr…

Text truncated - open the document above for the full version.

Form: RFT-AMER-TCB-OP-19n Revision: 1 Page 1 of 1 Date: 1/25/2023 Attention: Application Examiner Re: Covered List, located at https://www.fcc.gov/supplychain/coveredlist and 47 CFR parts §2.903 and §2.911(d)(5)(ii) of the FCC rules Applicant: VTech Telecommunications Ltd. FCC ID: EW780-8180-01A To whom it may concern, VTech Telecommunications Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to 47 CFR part §2.903 of the FCC rules and does not originate directly or indirectly from any company named on the covered list located in the link above or any subsidiary or affiliate thereof. Applicant further certifies that, as of the date of the filing of the application, the Applicant is not identified on the Covered List as an entity producing “covered” equipment and is not a subsidiary or affiliate of any such entity pursuant to 47 CFR part §1.50002 and required by 47 CFR part §2.911(d)(5)(ii) of the FCC rules. I HEREBY CERTIFY THAT I am authorized to make the representations above on behalf of the Applicant and agree to immediately notify Intertek if there is any change in the status identified above. ______________________________ [Signature of authorized Proprietor, Partner or Authorized Officer] Mr. Michael Tsui Approbation Supervisor VTech Telecommunications Ltd. 17 February 2023

Appendix B1 Letter of Agency for FCC Certification Aug 31, 2022 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Tim ST Lee/ Kenneth Wong/ Mrs. Jess Tang) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Aug 31, 2022 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8180-01A Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

Baby unit Parent unit Use only Supplied Adapter DM221-2 Label DM221 Label Baby unit Parent unit Use only Supplied Adapter S/N label92-038167-010-100Size: 28*26 mmMaterials :50# UL Approved PET ETL label 92-038171-010-100Size: 8.6*12 mmMaterials :50# UL Approved PET ETL label 92-038171-010-100Size: 8.6*12 mmMaterials :50# UL Approved PET SN Info. Printed by VTT barcode room S/N label92-038168-010-100Size: 29.5*10 mmMaterials :50# UL Approved PETSN Info. Printed by VTT barcode room S/N label92-038169-010-100Size: 28*26 mmMaterials :50# UL Approved PET SN Info. Printed by VTT barcode room S/N: XXXXXXXXXXX Model: DM221 PU S/N label92-026170-010-100Size: 29.5*10 mmMaterials :50# UL Approved PET SN Info. Printed by VTT barcode room S/N: XXXXXXXXXXX Model: DM221-2 PU MANUFACTURED IN CHINA VTech Customer Service1-800-595-9511FCC ID: EW780-8180-00A FCC ID: EW780-8180-01A FCC ID: EW780-8180-01A HVIN: 35-202050BU HVIN: 35-202049PU HVIN: 35-202049PU IC: 1135B-80818000A IC: 1135B-80818001A IC: 1135B-80818001A S/N: XXXXXXXXXXX Model: DM221 BU MANUFACTURED IN CHINA VTech Customer Service1-800-595-9511FCC ID: EW780-8180-00AHVIN: 35-202050BU IC: 1135B-80818000A S/N: XXXXXXXXXXX Model: DM221-2 BU

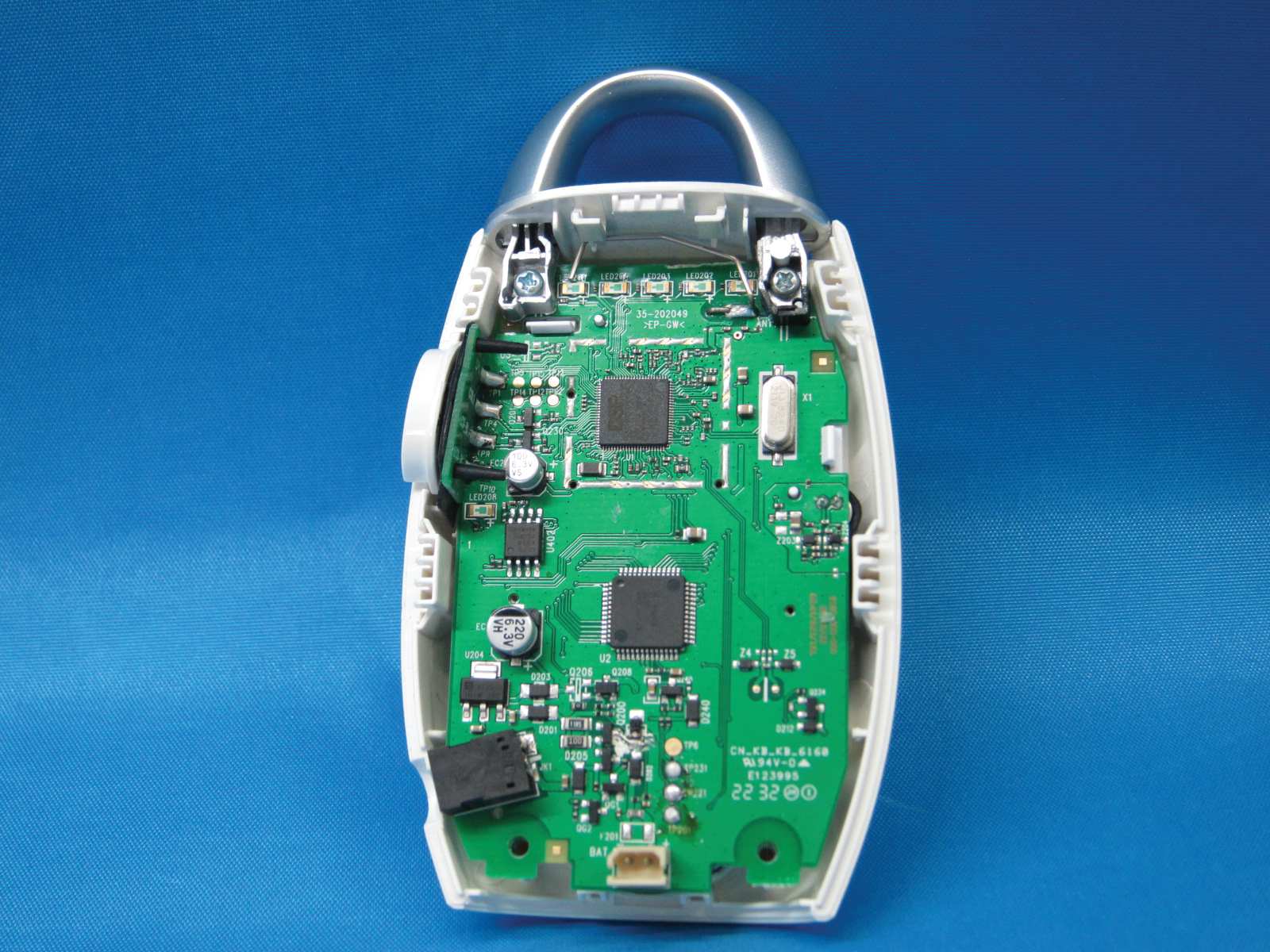

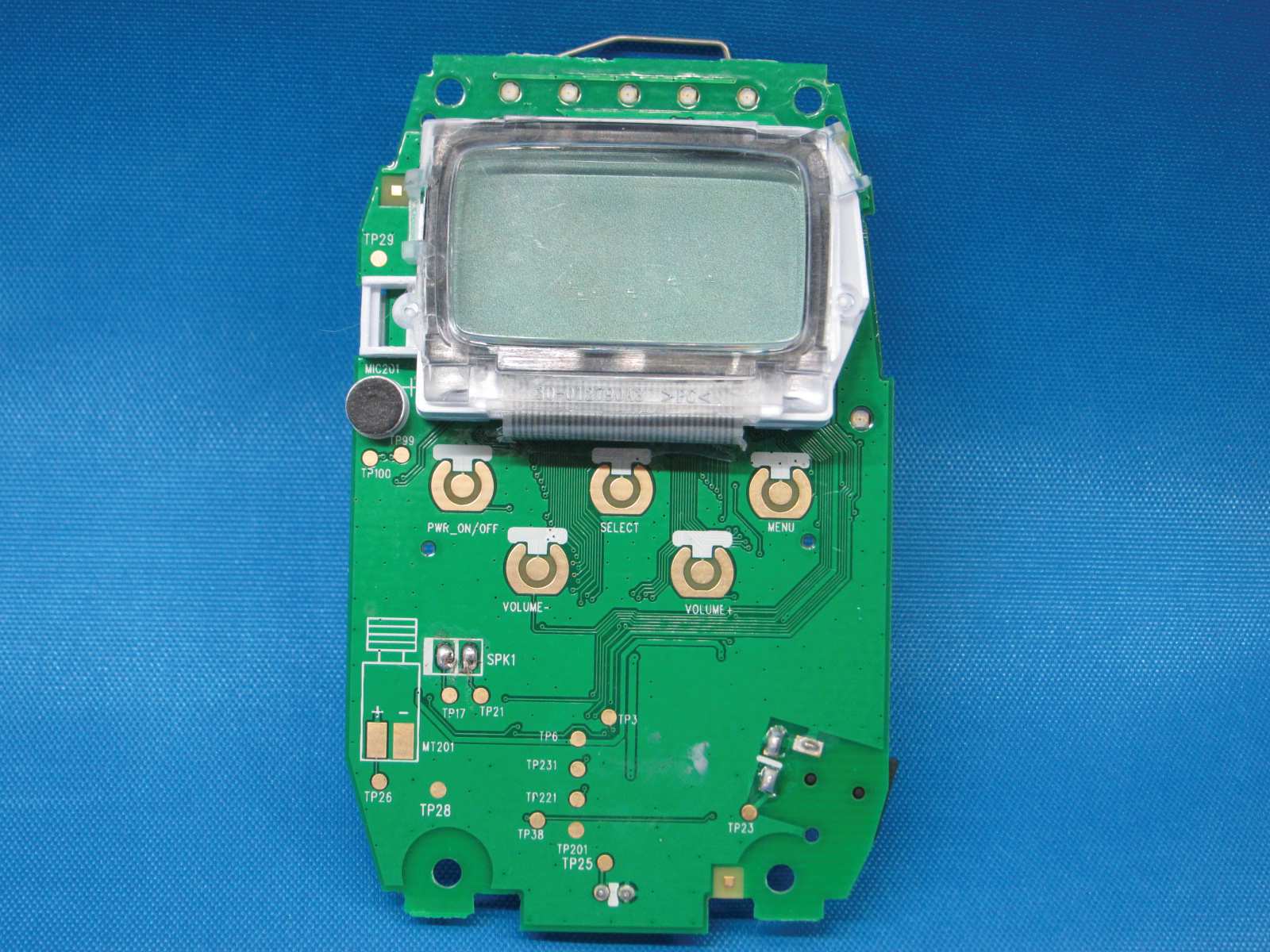

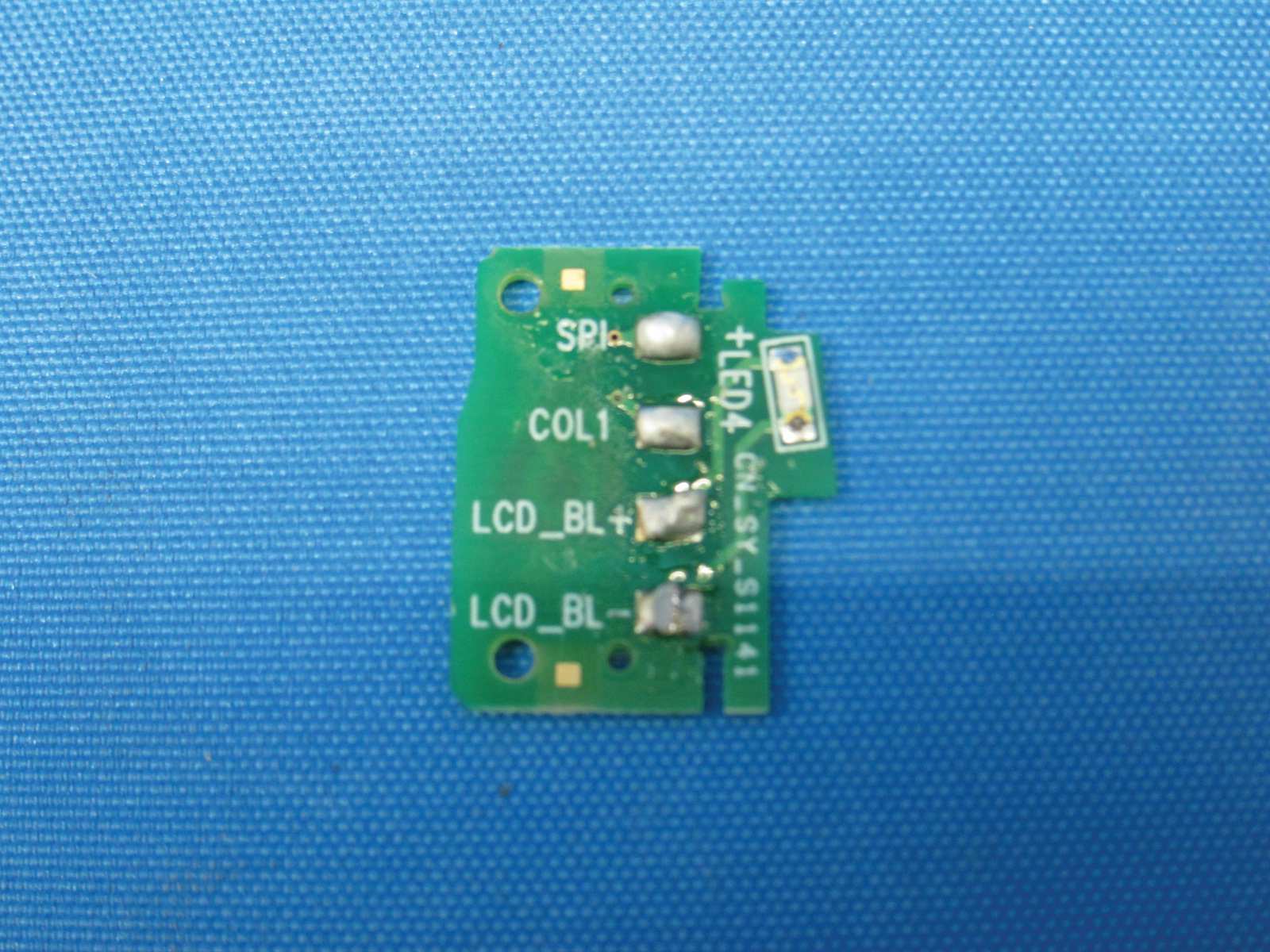

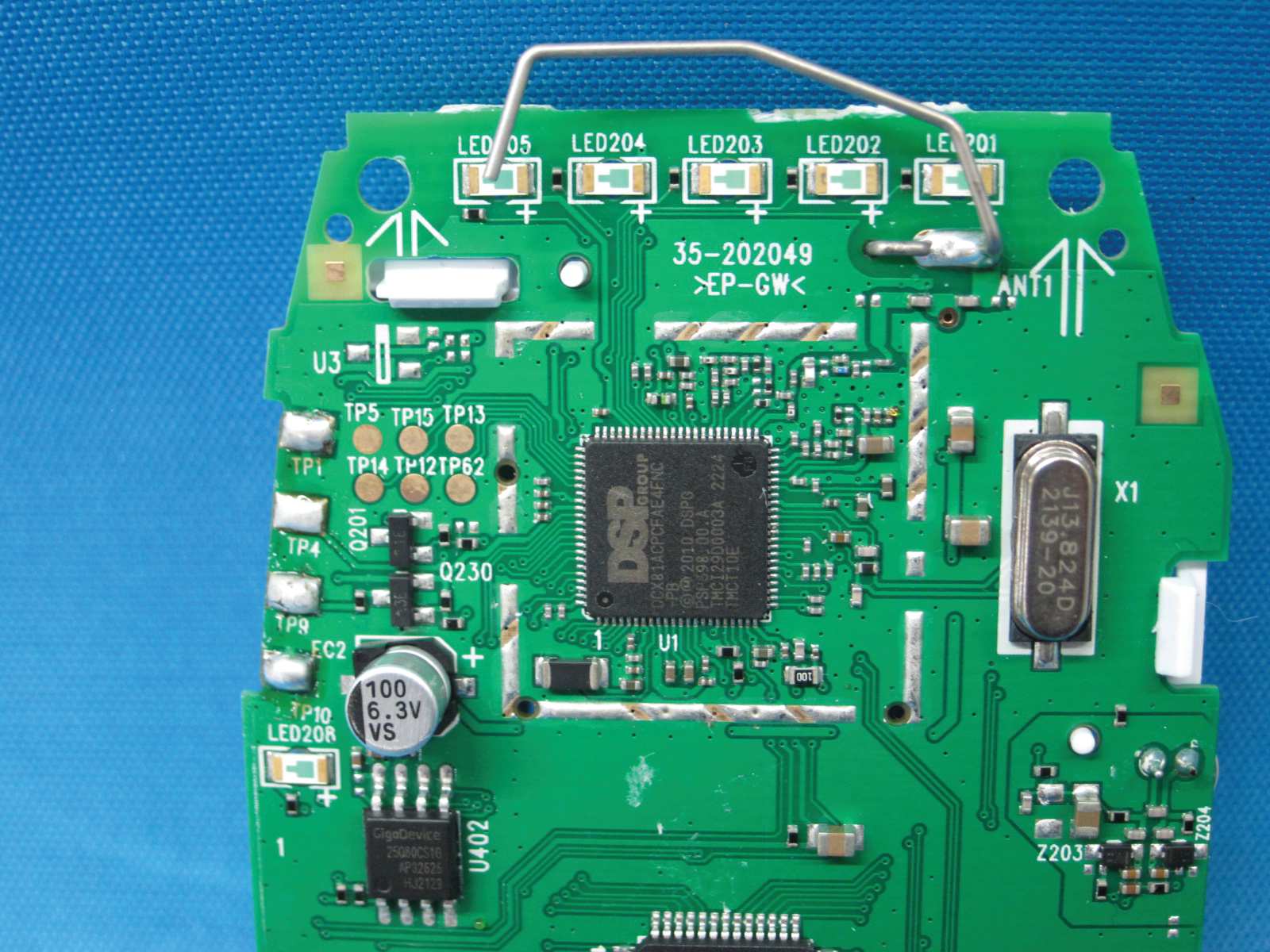

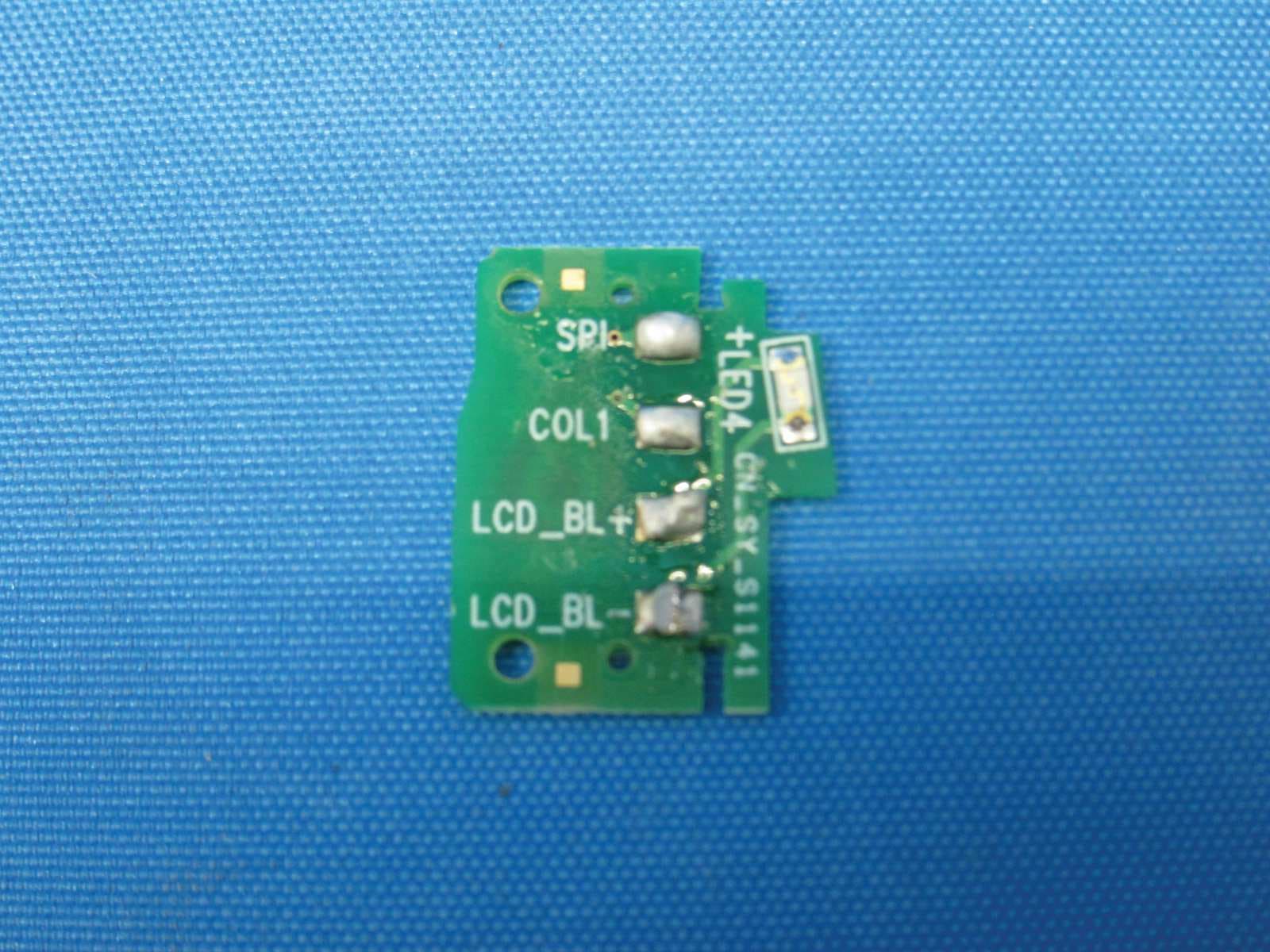

INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A INTERTEK TESTING SERVICES Internal Photos FCC ID: EW780-8180-01A IC: 1135B-80818001A

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 37 SPECIFIC ABSORPTION RATE (SAR) EVALUATION REPORT Report No.: 22081027HKG-001 For Audio Baby Monitor - Parent Unit Model: DM221 PU; DM221-2 PU Brand Name: VTech FCC ID: EW780-8180-01A Prepared for VTech Telecommunications Ltd. 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. PREPARED AND CHECKED BY: APPROVED BY: Signed On File Lee King Fai, Thomas Assistant Engineer Date: November 07, 2022 Lee Shui Tim, Tim Assistant Manager Date: November 07, 2022 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22081027HKG-001 Page 2 of 37 TABLE OF CONTENTS 1 Test Result Summary ............................................................................................... 3 2 General Information ................................................................................................ 4 3 SAR Measurement System Description .................................................................... 7 4 Tissue Verificaiton .................................................................................................. 15 5 SAR Measurement System Verification .................................................................. 18 6 SAR Evaluation ....................................................................................................... 20 7 Test Equipment List ................................................................................................ 31 8 Measurement Uncertainty ..................................................................................... 32 9 E-Field Probe and Dipole Antenna Calibration ........................................................ 33 APPENDIX A – System Check Data ............................................................................. 34 APPENDIX B – SAR Evaluation Data ............................................................................ 35 APPENDIX C – E-Field Probe and Dipole Antenna Calibration ..................................... 36 Appendix D – SAR System Validation ......................................................................... 37 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22081027HKG-001 Page 3 of 37 1. TEST RESULT SUMMARY Applicant: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Brand Name: VTech Description of EUT: Audio Baby Monitor - Parent Unit Model: DM221 PU; DM221-2 PU FCC ID: EW780-8180-01A Serial Number: N/A Test Device: Production Unit Exposure Category: General Population/Uncontrolled Exposure Date of Test: October 20, 2022 Test Location: Workshop No. 3, G/F., World-Wide Industrial Centre, 43-47 Shan Mei Street, Fo Tan, Sha Tin, N.T., Hong Kong SAR, China. Environmental Conditions: Temperature: +18 to 25°C Humidity 25 to 75% Test Specification: ANSI/IEEE C95.1 IEEE Std 1528: 2013 FCC KDB Publication 447498 D01 v06 FCC KDB Publication 865664 D01 v01r04 FCC KDB Publication 865664 D02 v01r02 The maximum spatial peak SAR value for the sample device averaged over 1g was found to be: Band Operating Mode TX Frequency (MHz) Highest Reported SAR In-front-of mouth 1.9GHz DECT Voice 1921.536 – 1928.448 0.018 W/kg This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for uncontrolled environment / general population exposure limits specified in ANSI/IEEE C95.1. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22081027HKG-001 Page 4 of 37 2. GENERAL INFORMATION 2.1. Description of Equipment Under Test (EUT) Manufacturer: VTech (Dongguan) Telecommunications Limited Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. Device Dimension (L x W): 117 (mm) x 65 (mm) Device Thickness: 42 (mm) Antenna Gain: 0 dBi Operating Configuration(s) / Mode: In-front-of mouth (Voice) Body (Voice) TX Frequency (MHz): 1921 - 1928MHz Duty Cycle*: 1/24 H/W Version: N/A S/W Version: N/A Battery Type: 2.4VDC (1 x 2.4V 750mAh Ni‐MH Rechargeable Battery Pack) Body-worn Accessories: Belt-clip Remark: The Model: DM221-2 PU is the same as the Model: DM221 PU in hardware aspect. The models are difference in color only as declared by client. Model Number Remarks DM221 PU 1 Parent Unit DM221-2 PU 2 Parent Units *Note: DECT has a TDD/TDMA frame structure with a complete frame of 10ms duration with 24 time slots. And under these 24 time slots, the first 12 slots are allocated for the transmission from base station to handsets, and the other 12 slots are for the transmission from handsets to base station. During a call, the handset of this product will use one of 24 time slots to transmit unde…

Text truncated - open the document above for the full version.

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 50 Report Number: 22081026HKG-002 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Parent Unit) FCC ID: EW780-8180-01A IC: 1135B-80818001A Prepared and Checked by: Approved by: Signed On File Lee King Fai, Thomas Assistant Engineer Tang Kwan Mo, Jess Lead Engineer Date: February 06, 2023 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22081026HKG-002 Page 2 of 50 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Manufacturer Name: VTech (Dongguan) Telecommunications Limited Manufacturer Address: VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. FCC Specification Standard: FCC Part 15, October 1, 2020 Edition FCC ID: EW780-8180-01A FCC Model(s): DM221 PU, DM221-2 PU, DM221-ab PU IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 5 Amendment 2, February 2021 IC: 1135B-80818001A HVIN: 35-202049PU PMN: DM221 PU, DM221-2 PU VTech Model(s): DM221 PU, DM221-2 PU Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Audio Baby Monitor - Parent Unit Serial Number: 2# FCC Part 15 Sample Receipt Date: September 28, 2022 Date of Test: October 12, 2022 to October 28, 2022 Report Date: February 06, 2023 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-213 Issue 3 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 22081026HKG-002 Page 3 of 50 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 5 1.1 Summary of Test Results ................................................................................................ 5 1.2 Statement of Compliance .............................................................................................. 6 2.0 GENERAL DESCRIPTION ................................................................................................ 7 2.1 Product Description ....................................................................................................... 7 2.2 Technical Description ..................................................................................................... 7 2.3 Test Methodology .......................................................................................................... 7 2.4 Test Facility ..................................................................................................................... 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification .................................................................................................................... 8 3.2 Radiated Emission Test Setup ........................................................................................ 9 3.3 AC Line Conducted Emission Test Setup ...................................................................... 10 3.4 Conducted Emission Test Configuration ...................................................................... 11 3.5 Conducted Monitoring and Operational Test Configuration ...................................... 11 3.6 EUT Exercising Software ............................................................................................... 11 3.7 Details of EUT and Description of Accessories ............................................................ 12 3.8 Measurement Uncertainty ........................................................................................... 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement .................................................................................................. 13 4.2 Digital Modulation Techniques .................................................................................... 13 4.3 Emission Bandwidth ..................................................................................................... 14 4.4 Directional Gain of the Antenna .................................................................................... 16 4.5 Peak Transmit Power ................................................................................................... 17 4.6 Power Spectral Dens…

Text truncated - open the document above for the full version.

Model: DM221 PUAntenna Description: This monopole antenna is optimized and used in the Parent unit in the baby monitor models. This antenna is directly soldered tothe ANT RF output in the main PCB.

VTech Telecommunications Ltd Feb 7, 2023 To whom it may concern, Declarations FCC ID: EW780-8180-01A IC: 1135B-80818001A I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the parent unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Parent Unit 1 Switch-off companion device A 2 On hook by companion device NA 3 Switch-off device C 4 On hook on device side NA 5 Remove power from device C 6 Remove power from companion device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of parent unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-8180-01A IC: 1135B-80818001A Radiated Emission Front View Rear View The EUT is placed at the center of turntable INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-8180-01A IC: 1135B-80818001A AC Conducted Emission Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-8180-01A IC: 1135B-80818001A AC Conducted Emission Side View 2

TEST REPORT 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek Report No.: 22081027HKG-001, 22081027HKG-002 The Worst Case Configuration Photographs Figure 1 – Front Figure 2 – Front
