EW780-8213-011.9GHz Digital Modulation Cordless Phone

User’s manual TL96271/TL96371/TL96471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology TheBluetooth® word mark and logos are owned by Bluetooth SIG, Inc. and any use of such marks by Advanced American Telephones and its parent, VTech Holdings Limited, is under license. VTech Holdings Limited is a member of Bluetooth SIG, Inc. Other trademarks and trade names are those of their respective owners. © 2011 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Congratulations on purchasing your new AT&T product. Before using this AT&T product, please read the Important safety information on pages 152-153 of this user’s manual. Please thoroughly read the user’s manual for all the feature operations and troubleshooting information you need to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Model #: TL96271 (two handsets) TL96371 (three handsets) TL96471 (four handsets) Type: DECT 6.0 2 cordless telephone/ answering system with Bluetooth wireless technology Serial #: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. The ENERGY STAR R program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR R label indicating it meets the latest energy efficiency guidelines. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cordPower adapter for telephone base Cordless handset (2 for TL96271) (3 for TL96371) (4 for TL96471) Telephone base Charger for cordless handset with power adapter installed (1 for TL96271) (2 for TL96371) (3 for TL96471) Battery for cordless handsets (2 for TL96271) (3 for TL96371) (4 for TL96471) Battery compartment covers (2 for TL96271) (3 for TL96371) (4 for TL96471) User’s manual Quick start guide User’s manual TL96271/TL96371/TL96471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology Quick start guide TL96271/TL96371/TL96471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology BY 1021 BT183342/BT2833422.4V 400mAh Ni-MH User’s manual TL96271/TL96371/TL96471 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology Table of contents Getting started Quick reference guide - telephone base................................................................... 3 Quick reference guide - handset........ 4 Telephone base main menu.................. 7 Handset main menu.................................. 8 Installation...................................................10 Telephone base installation................11 Telephone base installation ..........11 Charger installation.................................12 Battery installation and charging.....13 Battery charging .......................................14 Installation options..................................15 Tabletop to wall mount installation .............................................15 Wall mount to tabletop installation .............................................16 Introducing Bluetooth............................17 Glossary of terms.....................................18 Bluetooth setup ........................................19 Add a cell phone ................................19 Add a headset......................................21 Auto connection..................................22 Device list and connection ............. 23 Review the active device list ........23 Connect/disconnect an active device .......................................................23 Remove a paired device..................24 Rename a paired device..................25 Replace an active device................26 To replace an active device:..........26 Bluetooth connection from idle mode.........................................................26 Download directory ...........................27 Interruption to directory download................................................29 Change PIN............................................30 Telephone settings Ringer volume ......................................31 Ringer tone............................................32 Set date and time...............................33 Settings....................................................34 LCD language .......................................34 Display alerts ........................................35 Missed call indicator .........................35 Voicemail indicator ............................36 No line .....................................................37 Download fail .......................................37 Use caller ID to automatically set date and time.......................................38 Rename handset .................................38 Key tone ..................................................39 Dial mode ...............................................39 Voice announce caller ID................40 Website....................................................40 Home area code..................................41 Cell area code......................................42 Telephone base settings.......................43 Ringer volume ......................................43 Ringer tone............................................44 LCD language ...........................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 12-Jan.-2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 12 Jan., 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8213-01 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

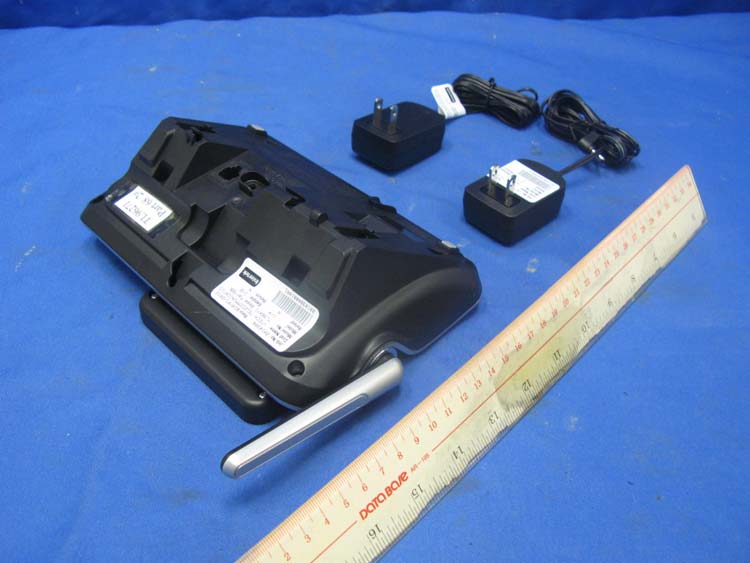

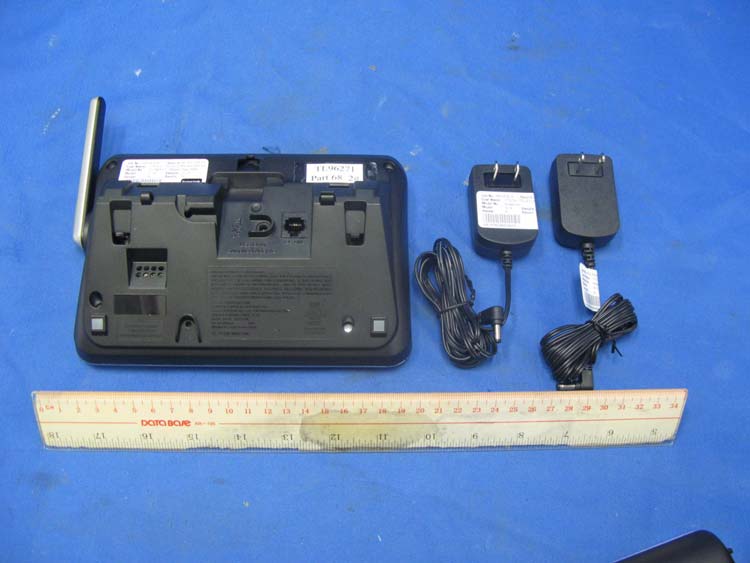

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8213-01 external photos - 1 of 2 HK12010393 Job Number HK12010393 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8213-01 external photos - 2 of 2 HK12010393 Job Number

$GYDQFHG$PHULFDQ7HOHSKRQHV 7+,6'(9,&(&203/,(6:,7+3$572)7+()&&58/(623(5$7,21,6 68%-(&7727+()2//2:,1*7:2&21',7,216 7+,6'(9,&(0$< 127 &$86( +$50)8/ ,17(5)(5(1&( $1'   7+,6 '(9,&( 0867 $&&(37 $1< ,17(5)(5(1&( 5(&(,9(' ,1&/8',1* ,17(5)(5(1&( 7+$70$<&$86(81'(6,5('23(5$7,2135,9$&<2)&20081,&$7,216 0$<127%((1685(':+(186,1*7+,63+21( )&&,'(: &203/,(6:,7+&)53$57 5(*,675$7,211286(::% 5,1*(5(48,9$/(1&(% 862&-$&.5-&: '&9P$+$& 0$18)$&785(',1&+,1$ 0RGHO7/;< 0RGHO7/ ,&% 8VH2QO\ 6XSSOLHG$GDSWHU 7H[WHQJUDYHGLQUDLVHGPP 7H[W5HFHVVHG PP+LJK*ORVV 6HULDO1R/DEHO VL]H[PP 7/%6 7/%6 7/%6 7/%6 7/%6 7/%6 7/%6 7/%6 0RGHO7/ 0RGHO7/ 0RGHO7/ 0RGHO7/ 0RGHO7/ 0RGHO7/ 0RGHO7/

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 1 of 8 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 2 of 8 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 3 of 8 Base Unit Main PCB solder side (View 2) Base Unit Main PCB solder side (View 3) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 4 of 8 Base Unit DECT antenna Base Unit Bluetooth antenna INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 5 of 8 Base Unit DECT RF Module comp side Base Unit DECT RF Module solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 6 of 8 Base Unit Keypad front side Base Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 7 of 8 Base Unit Bluetooth RF module comp side Base Unit Bluetooth RF module solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8213-01 internal photos - 8 of 8 Base Unit Handset Locator Key front side Base Unit Handset Locator Key rear side

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: HK12010393-2 Application for Original Grant of 47 CFR Part 15 Certification 1.9GHz Digital Modulation Cordless Phone with Caller ID,Speakerphone, Digital Answering Machine and Bluetooth - Base Unit Bluetooth Portion FCC ID: EW780-8213-01 Prepared and Checked by: Approved by: Signed on File Koo Wai Ip Nip Ming Fung, Melvin Senior Lead Engineer Senior Supervisor February 09, 2012 INTERTEK TESTING SERVICES Test Report Number: HK12010393-2 Page 1 of 32 FCC ID: EW780-8213-01 GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2010 Edition FCC ID: EW780-8213-01 FCC Model(s): TL96271, TL96371, TL96471, TL96XY1 Type of EUT: Transceiver Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID,Speakerphone, Digital Answering Machine and Bluetooth - Base Unit Bluetooth Portion Serial Number: N/A Sample Receipt Date: January 10, 2012 Date of Test: Jan 20 - Feb 03, 2012 Report Date: February 09, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: HK12010393-2 Page 2 of 32 FCC ID: EW780-8213-01 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 6 2.3 Test Facility............................................................................................................. 6 3.0 System Test Configuration...................................................................................... 8 3.1 Justification ............................................................................................................. 8 3.2 EUT Exercising Software......................................................................................... 9 3.3 Details of EUT and Description of Accessories...................................................... 10 3.4 Measurement Uncertainty ..................................................................................... 10 4.0 Test Results............................................................................................................ 12 4.1 Field Strength Calculation...................................................................................... 12 4.2 Radiated Emissions............................................................................................... 13 4.2.1 Radiated Emission Configuration Photograph ..................................................... 13 4.2.2 Radiated Emission Data ..................................................................................... 13 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 14 4.3 Radiated Emission on the Bandedge..................................................................... 23 4.4 AC Power Line Conducted Emission ..................................................................... 24 4.4.1 AC Power Line Conducted Emission Configuration Photograph.......................... 24 4.4.2 AC Power Line Conducted Emission Data .......................................................... 24 5.0 Equipment List...................................................................................................... 32 INTERTEK TESTING SERVICES Test Report Number: HK12010393-2 Page 3 of 32 FCC ID: EW780-8213-01 EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE INTERTEK TESTING SERVICES Test Report Number: HK12010393-2 Page 4 of 32 FCC ID: EW780-8213-01 1.0 Test Results Summary & Statement of Compliance 1.1 Summary of Test Results Test Items FCC Part 15 Section Results Details see section Antenna Requirement 15.203 Pass 2.1 Radiated Emission Radiated Emission on the Bandedge 15.249(a), 209, & 109 15.249(d) Pass Pass 4.2 4.3 Radiated Emission in Restricted Bands 15.205 Pass 4.2 AC Power Line Conducted Emission 15.207 & 15.107 Pass 4.4 Note: Pursuant to FCC Part 15 Section 15.215(c), the 20dB bandwidth of the emission was contained within the frequency band designated (mentioned as above) which the EUT …

Text truncated - open the document above for the full version.

Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Ringing AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 16:29:39 Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Ringing AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 168 kHz 37.68 L1 gnd -27.37 1 Quasi Peak 276 kHz 39.02 L1 gnd -21.91 1 Quasi Peak 370.5 kHz 42.37 L1 gnd -16.11 1 Quasi Peak 564 kHz 44.89 L1 gnd -11.10 1 Quasi Peak 622.5 kHz 43.14 L1 gnd -12.85 1 Quasi Peak 951 kHz 41.67 L1 gnd -14.32 2 CISPR Average1.248 MHz 23.98 L1 gnd -22.01 1 Quasi Peak 1.383 MHz 41.06 L1 gnd -14.93 1 Quasi Peak 1.527 MHz 38.60 N gnd -17.39 1 Quasi Peak 2.274 MHz 36.48 L1 gnd -19.52 1 Quasi Peak 3.5835 MHz 34.46 N gnd -21.53 2 CISPR Average4.992 MHz 22.39 N gnd -23.60 1 Quasi Peak 5.667 MHz 46.70 L1 gnd -13.30 1 Quasi Peak 5.73 MHz 46.99 L1 gnd -13.00 2 CISPR Average6.3465 MHz 29.88 L1 gnd -20.11 1 Quasi Peak 17.61 MHz 12.52 L1 gnd -47.47 Date: 3.FEB.2012 16:29:18 Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Speakerphone On-Line AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 16:35:18 Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Speakerphone On-Line AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 172.5 kHz 39.37 L1 gnd -25.46 1 Quasi Peak 285 kHz 36.28 L1 gnd -24.38 1 Quasi Peak 370.5 kHz 41.34 L1 gnd -17.15 1 Quasi Peak 546 kHz 41.74 L1 gnd -14.25 1 Quasi Peak 640.5 kHz 40.38 L1 gnd -15.61 1 Quasi Peak 829.5 kHz 39.61 L1 gnd -16.38 1 Quasi Peak 1.32 MHz 40.71 L1 gnd -15.28 1 Quasi Peak 2.0085 MHz 36.89 L1 gnd -19.10 1 Quasi Peak 2.5575 MHz 35.30 L1 gnd -20.69 1 Quasi Peak 3.057 MHz 34.26 L1 gnd -21.73 1 Quasi Peak 5.6715 MHz 46.80 L1 gnd -13.19 1 Quasi Peak 5.7705 MHz 45.72 L1 gnd -14.27 Date: 3.FEB.2012 16:35:04 Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Talk AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 3.FEB.2012 16:51:08 Report No.:HK12010393-2 Model: TL96271 Adaptor: Tenpao Mode: Talk AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 186 kHz 40.05 L1 gnd -24.16 1 Quasi Peak 280.5 kHz 38.41 L1 gnd -22.39 1 Quasi Peak 366 kHz 39.67 L1 gnd -18.91 1 Quasi Peak 528 kHz 39.90 L1 gnd -16.09 2 CISPR Average546 kHz 22.39 L1 gnd -23.60 1 Quasi Peak 640.5 kHz 40.30 L1 gnd -15.69 1 Quasi Peak 865.5 kHz 37.70 L1 gnd -18.29 1 Quasi Peak 1.221 MHz 40.02 L1 gnd -15.97 1 Quasi Peak 1.878 MHz 38.87 L1 gnd -17.12 1 Quasi Peak 2.3505 MHz 34.84 L1 gnd -21.15 1 Quasi Peak 3.9525 MHz 33.48 L1 gnd -22.51 1 Quasi Peak 5.649 MHz 46.55 L1 gnd -13.44 1 Quasi Peak 5.73 MHz 46.56 L1 gnd -13.43 Date: 3.FEB.2012 16:50:47

INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: EW780-8213-01 emission - 1 of 2 Base unit ( Tenpao ) , Lowest channel Base unit ( Tenpao ), Highest channel INTERTEK TESTING SERVICES Radiated Emission on the Bandedge Plots FCC ID: EW780-8213-01 emission - 2 of 2 Base unit ( SIL ) , Lowest channel Base unit ( SIL ), Highest channel

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8213-01 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “Tenpao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing(Tenpao) FCC ID: EW780-8213-01 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing(Tenpao) FCC ID: EW780-8213-01 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
