E713CC Amplified Big Button Cordless Phone with Corded Digital Answering Machine User Guide 2 3 WARNINGS: PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. To maintain the compliance with the FCC’s RF exposure guideline, place the base unit at least 20 cm from nearby persons. To reduce the risk of fire or injury to persons, read and follow these instructions. 1. Read and understand all instructions. 2. Follow all warnings and instructions marked on the telephone. 3. Avoid contact with liquids. Do not locate base unit or handset near water, for example, near a bathtub, wash basin, sink or laundry tub, in a wet basement or near a swimming pool. 4. Avoid using a telephone (other than a cordless type) during a storm. There may be a remote risk of electrical shock from lightning. 5. Do not use the telephone to report a gas leak in the vicinity of the leak. 6. Unplug this telephone from the wall outlets before cleaning. Do not use liquid cleaners or aerosol cleaners on the telephone. Use a damp cloth for cleaning. 7. Place this telephone on a stable surface. Serious damage and/or injury may result if the telephone falls. 8. Do not cover the slots and openings on this telephone. This telephon should never be placed near or over a radiator or heat register. This telephone should not be placed in a built-in installation unless proper ventilation is provided. 9. Operate this telephone using the electrical voltage as stated on the base unit or the owner’s manual. If you are not sure of the voltage in your home, consult your dealer or local power company. 10. Do not allow anything to rest on the power cord or locate this product in an area where the power cord is likely to be damaged by furniture or foot traffic. 11. Do not overload wall outlets or extension cords as this can increase the risk of fire or electrical shock. 12. Never push any objects through the slots in the telephone. They can touch danger- ous voltage points or short out parts that could result in a risk of fire or electrical shock. Never spill liquid of any kind on the telephone. IMPORTANT SAFETY INSTRUCTIONS 13. To reduce the risk of electrical shock, do not take this phone apart. Opening or removing covers may expose you to dangerous voltages or other risks. Incorrect reassembly can cause electric shock when the appliance is subsequently used. 14. Unplug this product from the wall outlet and refer servicing to the manufacturer under the following conditions: when the power supply cord or plug is frayed or damaged; if liquid has been spilled into the product; if the telephone has been exposed to rain or water; if the telephone has been dropped or the case has been damaged; if the telephone exhibits a distinct change in performance; if the telephone does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions. Improper adjustment may require extensive work by a qualified technician to restore the telephone to normal operation; if the telephone does not operate normally by following the operating instructions. 15. Never install telephone wiring during a lightning storm. 16. Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. 17. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. 18. Use caution when installing or modifying telephone lines. 19. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your local power company. 20. Do not attempt to open the AC adapter. There are potentially dangerous voltages inside, and there are no serviceable parts. 21. Discontinue use of product and contact Clarity if the product overheats, has a dam- aged cord or plug, if the product has been dropped or damaged or if the product has come into contact with liquids. 22. Use only the AC adapter provided with this product or a replacement AC adapter provided by Clarity. 23. This phone amplifies sound to loud volumes. To prevent hearing damage, all users of the phone should be informed of the high volume capability of the phone and children should only use the phone when supervised by an adult. IMPORTANT SAFETY INSTRUCTIONS Package contains the following items: • Answering Machine base station with corded handset • AC power adapter for Answering Machine base station • Telephone line cord for Answering Machine base station • Cordless Handset • Charging base for cordless handset • Belt clip for cordless handset • (2) Rechargeable batteries for cordless handset • User Manual • Warranty/FCC Requirements booklet Installation Location For maximum coverage and reduce the interference, here are some guidelines you should consider when you place the base unit, • Place it at a convenient, high, and central location with no obstructions between the handset and base unit in an indoor environment. • Place it away from electronic appliances such as televisions, microwave ovens, radios, personal computers, wireless devices or other cordless phones. • Avoid facing radio frequency transmitters, such as external antennas of mobile phone cell stations. • Avoid plugging it into the same circuit as other major household electrical appliances because of the potential for interference. Try moving the appliance or the base unit to another power outlet. If the reception for a base unit location is not satisfactory, move it to another location for better reception. Depending on the surrounding conditions as well as spatial and structural factors, the range may be reduced. The range indoors is normally less than outdoors. PACKAGING CONTENTS/LOCATION 7 CONNECTING THE ANSWERING MACHINE BASE STATION 1 – Connect the corded handset to the base station as shown below. 2 – Plug the power supply cord into the jack located on the back of the base stati…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 1-Feb-2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 1. Feb, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8468-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: 1. Feb, 2012 To whom it may concern, Declarations FCC ID: EW780-8468-00 IC: 1135B-80846800 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Both Base Unit and Handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B C 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On Hook on device side B C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

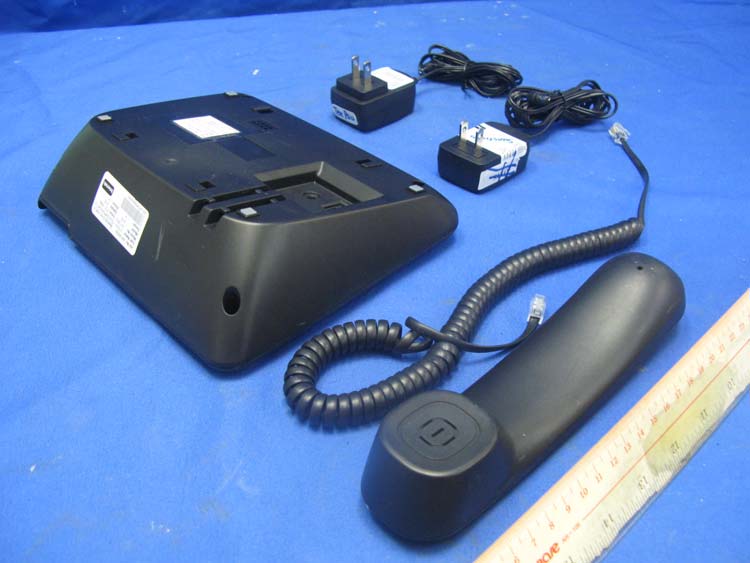

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8468-00 IC: 1135B-80846800 external photos - 1 of 2 HK12010591 Job Number HK12010591 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8468-00 IC: 1135B-80846800 external photos - 2 of 2

Engraving: Raised 0.2mm Engraving: Raised 0.2mm 19mm 23mm E712 BS BTM Handset rear view Model: E712CC FCC ID: EW780-8149-00 IC: 1135B-808 00 Clarity ® CAUTION: Use Only Supplied Battery Model:E712 SN: 537XX000001 28mm 14mm Engraving: Raised 0.2mm Engraving: Raised 0.2mm E712CC BS BTM Model:E712CC SN: 537XX000001 28mm 14mm E713 BS BTME713CC BS BTM E714 BS BTME714CC BS BTM 468 468 1 468 468 1 Engraving: Raised 0.2mm Engraving: Raised 0.2mm Model:E713 SN: 537XX000001 28mm 14mm 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm Engraving: Raised 0.2mm Engraving: Raised 0.2mm E814 BS BTM Model:E814 SN: 538XX000001 28mm 14mm Engraving: Raised 0.2mm Engraving: Raised 0.2mm E814CC BS BTM Model:E814CC SN: 537XX000001 28mm 14mm 468 468 1 468 468 1 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm 20mm 19.5mm 39.5mm 36mm Engraving: Raised 0.2mm Engraving: Raised 0.2mm Model:E713CC SN: 53726000001 28mm 14mm 468 468 1 468 468 1 Engraving: Raised 0.2mm Engraving: Raised 0.2mm Model:E714 SN: 537XX000001 28mm 14mm Engraving: Raised 0.2mm Engraving: Raised 0.2mm Model:E714CC SN: 537XX000001 28mm 14mm 468 468 1 468 468 1 468 Mode l: E712CC FCC ID: EW780-8149-00 IC: 1135B-808 00 Clari ty ® CAUTION: Use Only Supplied Battery 468 Model: E713CC FCC ID: EW780-8149-00 IC: 1135B-808 00 Clarity ® CAUTION: Use Only Supplied Battery 468 Model: E714CC FCC ID: EW780-8149-00 IC: 1135B-808 00 Clarity ® CAUTION: Use Only Supplied Battery 468 Model: E814CC FCC ID: EW780-8149-00 IC: 1135B-808 00 Clarity ® CAUTION: Use Only Supplied Battery 468 E7XX series label artwork

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 1 of 9 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 2 of 9 Base Unit Main PCB solder side Base Unit Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 3 of 9 Base Unit Keypad rear side (View 1) Base Unit Keypad rear side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 4 of 9 Base Unit Antenna Base Unit LCD Display front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 5 of 9 Base Unit LCD Display front side (View 2) Base Unit LCD Display rear side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 6 of 9 Base Unit LCD Display rear side (View 2) Base Unit Telephone Line Jack front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 7 of 9 Base Unit Telephone Line Jack rear side Base Unit On/Off Hook front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 8 of 9 Base Unit On/Off Hook rear side Base Unit LED front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8468-00 IC: 1135B-80846800 internal photos - 9 of 9 Base Unit LED rear side Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-8468-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of E714CC, the maximum field strength measured (FS) was 110.8 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in five-handsets operation is 45.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 36.07 mW The radiated (EIRP) source-based time-averaging output power = (36.07 * 0.458) mW = 16.52 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0033 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: EW780-8468-00 Model: E714CC, E713CC, E712CC, E814CC, E714, E713, E712, E814 IC: 1135B-80846800 Model: E714CC, E713CC, E712CC, E814CC, E714, E713, E712, E814 Test Report Number: HK12010591-1 Issue Date: February 14, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12010591-1 Page 1 of 59 FCC ID: EW780-8468-00 IC: 1135B-80846800 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 29 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 30 4.10 Radiated Emissions from Receiver ...................................................................... 31 4.10.1 Radiated Emission Configuration Photographs ................................................. 32 4.10.2 Radiated Emissions Data ................................................................................. 32 4.11 AC Power Line Conducted Emissions ................................................................. 35 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 36 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 36 4.12 Radio Frequency Radiation Exposure.................................................................. 37 4.13 Radio Frequency Exposure Compliance.............................................................. 37 4.14 Frame Repetition Stability .................................................................................. 38 4.15 Frame Period and Jitter ..........................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8468-00 26bw - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

Report No.: HK12010591-1 Mode: Talk (DECT) Adaptor: Ten Pao AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2012 10:53:20 Report No.: HK12010591-1 Mode: Talk (DECT) Adaptor: Ten Pao AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average442.5 kHz 29.78 L1 gnd -17.22 2 CISPR Average5.667 MHz 30.09 N gnd -19.90 1 Quasi Peak 5.6985 MHz 47.49 N gnd -12.51 1 Quasi Peak 6.1575 MHz 53.47 N gnd -6.52 2 CISPR Average6.387 MHz 32.92 N gnd -17.07 1 Quasi Peak 8.682 MHz 39.83 L1 gnd -20.16 2 CISPR Average8.9295 MHz 29.95 L1 gnd -20.04 Date: 19.JAN.2012 10:52:56 Report No.: HK12010591-1 Mode: Standby Adaptor: Ten Pao AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2012 10:42:51 Report No.: HK12010591-1 Mode: Standby Adaptor: Ten Pao AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 159 kHz 44.04 N gnd -21.47 2 CISPR Average460.5 kHz 28.71 L1 gnd -17.97 1 Quasi Peak 5.6805 MHz 45.54 N gnd -14.45 2 CISPR Average5.703 MHz 29.92 N gnd -20.07 2 CISPR Average5.8965 MHz 31.56 N gnd -18.43 1 Quasi Peak 6.09 MHz 51.39 N gnd -8.60 1 Quasi Peak 8.4885 MHz 38.82 L1 gnd -21.17 2 CISPR Average8.9655 MHz 30.64 L1 gnd -19.35 Date: 19.JAN.2012 10:42:11 Report No.: HK12010591-1 Mode: Talk (by corded Handset) Adaptor: Ten Pao AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2012 10:59:12 Report No.: HK12010591-1 Mode: Talk (by corded Handset) Adaptor: Ten Pao AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average442.5 kHz 30.63 L1 gnd -16.38 1 Quasi Peak 5.6985 MHz 49.19 N gnd -10.80 2 CISPR Average5.6985 MHz 30.56 N gnd -19.43 2 CISPR Average5.982 MHz 35.01 N gnd -14.98 1 Quasi Peak 6 MHz 50.91 N gnd -9.09 1 Quasi Peak 8.187 MHz 36.59 L1 gnd -23.41 2 CISPR Average8.4705 MHz 28.76 L1 gnd -21.23 Date: 19.JAN.2012 10:58:34 Report No.: HK12010591-1 Mode: Answer Machine Adaptor: Ten Pao AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2012 11:10:36 Report No.: HK12010591-1 Mode: Answer Machine Adaptor: Ten Pao AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 150 kHz 28.11 L1 gnd -37.88 1 Quasi Peak 433.5 kHz 32.79 L1 gnd -24.39 2 CISPR Average433.5 kHz 26.42 L1 gnd -20.76 1 Quasi Peak 627 kHz 33.01 N gnd -22.98 1 Quasi Peak 973.5 kHz 29.53 N gnd -26.46 2 CISPR Average5.523 MHz 31.76 N gnd -18.23 1 Quasi Peak 5.667 MHz 46.15 N gnd -13.84 2 CISPR Average6.0135 MHz 34.07 N gnd -15.92 1 Quasi Peak 6.0765 MHz 49.37 N gnd -10.62 1 Quasi Peak 8.4705 MHz 36.42 L1 gnd -23.57 2 CISPR Average8.9475 MHz 34.97 L1 gnd -15.02 Date: 19.JAN.2012 11:09:59 Report No.: HK12010591-1 Mode: Speakerphone Adaptor: Ten Pao AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 19.JAN.2012 11:20:02 Report No.: HK12010591-1 Mode: Speakerphone Adaptor: Ten Pao AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average442.5 kHz 29.10 N gnd -17.91 1 Quasi Peak 505.5 kHz 33.35 L1 gnd -22.65 1 Quasi Peak 654 kHz 34.50 N gnd -21.50 1 Quasi Peak 960 kHz 33.72 N gnd -22.27 1 Quasi Peak 5.7165 MHz 48.69 N gnd -11.30 2 CISPR Average5.7165 MHz 32.00 N gnd -17.99 1 Quasi Peak 6.018 MHz 51.31 N gnd -8.68 2 CISPR Average6.1935 MHz 36.07 N gnd -13.92 1 Quasi Peak 8.0835 MHz 34.32 L1 gnd -25.67 2 CISPR Average8.9835 MHz 24.91 L1 gnd -25.08 Date: 19.JAN.2012 11:19:33

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8468-00 inband - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8468-00 IC: 1135B-80846800 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8468-00 IC: 1135B-80846800 peaktp - 2 of 2 A0 Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8468-00 psd - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8468-00 IC: 1135B-80846800 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “Ten Pao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) FCC ID: EW780-8468-00 IC: 1135B-80846800 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “Ten Pao”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) FCC ID: EW780-8468-00 IC: 1135B-80846800 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “Ten Pao”) Left Side View
