 Quick start guide DS6511/DS6511-2 DECT 6.0 cordless telephone with BLUETOOTH ® wireless technology Introduction To protect our environment and conserve natural resources, this user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the complete online user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on page  of this user’s manual. User’s manual Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Telephone base Handset ( for DS652 and 2 for DS652-2) User’s manual Wall mount bracket Charger and charger adapter ( for DS652-2) Battery ( for DS652 and 2 for DS652-2 Telephone base power adapter Battery compartment cover ( for DS65 and 2 for DS65-2) Quick start guide User’s manual Table of contents Parts checklist ............................... Telephone base and charger installation ..................................2 Battery installation ........................2 Battery charging ............................2 Tabletop to wall mount installation ..................................3 Handset overview..........................3 Telephone base overview .............4 Using the handset menu ...............4 Telephone settings ........................4 Telephone operation .....................5 Directory ........................................6 Speed dial .....................................7 Caller ID ........................................7 Add and register a handset ...........9 Replace a handset ........................9 Troubleshooting .............................9 Important safety instructions ......... Precautions for users of implanted cardiac pacemakers ..................2 Operating range ............................2 Maintenance ..................................2 About cordless telephones ...........2 The RBRC ® seal ............................3 Limited warranty ............................3 FCC, ACTA and IC regulations .....4 Technical specifications ................4 2 Telephone base and charger installation Install the telephone base and charger as shown below. Telephone line cord Telephone base Charger Telephone base power adapter A DSL filter (not included) is required if you have DSL high-speed Internet service Electrical outlet not controlled by a wall switch Electrical outlet not controlled by a wall switch Telephone wall jack Charger adapter Use only the power adapter and battery supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95. In Canada, go to www.vtechcanada.com or call  (800) 267-7377. The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. • • Battery installation Install the battery as shown below. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3. Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. Plug the battery connector securely into the socket. .Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. If the handset will not be used for a long time, disconnect and remove the battery to prevent possible leakage. • Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 0 hours of continuous charging. Refer to the online user’s manual for battery operating times. If you place the handset in the telephone base or charger without plugging in the battery, the screen displays NO BATTERY. • Battery indicatorsBattery statusAction The screen is blank, or shows PLACE IN CHARGER and flashes. The battery has no charge or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen shows LOW BATTERY and flashes. The battery has enough charge to be used for a short time. Charge without interruption (at least 30 minutes). The screen shows HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. 3 Tabletop to wall mount installation The telephone comes ready for tabletop use. Follow the steps below to mount your telephone on a wall. Route the telephone line cord through the hole on the wall mount bracket and plug it into the telephone wall jack. Route the power cord out of the telephone base and plug it into an electrical outlet not controlled by a wall switch. 3.Align the holes on the bracket with the standard wall plate and slide the bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties. 4. Position the lower portion grooves on the telephone base to the lower portion tabs (marked B) on the wall mount bracket. Make sure the upper portion grooves of the telephone base are above the upper portion tabs (marked A) on the wall mount bracket. Push the telephone base down until it clicks securely in place. 2.Plug one end of the telephone line cord into the TEL LINE jack at the bottom of the telephone base and the base power adapter into the POWER jack. . Handset overview VOLUME//CID Review the caller ID log when the phone is not in use. Decrease the listening volume during a call or message playback. Scroll down while in a menu, or in the directory, caller ID log or redial list. Move the cursor to the left when entering numbers or names. /HOME/FLASH Make or answer a call. Answer another…

Text truncated - open the document above for the full version.

 DS6521/DS6521-2/ DS6521-3/DS6521-32 DECT 6.0 cordless telephone/ answering system with BLUETOOTH ® wireless technology Introduction To protect our environment and conserve natural resources, this user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the complete online user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on page 3 of this user’s manual. User’s manual Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Telephone base Handset ( for DS652, 2 for DS652-2 and 3 for DS652-3/DS652-32) User’s manual Wall mount bracket Charger and charger adapter ( for DS652-2 and 2 for DS652-3/DS652-32) Battery ( for DS652, 2 for DS652-2 and 3 for DS652-3/DS652-32) Telephone base power adapter Battery compartment cover ( for DS652, 2 for DS652-2 and 3 for DS652-3/DS652-32) Quick start guide User’s manual Table of contents Parts checklist ............................... Telephone base and charger installation ..................................2 Battery installation ........................2 Battery charging ............................2 Tabletop to wall mount installation ..................................3 Handset overview..........................3 Telephone base overview .............4 Using the handset menu ...............4 Telephone settings ........................4 Telephone operation .....................5 Directory ........................................6 Speed dial .....................................7 Caller ID ........................................7 About the answering system .........8 Answering system settings ...........8 Answering system operation .........8 Add and register a handset ...........9 Replace a handset ........................9 Troubleshooting .............................9 Important safety instructions ......... Precautions for users of implanted cardiac pacemakers ..................2 Operating range ............................2 Maintenance ..................................2 About cordless telephones ...........2 The RBRC ® seal ............................3 Limited warranty ............................3 FCC, ACTA and IC regulations .....4 Technical specifications ................4 Quick start guide 2 Telephone base and charger installation Install the telephone base and charger as shown below. Telephone line cord Telephone base Charger Telephone base power adapter A DSL filter (not included) is required if you have DSL high-speed Internet service Electrical outlet not controlled by a wall switch Electrical outlet not controlled by a wall switch Telephone wall jack Charger adapter Use only the power adapter and battery supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95. In Canada, go to www.vtechcanada.com or call  (800) 267-7377. The power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. • • Battery installation Install the battery as shown below. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3. Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. Plug the battery connector securely into the socket. .Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. If the handset will not be used for a long time, disconnect and remove the battery to prevent possible leakage. • Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after 0 hours of continuous charging. Refer to the online user’s manual for battery operating times. If you place the handset in the telephone base or charger without plugging in the battery, the screen displays NO BATTERY. • Battery indicatorsBattery statusAction The screen is blank, or shows PLACE IN CHARGER and flashes. The battery has no charge or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen shows LOW BATTERY and flashes. The battery has enough charge to be used for a short time. Charge without interruption (at least 30 minutes). The screen shows HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. 3 Tabletop to wall mount installation The telephone comes ready for tabletop use. Follow the steps below to mount your telephone on a wall. Route the telephone line cord through the hole on the wall mount bracket and plug it into the telephone wall jack. Route the power cord out of the telephone base and plug it into an electrical outlet not controlled by a wall switch. 3.Align the holes on the bracket with the standard wall plate and slide the bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties. 4. Position the lower portion grooves on the telephone base to the lower portion tabs (marked B) on the wall mount bracket. Make sure the upper portion grooves of the telephone base are above the upper portion tabs (marked A) on the wall mount bracket. Push the telephone base down until it clicks securely in place. 2.Plug one end of the telephone line cord into the TEL LINE jack at the bottom of the telephone base and the base power adapter into the POWER jack. . Handset overview VOLUME//CID Review the caller ID log when the phone is not i…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 9-Nov-2011 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 9 Nov, 2011 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8540-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: 9 Nov, 2011 To whom it may concern, Declarations FCC ID: EW780-8540-00 IC: 1135B-80854000 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B NA 3 Switch-off device NA NA 4 On Hook on device side NA C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd 9-Nov-2011 To whom it may concern, Label Location Justification FCC ID: EW780-8540-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

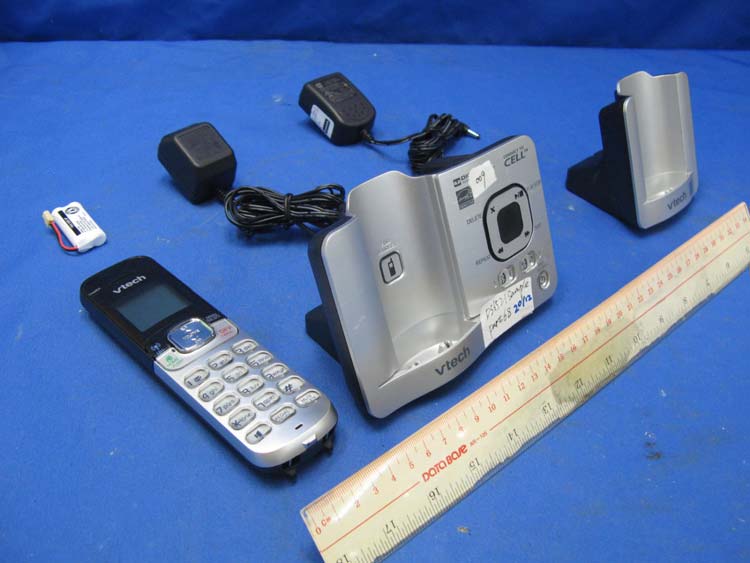

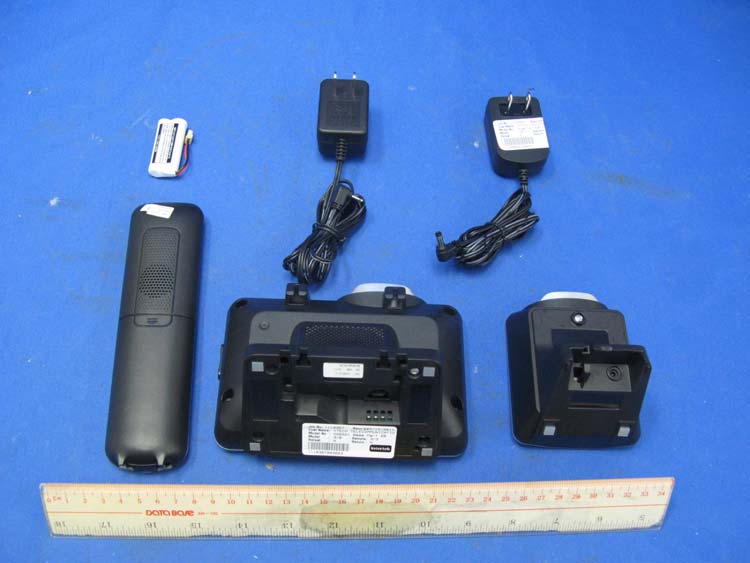

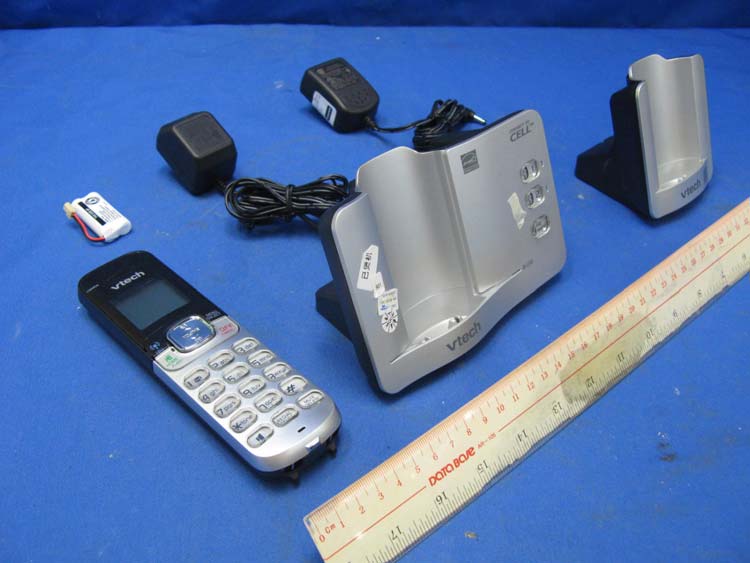

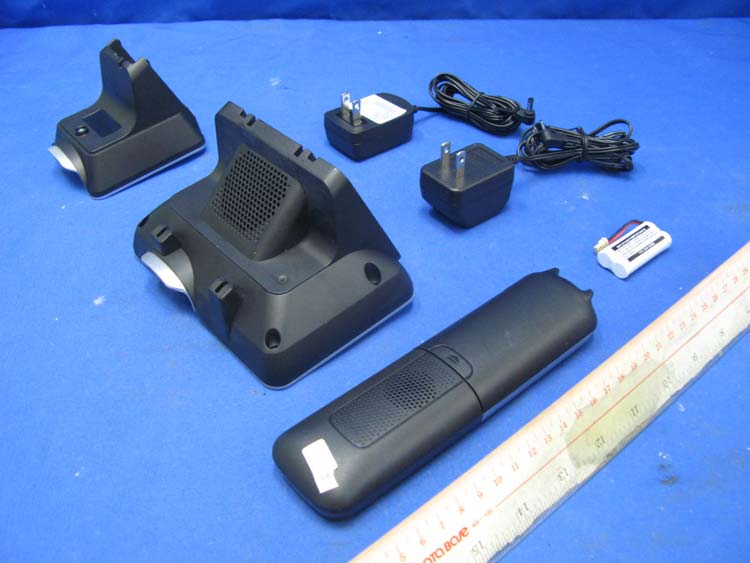

INTERTEK TESTING SERVICES External Photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 external photos - 1 of 4 HK11110366 Job Number HK11110366 Job Number INTERTEK TESTING SERVICES External Photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 external photos - 2 of 4 HK11110366 Job Number INTERTEK TESTING SERVICES External Photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 external photos - 3 of 4 HK11110366 Job Number HK11110366 Job Number INTERTEK TESTING SERVICES External Photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 external photos - 4 of 4 HK11110366 Job Number

DS65XX Engraving Use Only Supplied Adapter AC 6V MODEL: DS6521-xSN:XXXXXXXXXXXX MODEL: DS6511 SN:XXXXXXXXXXXX MODEL: DS6501 SN:XXXXXXXXXXXX MODEL: DS6501-12 SN:XXXXXXXXXXXX MODEL: DS6511-2 SN:XXXXXXXXXXXX MODEL: DS6521 SN:XXXXXXXXXXXX MODEL: DS6521-2 SN:XXXXXXXXXXXX Use Only Supplied Battery or Battery BT266342 CAUTION FCC ID : EW780-8540-00 IC: 1135B-80854000 model: DS6501 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6501-12 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6501 S/N: XXXXXXXXXXXXXXXXXXXX SN LABLE 28X10mm model: DS6521 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6521 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6521-2 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6522-3 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6522-32 S/N: XXXXXXXXXXXXXXXXXXXX MODEL: DS6522-3 SN:XXXXXXXXXXXX MODEL: DS6522-32 SN:XXXXXXXXXXXX model: DS6521 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6521-2 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6522-3 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6522-32 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6511 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6511 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6511-2 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6511 S/N: XXXXXXXXXXXXXXXXXXXX model: DS6511-2 S/N: XXXXXXXXXXXXXXXXXXXX CI Base C Base CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com DC 6V TEL. LINE Use Only Supplied Adapter COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W401B80-854000 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W DC 6V 400mA IC: 1135B-80854000 FCC ID : EW780-8540-00 HAC THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. VTech Customer Service 1-800-595-9511 www.vtechphones.com CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA DC 6V TEL. LINE Use Only Supplied Adapter COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W401B80-854000 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W DC 6V 400mA IC: 1135B-80854000 FCC ID : EW780-8540-00 HAC THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. VTech Customer Service 1-800-595-9511 www.vtechphones.com CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA Charger for

INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 1 of 18 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 2 of 18 Base Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 3 of 18 Base Unit Main PCB solder side Base Unit DECT Antennas INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 4 of 18 Base Unit Bluetooth Antenna Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 5 of 18 Base Unit Page Key rear side Base Unit Telephone Line and AC Line Jack front side INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 6 of 18 Base Unit Telephone Line and AC Line Jack rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: DS6511-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 7 of 18 Base Unit RF Bluetooth Module comp side Base Unit RF Bluetooth Module rear side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 8 of 18 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 9 of 18 Base Unit Main PCB comp side (View 2) Base Unit Main PCB comp side (View 3) INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 10 of 18 Base Unit Main PCB solder side Base Unit DECT Antennas INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 11 of 18 Base Unit Bluetooth Antenna Base Unit DAM front side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 12 of 18 Base Unit DAM rear side Base Unit Telephone Line and AC Line Jack front side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 13 of 18 Base Unit Telephone Line and AC Line Jack rear side Base Unit Volume Key front side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 14 of 18 Base Unit Volume Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 15 of 18 Base Unit RF Bluetooth Module comp side Base Unit RF Bluetooth Module rear side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 16 of 18 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 17 of 18 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos – Model: DS6521-2 FCC ID: EW780-8540-00 IC: 1135B-80854000 internal photos - 18 of 18 Handset Oscillator PCB comp side

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1111FS16 Applicant ： VTech Telecommunications Ltd. EUT Type ： 1.9GHz DECT 6.0 Cordless Phone FCC ID ： EW780-8540-00 Trade Name ： VTech Model Number ： DS6511-2 Dates of Receive ： Nov. 17, 2011 Dates of Test ： Nov. 21, 2011 Date of Issued ： Nov. 25, 2011 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.022 W/kg UPCS Head SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. The test results in the report only apply to the tested sample. Approved By ： Tested By ： (Sam Chuang ) (Alex Wu) Report Number: 1111FS16Page 1 of 61 ©2011 A Test Lab Techno Corp. Contents 1. Description of Equipment under Test (EUT) .................................................................................................. 3 2. Introduction .................................................................................................................................................... 4 3. SAR Definition ............................................................................................................................................... 4 4. SAR Measurement Setup .............................................................................................................................. 5 5. System Components ..................................................................................................................................... 6 5.1 DASY5 E-Field Probe System.............................................................................................................. 6 5.2 Data Acquisition Electronic (DAE) System ........................................................................................... 9 5.3 Robot .................................................................................................................................................... 9 5.4 Measurement Server ............................................................................................................................ 9 5.5 Device Holder for Transmitters........................................................................................................... 10 5.6 Phantom - SAM v4.0 .......................................................................................................................... 10 5.7 Data Storage and Evaluation...............................................................................................................11 6. Test Equipment List ..................................................................................................................................... 14 7. Tissue Simulating Liquids ............................................................................................................................ 15 7.1 Ingredients.......................................................................................................................................... 16 7.2 Recipes............................................................................................................................................... 16 7.3 Liquid Confirmation............................................................................................................................. 17 8. Meas urement Process................................................................................................................................. 18 8.1 Device and Test Conditions................................................................................................................ 18 8.2 System Performance Check............................................................................................................... 19 8.3 Dosimetric Assessment Setup............................................................................................................ 22 8.4 Spatial Peak SAR Evaluation............................................................................................................. 24 9. Measurement Uncertainty............................................................................................................................ 25 10. SAR Test Results Summary ........................................................................................................................ 28 10.1 Head SAR........................................................................................................................................... 28 10.2 Std. C95.1-1992 RF Exposure Limit................................................................................................... 29 11. Conclusion ................................................................................................................................................... 30 12. References .................................................................................................................................................. 30 Appendix A - System Performance Check.......................................................................................................31 Appendix B - SAR Measurement Data ...................................................................................…
