EW780-8588-001.9GHz DECT Cordless Base Unit

User’s manual MS2015 DECT 6.0 4-line corded Small Business System Deskset Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information on pages 68-69 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Model number: MS2015 Type: DECT 6.0 4-line corded/cordless small business system deskset Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the deskset. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. © 2012 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Parts checklist Check to make sure the telephone package includes the following items: Handset with coiled cord installed User's manual Deskset Deskset power adapter Quick start guide User’s manual M2015 DECT 6.0 4-line corded Small Business System Deskset Quick start guide M2015 DECT 6.0 4-line corded Small Business System Deskset Ethernet cableWall mount bracket Table of contents User’s manual MS2015 DECT 6.0 4-line corded Small Business System Deskset Getting started Quick reference guide .............................. 1 Introduction.................................................... 4 Planning your system................................ 5 Installation...................................................... 6 Table/desktop installation...................... 7 To mount the deskset on the wall . 8 Wall mount installation..........................10 Wall mount to tabletop installation ................................................10 Adding and registering desksets .......11 To register a deskset to your MS2085 main console ........................11 Adding and registering a cordless handset.......................................................12 To register a cordless handset to your MS2015 deskset..........................12 Adding and registering a cordless headset.......................................................13 To register a cordless headset to your MS2015 deskset..........................13 Deregistering cordless handset or cordless headset....................................14 To deregister the cordless handset or headset from the MS2015 deskset .......................................................14 Adding a corded headset......................15 To add a corded headset to the deskset .......................................................15 System setup ...............................................16 Menu settings..........................................16 Set extension number .........................17 Prime line ..................................................18 Network setup ........................................19 Network info ............................................21 Telephone settings Telephone setup ........................................22 Ringer volume.........................................22 Ringer tone...............................................23 Delay ring ..................................................24 Set Date/Time.........................................25 One Touch.................................................26 Assign a one-touch entry..................26 Review the one-touch entry ............28 Edit the one-touch key.......................28 Delete an one-touch key...................29 LCD Language .........................................30 Area codes................................................31 Key Tone ....................................................32 LCD contrast ............................................32 Dial mode..................................................33 AUTO-MUTE ..............................................33 Hold reminder .........................................34 Voice announce......................................34 Phone rename.........................................35 Set default.................................................35 Customer support .................................35 Telephone operation Telephone basic operation ...................36 Line indicators.........................................36 Making a call............................................36 On hook dialing (predialing) ............37 Using the speakerphone....................37 Answering a call ....................................37 Temporary ringer silencing...............37 Redial...........................................................38 Auto-redial................................................39 Options while on calls............................40 Call waiting...............................................40 Volume control .......................................40 Mute .............................................................41 Temporary tone dialing ......................41 Hold..............................................................42 Switching between lines....................42 Call privacy...............................................43 Chain dialing............................................44 Join a call in progress.........................45 Conference calls ....................................45 Intercom.........................................................47 Make an intercom call to an extension ...........................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 22-Mar-2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 22 Mar, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8588-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: 22 Mar, 2012 To whom it may concern, Declarations FCC ID: EW780-8588-00 IC: 1135B-80858800 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit 1 Switch-off companion device NA 2 On Hook by companion device B 3 Remove power from companion device B 4 Switch-off device NA 5 On Hook on device side NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

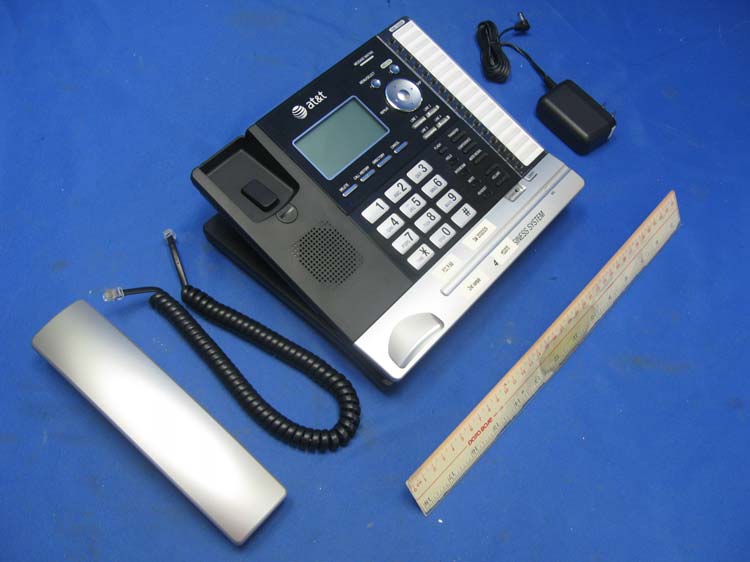

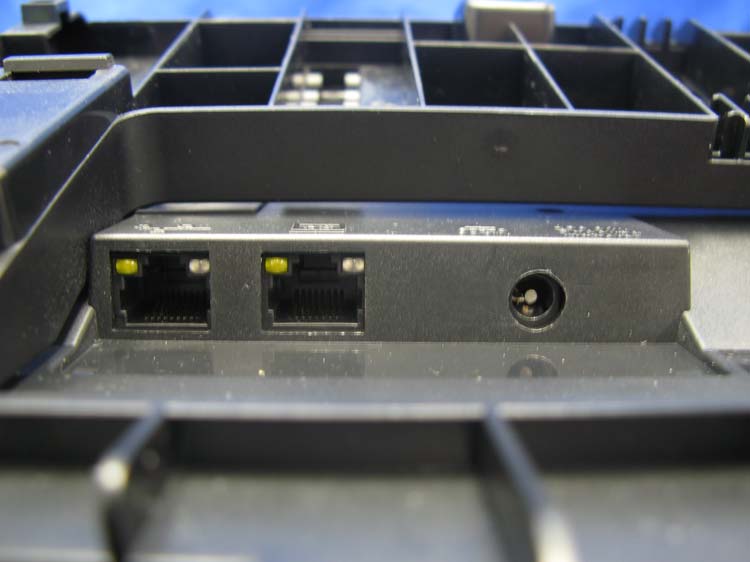

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8588-00 IC: 1135B-80858800 external photos - 1 of 2 HK12021220 Job Number HK12021220 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8588-00 IC: 1135B-80858800 external photos - 2 of 2

MS2015 Advanced American Telephones COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7KH01B80-858700 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W, RJ14C/W FCC ID: EW780-8588-00 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. DC 5.1V 1.2A HAC MANUFACTURED IN CHINA IC: 1135B-80858800 Customer Service 1-800-222-3111 www.telephones.att.com 4H20 Serial no. label Model : MS2015 Text : Recessed 0.3mm High Gloss Use only Supplied Adapter Text: engraved in raised 0.3mm Text: engraved in raised 0.3mm

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 1 of 7 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 2 of 7 Base Unit Main PCB solder side Base Unit LCD Display and Keypad front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 3 of 7 Base Unit LCD Display and Keypad front side (View 2) Base Unit LCD Display and Keypad rear side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 4 of 7 Base Unit LCD Display and Keypad rear side (View 2) Base Unit Keyboard Controller IC front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 5 of 7 Base Unit Keyboard Controller IC rear side Base Unit Headset Jack front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 6 of 7 Base Unit Headset Jack rear side Base Unit Hook Switch front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8588-00 IC: 1135B-80858800 internal photos - 7 of 7 Base Unit Hook Switch rear side Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-8588-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of MS2015, the maximum field strength measured (FS) was 117.2 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in one-handset operation is 8.33%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 157.44 mW The radiated (EIRP) source-based time-averaging output power = (157.44 * 0.083) mW = 13.11 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0026 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Base Unit) FCC ID: EW780-8588-00 Model: MS2015 IC: 1135B-80858800 Model: MS2015 Test Report Number: HK12021220-1 Issue Date: May 17, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12021220-1 Page 1 of 55 FCC ID: EW780-8588-00 IC: 1135B-80858800 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 26 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 27 4.10 Radiated Emissions from Receiver ...................................................................... 28 4.10.1 Radiated Emission Configuration Photographs ................................................. 29 4.10.2 Radiated Emissions Data ................................................................................. 29 4.11 AC Power Line Conducted Emissions ................................................................. 31 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.12 Radio Frequency Radiation Exposure.................................................................. 33 4.13 Radio Frequency Exposure Compliance.............................................................. 33 4.14 Frame Repetition Stability .................................................................................. 34 4.15 Frame Period and Jitter ...................................................................................... 35 4.16 Carrier Frequency Stability ....…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8588-00 26bw - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

Report No.: HK12021220-1 Model: MS2015 Mode: Answer Machine with Data Transfer AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Report No.: HK12021220-1 Model: MS2015 Mode: Answer Machine with Data Transfer AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 208.5 kHz 43.25 N gnd -20.00 2 CISPR Average366 kHz 29.56 N gnd -19.02 1 Quasi Peak 397.5 kHz 44.33 N gnd -13.56 1 Quasi Peak 478.5 kHz 45.78 N gnd -10.58 2 CISPR Average496.5 kHz 32.55 N gnd -13.50 2 CISPR Average622.5 kHz 39.03 N gnd -6.96 1 Quasi Peak 636 kHz 51.41 N gnd -4.58 1 Quasi Peak 1.032 MHz 46.82 N gnd -9.17 2 CISPR Average1.032 MHz 32.71 N gnd -13.28 2 CISPR Average1.347 MHz 31.44 N gnd -14.55 1 Quasi Peak 1.383 MHz 47.46 N gnd -8.53 2 CISPR Average1.6665 MHz 29.81 N gnd -16.18 1 Quasi Peak 1.842 MHz 44.65 N gnd -11.34 2 CISPR Average2.193 MHz 29.44 N gnd -16.55 1 Quasi Peak 2.5575 MHz 43.29 N gnd -12.70 1 Quasi Peak 3.102 MHz 39.88 N gnd -16.11 1 Quasi Peak 4.1505 MHz 34.71 N gnd -21.28 Report No.:HK12021220-1 Model: MS2015 Mode: Ringing with Data Transfer AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 5.MAY.2012 21:55:23 Report No.:HK12021220-1 Model: MS2015 Mode: Ringing with Data Transfer AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 38.70 N gnd -27.05 1 Quasi Peak 280.5 kHz 40.65 N gnd -20.14 1 Quasi Peak 348 kHz 39.91 N gnd -19.09 1 Quasi Peak 460.5 kHz 42.87 N gnd -13.80 2 CISPR Average469.5 kHz 28.14 N gnd -18.38 1 Quasi Peak 604.5 kHz 48.53 N gnd -7.46 2 CISPR Average618 kHz 33.95 N gnd -12.04 1 Quasi Peak 1.0275 MHz 43.42 L1 gnd -12.58 2 CISPR Average1.0545 MHz 28.32 N gnd -17.67 1 Quasi Peak 1.5 MHz 41.34 N gnd -14.65 2 CISPR Average1.5 MHz 26.60 N gnd -19.39 1 Quasi Peak 1.779 MHz 41.13 N gnd -14.87 2 CISPR Average2.004 MHz 29.21 N gnd -16.78 2 CISPR Average2.2785 MHz 29.75 N gnd -16.24 1 Quasi Peak 2.2875 MHz 43.58 N gnd -12.42 1 Quasi Peak 3.0975 MHz 40.45 N gnd -15.54 2 CISPR Average3.39 MHz 29.30 N gnd -16.69 1 Quasi Peak 4.1685 MHz 35.68 N gnd -20.31 2 CISPR Average4.812 MHz 25.83 N gnd -20.16 1 Quasi Peak 5.946 MHz 35.73 N gnd -24.26 Date: 5.MAY.2012 21:54:44 Report No.:HK12021220-1 Model: MS2015 Mode: Ringing with Data Transfer AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 9.717 MHz 31.64 N gnd -28.35 1 Quasi Peak 12.975 MHz 33.48 N gnd -26.51 Date: 5.MAY.2012 21:55:01 Report No.:HK12021220-1 Model: MS2015 Mode: Corded Handset Conference with Data Transfer AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 5.MAY.2012 22:03:27 Report No.:HK12021220-1 Model: MS2015 Mode: Corded Handset Conference with Data Transfer AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 36.76 N gnd -28.99 1 Quasi Peak 280.5 kHz 41.05 N gnd -19.74 1 Quasi Peak 388.5 kHz 40.17 N gnd -17.92 2 CISPR Average478.5 kHz 27.91 N gnd -18.44 1 Quasi Peak 483 kHz 42.94 N gnd -13.34 1 Quasi Peak 613.5 kHz 48.39 N gnd -7.61 2 CISPR Average613.5 kHz 33.88 N gnd -12.11 2 CISPR Average991.5 kHz 27.99 N gnd -18.00 1 Quasi Peak 1.0275 MHz 44.54 N gnd -11.46 2 CISPR Average1.2885 MHz 30.01 N gnd -15.98 1 Quasi Peak 1.401 MHz 46.06 L1 gnd -9.93 2 CISPR Average1.608 MHz 27.54 N gnd -18.45 1 Quasi Peak 1.977 MHz 43.58 N gnd -12.41 1 Quasi Peak 2.2605 MHz 45.81 N gnd -10.18 2 CISPR Average2.4675 MHz 29.96 N gnd -16.03 1 Quasi Peak 3.4125 MHz 39.85 N gnd -16.14 2 CISPR Average3.6735 MHz 28.06 N gnd -17.93 2 CISPR Average4.785 MHz 25.90 N gnd -20.09 1 Quasi Peak 4.866 MHz 36.15 N gnd -19.84 1 Quasi Peak 5.9685 MHz 36.13 N gnd -23.86 Date: 5.MAY.2012 22:02:59 Report No.:HK12021220-1 Model: MS2015 Mode: Corded Handset Conference with Data Transfer AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 8.5245 MHz 33.70 N gnd -26.29 Date: 5.MAY.2012 22:03:14 Report No.:HK12021220-1 Model: MS2015 Mode: Speakerphone Conference with Data Transfe r AC Mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 5.MAY.2012 22:10:46 Report No.:HK12021220-1 Model: MS2015 Mode: Speakerphone Conference with Data Transfe r AC Mains Ctrl No.: N/A EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 289.5 kHz 37.74 N gnd -22.79 1 Quasi Peak 370.5 kHz 40.80 N gnd -17.68 1 Quasi Peak 447 kHz 41.48 N gnd -15.44 2 CISPR Average474 kHz 28.10 N gnd -18.33 1 Quasi Peak 609 kHz 48.58 N gnd -7.41 2 CISPR Average613.5 kHz 34.12 N gnd -11.87 1 Quasi Peak 937.5 kHz 43.32 N gnd -12.67 2 CISPR Average937.5 kHz 28.31 N gnd -17.69 2 CISPR Average1.293 MHz 28.56 N gnd -17.43 1 Quasi Peak 1.41 MHz 45.03 N gnd -10.96 1 Quasi Peak 1.545 MHz 45.75 N gnd -10.24 2 CISPR Average1.545 MHz 30.18 N gnd -15.81 1 Quasi Peak 2.265 MHz 45.78 N gnd -10.21 2 CISPR Average2.544 MHz 30.55 N gnd -15.44 1 Quasi Peak 3.381 MHz 42.00 N gnd -13.99 2 CISPR Average3.39 MHz 28.48 N gnd -17.51 1 Quasi Peak 4.6815 MHz 35.55 N gnd -20.44 2 CISPR Average4.7895 MHz 26.04 N gnd -19.95 1 Quasi Peak 6.…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8588-00 inband - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8588-00 IC: 1135B-80858800 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8588-00 IC: 1135B-80858800 peaktp - 2 of 2 A0 Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8588-00 psd - 1 of 1 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8588-00 IC: 1135B-80858800 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Receiving IC: 1135B-80858800 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Answer Machine with Data Transfer FCC ID: EW780-8588-00 IC: 1135B-80858800 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Answer Machine with Data Transfer FCC ID: EW780-8588-00 IC: 1135B-80858800 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
