User’s manual MS2025 DECT 6.0 4-line Small Business Cordless Handset +06 1(( %#0%'. Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information on pages 54- of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Model number: MS2025 Type: DECT 6.0 4-line Small Business Cordless Handset Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. © 2010-2011 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. SynJ TM is a trademark of Advanced American Telephones. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to supply this product with an ENERGY STAR® qualified power adapter meeting the latest energy efficiency guidelines. +06 1(( %#0%'. Parts checklist Check to make sure the telephone package includes the following items: Cordless handset MS2025 User's manual MS2025 Quick start guide User’s manual MS2025 DECT 6.0 4-line Small Business Corless Handset Quick start guide MS2025 DECT 6.0 4-line corded Small Business Corless Handset +06 1(( %#0%'. +06 1(( %#0%'. Charger for cordless handset with power adapter installed Battery for cordless handset Battery compartment cover Table of contents User’s manual MS2025 DECT 6.0 4-line Small Business Cordless Handset Getting started Quick reference guide .............................. 1 Charger installation.................................... 5 Battery installation and charging........ 6 Adding and registering a handset ...... 8 To register a handset to a MS2085 console......................................................... 8 To register a handset to a MS2015 deskset ......................................................... 9 Deregistering a handset.........................10 To deregister the cordless handset or headset from the MS2085 console or MS2015 deskset ............10 Adding a corded headset......................11 Telephone settings Telephone setup ........................................12 Menu settings..........................................12 Ringer volume.........................................13 Ringer tone...............................................13 Delay ring ..................................................14 LCD Language .........................................14 Key Tone ....................................................15 LCD contrast ............................................15 Hold reminder .........................................16 Phone rename.........................................16 Telephone operation Telephone basic operation ...................17 Line indicators.........................................17 Making a call............................................17 On hook dialing (predialing) ............18 Using the speakerphone....................18 Answering a call ....................................18 Temporary ringer silencing...............19 Redial...........................................................19 Call waiting...............................................20 Volume control .......................................20 Mute .............................................................20 Options while on calls............................21 Temporary tone dialing ......................21 Hold..............................................................21 Switching between lines....................21 Call privacy...............................................22 Record a call............................................23 Chain dialing............................................24 Join a call in progress.........................24 Conference calls ....................................25 Intercom.........................................................27 Make an intercom call to an extension ...................................................27 Answer an intercom call....................27 End an intercom call............................27 Answer an incoming call during an intercom call............................................27 Call transfer .................................................28 Blind transfer...........................................28 Call transfer using intercom ................29 +06 1(( %#0%'. Transfer a call and speak to the receiving party........................................29 Answer a transferred call..................29 Voice page ....................................................30 Page a single device............................30 Page all devices .....................................30 Answer a page........................................31 End a page ..............................................31 Directory About the directory..................................32 Capacity .....................................................32 Exit the directory ...................................32 Create directory entries .........................33 Create a new directory entry ..........33 Review directory entries ....................34 Search directory.........................................35 Search by name…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification 22-Mar-2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd 22 Mar, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8589-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: 22 Mar, 2012 To whom it may concern, Declarations FCC ID: EW780-8589-00 IC: 1135B-80858900 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Handset 1 Switch-off companion device NA 2 On Hook by companion device NA 3 Remove power from companion device A 4 Switch-off device NA 5 On Hook on device side C 6 Remove power from device C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd 22-Mar-2012 To whom it may concern, Label Location Justification FCC ID: EW780-8589-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Samson Man Approbation Supervisor

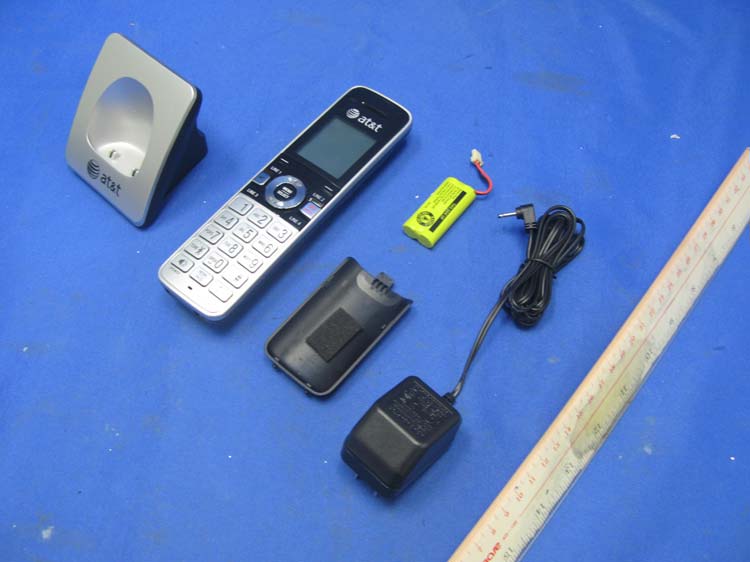

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8589-00 IC: 1135B-80858900 external photos - 1 of 1 HK12021223 Job Number HK12021223 Job Number

IC: 1135B-80858900 FCC ID: EW780-8589-00 Model : MS2025 Serial No. Label size:20x10mm Model : MS2025 Serial no. label Size:20x10mm Advanced American Telephones AC 6V 300 mA Customer Service 1-800-222-3111 www.telephones.att.com AC 6V Use Only Supplied Adapter MS2025 Charge HS Text: engraved in recessed 0.3mm depth, text surface in high gloss Text: engraved in raised 0.3mm Text : Recessed 0.3mm High Gloss 4H20

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8589-00 IC: 1135B-80858900 internal photos - 1 of 3 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8589-00 IC: 1135B-80858900 internal photos - 2 of 3 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8589-00 IC: 1135B-80858900 internal photos - 3 of 3 Handset Main PCB display side (View 3) Handset Oscillator PCB comp side

A Test Lab Techno Corp. Changan Lab：No. 140 -1, Changan Street, Bade City, Taoyuan County, Taiwan R.O.C. Te l：886-3-271-0188 / Fax：886-3-271-0190 SAR EVALUATION REPORT Test Report No. ： 1203FS14 Applicant ： VTech Telecommunications Ltd. EUT Type ： 1.9GHz DECT 6.0 Cordless Handset FCC ID ： EW780-8589-00 Trade Name ： at&t Model Number ： MS2025 Dates of Receive ： Mar. 12, 2012 Dates of Test ： Mar. 14 ~ 15, 2012 Date of Issued ： Mar. 21, 2012 Test Environment ： Ambient Temperature： 22 ±2 ° C Relative Humidity：40 - 70 % Test Specification ： Standard C95.1-1992 IEEE Std. 1528-2003 2.1093;FCC/OET Bulletin 65 Supplement C [July 2001] Max. SAR ： 0.0584 W/kg UPCS Head SAR 0.0470 W/kg UPCS Body SAR Test Lab Location ： Chang-an Lab 1. The test operations have to be performed with cautious behavior, the test results are as attached. 2. The test results are under chamber environment of A Test Lab Techno Corp. A Test Lab Techno Corp. does not assume responsibility for any conclusions and generalizations drawn from the test results with regard to other specimens or samples. 3. The measurement report has to be written approval of A Test Lab Techno Corp. It may only be reproduced or published in full. This report shall not be reproduced except in full, without the written approval of A Test Lab Techno Corp. 4. This document may be altered or revised by A Test Lab Techno. Corp. personnel only, and shall be noted in the revision section of the document. Approved By ： Tested By ： (Yung Tan Tsai ) (Bill Hu) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 1 of 66 Contents 1. Description of Equipment under Test (EUT) ....................................................................................... 3 2. Introduction ......................................................................................................................................... 4 3. SAR Definition..................................................................................................................................... 5 4. SAR Measurement Setup ................................................................................................................... 6 5. System Components........................................................................................................................... 8 5.1 DASY4 E-Field Probe System ..................................................................................................8 5.2 Data Acquisition Electronic (DAE) System...............................................................................11 5.3 Robot........................................................................................................................................11 5.4 Measurement Server................................................................................................................11 5.5 Device Holder for Transmitters ............................................................................................... 12 5.6 Phantom - SAM v4.0 ............................................................................................................... 12 5.7 Data Storage and Evaluation .................................................................................................. 13 6. Test Equipment List........................................................................................................................... 16 7. Tissue Simulating Liquids ................................................................................................................. 17 7.1 Ingredients .............................................................................................................................. 18 7.2 Recipes ................................................................................................................................... 18 7.3 Liquid Confirmation ................................................................................................................. 19 8. Measurement Process ...................................................................................................................... 20 8.1 Device and Test Conditions..................................................................................................... 20 8.2 System Performance Check ...................................................................................................21 8.3 Dosimetric Assessment Setup ................................................................................................24 8.4 Spatial Peak SAR Evaluation .................................................................................................. 26 9. Measurement Uncertainty................................................................................................................. 27 10. SAR Test Results Summary.............................................................................................................. 30 10.1 Head SAR ............................................................................................................................... 30 10.2 Body SAR................................................................................................................................ 31 10.3 Std. C95.1-1992 RF Exposure Limit ....................................................................................... 32 11. Conclusion ........................................................................................................................................ 33 12. References........................................................................................................................................ 33 Appendix A - System Performance Check ......................................................................................... 34 Appendix B - SAR Measurement Data ............................................................................................... 3 6 Appendix C - Calibration ........................…

Text truncated - open the document above for the full version.

SAR EUT Photographs EUT Photo ( 1 ) EUT Photo ( 2 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14 Page 1 of 5 EUT Photo ( 3 ) EUT Photo ( 4 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14 Page 2 of 5 EUT Photo ( 5 ) EUT Photo ( 6 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14 Page 3 of 5 EUT Photo ( 7 ) EUT Photo ( 8 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14 Page 4 of 5 EUT Photo ( 9 ) ©2012 A Test Lab Techno Corp. Report Number: 1203FS14 Page 5 of 5

SAR Test Setup Photographs EUT Back side EUT Front side EUT Top side ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 1 of 5 Right Head Setup Figure 2. Right Head SAR Test Setup (Cheek) Figure 3. Right Head SAR Test Setup (Tilted) EUT Top side EUT Back side EUT Front side ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 2 of 5 Left Head Setup Figure 4. Left Head SAR Test Setup (Cheek) Figure 5. Left Head SAR Test Setup (Tilted) EUT Top side EUT Front side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 3 of 5 Body Setup (The EUT with belt-clip and headset, the front surface to phantom 0mm) Figure 6. Body SAR Test Setup (Flat Section) EUT Front side EUT Top side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 4 of 5 Body Setup (The EUT with belt-clip and headset, the back surface to phantom 0mm) Figure 7. Body SAR Test Setup (Flat Section) EUT Front side EUT Top side EUT Back side ©2012 A Test Lab Techno Corp. Report Number: 1203FS14Page 5 of 5

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification RSS-213 Issue 2, December 2005 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Handset) FCC ID: EW780-8589-00 Model: MS2025 IC: 1135B-80858900 Model: MS2025 Test Report Number: HK12021223-1 Issue Date: May 18, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12021223-1 Page 1 of 56 FCC ID: EW780-8589-00 IC: 1135B-80858900 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 26 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 27 4.10 Radiated Emissions from Receiver ...................................................................... 28 4.10.1 Radiated Emission Configuration Photographs ................................................. 29 4.10.2 Radiated Emissions Data ................................................................................. 29 4.11 AC Power Line Conducted Emissions ................................................................. 31 4.11.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.11.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.12 Radio Frequency Radiation Exposure.................................................................. 33 4.13 Radio Frequency Exposure Compliance.............................................................. 33 4.14 Frame Repetition Stability .................................................................................. 34 4.15 Frame Period and Jitter ...................................................................................... 35 4.16 Carrier Frequency Stability ......…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8589-00 26bw - 1 of 1 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report No.: HK12021223-1 Model: MS2025 Mode: Ringing AC mains Ctrl No.: N/A 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV RBW 9 kHz MT 20 ms PREAMP OFFAtt 10 dB AUTO AC 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 6.MAY.2012 17:24:16

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8589-00 inband - 1 of 1 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8589-00 IC: 1135B-80858900 peaktp - 1 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Middle channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8589-00 IC: 1135B-80858900 peaktp - 2 of 2 A0 Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8589-00 psd - 1 of 1 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8589-00 IC: 1135B-80858900 config photos (radiated emission - handset) - 1 of 1 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Receiving IC: 1135B-80858900 config photos (radiated emission - handset) - 1 of 1 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing FCC ID: EW780-8589-00 IC: 1135B-808858900 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Ringing FCC ID: EW780-8589-00 IC: 1135B-808858900 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
