EW780-8656-001.9GHz DECT Cordless Phone

 User’s manual LS6195 DECT 6.0 cordless telephone Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Table of contents Parts checklist ................................... Telephone base and charger installation ......................................2 Battery installation ............................2 Battery charging ................................2 Handset overview..............................3 Telephone base overview .................3 Using the menu .................................4 Telephone settings ............................4 Telephone operation .........................5 Directory ............................................7 Caller ID ............................................8 About the answering system .............8 Answering system settings ..............8 Answering system operation .............9 Troubleshooting ...............................0 Important safety instructions ........... Precautions for users of implanted cardiac pacemakers .................... Operating range .............................. ECO mode ....................................... Maintenance ....................................2 About cordless telephones .............2 The RBRC ® seal ..............................2 Limited warranty ..............................2 FCC, ACTA and IC regulations .......3 Technical specifications ..................4 Introduction To help protect the environment, this user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the complete Online user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages  and 2 of this user’s manual. User’s manual User’s manual Quick start guide Quick start guide Telephone line cord Battery Telephone base power adapter Battery compartment cover Handset Telephone base 2 Telephone base and charger installation Install the telephone base and charger as shown below. Use only the power adapters and batteries supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95 . In Canada, go to www.vtechcanada.com or call  (800) 267-7377. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. • • Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after  hours of continuous charging. Battery indicatorsBattery statusAction The screen is blank, or displays Put in charger and flashes. Battery has no or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and flashes. Battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET. Battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. Battery installation Install the battery as shown below. Telephone wall jack Plug the battery connector securely into the socket. . Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3.Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. Telephone base Electrical outlet (not controlled by a wall switch) Telephone base power adapter Telephone line cord A DSL filter (not included) is required if you have DSL high-speed Internet service. The DSL filter must be plugged into the telephone wall jack. 3 Handset overview CID//VOLUME Review the caller ID log when the phone is not in use. Decrease the listening volume during a call or message playback. Scroll down while in a menu, or in the directory, caller ID log or redial list. Move the cursor to the left when entering numbers or names. • • • • /FLASH Make or answer a call. Answer another incoming call during a call. • • MUTE/DELETE Mute the microphone during a call. Delete digits or characters while using the dialling keys. Silence the ringer temporarily while the handset is ringing. Delete the displayed entry while in the directory, caller ID log or redial list. • • • • CHARGE light On when the handset is charging. • //VOLUME Review the directory when the phone is not in use. Increase the listening volume during a call or message playback. Scroll up while in a menu, or in the directory, caller ID log or redial list. Move the cursor to the right when entering numbers or names. • • • • MENU/SELECT Show the menu. While in a menu, press to select an item, or save an entry or setting. • • OFF/CANCEL Hang up a call. Silence the ringer temporarily while the handset is ringing. Press and hold to erase the missed call indicator while the phone is not in use. Press to return to the previous menu, or press and hold to return to idle mode, without making changes. • • • • REDIAL/PAUSE Press repeatedly to review the redial list. Press and hold to insert a dialing pause while dialing or entering a number. • • Press and hold to set and turn on the quiet mode, or turn it off. Press repeatedly to show other dialing options when reviewing a caller ID log entry. • • 1 Press repeatedly to add or remove  in front of the caller ID log entry before dialing or saving it to the directory. Press and hold to set or dial your voicemail number. • • INT Start an intercom conversation or transfer a call. • Dialing keys Enter …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification January 1, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit / Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Signature Samson Man Approbation Supervisor

VTech Telecommunications Ltd 25 January, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8656-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: 16 Feb, 2012 To whom it may concern, Declarations FCC ID: EW780-8656-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Both Base Unit and Handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B C 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On hook device B C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

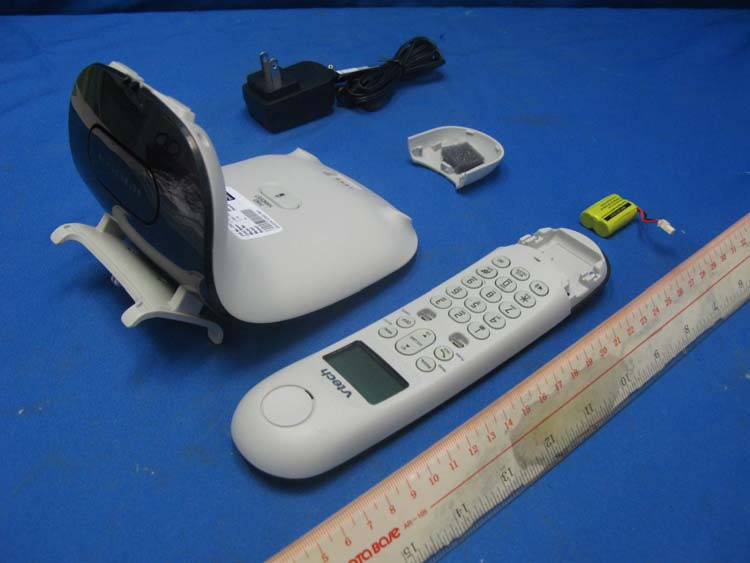

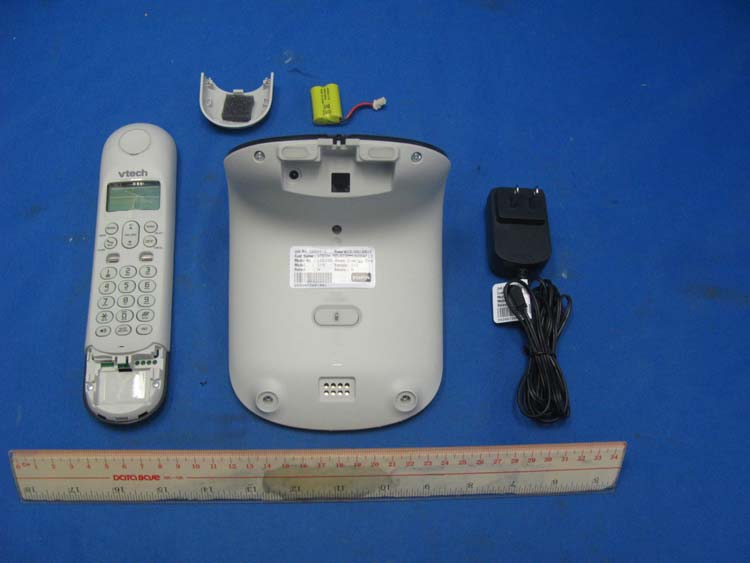

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8656-00 external photos - 1 of 2 HK12020537 Job Number HK12020537 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8656-00 external photos - 2 of 2 HK12020537 Job Number

VTech Customer Service 1-800-595-9511 www.vtechphones.com VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 RINGER EQUIVALENCE:0.1B HAC FCC ID : EW780-8656-00 DC 6V 450mA USOC JACK: RJ11C/RJ11W REGISTRATION NO.: US:EW7W401B80-865600 CORDLESS TELEPHONE TEL. LINE DC 6V Model: LS6195 S/N: XXXXXXXXXXXXXXXXXXXX SN Label 40X20mm CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6195SN:XXXXXXXXXXXX FCC ID:EW780-8656-00 IC:1135B-80865600 SN Label 24X20mm CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6195SN:XXXXXXXXXXXX FCC ID:EW780-8656-00 IC:1135B-80865600 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6195SN:XXXXXXXXXXXX FCC ID:EW780-8656-00 IC:1135B-80865600 VTech Customer Service 1-800-595-9511 www.vtechphones.com Model: LS6195 S/N: XXXXXXXXXXXXXXXXXXXX VTech Customer Service 1-800-595-9511 www.vtechphones.com Model: LS6195 S/N: XXXXXXXXXXXXXXXXXXXX LS6195 Engraving 21mm 40.6mm Use Only Supplied Adapter Font: Arial / Regular 1.6mm Font: Arial / Regular 2mm Font: Arial / Regular 1.6mm Font: Arial / Regular 2.3mm

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 1 of 12 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 2 of 12 Base Unit Main PCB solder side Base Unit Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 3 of 12 Base Unit Keypad rear side Base Unit Antenna 1 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 4 of 12 Base Unit Antenna 2 Base Unit Telephone Line Jack front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 5 of 12 Base Unit Telephone Line Jack front side (View 2) Base Unit Telephone Line Jack rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 6 of 12 Base Unit LED front side Base Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 7 of 12 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 8 of 12 Handset assembly Handset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 9 of 12 Handset Main PCB comp side (View 2) Handset Main PCB display side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 10 of 12 Handset Main PCB display side (View 2) Handset LED front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 11 of 12 Handset LED rear side Handset Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8656-00 internal photos - 12 of 12 Handset Oscillator PCB solder side

INTERTEK TESTING SERVICES FCC ID: EW780-8656-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of LS6195, the maximum field strength measured (FS) was 112.4 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 52.13 mW The radiated (EIRP) source-based time-averaging output power = (52.13 * 0.208) mW = 10.84 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0022 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification Unlicensed Personal Communication Service Devices FCC ID: EW780-8656-00 Model: LS6195 and LS619Z-XY Test Report Number: HK12020537-1 Issue Date: March 02, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12020537-1 Page 1 of 59 FCC ID: EW780-8656-00 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 7 2.4 Test Facility............................................................................................................. 7 3.0 System Test Configuration...................................................................................... 9 3.1 Justification ............................................................................................................. 9 3.2 Conducted Emission Test Configuration ................................................................ 10 3.3 Conducted Monitoring and Operational Test Configuration.................................... 10 3.4 EUT Exercising Software....................................................................................... 10 3.5 Details of EUT and Description of Peripherals....................................................... 11 3.6 Measurement Uncertainty ..................................................................................... 11 4.0 Measurement Results............................................................................................ 13 4.1 Antenna Requirement........................................................................................... 13 4.2 Digital Modulation Techniques............................................................................... 13 4.3 Emission Bandwidth.............................................................................................. 14 4.4 Directional Gain of the Antenna ............................................................................. 15 4.5 Peak Transmit Power ............................................................................................ 16 4.6 Power Spectral Density ......................................................................................... 17 4.7 Automatic Discontinuation of Transmission............................................................ 18 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 19 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 29 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 30 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT................ 31 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.11 Radio Frequency Radiation Exposure.................................................................. 33 4.12 Frame Repetition Stability .................................................................................. 34 4.13 Frame Period and Jitter ...................................................................................... 35 4.14 Carrier Frequency Stability .................................................................................. 36 4.15 Monitoring Threshold........................................................................................... 38 4.15.1 Lower Monitoring Threshold ............................................................................. 39 4.15.2 Least Interfered Channel, LIC ........................................................................... 40 4.15.2.1 Upper Monitoring Threshold........................................................................... 40 4.15.2.2 Least Interfered Channel (LIC) Selection ......................…

Text truncated - open the document above for the full version.

Report No.: HK12020537-1 Model: LS6195 Mode: Speaker (Intercom) AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.FEB.2012 16:48:00 Report No.: HK12020537-1 Model: LS6195 Mode: Speaker (Intercom) AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 375 kHz 35.76 L1 gnd -22.62 1 Quasi Peak 451.5 kHz 39.08 L1 gnd -17.76 1 Quasi Peak 739.5 kHz 36.26 N gnd -19.73 1 Quasi Peak 847.5 kHz 39.48 L1 gnd -16.51 2 CISPR Average879 kHz 26.20 L1 gnd -19.79 1 Quasi Peak 1.221 MHz 35.22 N gnd -20.77 1 Quasi Peak 2.0985 MHz 37.74 L1 gnd -18.25 1 Quasi Peak 2.1615 MHz 35.95 L1 gnd -20.05 1 Quasi Peak 4.011 MHz 36.27 N gnd -19.72 1 Quasi Peak 4.911 MHz 37.46 L1 gnd -18.53 1 Quasi Peak 6.7425 MHz 45.37 L1 gnd -14.62 1 Quasi Peak 8.6325 MHz 33.66 L1 gnd -26.33 Date: 24.FEB.2012 16:47:46 Report No.: HK12020537-1 Model: LS6195 Mode: Ringing AC Mains Ctrl No.: 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 24.FEB.2012 16:37:23 Report No.: HK12020537-1 Model: LS6195 Mode: Ringing AC Mains Ctrl No.: EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 429 kHz 33.64 N gnd -23.62 1 Quasi Peak 1.4325 MHz 31.81 N gnd -24.18 1 Quasi Peak 1.9455 MHz 32.08 N gnd -23.91 1 Quasi Peak 2.6205 MHz 32.44 N gnd -23.55 1 Quasi Peak 4.0515 MHz 33.17 L1 gnd -22.82 1 Quasi Peak 4.938 MHz 36.68 L1 gnd -19.31 1 Quasi Peak 6.6885 MHz 42.52 L1 gnd -17.47 1 Quasi Peak 9.0195 MHz 35.14 L1 gnd -24.85 1 Quasi Peak 15.1125 MHz 15.94 L1 gnd -44.05 Date: 24.FEB.2012 16:37:08

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8656-00 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC ID: EW780-8656-00 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8656-00 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8656-00 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8656-00 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8656-00 peaktp - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8656-00 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8656-00 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8656-00 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8656-00 config photos (radiated emission - handset) - 1 of 1 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Speaker (Intercom) FCC ID: EW780-8656-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Speaker (Intercom) FCC ID: EW780-8656-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
