EW780-8696-001.9GHz Digital Modulation Cordless Phone

1 Abridged user’s manual IS7121/IS7121-2/IS7121-22 DECT 6.0 cordless telephone with wireless doorbell To help protect the environment, this Abridged user’s manual provides you with some basic setting and operation instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on page 13 of this user’s manual. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 Register online to get an additional 3-month warranty! Go to www.vtechphones.com to register your product for enhanced warranty support and latest VTech product news. Refer to the Installation guide provided in this product package to install this product before you can configure your telephone system. IMPORTANT Introduction 2 Doorbell overview Parts checklist Telephone line cord Battery (1 for IS7121) (2 for IS7121-2/ IS7121-22) Battery compartment cover (1 for IS7121) (2 for IS7121-2/IS7121-22) Handset (1 for IS7121) (2 for IS7121-2/ IS7121-22) Telephone base Battery PackBT164392/BT2643922.4V 550mAh Ni-MHWARNING : DO NOT BURN ORPUNCTURE BATTERIESMade in China CR1222 Screw for doorbell (bottom) Screws for doorbell wall mount (2) Telephone base power adapter Doorbell power adapter Wall anchors (2) Handset charger and charger adapter (1 for IS7121-2/ IS7121-22) Doorbell Wall mount bracket Alkaline battaries (2) Abridged user’s manualInstallation guide Abridged user’s manualInstallation guide Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. /DOORBELL Doorbell light Infrared LEDs Camera lens 3 Handset overview 1 2 3 4 5 6 7 11 12 13 14 1 – CHARGE light 2 – /VOL - /CID Scroll down while in a menu, or in the directory, caller ID log or redial list. Decrease the listening volume. Review the caller ID log. 3 – /FLASH Make or answer a call. 4 – 1 Set or dial your voicemail number. 5 – Dialing keys 6 – Switch to tone dialing temporarily. Switch the character between upper and lower case. 7 – Make or answer a call. Switch between the speakerphone and the handset earpiece. 8 – MUTE/DELETE Mute the microphone. Delete digits or characters. 9 – REDIAL/PAUSE Review the redial list. Insert a dialing pause. • • • • • • • • • • • • • 10 – Set and turn on the quiet mode, or turn it off. Show other dialing options when reviewing a caller ID log entry. Toggle the name order when saving the caller ID entry into the directory. 11 – OFF/CANCEL Hang up a call. Return to the previous menu or idle mode without making changes. 12 – /VIEW Start video streaming. 13 – /VOL + / Scroll up while in a menu, or in the directory, caller ID log or redial list. Increase the listening volume. Review the directory. 14 – Softkeys (2) Select a menu item displayed above the key. 15 – PUSH TO TALK (PTT) Begin a one-to-one or one-to-group broadcast. • • • • • • • • • • • 9 10 8 15 4 Telephone base overview 1 2 3 4 5 6 7 9 10 8 1 – Message window 2 – /ANS ON/OFF Turn on or off the answering system. 3 – /FIND HANDSET Page all system handsets. 4 – /REPEAT Repeat a message. Press twice to play the previous message. 5 – /PLAY/STOP Play messages. Stop playing messages. • • • • • • 6 – /SKIP Skip to the next message. 7 – + /VOL/- Adjust the listening volume. 8 – X/DELETE Delete the playing message. 9 – DOORBELL light 10 – IN USE light • • • Press OFF/CANCEL to wake up the sleeping screen. Press MENU when the handset is not in use. Press or until the screen displays the desired feature menu. Press SELECT. To return to the previous menu, press CANCEL. To return to idle mode, press and hold CANCEL. 1. 2. 3. • • Using the handset menu L 5 Default settings are indicated by asterisks (*). Settings menuDescriptionOptions LCD languageSet the handset display language.English*; Français; Español CID time syncEnable the date and time to be set by incoming caller ID information. On*; Off Rename devicesChange the name for each system device.Local handset; Doorbell Annc Caller IDEnable the telephone base and/or the handsets to announce the incoming caller ID information. Set all On/Off; Local handset; Base LCD brightnessSet the handset screen brightness. * WallpaperSet the handset wallpaper.Wallpaper 1*; Wallpaper 2; Wallpaper 3; Wallpaper 4; Wallpaper 5 Voicemail #Set the speed dial voicemail number.Voicemail # - Clr voicemailTurn off the voicemail indicators (see the note below). Reset voicemail indication? Key toneSet whether the handset beeps whenever a key is pressed. Off; * Dial modeSet the telephone to be touch-tone or pulse dialing. Touch-tone*; Pulse Use the Clr voicemail feature when the telephone indicates there is new voicemail but there is none. For example, when you have accessed your voicemail while away from home. The Clr voicemail feature only turns off the indicators; it does not delete your voicemail messages. As long as you have new voicemail messages, your telephone service provider continues to send the signal that turns on the indicators. The following are some of the telephone features you may wish to set. Refer to Telephone settings in the online Complete user’s manual for complete instructions on setting all telephone features. Handset ringer volume You can adjust the handset ringer volume level, or turn the ringer off. Press MENU when the handset is not i…

Text truncated - open the document above for the full version.

Letter of Agency for FCC Certification January 1, 2013 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Senior Electronic Engineer

VTech Telecommunications Ltd December 17, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8696-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Senior Electronic Engineer

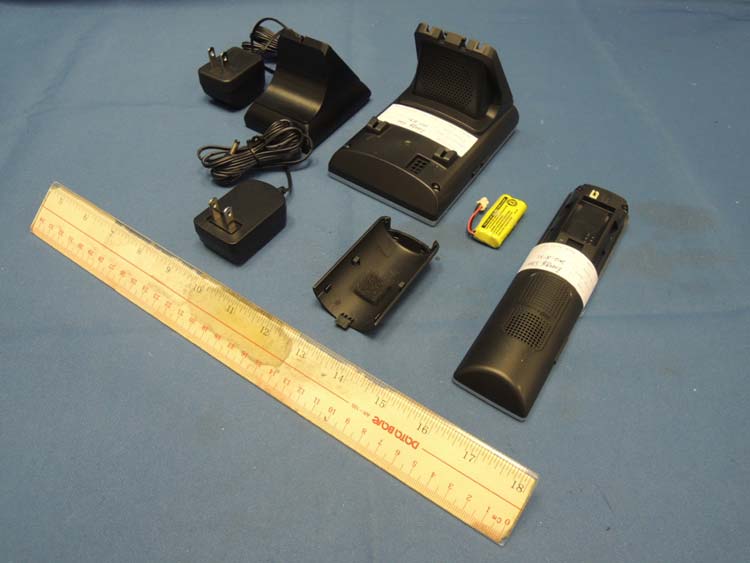

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8696-00 IC: 1135B-80869600 external photos - 1 of 2 HK12090443 Job Number HK12090443 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8696-00 IC: 1135B-80869600 external photos - 2 of 2 HK12090443 Job Number

Text : Recessed 0.3mm High Gloss BS engraving IS7XXX engraving CHG engraving HS engraving Door bell engraving AC 6V Use Only Supplied Adapter Text: engraved in raised 0.3mm CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory Text : Recessed 0.3mm High Gloss Text : Recessed 0.3mm High Gloss SN LABEL28X10mm Model: IS7101 S/N: XXXXXXXXXXXXXXXXXXXX Text : Recessed 0.3mm High Gloss Serial No. Label size:20x10mm IC: 1135B-80869600 FCC ID: EW780-8696-00 4H20 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. VTech Customer Service 1-800-595-9511 www.vtechphones.com Model: IS7121 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121-22 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7122-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7122-317 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7101 S/N: XXXXXXXXXXXXXXXXXXXX SN Label28X10mm Model: IS741 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7121-22 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7122-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: IS7122-317 S/N: XXXXXXXXXXXXXXXXXXXX SN Label28X10mm Label 22X4mm Label 7X7.5mm Model: IS7121 SN:XXXXXXXXXXXX Model: IS7121SN:XXXXXXXXXXXXModel: IS7121-2SN:XXXXXXXXXXXXModel: IS7121-22SN:XXXXXXXXXXXXModel: IS7122-3SN:XXXXXXXXXXXXModel: IS7122-317SN:XXXXXXXXXXXXModel: IS7101SN:XXXXXXXXXXXX VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA DC 6V 400mA FCC ID : EW780-8696-00 IC: 1135B-80869600 COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W400B80-869600 HAC CHOOSE ONE LABEL Use Only Supplied Adapter Text: engraved in raised 0.3mm Text: engraved in raised 0.3mm Text: engraved in raised 0.3mm Text: engraved in Recessed 0.3mm CAUTION FCC ID: EW780-8584-00 IC: 1135B-80869600 Model: IS741 S/N: XXXXXXXXXXXXXXXXXXXX Rotate to Left Angle Adjustment Rotateto Right

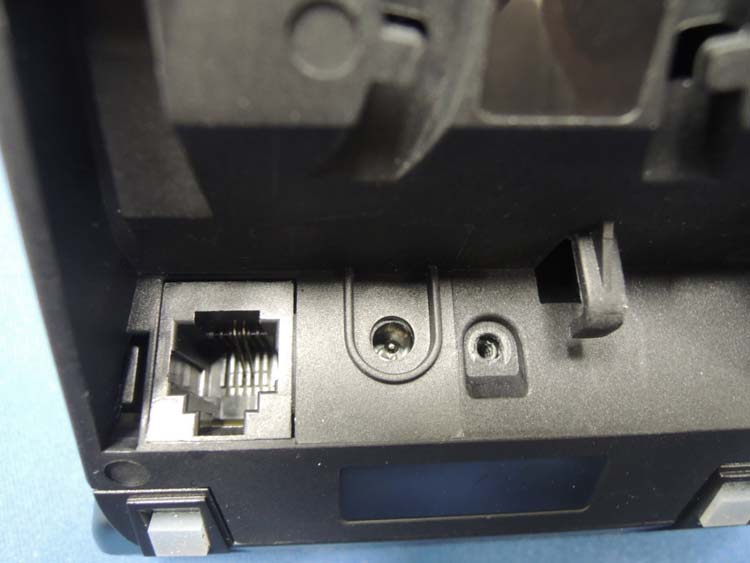

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 1 of 10 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 2 of 10 Base Unit Main PCB solder side Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 3 of 10 Base Unit Page Key rear side Base Unit AC and Telephone Line Jack front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 4 of 10 Base Unit AC and Telephone Line Jack rear side Base Unit DAM front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 5 of 10 Base Unit DAM front side (View 2) Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 6 of 10 Base Unit Oscillator PCB comp side (View 1) Base Unit Oscillator PCB comp side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 7 of 10 Handset assembly Handset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 8 of 10 Handset Main PCB comp side (View 2) Handset Main PCB display side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 9 of 10 Handset Main PCB display side (View 2) Handset Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8696-00 IC: 1135B-80869600 internal photos - 10 of 10 Handset Oscillator PCB solder side

INTERTEK TESTING SERVICES FCC ID: EW780-8696-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. For the 1.9GHz DECT 6.0 Base unit of tested model: IS7121-2, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of IS7121-2 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 33.3% (8/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.333) mW = 41.92 mW The power density at 20cm = 41.92 *1.00/ 4R 2 = 0.0084 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.” EUT Spectrum Analyzer Companion Device Directional Coupler

VTech Telecommunications Ltd. Date: 9 th , August, 2012 To whom it may concern, Declarations FCC ID: EW780-8696-00 IC: 1135B-80869600 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Handset will act as the initiating device(s), which will initiate the establishment of the duplex connection. 4. For FCC only, the Upper Monitoring Threshold of Base Unit is -61.4 dBm 5. For FCC only, the Upper Monitoring Threshold of Handset is -59.8 dBm (Single-Slot) and -59.5 dBm (Long-Slot) 6. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off device NA NA 2 Remove power from device A C 3 On Hook on device side NA C 4 Switch-off companion device NA NA 5 Remove power from companion device B A 6 On Hook by companion device B NA A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Senior Electronic Engineer

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12090443-1 Page 1 of 103 FCC ID: EW780-8696-00 IC: 1135B-80869600 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-8696-00 FCC Model(s): IS7121-2, IS712X-abc, IS710X-abc IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 1135B-80869600 IC Model(s): IS7121, IS7121-2, IS7121-22, IS7101,IS7122-317, IS7122-3 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Speakerphone and Digital Answering Machine Serial Number: N/A Sample Receipt Date: September 14, 2012 Date of Test: September 20 - 21, 2012 Report Date: January 14, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12090443-1 Page 2 of 103 FCC ID: EW780-8696-00 IC: 1135B-80869600 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description ............................................................................................ 11 2.3 Test Methodology.................................................................................................. 11 2.4 Test Facility........................................................................................................... 11 3.0 System Test Configuration.................................................................................... 13 3.1 Justification ........................................................................................................... 13 3.2 Conducted Emission Test Configuration ................................................................ 15 3.3 Conducted Monitoring and Operational Test Configuration .................................... 15 3.4 EUT Exercising Software....................................................................................... 15 3.5 Details of EUT and Description of Accessories...................................................... 16 3.6 Measurement Uncertainty ..................................................................................... 16 4.0 Measurement Results............................................................................................ 18 4.1 Antenna Requirement........................................................................................... 18 4.2 Digital Modulation Techniques............................................................................... 18 4.3 Emission Bandwidth.............................................................................................. 19 4.4 Directional Gain of the Antenna ............................................................................. 28 4.5 Peak Transmit Power ............................................................................................ 29 4.5 Peak Transmit Power ............................................................................................ 30 4.6 Power Spectral Density ......................................................................................... 39 4.7 Automatic Discontinuation of Transmission............................................................ 47 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 48 4.9 Emissions Outside the Sub-Band .......................................................................... 61 4.9.1 Radiated Emissions Configuration Photographs ................................................. 62 4.9.2 Radiated Emissions Data ................................................................................... 62 4.9.3 Field Strength Calculation................................................................................... 69 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 70 4.10 AC Power Line Conducted Emissions ................................................................. 71 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 72 4.10.2 AC Power Line Conducted Emissions Data ..................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8696-00 IC: 1135B-80869600 config photos (radiated emission – handset) - 1 of 2 Radiated Emission – Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8696-00 IC: 1135B-80869600 config photos (radiated emission – handset) - 2 of 2 Radiated Emission – Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) + Answer a chime + Video Streaming FCC ID: EW780-8696-00 IC: 1135B-80869600 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT) + Answer a chime + Video Streaming FCC ID: EW780-8696-00 IC: 1135B-80869600 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
