EW780-8919-001.9GHz DECT Cordless Phone

1 Abridged user’s manual LS6191/LS6191-13/LS6191-15/ LS6191-16/LS6191-17 DECT 6.0 cordless telephone with BLUETOOTH ® wireless technology The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® NCDGNKPFKECVKPIKVOGGVUVJGNCVGUVGPGTI[GHsEKGPE[IWKFGNKPGU 6GNGRJQPGUKFGPVKsGFYKVJVJKUNQIQJCXGTGFWEGFPQKUGCPF interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 Introduction To help protect the environment, this abridged user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages 13 and 14 of this user’s manual. Table of contents Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Parts checklist...................................1 Telephone base installation ..............2 Battery installation ............................2 Battery charging................................2 Telephone base overview .................3 Handset overview..............................4 Bluetooth ...........................................4 Using the handset menu ...................5 Telephone settings ............................5 Telephone operation .........................6 Directory............................................8 Caller ID ............................................9 About answering system and voicemail......................................10 Answering system settings ............10 Answering system operation...........11 Add and register a handset.............11 Replace a handset ..........................11 Troubleshooting...............................12 Important safety instructions...........13 Precautions for users of implanted cardiac pacemakers ....................14 Operating range ..............................14 ECO mode.......................................14 Maintenance....................................14 About cordless telephones .............14 The RBRC ® seal .............................15 Limited warranty..............................15 FCC, ACTA and IC regulations .......15 6GEJPKECNURGEKsECVKQPU..................16 Abridged user’s manualQuick start guide Telephone line cord Battery Telephone base power adapter Battery compartment cover HandsetTelephone base Abridged user’s manual Quick start guide Battery Pack / Bloc -piles : (2.4V Ni-MH) WA RNING / A VERTISSEMENT : DO NO T BURN OR PUNC TURE BA TTERIES . NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chin e THIS SIDE UP / CE CÔ TÉ VERS LE HAUT Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chine THIS SIDE UP / CE CÔTÉ VERS LE HAUT Telephone base installation Install the telephone base as shown below. Use only the power adapter and battery supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377. Battery charging Once you have installed the battery, the handset screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base when not in use. The battery is fully charged after 11 hours of continuous charging. Battery indicatorsBattery statusAction The screen is blank, or displaysPut in charger and ƀCUJGU The battery has no or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and ƀCUJGU The battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET 1. The battery is charged.To keep the battery charged, place it in the telephone base when not in use. Battery installation Install the battery as shown below. Telephone wall jack Insert the battery connector securely into the socket as shown below. 1.Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3.Place the handset on the telephone base to charge. 4. Electrical outlet (not controlled by a wall switch) Telephone base power adapter Telephone line cord #&5.sNVGT PQVKPENWFGF KU required if you have DSL high-speed Internet service. 6JG&5.sNVGTOWUVDG plugged into the telephone wall jack. 2 Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chine THIS SIDE UP / CE CÔTÉ VERS LE HAUT Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chine THIS SIDE UP / CE CÔTÉ VERS LE HAUT 1 2 BASE 10:01 AM 12/08 ANS ON 9 displays when charging. 3 Telephone base overview Tap to pair or replace a cell phone. • CID/FLASH Tap to review the caller ID log when the phone is not in use. Tap to answer another incoming call during a call on the same line. • • /MUTE Tap to review the directory when the phone is not in use. Tap to mute the microphone during a call. Tap to silence the base ringer temporarily while the phone is ringing. • • • Press to switch to tone dialing temporarily during a call. • Press repeatly to …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification April 27, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd April 27, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-8919-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd Date: April 27, 2012 To whom it may concern, Declarations FCC ID: EW780-8919-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B C 3 Remove power from companion device B A 4 Switch-off device NA NA 5 On Hook on device side B C 6 Remove power from device A C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signalling information. C – Connection is terminated but companion device transmits control or signalling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

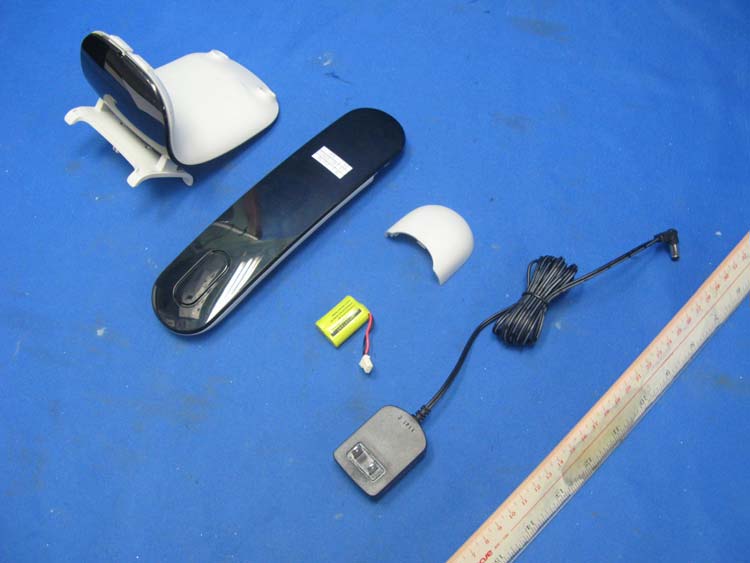

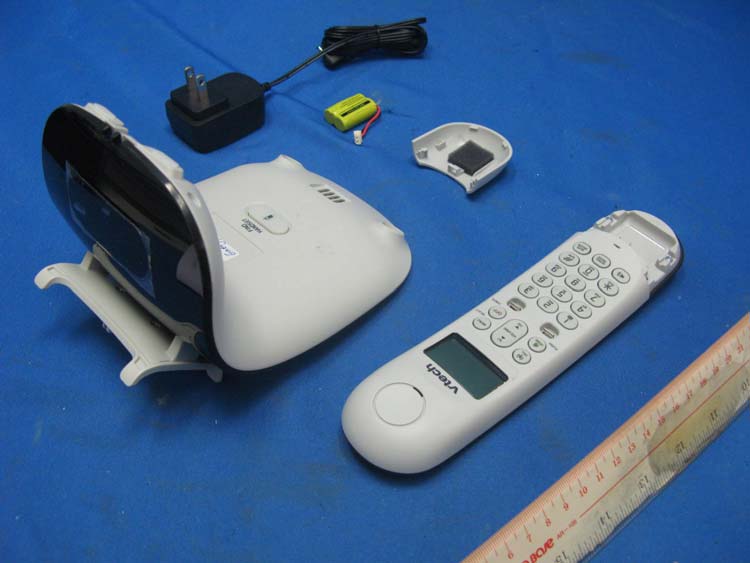

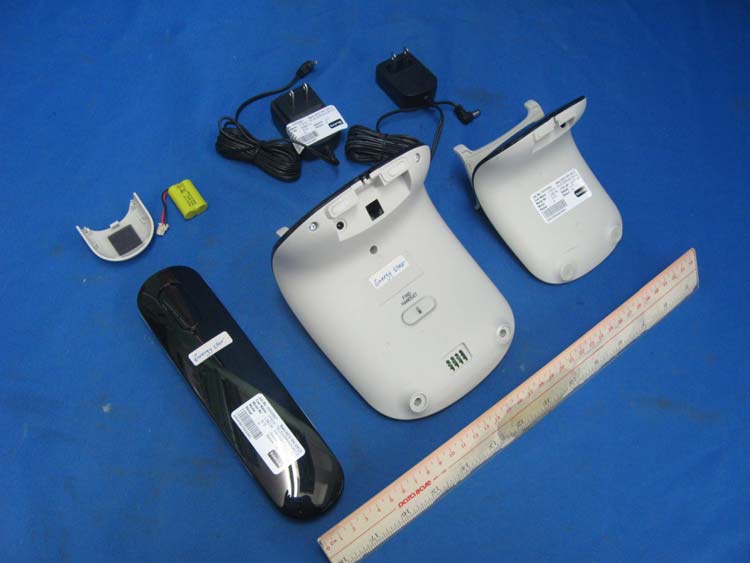

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8919-00 external photos - 1 of 3 HK12040547 Job Number HK12040547 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8919-00 external photos - 2 of 3 HK12040547 Job Number HK12040547 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-8919-00 external photos - 3 of 3

SN Label 28X10mm SN Label 24X20mm CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6191SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6001SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6001-13SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6001-15SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6001-16SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6001-17SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 CAUTION Use Only Supplied Battery or Battery BT283642 Model: LS6191SN:XXXXXXXXXXXX FCC ID:EW780-8919-00 LS6191 and LS6001 Engraving Model: LS6191 S/N: XXXXXXXXXXXXXXXXXXXX Accessory CORDLESS TELEPHONE DC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com DC 6V Use Only Supplied Adapter Telephone Base LS6191 LS6191-13 LS6191-15 LS6191-16 LS6191-17 Changer LS6001 LS6001-13 LS6001-15 LS6001-16 LS6001-17 Handset LS6191 LS6191-13 LS6191-15 LS6191-16 LS6191-17 LS6001 LS6001-13 LS6001-15 LS6001-16 LS6001-17 VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 RINGER EQUIVALENCE:0.0B HAC FCC ID : EW780-8919-00 DC 6V 450mA USOC JACK: RJ11C/RJ11W REGISTRATION NO.: US:EW7W400B80-891900 CORDLESS TELEPHONE TEL. LINE DC 6V VTech Customer Service 1-800-595-9511 www.vtechphones.com 21mm 10.5mm 10mm 40mm 40.6mm Use Only Supplied Adapter Model: LS6191 S/N: XXXXXXXXXXXXXXXXXXXX

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 1 of 13 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 2 of 13 Base Unit Main PCB solder side view (1) Base Unit Main PCB solder side view (2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 3 of 13 Base Unit Keypad front side Base Unit Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 4 of 13 Base Unit DECT Antenna 1 Base Unit DECT Antenna 2 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 5 of 13 Base Unit Bluetooth Antenna Base Unit Telephone Line & AC Jack Board front side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 6 of 13 Base Unit Telephone Line & AC Jack Board front side (View 2) Base Unit Telephone Line & AC Jack Board rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 7 of 13 Base Unit LED front side Base Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 8 of 13 Base Unit DECT RF Module PCB comp side Base Unit Bluetooth RF Module PCB comp side view (1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 9 of 13 Base Unit Bluetooth RF Module PCB comp side view (2) Base Unit Bluetooth RF Module PCB solder side comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 10 of 13 Handset assembly Handset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 11 of 13 Handset Main PCB comp side (View 2) Handset Main PCB Keypad side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 12 of 13 Handset Main PCB Keypad side (View 2) Handset LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-8919-00 internal photos - 13 of 13 Handset Oscillator PCB comp side Handset Oscillator PCB solder side

INTERTEK TESTING SERVICES FCC ID: EW780-8919-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of LS6191, the maximum field strength measured (FS) was 105.1 dBμV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 9.71 mW The radiated (EIRP) source-based time-averaging output power = (9.71 * 0.208) mW = 2.02 mW The power density at 20 cm from the antenna = EIRP / 4πR 2 = 0.0004 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com VTech Telecommunications Ltd. Application For 47 CFR Part 15: 2010 Certification Unlicensed Personal Communication Service Devices FCC ID: EW780-8919-00 Model: LS6191, LS6191-13, LS6191-15, LS6191-16, LS6191-17, LS619C-AB, LS6001, LS6001-13, LS6001-15, LS6001-16, LS6001-17, LS600C-AB Test Report Number: HK12040547-1 Issue Date: May 24, 2012 MN/KY INTERTEK TESTING SERVICES Test Report Number: HK12040547-1 Page 1 of 59 FCC ID: EW780-8919-00 Table of Contents 1.0 Summary of Test Results........................................................................................ 4 2.0 General Description................................................................................................. 7 2.1 Product Description ................................................................................................. 7 2.2 Technical Description .............................................................................................. 7 2.3 Test Methodology.................................................................................................... 8 2.4 Test Facility............................................................................................................. 8 3.0 System Test Configuration.................................................................................... 10 3.1 Justification ........................................................................................................... 10 3.2 Conducted Emission Test Configuration ................................................................ 11 3.3 Conducted Monitoring and Operational Test Configuration.................................... 11 3.4 EUT Exercising Software....................................................................................... 11 3.5 Details of EUT and Description of Peripherals....................................................... 12 3.6 Measurement Uncertainty ..................................................................................... 12 4.0 Measurement Results............................................................................................ 14 4.1 Antenna Requirement........................................................................................... 14 4.2 Digital Modulation Techniques............................................................................... 14 4.3 Emission Bandwidth.............................................................................................. 15 4.4 Directional Gain of the Antenna ............................................................................. 16 4.5 Peak Transmit Power ............................................................................................ 17 4.6 Power Spectral Density ......................................................................................... 18 4.7 Automatic Discontinuation of Transmission............................................................ 19 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 20 4.9 Emissions Outside the Sub-Band .......................................................................... 21 4.9.1 Radiated Emissions Configuration Photographs ................................................. 22 4.9.2 Radiated Emissions Data ................................................................................... 22 4.9.3 Field Strength Calculation................................................................................... 29 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 30 4.10 AC Power Line Conducted Emissions from Transmitter portion of EUT................ 31 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 32 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 32 4.11 Radio Frequency Radiation Exposure.................................................................. 33 4.12 Frame Repetition Stability .................................................................................. 34 4.13 Frame Period and Jitter ...................................................................................... 35 4.14 Carrier Frequency Stability .................................................................................. 36 4.15 Monitoring Threshold........................................................................................... 38 4.15.1 Lower Monitoring Threshold ............................................................................. 39 4.15.2 Least Interfered Channel, LIC ........................................................................... 40 4.15.2.1 Upper Monitoring Threshold...................................................…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC: EW780-8919-00 26bw - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES 26dB Emission Bandwidth Plots FCC: EW780-8919-00 26bw - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

Report No.:HK12040547 Model: LS6191 Mode: Answer Machine Recording AC Mains Ctrl No.: NA 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 11.MAY.2012 15:17:09 Report No.:HK12040547 Model: LS6191 Mode: Answer Machine Recording AC Mains Ctrl No.: NA EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 154.5 kHz 43.86 N gnd -21.88 1 Quasi Peak 438 kHz 40.18 L1 gnd -16.91 2 CISPR Average442.5 kHz 36.57 N gnd -10.44 1 Quasi Peak 613.5 kHz 35.76 N gnd -20.23 1 Quasi Peak 933 kHz 35.82 L1 gnd -20.17 1 Quasi Peak 3.471 MHz 33.15 L1 gnd -22.84 2 CISPR Average5.3475 MHz 24.63 L1 gnd -25.36 1 Quasi Peak 5.4015 MHz 39.78 L1 gnd -20.21 2 CISPR Average6.1035 MHz 35.26 L1 gnd -14.73 1 Quasi Peak 6.369 MHz 55.91 L1 gnd -4.08 1 Quasi Peak 8.088 MHz 46.58 L1 gnd -13.41 2 CISPR Average8.3265 MHz 38.72 L1 gnd -11.27 Date: 11.MAY.2012 15:16:50 Report No.:HK12040547 Model: LS6191 Mode: Ringing AC Mains Ctrl No.: NA 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 11.MAY.2012 15:03:27 Report No.:HK12040547 Model: LS6191 Mode: Ringing AC Mains Ctrl No.: NA EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 1 Quasi Peak 168 kHz 41.68 N gnd -23.37 1 Quasi Peak 442.5 kHz 40.35 N gnd -16.65 2 CISPR Average456 kHz 33.30 N gnd -13.46 1 Quasi Peak 676.5 kHz 36.06 L1 gnd -19.93 2 CISPR Average699 kHz 23.65 L1 gnd -22.34 1 Quasi Peak 838.5 kHz 39.04 L1 gnd -16.95 1 Quasi Peak 1.3785 MHz 33.39 L1 gnd -22.60 1 Quasi Peak 2.004 MHz 31.31 L1 gnd -24.68 1 Quasi Peak 2.58 MHz 34.93 N gnd -21.06 1 Quasi Peak 4.1055 MHz 35.66 N gnd -20.34 1 Quasi Peak 5.5185 MHz 47.57 N gnd -12.42 2 CISPR Average5.532 MHz 29.57 N gnd -20.42 1 Quasi Peak 6.5355 MHz 55.32 L1 gnd -4.67 2 CISPR Average6.7515 MHz 34.01 L1 gnd -15.98 1 Quasi Peak 8.151 MHz 45.44 L1 gnd -14.55 2 CISPR Average8.547 MHz 40.89 L1 gnd -9.10 Date: 11.MAY.2012 15:03:08 Report No.:HK12040547 Model: LS6191 Mode: Handset Online AC Mains Ctrl No.: NA 150 kHz30 MHz 1 PK CLRWR 2 AV CLRWR SGL TDS 6DB dBμV dBμV AC RBW 9 kHz MT 1 s PREAMP OFFAtt 10 dB AUTO 1 MHz10 MHz 0 10 20 30 40 50 60 70 80 90 100 CF15MAV CF15MQP Date: 11.MAY.2012 15:08:14 Report No.:HK12040547 Model: LS6191 Mode: Handset Online AC Mains Ctrl No.: NA EDIT PEAK LIST (Final Measurement Results) Trace1: CF15MQP Trace2: CF15MAV Trace3: --- TRACE FREQUENCY LEVEL dBμV DELTA LIMIT dB 2 CISPR Average438 kHz 30.76 N gnd -16.33 1 Quasi Peak 442.5 kHz 38.03 N gnd -18.98 1 Quasi Peak 658.5 kHz 29.28 N gnd -26.71 1 Quasi Peak 3.876 MHz 22.77 L1 gnd -33.22 2 CISPR Average5.676 MHz 29.08 L1 gnd -20.91 1 Quasi Peak 5.694 MHz 43.94 L1 gnd -16.05 1 Quasi Peak 6.432 MHz 51.12 L1 gnd -8.87 2 CISPR Average6.522 MHz 35.80 L1 gnd -14.20 1 Quasi Peak 8.088 MHz 44.35 L1 gnd -15.64 2 CISPR Average8.403 MHz 37.01 L1 gnd -12.98 Date: 11.MAY.2012 15:07:54

INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8919-00 inband - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Unwanted Emission Inside The Sub-Band Plots FCC ID: EW780-8919-00 inband - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8919-00 peaktp - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Peak Transmit Power Plots FCC ID: EW780-8919-00 peaktp - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8919-00 psd - 1 of 2 A0 Base unit, Lowest channel, Traffic carrier Base unit, Highest channel, Traffic carrier INTERTEK TESTING SERVICES Power Spectral Density Plots FCC ID: EW780-8919-00 psd - 2 of 2 A0 Handset unit, Lowest channel, Traffic carrier Handset unit, Highest channel, Traffic carrier

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8919-00 config photos (radiated emission - base unit) - 1 of 2 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-8919-00 config photos (radiated emission - handset) - 2 of 2 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Answer Machine Recording FCC ID: EW780-8919-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Answer Machine Recording FCC ID: EW780-8919-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
