EW780-9039-001.9GHz Digital Modulation Cordless Phone

CareLine ™ www.vtechphones.com + Models: SN6127/SN6127-2/ SN6187 Abridged user’s manual This Abridged user’s manual provides you with basic installation and operation instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages 93-95 of this manual. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. Register online to get an additional 3-month warranty! Visit www.vtechphones.com. Registration Register your product online for enhanced warranty support. Product news Learn about the latest VTech products. Parts checklist Cordless handset (1 for SN6127) (2 for SN6127-2) Handset charger and charger adapter (1 for SN6127-2) Battery compartment cover (1 for SN6127) (2 for SN6127-2) Battery (1 for SN6127) (2 for SN6127-2) Telephone base power adapter Telephone line cordQuick start guideAbridged user’s manual Quick start guide Abridged user’s manual Your telephone package contains the following items. Save your sales receipt and original packaging in case it is necessary to ship your telephone for warranty service. SN6127/SN6127-2 Telephone base Parts checklist SN6187 Cordless handset Handset charger and charger adapter Pendant charger and charger adapter Battery compartment cover Pendant belt clip Battery Telephone base power adapter Telephone line cordQuick start guide Abridged user’s manual Pendant with lanyard Telephone base Quick start guide Abridged user’s manual Table of contents Getting started ...........1 Telephone base installation... 1 Handset battery installation ... 2 Handset charger installation ........................ 3 Pendant charger installation ........................ 4 Pendant attachment ............ 5 Battery backup..................... 7 Handset battery charging .... 8 Pendant battery charging .... 9 Are you a new cable or VoIP subscriber? ............ 10 Did you subscribe to voicemail service from your telephone service provider? ........................ 11 Expand your telephone system ............................ 12 Add and register a handset ........................... 12 Add and register a pendant .......................... 14 Deregister devices ............. 15 Telephone base layout ...... 16 Pendant layout................... 18 Handset layout................... 20 Telephone settings ...24 Using the menu ................. 24 Speed dial for pendant ...... 24 Store a speed dial entry..... 25 Edit a speed dial entry ....... 25 Delete a speed dial entry ... 26 Ringer volume ................... 27 Ringer tone ........................ 27 Set date and time .............. 28 Voice Announce caller ID .......................... 29 LCD language.................... 30 Talking digit ....................... 30 Voicemail number .............. 31 Clear voicemail indicators ... 31 Rename handset ............... 32 Key tone ............................ 32 Use caller ID to automatically set date and time ............ 33 Home area code ................ 33 Dial mode .......................... 34 Quiet mode ........................ 35 Happy message................. 36 Voice command ................. 36 Table of contents Telephone operation ...37 Make, answer and end a call ........................ 37 Speakerphone ................... 38 Equalizer............................ 38 Audio Assist ..................... 39 Volume control................... 40 Mute................................... 40 Call waiting ........................ 41 Temporary ringer silencing ......................... 41 Redial ................................ 42 Temporary tone dialing ...... 42 Check voicemail ................ 42 Chain dialing ...................... 43 Transfer a call .................... 44 Find handset/pendant ........ 45 Multiple handset use ..........................46 Join a call in progress ........ 46 Intercom............................. 47 Phonebook ...............48 Add a phonebook entry ..... 48 Review phonebook entries ... 48 Alphabetical search ........... 49 Edit a phonebook entry...... 49 Delete a phonebook entry ... 49 Caller ID ....................50 Missed call indicator .......... 50 Review the caller ID log ..... 51 View dialing options ........... 51 Save a caller ID log entry to the phonebook............ 52 Reminder ..................53 About the reminder ............ 53 Add a reminder .................. 53 Review reminders .............. 54 Add and review reminders remotely .......................... 54 Answering system settings ..................55 Answering system ............. 55 Announcement .................. 55 Record your own announcement................ 56 Answer on/off..................... 57 Call screening .................... 58 Number of rings ................. 58 Remote access code ......... 59 Message alert tone ............ 60 Message recording time .... 60 Table of contents Answering system operation................61 Answering system and voicemail ........................ 61 Using the answering system and voicemail together .......................... 62 Message capacity .............. 63 Call screening .................... 63 Call intercept...................... 64 Temporarily turn off the message alert tone ......... 64 Message playback ............. 65 Delete all old messages .... 67 Record, play and delete memos ................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd. Appendix B1 Letter of Agency for FCC Certification February 7, 2013 T o whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Senior Electronic Engineer

VTech Telecommunications Ltd. January 16, 2013 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9039-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Senior Electronic Enigneer

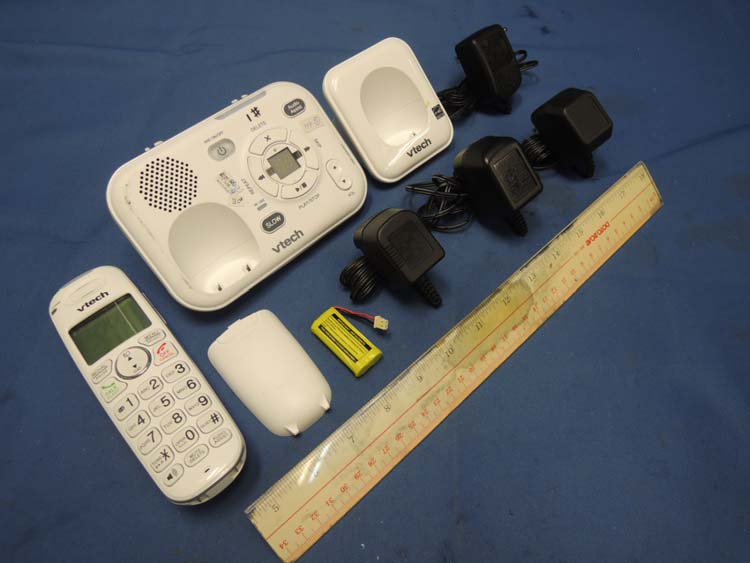

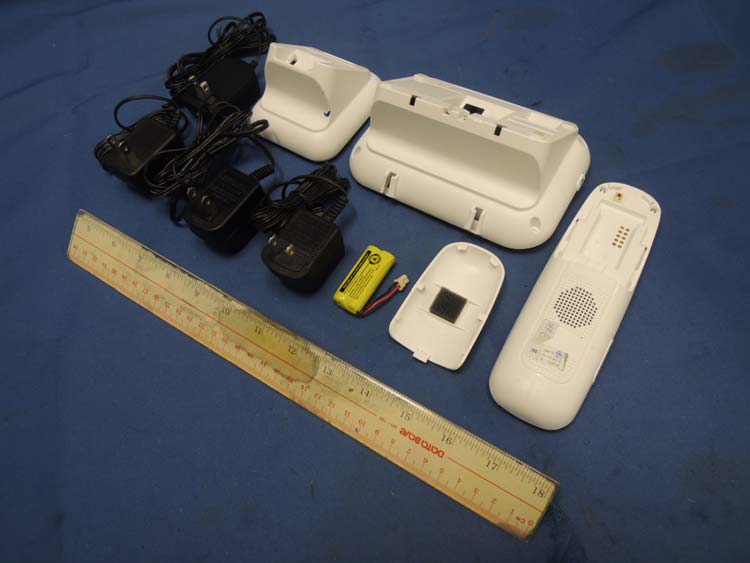

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9039-00 external photos - 1 of 2 HK12120941 Job Number HK12120941 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9039-00 external photos - 2 of 2 HK12120941 Job Number

SN61XX Engraving 17.00 18.20 26.00 6.00 50.00 20.00 SN LABEL 20X10 mm Cordless HS BS PENDANT CHG CHG PENDANT DC 6V SN LABEL Size: 28x10mm SN LABEL Size: 11.6X2.9mm SN LABEL Size: 28x10mm Model: SN6107SN:XXXXXXXXXXXX Model: SN6127 SN:XXXXXXXXXXXX Model: SN6107 SN:XXXXXXXXXXXX Model: SN6127-2 SN:XXXXXXXXXXXX Model: SN6187 SN:XXXXXXXXXXXX CAUTION Use Only Supplied Battery or Battery BT283342 FCC ID: EW780-9039-00 IC: 1135B-80903900 Model: SN6127 S/N: XXXXXXXXXXXXXXXXXXXX Model: SN6127-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: SN6187 S/N: XXXXXXXXXXXXXXXXXXXX VTech Customer Service 1-800-595-9511 www.vtechphones.com TEL. LINE Use Only Supplied Adapter Model: SN6187 FCC ID: EW780-8885-00 IC: 1135B-80858100 Model: SN6107 S/N: XXXXXXXXXXXXXXXXXXXX Use Only Supplied Adapter AC 6V Use Only Supplied Adapter CORDLESS TELEPHONE DC 6V 400mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory DC 6V CORDLESS TELEPHONE DC 6V 400mA VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA 4H20 COMPLIES WITH 47 CFR PART 68 HAC Reg. No.: US: EW7W400B80-903900 RINGER EQUIVALENCE: 0.0B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID: EW780-9039-00 IC: 1135B-80903900 3.1 16.0

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 1 of 9 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 2 of 9 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 3 of 9 Base Unit DAM front side (View 1) Base Unit DAM front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 4 of 9 Base Unit DAM rear side Base Unit RF Module front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 5 of 9 Base Unit RF Module rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 6 of 9 Base Unit Oscillator PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 7 of 9 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 8 of 9 Handset Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9039-00 internal photos - 9 of 9 Handset Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-9039-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. For the 1.9GHz DECT 6.0 Cordless Phoneof tested model: SN6127, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of SN6127 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 25.0% (6/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.250) mW = 31.47 mW The power density at 20cm = 31.47 *1.00/ 4πR 2 = 0.0063 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.” EUT Spectrum Analyzer Companion Device Directional Coupler

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12120941-1 Page 1 of 71 FCC ID: EW780-9039-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-9039-00 FCC Model(s): SN612x-ac, SN618x-ac, SN610x-ac, SN6127 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Digital Answering Machine and Speakerphone Serial Number: N/A Sample Receipt Date: December 31, 2012 Date of Test: January 14 - 31, 2013 Report Date: February 15, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12120941-1 Page 2 of 71 FCC ID: EW780-9039-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 6 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 12 3.3 Conducted Monitoring and Operational Test Configuration .................................... 12 3.4 EUT Exercising Software....................................................................................... 12 3.5 Details of EUT and Description of Accessories...................................................... 13 3.6 Measurement Uncertainty ..................................................................................... 13 4.0 Measurement Results............................................................................................ 15 4.1 Antenna Requirement........................................................................................... 15 4.2 Digital Modulation Techniques............................................................................... 15 4.3 Emission Bandwidth.............................................................................................. 16 4.4 Directional Gain of the Antenna ............................................................................. 19 4.5 Peak Transmit Power ............................................................................................ 20 4.6 Power Spectral Density ......................................................................................... 23 4.7 Automatic Discontinuation of Transmission............................................................ 26 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 27 4.9 Emissions Outside the Sub-Band .......................................................................... 30 4.9.1 Radiated Emissions Configuration Photographs ................................................. 31 4.9.2 Radiated Emissions Data ................................................................................... 31 4.9.3 Field Strength Calculation................................................................................... 40 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 41 4.10 AC Power Line Conducted Emissions ................................................................. 42 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 43 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 43 4.11 Radio Frequency Radiation Exposure.................................................................. 46 4.12 Frame Repetition Stability .................................................................................. 47 4.13 Frame Period and Jitter ..................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd. February 7, 2013 To whom it may concern, Declarations FCC ID: EW780-9039-00 IC: 1135B-80903900 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device(s), which will initiate the establishment of the duplex connection. 4. For FCC, Upper Monitoring Threshold of base unit and handset unit declared by manufacturer are -60.9 dBm and -60.5dBm respectively. 5. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off device NA NA 2 Remove power from device A C 3 On Hook on device side NA C 4 Switch-off companion device NA NA 5 Remove power from companion device B A 6 On Hook by companion device B NA A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Se nior Electronics Enigneer

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9039-00 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9039-00 config photos (radiated emission - handset) - 1 of 1 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-9039-00 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-9039-00 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
