EW780-9050-001.9GHz Digital Modulation Cordless Phone

Complete user’s manual CL81113/CL81213/CL81263/ CL81313/CL81363/CL81413/ CL81463 DECT 6.0 cordless telephone with caller ID/call waiting Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information section on pages 57-58 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. This telephone system is compatible with certain AT&T DECT 6.0 cordless headsets. Visit www.telephones.att.com/headsets for a list of compatible cordless headsets. Model number: CL81113 (one handset) CL81213/CL81263 (two handsets) CL81313/CL81363 (three handsets) CL81413/CL81463 (four handsets) Type: DECT 6.0 cordless telephone with caller ID/call waiting Serial number: ____________________________________________________________ Purchase date: ____________________________________________________________ Place of purchase: _________________________________________________________________ Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. T Compatible with Hearing Aid T-Coil TIA-1083 Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. © 2012 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines. Complete user’s manual CL81113/CL81213/CL81263/ CL81313/CL81363/CL81413/ CL81463 DECT 6.0 cordless telephone with caller ID/call waiting Table of contents Getting started Quick reference guide - handset ........ 1 Quick reference guide - telephone base ............................................................. 3 Installation ..................................................... 4 Telephone base and charger installation ............................................... 5 Telephone base installation ............ 5 Charger installation ............................. 5 Battery installation and charging ....... 6 Installation options .................................... 8 Tabletop to wall mount installation............................................. 8 Wall mount to tabletop installation............................................. 9 Telephone settings Handset settings ...................................... 10 Ringer volume ..................................... 10 Ringer tone ........................................... 11 Set date/time ...................................... 12 LCD language ...................................... 13 Set speed dial voicemail number ...13 Voicemail (visual message waiting) indicator ............................ 14 Clear voicemail indication ........... 14 Rename handset ................................ 15 Key tone ................................................. 15 Use caller ID to automatically set date and time ........................... 16 Home area code ................................. 16 Dial mode .............................................. 17 Website ................................................... 17 Telephone operation Handset operation .................................. 18 Making a call ........................................ 18 On hook dialing (predialing) ........ 18 Answering a call ................................ 18 Ending a call ........................................ 18 Auto off .................................................. 18 Temporary ringer silencing ........... 18 Speakerphone ..................................... 19 Last number redial ............................ 19 Equalizer ................................................. 20 Options while on calls .......................... 21 Volume control ................................... 21 Call waiting ........................................... 21 Mute ......................................................... 21 Chain dialing ........................................ 22 Temporary tone dialing .................. 23 Blind transfer ....................................... 23 Multiple handset use Multiple handset use ............................. 24 Handset locator .................................. 24 Join a call in progress ..................... 24 Intercom ....................................................... 25 Answer an incoming call during an intercom call ..................................... 25 Call transfer using intercom .............. 26 Push-to-talk (PTT) ................................... 27 Turn PTT on or off ............................. 27 PTT call to a single handset ........ 27 PTT call to a group of handsets .28 Answer a PTT call .............................. 29 Change a one-to-one PTT call to an intercom call ..................................... 29 Answer an incoming call during PTT ......................................................... 30 Make an outgoing call during PTT ......................................................... 30 End or leave a PTT call ................... 30 Directory About the directory ................................ 31 Shared directory ................................. 31 Capacity .................................................. 31 Create directory entries ....................... 32 Create a new …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: November 7, 2012 To whom it may concern, Declarations FCC ID: EW780-9050-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. For FCC, Base Unit, its Upper Monitoring Threshold declared by manufacturer: -60 dBm 5. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit 1 Switch-off companion device NA 2 On Hook by companion device B 3 Switch-off device NA 4 On Hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

Letter of Agency for FCC Certification November 19, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd November 19, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9050-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

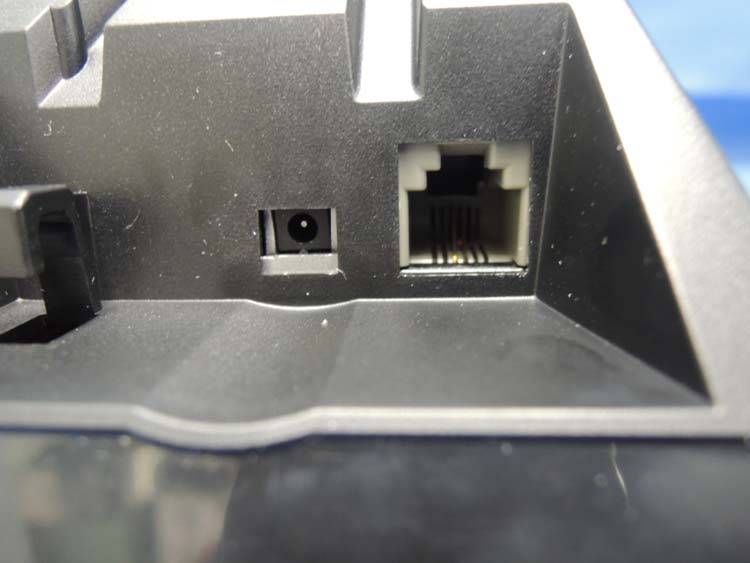

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9050-00 external photos - 1 of 2 HK12110401 Job Number HK12110401 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9050-00 external photos - 2 of 2

FCC ID: EW780-9053-00 CAUTION Use Only Supplied Battery or Battery BT183342 Handset CL81X13 ENGRAVING FILE 20.5mm 23mm 20mm 10.5mm Model: CL81113 SN:XXXXXXXXXXX CL81213’S Charger CL81313’S Charger C Base Advanced American Telephones THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W401B80-905000 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W FCC ID: EW780-9050-00 AC 6V 300mA MANUFACTURED IN CHINA Use Only Supplied Adapter TEL. LINE HAC BB AC 6V Model: CL81113 SN: XXXXXXXXXXX Model: CL81213 SN: XXXXXXXXXXX Model: CL81313 SN: XXXXXXXXXXX Model: CL81113 SN: XXXXXXXXXXX SN Label: 28X10mm Model: CL82113 SN:XXXXXXXXXXX Model: CL82213 SN:XXXXXXXXXXX Model: CL82313 SN:XXXXXXXXXXX Model: CL82413 SN:XXXXXXXXXXX SN Label 20X10mm Model: CL81113 SN:XXXXXXXXXXX Model: CL81213 SN:XXXXXXXXXXX Model: CL81313 SN:XXXXXXXXXXX FCC ID: EW780-7825-01 Charger HS CAUTION Use Only Supplied Battery or Battery BT183342 CAUTION LABEL CL81303 Engraving Model: CL81303SN:XXXXXXXXXXXX Model: CL81103 SN:XXXXXXXXXXXX Model: CL81203 SN:XXXXXXXXXXXX Model: CL81303 SN:XXXXXXXXXXXX Model: CL81403 SN:XXXXXXXXXXXX SN Label 20X10mm CAUTION FCC ID: EW780-7825-01 Use Only Supplied Battery or Battery BT183342 Model: CL81303SN:XXXXXXXXXXXX 19.2mm 49.5mm C Base Advanced American Telephones THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. COMPLIES WITH 47 CFR PART 68 REGISTRATION NO.: US: EW7W401B80-905000 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/W FCC ID: EW780-9050-00 AC 6V 300mA MANUFACTURED IN CHINA Use Only Supplied Adapter TEL. LINE HAC BB AC 6V Model: CL81303 SN: XXXXXXXXXXX Model: CL81403 SN: XXXXXXXXXXX Model: CL81203 SN: XXXXXXXXXXX Model: CL81103 SN: XXXXXXXXXXX Model: CL81303 SN: XXXXXXXXXXX SN Label: 28X10mm CL81203’S Charger CL81303’S Charger CL81403’S Charger

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9050-00 internal photos - 1 of 3 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9050-00 internal photos - 2 of 3 Base Unit Main PCB solder side Base Unit Antenna 1 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9050-00 internal photos - 3 of 3 Base Unit Antenna 2 Base Unit Oscillator PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-9050-00 RF exposure info - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65. For the base unit of tested model of CL81113, the maximum field strength measured (FS) was 115.8 dBV/m. The distance (D) between the antenna and the equipment under test (EUT) was 3 meters. And the maximum source-based time-averaging duty factor in four-handsets operation is 20.8%. From these data, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The radiated power (EIRP) = (FS*D) 2 / 30 = 114.06 mW The radiated (EIRP) source-based time-averaging output power = (114.06 * 0.208) mW = 23.72 mW The power density at 20 cm from the antenna = EIRP / 4R 2 = 0.0047 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12110401-1 Page 1 of 57 FCC ID: EW780-9050-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-9050-00 FCC Model(s): CL81103, CL81203, CL81303, CL81403, CL81XY3, CL81113, CL81213, CL81313, CL81AB3 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID and Speakerphone - Base Unit Serial Number: N/A Sample Receipt Date: November 13, 2012 Date of Test: November 20, 2012 Report Date: December 07, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12110401-1 Page 2 of 57 FCC ID: EW780-9050-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 6 2.0 General Description................................................................................................. 8 2.1 Product Description ................................................................................................. 8 2.2 Technical Description .............................................................................................. 8 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility............................................................................................................. 9 3.0 System Test Configuration.................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Conducted Emission Test Configuration ................................................................ 13 3.3 Conducted Monitoring and Operational Test Configuration .................................... 13 3.4 EUT Exercising Software....................................................................................... 13 3.5 Details of EUT and Description of Accessories...................................................... 14 3.6 Measurement Uncertainty ..................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 19 4.5 Peak Transmit Power ............................................................................................ 20 4.6 Power Spectral Density ......................................................................................... 22 4.7 Automatic Discontinuation of Transmission............................................................ 24 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 25 4.9 Emissions Outside the Sub-Band .......................................................................... 27 4.9.1 Radiated Emissions Configuration Photographs ................................................. 28 4.9.2 Radiated Emissions Data ................................................................................... 28 4.9.3 Field Strength Calculation................................................................................... 32 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 33 4.10 AC Power Line Conducted Emissions ................................................................. 34 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 35 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 35 4.11 Radio Frequency Radiation Exposure.................................................................. 37 4.12 Frame Repetition Stability .................................................................................. 38 4.13 Frame Period and Jitter .............…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9050-00 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “Ten Pao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-9050-00 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “Ten Pao”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk FCC ID: EW780-9050-00 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “Ten Pao”) Left Side View
