 CS6719/CS6719-15/ CS6719-16/CS6719-2/ CS6719-3/CS6719-4/ CS6719-5 DECT 6.0 cordless telephone Abridged user’s manual Introduction To help protect the environment, this Abridged user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages  and 2 of this user’s manual. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 2 Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Telephone base power adapter Handset ( for CS679/ CS679-5/ CS679-6 (2 for CS679-2) (3 for CS679-3) (4 for CS679-4) (5 for CS679-5) Battery ( for CS679/ CS679-5/ CS679-6 (2 for CS679-2) (3 for CS679-3) (4 for CS679-4) (5 for CS679-5) Battery compartment cover ( for CS679/ CS679-5/CS679-6 (2 for CS679-2) (3 for CS679-3) Charger and charger adapter ( for CS679-2) (2 for CS679-3) (3 for CS679-4) (4 for CS679-5) Wall mount bracket Telephone base Abridged user’s manual Abridged user’s manual Telephone base and charger installation Install the telephone base and charger as shown below. Telephone base Charger Electrical outlet (not controlled by a wall switch) Telephone base power adapter Telephone line cord Telephone wall jack Charger adapter Electrical outlet (not controlled by a wall switch) A DSL filter (not included) is required if you have DSL high-speed Internet service. The DSL filter must be plugged into the telephone wall jack. Use only the power adapters and batteries supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95. In Canada, go to www.vtechcanada.com or call  (800) 267-7377. CAUTION: If you subscribe to telephone service from a cable company or a VoIP service provider, contact your telephone service provider for more information • Important information Important information sheet 3 Battery installation Install the battery as shown below. Plug the battery connector securely into the socket. . Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3. Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. IMPORTANT: Check for a dial tone by pressing . If you hear a dial tone, the installation is successful. If you do not hear a dial tone: Make sure the installation procedures described above are properly done. It may be a wiring problem. If you have changed your telephone service to digital service from a cable company or a VoIP service provider, the telephone line may need to be rewired to allow all existing telephone jacks to work. Contact your telephone service provider for more information. • • Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after  hours of continuous charging. Battery indicatorsBattery statusAction The screen is blank, or displays Put in charger and flashes. The battery has no or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and flashes. The battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. 4 Route the telephone line cord through the hole on the wall mount bracket and plug it into the telephone wall jack. Route the power cord out of the telephone base and plug it into an electrical outlet not controlled by a wall switch. 3. Align the holes on the bracket with the standard wall plate and slide the bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties. 4. Wall mounting (optional) To mount your telephone on a wall: Position the telephone base against the wall mount bracket with the extended tabs marked B on top. Insert the extended tabs marked B on the wall mount bracket into the slots marked B on the back of the telephone base. Push the telephone base down until it clicks securely. 2.Remove the telephone line cord from the telephone wall jack, and the telephone base power adapter from the electrical outlet (if necessary). . Telephone base overview IN USE light FIND HANDSET Page all system handsets. . 2. •  2 5 Handset overview Using the menu Press MENU when the phone is not in use. Press or until the screen displays the desired feature menu. Press SELECT. To return to the previous menu, press CANCEL. To return to idle mode, press and hold CANCEL. Telephone settings Default settings are indicated by asterisks (*). Settings menuDescriptionOptions LCD languageSet the screen display language.English* Français Español Voicemail #Set the speed dial voicemail number.Voicemail # - . 2. 3. • • 1. CHARGE light 2. REDIAL/PAUSE Review the redial list. Insert a diali…

Text truncated - open the document above for the full version.

 CS6729/CS6729-2/CS6729-3/ CS6729-4/CS6729-5 DECT 6.0 cordless telephone Abridged user’s manual Introduction To help protect the environment, this Abridged user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages  and 2 of this user’s manual. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 2 Telephone base and charger installation Install the telephone base and charger as shown below. Use only the power adapters and batteries supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95. In Canada, go to www.vtechcanada.com or call  (800) 267-7377. CAUTION: If you subscribe to telephone service from a cable company or a VoIP service provider, plug the telephone line cord into the modem/router/terminal adapter provided by your cable/VoIP service provider. Contact your cable/VoIP service provider if you have any difficulties in installation. • Telephone base Charger Electrical outlet (not controlled by a wall switch) Telephone base power adapter Telephone line cord Telephone wall jack Charger adapter Electrical outlet (not controlled by a wall switch) A DSL filter (not included) is required if you have DSL high-speed Internet service. The DSL filter must be plugged into the telephone wall jack. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Telephone base power adapter Battery ( for CS6729) (2 for CS6729-2) (3 for CS6729-3) (4 for CS6729-4) (5 for CS6729-5) Battery compartment cover ( for CS6729) (2 for CS6729-2) (3 for CS6729-3) (4 for CS6729-4) (5 for CS6729-5) Wall mount bracket Handset ( for CS6729) (2 for CS6729-2) (3 for CS6729-3) (4 for CS6729-4) (5 for CS6729-5) Charger and charger adapter ( for CS6729-2) (2 for CS6729-3) (3 for CS6729-4 (4 for CS6729-5)) Telephone base Abridged user’s manual Abridged user’s manual Quick start guide Quick start guide Important information Important information sheet 3 Battery installation Install the battery as shown below. Plug the battery connector securely into the socket. .Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3.Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after  hours of continuous charging. Battery indicatorsBattery statusAction The screen is blank, or displays Put in charger and flashes. The battery has no or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and flashes. The battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. IMPORTANT: Check for a dial tone by pressing . If you hear a dial tone, the installation is successful. If you do not hear a dial tone: Make sure the installation procedures described above are properly done. It may be a wiring problem. If you have changed your telephone service to digital service from a cable company or a VoIP service provider, the telephone line may need to be rewired to allow all existing telephone jacks to work. Refer to Rewiring of telephone line for cable/VoIP service users on page 0 for more information. • • 4 Route the telephone line cord through the hole on the wall mount bracket and plug it into the telephone wall jack. Route the power cord out of the telephone base and plug it into an electrical outlet not controlled by a wall switch. 3. Align the holes on the bracket with the standard wall plate and slide the bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties. 4. Wall mounting (optional) To mount your telephone on a wall: Position the telephone base against the wall mount bracket with the extended tabs marked B on top. Insert the extended tabs marked B on the wall mount bracket into the slots marked B on the back of the telephone base. Push the telephone base down until it clicks securely. 2.Remove the telephone line cord from the telephone wall jack, and the telephone base power adapter from the electrical outlet (if necessary). . Handset overview 1. CHARGE light 2. REDIAL/PAUSE Review the redial list. Insert a dialing pause. 3. /FLASH Make or answer a call. Answer another incoming call during a call. 4. 1 Set or dial your voicemail number. 5. Dialing keys 6. TONE Switch to tone dialing temporarily during a call 7. MUTE/DELETE Mute the microphone. Silence the ringer temporarily while the handset is ringing. Delete the displayed entry while in the directory, caller ID log or redial list. 8. //VOLUME Review t…

Text truncated - open the document above for the full version.

 CS6829/CS6829-2/ CS6829-3/CS6829-4 DECT 6.0 cordless telephone Abridged user’s manual Introduction To help protect the environment, this Abridged user’s manual provides you with the basic installation and use instructions. A limited set of features are described in abbreviated form. Please refer to the online Complete user’s manual for a full set of installation and operation instructions at www.vtechphones.com. Before using this VTech product, please read Important safety instructions on pages  and 2 of this user’s manual. The ENERGY STAR ® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR ® label indicating it meets the latest energy efficiency guidelines. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. 2 Telephone base and charger installation Install the telephone base and charger as shown below. Use only the power adapters and batteries supplied with this product. To order a replacement, visit our website at www.vtechphones.com or call  (800) 595-95. In Canada, go to www.vtechcanada.com or call  (800) 267-7377. CAUTION: If you subscribe to telephone service from a cable company or a VoIP service provider, plug the telephone line cord into the modem/router/terminal adapter provided by your cable/VoIP service provider. Contact your cable/VoIP service provider if you have any difficulties in installation. • Telephone base Charger Electrical outlet (not controlled by a wall switch) Telephone base power adapter Telephone line cord Telephone wall jack Charger adapter Electrical outlet (not controlled by a wall switch) A DSL filter (not included) is required if you have DSL high-speed Internet service. The DSL filter must be plugged into the telephone wall jack. Parts checklist Your telephone package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Telephone line cord Telephone base power adapter Battery ( for CS6829) (2 for CS6829-2) (3 for CS6829-3) (4 for CS6829-4) Battery compartment cover ( for CS6829) (2 for CS6829-2) (3 for CS6829-3) (4 for CS6829-4) Wall mount bracket Handset ( for CS6829) (2 for CS6829-2) (3 for CS6829-3) (4 for CS6829-4) Charger and charger adapter ( for CS6829-2) (2 for CS6829-3) (3 for CS6829-4) Telephone base Abridged user’s manual Abridged user’s manual Quick start guide Quick start guide 3 Battery installation Install the battery as shown below. Plug the battery connector securely into the socket. .Place the battery with the label THIS SIDE UP facing up and the wires inside the battery compartment. 2. Slide the battery compartment cover towards the center of the handset until it clicks into place. 3.Place the handset in the telephone base or charger to charge. 4. CHARGE light remains on when charging. Battery charging Once you have installed the battery, the screen indicates the battery status (see the table below). For best performance, keep the handset in the telephone base or charger when not in use. The battery is fully charged after  hours of continuous charging. Battery indicatorsBattery statusAction The screen is blank, or displays Put in charger and flashes. The battery has no or very little charge. The handset cannot be used. Charge without interruption (at least 30 minutes). The screen displays Low battery and flashes. The battery has enough charge to be used for a short time. Charge without interruption (about 30 minutes). The screen displays HANDSET X. The battery is charged.To keep the battery charged, place it in the telephone base or charger when not in use. IMPORTANT: Check for a dial tone by pressing . If you hear a dial tone, the installation is successful. If you do not hear a dial tone: Make sure the installation procedures described above are properly done. It may be a wiring problem. If you have changed your telephone service to digital service from a cable company or a VoIP service provider, the telephone line may need to be rewired to allow all existing telephone jacks to work. Refer to Rewiring of telephone line for cable/VoIP service users on page 0 for more information. • • 4 Route the telephone line cord through the hole on the wall mount bracket and plug it into the telephone wall jack. Route the power cord out of the telephone base and plug it into an electrical outlet not controlled by a wall switch. 3. Align the holes on the bracket with the standard wall plate and slide the bracket down until it locks securely. Bundle the telephone line cord and power adapter cord neatly with twist ties. 4. Wall mounting (optional) To mount your telephone on a wall: Position the telephone base against the wall mount bracket with the extended tabs marked B on top. Insert the extended tabs marked B on the wall mount bracket into the slots marked B on the back of the telephone base. Push the telephone base down until it clicks securely. 2.Remove the telephone line cord from the telephone wall jack, and the telephone base power adapter from the electrical outlet (if necessary). . Handset overview 1. CHARGE light 2. REDIAL/PAUSE Review the redial list. Insert a dialing pause. 3. /FLASH Make or answer a call. Answer another incoming call during a call. 4. 1 Set or dial your voicemail number. 5. Dialing keys 6. TONE Switch to tone dialing temporarily during a call 7. MUTE/DELETE Mute the microphone. Silence the ringer temporarily while the handset is ringing. Delete the displayed entry while in the directory, caller ID log or redial list. 8. //VOLUME Review the directory . Increase the listening volume. Scroll up while in a menu, or in the directory, caller ID log or redial list. • • • • • • • • • • • • 9. MENU/SELECT Show the m…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Date: October 31, 2012 To whom it may concern, Declarations FCC ID: EW780-9066-00 IC: 1135B-80906600 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off companion device NA NA 2 On Hook by companion device B NA 3 Switch-off device NA NA 4 On Hook on device side NA C 5 Remove power from device A C 6 Remove power from companion device B A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable 5. For FCC, upper monitoring threshold of base unit and handset declared by manufacturer are -61.3dBm and -60.6dBm respectively. If you have questions or need further information, please contact the undersigned. Regards, Name: Samson Man Title: Approbation Supervisor

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification October 31, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Samson Man Approbation Supervisor

VTech Telecommunications Ltd October 31, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9066-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

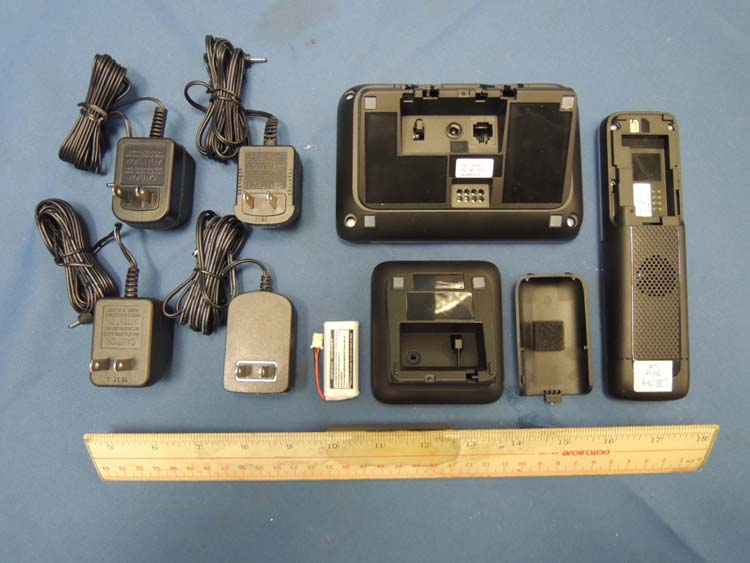

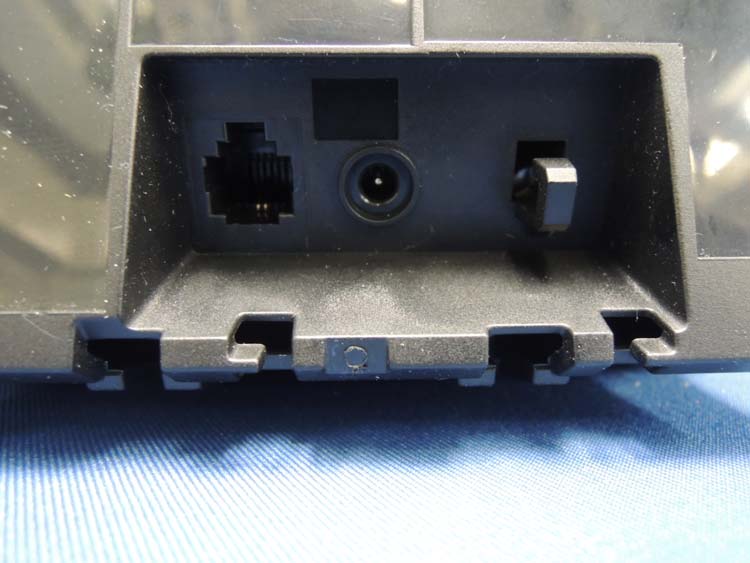

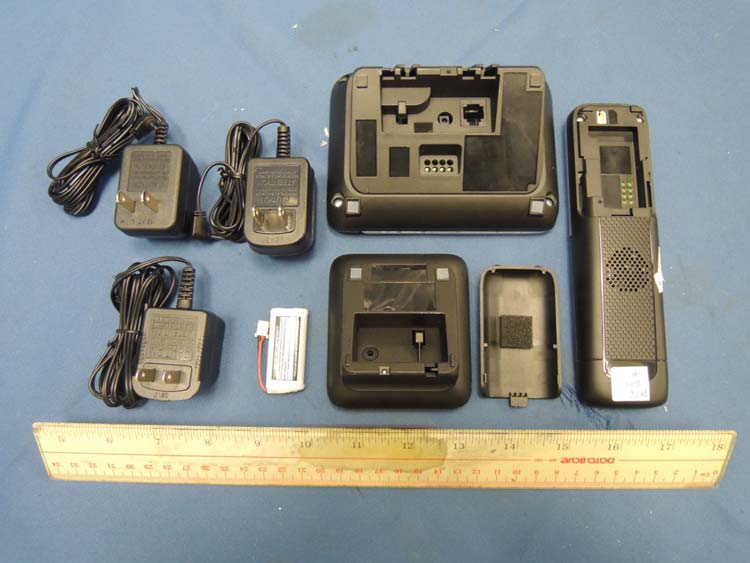

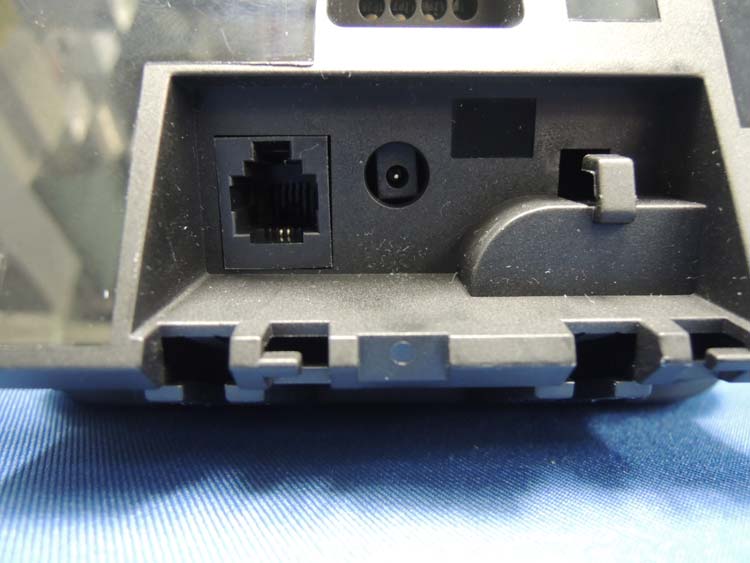

INTERTEK TESTING SERVICES External Photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 1 of 6 HK12100645 Job Number HK12100645 Job Number INTERTEK TESTING SERVICES External Photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 2 of 6 INTERTEK TESTING SERVICES External Photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 3 of 6 HK12100645 Job Number HK12100645 Job Number INTERTEK TESTING SERVICES External Photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 4 of 6 INTERTEK TESTING SERVICES External Photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 5 of 6 HK12100645 Job Number HK12100645 Job Number INTERTEK TESTING SERVICES External Photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 external photos - 6 of 6

VTech Customer Service 1-800-595-9511 www.vtechphones.com Model: CS6719-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6709 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6709 S/N: XXXXXXXXXXXXXXXXXXXX CORDLESS TELEPHONE IC: 1135B-80906600 AC 6V 300mA VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W401B80-906600 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. 4H20 HAC FCC ID: EW780-9066-00 TEL. LIN E Use Only Supplied Adapter AC 6V CS6719-X ENGRAVING FFILE Model: CS6719 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-15 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-16 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-4 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6719-5 S/N: XXXXXXXXXXXXXXXXXXXX BS SN LABEL 28X10mm SN LABEL 28X10mm CHARGER AC 6V Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory Model: CS6719 SN:XXXXXXXXXXXX Model: CS6709 SN:XXXXXXXXXXXX Model: CS6719-15 SN:XXXXXXXXXXXX Model: CS6719-16 SN:XXXXXXXXXXXX Model: CS6719-2 SN:XXXXXXXXXXXX Model: CS6719-3 SN:XXXXXXXXXXXX Model: CS6719-4 SN:XXXXXXXXXXXX Model: CS6719-5 SN:XXXXXXXXXXXX SN LABEL 20X10mm Model: CS6719SN:XXXXXXXXXXXX HS CAUTION Use Only Supplied Battery or Battery BT283342 FCC ID: EW780-9066-00 IC: 1135B-80906600 CS6729-X ENGRAVING FFILE Model: CS6729 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6729-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6729-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6729-4 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6729-5 S/N: XXXXXXXXXXXXXXXXXXXX BS CHARGER SN LABEL 28X10mm AC 6V Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory Model: CS6729SN:XXXXXXXXXXXX Model: CS6729 SN:XXXXXXXXXXXX Model: CS6729-2 SN:XXXXXXXXXXXX Model: CS6729-3 SN:XXXXXXXXXXXX Model: CS6729-4 SN:XXXXXXXXXXXX Model: CS6729-5 SN:XXXXXXXXXXXX HS SN LABEL 20X10mm CAUTION Use Only Supplied Battery or Battery BT283342 FCC ID: EW780-9066-00 IC: 1135B-80906600 Model: CS6729 S/N: XXXXXXXXXXXXXXXXXXXX CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 www.vtechphones.com DC 6V 400mA 4H20 TEL. LINE Use Only Supplied Adapter DC 6V COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W401B80-906600 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/RJ11W HAC FCC ID : EW780-9066-00 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 1135B-80906600 CS6829-X ENGRAVING FFILE Model: CS6829 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6829 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6829-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6829-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: CS6829-4 S/N: XXXXXXXXXXXXXXXXXXXX BS CHARGER SN LABEL 28X10mm SN LABEL 28X10mm CORDLESS TELEPHONE VTECH TELECOMMUNICATIONS LTD. MANUFACTURED IN CHINA VTech Customer Service 1-800-595-9511 www.vtechphones.com DC 6V 400mA 4H20 TEL. LINE Use Only Supplied Adapter DC 6V COMPLIES WITH 47 CFR PART 68 Reg. No.: US: EW7W401B80-906600 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/RJ11W HAC FCC ID : EW780-9066-00 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. IC: 1135B-80906600 AC 6V Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory Model: CS6829SN:XXXXXXXXXXXX Model: CS6829 SN:XXXXXXXXXXXX Model: CS6829-2 SN:XXXXXXXXXXXX Model: CS6829-3 SN:XXXXXXXXXXXX Model: CS6829-4 SN:XXXXXXXXXXXX HS SN LABEL 20X10mm CAUTION Use Only Supplied Battery or Battery BT283342 FCC ID: EW780-9066-00 IC: 1135B-80906600

INTERTEK TESTING SERVICES Internal photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 1 of 15 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 2 of 15 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side INTERTEK TESTING SERVICES Internal photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 3 of 15 Base Unit Antenna Base Unit Page Key front side INTERTEK TESTING SERVICES Internal photos – Model: CS6719-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 4 of 15 Base Unit Page Key rear side Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 5 of 15 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 6 of 15 Base Unit Main PCB solder side Base Unit Antenna INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 7 of 15 Base Unit DAM front side Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 8 of 15 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 9 of 15 Base Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 10 of 15 Base Unit Main PCB solder side Base Unit Antenna INTERTEK TESTING SERVICES Internal photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 11 of 15 Base Unit DAM front side Base Unit DAM rear side INTERTEK TESTING SERVICES Internal photos – Model: CS6829-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 12 of 15 Base Unit Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 internal photos - 13 of 15 Handset assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos – Model: CS6729-2 FCC ID: EW780-9066-00 IC: 1135B-80906600 inte…
