EW780-9092-001.9GHz Digital Modulation Wireless Speaker

User’s manual TL80133 DECT 6.0 portable wireless speaker Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read Important safety information on pages 6-9 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. Model number: TL80133 Type: DECT 6.0 portable wireless speaker Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the speaker charger. Save your sales receipt and original packaging in case it is necessary to return your product for warranty service. © 2013 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Parts checklist Check to make sure the package includes the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Battery compartment cover Power adapter for speaker charger User's manualWireless speaker Battery for wireless speaker User’s manual TL80133 DECT 6.0 portable wireless speaker Speaker charger Batter y P ack : 2.4V Ni-MHWA RNING :DO NO T BURN OR PUN CT URE BA T TERIES. THIS S IDE UP 1 Quick reference guide Getting started VOL - VOL + CHARGE light MUTE FLASH 2 Getting started Avoid placing the telephone base too close to: • Communication devices such as television sets, VCRs or other cordless telephones. • Excessive heat sources. • Noise sources such as a window with traffic outside, motors, microwave ovens, refrigerators or fluorescent lighting. • Excessive dust sources such as a workshop or garage. • Excessive moisture. • Extremely low temperature. • Mechanical vibration or shock such as on top of a washing machine or work bench. Installation See page 4 for easy instructions. You must install and charge the battery before using the speaker. STOP! For customer service or product information, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 2 88-4268. 3 Getting started Charger installation Install the speaker charger as shown below. Plug the small end of the charger power adapter into the power adapter jack on the back of the charger. Plug the large end of the charger power adapter into a power outlet not controlled by a wall switch. Route the power adapter cord through this slot. IMPORTANT INFORMATION • Use only the power adapter provided with this product. To obtain aUse only the power adapter provided with this product. To obtain a replacement, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. • The power adapter is intended to be correctly oriented in a vertical orThe power adapter is intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. 4 Getting started Battery installation and charging Install the battery as shown below. Batter y Pa ck : 2.4V Ni-MHW ARNING :DO NO T BURN OR PUNC TURE BA T TERIES. THIS S IDE UP Batter y P ack : 2.4V Ni-MHW ARNING :DO NO T BURN OR PUNC TURE BA T TERIES. THIS S IDE UP Plug the battery connector securely into the socket inside the speaker battery compartment. 1.2. Insert the supplied batteryInsert the supplied battery with the label THIS SIDE UP facing up as indicated. 3. Insert the tab on the bottom of the battery compartment cover into the battery compartment, then press down gently on the cover until it snaps into place. 4. Charge the speaker byCharge the speaker by placing it face upward in the charger. The CHARGE light on the speaker turns red during charging. CHARGE light turns red To replace the battery, push the tab and lift the battery compartment cover up and off. Lift out the old battery and disconnect it from the speaker. Follow the instructions above to install and charge the new battery. Batter y P ack : 2.4V Ni-MHW ARNING :DO NO T BURN OR PUNC TURE BA T TERIES. THIS S IDE UP  Getting started IMPORTANT INFORMATION • Use only the supplied rechargeable battery or replacement batteryUse only the supplied rechargeable battery or replacement battery (model BT18742/BT28742). To order, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. • If you do not use the speaker for a long time, disconnect and removeIf you do not use the speaker for a long time, disconnect and remove the battery to prevent possible leakage. Battery installation and charging Once you have installed the battery, the CHARGE light on the speaker indicates the battery status (see the table below). If necessary, place the speaker in the charger to charge the battery. For optimal performance, keep the speaker in the charger when not in use. The battery is fully charged after 11 hours of continuous charging. See Technical specifications on page 20 for battery operating times. notes: If you are on a call in low battery mode, you hear a low battery alert tone every 60 seconds. If the battery is not properly installed or no battery is installed in the speaker, when you place it in the charger, the CHARGE light is off. Follow the instructions on page 4 to install the battery. • • CHARGE lightBattery status Red: Flashes every 10 seconds.Battery has very little charge and needs charging. Red: Steadily on.Battery is charging. Green: Steadily on.Battery is fully charged (in the charger). 6 Appendix Important safety information This symbol is to alert you to important operating or servicing instructions that may appear in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk …

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification October 10, 2013 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd October 10, 2013 To whom it may concern, Label Location Justification FCC ID: EW780-9092-00 Request is hereby submitted by VTech Telecommunications Ltd. to request an alternative method of positively identifying the equipment, pursuant to 47 CFR § 2.925(f) of the FCC Rules. The FCC identifier for handset will be placed in the battery compartment and the following requirements are confirmed to meet: a) The FCC identifier will visible at the time of purchase, by either of the following approaches: • Marketing the device without the battery installed, or • Providing instruction (stated on the box, user manual, or additional documentation) directing the user as to where to find the FCC label. b) The user accessible area will not require any special tools for access and the FCC label will not be placed on a removable part. The user manual has already included the FCC statements, pursuant to 47 CFR § 15.19(a)(3), 15.21 and 15.105(b). If you have questions or need further information, please contact the undersigned. Sincerely, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd October 10, 2013 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9092-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

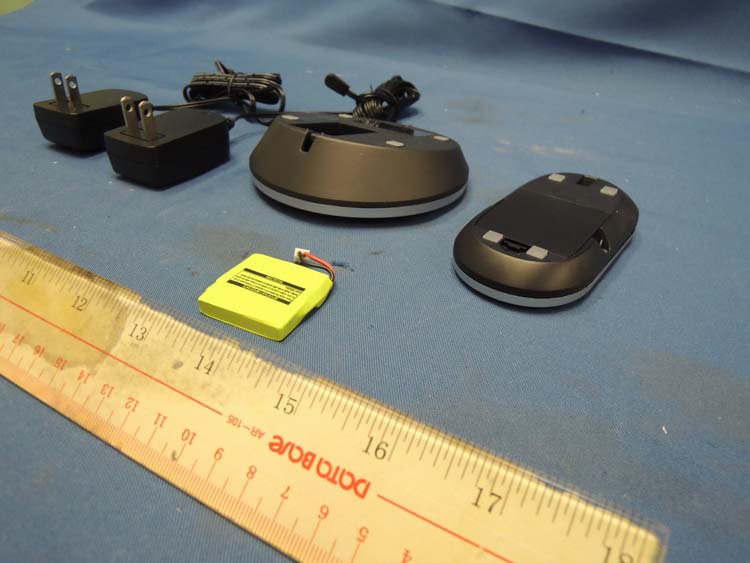

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9092-00 IC: 1135B-80909200 external photos - 1 of 1 Job Number HK13100003 Job Number HK13100003

TL80133 Engraving File Model: TL80133 SN:XXXXXXXXXXXX SN Label 20X10 mm CAUTION: Use Only Supplied Battery or Battery BT185742 FCC ID: EW780-9092-00 IC:1135B-80909200 Text : Recessed 0.3mm High Gloss Model: TL80133 S/N: XXXXXXXXXXXXXXXXXXXX SN Label 28X10 mm DC 6V 400 mA Text: engraved in raised 0.3mm DC 6V

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9092-00 IC: 1135B-80909200 internal photos - 1 of 3 Speaker assembly Speaker Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9092-00 IC: 1135B-80909200 internal photos - 2 of 3 Speaker Main PCB solder side Speaker Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9092-00 IC: 1135B-80909200 internal photos - 3 of 3 RFIC

INTERTEK TESTING SERVICES FCC ID: EW780-9092-00 RF exposure - 1 of 1 For Standalone SAR test exclusion consideration, when the corresponding SAR Exclusion Threshold requirement in KDB 447498 is satisfied, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required. Description the tested model: TL80133 EUT Description : DECT 6.0 Wireless Speaker Model : TL80133 Operating Configuration(s) : In front of face Operating mode (s) : Voice call Device Category : Portable Device Tx Frequency : 1921.536 – 1928.448 MHz Production tolerance : +17 dBm (Minimum) to +21 dBm (Maximum) Antenna gain : 0 dBi = 1.00 (num gain) Maximum source-based time- averaging duty factor : 4.2% = (1/24 x100%) Minimum separation distance : 5 mm Applicable FCC KDB : FCC KDB 447498 D01 FCC KDB 865664 D02 From above data, the source-based time-averaging output power is as follow: The Maximum Conducted Power = 21 dBm = 125.9 mW The Maximum conducted Power source-based time-averaging output power = (125.9 * 0.042) mW = 5.29 mW In the frequency range of 100MHz to 6GHz and test separation distance ≤ 50mm, the SAR Exclusion Threshold will be determined as follow, The SAR exclusion threshold = () )(/0.3GHzFTD× = 10.80 mW where TD = 5 mm and F(GHz) = 1.928 GHz Conclusion Since the calculated conducted source-based time-averaged output power is 5.29 mW, which is less than the SAR Exclusion Threshold at 5mm test separation distance 10.80 mW for general population and uncontrolled exposure, standalone SAR evaluation for general population exposure conditions, by measurement or numerical simulation is not required.

VTech Telecommunications Ltd Date: October 10, 2013 To whom it may concern, Declarations FCC ID: EW780-9092-00 IC: 1135B-80909200 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Speaker unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Speaker Unit 1 Switch-off companion device NA 2 On Hook by companion device NA 3 Switch-off device NA 4 On Hook on device side C 5 Remove power from device C 6 Remove power from companion device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable 5 For FCC, Upper Monitoring Threshold of the cordless speaker unit declared by manufacturer is -60.8 dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13100003HKG-001 Page 1 of 62 FCC ID: EW780-9092-00 IC: 1135B-80909200 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION VTech Telecommunications Ltd.: VTech Telecommunications Ltd. Applicant Address: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2012 Edition FCC ID: EW780-9092-00 FCC Model(s): TL80133, TL801Y3 IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 1135B-80909200 IC Model(s): TL80133 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Wireless Speaker Serial Number: N/A Sample Receipt Date: September 30, 2013 Date of Test: October 24, 2013 to October 28, 2013 Report Date: November 15, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13100003HKG-001 Page 2 of 62 FCC ID: EW780-9092-00 IC: 1135B-80909200 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance......................................... 5 1.1 Summary of Test Results .................................................................................. 5 1.2 Statement of Compliance .................................................................................. 6 2.0 General Description............................................................................................ 8 2.1 Product Description ............................................................................................ 8 2.2 Technical Description ......................................................................................... 8 2.3 Test Methodology............................................................................................... 8 2.4 Test Facility........................................................................................................ 9 3.0 System Test Configuration............................................................................... 11 3.1 Justification ...................................................................................................... 11 3.2 Conducted Emission Test Configuration ........................................................... 12 3.3 Conducted Monitoring and Operational Test Configuration ............................... 12 3.4 EUT Exercising Software.................................................................................. 12 3.5 Details of EUT and Description of Accessories................................................. 13 3.6 Measurement Uncertainty ................................................................................ 13 4.0 Measurement Results....................................................................................... 15 4.1 Antenna Requirement...................................................................................... 15 4.2 Digital Modulation Techniques.......................................................................... 15 4.3 Emission Bandwidth......................................................................................... 16 4.4 Directional Gain of the Antenna ........................................................................ 19 4.5 Peak Transmit Power ....................................................................................... 20 4.6 Power Spectral Density .................................................................................... 23 4.7 Automatic Discontinuation of Transmission....................................................... 26 4.8 Unwanted Emission Inside the Sub-Band ......................................................... 27 4.9 Emissions Outside the Sub-Band ..................................................................... 31 4.9.1 Radiated Emissions Configuration Photographs ............................................ 32 4.9.2 Radiated Emissions Data .............................................................................. 32 4.9.3 Field Strength Calculation.............................................................................. 36 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ........... 37 4.10 AC Power Line Conducted Emissions ............................................................ 38 4.10.1 AC Power Line Conducted Emissions Configuration Photographs ............... 39 4.10.2 AC Power Line Conducted Emissions Data ................................................. 39 4.11 Frame Repetition Stability ............................................................................. 43 4.12 Frame Period and Jitter ................................................................................. 44 4.13 Carrier Frequency Stability............................................................................. 45 4.14 Monitoring Threshol…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9092-00 IC: 1135B-80909200 config photos (radiated emission) - 1 of 1 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Charging (with extra charger “Ten Pao”) FCC ID: EW780-9092-00 IC: 1135B-809090200 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk with Charging (with extra charger “Ten Pao”) FCC ID: EW780-9092-00 IC: 1135B-809090200 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
