User’s manual CLP99183/CLP99283/CLP99353/ CLP99383/CLP99483/CLP99553/ CLP99583 DECT 6.0 cordless telephone/ answering system with BLUETOOTH® wireless technology Congratulations on your purchase of this AT&T product. Before using this AT&T product, please read the Important safety information section on pages 119-118 of this manual. Please thoroughly read this user’s manual for all the feature operations and troubleshooting information necessary to install and operate your new AT&T product. You can also visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. This telephone system is compatible with certain AT&T DECT 6.0 cordless headsets. Visit www.telephones.att.com/headsets for a list of compatible cordless headsets. Model number: CLP99183 (one handset) CLP99283 (two handsets) CLP99353/CLP99383 (three handsets) CLP99483 (four handsets) CLP99553/CLP99583 (five handsets) Type: DECT 6.0 cordless telephone/answering system with caller ID/call waiting Serial number: Purchase date: Place of purchase: Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. © 2013 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Telephones identified with this logo have reduced noise and interference when used with most T-coil equipped hearing aids and cochlear implants. The TIA-1083 Compliant Logo is a trademark of the Telecommunications Industry Association. Used under license. T Compatible with Hearing Aid T-Coil TIA-1083 The ENERGY STAR® program (www.energystar.gov) recognizes and encourages the use of products that save energy and help protect our environment. We are proud to mark this product with the ENERGY STAR® label indicating it meets the latest energy efficiency guidelines. Complete user’s manual CLP99183/CLP99283/CLP99353/ CLP99383/CLP99483/CLP99553/ CLP99583 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Table of contents Getting started Quick reference guide - handset ........1 Quick reference guide - telephone base ......................................4 Installation .....................................................7 Telephone base and charger installation ...............................................8 Telephone base installation ............8 Charger installation .............................8 Battery installation and charging .......9 Installation options .................................11 Tabletop to wall mount installation..........................................11 Wall mount to tabletop installation..........................................12 Telephone settings Handset settings ......................................13 Ringer volume .....................................14 Ringer tone ...........................................14 Set date/time ......................................15 LCD language ......................................16 Caller ID announce ...........................17 Set speed dial voicemail number .................................................18 Voicemail (visual message waiting) indicator ............................18 Clear voicemail indication ...........19 Rename handset .............................20 Key tone .................................................20 Use caller ID to automatically set date and time ...........................21 Home area code .................................21 Dial mode ..............................................22 Web address ........................................22 QUIET mode .........................................23 Telephone base settings ......................24 Ringer volume .....................................25 Ringer tone ...........................................25 Set date/time ......................................26 LCD language ......................................27 Caller ID announce ...........................28 Set speed dial voicemail number .................................................29 Voicemail (visual message waiting) indicator ............................29 Clear voicemail indication ...........30 Rename base .......................................31 Key tone .................................................31 Use caller ID to automatically set date and time ...........................32 Home area code .................................32 Dial mode ..............................................33 Web address ........................................33 Telephone operation Telephone operation..............................34 Making a call ........................................34 On hook dialing (predialing) ........34 Answering a call ................................34 Ending a call ........................................35 Auto off ..................................................35 Temporary ringer silencing ...........35 Full duplex speakerphone .............36 Last number redial ............................36 Equalizer .................................................38 Options while on calls ..........................39 Volume control ...................................39 Call waiting ...........................................39 Mute .........................................................40 Chain dialing ........................................41 Temporary tone dialing ..................43 Blind transfer .......................................43 Multiple handset use Multiple handset use .............................45 Handset locator ..................................45 Join a call in progress .....................45 Intercom .......................................................46 Answer an incoming call during an intercom call ..............................48 Call transfer using intercom ......…

Text truncated - open the document above for the full version.

Multiple handset use Push-to-talk (PTT) Change a one-to-one PTT call to an intercom call You can convert a one-to-one PTT session to an intercom call. When your device shows Press and hold [PTT] to talk, press INTCOM. The screen shows Switch to Intercom? Press SELECT. Your device displays Calling BASE 0 or Calling HANDSET X. The destination device briefly shows Push to talk Ended and then HANDSET X is calling or BASE 0 is calling. The destination device rings. Press HOME/FLASH or any dialing keys (0-9, or TONE) on the destination handset, or press HOME or any dialing keys (0-9, or TONE ) on the telephone base to answer the intercom call. Both devices now show Intercom. To end the intercom call, press OFF/CANCEL on your handset or place the handset in the telephone base or charger, or press END on the telephone base. Both screens show Intercom ended. Answer an incoming call during a PTT call When you receive an outside call during PTT, there is an alert tone. During a one-to-one PTT, press HOME/FLASH on the initiating or destination handset. The PTT call ends automatically and the outside call is answered. During a one-to-group PTT call, press HOME/FLASH on the initiating handset or /SPEAKER on the initiating telephone base. The PTT call ends automatically and the outside call is answered. During a one-to-group PTT call, press HOME/FLASHon any one of the destination handsets, or press /SPEAKER on the destination telephone base. That device answers the outside call. The PTT call continues for the rest of the PTT participants. To leave the PTT call without answering the incoming call, press OFF/CANCEL on your handset or CANCEL on your telephone base. The telephone continues to ring. 1. 2. 3. 4. • • • • 61 Multiple handset use Push-to-talk (PTT) Make an outgoing call during PTT call During a one-to-one PTT call, press PHONE/FLASH on your handset or /SPEAKER on your telephone base to get a dial tone. The PTT call ends automatically. During a one-to-group PTT call, press PHONE/FLASH on the initiating handset or /SPEAKER on the initiating telephone base. The PTT call ends automatically and you get a dial tone. During a one-to-group PTT call, press PHONE/FLASH on any one of the destination handsets or press /SPEAKER on the destination telephone base. That device gets a dial tone. The PTT call continues for the rest of the PTT participants. End or leave a PTT call For one-to-one PTT calls, both initiating and destination devices can end the PTT call. For PTT calls to multiple devices, the initiating device can end the PTT call. If any one of the destination devices leaves the PTT call, the call continues until all participants or the initiator hangs up. Press OFF/CANCEL on the handset, or press CANCEL on the telephone base. The screen shows Push to talk Ended. -OR- Place the handset in the telephone base or charger, then the handset return to idle mode. NOTE: After PUSH TO TALK on the handset or PTT on the telephone base is released, the PTT call remains open for a short time. If no one presses PUSH TO TALK on the handset or PTT on the telephone base within ten seconds, the PTT call ends automatically. • • • 62 About the directory Shared directory The directory is shared by all handsets and the telephone base. Changes made to the directory from any device apply to all. NOTE: Only one handset or the telephone base can review the directory at a time. If another device tries to enter the directory, the screen shows Not available at this time. Capacity The directory can store up to 50 entries, with a maximum of 15 alphanumeric characters (including spaces) for names and 30 digits for telephone numbers. A convenient search feature can help you find and dial numbers quickly (page 67). If you try to save an entry when there are already 50 entries, the screen shows Directory full. You cannot store a new number until you delete one. Directory 63 Create directory entries Create a new directory entry 1. Press MENU/SELECT in idle mode to enter the main menu. 2. Press qCID or pDIR to scroll to Directory, then press MENU/SELECT. 3. Press qCID or pDIR to highlight Add contact. 4. Press MENU/SELECT. 5. Use the dialing keys to enter a telephone number (up to 30 digits) when prompted. Press qCID or pDIR to move the cursor to the left or right. Press MUTE/DELETE on the handset or X/DELETE on the telephone base to erase a digit. Press and hold MUTE/DELETE on the handset or X/DELETE on the telephone base to erase all digits. Press and hold REDIAL/PAUSE to enter a three-second dialing pause (a p appears). -OR- Copy a number from the redial list by pressing REDIAL/PAUSE then qCID, pDIR or pressing REDIAL/PAUSE repeatedly to locate the number. Press MENU/SELECT to copy the number. 6. Press MENU/SELECT to move on to the name. The display shows Number already saved if the number is already in the directory. You cannot save the same number twice. 7. Use the dialing keys to enter a name (up to 15 characters) when prompted. Each time you press a key, the character on that key appears. Additional key presses produce other characters on that key. See the chart on next page. Press qCID or pDIR to move the cursor to the left or right. Press 0 to add a space. Press MUTE/DELETE on the handset or X/DELETE on the telephone base to erase a character. Press and hold MUTE/DELETE on the handset or X/DELETE on the telephone base to erase all characters. Press TONE to change the next letter to upper or lower case. • • • • • • • • • • Directory 64 Directory Create directory entries NOTE: The first letter of every word is a capital letter. The remaining letters in a word start as lower case letters as shown in the chart below. 8. Press MENU/SELECT to store your new directory entry. There is a confirmation tone and the screen shows Saved. To change the entry later, see page 69. Add a predialed telephone number to the directory You can save a predialed telephone number to the directory. 1. Enter the telephone number when in idle mode. 2. Foll…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification January 23, 2013 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Senior Electronics Engineer

VTech Telecommunications Ltd January 23, 2013 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9103-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Senior Electronics Engineer

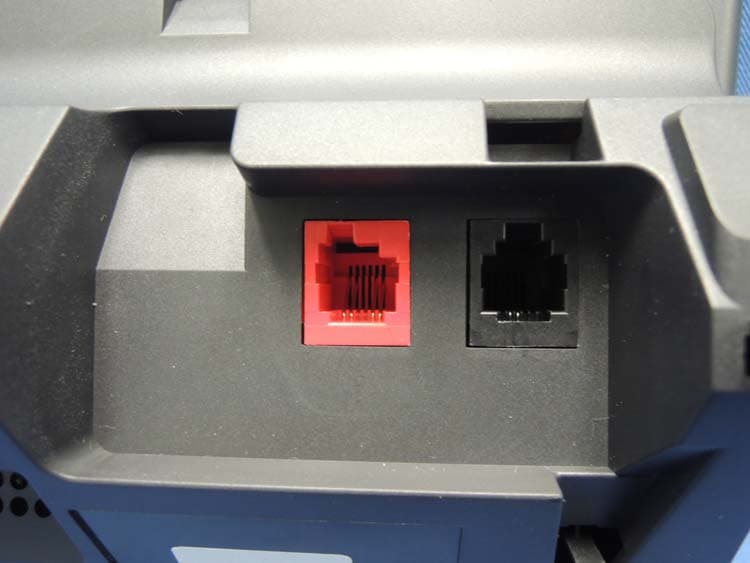

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9103-00 IC: 1135B-80910300 external photos - 1 of 2 HK13010957 Job Number HK13010957 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9103-00 IC: 1135B-80910300 external photos - 2 of 2 HK13010957 Job Number

SN. label(28x10mm) CLP99XX3 BS & HS &CH Engraving Advanced American TelephonesAC 6V 300 mA Customer Service1-800-222-3111www.telephones.att.com AC 6V Use Only Supplied Adapter Advanced American TelephonesAC 6V 300 mA Customer Service1-800-222-3111www.telephones.att.com Use Only Supplied Adapter Model: CLP99003SN: XXXXXXXXXXXModel: CLP99183SN: XXXXXXXXXXXModel: CLP99283SN: XXXXXXXXXXXModel: CLP99383SN: XXXXXXXXXXX Model: CLP99483SN: XXXXXXXXXXXModel: CLP99583SN: XXXXXXXXXXXModel:CLP99353SN: XXXXXXXXXXXModel: CLP99553SN: XXXXXXXXXXX 29mm 45mm 11mm 19.5mm CLP99003’s ChargerCLP99283’s ChargerCLP99383’s ChargerCLP99483’s ChargerCLP99583’s ChargerCLP99353’s ChargerCLP99553’s Charger 29mm 45mm 11mm 19.5mm SN label : 20X10mm BS Engraving HS Engraving CH Engraving PC sheet AC 6V FCC ID: EW780-9103-00IC: 1135B-80910300COMPLIES WITH 47 CFR PART 68 HACREGISTRATION NO.: US: EW7W401B80-910300RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/WTHIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE.Advanced American TelephonesMANUFACTURED IN CHINA 4H20 Model: CLP99283 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99183 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99283 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99383 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99553 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99583 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99353 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99483 S/N: XXXXXXXXXXXXXXXXXXXX SN. label(28x10mm) Model: CLP99003 S/N: XXXXXXXXXXXXXXXXXXXX Model: CLP99003 S/N: XXXXXXXXXXXXXXXXXXXX Use Only Supplied Adapter 92-007224-000-100 92-007224-000-100 Model: CLP99283 SN: XXXXXXXXXXX CAUTION Use Only Supplied Battery or Battery BT183342 FCC ID: EW780-9103-00IC: 1135B-80910300 CAUTION Use Only Supplied Battery or Battery BT183342 FCC ID: EW780-9103-00IC: 1135B-80910300 Remark: For FCC approval: CLP99183, CLP99283, CLP99383, CLP99483, CLP99583, CLP99553, CLP99353, &/3;< CLP99003. For IC approval: CLP99283, CLP99383, CLP99483, CLP99583, CLP99553, CLP99003.

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 1 of 8 Base Unit assembly Base Unit Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 2 of 8 Base Unit Main PCB comp side (View 2) Base Unit Main PCB solder side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 3 of 8 Base Unit Main PCB solder side (View 2) Base Unit Keypad front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 4 of 8 Base Unit Keypad rear side Base Unit DECT Antenna 1 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 5 of 8 Base Unit DECT Antenna 2 Base Unit Bluetooth Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 6 of 8 Base Unit Page Key front side Base Unit Page Key rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 7 of 8 Base Unit Bluetooth Module Board front side Base Unit Bluetooth Module Board rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9103-00 IC: 1135B-80910300 internal photos - 8 of 8 Base Unit DECT Module PCB front side Base Unit DECT Module PCB rear side

INTERTEK TESTING SERVICES FCC ID: EW780-9103-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. EUT Spectrum Analyzer Companion Device Directional Coupler INTERTEK TESTING SERVICES FCC ID: EW780-9103-00 RF exposure - 1 of 1 For the 1.9GHz DECT Transmission of tested model: CLP99283, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum). The antenna gain of CLP99283 is 2 dBi = 1.58 (num gain) and its maximum source-based time-averaging duty factor is 25.0% (6/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.250) mW = 31.47 mW The power density at 20cm = 31.47 *1.58/ 4πR 2 = 0.0099 mW cm -2 For the 2.4GHz Bluetooth Transmission of tested model: CLP99283, the measured powers among all the measured channels were within its production tolerance: -6 dBm (Minimum) and +4 dBm (Maximum). The antenna gain of CLP99283 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 83.3% (5/6 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 4 dBm = 2.5 mW The Conducted Power source-based time-averaging output power = (2.5 * 0.833) mW = 2.09 mW The power density at 20cm = 2.09 *1.00/ 4πR 2 = 0.00042 mW cm -2 INTERTEK TESTING SERVICES FCC ID: EW780-9103-00 RF exposure - 1 of 1 Per KDB 447498 D01 v05, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio for DECT Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0099 mW cm -2 / 1.0 mW cm -2 = 0.0099 The MPE ratio for Bluetooth Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.00042 mW cm -2 / 1.0 mW cm -2 = 0.00042 The sum of the MPE ratios for all simultaneous transmitting antennas = 0.0099 + 0.00042 = 0.0103 As the sum of MPE ratios for all simultaneous transmitting antennas is ≤ 1.0, simultaneous transmission MPE test exclusion will be applied. Conclusion In frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As simultaneous transmission MPE test exclusion is applied and the measured power density at 20cm from all the standalone transmissions is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK13010957-2 Page 1 of 27 FCC ID: EW780-9103-00 IC: 1135B-80910300 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition FCC ID: EW780-9103-00 FCC Model(s): CLP99283, CLP99383, CLP99483, CLP99583, CLP99553, CLP99XY3, CLP99183, CLP99353 IC Specification Standard: RSS-210 Issue 8, December 2010 RSS-Gen Issue 3, December 2010 IC: 1135B-80910300 IC Model(s): CLP99283, CLP99383, CLP99483, CLP99583, CLP99553 Type of EUT: Transceiver Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Speakerphone, Digital Answering Machine and Bluetooth - Base Unit Bluetooth Portion Serial Number: N/A Sample Receipt Date: January 23, 2013 Date of Test: January 24-25, 2013 Report Date: January 30, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK13010957-2 Page 2 of 27 FCC ID: EW780-9103-00 IC: 1135B-80910300 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 4 1.1 Summary of Test Results ........................................................................................ 4 1.2 Statement of Compliance ........................................................................................ 4 2.0 General Description................................................................................................. 6 2.1 Product Description ................................................................................................. 6 2.2 Test Methodology.................................................................................................... 7 2.3 Test Facility............................................................................................................. 7 3.0 System Test Configuration...................................................................................... 9 3.1 Justification ............................................................................................................. 9 3.2 EUT Exercising Software....................................................................................... 10 3.3 Details of EUT and Description of Accessories...................................................... 11 3.4 Measurement Uncertainty ..................................................................................... 11 4.0 Test Results............................................................................................................ 13 4.1 Field Strength Calculation...................................................................................... 13 4.2 Radiated Emissions............................................................................................... 14 4.2.1 Radiated Emission Configuration Photograph ..................................................... 14 4.2.2 Radiated Emission Data ..................................................................................... 14 4.2.3 Transmitter Duty Cycle Calculation ..................................................................... 19 4.3 Radiated Emission on the Bandedge..................................................................... 20 4.4 AC Power Line Conducted Emission ..................................................................... 23 4.4.1 AC Power Line Conducted Emission Configuration Photograph.......................... 23 4.4.2 AC Power Line Conducted Emission Data .......................................................... 23 5.0 Equipment List...................................................................................................... 27 Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK13010957-2 Page 3 of 27 FCC ID: EW780-9103-00 IC: 1135B-80910300 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com EXHIBIT 1 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9103-00 IC: 1135B-80910300 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Bluetooth Talk FCC ID: EW780-9103-00 IC: 1135B-80910300 config photos (conducted emission) - 1 of 2 Conducted Emission Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Bluetooth Talk FCC ID: EW780-9103-00 IC: 1135B-80910300 config photos (conducted emission) - 2 of 2 Conducted Emission Left Side View
