EW780-9267-001.9GHz DECT cordless Phone with Bluetooth (DECT Portion)

 DS6751/DS6751-2/DS6751-3 DECT 6.0 cordless telephone with BLUETOOTH ® wireless technology Abridged user’s manual Introduction To protect our environment and conserve natural resources, this Abridged user’s manual provides you with basic installation and use instructions. A limited set of features are described in abbreviated form. Before using this VTech product, please read Important safety instructions on page 2 of this user’s manual. ECO mode This power conserving technology reduces power consumption for optimal battery performance. The ECO mode activates automatically whenever the handset is synchronized with the telephone base. The handset shows ECO when the ECO mode activates. Parts checklist Your package contains: BC Telephone base Handset ( for DS675) (2 for DS675-2) (3 for DS675-3) Telephone line cord Telephone base power adapter Battery compartment cover ( for DS675) (2 for DS675-2) (3 for DS675-3) • • • • • Battery ( for DS675) (2 for DS675-2) (3 for DS675-3) Charger with power adapter ( for DS675-2) (2 for DS675-3) Abridged user’s manual Quick start guide • • • • ECO HANDSET 1 10:15PM 12/18 ECO 2 Telephone base and handset charger installation Install the telephone base and handset charger as shown below. Even if you do not subscribe to any conventional telephone service, you can still use the cell line alone without plugging in a telephone line cord. If you subscribe to telephone service from a cable company or a VoIP service provider, contact your cable/VoIP service provider for more information. • • Handset battery installation and charging Install the battery as shown below. IMPORTANT: Check for a dial tone by pressing /HOME. If you hear a dial tone, the installation is successful. If you do not hear a dial tone: Make sure the installation procedures described above are properly done. It may be a wiring problem. If you have changed your telephone service to digital service from a cable company or a VoIP service provider, the telephone line may need to be rewired to allow all existing telephone jacks to work. Contact your cable/VoIP service provider for more information. • • Charge for at least 30 minutes before initial settings. Charge for 11 hours before initial use.  2 4 3 Click! Plug! Battery Pack / Bloc-piles : (2.4V Ni-MH) WARNING / AVERTISSEMENT : DO NOT BURN OR PUNCTURE BATTERIES. NE PAS INCINÉRER OU PERCER LES PILES. Made in China / Fabriqué en chine THIS SIDE UP / CE CÔTÉ VERS LE HAUT Battery Pa ck / Bloc-piles : (2.4V Ni-MH) W ARNING / AV ERTISSEMENT : DO NO T BURN OR PUNC TURE BA TT ERIES . NE PA S INCINÉRER OU PERCER LES PILES. Made in China / Fa briqué en chine THIS S IDE UP / CE CÔ TÉ VE RS LE HA UT Plug! DSL filter TEL. LINE Use Only Supplied Adapter DC 6V Click! Click! Plug! Plug! Light on! 3 Telephone base wall mount installation Install the telephone base on the wall as shown below. 2 34 56 Push to open! TEL. LINE Use Only Supplied Adapter DC 6V Unplug! Unplug! Flip down! Plug! Click! Click! 4 Bluetooth To use a Bluetooth enabled cell phone with your DS6751, you must first pair and connect your Bluetooth cell phone(s) with the telephone base. All DS6751 handsets can be used to make or answer calls on the cell line. Bluetooth wireless technology operates within a short range (a maximum of approximately 30 feet). When you pair a Bluetooth cell phone to the telephone base, make sure your Bluetooth cell phone is close to the telephone base to maintain sufficient signal strength. For optimal performance, keep your cell phone within 5 feet of the telephone base while using the cell line. Pair and connect your first Bluetooth cell phone Press 1/ 2 on the telephone base. You hear two beeps. The telephone base screen displays Pairing D1... and the 1 light blinks. Turn on the Bluetooth feature of your cell phone. Once your cell phone finds your VTech phone (VTech DS6751), press the appropriate key on your cell phone to continue the pairing process. Your cell phone may prompt you to enter the PIN of the telephone base. The default PIN of the telephone base is 0000. Download directory Press MENU when the phone is not in use. Scroll to Bluetooth, then press SELECT. Scroll to Download dir, then press SELECT. Scroll to select the desired cell phone, then press SELECT. For Android and Blackberry cell phones, you may also download your cell phone directory to your DS6751 via the VTech Contact Share application. Using the handset menu Press MENU when the phone is not in use. Press or until the screen displays the desired feature menu. Press SELECT to enter that menu. To return to the previous menu, press CANCEL. To return to idle mode, press and hold CANCEL. Telephone settings Default settings are indicated by asterisks (*). Settings menuDescriptionOptions LCD languageSet the screen display language.English*; Français; Español Voicemail #Set the voicemail number for speed dialing.Voicemail # _ Clr voicemailTurn off the voicemail indicators (see the note below). Reset VM Icon? Key toneTurn an audible beep on or off whenever a key is pressed. Key tone:On*; Key tone:Off Home area codeSet the home area code so that the caller ID log stores only seven digits for local telephone numbers. Home area code _ _ _ Dial modeSet the telephone to be touch-tone or pulse dialing. Touch-tone*; Pulse Use the Clr voicemail feature when the telephone indicates there is new voicemail but there is none. For example, when you have accessed your voicemail while away from home. The Clr voicemail feature only turns off the indicators; it does not delete your voicemail messages. As long as you have new voicemail messages, your telephone service provider continues to send the signal that turns on the indicators. . 2. • . 2. 3. 4. . 2. 3. • • 5 The following are some of the telephone features you may wish to set. Refer to Telephone settings in the online Complete user’s manual for detailed instructions on setting all telephone features. Set date and time If you subscribe to cal…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification May 21, 2013 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Senior Electronic Engineer r

VTech Telecommunications Ltd May 21, 2013 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9267-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Senior Electronic Engineer

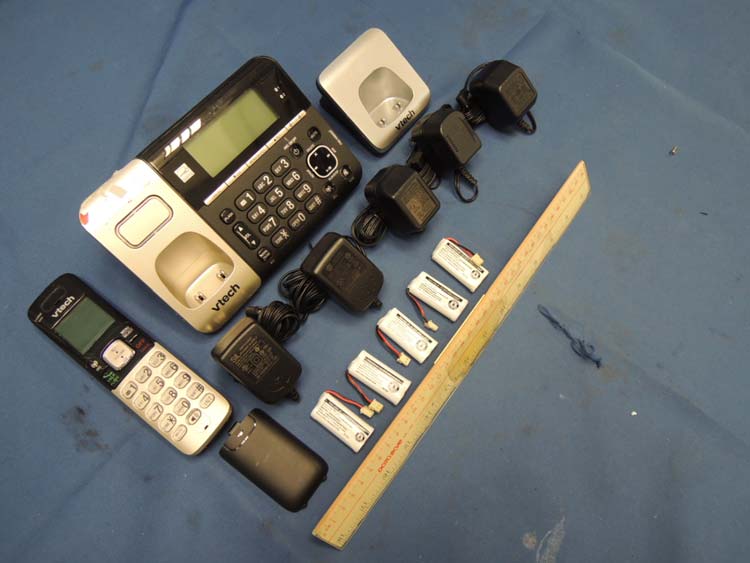

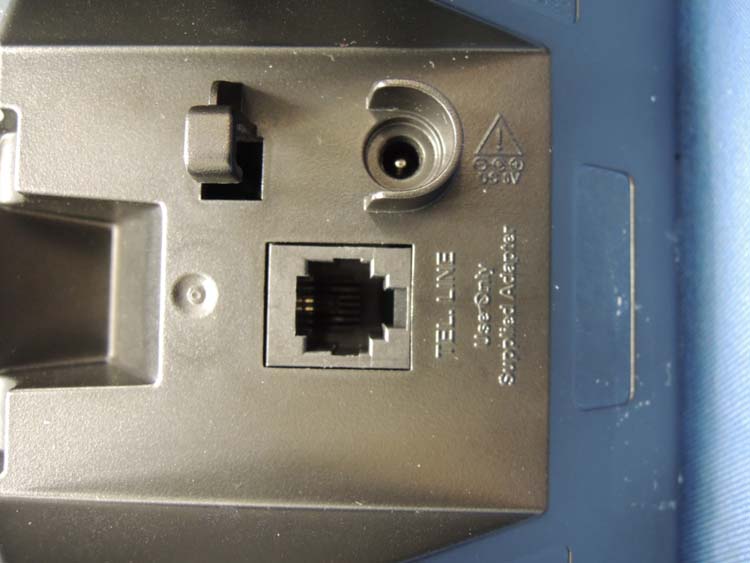

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9267-00 external photos - 1 of 2 HK13051169 Job Number HK13051169 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9267-00 external photos - 2 of 2

DS6751-X ENGRAVING FFILE COMPLIES WITH 47 CFR PART 68 HAC Reg. No.: US: EW7W401B80-926700 RINGER EQUIVALENCE: 0.1B USOC JACK: RJ11C/RJ11W THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. FCC ID: EW780-9267-00 Model: DS6751SN:XXXXXXXXXXXX Model: DS6751-2 SN:XXXXXXXXXXXX Model: DS6751 SN:XXXXXXXXXXXX Model: DS6701 SN:XXXXXXXXXXXX Model: DS6751-3 SN:XXXXXXXXXXXX HS SN LABEL 20X10mm CAUTION Use Only Supplied Battery or Battery BT262342 FCC ID: EW780-9267-00 CHARGER BASE AC 6V Use Only Supplied Adapter CORDLESS TELEPHONE AC 6V 300mA VTech Customer Service 1-800-595-9511 www.vtechphones.com 4H20 Accessory Model: DS6751 S/N: XXXXXXXXXXXXXXXXXXXX Model: DS6751-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: DS6751-3 S/N: XXXXXXXXXXXXXXXXXXXX Model: DS6751-2 S/N: XXXXXXXXXXXXXXXXXXXX Model: DS6701 S/N: XXXXXXXXXXXXXXXXXXXX Model: DS6751-3 S/N: XXXXXXXXXXXXXXXXXXXX SN LABEL 28X10mm VTech Customer Service 1-800-595-9511 www.vtechphones.com CORDLESS TELEPHONE DC 6V 400mA VTECH TELECOMMUNICATIONS LTD.MANUFACTURED IN CHINA 4H20 TEL. LINE Use Only Supplied Adapter DC 6V

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 1 of 13 B ase Unit assembly Base Unit Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 2 of 13 Bas e Unit Main PCB solder side (View 1) Base Unit Main PCB solder side (Vie w 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 3 of 13 Base Unit Main PCB solder side (Vie w 3) Base Unit DECT Antenna 0 and Bluetooth Antenna INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 4 of 13 Base Unit Bluetooth Antenna Base Unit DECT Antenna 0 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 5 of 13 Base Unit DECT Antenna 1 front side Base Unit DECT Antenna 1 rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 6 of 13 Base Unit Keypad front side (View 1) Base Unit Keypad front side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 7 of 13 Base Unit Keypad rear side (View 1) Base Unit Keypad rear side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 8 of 13 Base Unit LED front side Base Unit LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 9 of 13 Base Unit Bluetooth Module comp side Base Unit Bluetooth Module solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 10 of 13 Base Unit DECT RF Module PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 11 of 13 Han ds et assembly Handset Main PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 12 of 13 Han d set Main PCB display side (View 1) Handset Main PCB display side (View 2) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9267-00 internal photos - 13 of 13 Han d set DECT RF Module PCB comp side

INTERTEK TESTING SERVICES FCC ID: EW780-9267-00 RF exposure - 1 of 3 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. EUT Spectrum Analyzer Companion Device Directional Coupler INTERTEK TESTING SERVICES FCC ID: EW780-9267-00 RF exposure - 2 of 3 For the 1.9GHz DECT Transmission of tested model: DS6751-2, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum). The antenna gain of DS6751-2 is 2 dBi = 1.58 (num gain) and its maximum source-based time-averaging duty factor is 25.0% (6/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.250) mW = 31.47 mW The power density at 20cm = 31.47 *1.58/ 4πR 2 = 0.0099 mW cm -2 For the 2.4GHz Bluetooth Transmission of tested model: DS6751-2, the measured powers among all the measured channels were within its production tolerance: -6 dBm (Minimum) and +4 dBm (Maximum). The antenna gain of DS6751-2 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 83.3% (5/6 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 4 dBm = 2.5 mW The Conducted Power source-based time-averaging output power = (2.5 * 0.833) mW = 2.09 mW The power density at 20cm = 2.09 *1.00/ 4πR 2 = 0.0004 mW cm -2 INTERTEK TESTING SERVICES FCC ID: EW780-9267-00 RF exposure - 3 of 3 Per KDB 447498 D01 v05, simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on calculated or measured field strengths or power density, is ≤ 1.0. The MPE ratio for DECT Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0099 mW cm -2 / 1.0 mW cm -2 = 0.0099 The MPE ratio for Bluetooth Transmission can be calculated as follow: = The power density at 20cm / MPE limit = 0.0004 mW cm -2 / 1.0 mW cm -2 = 0.0004 The sum of the MPE ratios for all simultaneous transmitting antennas = 0.0099 + 0.0004 = 0.0103 As the sum of MPE ratios for all simultaneous transmitting antennas is ≤ 1.0, simultaneous transmission MPE test exclusion will be applied. Conclusion In frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As simultaneous transmission MPE test exclusion is applied and the measured power density at 20cm from all the standalone transmissions is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13051169HKG-001 Page 1 of 72 FCC ID: EW780-9267-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-9267-00 FCC Model(s): DS6751, DS6751-2, DS6751-3, DS675Z-XY, DS6701, DS670Z-XY Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Digital Modulation Cordless Phone with Caller ID, Speakerphone, Digital Answering Machine, and Bluetooth (DECT Portion) Serial Number: N/A Sample Receipt Date: May 22, 2013 Date of Test: May 28-30, 2013 Report Date: June 20, 2013 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: 13051169HKG-001 Page 2 of 72 FCC ID: EW780-9267-00 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance....................................................5 1.1 Summary of Test Results...................................................................................................5 1.2 Statement of Compliance...................................................................................................6 2.0 General Description..............................................................................................................8 2.1 Product Description..............................................................................................................8 2.2 Technical Description...........................................................................................................8 2.3 Test Methodology.................................................................................................................9 2.4 Test Facility...........................................................................................................................9 3.0 System Test Configuration...............................................................................................11 3.1 Justification.........................................................................................................................11 3.2 Conducted Emission Test Configuration.........................................................................12 3.3 Conducted Monitoring and Operational Test Configuration..........................................12 3.4 EUT Exercising Software..................................................................................................12 3.5 Details of EUT and Description of Accessories..............................................................13 3.6 Measurement Uncertainty.................................................................................................13 4.0 Measurement Results .............................................................................................................................15 4.1 Antenna Requirement........................................................................................................15 4.2 Digital Modulation Techniques..........................................................................................15 4.3 Emission Bandwidth...........................................................................................................16 4.4 Directional Gain of the Antenna........................................................................................19 4.5 Peak Transmit Power........................................................................................................20 4.6 Power Spectral Density.....................................................................................................23 4.7 Automatic Discontinuation of Transmission....................................................................26 4.8 Unwanted Emission Inside the Sub-Band.......................................................................27 4.9 Emissions Outside the Sub-Band.....................................................................................30 4.9.1 Radiated Emissions Configuration Photographs.........................................................31 4.9.2 Radiated Emissions Data...............................................................................................31 4.9.3 Field Strength Calculation..............................................................................................41 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements....................42 4.10 AC Power Line Conducted Emissions...........................................................................43 4.10.1 AC Power Line Conducted Emissions Configuration Photographs........................44 4.10.2 AC Power Line Conducted Emissions Data....................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd November 19, 2012 To whom it may concern, Declarations FCC ID: EW780-9267-00 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. For FCC, Upper Monitoring Threshold of base unit and handset unit declared by manufacturer are -61.5 dBm and -61.7dBm respectively. 5. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit Reaction of Handset 1 Switch-off device NA NA 2 Remove power from device A C 3 On hook device B C 4 Switch-off companion device NA NA 5 Remove power from companion device B A 6 On hook by companion device B B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Regards, Michael Tsui Senior Electronic Engineer

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9267-00 config photos (radiated emission - base unit) - 1 of 1 Radiated Emission - Base Unit (with adaptor “SIL”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission FCC ID: EW780-9267-00 config photos (radiated emission - handset) - 1 of 1 Radiated Emission - Handset Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT + Bluetooth) FCC ID: EW780-9267-00 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “SIL”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (DECT + Bluetooth) FCC ID: EW780-9267-00 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “SIL”) Left Side View
