EW780-9387-02Audio Monitor - Baby Unit

Note • This baby monitor is intended as an aid. It is not a substitute for proper adult supervision, and should not be used as such. Test your baby monitor You may test the baby monitor before initial use, and at regular times thereafter. Caution • For hearing protection, make sure the parent unit is more than 3 feet (1 meter) away from the baby unit. If you hear any high-pitched noise, move the parent unit further until the noise stops. You can also press on the parent unit to lower or mute the noise. 1. Make sure your baby unit and parent unit are on. 2. Speak towards the microphone of the baby unit. You will hear the sound at the parent unit, and see the visual sound indicators light up. Note • When the POWER/LINK LED light flashes, move the parent unit closer to the baby unit (observe the minimum distance of 3 feet / 1 meter). You can also check if the baby unit is connected to a live power socket and switched on. Tip • Increase the speaker volume of the parent unit if you cannot hear the sounds transmitted from the baby unit. Positioning the baby monitor Caution • Keep the baby unit out of the reach of your baby. Never place or mount the baby unit inside the baby’s crib or playpen. 1. Place the baby units more than 3 feet (1 meter) away from your baby. 2. Place the parent unit more than 3 feet (1 meter) away from the baby unit to avoid screeching noise. Caution • The default volume of your parent unit is level 3, and the maximum volume is level 5. If you experience high-pitched screeching noise from your baby monitor while positioning: -Make sure your baby units and parent unit are more than 3 feet (1 meter) apart, OR -Turn down the volume of your parent unit. Operating range The operating range of the baby monitor is up to 1000 feet (300 meters) outdoors or 160 feet (50 meters) indoors. The actual operating range may vary depending on the environmental conditions and other interferences such as walls, doors and other obstructions. DM111 / DM111-2 DM112 / DM112-2 Digital Audio Monitor Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Congratulations on purchasing your new VTech product. Before using this product, please read Important safety instructions. This manual has all the feature operations and troubleshooting necessary to install and operate your new VTech product. Please review this manual thoroughly to ensure proper installation and operation of this innovative and feature-rich VTech product. For support, shopping, and everything new at VTech, visit our website at www.vtechphones.com. 1 set for DM111 / DM112 2 sets for DM111-2 / DM112-2 1 Connect the baby monitor What’s in the box Frequency controlCrystal controlled PLL synthesizer Transmit frequencyBaby unit: 1921.536 - 1928.448 MHz Parent unit: 1921.536 - 1928.448 MHz Channels5 Nominal effective rangeMaximum power allowed by FCC and IC. Actual operating range may vary according to environmental conditions at the time of use. Power requirementsBaby unit adapter: Output: 6V DC @ 400mA Parent unit adapter: Output: 6V DC @ 400mA Model: VTECH TELECOMMUNICATIONS LTD., VT05UUS06040 Parent unit battery: 2.4V NiMH battery Model: YIYANG CORUN BATTERY CO LTD., NI-MHAAA400×2-FF Technical specifications Specifications are subject to change without notice. © 2020 VTech Communications, Inc. All rights reserved. 09/20. DM111-X_DM112-X_CIB_V15 1 2 Power on or off the baby unit • Press and hold to turn on the baby unit. The POWER LED light turns on. • Press and hold again to turn off the baby unit. The POWER LED light turns off. Power on or off the parent unit • Press and hold to turn on the parent unit. The POWER / LINK LED light turns on. • Press and hold again to turn off the parent unit. The POWER / LINK LED light turns off. POWERPOWER 2 Before use 3 Using the baby monitor User’s manual DM111 DM112 For more support information S m Important safety instructions The applied nameplate is located at the bottom of the baby unit’s base. When using your equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. Follow all warnings and instructions marked on the product. 2. Adult setup is required. 3. CAUTION: Do not install the baby unit at a height above 2 meters. 4. This product is not a substitute for adult supervision of the infant. Supervising the infant is the parent’s or caregiver’s responsibility. This product could cease operating, and therefore you should not assume it will continue working properly for any given period of time. Further, this is not a medical device and should not be used as such. This product is intended to assist you in supervising your baby. 5. Do not use this product near water. For example, do not use it next to a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower. 6. CAUTION: Use only the battery provided. There may be a risk of explosion if a wrong type of battery is used for the parent unit. The battery cannot be subjected to high or low extreme temperature and low air pressure at high altitude during use, storage or transportation. Disposal of battery into fire or a hot oven, or mechanically crushing or cutting or the battery can result in an explosion. Leaving the battery in an extremely high temperature surrounding environment can result in an explosion or the leakage of flammable liquid of gas. Battery subjected to extremely low air pressure may result in an explosion or the leakage of flammable liquid or gas. Dispose of used battery according to the information in The RBRC ® seal. 7. Use only the adapters included with this product. Incorrect adapter polarity or voltage can seriously damage the product. Baby unit power adapter: Output: 6V DC 400mA; Parent unit power adapter: Output: 6V DC 400mA. 8. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are n…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification Sep. 11, 2020 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd do hereby authorize Intertek Testing Services (Mr. Gary Yu/ Kenneth Wong/ Ms. Jess Tang) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Sep. 11, 2020 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification-BU FCC ID: EW780-9387-02 Request is hereby submitted by VTech Telecommunications Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd 31 August, 2020 To whom it may concern, Declarations FCC ID: EW780-9387-02 IC: 1135B-80938702 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Parent Unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby Unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Switch-off device A 4 On hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of baby unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

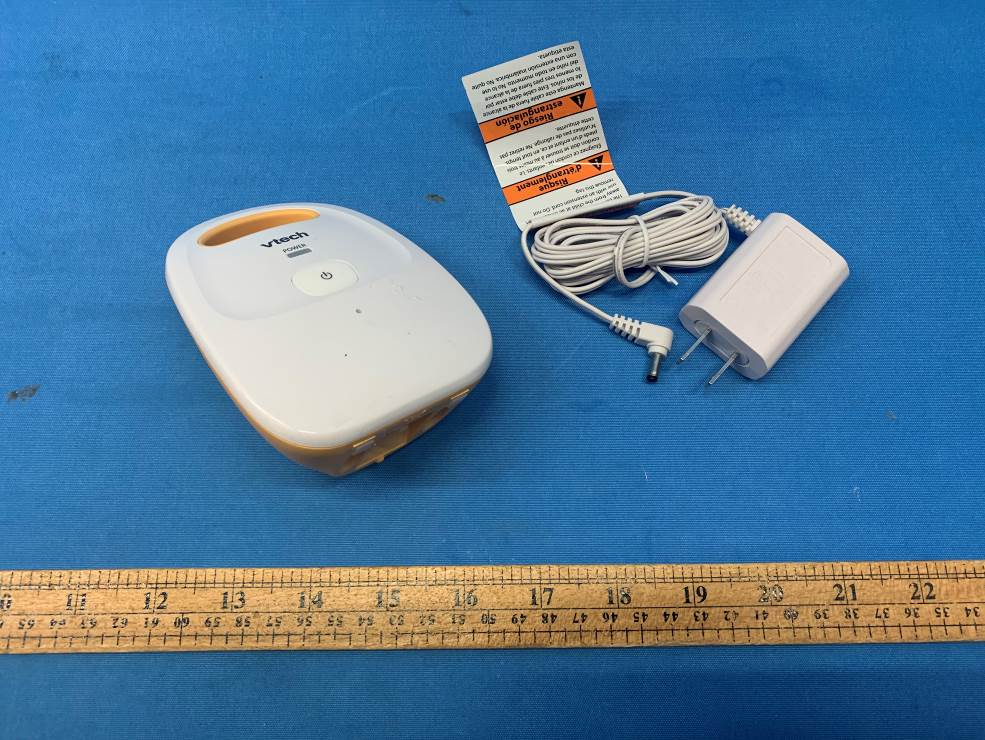

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9387-02 IC: 1135B-80938702 INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9387-02 IC: 1135B-80938702

PU Label : 21.5X11.5,mm BU Label : 25.5X18.5,mm MANUFACTURED IN CHINAwww.vtechphones.comVTech Customer Service1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9387-02IC: 1135B-80938702 6V 400mA Model: DM111 BU S/N: XXXXXXXXXXX HVIN: 35-201417BU 4H20 I.T.E. MANUFACTURED IN CHINAwww.vtechphones.comVTech Customer Service1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9387-02IC: 1135B-80938702 6V 400mA Model: DM111-2 BU S/N: XXXXXXXXXXX HVIN: 35-201417BU 4H20 I.T.E. SN:XXXXXXXXXXX Use only Supplied Adapter Model: DM111 PU FCC ID: EW780-9387-03IC: 1135B-80938703 HVIN: 35-201420PU 4H20 I.T.E. SN:XXXXXXXXXXX Use only Supplied Adapter Model: DM111 PU FCC ID: EW780-9387-03IC: 1135B-80938703 HVIN: 35-201420PU 4H20 I.T.E. MANUFACTURED IN CHINAwww.vtechphones.comVTech Customer Service1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9387-02IC: 1135B-809387026V 400mA Model: DM111 BU S/N: XXXXXXXXXXX HVIN: 35-201417BU 4H20 I.T.E. PU Label : 21.5X11.5,mm SN:XXXXXXXXXXX Use only Supplied Adapter Model: DM112 PU FCC ID: EW780-9387-03IC: 1135B-80938703 HVIN: 35-201420PU 4H20 I.T.E. BU Label : 25.5X18.5,mm MANUFACTURED IN CHINAwww.vtechphones.comVTech Customer Service1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9387-02IC: 1135B-80938702 6V 400mA Model: DM112 BU S/N: XXXXXXXXXXX HVIN: 35-201417BU 4H20 I.T.E. MANUFACTURED IN CHINAwww.vtechphones.comVTech Customer Service1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9387-02IC: 1135B-80938702 6V 400mA Model: DM112-2 BU S/N: XXXXXXXXXXX HVIN: 35-201417BU 4H20 I.T.E. SN:XXXXXXXXXXX Use only Supplied Adapter Model: DM111-2 PU FCC ID: EW780-9387-03IC: 1135B-80938703 HVIN: 35-201420PU 4H20 I.T.E. SN:XXXXXXXXXXX Use only Supplied Adapter Model: DM112-2 PU FCC ID: EW780-9387-03IC: 1135B-80938703 HVIN: 35-201420PU 4H20 I.T.E.

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9387-02 IC: 1135B-80938702 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9387-02 IC: 1135B-80938702 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9387-02 IC: 1135B-80938702

INTERTEK TESTING SERVICES FCC ID: EW780-9387-02 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Baby Unit of tested model: DM111-2 BU, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +20.4 dBm (Maximum).The antenna gain of DM111-2 BU is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 12.5% (3/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 20.4 dBm = 109.6 mW The C onducted Power source-based time-averaging output power = (109.6 * 0.125) mW = 13.71 mW The power density at 20cm = 13.71 *1.00/ 4πR 2 = 0.0027 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong SAR, China. Telephone: (852) 2173 8888 Facsimile: (852) 2785 5487 www.intertek.com Intertek’s standard Terms and Conditions can be obtained at our website http://www.intertek.com/terms/. The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. © 2017 Intertek Page 1 of 55 TEST REPORT Report Number: 20090354HKG-001 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: EW780-9387-02 IC: 1135B-80938702 Prepared and Checked by: Approved by: Signed On File Leung Chiu Kuen, Stanley Engineer Tang Kwan Mo, Jess Lead Engineer Date: September 15, 2020 TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 20090354HKG-001 Page 2 of 55 GENERAL INFORMATION Grantee: VTech Telecommunications Ltd. Grantee Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2019 Edition FCC ID: EW780-9387-02 FCC Model(s): DM111 BU, DM111-2 BU, DM111-ab BU, DM112 BU, DM112-2 BU, DM112-ab BU, DM11c-ab BU IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 5, April 2018 IC: 1135B-80938702 HVIN: 35-201417BU VTech Model(s): DM111 BU, DM111-2 BU, DM112 BU, DM112-2 BU PMN: DM111/DM111-2, DM112/DM112-2 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Audio Monitor - Baby Unit Serial Number: N/A Sample Receipt Date: September 08, 2020 Date of Test: September 10- September 14, 2020 Report Date: September 15, 2020 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Conclusion: Test was conducted by client submitted sample. The submitted sample as received complied with the 47 CFR Part 15 / RSS-213 Issue 3 Certification. TEST REPORT VTech Telecommunications Ltd. Intertek Report No: 20090354HKG-001 Page 3 of 55 TABLE OF CONTENTS 1.0 TEST RESULTS SUMMARY & STATEMENT OF COMPLIANCE ............................................ 5 1.1 Summary of Test Results ................................................................................................ 5 1.2 Statement of Compliance .............................................................................................. 6 2.0 GENERAL DESCRIPTION ................................................................................................ 7 2.1 Product Description......................................................................................................... 7 2.2 Technical Description ...................................................................................................... 7 2.3 Test Methodology ........................................................................................................... 7 2.4 Test Facility ..................................................................................................................... 7 3.0 SYSTEM TEST CONFIGURATION .................................................................................... 8 3.1 Justification ..................................................................................................................... 8 3.2 Radiated Emission Test Setup ......................................................................................... 9 3.3 AC Line Conducted Emission Test Setup ........................................................................ 10 3.4 Conducted Emission Test Configuration ........................................................................ 11 3.5 Conducted Monitoring and Operational Test Configuration ......................................... 11 3.6 EUT Exercising Software ................................................................................................ 11 3.7 Details of EUT and Description of Accessories ............................................................... 12 3.8 Measurement Uncertainty ............................................................................................ 12 4.0 MEASUREMENT RESULTS ........................................................................................... 13 4.1 Antenna Requirement ................................................................................................... 13 4.2 Digital Modulation Techniques...................................................................................... 13 4.3 Emission Bandwidth ...................................................................................................... 14 4.4 Directional Gain of the Antenna .................................................................................... 16 4.5 Peak Transmit Power .................................................................................................... 17 4.6 Power Spectral Density ................................................................................................. 19 4.7 Automatic …

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9387-02 IC: 1135B-80938702 Radiated Emission Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9387-02 IC: 1135B-80938702 AC Conducted Emission Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9387-02 IC: 1135B-80938702 AC Conducted Emission Side View 2
