EW780-9449-00DECT 6.0 Cordless Telephone

C L82104/CL82204/CL82304/ CL82354/CL82404/CL82454/ CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Abridged user’s manual This Abridged user’s manual provides you with basic installation and major operation instructions. A limited set of features are described in an abridged form. Please refer to the online CL82104/CL82204/CL82304/CL82354/ CL82404/CL82454/CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Complete user’s manual for a full set of installation and operation instructions at www.telephones.att.com/manuals. For customer service, visit our website at www.telephones.att.com or call 1 (800) 222-3111. In Canada, dial 1 (866) 288-4268. This telephone system is compatible with certain AT&T DECT 6.0 cordless headsets and speakerphones. Visit www.telephones.att.com/headsets for a list of compatible cordless headsets. Serial number: __________________________________________________________ Purchase date: _________________________________________________________ Place of purchase: ______________________________________________________________ Both the model and serial numbers of your AT&T product can be found on the bottom of the telephone base. Save your sales receipt and original packaging in case it is necessary to return your telephone for warranty service. Model number: Type: CL82104 (one handset) CL82204 (two handsets) CL82304/CL82354 (three handsets) CL82404/CL82454 (four handsets) CL82504/CL82554 (five handsets) DECT 6.0 cordless telephone/answering system with caller ID/call waiting © 2014 Advanced American Telephones. All Rights Reserved. AT&T and the AT&T logo are trademarks of AT&T Intellectual Property licensed to Advanced American Telephones, San Antonio, TX 78219. Printed in China. Abridged user’s manual CL82104/CL82204/CL82304/ CL82354/CL82404/CL82454/ CL82504/CL82554 DECT 6.0 cordless telephone/ answering system with caller ID/call waiting Table of contents Getting started Parts checklist .............................................1 Quick reference guide - handset ........2 Quick reference guide - handset & telephone base .................................4 Telephone base and charger installation ...............................................5 Telephone base installation ............5 Charger installation .............................5 Battery installation and charging .......6 Installation options ....................................7 Tabletop to wall mount installation.............................................7 Telephone settings Handset settings .........................................8 Ringer volume ........................................8 Ringer tone ..............................................8 LCD language .........................................8 Set date/time .........................................9 Caller ID announce ..............................9 Set speed dial voicemail number .................................................10 Voicemail (visual message waiting) indicator ............................10 Clear voicemail indicator ...............10 Key tone .................................................11 Home area code .................................11 Dial mode ..............................................11 QUIET mode .........................................12 Telephone operation Handset operation ..................................13 Making a call ........................................13 Answering a call ................................13 Ending a call ........................................13 Temporary ringer silencing ...........13 Speakerphone .....................................13 Last number redial ............................13 Equalizer .................................................13 Volume control ...................................14 Call waiting ...........................................14 Mute .........................................................14 Handset locator ..................................14 Join a call in progress .....................14 Chain dialing ........................................15 Blind transfer .......................................15 Multiple handset use Intercom .......................................................16 Call transfer using intercom ..............17 Push-to-talk (PTT) ...................................18 Turn incoming PTT on or off ........18 PTT call to a single handset ........18 PTT call to a group of handsets ..............................................19 Answer a PTT call ..............................19 Directory Directory ......................................................20 Create a new directory entry ......20 For more detailed instructions, refer to the Complete user’s manual at www.telephones.att.com/manuals. Review directory entries ................21 Search by name..................................21 Delete a directory entry .................21 Edit a directory entry .......................21 Speed dial ..................................................22 Assign a speed dial number.........22 Assign your speed dial voicemail number ...........................22 Make a call using speed dial .......22 Check your voicemail using speed dial ...........................................22 Caller ID Caller ID .......................................................23 Information about caller ID with call waiting ..............................23 Missed (new) call indicator ...........23 Review the caller ID history .........23 Dial a caller ID log entry ...............23 View dialing options .........................23 Save a caller ID log entry to the directory ......................................24 Answering system Answering system settings .................25 Announcement ...................................25 Answer on/off .....................................26 Call screening ......................................26 Number of rings .................................27 Remote acc…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd. Add: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Tel: (852)2680 5398 Fax: (852)2680 5252 FCC Authorization Date: February 28, 2014 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, VTech Telecommunications Ltd., the undersigned, Hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratories Corp. on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). This authorization is valid until further written notice from the applicant. Sincerely Yours, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd. Add: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Tel: (852)2680 5398 Fax: (852)2680 5252 Date: February 28, 2014 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road, Columbia, MD 21046 RE: Request of confidentiality for FCC ID: EW780-9449-00 To Whom It May Concern: Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules (CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, VTech Telecommunications Ltd. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. We also hereby request Short-Term Confidentiality for 45 days after the grant as outlined in Public Notice DA 04-1705. This provision will give VTech Telecommunications Ltd. temporary confidentiality of commercially sensitive information prior to product release. The requested Permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT AND SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Circuit Description 3 Schematic SHORT-TERM 4 User Manual 5 internal photo 6 external photo 7 setup photo The applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be made public before the date of the Grant for this application. Sincerely, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd. Add: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Tel: (852)2680 5398 Fax: (852)2680 5252 FCC Part 15D – APPLICATION FORM & SELF-DECLARATION Applicant Name VTech Telecommunications Ltd. Address 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Contact person Michael Tsui Telephone No. (852)2680 5398 Fax No. (852)2680 5252 Manufacturer Name VTech (Dongguan) Telecommunications Limited. Address VTech Science Park, Xia Ling Bei Management Zone, Liaobu, Dongguan, Guangdong, China. PP FP FCC ID EW780-9454-00 EW780-9449-00 Model Number CL82204,CL82304,CL82404,CL82214, CL82314,CL82414,CL82XY4. Remark: X=any alphanumeric character is presenting no. of Handset and extra Charger. Y=Number (0, 5, 7) is presenting Cordless Handset with small LCD and different package type or color of enclosure; Y= Number (1, 6, 8) is presenting Cordless Handset with big LCD and different package type color of enclosure; Y= Number (3) is presenting Cordless Handset with big LCD and package with Wireless Speaker; Y=Number (2) is presenting Cordless Handset with small LCD and packaged with Wireless Speaker. CL82204,CL82304,CL82404,CL82214, CL82314,CL82414,CL82XY4 Remark: X=any alphanumeric character is presenting no. of Handset and extra Charger. Y=Number (0, 5, 7) is presenting Cordless Handset with small LCD and different package type or color of enclosure; Y= Number (1, 6, 8) is presenting Cordless Handset with big LCD and different package type color of enclosure; Y= Number (3) is presenting Cordless Handset with big LCD and package with Wireless Speaker; Y=Number (2) is presenting Cordless Handset with small LCD and packaged with Wireless Speaker. HW version SW version Antenna Type INVERSE L Type VERTICAL MONOPOLE Type/VERTICAL COAXIAL Type Max, Antenna Gain(dBi) 0 2 Mains Power Voltage Adapter Input 117VAC 60Hz 35/50mA Adapter Input 100-120VAC 60Hz 150mA Adapter Output 6VAC 300mA Adapter Output 6.0VDC 400mA PP Inport 6VAC 300mA FP Inport 6.0VDC 400mA Battery Voltage N/A DC2.4V V1.0 V1.0 V1.0 V1.0 VTech Telecommunications Ltd. Add: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Tel: (852)2680 5398 Fax: (852)2680 5252 Number of channels 5 Carrier frequency(MHz) 1921.536 1923.2641924.9921926.720 1928.446 Nominal Receive Bandwidth +/- 500KHz Frame period(ms) 10 Timeslot Plan 24 times lots per frame. First 12 timeslots used for PP transmissions and other 12 timeslots used for FP transmissions. Operating Temperature Range( 。 C) Min 0 。 C Max 50 。 C Does a system built with the EUT that implement the provisions of 47CFR 15.323(c) (5) enabling the use of the upper threshold for deferral? Ye s No According to 47CFR 15.323(c) (5).4, does your model not use bandwidth in further cooperation with other devices at any range? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 25.323(c) (6) incorporating provisions for waiting for a channel to clear? Yes No According to 47CFR 15.323(c) (8), does EUT use the same antennas for transmission and reception as for monitoring? Yes No Does a system built with the EUT that operate under the provisions of 47CFR 15.323(c) (10) to test for deferral only in conjunction with a companion device? Yes No Does a system built using the EUT that operate under the provisions of 47CFR 15.323(c) (11) enabling the access criteria check on the receive channel while in the presence of collocated interferers? Yes No According to 47CFR 15.323(c) (12), does EUT not work in a mode with denies fair access to spectrum for other devices. Yes No Does you model have the monitoring made through the radio receiver used for communication? Yes No Does your model transmit control and signaling channels? Yes No According to 47CFR 15.307(b), does the applicant have the affidavit from UTAM Inc.? Yes No According to 47CFR 15.319(b), do all transmissions use only digital modulation techniques? Yes No According to FCC Part 15.319(f) Automatic Discontinuation of Transmissions The device shall automatically discontinue transmission in case of either absence of information to transmit of operational failure , he provisions in this section are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals . Ye s No The provisions within the EUT A – Connection break down, cease of transmit Situation Reaction of EUT FP PP VTech Telecommunications Ltd. Add: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. Tel: (852)2680 5398 Fax: (852)2680 5252 for self-check, by which compliance with 47CFR 15.319(f) is obtained. B – Connection break down, EUT transmits its signaling information C – Connection break down, compare device transmits signaling information N – Not possible Switch-off compare device B A Hook-on by compare device B N Switch-off by EUT A A Hook-on at EUT side B A Remove Power from EUT A A Remove Power from compare device B A Date: 2014-2-8 Michael Tsui Approbation Supervisor

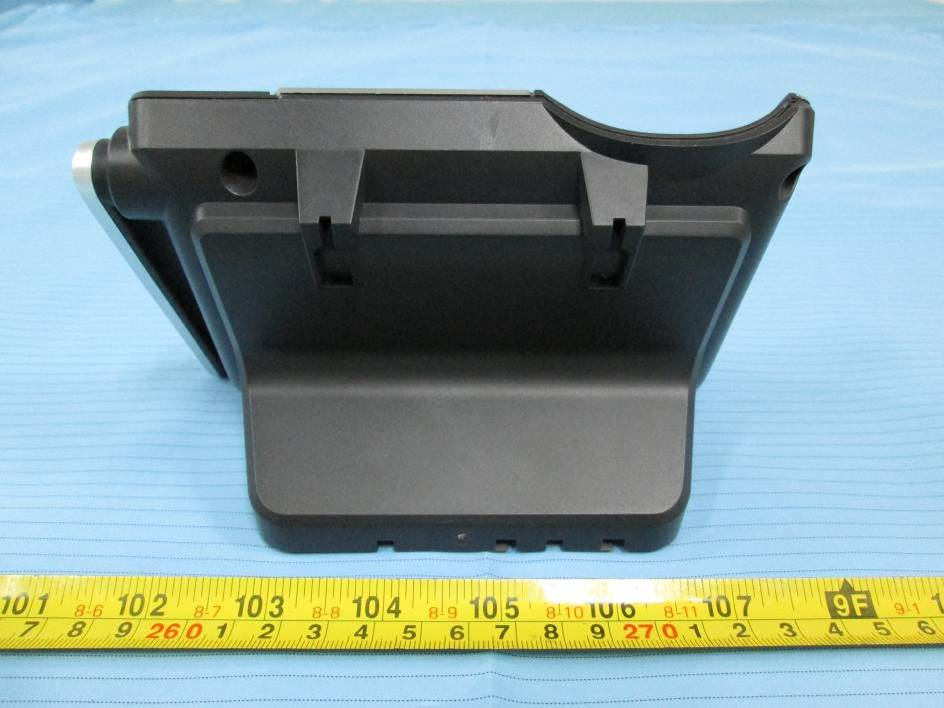

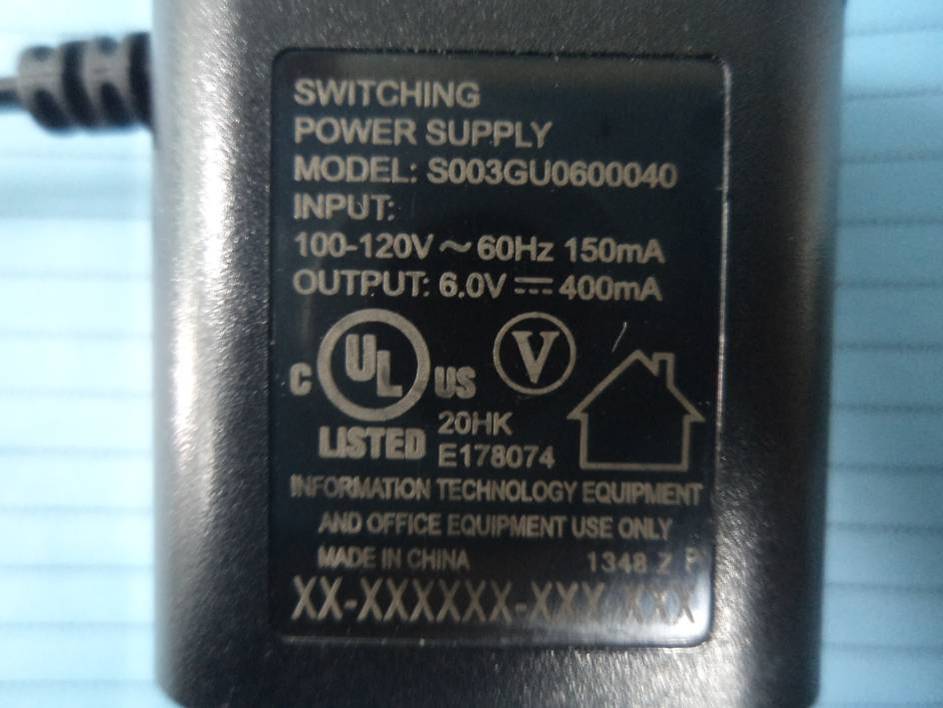

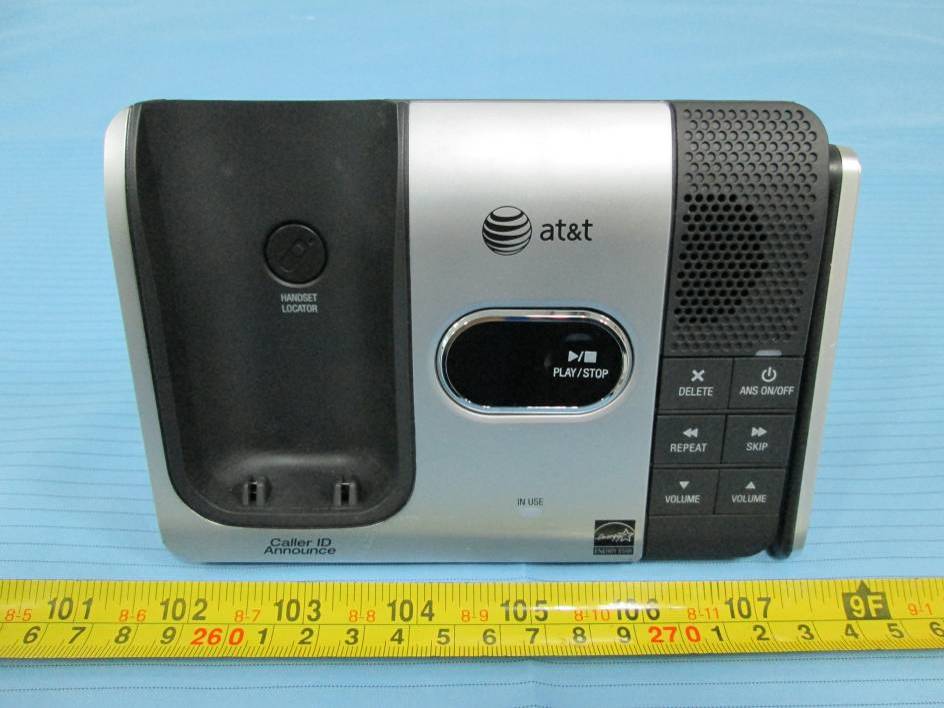

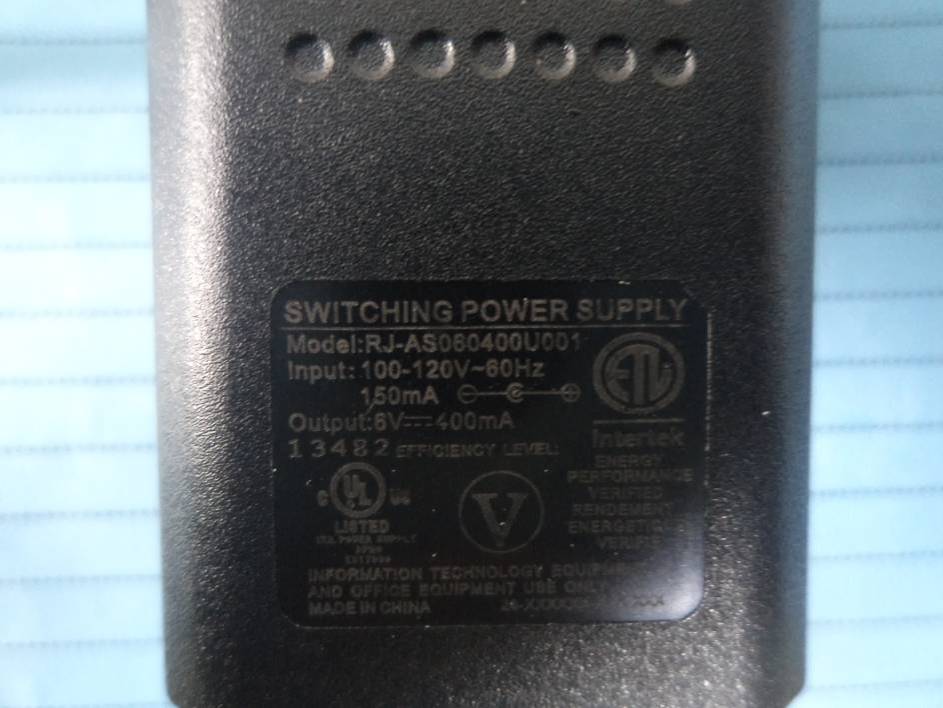

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS EUT – Front View EUT – Rear View EUT – Top View EUT – Bottom View EUT – Left View EUT – Right View EUT – Adapter 1 View EUT – Adapter 1 Label View EUT – Adapter 2 View EUT – Adapter 2 Label View

Bottom of EUT EXHIBIT A - FCC ID LABELING AND LOCATION FCC ID Label FCC ID Label Location The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the user at the time purchase (Labeling requirements per 2.925) Label here

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS EUT – Cover off View 1 EUT – Cover off View 2 EUT – Cover off View 3 EUT – Main Board Top View EUT – Main Board Top Shielding off View EUT – Main Board Bottom View EUT – Subboard Top View EUT – Subboard Bottom View EUT – RJ11 Board Top View EUT – RJ11 Board Bottom View

Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG140220001-00FP FCC Part 15D Page 8 of 53 §1.1307 (b) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to FCC §15.319(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minute) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) 30 1.34-30 842/f 2.19/f *(180/f\2\) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz * = Plane-wave equivalent power density MPE Calculation Predication of MPE limit at a given distance S = 2 4R PG  Where: S = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Channel Frequency (MHz) Antenna Gain Conducted Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric)(dBm)(mW) Low 1921.536 2.0 1.58 19.15 82.22 20 0.02586 1.0 Result: The device meets MPE limit at 20 cm distance.

Note: This test report is prepared for the customer shown above and for the equipment described herein. It may not be duplicated or used in part without prior written consent from Bay Area Compliance Laboratories Corp. FCC PART 15D MEASUREMENT AND TEST REPORT For VTech Telecommunications Ltd. 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong FCC ID: EW780-9449-00 Report Type: Original Report Product Type: DECT 6.0 Cordless Telephone (Base Unit) Test En gineer: Gardon Zhang Re port Number: R1DG140220001-00FP Re port Date: 2014-04-02 Reviewed B y: Jimmy Xiao RF En gineer Prepared By: Bay Area Compliance Laboratories Corp. (Shenzhen) 6/F, the 3rd Phase of WanLi Industrial Building ShiHua Road, FuTian Free Trade Zone Shenzhen, Guangdong, China Tel: +86-755-33320018 Fax: +86-755-33320008 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Shenzhen) Report No.: R1DG140220001-00FP FCC Part 15D Page 2 of 53 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 4 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 4 OBJECTIVE ................................................................................................................................................................... 4 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 4 TEST METHODOLOGY .................................................................................................................................................. 5 TEST FACILITY ............................................................................................................................................................. 5 SYSTEM TEST CONFIGURATION .......................................................................................................................... 6 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 6 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 6 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 6 EXTERNAL I/O CABLE .................................................................................................................................................. 6 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 6 SUMMARY OF TEST RESULTS ............................................................................................................................... 7 §1.1307 (B) (1) & §2.1091- MAXIMUM PERMISSIBLE EXPOSURE (MPE) ............................................................ 8 APPLICABLE STANDARD .............................................................................................................................................. 8 MPE CALCULATION..................................................................................................................................................... 8 FCC§15.317 & §15.203 - ANTENNA REQUIREMENT ........................................................................................... 9 APPLICABLE STANDARD .............................................................................................................................................. 9 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 9 FCC§15.315 & §15.207 - CONDUCTED EMISSIONS ............................................................................................ 10 APPLICABLE STANDARD ............................................................................................................................................ 10 MEASUREMENT UNCERTAINTY .................................................................................................................................. 10 EUT SETUP ................................................................................................................................................................ 10 EMI TEST RECEIVER SETUP ....................................................................................................................................... 11 TEST PROCEDURE ...................................................................................................................................................... 11 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST RESULTS SUMMARY .......................................................................................................................................... 12 TEST DATA ................................................................................................................................................................ 12 FCC§15.323 (A) - EMISSION BANDWIDTH .......................................................................................................... 17 APPLICABLE STANDARD ............................................................................................................................................ 17 TEST PROCEDURE ...................................................................................................................................................... 17 TEST EQUIPMENT LIST AND DETAILS ...........................................................................…

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Side View Radiated Emissions View (Below 1 GHz) Radiated Emissions View (Above 1 GHz) Frequency Stability
