EW780-9684-001.9GHz Open/Closed Sensor

Congratulations on purchasing your new VTech product. Before using this product, please read Important safety instructions. This manual has instructions on how to set up and register your new sensor. For instructions on sensor settings, see the Abridged user’s manual that came with your VC7151/VC7152. You may also view or download the online User’s manual of VC7151/VC7152 for a full set of installation and operation instructions at www.vtechphones.com. In Canada, visit www.vtechcanada.com. What’s in the box Your product package contains the following items. Save your sales receipt and original packaging in the event warranty service is necessary. Sensor overview 1 – Magnet unit 2 – Sensor unit Sensor unit overview 1 – Latch button Press to open the battery compartment case. 2 – Back cover 3 – Pair button Press and hold to enter the registration mode. 4 – LED light Red for a second when the sensor is powered on. Flashes red when the sensor is in the registration mode. 5 – Battery compartment case • • • • Before use Install batteries to the open/closed sensor Press the latch button on the sensor to open the battery compartment case. Insert two AAA batteries into the battery compartment. NOTES Do not mix old and new batteries. Do not mix alkaline, standard (Carbon-Zinc) or rechargeable (Ni-Cad, Ni-Mh, etc) batteries. While you insert the batteries, make sure the polarities are correct. The batteries operate properly under the temperature between -18°C (0°F) and 50°C (122°F). Add and register a sensor Add your new VC7002 open/closed sensor to your VC7151/VC7152 telephone system. Register each sensor with the telephone base before use. To register a open/closed sensor: Press and hold /FIND HANDSET on the telephone base for about 4 seconds until the IN USE light turns on. The telephone base shows Registering... Please wait. Press and hold the pair button on the open/closed sensor, until the LED light flashes red, to enter the registration mode. The telephone base shows Open/Closed X * registered and you hear a beep when the registration process completes. The registration process takes about 90 seconds to complete. * Open/Closed X refers to the sensor’s name. X refers to the system-assigned number of the sensor. 1. 2. • • • 1. 2. VC7002 Accessory Open/Closed Sensor for use with VTech models VC7151/VC7152 User’s manual User’s manual P P P Sensor unit AAA battery x 2 User’s manual Magnet unit Spacer of sensor unit Spacers of magnet unit Double-sided adhesive stickers Screws P P P Small screws Replacing a sensor If you have purchased this new VC7002 accessory sensor to replace an old sensor, follow the instructions to deregister your old sensor. The VC7151/VC7152 telephone system can support up to 400 sensors. To replace a sensor, deregister the registered sensor first, and then register this new sensor to the telephone base. To deregister a sensor: Press MENU when the phone is not in use. Enter the code *33734# to access the DEREGISTER menu. Scroll to Single sensor, and then press SELECT. Scroll to the sensor you want to deregister, and then press SELECT. Press YES to confirm the deregistration. The telephone base shows Open/Closed X is deregistered and you hear a beep when the deregistration process completes. To deregister all sensors: Press MENU when the phone is not in use. Enter the code *33734# to access the DEREGISTER menu. Press SELECT to select All sensors. Press YES to confirm the deregistration. The telephone base shows All sensors are deregistered and you hear a beep when the deregistration process completes. 1. 2. 3. 4. 5. 1. 2. 3. 4. Check the sensor before use 1. Separate the sensor unit from the magnet unit. You will hear an announcement alert - “Open/Closed X is open”, from the handset and the telephone base. The handset and the telephone base will display Open/Closed X is open, and then . The SENSOR light on the telephone base will turn red. 2. Combine the sensor unit with the magnet unit. will disappear from the handset and the telephone base. The SENSOR light on the telephone base will turn off. • • • • • Test the location for the sensor You can mount the open/closed sensor on a door, window, or medicine cabinet that opens or closes. 1. Take the sensor to the desired mounting location, and hold at the object and its respective frame. 2. Open the door, window, or medicine cabinet and listen for an announcement alert at your handset and telephone base. Use your handset to enter the Settings menu, and then the Sensor setup menu. Follow the steps to test the sensor’s signal strength. Move the base closer to the garage, or move the sensor closer to the base, if the sensor is out of range. NOTES Use adhesive tape to hold the sensor temporarily whilst testing. Mount the sensor to a higher position to avoid obstacles or blockages. Depending on surroundings and obstructing factors, like walls or cabinets, the sensor may not transmit to the base properly. • • Mount with sticker 1. Attach the sticker C onto the rectangular area at the rear side of the magnet unit, 2. Stick the magnet unit onto the door. Mount with sticker You can choose one out of the four spacers with suitable height, and then add it to the magnet unit. 1. Push the spacer towards the magnet unit until it securely clicks into place. 2. Attach the sticker C onto the rectangular area at the rear side of the spacer. 3. Stick the magnet unit onto the door. Go to www.vtechphones.com to register your product for enhanced warranty support and the latest VTech product news. Mount the sensor We recommend you to mount the magnet unit on a door, window, or medicine cabinet, and mount the sensor unit on its respective frame. NOTES Make sure the mounting surface is clean. A textured surface or any imperfections to a smooth surface can keep the sticker from making a strong bond. Make sure you align the magnet unit with sensor unit when mounting. The distance between the sensor unit and magnet unit must be less than 1 cm (0.4 inch). T…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification September 22, 2014 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd September 22, 2014 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9684-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information:  Schematics  Detailed Block diagrams  Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9684-00 IC: 1135B-80968400

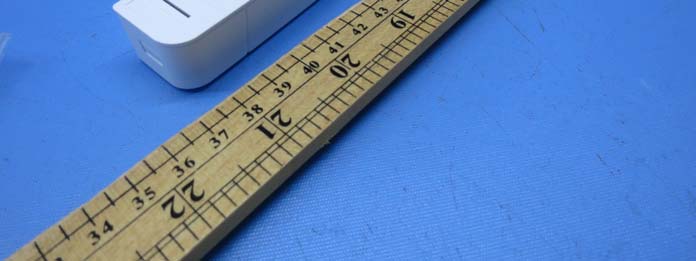

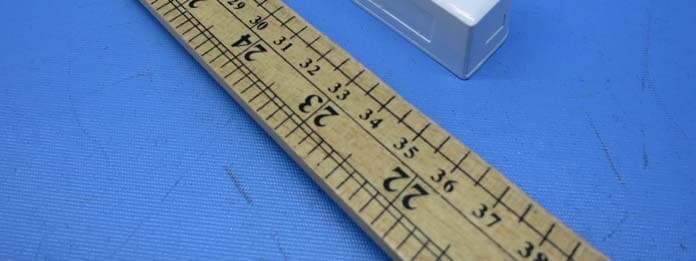

Contact_sensor Model: VC7002 S/N: XXXXXXXXXXXXXXXXXXXX Model: VC7002 S/N: XXXXXXXXXXXXXXXXXXXX Model: VC7151-109 C S/N: XXXXXXXXXXXXXXXXXXXX Model: VC7151-102 C S/N: XXXXXXXXXXXXXXXXXXXX SN Label 28X10mm 10.5mm 28.5mm 17.5mm 5mm 17.5mm 22mm 5mm 4mm FCC ID: EW780-9684-00 MANUFACTURED IN CHINA Foam Area IC: 1135B-80968400 Rear Side Front Side Side View

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9684-00 IC: 1135B-80968400 Sensor Unit INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9684-00 IC: 1135B-80968400 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9684-00 IC: 1135B-80968400 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9684-00 IC: 1135B-80968400 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9684-00 IC: 1135B-80968400

INTERTEK TESTING SERVICES FCC ID: EW780-9684-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the open/closed sensor, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Sensor Unit of tested model: VC7002, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of VC7002 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 4.2% (1/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.042) mW = 5.29 mW The power density at 20cm = 5.29 *1.00/ 4R 2 = 0.0010 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the open/closed sensor at least 20cm from nearby persons.”

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 14090592HKG-004 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices FCC ID: EW780-9684-00 IC: 1135B-80968400 Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Nip Ming Fung, Melvin Engineer Assistant Manager April 02, 2015 INTERTEK TESTING SERVICES Test Report Number: 14090592HKG-004 Page 1 of 59 FCC ID: EW780-9684-00 IC: 1135B-80968400 GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F, Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2013 Edition FCC ID: EW780-9684-00 FCC Model(s): VC7151-102 C, VC7151-109 C, VC715x- abc C, VC7002, VC7abc-xy IC Specification Standard: RSS-213 Issue 3, March 2005 RSS-Gen Issue 3, December 2010 IC: 1135B-80968400 IC Model(s): VC7151-102 C, VC7151-109 C, VC7002 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz Open/Closed Sensor for use with DECT VC7151/VC7152 Serial Number: N/A Sample Receipt Date: September 12, 2014 Date of Test: October 11, 2014 to December 3, 2014 Report Date: April 02, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: 14090592HKG-004 Page 2 of 59 FCC ID: EW780-9684-00 IC: 1135B-80968400 Table of Contents 1.0 Test Results Summary & Statement of Compliance............................................... 5 1.1 Summary of Test Results......................................................................................... 5 1.2 Statement of Compliance......................................................................................... 7 2.0 General Description................................................................................................... 9 2.1 Product Description ................................................................................................... 9 2.2 Technical Description ................................................................................................ 9 2.3 Test Methodology.................................................................................................... 10 2.4 Test Facility ............................................................................................................. 10 3.0 System Test Configuration...................................................................................... 12 3.1 Justification ............................................................................................................. 12 3.2 Conducted Emission Test Configuration ................................................................. 13 3.3 Conducted Monitoring and Operational Test Configuration ..................................... 13 3.4 EUT Exercising Software ........................................................................................ 13 3.5 Details of EUT and Description of Accessories ....................................................... 14 3.6 Measurement Uncertainty ....................................................................................... 14 4.0 Measurement Results.............................................................................................. 16 4.1 Antenna Requirement ............................................................................................. 16 4.2 Digital Modulation Techniques ................................................................................ 16 4.3 Emission Bandwidth................................................................................................ 17 4.4 Directional Gain of the Antenna............................................................................... 20 4.5 Peak Transmit Power .............................................................................................. 21 4.6 Power Spectral Density ........................................................................................... 24 4.7 Automatic Discontinuation of Transmission ............................................................. 27 4.8 Unwanted Emission Inside the Sub-Band ............................................................... 28 4.9 Emissions Outside the Sub-Band............................................................................ 32 4.9.1 Radiated Emissions Configuration Photographs .................................................. 33 4.9.2 Radiated Emissions Data .........................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd September 22, 2014 To whom it may concern, Declarations FCC ID: EW780-9684-00 IC: 1135B-80968400 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Open/Closed Sensor will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Sensor Unit 1 Switch-off companion device NA 2 On hook by companion device NA 3 Switch-off device NA 4 On hook on device side NA 5 Remove power from device C 6 Remove power from companion device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of Sensor unit declared by manufacturer is 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9684-00 IC: 1135B-80968400 Radiated Emission – Sensor Unit Transmission Front View Rear View
