ErisTerminal ® SIP Deskset VSP736 Quick Start Guide 2 Important Safety Information This symbol is to alert you to important operating or servicing instructions that may appear on the product or in this user’s manual. Always follow basic safety precautions when using this product to reduce the risk of injury, fire, or electric shock. Important Safety Instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: 1. This product should be installed by a qualified technician. 2. This product should only be connected to the host equipment and never directly to the network such as Public Switch Telephone Network (PSTN) or Plain Old Telephone Services (POTS). 3. Read and understand all instructions. 4. Follow all warnings and instructions marked on the product. 5. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. 6. Do not use this product near water such as near a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower. 7. Do not place this product on an unstable table, shelf, stand or other unstable surfaces. 8. Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided. 9. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied at the premises, consult your dealer or local power company. 10. Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on. 11. Never push objects of any kind into this product through the slots in the telephone base or handset because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product. 3 12. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the telephone base or handset other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used. 13. Do not overload wall outlets and extension cords. 14. Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions: A. When the power supply cord or plug is damaged or frayed. B. If liquid has been spilled onto the product. C. If the product has been exposed to rain or water. D. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized technician to restore the product to normal operation. E. If the product has been dropped and the telephone base and/or handset has been damaged. F. If the product exhibits a distinct change in performance. 15. Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning. 16. Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced in its cradle. This is a common event associated with the closing of any electrical circuit. The user should not plug the phone into a power outlet, and should not put a charged handset into the cradle, if the phone is located in an environment containing concentrations of flammable or flame-supporting gases, unless there is adequate ventilation. A spark in such an environment could create a fire or explosion. Such environments might include: medical use of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc. 17. Only put the handset of your telephone next to your ear when it is in normal talk mode. 18. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. 4 19. Use only the power cord indicated in this manual. 20. For pluggable equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible. 21. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place. Refer to the full instructions in Deskset Installation in the User Guide. 22. CAUTION: Keep small metallic objects such as pins and staples away from the handset receiver. SAVE THESE INSTRUCTIONS 5 For cETL compliance only Mesures de sécurité importantes Ce symbole vous alertera d’informations importantes ou d’instructions d’entretien pouvant apparaître dans ce guide d’utilisation. Respectez toujours les mesures de sécurité et de sécurité de base lorsque vous utilisez ce produit, afin de réduire les risques de blessures, d’incendie, ou d’électrocution. Mesures de sécurité importantes Afin de réduire les risques d’incendie, de blessures corporelles ou d’électrocution, suivez toujours ces mesures préventives de base lorsque vous utilisez votre téléphone : 1. Cet appareil doit être installé par un technicien qualifié. 2. Cet appareil doit être branché à un équipement hôte et jamais branché à un réseau, tel qu’un réseau PSTN publiq…

Text truncated - open the document above for the full version.

Appendix B1 Letter of Agency for FCC Certification Nov 28, 2015 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Limited do hereby authorize Intertek Testing Services (Mr. Ken Sit/ Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Michael Tsui Approbation Supervisor

VTech Telecommunications Ltd Nov 28, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-9927-00 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd . and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

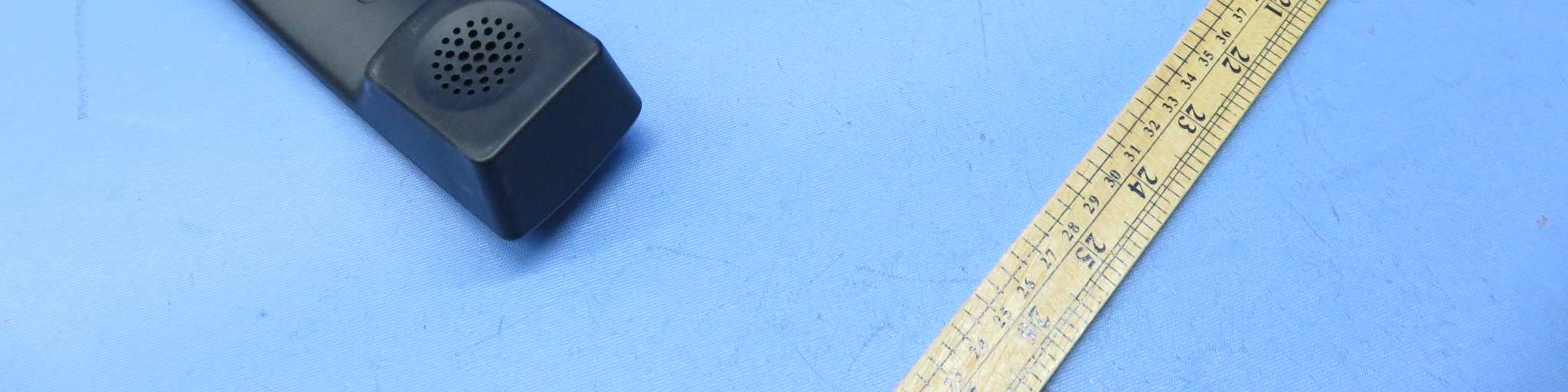

INTERTEK TESTING SERVICES External Photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES External Photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES External Photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700

VSP736 ENGRAVING MAC&S/N LABEL Size=41x15mm PoE Use only Supplied Adapter Text: engraved in raised 0.3mm Model: VSP736 THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1)THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. HAC FCC ID: EW780-9927-00 IC: 1135B-80992700 DC 5V 1.5AITE LIMITED POWER SOURCEMANUFACTURED IN CHINAVTECH TELECOMMUNICATIONS LTD. label Size=34x84mm

INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 INTERTEK TESTING SERVICES Internal photos Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700

INTERTEK TESTING SERVICES FCC ID: EW780-9927-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Base Unit of tested model: VSP736, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of VSP736 is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 41.7% (0.41664 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.417) mW = 52.5 mW The power density at 20cm = 52.5 *1.00/ 4πR 2 = 0.0104 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.”

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 15111213HKG-001 Application For Original Grant of 47 CFR Part 15 Certification Single New of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices Base Unit FCC ID: EW780-9927-00 IC: 1135B-80992700 Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Nip Ming Fung, Melvin Engineer Assistant Manager December 18, 2015 INTERTEK TESTING SERVICES Test Report Number: 15111213HKG-001 Page 1 of 66 FCC ID: EW780-9927-00 IC: 1135B-80992700 GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2014 Edition FCC ID: EW780-9927-00 FCC Model(s): VSP736 IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 4, November 2014 IC: 1135B-80992700 IC Model(s): VSP736 Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz SIP Deskset Serial Number: N/A Sample Receipt Date: November 20, 2015 Date of Test: November 30 to December 11, 2015 Report Date: December 18, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: 15111213HKG-001 Page 2 of 66 FCC ID: EW780-9927-00 IC: 1135B-80992700 Table of Contents 1.0 Test Results Summary & Statement of Compliance .............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description ................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.3 Test Methodology .................................................................................................... 9 2.4 Test Facility ............................................................................................................. 9 3.0 System Test Configuration .................................................................................... 11 3.1 Justification ........................................................................................................... 11 3.2 Radiated Emission Test Setup ............................................................................... 12 3.3 AC Line Conducted Emission Test Setup .............................................................. 12 3.4 Conducted Emission Test Configuration ................................................................ 13 3.5 Conducted Monitoring and Operational Test Configuration .................................... 13 3.6 EUT Exercising Software ....................................................................................... 13 3.7 Details of EUT and Description of Accessories ...................................................... 14 3.8 Measurement Uncertainty ..................................................................................... 14 4.0 Measurement Results ............................................................................................ 16 4.1 Antenna Requirement ........................................................................................... 16 4.2 Digital Modulation Techniques ............................................................................... 16 4.3 Emission Bandwidth .............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 20 4.5 Peak Transmit Power ............................................................................................ 21 4.6 Power Spectral Density ......................................................................................... 24 4.7 Automatic Discontinuation of Transmission ............................................................ 27 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 28 4.9 Emissions Outside the Sub-Band .......................................................................... 32 4.9.1 Radiated Emissions Configuration Photographs ........................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Nov 28, 2015 To whom it may concern, Declarations FCC ID: EW780-9927-00 IC: 1135B-80992700 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the handset unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Base Unit 1 Switch-off companion device NA 2 On hook by companion device B 3 Switch-off device NA 4 On hook on device side NA 5 Remove power from device A 6 Remove power from companion device B A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. For FCC, M L of base unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 Radiated Emission – Base Unit Transmission (adaptor: Ten Pao) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 AC Conducted Emission – Baby Unit: DECT Talk (adaptor: Ten Pao) Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs Test Report Number: 15111213HKG-001 FCC ID: EW780-9927-00 IC: 1135B-80992700 AC Conducted Emission Side View 2
