EW780-9982-00Digital Audio Baby Monitor - Baby Unit

Press select to confirm your selection. TIP To enter the sensitivity menu of the parent unit, the baby unit must be turned on.Sound alertYou may turn on the sound alert while the speaker volume is turned off so that the parent unit beeps as soon as the baby unit detects sounds which light up four sound level indicators on the parent unit.When the sound alert of the parent unit is turned on, displays. The sound alert is preset to OFF . Press menu when the parent unit is not in use.Press volume + or volume - to choose SOUND ALERT , then press select . Press volume + or volume - to choose ON or OFF . Press select to confirm your selection. The screen displays SAVED and you hear a confirmation tone. NOTE The sound alert setting on each parent unit is independent. Vibration alertYou may turn on the vibration alert so that the parent unit vibrates as soon as the baby unit detects sounds which light up four sound level indicators on the parent unit.When the vibration alert of the parent unit is turned on, displays. The vibration alert is preset to OFF . Press menu when the parent unit is not in use.Press volume + or volume - to choose VIBE ALERT , then press select . Press volume + or volume - to choose ON or OFF . Press select to confirm your selection. The screen displays SAVED and you hear a confirmation tone. NOTES Each time you set the vibration alert to ON , the parent unit vibrates briefly after you press select . The vibration alert setting on each parent unit is independent. 4.1.2.3.4.Ć1.2.3.4.ĆĆ NOTE Make sure the supplied rechargeable battery with the label THIS SIDE UP facing up. User’s manualDM202/DM202-2Safe & Sound TM Full Color Video and Audio Monitor BC You can power up the parent unit by connecting it to AC power or to the rechargeable battery provided. Even if the parent unit is connected to AC power, we recommend you also install the battery. This guarantees continual operation in case of a power outage. NOTE Use only the battery supplied with this product . Install the battery as shown below. Install the battery Replace the batteryTo replace the battery, unplug the battery connector from the socket, and then pull the battery out of the battery compartment. Follow the steps above to install the battery. NOTES The operating time for using the rechargeable battery is short. If you want to monitor your baby for a long time, we recommend you connect the parent unit to AC power.If the parent unit will not be used for a long time, disconnect and remove the battery to prevent possible leakage. ĆĆ Charge the parent unit batteryOnce you have connected the parent unit and installed its battery, press to turn it on. The battery icon indicates the battery status (see the following table). NOTES The parent unit battery is fully charged after 11 hours of continuous charging.It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.The standby time varies depending on the sensitivity level you set, your actual use and the age of the battery. Battery indicators Battery status Action The battery icon is off. No battery is installed. Theparent unit can be usedonly when it is connected toAC power. Install the parent unit battery.Charge without interruption(at least 30 minutes). LOW BATTERYand flash on the screen. The light flashes. The battery has very little charge and may be used for only a short time. Charge without interruption (about 30 minutes). The battery icon becomes solid . The battery is fully charged. To keep the battery charged, connect it to AC power when not in use. ĆĆĆ You may test the baby monitor before initial use, and at regular times thereafter. To test your audio monitor: Place the parent unit and the baby units in the same room to test the product. Make sure the baby unit is at least 3 feet away from the parent unit. Press power on to turn on the baby unit. The power on lights up. Press to turn on the parent unit. The screen turns on. NOTE I f both units are not connected, the parent unit displays NOT LINKED and flashes. 1.2.3. Before use Baby unit overview 1 Projector When it is on, it projects some image patterns to the user environment. Ć 2 Microphone 3 Control key panelpower on Press to power on.Press and hold to power off.Flashes when the baby unit is not linked to a parent unit; or the pairing process is in progress. page Press to start or stop paging parent unit. volume + Press to increase the listening volume. volume - Press to decrease the listening volume. Press to turn on or off the projector. ĆĆĆĆĆĆĆ 4 Speaker 5 Power jack Parent unit overview 1 Microphone 2 Visual sound indicator The visual sound indicator has two functions. One is to show the sound level detected by the baby unit. The other one is to show the volume level during speaker volume setting.Sound level detected by the baby unit One to three green lights indicate a moderate sound level detected by the baby unit. Additional red lights indicate a higher sound level detected by the baby unit (e.g. baby crying loudly). Speaker volume level One to three green lights indicate Level 1 to Level 3 of the speaker volume setting. Additional red lights indicate Level 4 to Level 5 of the speaker volume setting. ĆĆĆĆ 3 LCD panel Overview 4 Control key panelmenu Press to enter the menu while idle. select While in a menu, press to choose an item, or save a setting. back While in a menu, press to return to the previous menu.Press to return idle while current menu is already in root level. volume + Press to increase the speaker volume.While in a menu, press to scroll up. volume - Press to decrease the speaker volume.While in a menu, press to scroll down. ĆĆĆĆĆĆĆĆ 5 Battery level indicator Light on when the parent unit battery is being charged.Light flashes when the parent unit battery is low and needs charging.Light off when the parent unit battery is fully charged, or when no battery is installed. ĆĆĆ 6 (On/off) Press to power on.…

Text truncated - open the document above for the full version.

Press select to confirm your selection. TIP To enter the sensitivity menu of the parent unit, the baby unit must be turned on.Sound alertYou may turn on the sound alert while the speaker volume is turned off so that the parent unit beeps as soon as the baby unit detects sounds which light up four sound level indicators on the parent unit.When the sound alert of the parent unit is turned on, displays. The sound alert is preset to OFF . Press menu when the parent unit is not in use.Press volume + or volume - to choose SOUND ALERT , then press select . Press volume + or volume - to choose ON or OFF . Press select to confirm your selection. The screen displays SAVED and you hear a confirmation tone. NOTE The sound alert setting on each parent unit is independent. Vibration alertYou may turn on the vibration alert so that the parent unit vibrates as soon as the baby unit detects sounds which light up four sound level indicators on the parent unit.When the vibration alert of the parent unit is turned on, displays. The vibration alert is preset to OFF . Press menu when the parent unit is not in use.Press volume + or volume - to choose VIBE ALERT , then press select . Press volume + or volume - to choose ON or OFF . Press select to confirm your selection. The screen displays SAVED and you hear a confirmation tone. NOTES Each time you set the vibration alert to ON , the parent unit vibrates briefly after you press select . The vibration alert setting on each parent unit is independent. 4.1.2.3.4.Ć1.2.3.4.ĆĆ NOTE Make sure the supplied rechargeable battery with the label THIS SIDE UP facing up. User’s manualDM222/DM222-2Safe & Sound TM Full Color Video and Audio Monitor BC You can power up the parent unit by connecting it to AC power or to the rechargeable battery provided. Even if the parent unit is connected to AC power, we recommend you also install the battery. This guarantees continual operation in case of a power outage. NOTE Use only the battery supplied with this product . Install the battery as shown below. Install the battery Replace the batteryTo replace the battery, unplug the battery connector from the socket, and then pull the battery out of the battery compartment. Follow the steps above to install the battery. NOTES The operating time for using the rechargeable battery is short. If you want to monitor your baby for a long time, we recommend you connect the parent unit to AC power.If the parent unit will not be used for a long time, disconnect and remove the battery to prevent possible leakage. ĆĆ Charge the parent unit batteryOnce you have connected the parent unit and installed its battery, press to turn it on. The battery icon indicates the battery status (see the following table). NOTES The parent unit battery is fully charged after 11 hours of continuous charging.It takes longer to charge the battery when the parent unit is turned on. To shorten the charging time, turn the parent unit off while charging.The standby time varies depending on the sensitivity level you set, your actual use and the age of the battery. Battery indicators Battery status Action The battery icon is off. No battery is installed. Theparent unit can be usedonly when it is connected toAC power. Install the parent unit battery.Charge without interruption(at least 30 minutes). LOW BATTERYand flash on the screen. The light flashes. The battery has very little charge and may be used for only a short time. Charge without interruption (about 30 minutes). The battery icon becomes solid . The battery is fully charged. To keep the battery charged, connect it to AC power when not in use. ĆĆĆ You may test the baby monitor before initial use, and at regular times thereafter. To test your audio monitor: Place the parent unit and the baby units in the same room to test the product. Make sure the baby unit is at least 3 feet away from the parent unit. Press power on to turn on the baby unit. The power on lights up. Press to turn on the parent unit. The screen turns on. NOTE I f both units are not connected, the parent unit displays NOT LINKED and flashes. 1.2.3. Before use Baby unit overview 1 Projector When it is on, it projects some image patterns to the user environment.When it is on, it plays lullaby. ĆĆ 2 Microphone 3 Control key panelpower on Press to power on.Press and hold to power off.Flashes when the baby unit is not linked to a parent unit; or the pairing process is in progress. page Press to start or stop paging parent unit. volume + Press to increase the listening volume. volume - Press to decrease the listening volume. Press to turn on or off the projector. ĆĆĆĆĆĆĆ 4 Magnetic base 5 Speaker 6 Power jack Parent unit overview 1 Microphone 2 Visual sound indicator The visual sound indicator has two functions. One is to show the sound level detected by the baby unit. The other one is to show the volume level during speaker volume setting.Sound level detected by the baby unit One to three green lights indicate a moderate sound level detected by the baby unit. Additional red lights indicate a higher sound level detected by the baby unit (e.g. baby crying loudly). Speaker volume level One to three green lights indicate Level 1 to Level 3 of the speaker volume setting. Additional red lights indicate Level 4 to Level 5 of the speaker volume setting. ĆĆĆĆ 3 LCD panel Overview 4 Control key panelmenu Press to enter the menu while idle. select While in a menu, press to choose an item, or save a setting. back While in a menu, press to return to the previous menu.Press to return idle while current menu is already in root level. volume + Press to increase the speaker volume.While in a menu, press to scroll up. volume - Press to decrease the speaker volume.While in a menu, press to scroll down. ĆĆĆĆĆĆĆĆ 5 Battery level indicator Light on when the parent unit battery is being charged.Light flashes when the parent unit battery is low and needs charging.Light off when the parent unit battery is fully charged, or when no batter…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd March 10, 2015 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification-BU FCC ID: EW780-9982-00 Request is hereby submitted by VTech Telecommunications Ltd to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

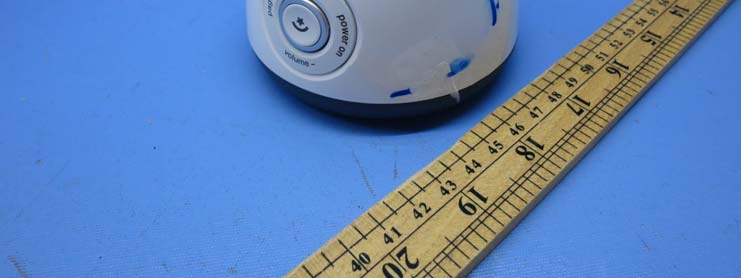

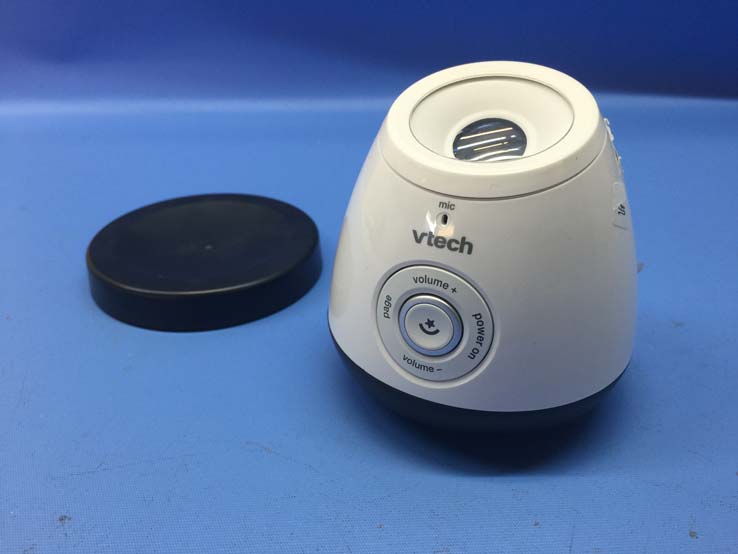

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9982-00 IC: 1135B-80998200 DM202 BU INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9982-00 IC: 1135B-80998200 DM222 BU INTERTEK TESTING SERVICES External Photos FCC ID: EW780-9982-00 IC: 1135B-80998200

DM202-X Engraving BUPU MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 Use only Supplied Adapter FCC ID: EW780-9982-00 IC: 1135B-80998200 DC 6V 600mA 0.40mm 4.1mm 0.43mm 0.68mm 0.52mm 0.63mm 4.1mm FCC ID: EW780-9982-01 IC: 1135B-80998201 DM202 PU & DM202-2 PU PU SN Label Size: 19.5X9.5,mm 92-XXXXXX-010-100 The red serial number and barcode will be printed in VTT 92-XXXXXX-010-100 Mater ial: 50# UL approved PET Model: DM202 PU Use only Supplied Adapter S/N: XXXXXXXXXXX Model: DM202 PU Use only Supplied Adapter S/N: XXXXXXXXXXX Model: DM202-2 PU Use only Supplied Adapter S/N: XXXXXXXXXXX DM202 BU & DM202-2 BU BU SN Label Size: 28X10,mm 92-XXXXXX-010-100 The red serial number and barcode will be printed in VTT 92-XXXXXX-010-100 Mater ial: 50# UL approved PET Model: DM202 BU S/N: XXXXXXXXXXX Model: DM202 BU S/N: XXXXXXXXXXX Model: DM202-2 BU S/N: XXXXXXXXXXX Label Size: 30X5.5 mm Mater ial: 50# UL approved PET Label Size: 37.5X37.5 mm Mater ial: 50# UL approved PET Label Label DM222-X Engraving BU PU 0.40mm 4.1mm 0.43mm 0.68mm 0.52mm 0.63mm 4.1mm DM222 & DM222-2 PU PU SN Label Size: 19.5X9.5,mm 92-XXXXXX-010-100 The red serial number and barcode will be printed in VTT Label 92-XXXXXX-010-100 Mater ial: 50# UL approved PET Label Size: 30X5.5 mm Mater ial: 50# UL approved PET Label Size: 46.5X31 mm Mater ial: 50# UL approved PET Model: DMXXX-X PU Use only Supplied Adapter S/N: XXXXXXXXXXX Model: DM222 PU Use only Supplied Adapter S/N: XXXXXXXXXXX Model: DM222-2 PU Use only Supplied Adapter S/N: XXXXXXXXXXX DM222 & DM222/2 BU BU SN Label Size: 28X10,mm 92-XXXXXX-010-100 The red serial number and barcode will be printed in VTT 92-XXXXXX-010-100 Mater ial: 50# UL approved PET Model: DM222 BU S/N: XXXXXXXXXXX Model: DM222-2 BU S/N: XXXXXXXXXXX Model: DMXXX-X BU S/N: XXXXXXXXXXX MANUFACTURED IN CHINA www.vtechphones.com VTech Customer Service 1-800-595-9511 FCC ID: EW780-9982-00 IC: 1135B-80998200 Use only Supplied Adapter DC 6V 600mA For Rear Silksreen Label

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 DM202 BU INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 DM222 BU INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200 INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-9982-00 IC: 1135B-80998200

INTERTEK TESTING SERVICES FCC ID: EW780-9982-00 RF exposure - 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the baby unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. For the 1.9GHz Digital Audio Baby Monitor - Baby Unit of tested model: DM202 BU, the measured powers among all the measured channels were within its production tolerance: +16 dBm (Minimum) and +21 dBm (Maximum).The antenna gain of DM202 BU is 0 dBi = 1.00 (num gain) and its maximum source-based time-averaging duty factor is 12.5% (3/24 x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21 dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.125) mW = 15.74 mW The power density at 20cm = 15.74 *1.00/ 4R 2 = 0.0031 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the baby unit at least 20cm from nearby persons.”

VTech Telecommunications Ltd March 10, 2015 To whom it may concern, Declarations-BU FCC ID: EW780-9982-00 IC: 1135B-80998200 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the Parent unit will act as the initiating device, which will initiate the establishment of the duplex connection. 4. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of Baby unit 1 Switch-off companion device B 2 On hook by companion device NA 3 Remove power from companion device B 4 Switch-off device A 5 On hook device NA 6 Remove power from device A A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. NA – Not applicable represents the device does not contain a hook switch or a power off switch. 5. M L of baby unit and Parent unit declared by manufacturer are 30dBm. If you have questions or need further information, please contact the undersigned. Regards, Michael Tsui Approbation Supervisor

- Intertek’s standard Terms and Conditions can be obtained at our website: http://www.intertek.com/terms/. - The test report only allows to be revised within the retention period unless further standard or the requirement was noticed. - This report is for the exclusive use of Intertek's Client and is provided pursuant to the agreement between Intertek and its Client. Intertek's responsibility and liability are limited to the terms and conditions of the agreement. Intertek assumes no liability to any party, other than to the Client in accordance with the agreement, for any loss, expense or damage occasioned by the use of this report. Only the Client is authorized to permit copying or distribution of this report and then only in its entirety. Any use of the Intertek name or one of its marks for the sale or advertisement of the tested material, product or service must first be approved in writing by Intertek. The observations and test results in this report are relevant only to the sample tested. This report by itself does not imply that the material, product, or service is or has ever been under an Intertek certification program. Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com TEST REPORT Report Number: 15030158HKG-003 Application For Original Grant of 47 CFR Part 15 Certification New Family of RSS-213 Issue 3 Equipment Certification Unlicensed Personal Communication Service Devices/ 2 GHz License-exempt Personal Communications Service Devices (Baby Unit) FCC ID: EW780-9982-00 IC: 1135B-80998200 Prepared and Checked by: Approved by: Signed on File Leung Chiu Kuen, Stanley Nip Ming Fung, Melvin Engineer Assistant Manager May 13, 2015 INTERTEK TESTING SERVICES Test Report Number: 15030158HKG-003 Page 1 of 61 FCC ID: EW780-9982-00 IC: 1135B-80998200 GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2013 Edition FCC ID: EW780-9982-00 FCC Model(s): DM202 BU, DM222 BU, DM202-2 BU, DM222-2 BU, DM20x-ab BU, DM22x-ab BU IC Specification Standard: RSS-213 Issue 3, March 2015 RSS-Gen Issue 3, December 2010 IC: 1135B-80998200 IC Model(s): DM202 BU, DM222 BU, DM202-2 BU, DM222-2 BU Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: Digital Audio Baby Monitor - Baby Unit Serial Number: N/A Sample Receipt Date: March 05, 2015 Date of Test: Mar 19, 2015 Report Date: May 13, 2015 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% INTERTEK TESTING SERVICES Test Report Number: 15030158HKG-003 Page 2 of 61 FCC ID: EW780-9982-00 IC: 1135B-80998200 Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.4 Test Methodology.................................................................................................... 9 2.5 Test Facility........................................................................................................... 10 3.0 System Test Configuration.................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Conducted Emission Test Configuration ................................................................ 13 3.3 Conducted Monitoring and Operational Test Configuration .................................... 13 3.4 EUT Exercising Software....................................................................................... 13 3.5 Details of EUT and Description of Accessories...................................................... 14 3.6 Measurement Uncertainty ..................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 20 4.5 Peak Transmit Power ............................................................................................ 21 4.6 Power Spectral Density ......................................................................................... 24 4.7 Automatic Discontinuation of Transmission............................................................ 27 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 28 4.9 Emissions Outside the Sub-Band .......................................................................... 32 4.9.1 Radiated Emissions Configuration Photographs ................................................. 33 4.9.2 Radiated Emissions Data ................................................................................... 33 4.9.3 Field Strength…

Text truncated - open the document above for the full version.

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9982-00 IC: 1135B-80998200 DM202 BU Radiated Emission – Baby Unit Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9982-00 IC: 1135B-80998200 DM202 BU AC Conducted Emission – Baby Unit Front View Side View 1 INTERTEK TESTING SERVICES The Worst Case Configuration Photographs FCC ID: EW780-9982-00 IC: 1135B-80998200 DM202 BU AC Conducted Emission – Baby Unit Side View 2
