EW780-H0B1-061.9GHz DECT SIP Corded Deskset

Master User Guide SIP Cordless Series Models: SIP classic trimstyle 1-line hotel telephone - S1310/ SIP classic trimstyle 2-line hotel telephone - S1320/ SIP classic cordless 1-line hotel telephone - S1410/ SIP classic cordless 2-line hotel telephone - S1420/ SIP classic charging base - C3300/ SIP classic cordless 1-line accessory handset - C3400/ SIP classic cordless 2-line accessory handset - C3500/ SIP contemporary trimstyle 1-line hotel telephone - S2310/S2310-6VDC/CTM-S2311 SIP contemporary trimstyle 2-line hotel telephone - S2320/S2320-6VDC/CTM-S2321 SIP contemporary cordless 1-line hotel telephone - S2410/CTM-S2411 SIP contemporary cordless 2-line hotel telephone - S2420/CTM-S2421 SIP contemporary charging base - C4300/ SIP contemporary charging stand - C4310/ SIP contemporary cordless 1-line accessory handset - C4400/CTM-C4401 SIP contemporary cordless 2-line accessory handset - C4500/CTM-C4501 SIP contemporary cordless 1-line deskset - CTM-S241P SIP contemporary cordless 2-line deskset - CTM-S242P i Important safety instructions When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and injury, including the following: This product should be installed by a qualified technician. This product should only be connected to the host equipment and never directly to the network such as Public Switch Telephone Network (PSTN) or Plain Old Telephone Services (POTS). Read and understand all instructions. Follow all warnings and instructions marked on the product. Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning. Do not use this product near water such as near a bath tub, wash bowl, kitchen sink, laundry tub or swimming pool, or in a wet basement or shower. Do not place this product on an unstable table, shelf, stand or other unstable surfaces. Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating, these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided. This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply on the premises, consult your dealer or local power company. Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on. Never push objects of any kind into this product through the slots in the telephone base or handset because they may touch dangerous voltage points or create a short circuit. Never spill liquid of any kind on the product. To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing parts of the telephone base or handset other than specified access doors may expose you to dangerous voltages or other risks. Incorrect reassembling can cause electric shock when the product is subsequently used. Do not overload wall outlets and extension cords. Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions: When the power supply cord or plug is damaged or frayed. If liquid has been spilled onto the product. If the product has been exposed to rain or water. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized technician to restore the product to normal operation. If the product has been dropped and the telephone base and/or handset has been damaged. If the product exhibits a distinct change in performance. Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning. Do not use the telephone to report a gas leak in the vicinity of the leak. Under certain circumstances, a spark may be created when the adapter is plugged into the power outlet, or when the handset is replaced in its cradle. This is a common event associated with the closing of any electrical circuit. The user should not plug the phone into a power outlet, and should not put a charged handset into the cradle, if the phone is located in an environment containing concentrations of flammable or flame- supporting gases, unless there is adequate ventilation. A spark in such an environment could create a fire or explosion. Such environments might include: medical use of oxygen without adequate ventilation; industrial gases (cleaning solvents; gasoline vapors; etc.); a leak of natural gas; etc. Only put the handset of your telephone next to your ear when it is in normal talk mode. The power adapters are intended to be correctly oriented in a vertical or floor mount position. The prongs are not designed to hold the plug in place if it is plugged into a ceiling, under-the-table or cabinet outlet. Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for possible special disposal instructions. In wall mounting position, make sure to mount the telephone base on the wall by aligning the eyelets with the mounting studs of the wall plate. Then slide the telephone base down on both mounting studs until it locks into place. Refer to the full instructions in Installation in the user’s manual. CAUTION: Keep small metallic objects such as pins and staples away from the handset receiver. CAUTION: There may be a risk of explosion if a wrong type of handset battery is used (S1410, S1420, S2410, CTM-S2421, S2420, CTM-S2421, CTM-S241P, CTM-S242P, C340…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Appendix B1 Letter of Agency for FCC Certification June 4, 2012 To whom it may concern, Letter of Agency I, an officer of VTech Telecommunications Ltd. do hereby authorize Intertek Testing Services (Mr. Ken Sit / Mr. Melvin Nip) to act on our behalf in front of the Federal Communications Commission with respect to all matters relating to certification of equipment under Part 15 and/or Part 95 of the FCC Rules until further notice. I further certify that no party (as defined in §1.2002(b) of CFR 47, 2004) to this application, including myself, is subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C., 862. Regards, Signature Samson Man Approbation Supervisor

VTech Telecommunications Ltd 04 June, 2012 To whom it may concern, Request for Permanent Confidentiality Under FCC Part 15 Certification FCC ID: EW780-H0B1-06 Request is hereby submitted by VTech Telecommunications Ltd. to withhold permanently from public review certain portions of the application for equipment certification for the referenced FCC identifiers. This request for confidentiality is made pursuant to 47 CFR § 0.457(d) and 0.459 of the FCC Rules. In particular, the following sections of the application are to be kept permanently confidential and VTech Telecommunications Ltd. reserves the right to discern which parties can obtain access to these information: • Schematics • Detailed Block diagrams • Detailed Operational/Functional Description The rationale for request for confidentiality is as followings: This information represents intellectual property of VTech Telecommunications Ltd. and it is subject to competition. We have invested considerable time and materials in research and development to produce the referenced product. Disclosure of the permanently confidential portions of this application to competitors would not only give them significant competitive advantages in developing similar products, but would also disclose successful implementation of unpublished, leading edge technology developed by us. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

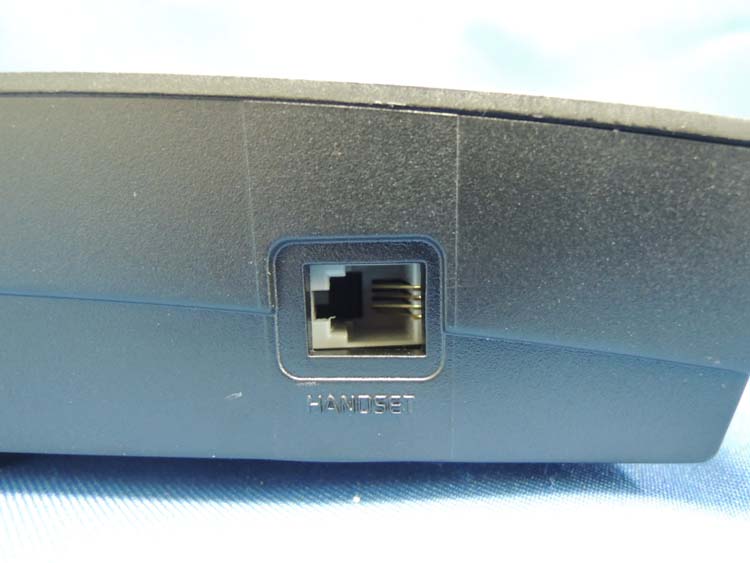

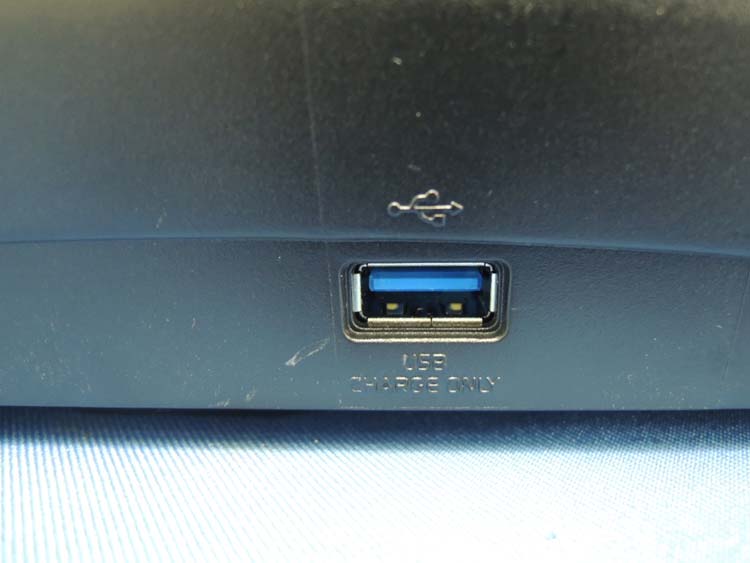

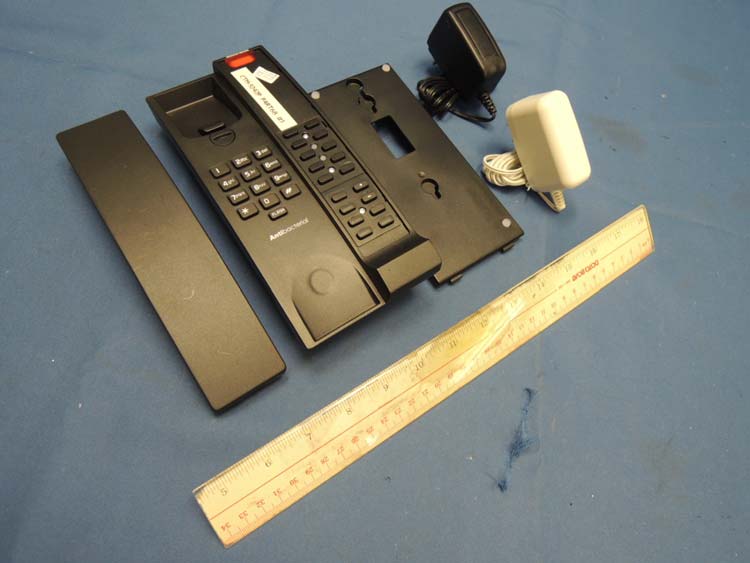

INTERTEK TESTING SERVICES External Photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 external photos - 1 of 2 HK12090298 Job Number HK12090298 Job Number INTERTEK TESTING SERVICES External Photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 external photos - 2 of 2

CTM-S241P CTM-S242P FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 HAC www.vtechhotelphones.com SIP CORDED DESKSET VTECH TELECOMMUNICATIONS LTD. 32mm 52mm 30mm 28.5mm 10.5mm 12mm Model: CTM-S241P Model: CTM-S242P Model: CTM-S241P SN Label Size: 28X10mm Unit label 51X31mm Mac Label Size: 28X10mm XX:XX:XX:XX:XX:XX XX:XX:XX:XX:XX:XX CTM-S24XP Engraving Draft THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE TH AT MAY CAUSE UNDESIRED OPERATION.PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. CLASS (CLASSE) 2 DC5.1V 1300mA FCC ID: EW780-H0B1-06IC: 1135B-80H0B106HACww w.vtechhotelphones.com SIP CORDED DESKSETVTECH TELECOMMUNICATIONS LTD. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPER ATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: 1) THIS DEVICE M A Y NOT CAUSE HARMFU L INTERFERENCE; AND 2) THIS DEVICE MUST ACCEPT AN Y INTERFERENCE RECEIVED, INCLUDING INTERFERENCE TH AT M AY CAUSE UNDESIRED OPER ATION.PRIVACY OF COMMUNICATIONS MAY NOT BE ENSURED WHEN USING THIS PHONE. CLASS (CLASSE) 2DC5.1V 1300mA

INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 1 of 8 SIP Corded Deskset assembly SIP Corded Deskset Main PCB comp side (View 1) INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 2 of 8 SIP Corded Deskset Main PCB comp side (View 2) SIP Corded Deskset Main PCB solder side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 3 of 8 SIP Corded Deskset On/ Off Hook front side SIP Corded Deskset On/ Off Hook rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 4 of 8 SIP Corded Deskset LED front side SIP Corded Deskset LED rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 5 of 8 SIP Corded Deskset Keypad front side SIP Corded Deskset Keypad rear side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 6 of 8 SIP Corded Deskset Antenna SIP Corded Deskset Mic.. Board front side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 7 of 8 SIP Corded Deskset Mic.. Board rear side SIP Corded Deskset Oscillator PCB comp side INTERTEK TESTING SERVICES Internal photos FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 internal photos - 8 of 8 SIP Corded Deskset Oscillator PCB solder side

INTERTEK TESTING SERVICES FCC ID:EW780-H0B1-06 RF exposure info- 1 of 1 For Maximum Permissible Exposure (MPE) evaluation of the base unit, the maximum power density at 20 cm from this mobile transmitter shall be less than the General Population / Uncontrolled MPE limit in OET Bulletin 65 and meet the requirement listed in KDB447498. The setup and equipment setting were made in accordance with ANSI C63.17. The antenna of EUT transmitter was replaced by a coaxial cable. The impendence matching of connection, cable loss and external RF attenuator are taken into account. The EUT was arranged to communicate via a fixed carrier frequency between its transmitter and a companion device. The transmission was configured in burst mode with pseudo-random data as typical as normal operation. For the 1.9GHz DECT SIP Corded Deskset of tested model: CTM-S242P, the m easured powers among all the measured channels were within its production tolerance: +16dBm (Minimum) and +21 dBm (Maximum). The antenna gain of CTM-S242P is 0 dBi and its maximum source-based time-averaging duty factor is 4.2% (1/24x100%). From these data and its operating configuration – Mobile device, the exposed power density at a distance (R) of 20cm from the center of radiation of the antenna can be calculated according to OET Bulletin 65 as follow: The Conducted Power = 21dBm = 125.9 mW The Conducted Power source-based time-averaging output power = (125.9 * 0.042) mW = 5.29 mW The power density at 20 cm = 5.29 *1/ 4πR 2 = 0.001 mW cm -2 In the frequency range of 1,500 - 100,000MHz, the MPE limit is 1.0 mWcm -2 for general population and uncontrolled exposure. As the measured power density at 20cm from the transmitter is lower than the MPE limit, the compliance to the MPE limit can be ensured by indicating the minimum 20cm separation between the transmitter's radiating structures and body of the user or nearby persons. The following RF exposure statement is proposed to be included in the user manual: “ FCC RF Radiation Exposure Statement Caution: To maintain compliance with the FCC’s RF exposure guidelines, place the base unit at least 20cm from nearby persons.” EUT Spectrum Analyzer Companion Device Directional Coupler

Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12090298-1 Page 1 of 69 FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com GENERAL INFORMATION Applicant Name: VTech Telecommunications Ltd. Applicant Address: 23/F., Tai Ping Industrial Centre, Block 1, 57 Ting Kok Road, Tai Po, N.T., Hong Kong. FCC Specification Standard: FCC Part 15, October 1, 2011 Edition and 77 FR 43013, July 23, 2012 FCC ID: EW780-H0B1-06 FCC Model(s): CTM-S241P, CTM-S242P IC Specification Standard: RSS-213 Issue 2, December 2005 RSS-Gen Issue 3, December 2010 IC: 1135B-80H0B106 IC Model(s): CTM-S241P, CTM-S242P Type of EUT: Unlicensed Personal Communications Service Devices Description of EUT: 1.9GHz DECT SIP Corded Deskset Serial Number: N/A Sample Receipt Date: September 11, 2012 Date of Test: September 19 - 20, 2012 Report Date: November 08, 2012 Environmental Conditions: Temperature: +10 to 40°C Humidity: 10 to 90% Issuing Laboratory: Intertek Testing Services Hong Kong Limited Hong Kong Accreditation Service (HKAS) has accredited this laboratory under the Hong Kong Laboratory Accreditation Scheme (HOKLAS) for specific laboratory activities as listed in the HOKLAS directory of accredited laboratories. The results shown in this report were determined by this laboratory in accordance with its terms of accreditation. Test Report Number: HK12090298-1 Page 2 of 69 FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 Intertek Testing Services Hong Kong Ltd. 2/F., Garment Centre, 576 Castle Peak Road, Kowloon, Hong Kong. Tel: (852) 2173 8888 Fax: (852) 2785 5487 Website: www.hk.intertek-etlsemko.com Table of Contents 1.0 Test Results Summary & Statement of Compliance.............................................. 5 1.1 Summary of Test Results ....................................................................................... 5 1.2 Statement of Compliance ....................................................................................... 7 2.0 General Description................................................................................................. 9 2.1 Product Description ................................................................................................. 9 2.2 Technical Description .............................................................................................. 9 2.3 Test Methodology.................................................................................................... 9 2.4 Test Facility........................................................................................................... 10 3.0 System Test Configuration.................................................................................... 12 3.1 Justification ........................................................................................................... 12 3.2 Conducted Emission Test Configuration ................................................................ 13 3.3 Conducted Monitoring and Operational Test Configuration .................................... 13 3.4 EUT Exercising Software....................................................................................... 13 3.5 Details of EUT and Description of Accessories...................................................... 14 3.6 Measurement Uncertainty ..................................................................................... 14 4.0 Measurement Results............................................................................................ 16 4.1 Antenna Requirement........................................................................................... 16 4.2 Digital Modulation Techniques............................................................................... 16 4.3 Emission Bandwidth.............................................................................................. 17 4.4 Directional Gain of the Antenna ............................................................................. 20 4.5 Peak Transmit Power ............................................................................................ 21 4.6 Power Spectral Density ......................................................................................... 24 4.7 Automatic Discontinuation of Transmission............................................................ 27 4.8 Unwanted Emission Inside the Sub-Band .............................................................. 28 4.9 Emissions Outside the Sub-Band .......................................................................... 32 4.9.1 Radiated Emissions Configuration Photographs ................................................. 33 4.9.2 Radiated Emissions Data ................................................................................... 33 4.9.3 Field Strength Calculation................................................................................... 40 4.9.4 Average Factor Calculation and Transmitter ON Time Measurements ................ 41 4.10 AC Power Line Conducted Emissions ................................................................. 42 4.10.1 AC Power Line Conducted Emissions Configuration Photographs .................... 43 4.10.2 AC Power Line Conducted Emissions Data ...................................................... 43 4.11 Radio Frequency Radiation Exposure.................................................................. 48 4.12 Frame Repetition Stability .......................................................…

Text truncated - open the document above for the full version.

VTech Telecommunications Ltd Sep 01, 2012 To whom it may concern, Declarations FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 I, the undersigned, hereby declare that 1. The device does not use the provisions of 47CFR 15.323 (c) (6), random waiting mechanism is not used in this system. 2. The provisions of 47CFR 15.323 (c) (10) and 47CFR 15.323 (c) (11) are not used to extend the range of spectrum occupied over space or time for the purpose of denying fair access to spectrum to other devices. 3. Only the SIP corded Deskset will act as the initiating device, which will initiate the establishment of the duplex connection. 4. For FCC only, the Upper Monitoring Threshold of SIP Corded Deskset is -60.8 dBm 5. The device complies with the provisions of 47CFR 15.319(f). The device shall automatically discontinue transmission in case of either absence of information to transmit or operational failure. These provisions are not intended to preclude transmission of control and signaling information or use of repetitive codes used by certain digital technologies to complete frame or burst intervals. The following table explains the reaction of device in case of either absence of information to transmit or operational failure after a connection of its companion device is established. Circumstances Reaction of SIP Corded Deskset 1 Switch-off companion device NA 2 On hook by companion device NA 3 Remove power from companion device A 4 Switch-off device NA 5 On hook device C 6 Remove power from device C A – Connection is terminated and, transmission ceases. B – Connection is terminated but device transmits control or signaling information. C – Connection is terminated but companion device transmits control or signaling information. N A – Not applicable represents the device does not contain a hook switch or a power off switch. If you have questions or need further information, please contact the undersigned. Regards, Samson Man Approbation Supervisor

INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Transmission + USB charging FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 config photos (radiated emission – corded deskset) - 1 of 1 Radiated Emission – SIP Corded Deskset (with adaptor “Ten Pao”) Front View Rear View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (Line 1 + Line 2 conference) + USB Charging FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 config photos (conducted emission) - 1 of 2 Conducted Emission (with adaptor “Sunstrong”) Front View Right Side View INTERTEK TESTING SERVICES The Worst Case Configuration Photographs - Mode: Talk (Line 1 + Line 2 conference) + USB Charging FCC ID: EW780-H0B1-06 IC: 1135B-80H0B106 config photos (conducted emission) - 2 of 2 Conducted Emission (with adaptor “Sunstrong”) Left Side View
